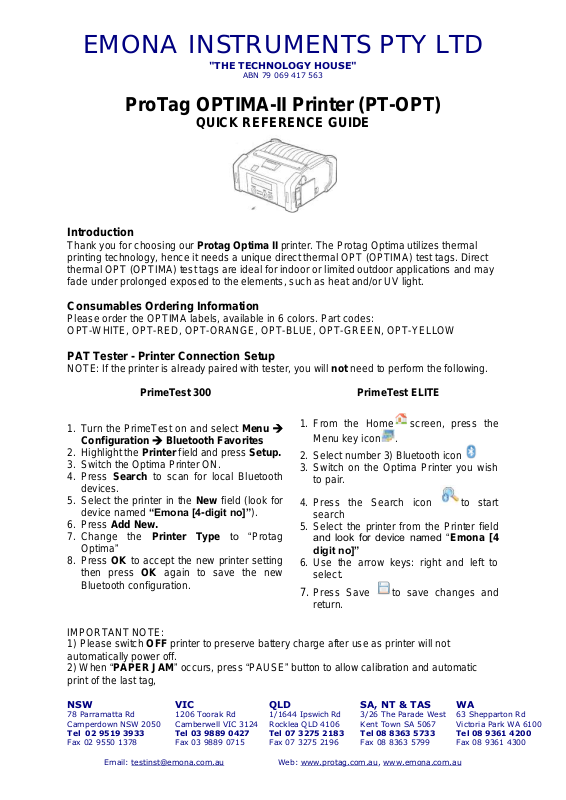

ProTag OPTIMA-II Printer (PT-OPT)

QUICK REFERENCE GUIDE

Introduction

Thank you for choosing our Protag Optima II printer. The Protag Optima utilizes thermal printing technology, hence it needs a unique direct thermal OPT (OPTIMA) test tags. Direct thermal OPT (OPTIMA) test tags are ideal for indoor or limited outdoor applications and may fade under prolonged exposed to the elements, such as heat and/or UV light.

Consumables Ordering Information

Please order the OPTIMA labels, available in 6 colors. Part codes: OPT-WHITE, OPT-RED, OPT-ORANGE, OPT-BLUE, OPT-GREEN, OPT-YELLOW

PAT Tester - Printer Connection Setup

NOTE: If the printer is already paired with tester, you will not need to perform the following.

PrimeTest 300

1. Turn the PrimeTest on and select Menu  Configuration  Bluetooth Favorites

2. Highlight the Printer field and press Setup.

3. Switch the Optima Printer ON.

4. Press Search to scan for local Bluetooth

1. From the Home screen, press the Menu key icon .

2. Select number 3) Bluetooth icon

3. Switch on the Optima Printer you wish to pair.

devices.

5. Select the printer in the New field (look for device named “Emona [4-digit no]”).

6. Press Add New.

7. Change the Printer Type to “Protag Optima”

8. Press OK to accept the new printer setting then press OK again to save the new Bluetooth configuration.

4. Press the Search icon to start search

5. Select the printer from the Printer field

and look for device named “Emona [4

digit no]”

6. Use the arrow keys: right and left to select.

7. Press Save to save changes and

return.

IMPORTANT NOTE:

1) Please switch OFF printer to preserve battery charge after use as printer will not automatically power off.

2) When “PAPER JAM” occurs, press “PAUSE” button to allow calibration and automatic print of the last tag,

PrimeTest ELITE
