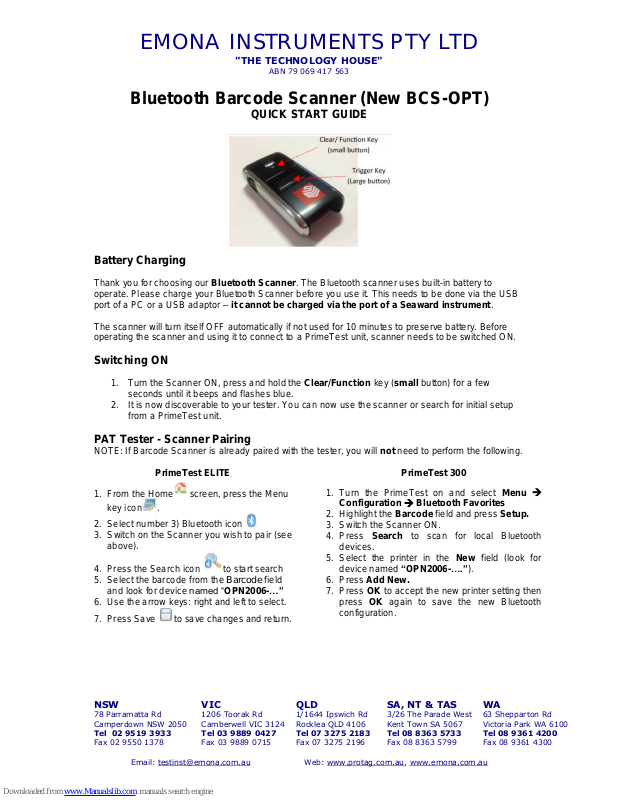

Bluetooth Barcode Scanner (New BCS-OPT)
QUICK START GUIDE
Battery Charging
Thank you for choosing our Bluetooth Scanner. The Bluetooth scanner uses built-in battery to operate. Please charge your Bluetooth Scanner before you use it. This needs to be done via the USB port of a PC or a USB adaptor – it cannot be charged via the port of a Seaward instrument.
The scanner will turn itself OFF automatically if not used for 10 minutes to preserve battery. Before operating the scanner and using it to connect to a PrimeTest unit, scanner needs to be switched ON.
Switching ON
1. Turn the Scanner ON, press and hold the Clear/Function key (small button) for a few seconds until it beeps and flashes blue.
2. It is now discoverable to your tester. You can now use the scanner or search for initial setup from a PrimeTest unit.
PAT Tester - Scanner Pairing
NOTE: If Barcode Scanner is already paired with the tester, you will not need to perform the following.
PrimeTest ELITE
1. From the Home screen, press the Menu key icon .
2. Select number 3) Bluetooth icon
3. Switch on the Scanner you wish to pair (see above).
4. Press the Search icon to start search
5. Select the barcode from the Barcode field and look for device named “OPN2006-…”
6. Use the arrow keys: right and left to select.
7. Press Save to save changes and return.
PrimeTest 300
1. Turn the PrimeTest on and select Menu Configuration Bluetooth Favorites
2. Highlight the Barcode field and press Setup.
3. Switch the Scanner ON.
4. Press Search to scan for local Bluetooth devices.
5. Select the printer in the New field (look for device named OPN2006-….”).
6. Press Add New.
7. Press OK to accept the new printer setting then press OK again to save the new Bluetooth configuration.
NSW
78 Parramatta Rd Camperdown NSW 2050
Tel 02 9519 3933
Fax 02 9550 1378
QLD
1/1644 Ipswich Rd Rocklea QLD 4106
Tel 07 3275 2183
Fax 07 3275 2196
SA, NT & TAS
3/26 The Parade West Kent Town SA 5067
Tel 08 8363 5733
Fax 08 8363 5799
WA
63 Shepparton Rd Victoria Park WA 6100
Tel 08 9361 4200
Fax 08 9361 4300
Email: testinst@emona.com.au Web: www.protag.com.au, www.emona.com.au
Using the Scanner
PrimeTest Elite
1. Switch ON the scanner by pressing Clear/function key (small button) until scanner flashes blue.
2. From the Home screen, press PAT key icon .
3. Select Auto Mode . PrimeTest will try to connect to scanner now.
4. When connection is made, scanner will beep and Bluetooth icon will appear.
5. Press trigger (large button) to scan a barcode.
PrimeTest 300
1. Switch scanner ON, by pressing Clear/function key (small button) until scanner flashes blue.
2. Start Menu Auto Mode. PrimeTest try to connect to the scanner.
3. When connection is made, scanner will beep, Bluetooth icon will appear on screen.
4. Press the trigger (large button) to scan a barcode. The scanner will beep when it detects a good barcode.
(Hint: if you press the Trigger key (large button) in an attempt to re-establish the connection this can put the scanner into an incorrect mode. To reset this, press and hold Clear/Function key (small button) until the scanner stops flashing and then again to re-establish the connection. (Note, if the above does not work may need to switch your instrument off then back on again).
