PRODUCT USER MANUAL
EMBE01
TABLE OF CONTENTS
1. PURPOSE .......................................................................................................................................................... 2
2. USER INSTRUCTIONS ...................................................................................................................................... 3
2.1. S
3. BATTERY REPLACEMENT INSTRUCTIONS .................................................................................................. 4
4. FCC & IC AUTHORIZATION ............................................................................................................................. 6
5. CE AUTHORIZATION ........................................................................................................................................ 6
TATE MACHINE
DEFINITION .................................................................................................................... 3
This document is the property of EM MICROELECTRONIC-MARIN SA upon the condition that all rights originating in the information, whether patented or not, will be
respected.
EMBE01 User Manual v0.1 January-2015
Page 2
PRELIMINARY
DRAFT A
1. PURPOSE
This is the product user manual. It contains FCC/CE/IC information, battery replacement instructions and a general
user’s guide.
This document is the property of EM MICROELECTRONIC-MARIN SA upon the condition that all rights originating in the information, whether patented or not, will be
respected.
EMBE01 User Manual v0.1 January-2015
Page 3
PRELIMINARY
DRAFT A
2. USER INSTRUCTIONS
EMBE01 is a Bluetooth low-energy proximity beacon. It is controlled by a push button switch, accessible only while
the case it open. Two LEDs, one red and one green will flash to indicate the state that the beacon is in according.
The standard firmware provided with each beacon is V2.8.0, and implements the state machine described below,
other state machines and beacon operations can be defined by reprogramming the EMBE01.
2.1. STATE MACHINE DEFINITION
The state-diagram for the EMBE01 is shown in Figure 1. The firmware implements the following modes:
• Self-test
• Sleep-mode
• Advertise Mode
• Lock Mode
Upon insertion of the battery, a self-test is performed, and EMBE01 then enters a low-power sleep mode. On
subsequent short button presses, the green LED flashes once and begins transmitting connectable
advertisements. A subsequent button press On the next short button press, the red LED flashes once and then
EMBE01 enters the low power sleep mode again. Subsequent short presses iterates between Sleep and
Advertisement modes. In any state, if a long button press is performed (longer than 2 seconds), the green LED will
flash twice and EMBE01 will stay in that mode until the end of battery life.
This document is the property of EM MICROELECTRONIC-MARIN SA upon the condition that all rights originating in the information, whether patented or not, will be
respected.

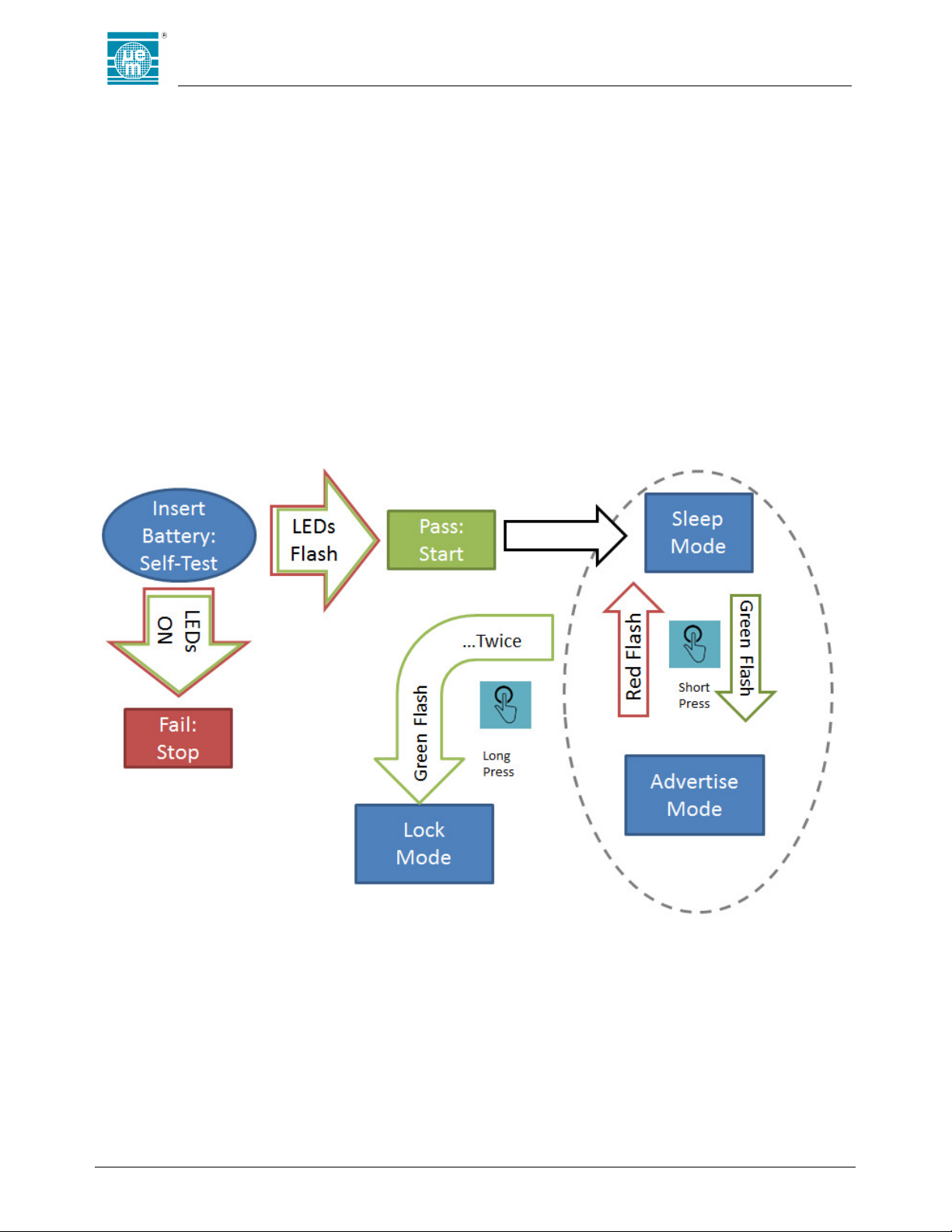

Figure 1: EMBE01 State-Diagram
EMBE01 User Manual v0.1 January-2015
Page 4
PRELIMINARY
DRAFT A
3. BATTERY REPLACEMENT INSTRUCTIONS
The EMBE01 is powered by four AA batteries. When the beacon stops functioning the battery will need to
be replaced. The step-by-step sequence to replace the expired battery with a fresh one is given in the steps
below.
Step 1: Remove the EMBE01 from the wall mount as shown in Figure 1. Gently lift the tab using a small pry
tool to unclip the unit form the wall mount. If installed, the security screw must be removed prior to lifting the
tab. To remove from the mount, tilt the device forward then lift out of the wall mount as shown in Figure 2.

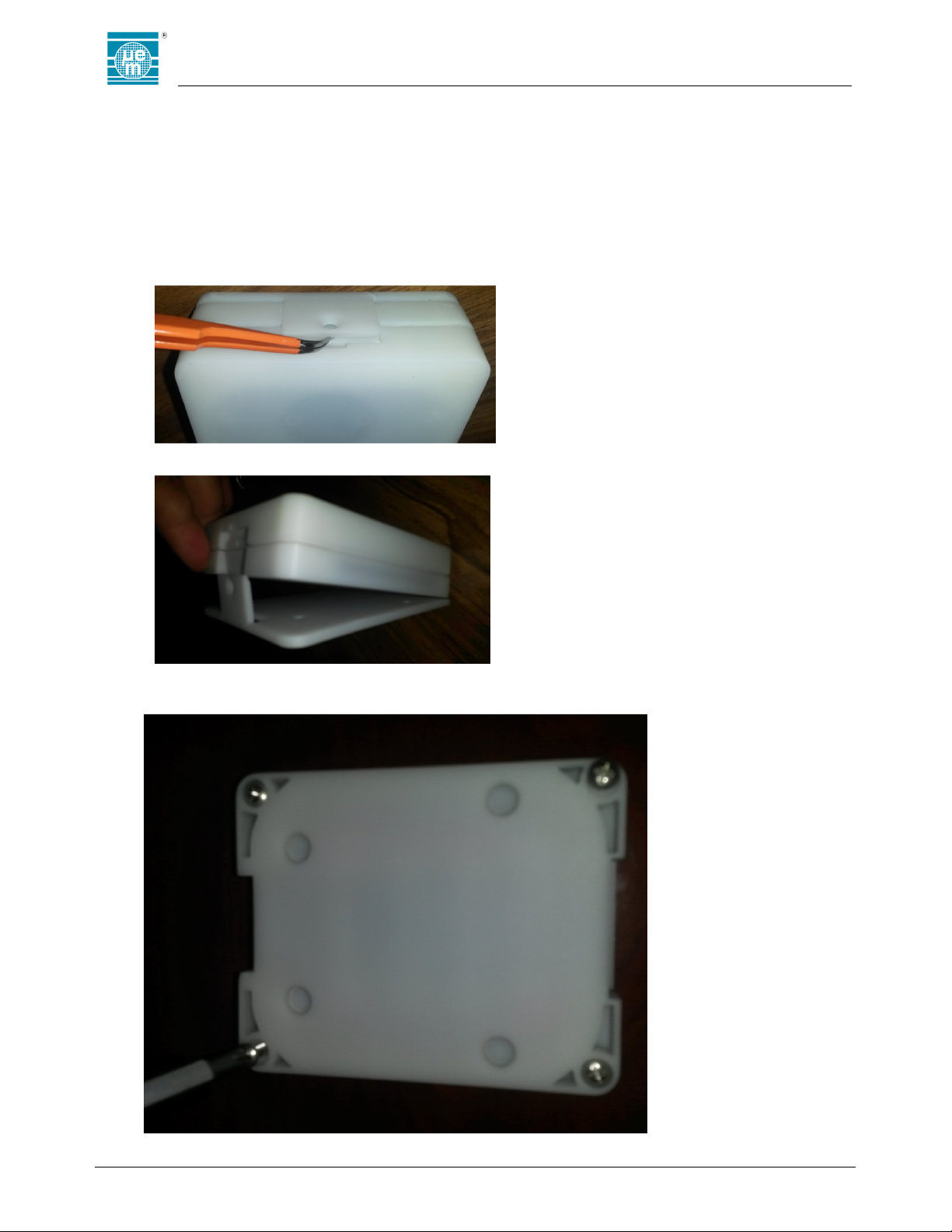

Figure 1: Lift wall mount tab using small pry tool
Figure 2: Tilt device forward then lift to remove from mount
Step 2: Open the beacon housing. Remove the 4 screws in the order indicated in Figure 3.
1
4
2
3
Figure 3: Remove screws in indicated direction and lift off cover
This document is the property of EM MICROELECTRONIC-MARIN SA upon the condition that all rights originating in the information, whether patented or not, will be
respected.
EMBE01 User Manual v0.1 January-2015
Page 5
PRELIMINARY

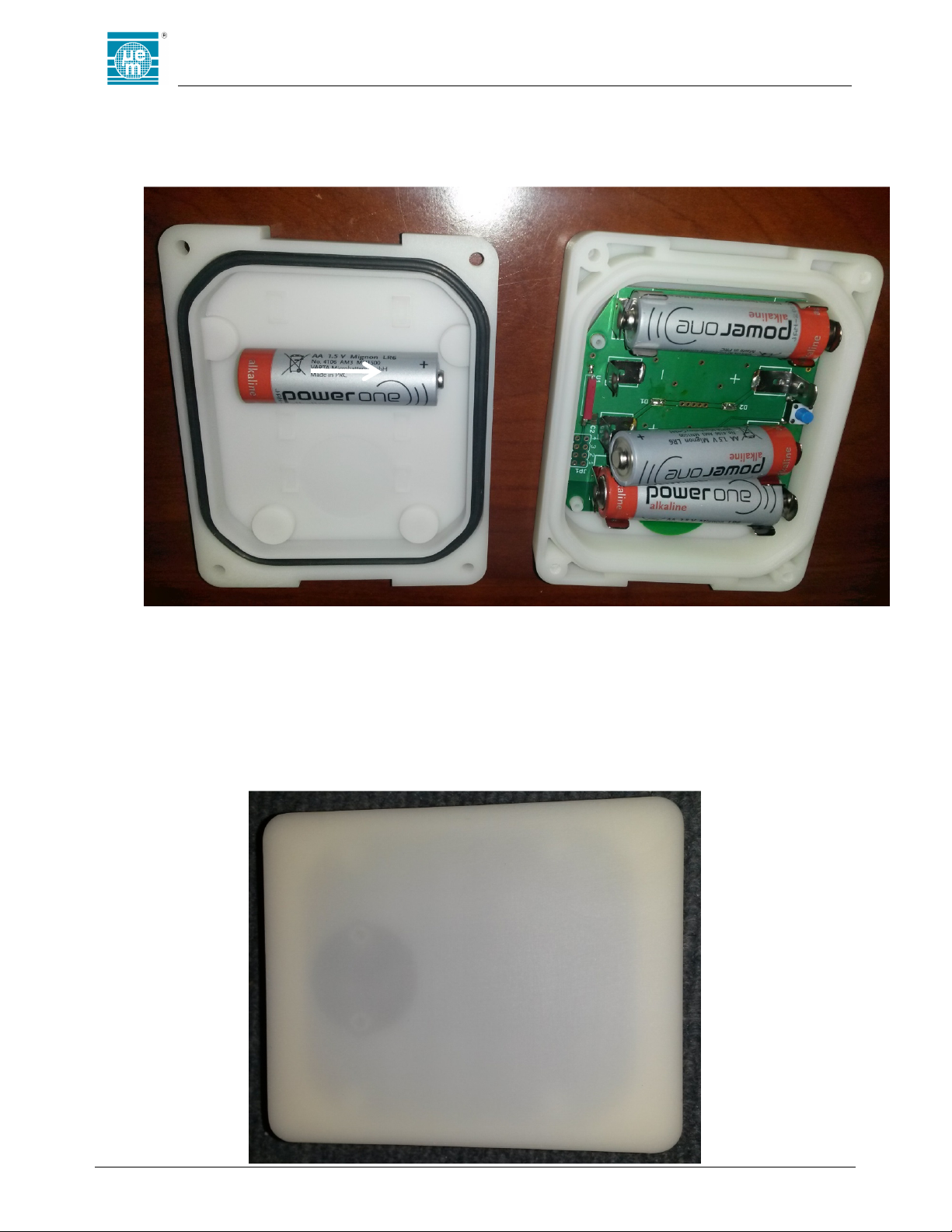

Step 3: Remove the battery. Slide the battery out from the holder.
DRAFT A
Step 4: Replace the battery with new 1.5v AA batteries. Reverse the sequence in step 3 above. Care must
be taken to confirm the polarity of the batteries prior to insertion.
Step 5: Reinstall the screws following the instructions in Step 2 in reverse order. Hand tighten, but do not
over tighten screws.
Step 6: Reinstall in wall mount following reverse instructions from step 1
This document is the property of EM MICROELECTRONIC-MARIN SA upon the condition that all rights originating in the information, whether patented or not, will be
respected.
EMBE01 User Manual v0.1 January-2015
Page 6
PRELIMINARY
DRAFT A
4. FCC AUTHORIZATION
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment.
5. IC AUTHORIZATION
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.”
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement
6. CE AUTHORIZATION
Hereby, EM Microelectronic – Marin SA, declares that this EMBE01 is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Par la présente EM Microelectronic – Marin SA déclare que l'appareil EMBE01 est conforme aux exigences
essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
The complete Declaration of Conformity can be found at
http://www.emmicroelectronic.com/products/wireless-rf
