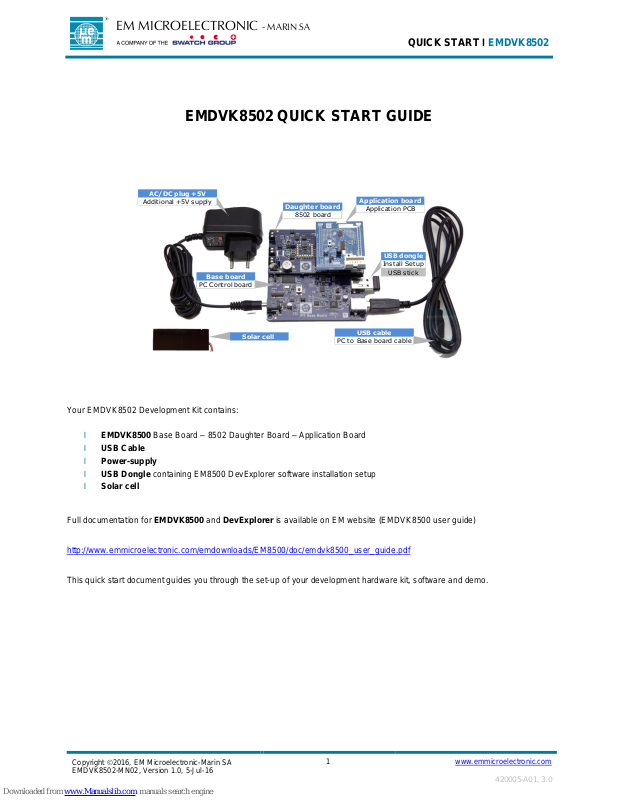

EMDVK8502 QUICK START GUIDE
AC/DC plug +5V
Additional +5V supply
USB cable
PC to Base board c able
USB dongle
Install Setup
USB stick
Application board
Application PCB
Base board
PC Control board
Daughter board
8502 board
Solar cell
Your EMDVK8502 Development Kit contains:
Ɩ EMDVK8500 Base Board – 8502 Daughter Board – Application Board
Ɩ USB Cable
Ɩ Power-supply
Ɩ USB Dongle containing EM8500 DevExplorer software installation setup
Ɩ Solar cell
Full documentation for EMDVK8500 and DevExplorer is available on EM website (EMDVK8500 user guide)
http://www.emmicroelectronic.com/emdownloads/EM8500/doc/emdvk8500_user_guide.pdf
This quick start document guides you through the set-up of your development hardware kit, software and demo.
EM MICROELECTRONIC - MARIN SA
QUICK START Ɩ EMDVK8502
Copyright 2016, EM Microelectronic-Marin SA
EMDVK8502-MN02, Version 1.0, 5-Jul-16
2
www.emmicroelectronic.com
420005-A01, 3.0

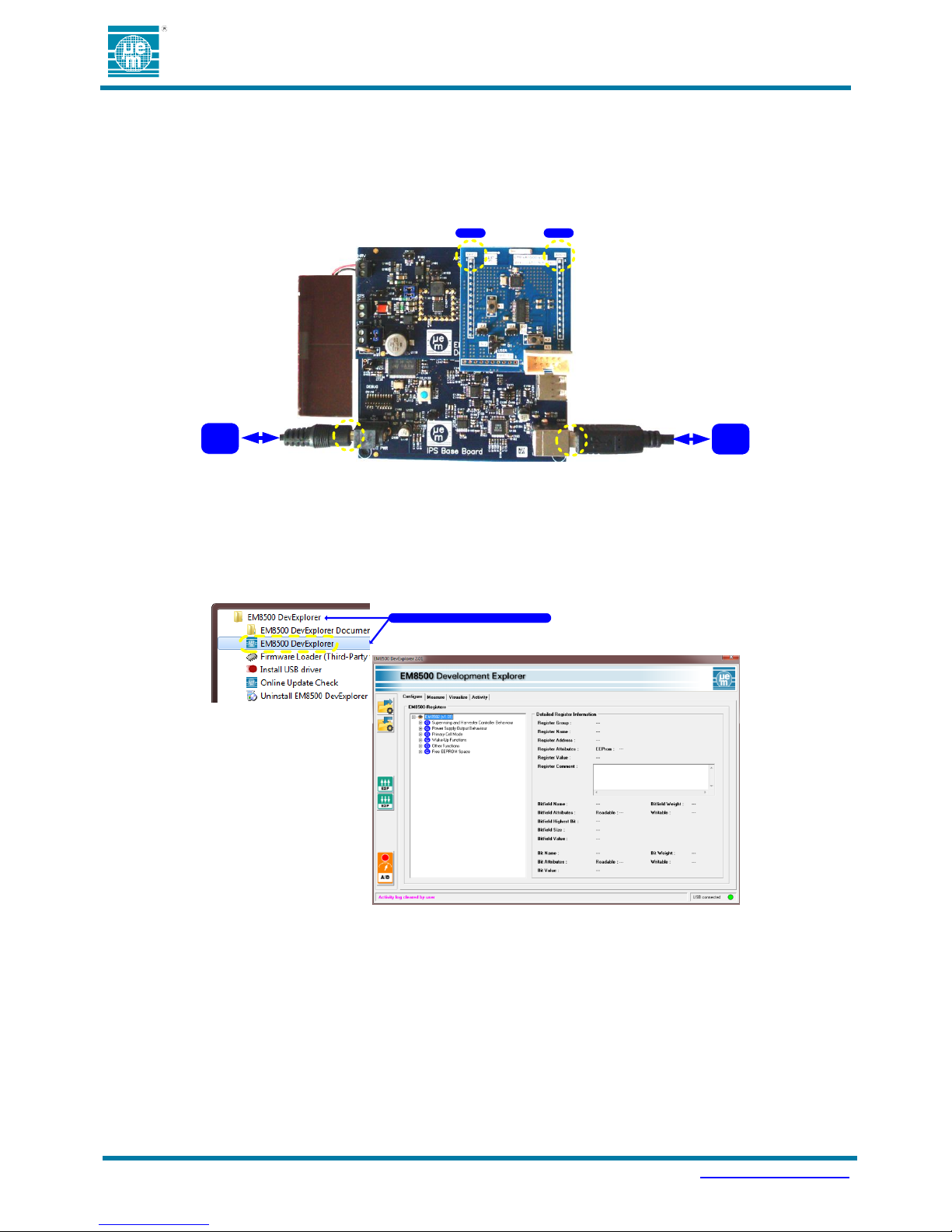

1 INSTALL THE EM8500 DEVEXPLORER SOFTWARE TOOL FROM THE USB DONGLE
Ɩ Connect the USB memory stick on the Base board (USB MEM connector)
Ɩ Connect the Base board (USB Host) to the PC using the USB cable.
Ɩ Skip and close the installation driver window that may pop-up.
Ɩ Open an explorer window.
Ɩ Click on the relevant USB stick drive.(EM8500 DevKit)
Ɩ Double click on the EM8500 DevExplorer setup executable file.
This setup will guide you through the installation process.
Any additional questions? Please refer to the EMDVK8500 User Guide
2 CHECK THE DAUGHTER BOARD CONFIGURATION
Ɩ Place the jumpers as shown below
J105 - LTS_CAP
Jumper to c onnec t
LTS s upercap
J102 - LTS_DISCONN
Jumper to c onnec t
LTS pin
J103 - STS_DISCONN
Jumper to c onnec t
STS pin
3 CONNECT THE SOLAR CELL TO THE HRV DAUGHTER BOARD SCREW TERMINAL
RED BLACK
HRV +
HRV -
SOLAR CELL
