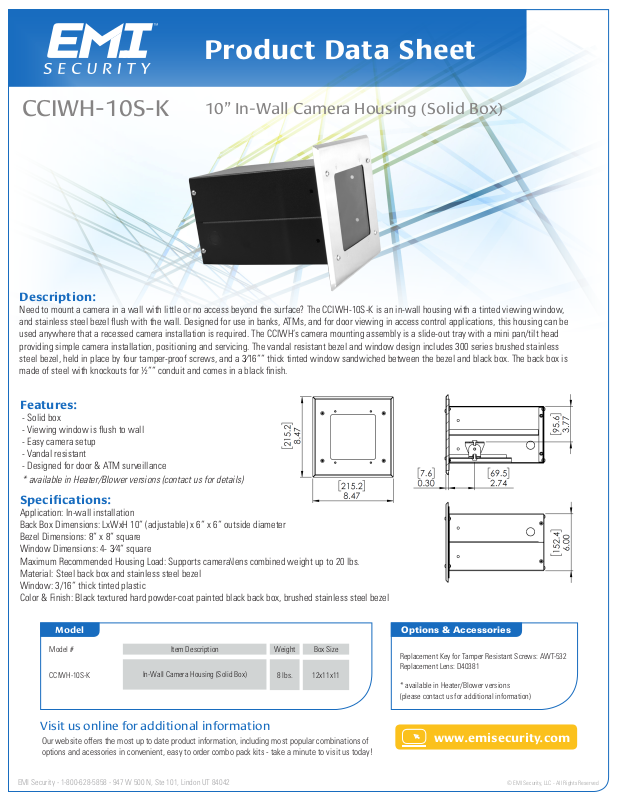

EMI Security CCIWH-10S-K Specsheet

Product Data Sheet

CCIWH-10S-K

10” In-Wall Camera Housing (Solid Box)

Description:

Need to mount a camera in a wall with little or no access beyond the surface? The CCIWH-10S-K is an in-wall housing with a tinted viewing window,
and stainless steel bezel ush with the wall. Designed for use in banks, ATMs, and for door viewing in access control applications, this housing can be
used anywhere that a recessed camera installation is required. The CCIWH’s camera mounting assembly is a slide-out tray with a mini pan/tilt head
providing simple camera installation, positioning and servicing. The vandal resistant bezel and window design includes 300 series brushed stainless
steel bezel, held in place by four tamper-proof screws, and a 3⁄16”” thick tinted window sandwiched between the bezel and black box. The back box is
made of steel with knockouts for ½”” conduit and comes in a black nish.

Features:

- Solid box

- Viewing window is ush to wall

- Easy camera setup

- Vandal resistant

- Designed for door & ATM surveillance

* available in Heater/Blower versions (contact us for details)

Specifications:

Application: In-wall installation
Back Box Dimensions: LxWxH 10” (adjustable) x 6” x 6” outside diameter
Bezel Dimensions: 8” x 8” square
Window Dimensions: 4- 3⁄4” square
Maximum Recommended Housing Load: Supports camera\lens combined weight up to 20 lbs.
Material: Steel back box and stainless steel bezel
Window: 3/16” thick tinted plastic
Color & Finish: Black textured hard powder-coat painted black back box, brushed stainless steel bezel

Model

CCIWH-10S-K

Item DescriptionModel #

In-Wall Camera Housing (Solid Box)

8 lbs.

Box SizeWeight

12x11x11

Options & Accessories

Replacement Key for Tamper Resistant Screws: AWT-532
Replacement Lens: D40381

* available in Heater/Blower versions
(please contact us for additional information)

Visit us online for additional information

Our website offers the most up to date product information, including most popular combinations of
options and acessories in convenient, easy to order combo pack kits - take a minute to visit us today!
