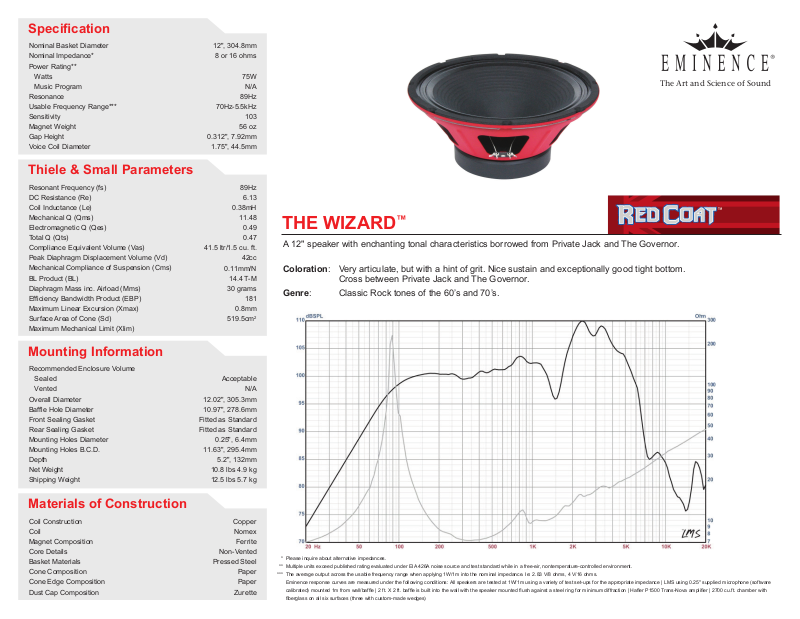

Eminence Wizard 8 Specifications Sheet

Page 1

Specication

Nominal Basket Diameter Nominal Impedance* Power Rating** Watts Music Program Resonance Usable Frequency Range*** Sensitivity Magnet Weight Gap Height Voice Coil Diameter

Thiele & Small Parameters

Resonant Frequency (fs) DC Resistance (Re) Coil Inductance (Le) Mechanical Q (Qms) Electromagnetic Q (Qes) Total Q (Qts) Compliance Equivalent Volume (Vas) Peak Diaphragm Displacement Volume (Vd) Mechanical Compliance of Suspension (Cms) BL Product (BL) Diaphragm Mass inc. Airload (Mms)

Efciency Bandwidth Product (EBP)

Maximum Linear Excursion (Xmax) Surface Area of Cone (Sd) Maximum Mechanical Limit (Xlim)

12", 304.8mm

8 or 16 ohms

75W

N/A

89Hz

70Hz-5.5kHz

103

56 oz

0.312", 7.92mm

1.75", 44.5mm

89Hz

6.13

0.38mH

11.48

0.49

0.47

41.5 ltr/1.5 cu. ft. 42cc

0.11mm/N

14.4 T-M

30 grams

181

0.8mm

519.5cm

THE WIZARD

™

A 12" speaker with enchanting tonal characteristics borrowed from Private Jack and The Governor.

Coloration:

Very articulate, but with a hint of grit. Nice sustain and exceptionally good tight bottom. Cross between Private Jack and The Governor.

Classic Rock tones of the 60’s and 70’s.Genre:

The Art and Science of Sound

Mounting Information

Recommended Enclosure Volume Sealed Vented Overall Diameter

Bafe Hole Diameter

Front Sealing Gasket Rear Sealing Gasket Mounting Holes Diameter Mounting Holes B.C.D. Depth Net Weight Shipping Weight

Materials of Construction

Coil Construction Coil Magnet Composition Core Details Basket Materials Cone Composition Cone Edge Composition Dust Cap Composition

Acceptable

N/A

12.02", 305.3mm

10.97", 278.6mm

Fitted as Standard Fitted as Standard

0.25", 6.4mm

11.63", 295.4mm

5.2", 132mm

10.8 lbs 4.9 kg

12.5 lbs 5.7 kg

Copper

Nomex

Ferrite

Non-Vented

Pressed Steel

Paper Paper

Zurette

Please inquire about alternative impedances.

Multiple units exceed published rating evaluated under EIA 426A noise source and test standard while in a free-air, nontemperature-controlled environment.

The average output across the usable frequency range when applying 1W/1m into the nominal impedance. Ie: 2.83 V/8 ohms, 4 V/16 ohms.

***

Eminence response curves are measured under the following conditions: All speakers are tested at 1W/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software

calibrated) mounted 1m from wall/bafe | 2 ft. X 2 ft. bafe is built into the wall with the speaker mounted ush against a steel ring for minimum diffraction | Haer P1500 Trans-Nova amplier | 2700 cu.ft. chamber with

berglass on all six surfaces (three with custom-made wedges)
