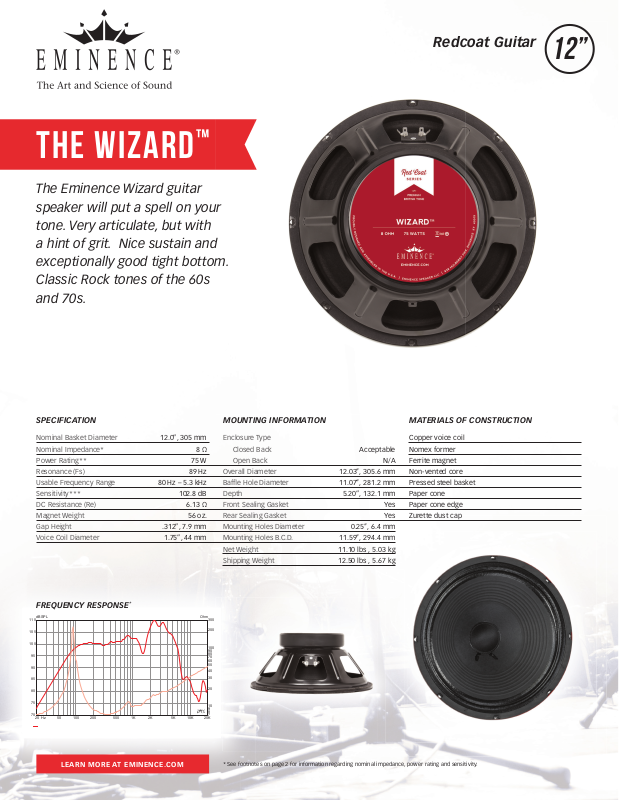

Eminence THE WIZARD Users Manual

SPL vs Freq

™

THE WIZARD

The Eminence Wizard guitar
speaker will put a spell on your
tone. Very articulate, but with
a hint of grit. Nice sustain and
exceptionally good tight bottom.
Classic Rock tones of the 60s
and 70s.

Redcoat Guitar

12”

SPECIFICATION MATERIALS OF CONSTRUCTIONMOUNTING INFORMATION

Nominal Basket Diameter
Nominal Impedance*
Power Rating**
Resonance (Fs)
Usable Frequency Range
Sensitivity***
DC Resistance (Re)
Magnet Weight
Gap Height
Voice Coil Diameter

FREQUENCY RESPONSE

dBSPL

110

105

100

95

90

85

80

75

70

20 Hz 50 100 200 500 1K 2K 5K 10K 20K

28: Spliced @ 250.0000 1/6 (SPLZ)

Map

*

12.0”, 305 mm

80 Hz – 5.3 kHz

102.8 dB

6.13 Ω
56 oz.

.312”, 7.9 mm

1.75”, 44 mm

75 W

89 Hz

Enclosure Type

8 Ω

Closed Back
Open Back
Overall Diameter
Baffle Hole Diameter
Depth
Front Sealing Gasket
Rear Sealing Gasket
Mounting Holes Diameter
Mounting Holes B.C.D.
Net Weight
Shipping Weight

Ohm

300

200

100
90
80
70

60
50

40

30

20

10
9
8
7

Acceptable

N/A

12.03’’, 305.6 mm

11.07’’, 281.2 mm

5.20”, 132.1 mm
Yes
Yes

0.25’’, 6.4 mm

11.59’’, 294.4 mm

11.10 lbs , 5.03 kg

12.50 lbs , 5.67 kg

Copper voice coil
Nomex former
Ferrite magnet
Non-vented core
Pressed steel basket
Paper cone
Paper cone edge
Zurette dust cap

LE AR N MO RE AT EM IN EN CE .C OM

* See footnotes on page 2 for information regarding nominal impedance, power rating and sensitivity.
