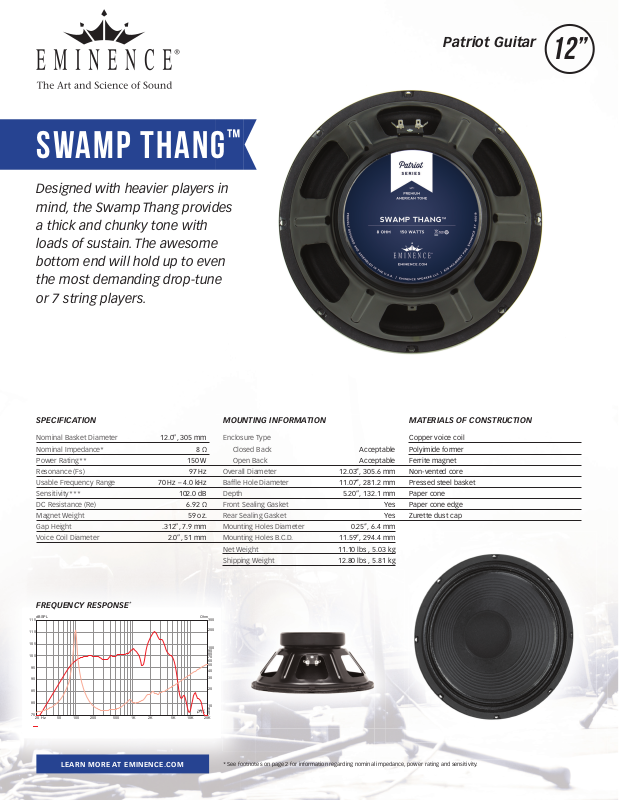

Eminence SWAMP THANG Users Manual

SPL vs Freq

™

SWAMP THANG

Designed with heavier players in
mind, the Swamp Thang provides
a thick and chunky tone with
loads of sustain. The awesome
bottom end will hold up to even
the most demanding drop-tune
or 7 string players.

Patriot Guitar

12”

SPECIFICATION MATERIALS OF CONSTRUCTIONMOUNTING INFORMATION

Nominal Basket Diameter
Nominal Impedance*
Power Rating**
Resonance (Fs)
Usable Frequency Range
Sensitivity***
DC Resistance (Re)
Magnet Weight
Gap Height
Voice Coil Diameter

FREQUENCY RESPONSE

dBSPL

115

110

105

100

95

90

85

80

75

20 Hz 50 100 200 500 1K 2K 5K 10K 20K

76: Spliced @ 250.0000 1/6 (SPLZ)

Map

*

12.0”, 305 mm

150 W

70 Hz – 4.0 kHz

102.0 dB

6.92 Ω
59 oz.

.312”, 7.9 mm

2.0”, 51 mm

97 Hz

Enclosure Type

8 Ω

Closed Back
Open Back
Overall Diameter
Baffle Hole Diameter
Depth
Front Sealing Gasket
Rear Sealing Gasket
Mounting Holes Diameter
Mounting Holes B.C.D.
Net Weight
Shipping Weight

Ohm

300

200

100
90
80
70

60
50

40

30

20

10
9
8
7

Acceptable
Acceptable

12.03’’, 305.6 mm

11.07’’, 281.2 mm

5.20”, 132.1 mm
Yes
Yes

0.25’’, 6.4 mm

11.59’’, 294.4 mm

11.10 lbs , 5.03 kg

12.80 lbs , 5.81 kg

Copper voice coil
Polyimide former
Ferrite magnet
Non-vented core
Pressed steel basket
Paper cone
Paper cone edge
Zurette dust cap

LE AR N MO RE AT EM IN EN CE .C OM

* See footnotes on page 2 for information regarding nominal impedance, power rating and sensitivity.
