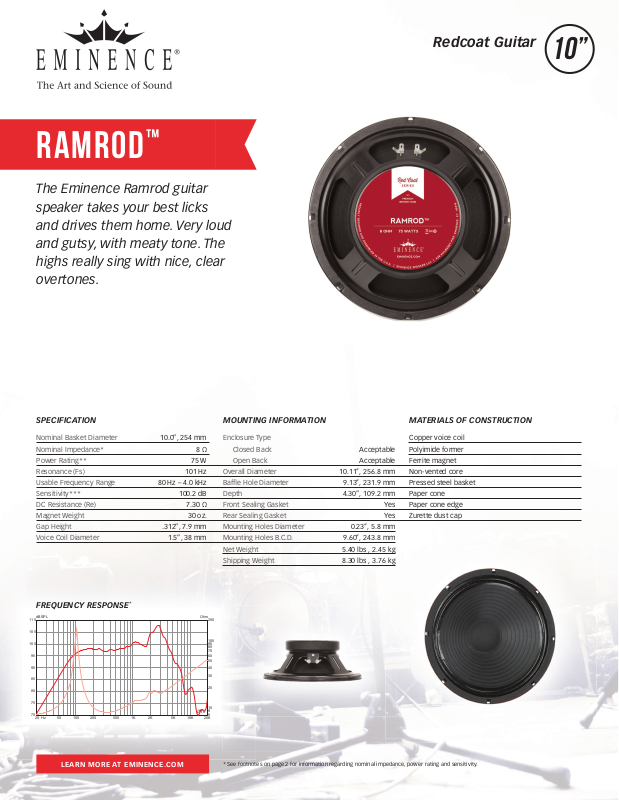

Eminence RAMROD Quick Start Guide

SPL vs Freq

™

RAMROD

The Eminence Ramrod guitar
speaker takes your best licks
and drives them home. Very loud
and gutsy, with meaty tone. The
highs really sing with nice, clear
overtones.

Redcoat Guitar

10”

SPECIFICATION MATERIALS OF CONSTRUCTIONMOUNTING INFORMATION

Nominal Basket Diameter
Nominal Impedance*
Power Rating**
Resonance (Fs)
Usable Frequency Range
Sensitivity***
DC Resistance (Re)
Magnet Weight
Gap Height
Voice Coil Diameter

FREQUENCY RESPONSE

dBSPL

110

105

100

95

90

85

80

75

70

20 Hz 50 100 200 500 1K 2K 5K 10K 20K

*

10.0”, 254 mm

75 W

101 Hz

80 Hz – 4.0 kHz

100.2 dB

7.30 Ω
30 oz.

.312”, 7.9 mm

1.5”, 38 mm

Enclosure Type

8 Ω

Closed Back
Open Back
Overall Diameter
Baffle Hole Diameter
Depth
Front Sealing Gasket
Rear Sealing Gasket
Mounting Holes Diameter
Mounting Holes B.C.D.
Net Weight
Shipping Weight

Ohm

200

100
90
80
70

60

50

40

30

20

10
9
8

Acceptable
Acceptable

10.11’’, 256.8 mm

9.13’’, 231.9 mm

4.30”, 109.2 mm
Yes
Yes

0.23’’, 5.8 mm

9.60’’, 243.8 mm

5.40 lbs , 2.45 kg

8.30 lbs , 3.76 kg

Copper voice coil
Polyimide former
Ferrite magnet
Non-vented core
Pressed steel basket
Paper cone
Paper cone edge
Zurette dust cap

LE AR N MO RE AT EM IN EN CE .C OM

* See footnotes on page 2 for information regarding nominal impedance, power rating and sensitivity.
