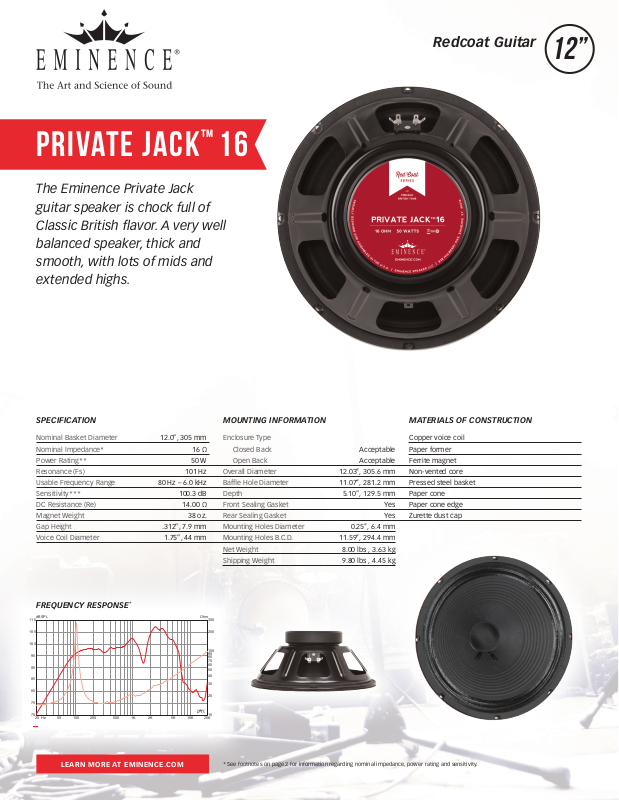

Eminence Private Jack 16 Data sheet

SPL vs Freq

PRIVATE JACK™ 16

The Eminence Private Jack guitar speaker is chock full of Classic British ﬂavor. A very well balanced speaker, thick and smooth, with lots of mids and extended highs.

Redcoat Guitar

12”

Specification MaterialS of conStructionMountinG inforMation

Nominal Basket Diameter Nominal Impedance* Power Rating** Resonance (Fs) Usable Frequency Range Sensitivity*** DC Resistance (Re) Magnet Weight Gap Height Voice Coil Diameter

FREQUENCY RESPONSE

dBSPL

110

105

100

20 Hz 50 100 200 500 1K 2K 5K 10K20K

59: Spliced @ 250.0000 1/6 (SPLZ)

12.0”, 305 mm

101 Hz

80 Hz – 6.0 kHz

100.3 dB

14.00 Ω 38 oz.

.312”, 7.9 mm

1.75”, 44 mm

16 Ω

50 W

Enclosure Type Closed Back Open Back Overall Diameter Bafﬂe Hole Diameter Depth Front Sealing Gasket Rear Sealing Gasket Mounting Holes Diameter Mounting Holes B.C.D. Net Weight Shipping Weight

Ohm

300

200

100 90 80 70

60 50

Acceptable Acceptable

12.03’’, 305.6 mm

11.07’’, 281.2 mm

5.10”, 129.5 mm Yes Yes

0.25’’, 6.4 mm

11.59’’, 294.4 mm

8.00 lbs , 3.63 kg

9.80 lbs , 4.45 kg

Copper voice coil Paper former Ferrite magnet Non-vented core Pressed steel basket Paper cone Paper cone edge Zurette dust cap

learn more at eminence.com
