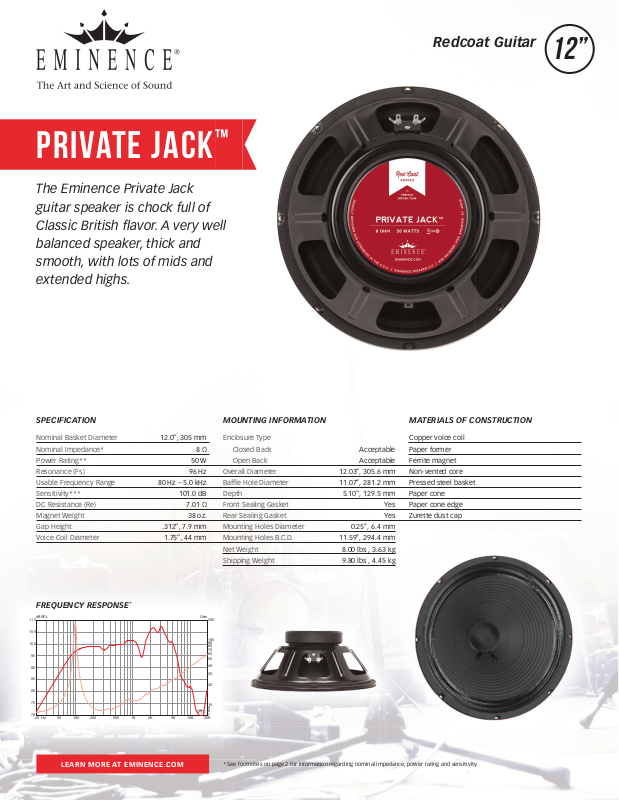

Eminence PRIVATE JACK PRIVATE JACK Spec-Sheet

SPL vs Freq

™

PRIVATE JACK

The Eminence Private Jack
guitar speaker is chock full of
Classic British flavor. A very well
balanced speaker, thick and
smooth, with lots of mids and
extended highs.

Redcoat Guitar

12”

SPECIFICATION MATERIALS OF CONSTRUCTIONMOUNTING INFORMATION

Nominal Basket Diameter
Nominal Impedance*
Power Rating**
Resonance (Fs)
Usable Frequency Range
Sensitivity***
DC Resistance (Re)
Magnet Weight
Gap Height
Voice Coil Diameter

FREQUENCY RESPONSE

dBSPL

110

105

100

95

90

85

80

75

70

20 Hz 50 100 200 500 1K 2K 5K 10K 20K

*

12.0”, 305 mm

50 W

96 Hz

80 Hz – 5.0 kHz

101.0 dB

7.01 Ω
38 oz.

.312”, 7.9 mm

1.75”, 44 mm

Enclosure Type

8 Ω

Closed Back
Open Back
Overall Diameter
Baffle Hole Diameter
Depth
Front Sealing Gasket
Rear Sealing Gasket
Mounting Holes Diameter
Mounting Holes B.C.D.
Net Weight
Shipping Weight

Ohm

200

100
90
80
70

60
50

40

30

20

10
9
8
7

Acceptable
Acceptable

12.03’’, 305.6 mm

11.07’’, 281.2 mm

5.10”, 129.5 mm
Yes
Yes

0.25’’, 6.4 mm

11.59’’, 294.4 mm

8.00 lbs , 3.63 kg

9.80 lbs , 4.45 kg

Copper voice coil
Paper former
Ferrite magnet
Non-vented core
Pressed steel basket
Paper cone
Paper cone edge
Zurette dust cap

LE ARN MO RE AT E MIN ENC E. COM

* See footnotes on page 2 for information regarding nominal impedance, power rating and sensitivity.
