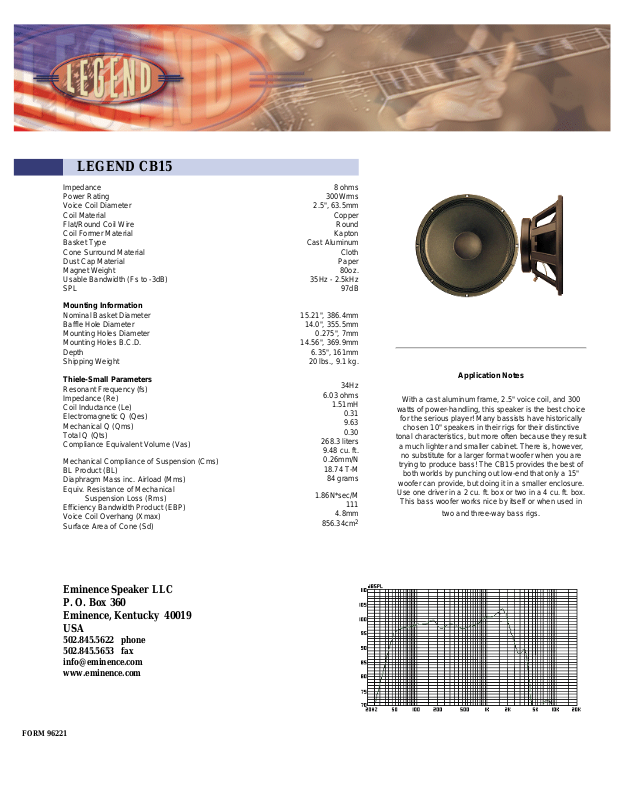

LEGEND CB15
Impedance
Power Rating
Voice Coil Diameter
Coil Material
Flat/Round Coil Wire
Coil Former Material
Basket Type
Cone Surround Material
Dust Cap Material
Magnet Weight
Usable Bandwidth (Fs to -3dB)
SPL
Mounting Information
Nominal Basket Diameter
Baffle Hole Diameter
Mounting Holes Diameter
Mounting Holes B.C.D.
Depth
Shipping Weight
Thiele-Small Parameters
Resonant Frequency (fs)
Impedance (Re)
Coil Inductance (Le)
Electromagnetic Q (Qes)
Mechanical Q (Qms)
Total Q (Qts)
Compliance Equivalent Volume (Vas)
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
Diaphragm Mass inc. Airload (Mms)
Equiv. Resistance of Mechanical
Suspension Loss (Rms)
Efficiency Bandwidth Product (EBP)
Voice Coil Overhang (Xmax)
Surface Area of Cone (Sd)
8 ohms
300Wrms
2.5", 63.5mm
Copper
Round
Kapton
Cast Aluminum
Cloth
Paper
80oz.
35Hz - 2.5kHz
97dB
15.21", 386.4mm
14.0", 355.5mm
0.275", 7mm
14.56", 369.9mm
6.35", 161mm
20 lbs., 9.1 kg.
34Hz
6.03 ohms
1.51mH
0.31
9.63
0.30
268.3 liters
9.48 cu. ft.
0.26mm/N
18.74 T-M
84 grams
1.86N*sec/M
111
4.8mm
856.34cm
2
Application Notes
With a cast aluminum frame, 2.5" voice coil, and 300
watts of power-handling, this speaker is the best choice
for the serious player! Many bassists have historically
chosen 10" speakers in their rigs for their distinctive
tonal characteristics, but more often because they result
a much lighter and smaller cabinet. There is, however,
no substitute for a larger format woofer when you are
trying to produce bass! The CB15 provides the best of
both worlds by punching out low-end that only a 15"
woofer can provide, but doing it in a smaller enclosure.
Use one driver in a 2 cu. ft. box or two in a 4 cu. ft. box.
This bass woofer works nice by itself or when used in
two and three-way bass rigs.
Eminence Speaker LLC
P. O. Box 360
Eminence, Kentucky 40019
USA
502.845.5622 phone
502.845.5653 fax
[email protected]
www.eminence.com
FORM 96221
