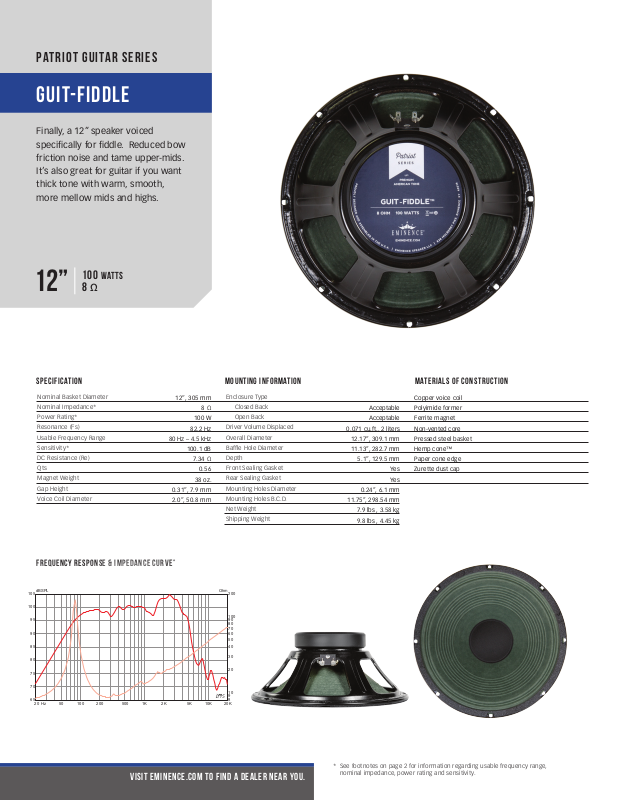

Eminence Guit-Fiddle Data sheet
Patriot Guitar series
guit-fiddle
Finally, a 12” speaker voiced
specifically for fiddle. Reduced bow
friction noise and tame upper-mids.
It’s also great for guitar if you want
thick tone with warm, smooth,
more mellow mids and highs.
100 WATTS
12”
8 Ω
Specification Mounting inforMation MaterialS of conStruction
Nominal Basket Diameter
Nominal Impedance*
Power Rating*
Resonance (Fs)
Usable Frequency Range
Sensitivity*
DC Resistance (Re)
Qts
Magnet Weight
Gap Height
Voice Coil Diameter
freQuencY reSponSe & iMpedance curve
dBSPL
105
100
95
90
85
80
75
70
65
20 Hz 50 100 200 500 1K 2K 5K 10K20K
SPL vs Freq
12”, 305 mm
100 W
82.2 Hz
80 Hz – 4.5 kHz
100.1 dB
7.34 Ω
38 oz.
0.31”, 7.9 mm
2.0”, 50.8 mm
*
Enclosure Type
Closed Back
8 Ω
Open Back
Driver Volume Displaced
Overall Diameter
Baffle Hole Diameter
Depth
Front Sealing Gasket
0.56
Rear Sealing Gasket
Mounting Holes Diameter
Mounting Holes B.C.D.
Net Weight
Shipping Weight
Ohm
200
100
90
80
70
60
50
40
30
20
10
9
8
Acceptable
Acceptable
0.071 cu.ft., 2 liters
12.17’’, 309.1 mm
11.13’’, 282.7 mm
5.1”, 129.5 mm
Yes
Yes
0.24’’, 6.1 mm
11.75’’, 298.54 mm
7.9 lbs , 3.58 kg
9.8 lbs , 4.45 kg
Copper voice coil
Polyimide former
Ferrite magnet
Non-vented core
Pressed steel basket
Hemp cone™
Paper cone edge
Zurette dust cap
Visit eminence.com to find a dealer near you.
* See footnotes on page 2 for information regarding usable frequency range,
nominal impedance, power rating and sensitivity.
