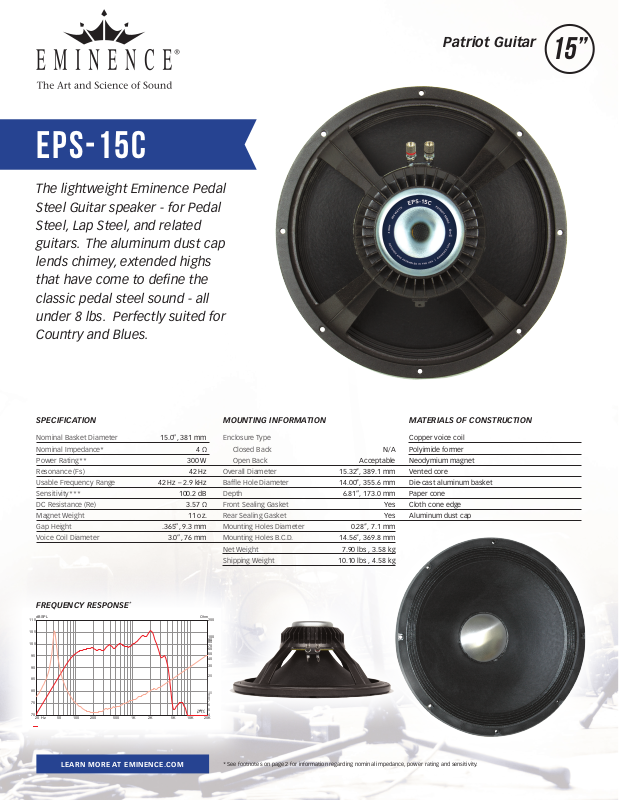

Eminence EPS-15C Data sheet
SPL vs Freq
EPS-15C
The lightweight Eminence Pedal
Steel Guitar speaker - for Pedal
Steel, Lap Steel, and related
guitars. The aluminum dust cap
lends chimey, extended highs
that have come to define the
classic pedal steel sound - all
under 8 lbs. Perfectly suited for
Country and Blues.
Patriot Guitar
15”
Specification MaterialS of conStructionMountinG inforMation
Nominal Basket Diameter
Nominal Impedance*
Power Rating**
Resonance (Fs)
Usable Frequency Range
Sensitivity***
DC Resistance (Re)
Magnet Weight
Gap Height
Voice Coil Diameter
FREQUENCY RESPONSE
dBSPL
110
105
100
95
90
85
80
75
70
20 Hz 50 100 200 500 1K 2K 5K 10K20K
80: PS15 SPLZ for catalog
p
*
15.0”, 381 mm
300 W
42 Hz – 2.9 kHz
100.2 dB
3.57 Ω
11 oz.
.365”, 9.3 mm
3.0”, 76 mm
42 Hz
Enclosure Type
4 Ω
Closed Back
Open Back
Overall Diameter
Baffle Hole Diameter
Depth
Front Sealing Gasket
Rear Sealing Gasket
Mounting Holes Diameter
Mounting Holes B.C.D.
Net Weight
Shipping Weight
Ohm
200
100
90
80
70
60
50
40
30
20
10
9
8
7
6
5
4
N/A
Acceptable
15.32’’, 389.1 mm
14.00’’, 355.6 mm
6.81”, 173.0 mm
Yes
Yes
0.28’’, 7.1 mm
14.56’’, 369.8 mm
7.90 lbs , 3.58 kg
10.10 lbs , 4.58 kg
Copper voice coil
Polyimide former
Neodymium magnet
Vented core
Die-cast aluminum basket
Paper cone
Cloth cone edge
Aluminum dust cap
learn more at eminence.com
* See footnotes on page 2 for information regarding nominal impedance, power rating and sensitivity.
From design and manufacturing to the stage or studio. Once you’ve
experienced the performance of Eminence, you’ll never accept
anything else.
mission statement
footnotes
Eminence is dedicated to providing the best Quality, Value and Service
to meet our customers’ needs.
* Please consult www.eminence.com for specifications of models with alternative
impedances.
** Multiple units exceed published ratings evaluated under EIA 426A specification while
tested in a free-air, non-temperature-controlled environment.
*** The average output across the usable frequency range when applying 1W/1m into the
nominal impedance. i.e: 2.83V/8Ω, 4V/16Ω. Eminence response curves are measured
under the following conditions: All speakers are tested at 1W/1m using a variety of test
set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software
calibrated) mounted 1m from wall/baffle | 2 ft. x 2 ft. baffle is built into the wall with
the speaker mounted flush against a steel ring for minimum diffraction | Carver PM-120
amplifier | 2700 cu. ft. chamber with fiberglass on all six surfaces (three with custommade wedges).
**** BETA 8CX, 10CX, and 12CX are coaxial speakers with tweeter sold separately. Published
usable frequency response contingent upon use of ASD:1001 HF Driver.
***** Multiple units exceeded published ratings evaluated under EIA-426A or AES specification
while mounted on Eminence’s H290, H290S, or H2EA horn in a non-temperaturecontrolled environment.
******The average on axis output across the entire usable frequency range when applying
1W/1m into the nominal impedance, i.e. 2.83V/8Ω, 4V/16Ω. Eminence response curves
are measured under the following conditions: All speakers are tested at 1W/1m using
a variety of test set-ups for the appropriate impedance | LMS using 0.25” supplied
microphone (software calibrated) mounted 1m from wall/baffle | 2ft x 2ft baffle is built
into the wall with horn front mounted | Carver PM-120 amplifier | 2700 cu.ft. chamber
with fiberglass on all six surfaces (three with custom-made wedges).
Prices, specifications and product cosmetics are subject to change without notice.
