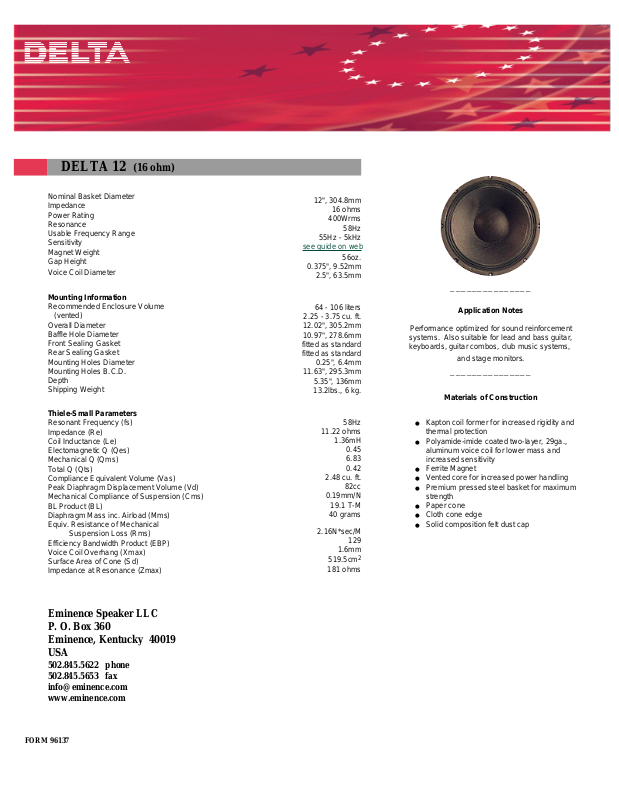

DELTA 12 (16 ohm)
0
Nominal Basket Diameter
Impedance
Power Rating
Resonance
Usable Frequency Range
Sensitivity
Magnet Weight
Gap Height
Voice Coil Diameter
Mounting Information
Recommended Enclosure Volume
(vented)
Overall Diameter
Baffle Hole Diameter
Front Sealing Gasket
Rear Sealing Gasket
Mounting Holes Diameter
Mounting Holes B.C.D.
Depth
Shipping Weight
Thiele-Small Parameters
Resonant Frequency (fs)
Impedance (Re)
Coil Inductance (Le)
Electomagnetic Q (Qes)
Mechanical Q (Qms)
Total Q (Qts)
Compliance Equivalent Volume (Vas)
Peak Diaphragm Displacement Volume (Vd)
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
Diaphragm Mass inc. Airload (Mms)
Equiv. Resistance of Mechanical
Suspension Loss (Rms)
Efficiency Bandwidth Product (EBP)
Voice Coil Overhang (Xmax)
Surface Area of Cone (Sd)
Impedance at Resonance (Zmax)
0
12", 304.8mm
16 ohms
400Wrms
58Hz
55Hz - 5kHz
see guide on web
56oz.
0.375", 9.52mm
2.5", 63.5mm
64 - 106 liters
2.25 - 3.75 cu. ft.
12.02", 305.2mm
10.97", 278.6mm
fitted as standard
fitted as standard
0.25", 6.4mm
11.63", 295.3mm
5.35", 136mm
13.2lbs., 6 kg.
58Hz
11.22 ohms
1.36mH
0.45
6.83
0.42
2.48 cu. ft.
82cc
0.19mm/N
19.1 T-M
40 grams
2.16N*sec/M
129
1.6mm
519.5cm
2
181 ohms
_______________
Application Notes
Performance optimized for sound reinforcement
systems. Also suitable for lead and bass guitar,
keyboards, guitar combos, club music systems,
and stage monitors.
_______________
Materials of Construction
● Kapton coil former for increased rigidity and
thermal protection
● Polyamide-imide coated two-layer, 29ga.,
aluminum voice coil for lower mass and
increased sensitivity
● Ferrite Magnet
● Vented core for increased power handling
● Premium pressed steel basket for maximum
strength
● Paper cone
● Cloth cone edge
● Solid composition felt dust cap
Eminence Speaker LLC
P. O. Box 360
Eminence, Kentucky 40019
USA
502.845.5622 phone
502.845.5653 fax
[email protected]
www.eminence.com
FORM 96137
