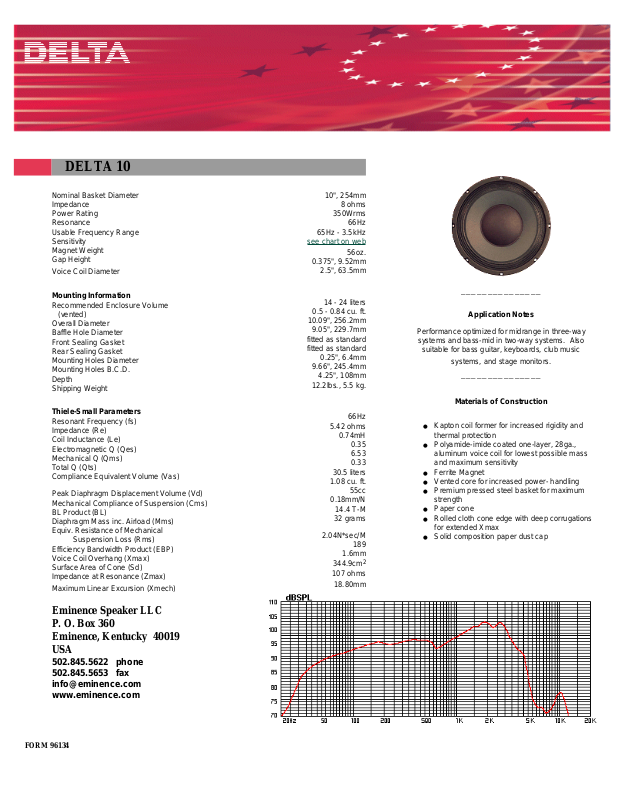

DELTA 10
Nominal Basket Diameter
Impedance
Power Rating
Resonance
Usable Frequency Range
Sensitivity
Magnet Weight
Gap Height
Voice Coil Diameter
Mounting Information
Recommended Enclosure Volume
(vented)
Overall Diameter
Baffle Hole Diameter
Front Sealing Gasket
Rear Sealing Gasket
Mounting Holes Diameter
Mounting Holes B.C.D.
Depth
Shipping Weight
Thiele-Small Parameters
Resonant Frequency (fs)
Impedance (Re)
Coil Inductance (Le)
Electromagnetic Q (Qes)
Mechanical Q (Qms)
Total Q (Qts)
Compliance Equivalent Volume (Vas)
Peak Diaphragm Displacement Volume (Vd)
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
Diaphragm Mass inc. Airload (Mms)
Equiv. Resistance of Mechanical
Suspension Loss (Rms)
Efficiency Bandwidth Product (EBP)
Voice Coil Overhang (Xmax)
Surface Area of Cone (Sd)
Impedance at Resonance (Zmax)
Maximum Linear Excursion (Xmech)
10", 254mm
8 ohms
350Wrms
66Hz
65Hz - 3.5kHz
see chart on web
56oz.
0.375", 9.52mm
2.5", 63.5mm
14 - 24 liters
0.5 - 0.84 cu. ft.
10.09", 256.2mm
9.05", 229.7mm
fitted as standard
fitted as standard
0.25", 6.4mm
9.66", 245.4mm
4.25", 108mm
12.2lbs., 5.5 kg.
66Hz
5.42 ohms
0.74mH
0.35
6.53
0.33
30.5 liters
1.08 cu. ft.
55cc
0.18mm/N
14.4 T-M
32 grams
2.04N*sec/M
189
1.6mm
344.9cm
2
107 ohms
18.80mm
_______________
Application Notes
Performance optimized for midrange in three-way
systems and bass-mid in two-way systems. Also
suitable for bass guitar, keyboards, club music
systems, and stage monitors.
_______________
Materials of Construction
● Kapton coil former for increased rigidity and
thermal protection
● Polyamide-imide coated one-layer, 28ga.,
aluminum voice coil for lowest possible mass
and maximum sensitivity
● Ferrite Magnet
● Vented core for increased power- handling
● Premium pressed steel basket for maximum
strength
● Paper cone
● Rolled cloth cone edge with deep corrugations
for extended Xmax
● Solid composition paper dust cap
Eminence Speaker LLC
P. O. Box 360
Eminence, Kentucky 40019
USA
502.845.5622 phone
502.845.5653 fax
[email protected]
www.eminence.com
FORM 96134
