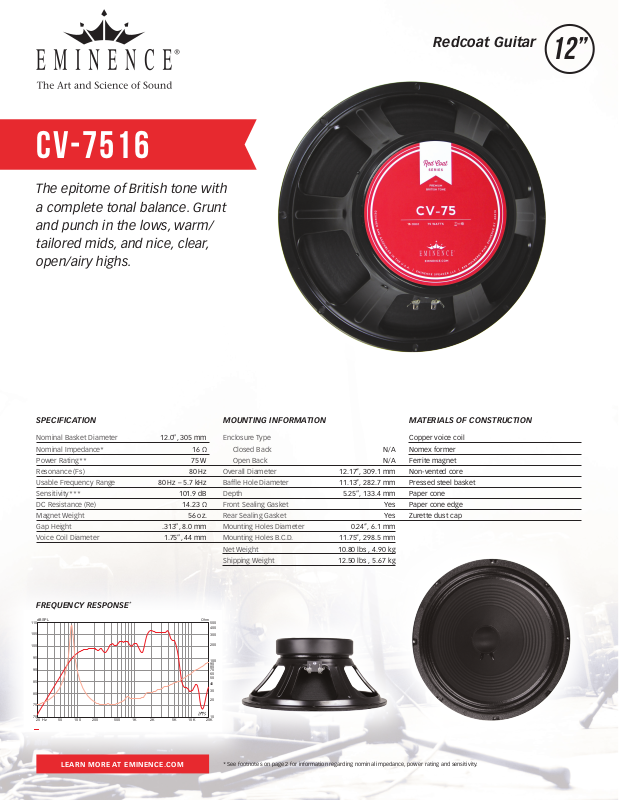

Eminence CV-7516 Data sheet

CV-7516

The epitome of British tone with
a complete tonal balance. Grunt
and punch in the lows, warm/
tailored mids, and nice, clear,
open/airy highs.

Redcoat Guitar

12”

Specification MaterialS of conStructionMountinG inforMation

Nominal Basket Diameter
Nominal Impedance*
Power Rating**
Resonance (Fs)
Usable Frequency Range
Sensitivity***
DC Resistance (Re)
Magnet Weight
Gap Height
Voice Coil Diameter

FREQUENCY RESPONSE

dBSPL

110

105

100

95

90

85

80

75

70

20 Hz 50 100 200 500 1K 2K 5K 10K20K

86: Spliced @ 175.0000 1/6 SPLZ

*

SPL vs Freq

12.0”, 305 mm
16 Ω

75 W

80 Hz

80 Hz – 5.7 kHz

101.9 dB

14.23 Ω
56 oz.

.313”, 8.0 mm

1.75”, 44 mm

Enclosure Type
Closed Back
Open Back
Overall Diameter
Baffle Hole Diameter
Depth
Front Sealing Gasket
Rear Sealing Gasket
Mounting Holes Diameter
Mounting Holes B.C.D.
Net Weight
Shipping Weight

Ohm

500

400

300

200

100
90
80
70

60
50

40

30

20

10

N/A
N/A

12.17’’, 309.1 mm

11.13’’, 282.7 mm

5.25”, 133.4 mm
Yes
Yes

0.24’’, 6.1 mm

11.75’’, 298.5 mm

10.80 lbs , 4.90 kg

12.50 lbs , 5.67 kg

Copper voice coil
Nomex former
Ferrite magnet
Non-vented core
Pressed steel basket
Paper cone
Paper cone edge
Zurette dust cap

learn more at eminence.com

* See footnotes on page 2 for information regarding nominal impedance, power rating and sensitivity.

From design and manufacturing to the stage or studio. Once you’ve
experienced the performance of Eminence, you’ll never accept
anything else.

mission statement

footnotes

Eminence is dedicated to providing the best Quality, Value and Service
to meet our customers’ needs.

* Please consult www.eminence.com for specifications of models with alternative

impedances.

** Multiple units exceed published ratings evaluated under EIA 426A specification while

tested in a free-air, non-temperature-controlled environment.

*** The average output across the usable frequency range when applying 1W/1m into the

nominal impedance. i.e: 2.83V/8Ω, 4V/16Ω. Eminence response curves are measured
under the following conditions: All speakers are tested at 1W/1m using a variety of test
set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software
calibrated) mounted 1m from wall/baffle | 2 ft. x 2 ft. baffle is built into the wall with
the speaker mounted flush against a steel ring for minimum diffraction | Carver PM-120
amplifier | 2700 cu. ft. chamber with fiberglass on all six surfaces (three with custom­made wedges).

**** BETA 8CX, 10CX, and 12CX are coaxial speakers with tweeter sold separately. Published

usable frequency response contingent upon use of ASD:1001 HF Driver.

***** Multiple units exceeded published ratings evaluated under EIA-426A or AES specification

while mounted on Eminence’s H290, H290S, or H2EA horn in a non-temperature­controlled environment.

******The average on axis output across the entire usable frequency range when applying

1W/1m into the nominal impedance, i.e. 2.83V/8Ω, 4V/16Ω. Eminence response curves
are measured under the following conditions: All speakers are tested at 1W/1m using
a variety of test set-ups for the appropriate impedance | LMS using 0.25” supplied
microphone (software calibrated) mounted 1m from wall/baffle | 2ft x 2ft baffle is built
into the wall with horn front mounted | Carver PM-120 amplifier | 2700 cu.ft. chamber
with fiberglass on all six surfaces (three with custom-made wedges).

Prices, specifications and product cosmetics are subject to change without notice.
