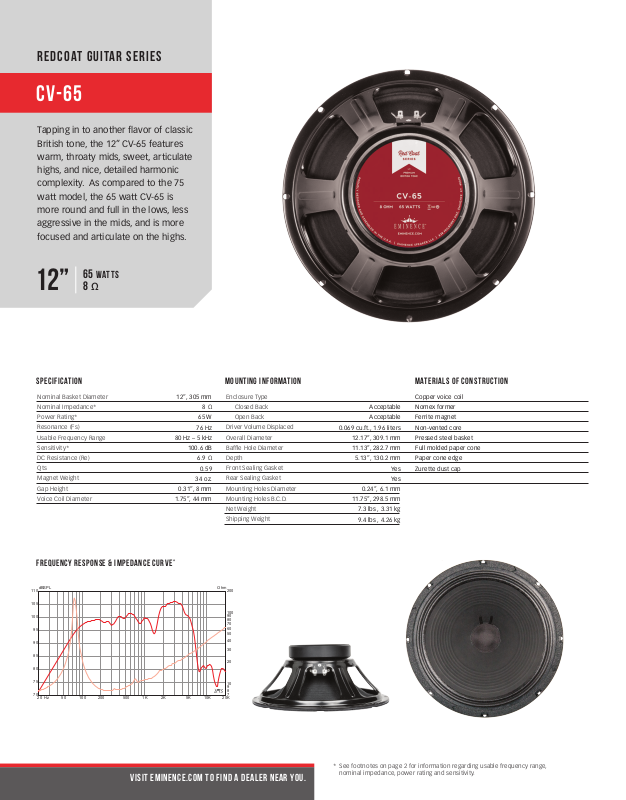

Eminence CV-65 Data sheet
Redcoat Guitar series
SPL vs Freq
CV-65
Tapping in to another flavor of classic
British tone, the 12” CV-65 features
warm, throaty mids, sweet, articulate
highs, and nice, detailed harmonic
complexity. As compared to the 75
watt model, the 65 watt CV-65 is
more round and full in the lows, less
aggressive in the mids, and is more
focused and articulate on the highs.
65 WATTS
12”
8 Ω
Specification Mounting inforMation MaterialS of conStruction
Nominal Basket Diameter
Nominal Impedance*
Power Rating*
Resonance (Fs)
Usable Frequency Range
Sensitivity*
DC Resistance (Re)
Qts
Magnet Weight
Gap Height
Voice Coil Diameter
freQuencY reSponSe & iMpedance curve
dBSPL
110
105
100
95
90
85
80
75
70
20 Hz 50 100 200 500 1K 2K 5K 10K20K
12”, 305 mm
80 Hz – 5 kHz
100.6 dB
0.31”, 8 mm
1.75”, 44 mm
*
Enclosure Type
Closed Back
8 Ω
Open Back
65 W
Driver Volume Displaced
76 Hz
Overall Diameter
Baffle Hole Diameter
Depth
6.9 Ω
Front Sealing Gasket
0.59
Rear Sealing Gasket
34 oz.
Mounting Holes Diameter
Mounting Holes B.C.D.
Net Weight
Shipping Weight
Ohm
200
100
90
80
70
60
50
40
30
20
10
9
8
7
Acceptable
Acceptable
0.069 cu.ft., 1.96 liters
12.17’’, 309.1 mm
11.13’’, 282.7 mm
5.13”, 130.2 mm
Yes
Yes
0.24’’, 6.1 mm
11.75’’, 298.5 mm
7.3 lbs , 3.31 kg
9.4 lbs , 4.26 kg
Copper voice coil
Nomex former
Ferrite magnet
Non-vented core
Pressed steel basket
Full molded paper cone
Paper cone edge
Zurette dust cap
Visit eminence.com to find a dealer near you.
* See footnotes on page 2 for information regarding usable frequency range,
nominal impedance, power rating and sensitivity.
footnotes
impedance
Please consult www.eminence.com for specifications of models with alternative
impedances.
power rating
Multiple units exceed published ratings evaluated under EIA 426A specification while
tested in a free-air, non-temperature-controlled environment. Multiple compression
drivers exceeded published ratings evaluated under EIA-426A or AES specification while
mounted on Eminence’s H290, H290S, or H2EA horn in a non-temperature-controlled
environment.
SenSitivity
The average output across the usable frequency range when applying 1W/1m into the
nominal impedance. i.e: 2.83V/8Ω, 4V/16Ω. Eminence response curves are measured
under the following conditions: All speakers are tested at 1W/1m using a variety of test
set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software
calibrated) mounted 1m from wall/baffle | 2 ft. x 2 ft. baffle is built into the wall with the
speaker mounted flush against a steel ring for minimum diffraction | Yamaha P3500S
amplifier | 2700 cu. ft. chamber with fiberglass on all six surfaces (three with custom-
made wedges). Compression drivers were tested using a 2ft x 2ft baffle built into the wall
with horn front mounted.
coaxialS
BETA 8CX, 10CX, and 12CX are coaxial speakers with tweeter sold separately. Published
usable frequency response contingent upon use of ASD:1001 HF Driver.
Prices, product cosmetics and specifications are subject to change without notice.
eminence speaker llc
838 Mulberry Pike, Eminence, KY 40019
