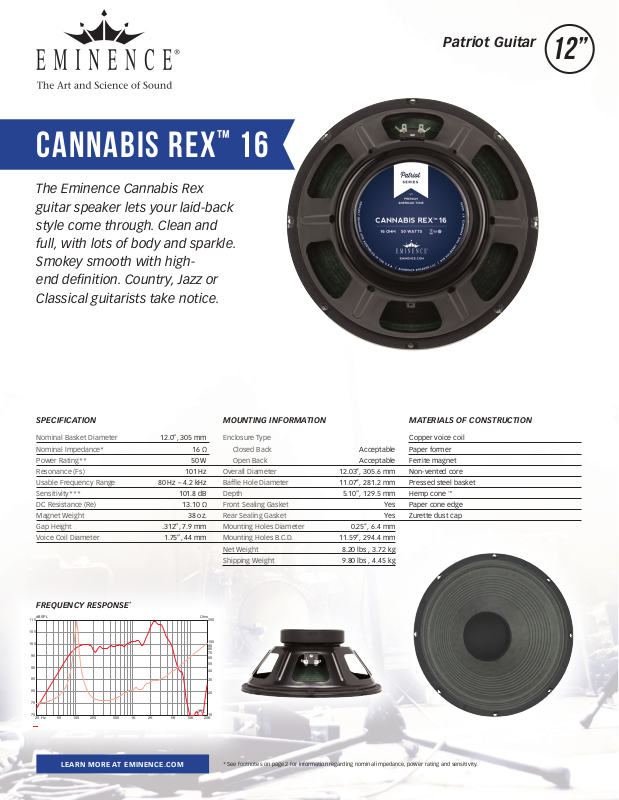

Eminence Cannabis Rex 16 Data sheet
SPL vs Freq
CANNABIS REX™ 16
The Eminence Cannabis Rex
guitar speaker lets your laid-back
style come through. Clean and
full, with lots of body and sparkle.
Smokey smooth with highend definition. Country, Jazz or
Classical guitarists take notice.
Patriot Guitar
12”
Specification MaterialS of conStructionMountinG inforMation
Nominal Basket Diameter
Nominal Impedance*
Power Rating**
Resonance (Fs)
Usable Frequency Range
Sensitivity***
DC Resistance (Re)
Magnet Weight
Gap Height
Voice Coil Diameter
FREQUENCY RESPONSE
dBSPL
110
105
100
95
90
85
80
75
70
20 Hz 50 100 200 500 1K 2K 5K 10K20K
61: Spliced @ 150.0000 1/6 (SPLZ)
p
*
12.0”, 305 mm
101 Hz
80 Hz – 4.2 kHz
101.8 dB
13.10 Ω
38 oz.
.312”, 7.9 mm
1.75”, 44 mm
16 Ω
50 W
Enclosure Type
Closed Back
Open Back
Overall Diameter
Baffle Hole Diameter
Depth
Front Sealing Gasket
Rear Sealing Gasket
Mounting Holes Diameter
Mounting Holes B.C.D.
Net Weight
Shipping Weight
Ohm
200
100
90
80
70
60
50
40
30
20
10
Acceptable
Acceptable
12.03’’, 305.6 mm
11.07’’, 281.2 mm
5.10”, 129.5 mm
Yes
Yes
0.25’’, 6.4 mm
11.59’’, 294.4 mm
8.20 lbs , 3.72 kg
9.80 lbs , 4.45 kg
Copper voice coil
Paper former
Ferrite magnet
Non-vented core
Pressed steel basket
Hemp cone
Paper cone edge
Zurette dust cap
™
learn more at eminence.com
* See footnotes on page 2 for information regarding nominal impedance, power rating and sensitivity.
From design and manufacturing to the stage or studio. Once you’ve
experienced the performance of Eminence, you’ll never accept
anything else.
mission statement
footnotes
Eminence is dedicated to providing the best Quality, Value and Service
to meet our customers’ needs.
* Please consult www.eminence.com for specifications of models with alternative
impedances.
** Multiple units exceed published ratings evaluated under EIA 426A specification while
tested in a free-air, non-temperature-controlled environment.
*** The average output across the usable frequency range when applying 1W/1m into the
nominal impedance. i.e: 2.83V/8Ω, 4V/16Ω. Eminence response curves are measured
under the following conditions: All speakers are tested at 1W/1m using a variety of test
set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software
calibrated) mounted 1m from wall/baffle | 2 ft. x 2 ft. baffle is built into the wall with
the speaker mounted flush against a steel ring for minimum diffraction | Carver PM-120
amplifier | 2700 cu. ft. chamber with fiberglass on all six surfaces (three with custommade wedges).
**** BETA 8CX, 10CX, and 12CX are coaxial speakers with tweeter sold separately. Published
usable frequency response contingent upon use of ASD:1001 HF Driver.
***** Multiple units exceeded published ratings evaluated under EIA-426A or AES specification
while mounted on Eminence’s H290, H290S, or H2EA horn in a non-temperaturecontrolled environment.
******The average on axis output across the entire usable frequency range when applying
1W/1m into the nominal impedance, i.e. 2.83V/8Ω, 4V/16Ω. Eminence response curves
are measured under the following conditions: All speakers are tested at 1W/1m using
a variety of test set-ups for the appropriate impedance | LMS using 0.25” supplied
microphone (software calibrated) mounted 1m from wall/baffle | 2ft x 2ft baffle is built
into the wall with horn front mounted | Carver PM-120 amplifier | 2700 cu.ft. chamber
with fiberglass on all six surfaces (three with custom-made wedges).
Prices, specifications and product cosmetics are subject to change without notice.
eminence speaker llc
838 Mulberry Pike, Eminence, KY 40019
