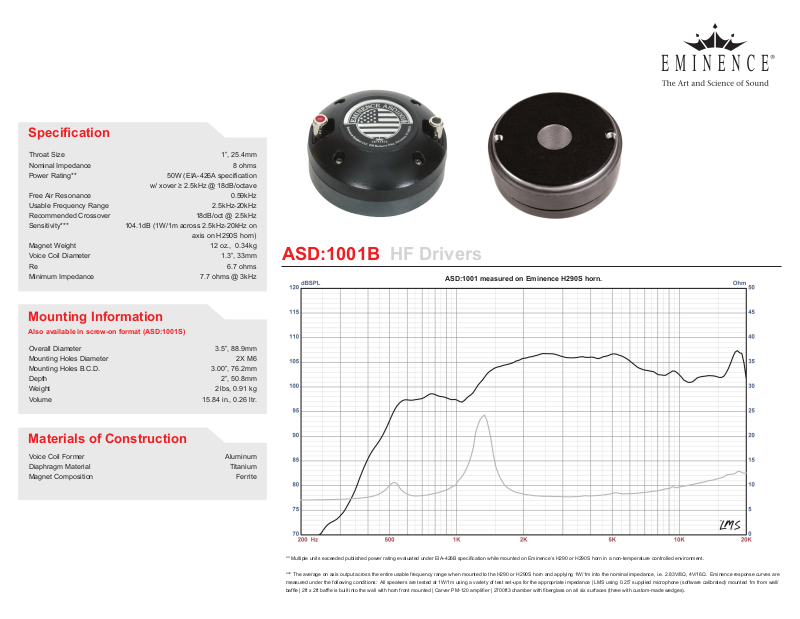

Eminence Asd 1001 B Specification
Specication
Throat Size
Nominal Impedance
Power Rating**
Free Air Resonance
Usable Frequency Range
Recommended Crossover
Sensitivity***
Magnet Weight
Voice Coil Diameter
Re
Minimum Impedance
104.1dB (1W/1m across 2.5kHz-20kHz on
50W (EIA-426A specication
w/ xover ≥ 2.5kHz @ 18dB/octave
Mounting Information
Also available in screw-on format (ASD:1001S)
Overall Diameter
Mounting Holes Diameter
Mounting Holes B.C.D.
Depth
Weight
Volume
Materials of Construction
Voice Coil Former
Diaphragm Material
Magnet Composition
1”, 25.4mm
8 ohms
0.59kHz
2.5kHz-20kHz
18dB/oct @ 2.5kHz
axis on H290S horn)
12 oz., 0.34kg
1.3”, 33mm
6.7 ohms
7.7 ohms @ 3kHz
3.5”, 88.9mm
2X M6
3.00”, 76.2mm
2”, 50.8mm
2 lbs, 0.91 kg
15.84 in., 0.26 ltr.
Aluminum
Titanium
Ferrite
ASD:1001B HF Drivers
ASD:1001 measured on Eminence H290S horn.
** Multiple units exceeded published power rating evaluated under EIA-426B specication while mounted on Eminence’s H290 or H290S horn in a non-temperature controlled environment.
*** The average on axis output across the entire usable frequency range when mounted to the H290 or H290S horn and applying 1W/1m into the nominal impedance, i.e. 2.83V/8Ω, 4V/16Ω. Eminence response curves are
measured under the following conditions: All speakers are tested at 1W/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25” supplied microphone (software calibrated) mounted 1m from wall/
bafe | 2ft x 2ft bafe is built into the wall with horn front mounted | Carver PM-120 amplier | 2700ft3 chamber with berglass on all six surfaces (three with custom-made wedges).
