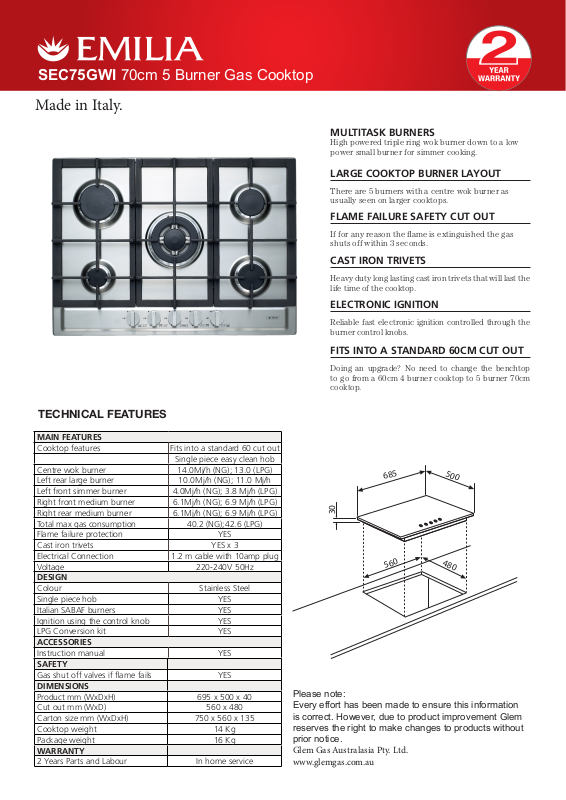

Emilia SEC75GWI Specifications Sheet

SEC75GWI 70cm 5 Burner Gas Cooktop

Made in Italy.

MULTITASK BURNERS

High powered triple ring wok burner down to a low power small burner for simmer cooking.

LARGE COOKTOP BURNER LAYOUT

There are 5 burners with a centre wok burner as usually seen on larger cooktops.

FLAME FAILURE SAFETY CUT OUT

If for any reason the ﬂame is extinguished the gas shuts off within 3 seconds.

CAST IRON TRIVETS

Heavy duty long lasting cast iron trivets that will last the life time of the cooktop.

ELECTRONIC IGNITION

Reliable fast electronic ignition controlled through the burner control knobs.

TECHNICAL FEATURES

MAIN FEATURES

Cooktop features Fits into a standard 60 cut out

Single piece easy clean hob Centre wok burner 14.0Mj/h (NG); 13.0 (LPG) Left rear large burner 10.0Mj/h (NG); 11.0 Mj/h Left front simmer burner 4.0Mj/h (NG); 3.8 Mj/h (LPG) Right front medium burner 6.1Mj/h (NG); 6.9 Mj/h (LPG) Right rear medium burner 6.1Mj/h (NG); 6.9 Mj/h (LPG) Total max gas consumption 40.2 (NG);42.6 (LPG) Flame failure protection YES Cast iron trivets YES x 3 Electrical Connection 1.2 m cable with 10amp plug Voltage 220-240V 50Hz

DESIGN

Colour Stainless Steel Single piece hob YES Italian SABAF burners YES Ignition using the control knob YES LPG Conversion kit YES

ACCESSORIES

Instruction manual YES

SAFETY

Gas shut off valves if ame fails YES

DIMENSIONS

Product mm (WxDxH) 695 x 500 x 40 Cut out mm (WxD) 560 x 480 Carton size mm (WxDxH) 750 x 560 x 135 Cooktop weight 14 Kg Package weight 16 Kg

WARRANTY

2 Years Parts and Labour In home service

FITS INTO A STANDARD 60CM CUT OUT

Doing an upgrade? No need to change the benchtop to go from a 60cm 4 burner cooktop to 5 burner 70cm cooktop.

685

560

Please note: Every effort has been made to ensure this information is correct. However, due to product improvement Glem reserves the right to make changes to products without prior notice.

Glem Gas Australasia Pty. Ltd. www.glemgas.com.au

500

480
