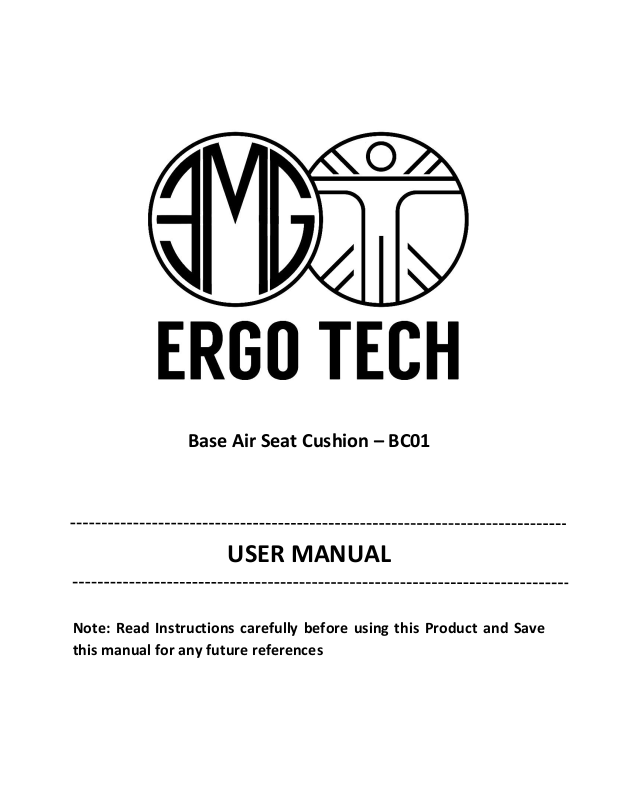

Base Air Seat Cushion – BC01
USER MANUAL
Note: Read Instructions carefully before using this Product and Save
this manual for any future references
About this manual:
This manual contains information on the operation and maintenance of your EMG
ErgoTech air cushion. You must read all these instructions carefully before using
the product. EMG ErgoTech is not responsible for any negative results / damage
to the product due to mishandling / inappropriate use. Failure to comply with the
included instructions for the product will void the warranty. If you have any
clarifications, please contact EMG ErgoTech.
Table of Contents
About this manual: ....................................................................................................................... 2
Intended Use: ................................................................................................................................ 3
What is Included: .......................................................................................................................... 4
Preliminary Inflation: .................................................................................................................... 5
Installation Possibilities: .............................................................................................................. 7
Pressure Adjustment: ................................................................................................................ 10
Products in this manual maybe covered by one or more US and Foreign patents and Trademarks. For
further details, please refer to www.emgergotech.com
EMG ErgoTech has a policy of continuous product improvement, and thus may amend this document
from time to time. For latest version of this document, please visit www.emgergotech.com
Intended Use:
EMG ErgoTech Air Cushion is a seat pad / seat overlay that provides the user with
unparalleled comfort during prolonged hours of sitting. This product is essentially
an air adjustable, cellular design support surface. The product can be used in the
following areas:
Household Seats (Chairs, Sofa, etc.,)
Office Chairs
Automotive (Car, Trucks, Tractors, etc.,)
Travel (Train, Aircraft, etc.,)
Wheel Chair
What is Included:
A – Air Cushion (Qty - 1)
B – Bulb Pump with release button (Qty - 1)
C – Cushion Cover with Anti Slip bottom (Qty - 1)
M – Mounting Harness (Qty - 2)
H – Pump Holster (Qty - 1)
MPH – Mounting Harness – Pump Holster (Qty – 1)
R – Repair Patches (Qty - 3)
Preliminary Inflation:
1. There are 2 inflation valves in the cushion – Mouth Valve on the left and
Pump Valve on the right (When looked from the front of the Cushion)
2. Hold the Mouth Valve, that is on the left-hand side (You can locate it in the
Vicinity of the Rubber Port) and push through the Rubber Port to bring out
the Mouth Valve
Pre-Caution: Inflate the cushion only 70-80% to have better comfort and long life
3. Rotate the valve in Anti-Clockwise direction to open and blow air using
mouth. This will inflate the cushion
4. When the cushion is inflated sufficiently, rotate the valve in Clockwise
direction to close it. Push the valve through the rubber port to place it
inside the cover.
Installation Possibilities:
1. EMG ErgoTech cushions have versatile design to fit on any type of chair.
The cover has 2 elastic loops on each side of the cover
2. There are 2 types of looping possibilities for any chair. Please find below
the 2 different configurations:

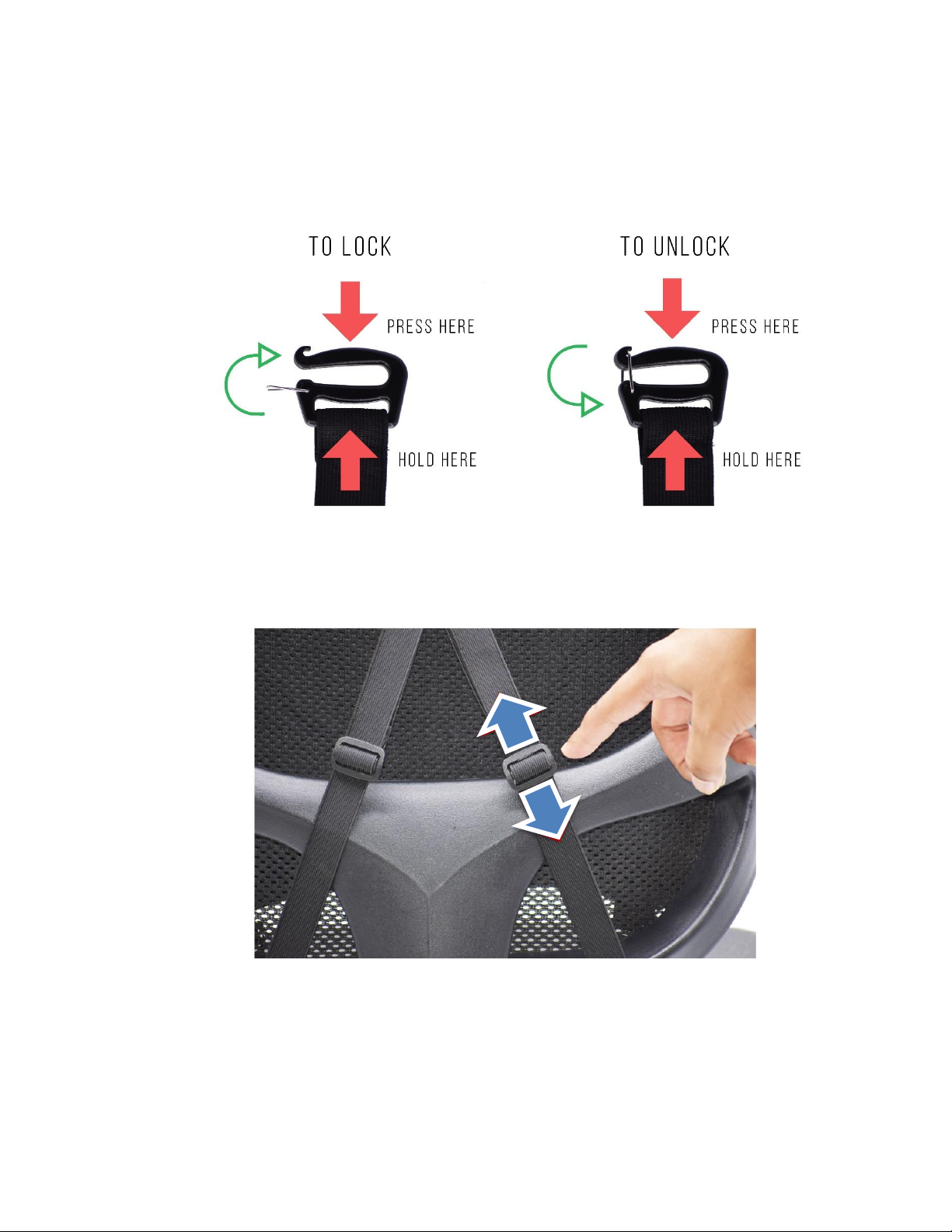

3. To attach the Harness to the cushion, Slide the Hook in to the Elastic Loop
and then lock the spring clip as shown below.
4. Run the Harness around the Chair’s Bottom Seating surface and hook into
the elastic loop on opposite end.
5. You can adjust the harness tension using the slider/adjuster as shown.
6. There are many Chair models in the market with different sizes and shapes,
some of the models and their installation pictures are given below.
However, it is not necessary to install in the above said methods, you can
install in the best convenient way possible according to your chair
Pre-Caution: Ensure that the loops do not stretch too much, ideal length of the loop
should be less than 1 inch / 25mm for longer life of the covers.
Pressure Adjustment:
1. To increase air pressure inside the cushion, take the bulb pump and
Squeeze it as shown. Continue pumping until the cushion is adequately
filled with air. DO NOT OVER INFLATE THE CUSHION.
2. Sit on the Cushion and adjust Air Pressure inside the cushion by Pressing
the release button on the bulb pump. Adjust the Air Pressure until you are
about 1/2 inch off the Bottom surface. Place the Bulb pump inside the
Pump Holster pouch after adjusting the pressure to desired levels.
Warning: NO WARRANTY claim for failures due to Over Pressure of the Cushion. Cushion
should be operated at the specified pressure levels for better life
3. If you bottom out / touch the Chair’s seat surface, add more air and adjust
again. DO NOT OVERINFLATE. The Product works effectively with 50-60%
inflation.
Pump Holster Installation:
1. Pump Holster is the Primary Accessory for EMG ErgoTech Cushions. It
comes as an assembly of Pump Hostler (P) and Pump Holster mounting
harness (MPH)

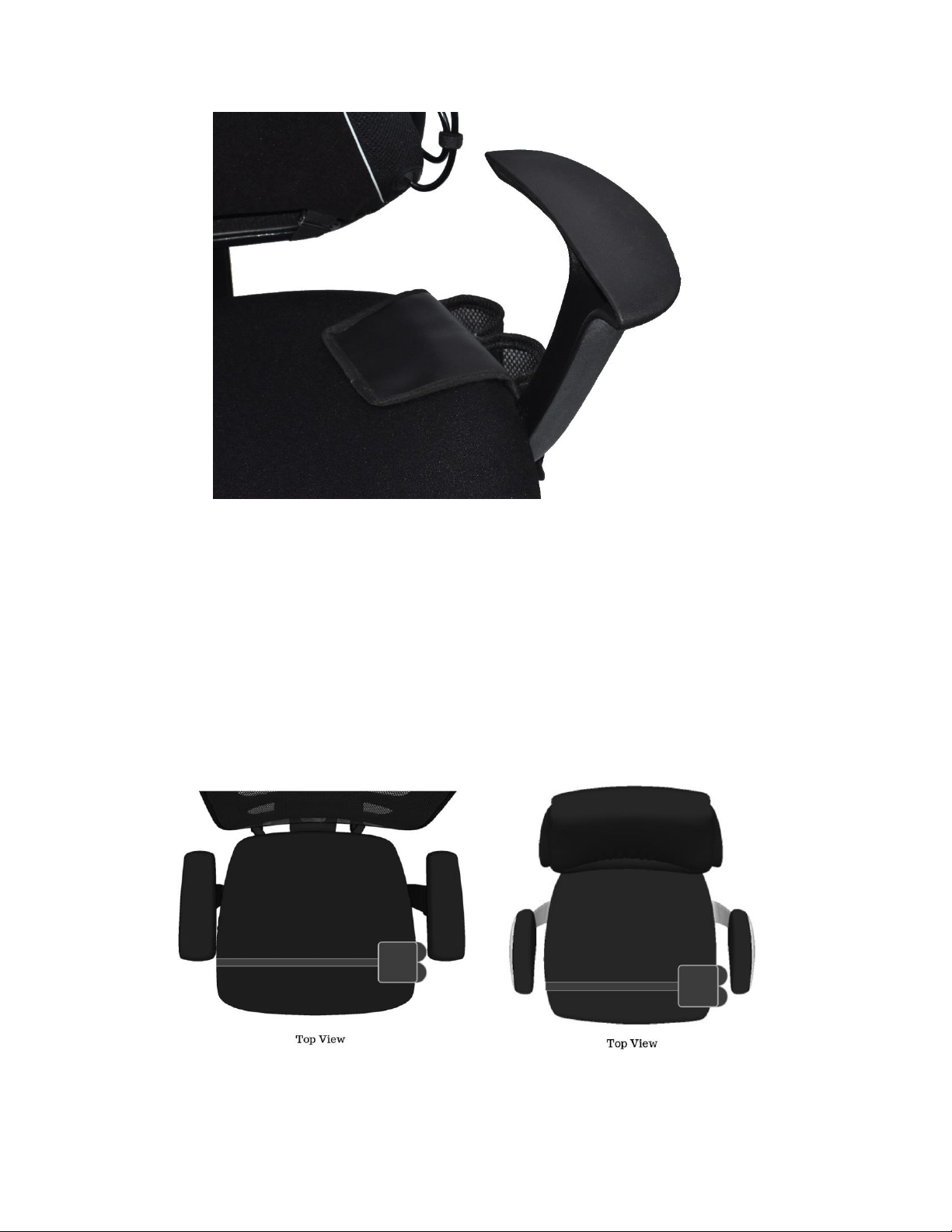

2. Place the holster assembly on the Seat Portion of your chair. Find a
convenient place with no interference on the left-hand side of your chair.
3. Run the strap around the seat from Top and clip the harness. Ensure that
the adjuster and buckle are on the bottom portion and doesn’t interfere on
the Chair’s Seating Surface. You can adjust the tension on the strap using
Slider / Adjuster
4. There are many Chair models in the market with different sizes and shapes,
some of the models and their installation pictures are given below.
However, it is not necessary to install in the above said methods, you can
install in the best convenient way possible according to your chair
Pre-Caution: Ensure that there is no Interference of Mounting Harness with the chair
mechanism at the bottom
5. Through our experiment we found out that the best convenient position for
Pump Holster in Car seats is in the front side of the seat as shown below:
