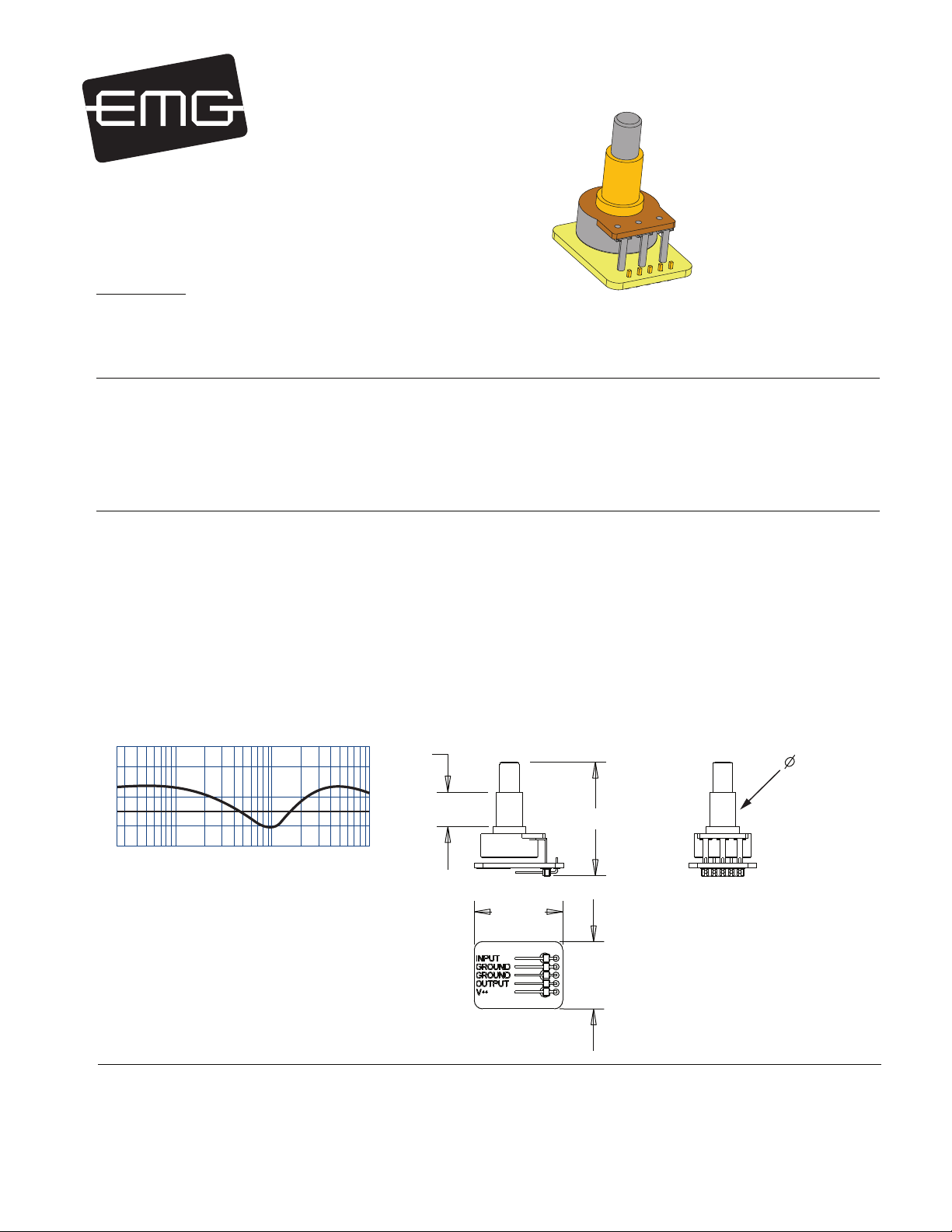

EXB
INSTALLATION INFORMATION
EMG MODEL: EXB
(ACTIVE/PASSIVE PICKUP INPUTS)
SPECIFICATIONS
Input Impedance (Ohms) 250K
Input Referred Noise -130dbV
Output Impedance (Ohms) 2K
Current @ 9V (Microamps) 750
Battery Life (Hours) 200
Maximum Supply (Volts DC) 18
GENERAL OPERATION:
The EXB is an active EQ circuit for bass guitar that simultaneously increases both low and high frequencies while decreasing mid-range.
The graph below illustrates the effect of the EXB. The thick black line displays the effect with the control all the way up (clockwise).
The flat black line illustrates the effect with the control all the way down (counter-clockwise) in the bypass mode. The EXB is continuously
variable from flat to maximum effect. The EXB is wired in series with the signal path, so there is an input and output.
The EXB has buffered inputs and can be used with passive pickups.
INCLUDED:
1 EXB Control
1 Battery Clip with Buss Connector
1 Stereo Output Jack (Battery Switching)
2 Interconnect cables
Frequency Response:
Dimensions:
EMG-EXB
10 dB/div
.400
.309 (8mm P .75)
1.325
0.025 LOG FREQ (kHz) 10
1 2 3 4 5
1.050
Connector for EMG Active Tone controls
1
2
3
.800
4
5
and accessories.
Pin 1 Input
Pin 2 Ground for Input
Pin 3 Ground for Output
Pin 4 Output
Pin 5 V+ Supply
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
© 2014 Copyright EMG INC. All Rights Reserved.
Installation Instructions:
EMG Model: EXB
Like all EMG Accessory products the EXB uses the 5-pin header as a standard.
Diagram #1 to the right shows how the plug-in connectors are installed.
Be sure to reverse the input connector as shown.
Since there are a variety of installations in which the EXB can be installed it
is impossible to show every installation in this data sheet. Some of the simpler
installations have been chosen. More diagrams are available at our website
http://www.emgpickups.com.
Diagrams #2 and #3 illustrate installations that have a single pickup and
do not use a selection switch.
Keep in mind that all of the EMG Accessory controls can be substituted for one
another since they all have buffered inputs and utilize the same 5-pin connnector.
So, if you decide you would rather use the BTC instead of the EXB, simply unplug
the EXB and replace it with the BTC.
All of the EMG Active controls use the same 5-pin connector
shown below.
Note: Reversed connector! Pins 1 and 2 are reversed.
Make sure the connectors are plugged on as shown.
Diagram #1
Diagram #2
One Pickup
One Volume
One EXB
FROM PICKUP
Diagram #3
One Pickup
One Volume
One Master Tone (Passive)
One EXB
FROM PICKUP
- 9V +
- 9V +
MASTER
VOLUME
B122rH
MASTER
VOLUME
B122rH
VOLUME
NOTE:
REVERSED CONNECTOR
RED
RED
EXB Control
MASTER TONE
(PASSIVE)
MASTER
TONE
B124rH
BATTERY
BUSS
RED
OUTPUT CABLE
RED
RED
EXB Control
BATTERY
NEG (-)
RED
OUTPUT
R
S
T
BATTERY
BUSS
BATTERY
NEG (-)
OUTPUT CABLE
OUTPUT
R
S
Diagram #4
Volume / Volume
EXB Control
EXB Page 2
