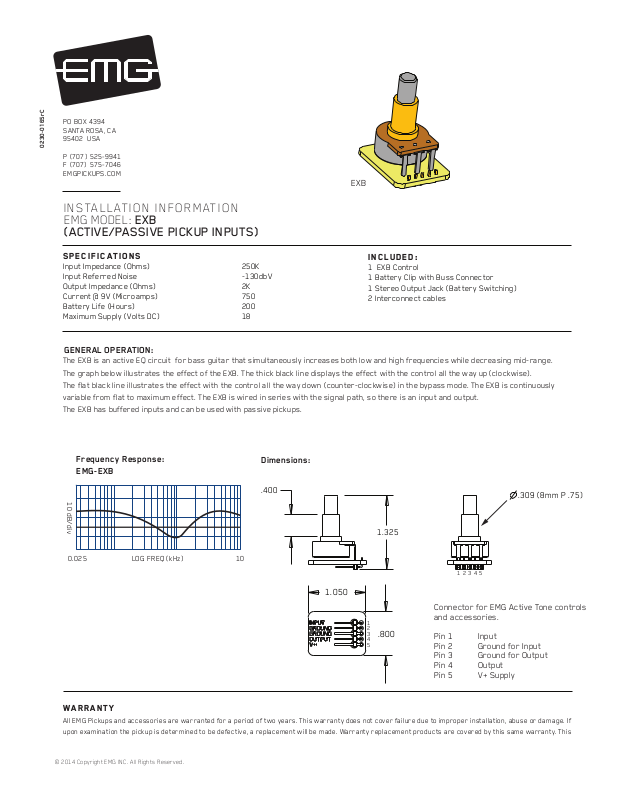

EMG EXB User guide

Page 1
PO BOX 4394 SANTA ROSA, CA 95402 USA
0230-0165rC
P (707) 525-9941 F (707) 575-7046 EMGPICKUPS.COM
EXB
INSTALLATION INFORMATION EMG MODEL: EXB
(ACTIVE/PASSIVE PICKUP INPUTS)
SPECIFICATIONS
Input Impedance (Ohms) 250K Input Referred Noise -130dbV Output Impedance (Ohms) 2K Current @ 9V (Microamps) 750 Battery Life (Hours) 200 Maximum Supply (Volts DC) 18
GENERAL OPERATION:
The EXB is an active EQ circuit for bass guitar that simultaneously increases both low and high frequencies while decreasing mid-range.
The graph below illustrates the effect of the EXB. The thick black line displays the effect with the control all the way up (clockwise).
The flat black line illustrates the effect with the control all the way down (counter-clockwise) in the bypass mode. The EXB is continuously
variable from flat to maximum effect. The EXB is wired in series with the signal path, so there is an input and output.
The EXB has buffered inputs and can be used with passive pickups.
INCLUDED:
1 EXB Control 1 Battery Clip with Buss Connector 1 Stereo Output Jack (Battery Switching) 2 Interconnect cables
Frequency Response:
Dimensions:
EMG-EXB
10 dB/div
.400
.309 (8mm P .75)
1.325
0.025 LOG FREQ (kHz) 10
1 2 3 4 5
1.050
Connector for EMG Active Tone controls
1 2 3
.800
4 5
and accessories.
Pin 1 Input Pin 2 Ground for Input Pin 3 Ground for Output Pin 4 Output Pin 5 V+ Supply
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
© 2014 Copyright EMG INC. All Rights Reserved.
Page 2
Installation Instructions: EMG Model: EXB
Like all EMG Accessory products the EXB uses the 5-pin header as a standard. Diagram #1 to the right shows how the plug-in connectors are installed. Be sure to reverse the input connector as shown.
Since there are a variety of installations in which the EXB can be installed it is impossible to show every installation in this data sheet. Some of the simpler installations have been chosen. More diagrams are available at our website http://www.emgpickups.com. Diagrams #2 and #3 illustrate installations that have a single pickup and do not use a selection switch.
Keep in mind that all of the EMG Accessory controls can be substituted for one another since they all have buffered inputs and utilize the same 5-pin connnector. So, if you decide you would rather use the BTC instead of the EXB, simply unplug the EXB and replace it with the BTC.
All of the EMG Active controls use the same 5-pin connector shown below.
Note: Reversed connector! Pins 1 and 2 are reversed. Make sure the connectors are plugged on as shown.
Diagram #1
Diagram #2
One Pickup One Volume One EXB
FROM PICKUP
Diagram #3
One Pickup One Volume One Master Tone (Passive) One EXB
FROM PICKUP
- 9V +
- 9V +
MASTER VOLUME
B122rH
MASTER VOLUME
B122rH
VOLUME
NOTE: REVERSED CONNECTOR
RED
RED
EXB Control
MASTER TONE (PASSIVE)
MASTER TONE
B124rH
BATTERY
BUSS
RED
OUTPUT CABLE
RED
RED
EXB Control
BATTERY
NEG (-)
RED
OUTPUT
R
S
T
BATTERY
BUSS
BATTERY
NEG (-)
OUTPUT CABLE
OUTPUT
R
S
Diagram #4
Volume / Volume EXB Control
EXB Page 2
BRIDGE PICKUP
NECK PICKUP
VOLUME
- 9V +
NECK VOLUME
B122rH
VOLUME
TONE
NOTE: REVERSED CONNECTOR
BRIDGE VOLUME
B122rH
VOLUME
BATTERY
BUSS
NOTE REVERSED CONNECTOR!
EXB CONTROL
OUTPUT CABLE
T
R
S
OUTPUT
T
Page 3
2 Pickup Guitars using a selection switch:
Diagrams #5 and #6 show the pickups connected to the B245 Pickup Buss. To learn more about the B245 Pickup Buss, be sure to go to http://www.emgpickups.com. More diagrams are available at the EMG website. The EXB or any EMG Active Tone Control is shown following the pickup buss and then to the output jack. A master volume could easily follow the EXB before the output jack.
Diagram #5
2 Pickups Toggle Style Select Switch EXB Control Master Volume
- 9V +
GROUND
NECK P/U
OUTPUT
BRIDGE P/U
BRIDGE PICKUP
NECK PICKUP
RED
RED
RED
BATTERY
NEG (-)
NOTE: REVERSED CONNECTOR
EXB CONTROL
MASTER VOLUME
B122rH
VOLUME
OUTPUT CABLE
R
S
T
Diagram #6
2 Pickups Toggle Style Switch Volume each Pickup (Volumes are independent) EXB Control
- 9V +
GROUND
NECK P/U
OUTPUT
BRIDGE P/U
NECK PICKUP
BRIDGE PICKUP
RED
RED
RED
NOTE: REVERSED CONNECTOR
EXB CONTROL
NK VOLUME
B122rH
VOLUME
BR VOLUME
B122rH
BATTERY
NEG (-)
OUTPUT
R
S
T
OUTPUT CABLE
EXB Page 3
VOLUME
Page 4
Diagram #7
2 Pickups Toggle Style Switch Volume each Pickup (Volumes are independent) EXB Control Master Active Tone (VLPF)
- 9V +
GROUND
BATTERY
NOTE: REVERSED CONNECTORS
NEG (-)
OUTPUT
NECK P/U
OUTPUT
BRIDGE P/U
NECK PICKUP
BRIDGE PICKUP
RED
RED
RED
ACTIVE TONE (VLPF)
EXB CONTROL
NK VOLUME
B122rH
VOLUME
BR VOLUME
B122rH
VOLUME
R
S
T
OUTPUT CABLE
This diagram illustrates an installation using the X Series pickups from EMG that have an active Tone control. The controls are wired in the above order with the master Volume control last in the circuit. If you are using the Active Balance Control remember that a passive Tone control will not function when it comes after the ABC Control. If you want a standard tone control the VLPF will be required.
RED
- 9V +
RED WIRES FROM PICKUPS
EMG Active Neck Pickup (Upper 3 pin header)
EMG Active Bridge Pickup (Lower 3 pin header)
B118 ACTIVE BALANCE CONTROL
RED
MASTER VOLUME
B122rH
VOLUME
EXB Page 4
9V+ POWER BUSS
RED
Diagram #8
2 Pickups ABC Control Active Tone (VLPF) EXB Control Master Volume Control Output Jack
BATTERY
NEG (-) BLACK
ACTIVE TONE (VLPF)
NOTE REVERSED CONNECTORS
EXB CONTROL
RED
OUTPUT
R
S
T
BOTTOM VIEW
