Uninterruptible Power Supply
User Manual
SPS and SLN UPS Series
CONTENTS
1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . 1
2.0 Important Safety Instructions . . . . . . . . . . . . . . 2
3.0 General Description . . . . . . . . . . . . . . . . . . . 3
4.0 System Block Diagrams . . . . . . . . . . . . . . . . . 5
5.0 Installation and Operation . . . . . . . . . . . . . . . 6
6.0 LED Diagnostics . . . . . . . . . . . . . . . . . . . . . 7
7.0 Troubleshooting . . . . . . . . . . . . . . . . . . . . 8
8.0 Technical Specifications . . . . . . . . . . . . . . . . . 9
What’s Included
Figure 2
The UPS is shipped with the following items:
• User manual
• USB cable: high speed 2.0 Standard Type A-B, 6 ft (1.8 m)
Note: UPSwatch - monitoring/diagnostic software is available by downloading at www.solahd.com
The software is compatible with Windows 7, 8, 10, Windows 2008, 2012, 2016,
Windows 2008/2012 Server Core, Hyper-V 2008/2012, Linux OpenSUSE 11.4,
Linux ubuntu 10.04, Linux Fedora 3.1.9, CentOS 5.8, Citrix XenServer 6.0.0, Linux KVM
Accessories (Optional)
• SLNSPSPMBRK: SLN600 and SPS850 Wall Mount Bracket
• SLNSPSPMBRK1: SLN1000 and SLN1500 Wall Mount Bracket
1.0 Introduction
Thank you for selecting the SPS or SLN Uninterruptible Power System. This manual contains important safety
instructions that should be followed during the installation and operation of your UPS.
• Please read all safety, installation and operating instructions before attempting to install or operate the UPS.
• Please adhere to all warnings on the unit and in this manual during installation and operation.
This UPS is designed for industrial or commercial use. The UPS features a compact design that ts into a
limited-space working environment.
This product features the following:
• High reliability.
• Auto restart during AC recovery.
• AC overload protection.
• Over temperature thermal protection.
• Battery overcharge protection.
• SLN models feature AVR (Auto Voltage Regulation).
• Input voltage out-of-range protection.
• Remote monitoring and control software via UPSwatch.
Page: 1
2.0 Important Safety Instructions
!
WARNING - Risk of electric shock, fire and personal injury.
SAVE THESE INSTRUCTIONS - This manual contains important instructions that should be followed
during installation and maintenance of the UPS.
The UPS is intended for installation in a controlled environment.
Do not attempt to open the UPS. The UPS contains no user-serviceable parts.
• Install the UPS in an indoor temperature- and humidity-controlled environment, free of conductive
contaminants.
• Do not install the UPS in or near water.
• In order to avoid overheating the UPS, allow proper ventilation of the unit. Do not block or cover the top,
bottom or sides of the UPS.
• Do not expose the UPS to direct sunlight or install the unit near any heat sources.
• Install the UPS onto a level surface in an upright position. Do not place the UPS on an unstable surface
such as a cart, stand or table.
• The UPS must be installed near the socket receptacle so that the cord can be easily disconnected. To
properly turn off the UPS, press the OFF button, then disconnect the input power supply cord from the
AC power outlet.
• Connect the AC input power cord to a properly grounded AC supply source.
• Connect the UPS to a grounded supply circuit with proper branch circuit protection. Follow all applicable
National Electrical Codes® (NEC®) and Canadian Electrical Codes (CEC) as well as all local codes.
• Do not plug the UPS into a power strip. Do not daisy-chain one UPS power cord into another UPS output
receptacle. Do not place the UPS power cord where it may be damaged.
• Do not dispose of the UPS in a re as the battery may explode.
• Do not open or damage the battery. Released electrolyte is harmful to the skin and eyes and may be toxic.
• The batteries are not user or service replaceable. Do not attempt to open the unit to replace them.
• Turn off the UPS and disconnect the input cord from the AC power supply before cleaning. Do not use
liquid or aerosol cleaners. Use only a dry cloth on the exterior of the UPS. Do not open the unit.
• The UPS should not support laser printers or scanners, as the equipment may draw too much power,
potentially resulting in a UPS overload.
• This UPS is not for use in a computer room as dened in the Standard For the Fire Protection of
Information Technology Equipment, NFPA 75.
Page: 2
3.0 General Description
3.1 Front Panel - Models SLN600, SPS850, SLN1000, SLN1500
Red LED
Indicator
Green LED
3.2 Back Panel - Models SLN600, SPS850
Power Switch
Indicator
When the Green LED Indicator:
Shows a steady light, the UPS is in
AC Mode.
Is ashing, the UPS is in
Battery Mode.
For more details, refer to Section 6.0 LED Diagnostics.
Breaker
AC Input Cord
USB (B TYPE)
Output Receptacles
Page: 3

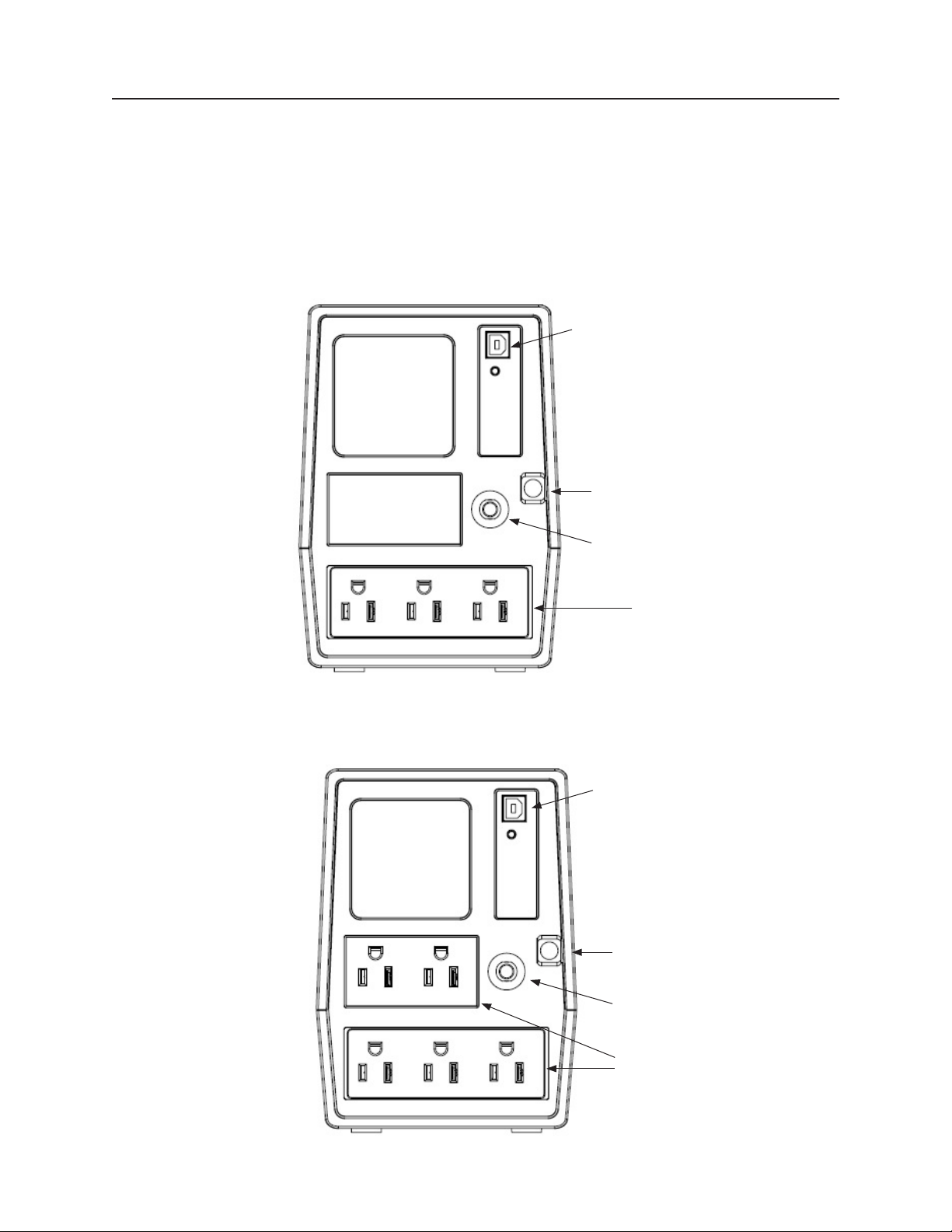

3.3 Back Panel - Model SLN1000
USB (B TYPE)
AC Input Cord
Breaker
Output Receptacles
3.4 Back Panel - Model SLN1500
Page: 4
USB (B TYPE)
AC Input Cord
Breaker
Output Receptacles
4.0 System Block Diagrams

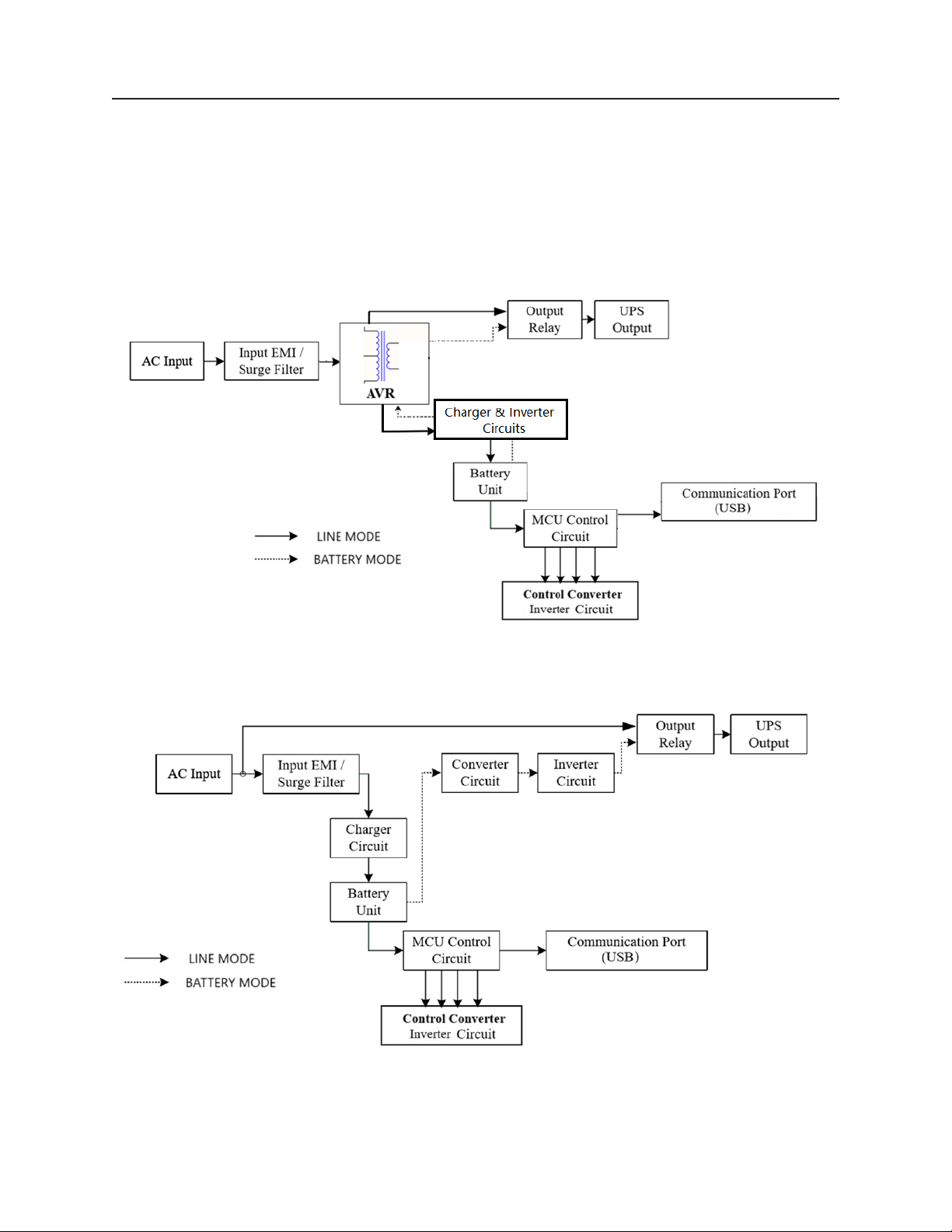

SLN System Block Diagram
SPS System Block Diagram
Page: 5
5.0 Installation and Operation
5.1 Inspection
Remove the UPS from its packaging and inspect it for damage that may have occurred during shipping. If
shipping damage has occurred, repack the unit, and contact your local carrier and SolaHD
distributor immediately.
5.2 Placement
Install the UPS indoors in a protected environment that provides adequate airow around the unit, and is
free from excessive dust, moisture and contaminants. The UPS may be installed in an environment where the
ambient temperature is 0°–40°C.
5.3 Starting the UPS
To turn on/off the UPS, press the power switch for 3 seconds.
When the Green LED Indicator:
• Shows a steady light, the UPS is in AC Mode.
• Is ashing, the UPS is in Battery Mode.
5.4 Battery Charging
Plug AC input cord into utility power for at least eight (8) hours in order to fully charge the battery prior to use,
as some charge may have been lost during shipping. Unit does not need to be turned on in order for charging
to occur.
5.5 Load/Output Connection
Connect one device into each of the power receptacles supplied on the back of the UPS.
Catalog Number
SLN600 5.6 (142) 4.1 (104) 11.8 (300)
SPS850 5.6 (142) 4.1 (104) 11.8 (300)
SLN1000 7.1 (180) 5.1 (130) 12.6 (320)
SLN1500 7.1 (180) 5.1 (130) 12.6 (320)

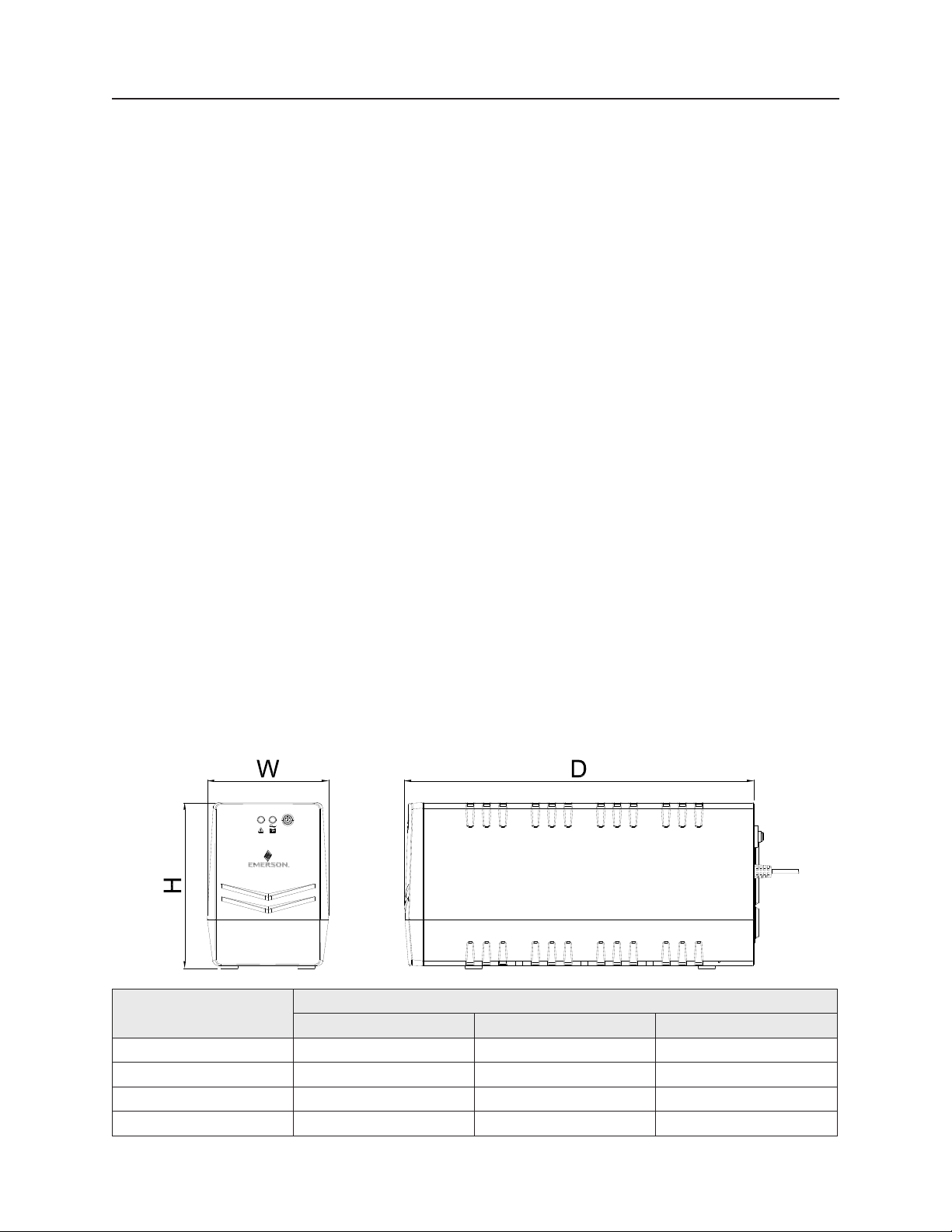

H W D
Dimensions in Inches (Millimeters)
Page: 6
6.0 LED Diagnostics
Green LED Red LED Alarm (Audible)* Status
ON OFF OFF Battery Fully Charged
ON OFF OFF AC Mode
Flashing every 5 seconds OFF 1 beep every 5 seconds Battery Mode
Flashing every 3 seconds OFF 1 beep every 3 seconds Battery Low Warning
Flashing every 1 second OFF OFF Standby Mode
OFF ON
OFF Flashing every 10 seconds 1 beep every 10 seconds Over Temperature
Flashing every 10 seconds OFF OFF Charging
OFF Flashing every 3 seconds
Flashing every 3 seconds OFF OFF
*NOTE: Push and release ON/OFF to silence or activate audible alarm.
Continuous beep
every 1 minute for 1 hour
Continuous beep every
3 seconds until fault
is removed.
Fault Alarm
Output Short
Automatic Voltage
Regulation (AVR) Mode SLN Model Only
Page: 7
7.0 Troubleshooting
Problem Possible Cause Solutions
The UPS does not turn on.
(No alarm, no display).
The UPS runs continually in battery mode.
Battery runtime cannot be achieved.
The red LED is on and beeps. The UPS has overloaded.
Green LED ashes every 1 second with no
sound and no output voltage.
The green and red LEDs are always on and
the audible alarm is silent.
The red LED ashes, and the audible alarm
is silent.
The UPS is not turned on. Press the ON/OFF Button for 3 seconds and release.
Battery fault. Contact Tech Support.
UPS fault. Contact Tech Support.
The power cord is not
connected properly.
Battery voltage is too low.
Output overload.
Battery fault.
Charger fault or other reasons. Contact Tech Support.
Battery voltage is too low.
Charge circuit error. Contact Tech Support.
The UPS is overheated.
Check the power cord to ensure it is
connected properly.
Charge the battery (batteries) for at least
eight (8) hours.
Remove some loads. Before reconnecting
equipment, please verify that the load matches the
UPS capability shown in the specications.
The UPS has been operating at high temperatures
that are not conducive to the battery. If the
battery is near the end of its life, please contact
Customer Support.
Please disconnect loads or check if the load is
shorted or malfunctioning.
Please check if the AC is normal or the power cord is
disconnected. When the utility is normal, the UPS
will automatically restart and charge the battery.
Check that the UPS has good ventilation and is not
in direct sunlight or near heat sources. Reduce the
output load.
Page: 8
8.0 Technical Specifications
Line Interactive Offline Line Interactive Line Interactive
Catalog Number SLN 600 SPS850 SLN 1000 SLN 1500
VA/Watts 600VA/360W 850/510 1000VA/600W 1500VA/900W
10% 87 min. 67 min. 2 hours 1hour 3 min.
20% 45 min. 31 min. 10 sec. 48 min. 41 min. 30 sec.
30% 27 min. 18 min. 40 sec. 27 min. 20 min.
40% 19 min. 30 sec. 12 min. 22 sec. 19 min. 18 sec. 13 min. 26 sec.
Runtime
NOTE: Run times in this table are approximate. They are based upon new, fully charged standard battery modules at a temperature of
25°C (77°F) with 100% resistive UPS loading. Run times listed above can vary due to manufacturing variances of the individual batteries.
50% 13 min. 30 sec. 9 min. 6 sec. 13 min. 10 min. 9 sec.
60% 10 min. 30 sec. 6 min. 40 sec. 10 min. 30 sec. 8 min. 11 sec.
70% 8 min. 10 sec. 5 min. 6 sec. 8 min. 6 min. 22 sec.
80% 6 min. 30 sec. 4 min. 7 sec. 5 min. 50 sec. 5 min. 13 sec.
90% 4 min. 40 sec. 3 min. 5 sec. 4 min. 4 min. 6 sec.
100% 3 min. 28 sec. 2 min. 20 sec. 3 min. 2 min. 55 sec.
Page: 9
Catalog Number
SLN600 SPS850 SLN1000 SLN1500
Topology Line Interactive Ofine Line Interactive Line Interactive
Capacity (VA/W) 600/360 850/510 1000/600 1500/900
Dimensions
Unit (H x W x D) - in.
(mm)
5.6x4.1x11.82
(142x104x300.2)
5.6x4.1x11.82
(142x104x300.2)
7.09x5.12x12.6
(180x130x320)
7.09x5.12x12.6
(180x130x320)
Ship Weight - lbs (kg) 12.13 (5.5) ± 10% 8.16 (3.7) ± 10% 19.62 (8.9) ± 10% 25.35 (11.5) ± 10%
Input Parameters
Voltage
120 Vac
-23% / +29%
120 Vac
-25% / +20%
120 Vac
-23% / +29%
Frequency 50/60 Hz +/- 10% (auto sensing)
Input Power Cord 5 ft. with NEMA 5-15P
Output AC Parameters
Voltage (Battery Mode) 120V±10%
Frequency (On Battery) 50/60 Hz
Auto Voltage
Regulation
(AVR function under
Normal Mode)
Overload
Protection
V
= Input 102 Vac x 118% at
out
Boost mode
V
= Input 138 Vac x 85% at
out
Buck mode
Line Mode:
1. 110%±5% load for
5 mins. After, the power will
not be provided to the load.
Then, every 10 mins, auto
recovery will be
attempted.
2. 120%±5% load for
10 seconds. After, the power
will not be provided to the
load. Then, every 10 mins,
auto recovery will be
attempted.
3. 130%±5% load for
1.5 seconds. After, the power
will not be provided to the
load. Then, every 10 mins,
auto recovery will be
attempted.
N/A
Breaker Protection
V
= Input 102 Vac x 118% at Boost mode
out
V
= Input 138 Vac x 85% at Buck mode
out
Line Mode:
1. 110%±5% load for 5 mins. After, the
power will not be provided to the load.
Then, every 10 mins, auto recovery will be
attempted.
2. 120%±5% load for 10 seconds. After, the
power will not be provided to the load.
Then, every 10 mins, auto recovery will be
attempted.
3. 130%±5% load for 1.5 seconds. After, the
power will not be provided to the load.
Then, every 10 mins, auto recovery will be
attempted.
Page: 10
Catalog Number
Short Circuit
* OSCP is Output
Short Circuit Protection
1. The Output current continues
over 125% within 60ms to
OSCP* and then goes to
Battery MODE.
2. UPS goes to retry mode every
10 seconds until the Battery
Voltage (VB) <11V/cell.
3. The Battery recharges when
the VB>12.7V/cell, then UPS
continues retry mode every
10 seconds.
4. UPS goes to auto recovery
mode until the short circuit
disappears then goes back to
LINE Mode.
SLN600 SPS850 SLN1000 SLN1500
1. The Output current
continues over
250% within 60ms
to OSCP* and then
goes to
Battery MODE.
2. UPS goes to retry
mode every 10
seconds until the
Battery Voltage (VB)
<11V/cell.
1. The Output current continues over 125%
within 60ms to OSCP* and then goes to
Battery MODE.
2. UPS goes to retry mode every 10 seconds
until the Battery Voltage (VB) <11V/cell.
3. The Battery recharges when the VB>12.7V/
cell, then UPS continues retry mode every
10 seconds.
4. UPS goes to auto recovery mode until the
short circuit disappears then goes back to
LINE Mode.
3. The Battery recharges
when the VB>12.7V/
cell, then UPS
continues retry mode
every 10 seconds.
4. UPS goes to auto
recovery mode until
the short circuit
disappears then goes
back to
LINE Mode.
Battery Parameters
Battery Type VRLA, maintenance free, sealed, lead-acid cells
Transfer Time Typical: 8ms, max. <10ms@AC mode to backup mode
Typical Recharge Time 8 hours
Environmental
Operating Temperature
0 to +40°C
Storage Temperature -15 to +45°C
Relative Humidity 0% to 90% relative humidity, non-condensing
Audible Noise ≤40 dBA without audible alarm beyond 1m at rated load
Standards
EMC FCC Part 15, Subpart B, Class A; EN62040-2; EN55032; CISPR22
Meets IEEE C62.41,
Surge Protection
Category A & B
Delta: (Line to line: 1kV;
Meets IEEE C62.41,
Category A
Meets IEEE C62.41, Category A & B
L-L: 1kV; lL-E: 2kV
line to earth: 2kV)
Certifications cULus Listed, UPS Equipment UL 1778, CSA C22.2 No. 107.3
Page: 11
The information in this manual is provided as a guide for installation, operation, and maintenance. It does not
affect or exceed our obligations under the Terms and Conditions of Sale.
Note that unit specications are subject to change without notice.
Technical Support
Website: www.solahd.com
Technical Support E-Mail: solahd.technicalservices@emerson.com
Toll-Free: (800) 377-4384
USA: (847) 268-6651
Warranty
Please see the “Terms & Conditions of Sale” document within the UPS packaging.
While every precaution has been taken to ensure accuracy and completeness in this manual, Appleton Grp LLC d/b/a Appleton Group
assumes no responsibility, and disclaims all liability for damages resulting from use of this information or for any errors or omissions.
Page: 12
SPS and SLN UPS Series
A272-319 Rev. 0 09/2019
The Emer son logo is a trademark and service ma rk of Emerson El ectric Co.
Appleton Grp LLC d/b/a Appleton Group. SolaHD is a register ed trademark of Appleton Grp LLC.
All othe r marks are the propert y of their respective ow ners. © 2019 Emerson El ectric Co. All rights reserved.
United States
(Headquarters)
Appleton Grp LLC
9377 W. Higgins Road
Rosemont, IL 60018
Unite d States
T +1 800 621 1506
Australia Sales Office
Bayswater, Victoria
T +61 3 9721 0348
Korea Sal es Offic e
Seoul
T +82 2 3483 1555
Europe
ATX SAS
Espace I ndustriel N ord
35, rue André Durouchez,
CS 980 17
80084 A miens Cedex 2
France
T +33 3 2254 1390
China Sa les Offic e
Shanghai
T +86 21 3338 7000
Canada
EGS Electrical Group Canada
Ltd.
99 Unio n Street
Elmira O N, N3B 3L7
Canada
T +1 888 765 2226
Middle East Sales Office
Dammam, Saudi Arabia
T +966 13 510 3702
Asia Pac ific
EGS Priv ate Ltd.
Block 4 008, Ang Mo Ki o
Ave 10,
#04 -16 TechPla ce 1,
Singapore 569625
T +65 6556 1100
Chile Sa les Offi ce
Las Condes
T +56 2928 4819
Latin America
EGS Comercializadora
Mexi co S de RL de CV
Calle 10 N° 145 P iso 3
Col. San P edro de los Pin os
Del. Álvaro Obregon
Ciudad d e México. 01180
T +52 55 5809 5049
India Sales Office
Chennai
T +91 44 3919 7300
Loading...
