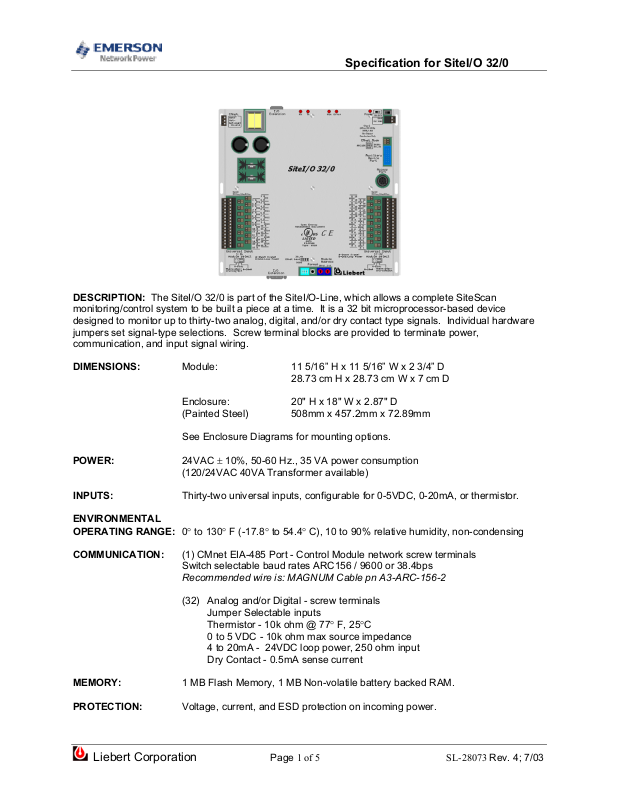

Specification for SiteI/O 32/0

DESCRIPTION: The SiteI/O 32/0 is part of the SiteI/O-Line, which allows a complete SiteScan
monitoring/control system to be built a piece at a time. It is a 32 bit microprocessor-based device
designed to monitor up to thirty-two analog, digital, and/or dry contact type signals. Individual hardware
jumpers set signal-type selections. Screw terminal blocks are provided to terminate power,
communication, and input signal wiring.

DIMENSIONS: Module: 11 5/16” H x 11 5/16” W x 2 3/4” D

28.73 cm H x 28.73 cm W x 7 cm D

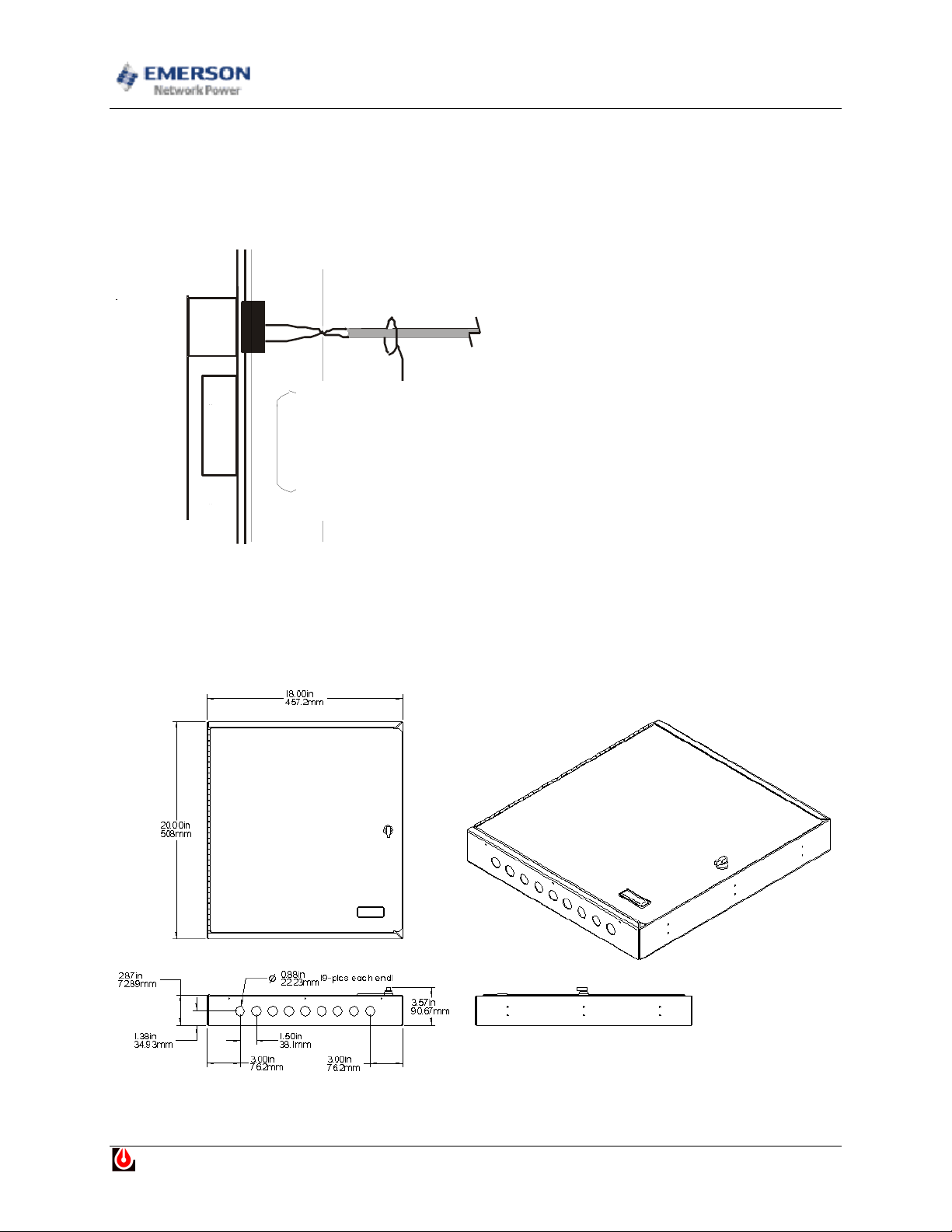

Enclosure: 20" H x 18" W x 2.87" D
(Painted Steel) 508mm x 457.2mm x 72.89mm

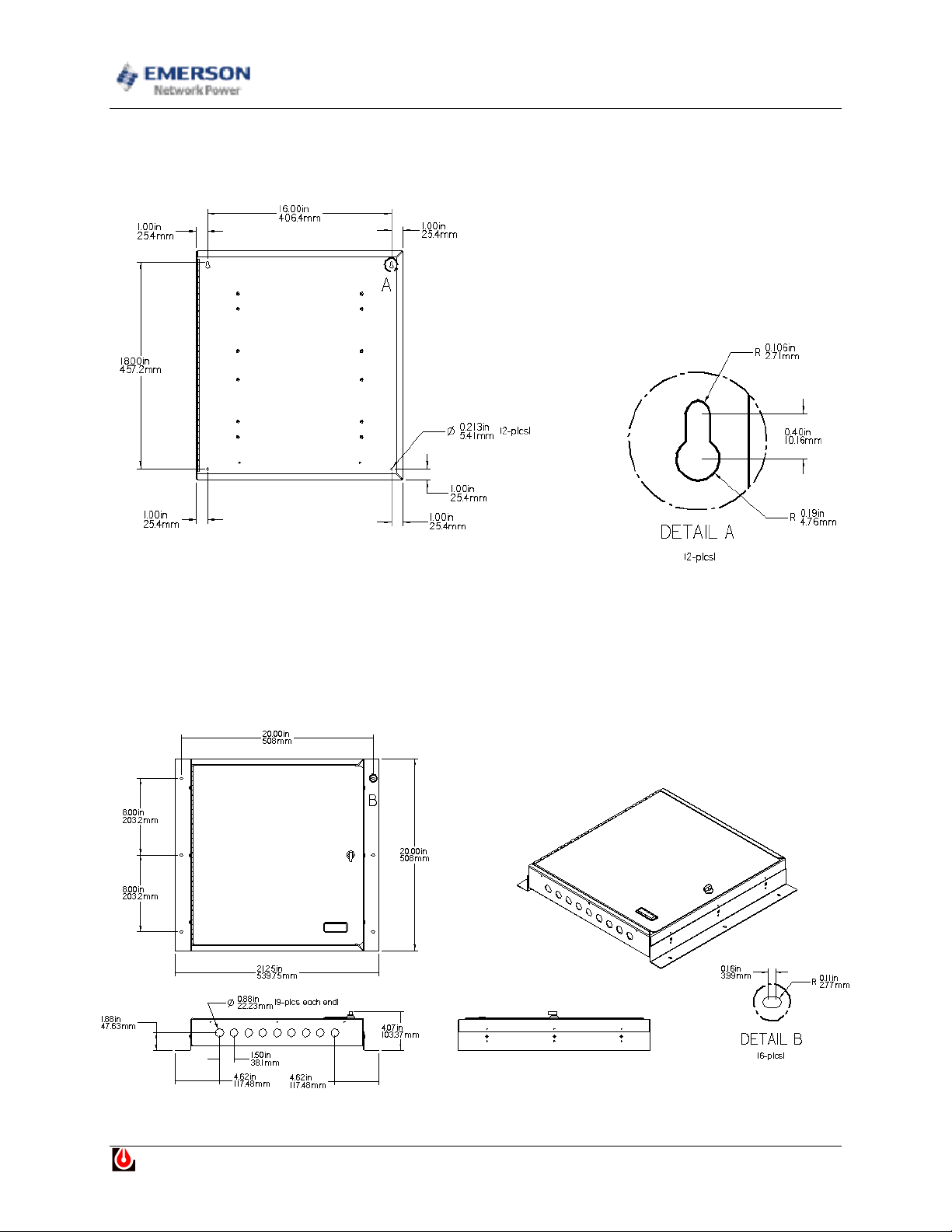

See Enclosure Diagrams for mounting options.

POWER: 24VAC ± 10%, 50-60 Hz., 35 VA power consumption
(120/24VAC 40VA Transformer available)

INPUTS: Thirty-two universal inputs, configurable for 0-5VDC, 0-20mA, or thermistor.

ENVIRONMENTAL
OPERATING RANGE: 0° to 130° F (-17.8° to 54.4° C), 10 to 90% relative humidity, non-condensing

COMMUNICATION: (1) CMnet EIA-485 Port - Control Module network screw terminals

Switch selectable baud rates ARC156 / 9600 or 38.4bps

Recommended wire is: MAGNUM Cable pn A3-ARC-156-2

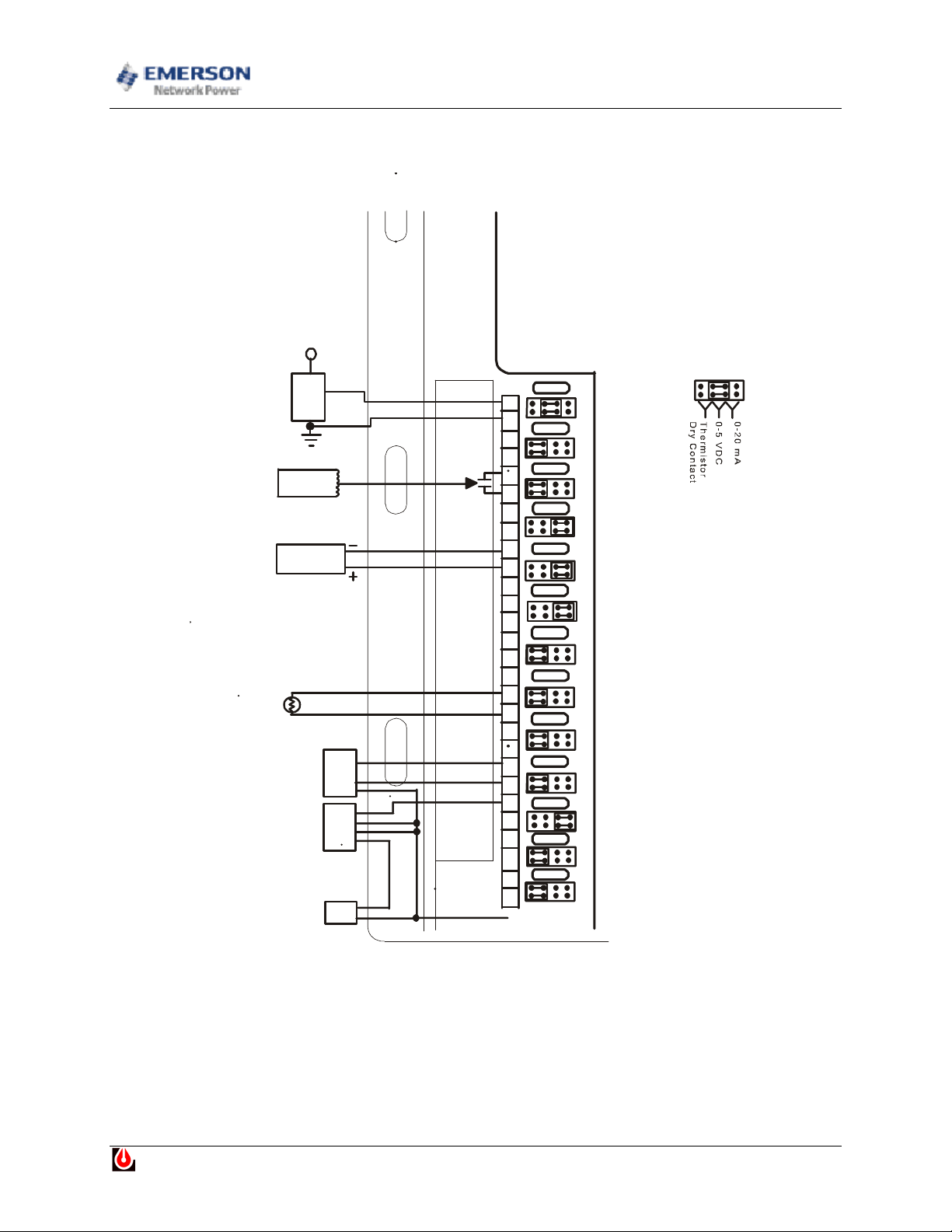

(32) Analog and/or Digital - screw terminals
Jumper Selectable inputs
Thermistor - 10k ohm @ 77° F, 25°C
0 to 5 VDC - 10k ohm max source impedance
4 to 20mA - 24VDC loop power, 250 ohm input
Dry Contact - 0.5mA sense current

MEMORY: 1 MB Flash Memory, 1 MB Non-volatile battery backed RAM.

PROTECTION: Voltage, current, and ESD protection on incoming power.

Liebert Corporation Page 1 of 5 SL-28073 Rev. 4; 7/03

Specification for SiteI/O 32/0

BATTERY: Seven-year lithium battery provides a minimum of 10,000 hours of data
retention during power outages.

DIAGNOSTIC LED's:

Power: Indicates power on condition
Tx: Indicates data transmitted on the CMnet
Rx: Indicates data received on the CMnet
Error: Indicates an error within the SiteI/O 10/0
Run: Indicates operating condition of the SiteI/O 10/0

LISTED BY: UL 916 (PAZX), cUL C22.2 No. 205-M19 (PAZX7), FCC Part 15 – Subpart B –

Class A

MODULE DIMENSIONS AND LAYOUT

CMnet
Port

55/8"

14.3cm

CMnet

Net +

Net-

Shield

Inputs
5VMax, 20mAMax

UniversalInput

1-16

Mode Sel ect

0-5Vdc

0-20mA

Th er mistor/
dry-contact

I/O Expansion Port

1A

1A

IN-1

2

3A

B

3A

IN-2

4B

5A

IN-3

7A

6B

A

7

8B

IN-4

8B

9A

10 B

IN-5

10

B

11 A

11 A

IN-6

13 A

12 B

13 A

IN-7

15 A

14 B

A

15

16 B

IN-8

16 B

A-InputSignal

B - Gnd/Loo p Power

Expansion

Baud Rate

Switch

I/O

Expansion

IN-9

B2

IN-10

B4

A6B5

IN-11

IN-12

A9

IN-13

IN-14

B12

IN-15

B14

IN-16

I/O

CMnetbaud

11 5/16"

28.73cm

Tx

Rx Error

Run

SiteI/ O 32/0

Liebert

OpenEnergy

ManagementEquipment

R

88FO

E143900

TYPE:0320

38.4k

Modul e

Address

Format

9600

10's 1's

Format
Button

Switches

IN-32

IN-31

IN-30

IN-29

IN-28

IN-27

IN-26

IN-25

Address

Run and
Power LEDs

TM

16B

IN-24

15A

16B

14B

15A

IN-23

B14

13

A

B12

13A

IN-22

11A

12B

10B

11A

IN-21

10B

A9

B8

A9

IN-20

8B

A7

B6

A7

IN-19

B5A6

A5

BA34

IN-18

4B

B2

3

A

IN-17

B2

A1

1A

A - Input Si gnal

B - Gnd/Loop P ower

ARC156 K

Class2

24Vac,50-60 Hz

35VA,1.5A

UseCopper

ConductorsOnly

CMnetMode

UniversalInput

ModeSelect

0-20mA

Power

Auxiliary
Device

17-32

0-5Vdc

On Off

Port

Power

Gnd

24Vac

9600/

38.4K

Access

Port

Thermistor/
dry-contact

Switch

Gnd and 24 V ac
Terminals

CMnet Mode Jumper

BACpac
Port

Access
Port

3/4"

1.9cm

23/4"
7cm

11 5/16"

28.73cm

Liebert Corporation Page 2 of 5 SL-28073 Rev. 4; 7/03
