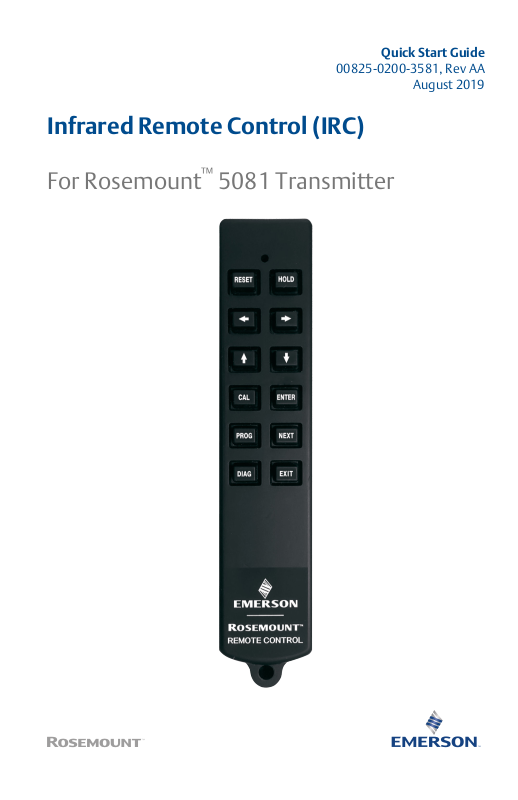

Page 1
Quick Start Guide
00825-0200-3581, Rev AA
Infrared Remote Control (IRC)
For Rosemount™ 5081 Transmitter
August 2019
Page 2
Quick Start Guide August 2019
Contents
Instructions.................................................................................................................................. 3
Approvals..................................................................................................................................... 4
Declaration of Conformity............................................................................................................6
2 Emerson.com/Rosemount
Page 3
August 2019 Quick Start Guide
1 Instructions
Note the following when using the Rosemount Infrared Remote Control
(IRC) - PN 24479-00:
• Do not use harsh chemicals or abrasive brushes when cleaning the
remote control.
• If the green LED does not light up when you press a key, a weak battery is
the probable cause. To restore operation, remove four screws to access
and replace the two batteries. Observe warning messages posted at the
rear of the remote control.
• Requires two 1.5 V AAA batteries. If used in hazardous areas,
replacement batteries must be Energizer E92/EN92 or Duracell MN2400/
PC2400.
• All functions for remote control PN 24479-00 are the same as those of
the previous remote control PN 23572-00.
Quick Start Guide 3
Page 4
Quick Start Guide August 2019
2 Approvals
The following approvals information is on the back of the Rosemount IRC.
-20 °C ≤ Ta ≤ +50 °C
IS/I/1/ABCD T4
CLASS 1 ZONE 0 AEx ia IIC T4
Ex ia INTRINSICALLY SAFE
CLASS 1 DIV. 1 GROUPS ABCD T4
Ex ia IIC T4
CLASS 1 ZONE 0 AEx ia IIC T4
IECEx BAS 13.0108
BASEEFA02ATEX0198
II 1G Ex ia IIC T4 Ga
DESIGNED IN
CHANHASSEN, MN USA 55317
WARNING
AVERTISSEMENT
LA SUBSTITUTION DE COMPOSANTS PEUT COMPREMETTRE LA SÉCURITÉ
INTRINSÈQUE.
POUR PRÉVENIR L'INFLAMMATION D'ATMOSPHÈRE, NE CHANGER LES
BATTERIES QUE DANS DES EMPLACEMENTS DESIGNÉS NON DANGEREUX.
4 Emerson.com/Rosemount
Page 5
August 2019 Quick Start Guide
WARNING
SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY.
TO PREVENT IGNITION, ONLY CHANGE BATTERIES IN NONHAZARDOUS AREAS.
ONLY USE ENERGIZER E92/EN92 OR DURACELL MN2400/PC2400 (2)
1.5 V AAA BATTERIES.
Quick Start Guide 5
Page 6
Quick Start Guide August 2019
3 Declaration of Conformity
6 Emerson.com/Rosemount
Page 7
August 2019 Quick Start Guide
Quick Start Guide 7
Page 8
*00825-0200-3581*
00825-0200-3581, Rev. AA
Quick Start Guide
August 2019
