Rosemount™ 702 Wireless Discrete
Transmitter

Quick Start Guide

00825-0200-4702, Rev GE

August 2018

$

$

August 2018

Wireless considerations

Power up sequence

The Wireless Gateway should be installed and functioning properly before any wireless field devices are powered. Install the Black
Power Module, SmartPower™ Solutions model number 701PBKKF (part number 00753-9220-0001) into the Rosemount 702
Transmitter to power the device. Wireless devices should be powered up in order of proximity from the Gateway, beginning with
the closest device, then working outward from the Gateway. This results in a simpler and faster network installation. Enable Active
Advertising on the Gateway to ensure new devices are able to join the network faster. For more information see the Emerson
Wireless 1420 Gateway Reference Manual.

Antenna position

The antenna should be positioned vertically, either straight up or straight down, and it should be approximately 3 ft. (1 m) from any
large structure, building, or conductive surface to allow for clear communication to other devices.

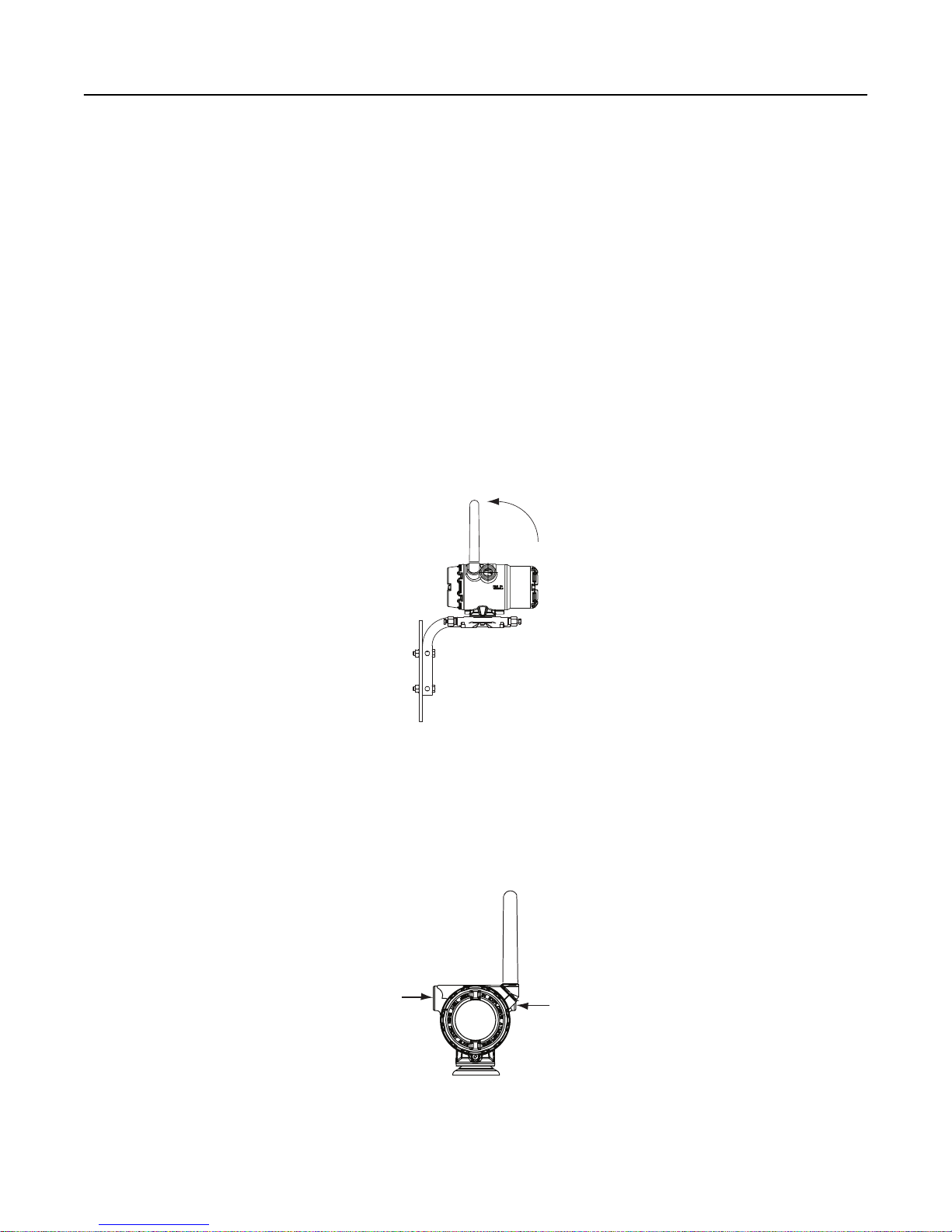

Figure 2: Antenna Position

™

Conduit entry

Upon installation, ensure each conduit entry is either sealed with a conduit plug using approved thread sealant, or has an installed
conduit fitting or cable gland with appropriate threaded sealant. Note the conduit entries on the Rosemount 702 Transmitter are
threaded ½–14 NPT.

Figure 3: Conduit Entry

A. Conduit entry

2 Rosemount 702 Wireless Discrete Transmitter

COMM

P/N 00753-9200-0020

1

2

3

4

CH1 +

CMN

CH2 +

CMN

CH Input Mode:
Dry Contact Only

CH Output Mode:

26VDC Max
100mA Max

August 2018

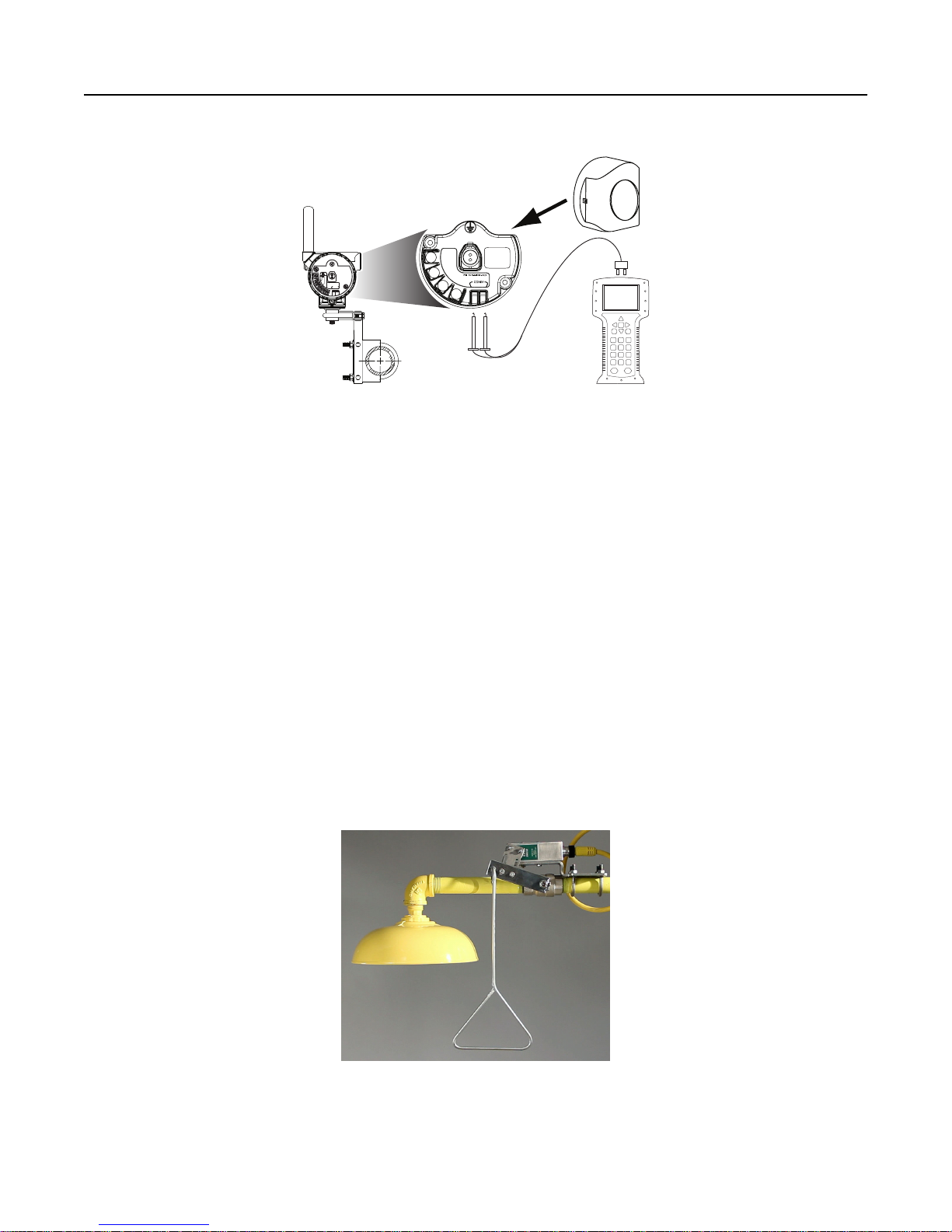

Field Communicator connections

The power module needs to be installed before the Field Communicator can interface with the transmitter. This transmitter uses
the Black Power Module; Order model number 701PBKKF or part number 00753-9220-0001.

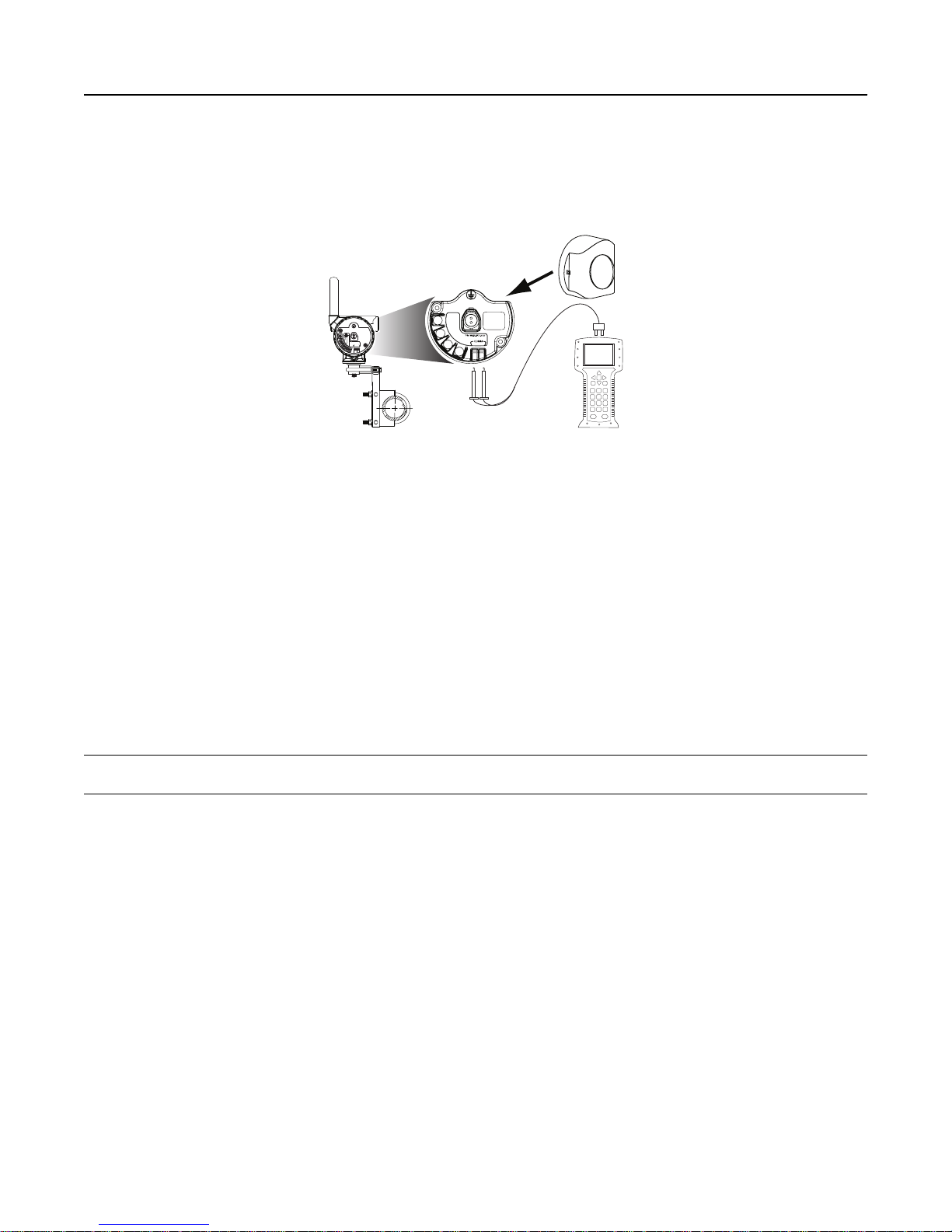

Figure 4: Connection Diagram

The transmitter and all other wireless devices should not be set up until after the Wireless Gateway has been installed and is
functioning properly.

Physical installation

The Rosemount 701 Transmitter can be installed in one of two configurations:

■

Direct mount, where the switch is connected directly to the Rosemount 702 Transmitter housing’s conduit entry.

■

Remote mount, where the switch is mounted separate from the Rosemount 702 Transmitter housing, then connected to the
Rosemount 702 Transmitter via conduit.

Select the installation sequence that corresponds to the mounting configuration.

Direct mount

Note

Direct mount installation should not be employed when using tubing and connectors such as Swagelok® fittings.

Quick Start Guide 3

August 2018

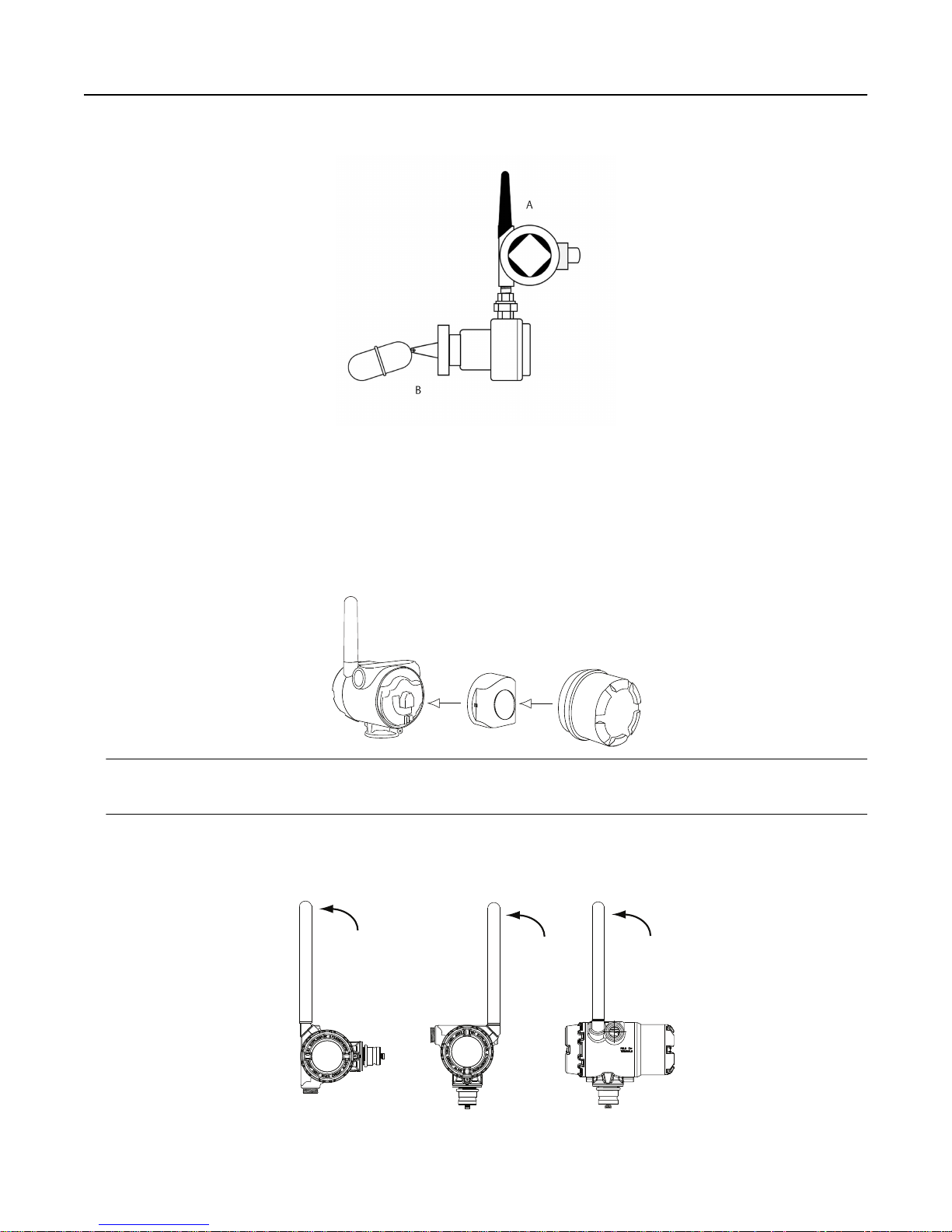

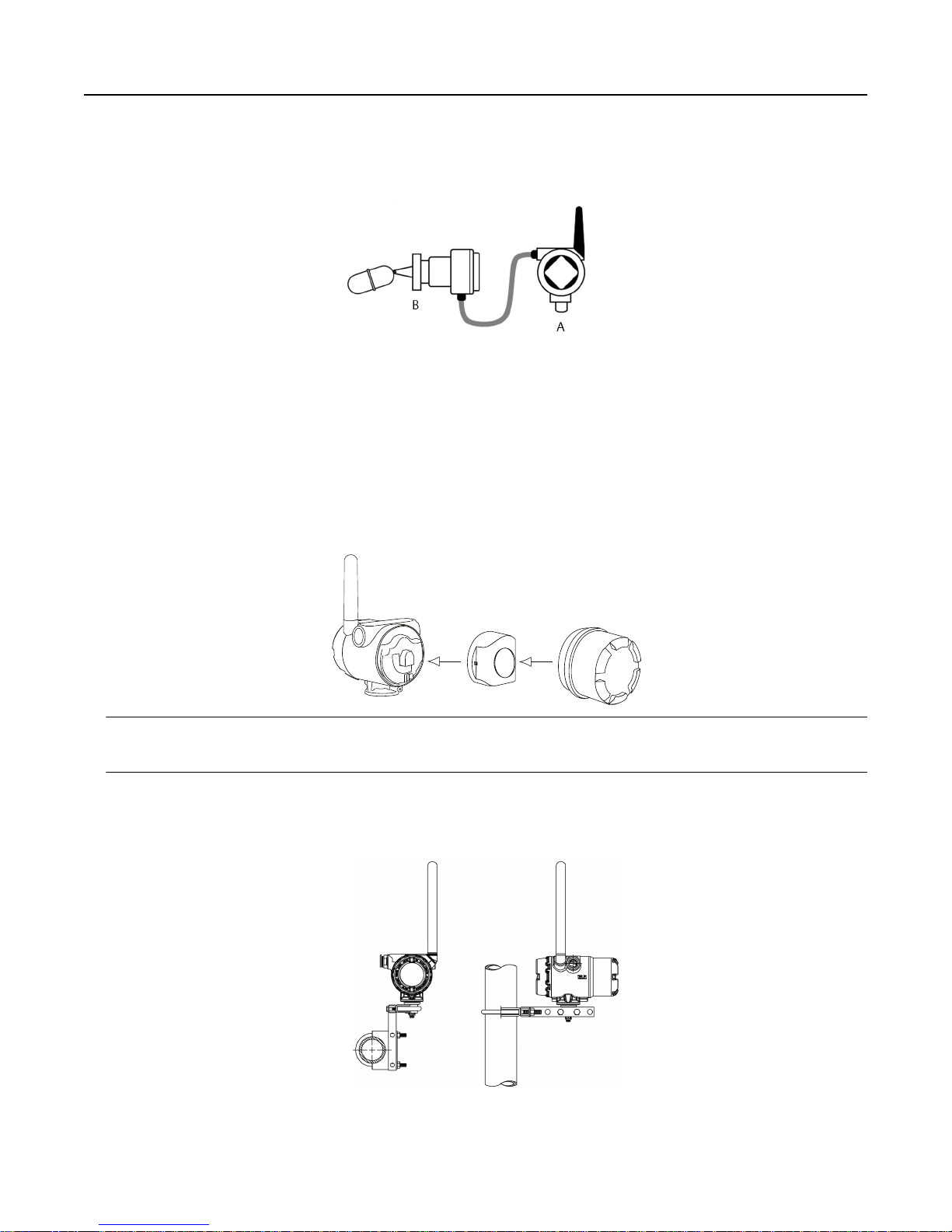

Figure 5: Direct Mount

A. Rosemount 702 Transmitter
B. Float switch

1. Install the switch according to standard installation practices making sure to use thread sealant on all connections.

2. Attach the Rosemount 702 Transmitter housing to the switch using the threaded conduit entry.

3. Attach the switch wiring to the terminals as indicated on the wiring diagram (see Reference information: wiring switch inputs,

output circuits, and leak sensors on page 0 ).

4. Connect the Black Power Module.

Note

Wireless devices should be powered up in order of proximity from the Smart Wireless Gateway, beginning with the closest
device to the Gateway. This will result in a simpler and faster network installation.

5. Close the housing cover and tighten to safety specification. Always ensure a proper seal so the metal touches metal, but do not
over tighten.

6. Position antenna vertically, either straight up or straight down. The antenna should be approximately 3 ft. (0.91 m) from any
large structures or buildings, to allow clear communication to other devices.

4 Rosemount 702 Wireless Discrete Transmitter

August 2018

Remote mount

Figure 6: Remote Mount

A. Rosemount 702 Transmitter
B. Float switch

1. Install the switch according to standard installation practices making sure to use thread sealant on all connections.

2. Run wiring (and conduit if necessary) from the switch to the Rosemount 702 Transmitter.

3. Pull the wiring through the threaded conduit entry of the Rosemount 702 Transmitter.

4. Attach the switch wiring to the terminals as indicated on the wiring diagram (see Reference information: wiring switch inputs,

output circuits, and leak sensors on page 0 ).

5. Connect the black power module.

Note

Wireless devices should be powered up in order of proximity from the Smart Wireless Gateway, beginning with the closest
device to the gateway. This will result in a simpler and faster network installation.

6. Close the housing cover and tighten to safety specification. Always ensure a proper seal so the metal touches metal, but do not
over tighten.

7. Position antenna vertically, either straight up or straight down. The antenna should be approximately 3 ft. (0.91 m) from any
large structures or buildings, to allow clear communication to other devices.

Quick Start Guide 5

August 2018

High gain, remote antenna (optional)

The high gain, remote antenna options provide flexibility for mounting the device based on wireless connectivity, lightning
protection, and current work practices.

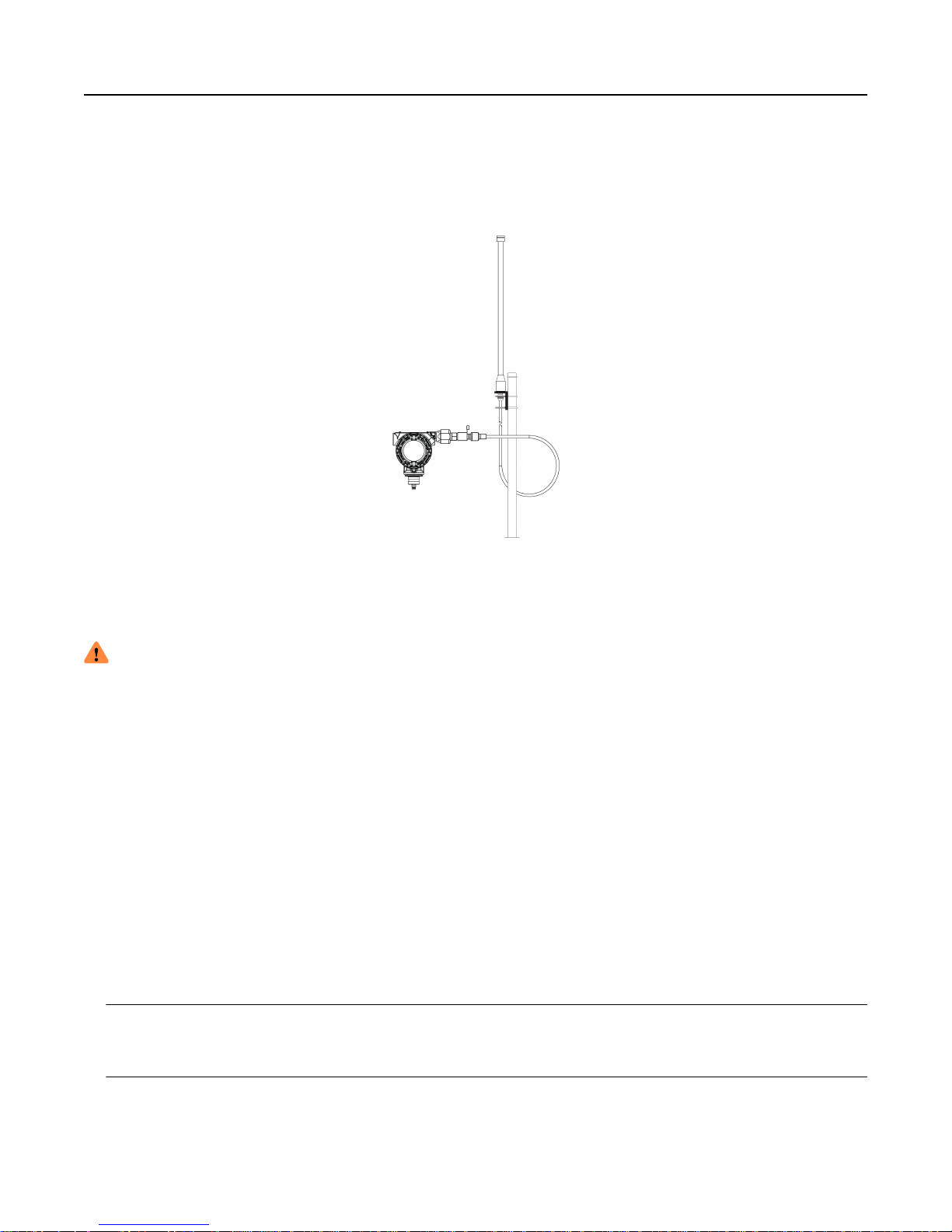

Figure 7: Rosemount 702 Transmitter with High Gain, Remote Antenna

Install the high gain, remote antenna (WN option)

Find a location where the remote antenna has optimal wireless performance. Ideally this will be 15–25 ft. (4.6–7.6 m) above the
ground or 6 ft. (2 m) above obstructions or major infrastructure.

WARNING
When installing remote mount antennas for the transmitter, always use established safety procedures to avoid falling or
contact with high-power electrical lines.

Install remote antenna components for the transmitter in compliance with local and national electrical codes and use best
practices for lightning protection.

Before installing, consult with the local area electrical inspector, electrical officer, and work area supervisor.

The transmitter remote antenna option is specifically engineered to provide installation flexibility while optimizing wireless
performance and local spectrum approvals. To maintain wireless performance and avoid non-compliance with spectrum
regulations, do not change the length of cable or the antenna type.

If the supplied remote mount antenna kit is not installed per these instructions, Emerson is not responsible for wireless
performance or non-compliance with spectrum regulations.

1. Mount the antenna on a 1.5 to 2-in. pipe mast using the supplied mounting equipment.

2. Connect the lightning arrestor directly to the top of the Rosemount 701 Transmitter.

3. Install the grounding lug, lock washer, and nut on top of lightning arrestor.

4. Connect the antenna to the lightning arrestor using the supplied LMR-400 coaxial cable ensuring the drip loop is not closer than

1 ft. (0.3 m) from the lightning arrestor.

5. Use the coaxial sealant to seal each connection between the wireless field device, lightning arrestor, cable, and antenna.

Note

The remote mount antenna kit includes coaxial sealant for weatherproofing the cable connections for the lightning arrestor,
antenna, and Rosemount 702 Transmitter. Coaxial sealant must be applied to guarantee performance of the wireless field
network. See Figure 8 on page 7 for details on how to apply coaxial sealant.

6 Rosemount 702 Wireless Discrete Transmitter

August 2018

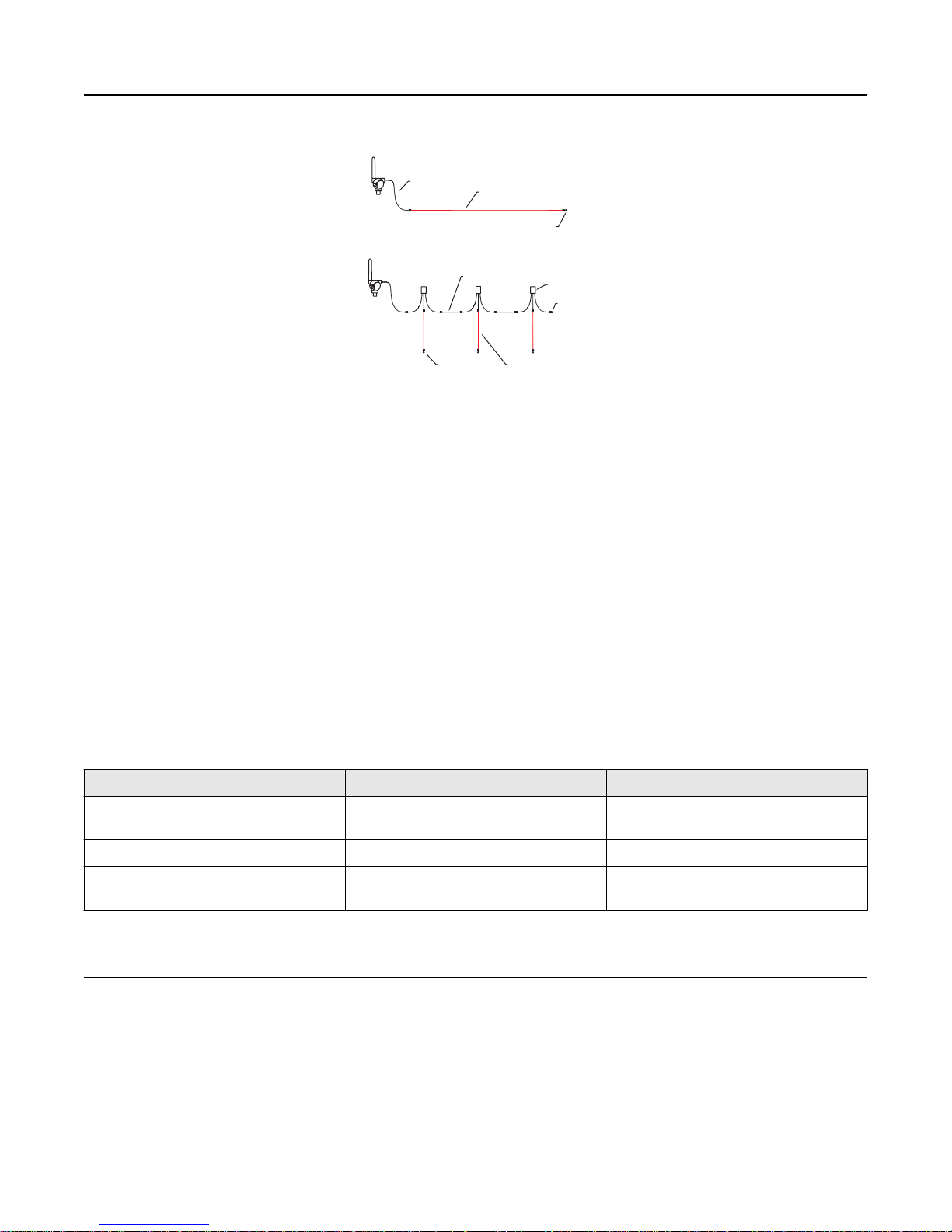

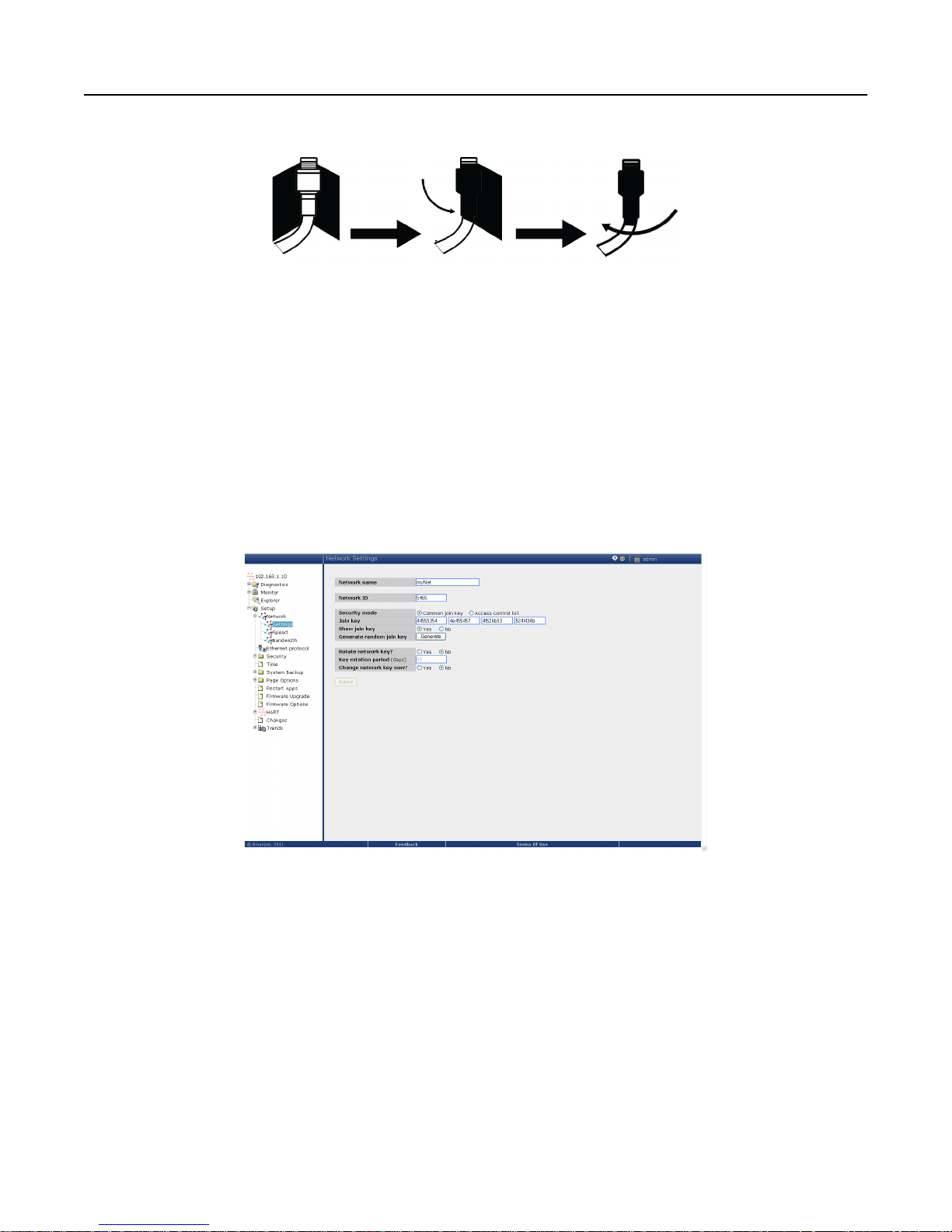

Figure 8: Applying Coaxial Sealant to Cable Connections

6. Ensure the mounting mast and lightning arrestor are grounded according to local/national electrical code.

Any spare lengths of coaxial cable should be placed in 12-in. (0.3 m) coils.

Device network configuration

In order to communicate with the Smart Wireless Gateway, and ultimately the host system, the transmitter must be configured to
communicate with the wireless network. This step is the wireless equivalent of connecting wires from a transmitter to the
information system. Using a Field Communicator or AMS Wireless Configurator, enter the Network ID and Join Key so they match
the Network ID and Join Key of the Gateway and other devices in the network. If the Network ID and Join Key do not match that of
the Gateway, the Rosemount 702 Transmitter will not communicate with the network. The Network ID and Join Key may be
obtained from the Smart Wireless Gateway on the Setup Network Settings page on the web interface, shown in Figure 9 on page

7.

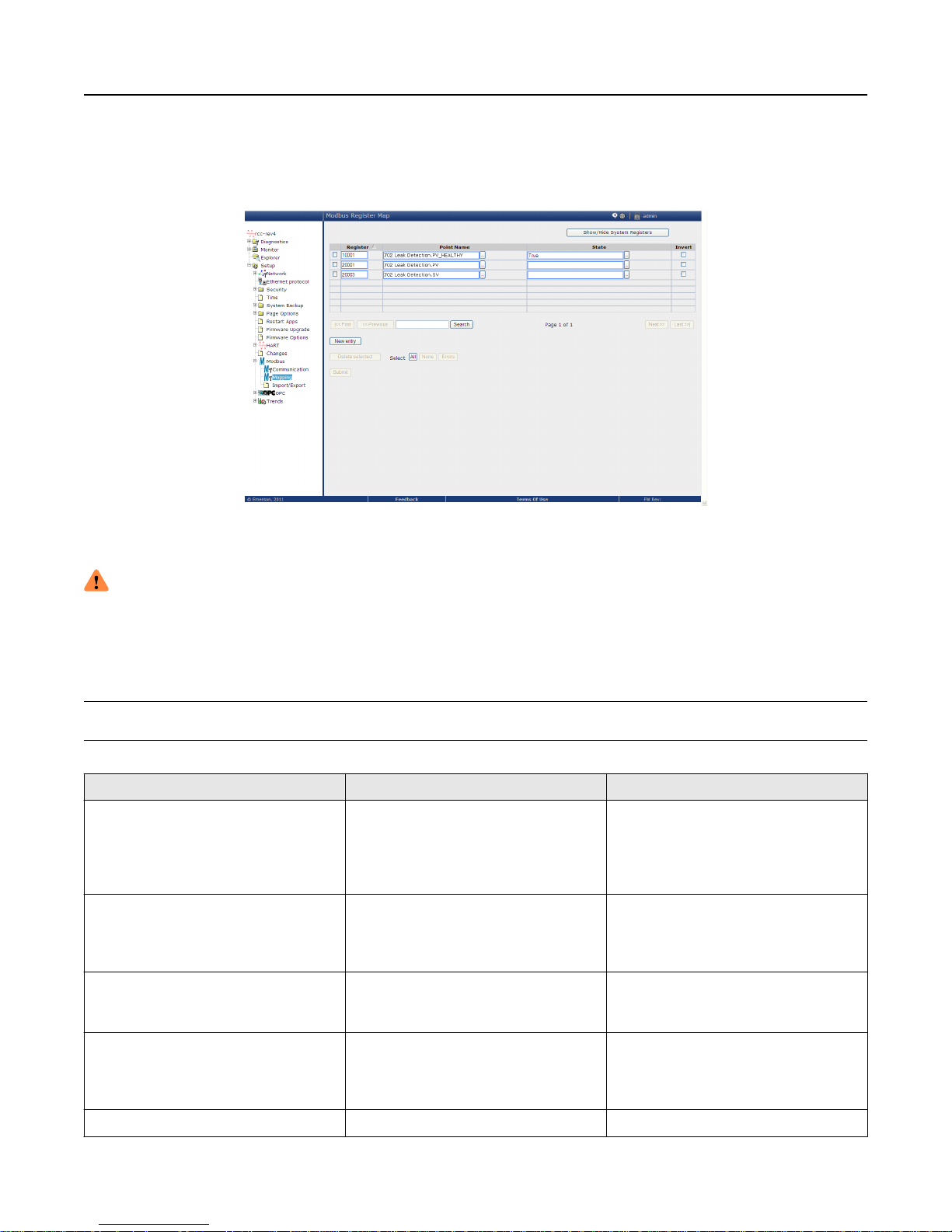

Figure 9: Gateway Network Settings

AMS Wireless Configurator

1. Right click on the Rosemount 702 Transmitter.

2. Select Configure.

3. When the menu opens, select Join Device to Network.

4. Follow the method to enter the Network ID and Join Key.

Field Communicator

The Network ID and Join Key may be changed in the wireless device by using the following Fast Key sequence. Set both Network ID
and Join Key.

Quick Start Guide 7

N E T w K

S R C H N G

n e t w k

N E G O T

n e t w k

L I M - O P

n e t w k

O K

August 2018

Function Fast Key sequence Menu items

Wireless setup 2,2,1 Network ID, Join Device to Network

Verify operation

There are four methods available to verify operation:

■

Using the optional local display (LCD)

■

Using the Field Communicator

■

Using the Wireless Gateway’s integrated web interface

■

Using AMS Suite Wireless Configurator

If the device was configured with the Network ID and Join Key, and sufficient time has passed, the transmitter will be connected to
the network.

Local display

Start-up sequence

When the Rosemount 702 Transmitter is first powered up, the LCD display will display a sequence of screens: All Segments On,
Device Identification, Device Tag, and then the user chosen variables of the periodic display.

During steady state operation, the LCD display gives a periodic display of user chosen variables at the configured wireless update
rate. These variables can be selected from a list of six:

■

Channel 1 State

■

Channel 1 Count

■

Channel 2 State

■

Channel 2 Count

■

Electronics Temperature

■

Supply Voltage

Refer to the Rosemount 702 Reference Manual for error codes and other LCD display messages. The chevron-shaped status bar at

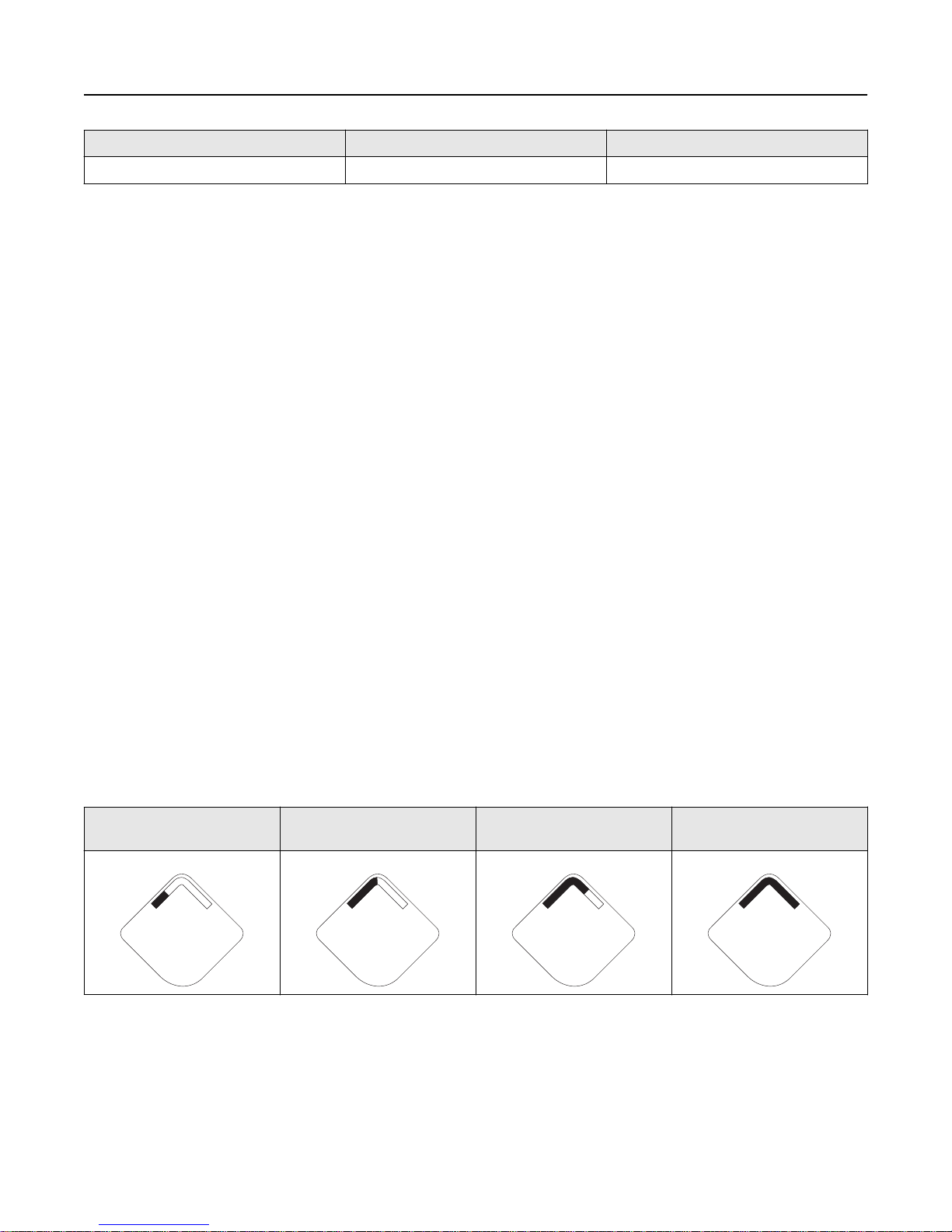

the top of the screen indicates the progress of the network join process. When the status bar is filled, the device is successfully
connected to the wireless network.

Searching for network

Joining network Connected with limited

Field Communicator

For HART® Wireless transmitter communication, a Rosemount 702 Transmitter DD is required.To obtain the latest DD, visit the
Emerson Easy Upgrade site at: Emerson.com/Device-Install-Kits.

8 Rosemount 702 Wireless Discrete Transmitter

bandwidth

Connected

August 2018

Function Key sequence Menu items

Communications 3, 3 Join Status, Wireless Mode, Join Mode,

Number of Available Neighbors, Number
of Advertisements Heard, Number of Join
Attempts

Smart Wireless Gateway

In the Gateway’s integrated web server, navigate to the Explorer page. This page shows whether the device has joined the network
and is communicating properly.

Note

It may take several minutes for the device to join the network.

Note

If the device joins the network and immediately has an alarm present, it is likely caused by the sensor configuration. Check the
sensor wiring (see Figure 13 on page 11) and the sensor configuration (see Table 6 on page 22).

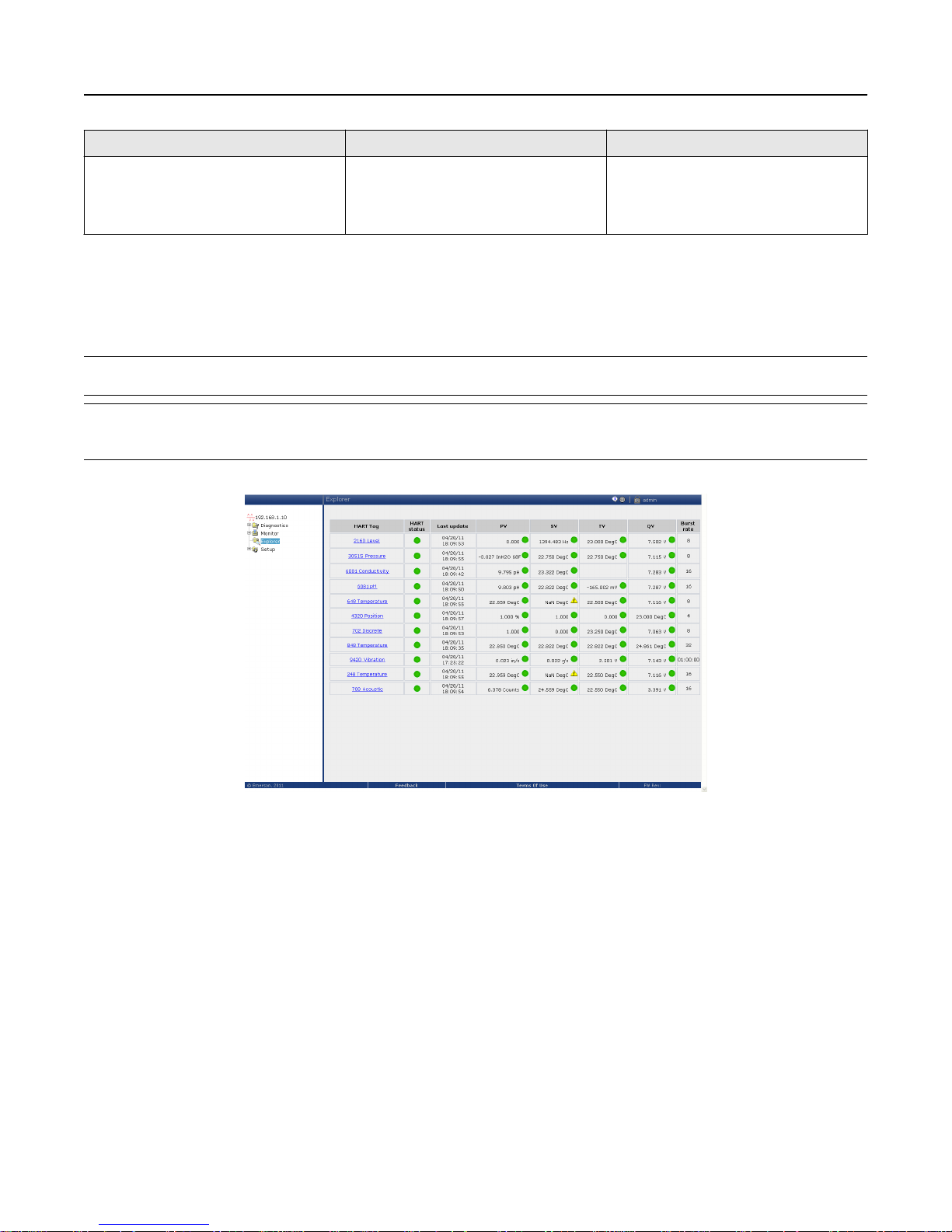

Figure 10: Wireless Gateway Explorer Page

AMS Wireless Configurator

When the device has joined the network, it will appear in AMS Wireless Configurator as illustrated below.

Quick Start Guide 9

August 2018

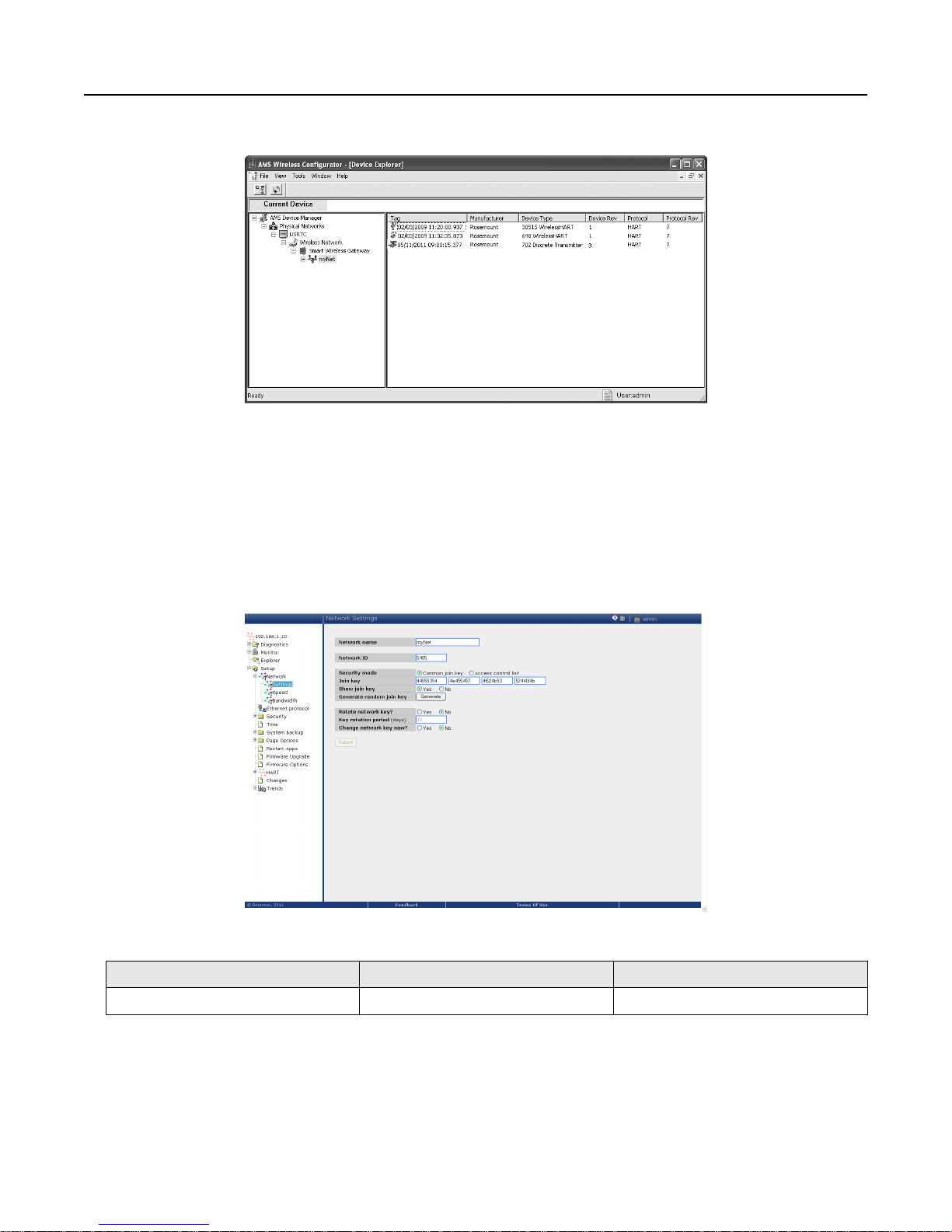

Figure 11: AMS Wireless Configurator, Device Explorer Screen

Troubleshooting

If the device is not joined to the network after power up, verify the correct configuration of the Network ID and Join Key, and that
Active Advertising has been enabled on the Smart Wireless Gateway. The Network ID and Join Key in the device must match the
Network ID and Join Key of the Gateway.

1. From the Gateway's integrated web interface, select Setup Network Settings to obtain the Network ID and Join Key (see Figure

12 on page 10).

Figure 12: Gateway Network Settings

2. To change the Network ID and Join Key in the wireless device, use a Field Communicator and enter the following Fast Key

sequence.

Function

Wireless 2, 1, 1 Join Device to Network

3. Follow the on screen prompts.

10 Rosemount 702 Wireless Discrete Transmitter

Fast Key sequence Menu items

August 2018

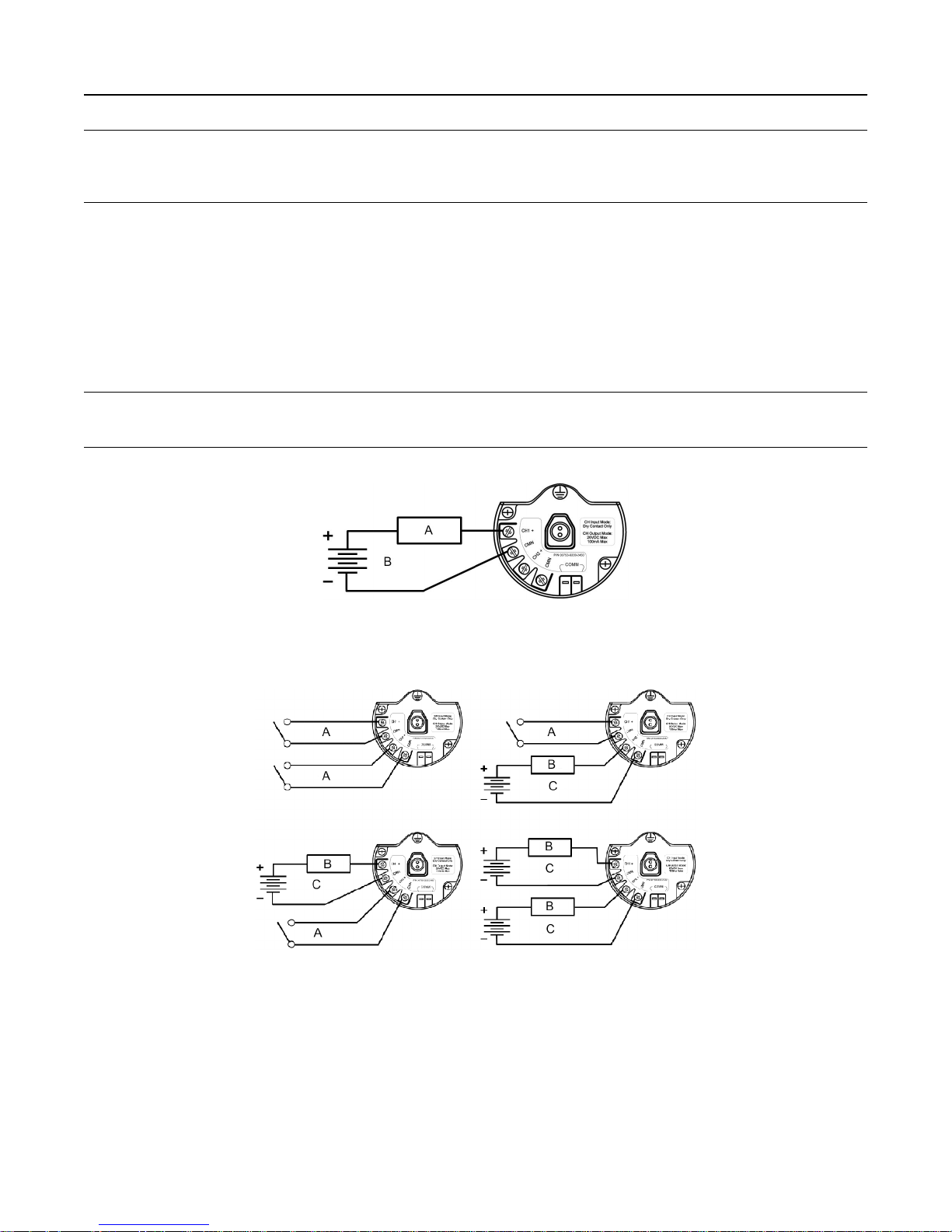

Reference information: wiring switch inputs, output
circuits, and leak sensors

Dry contact switch inputs

The Rosemount 702 Transmitter has a pair of screw terminals for each of two channels, and a pair of communication terminals.
These terminals are labeled as follows:

CH1+: Channel one positive

CMN: Common

CH2+: Channel two positive

CMN: Common

COMM: Communication

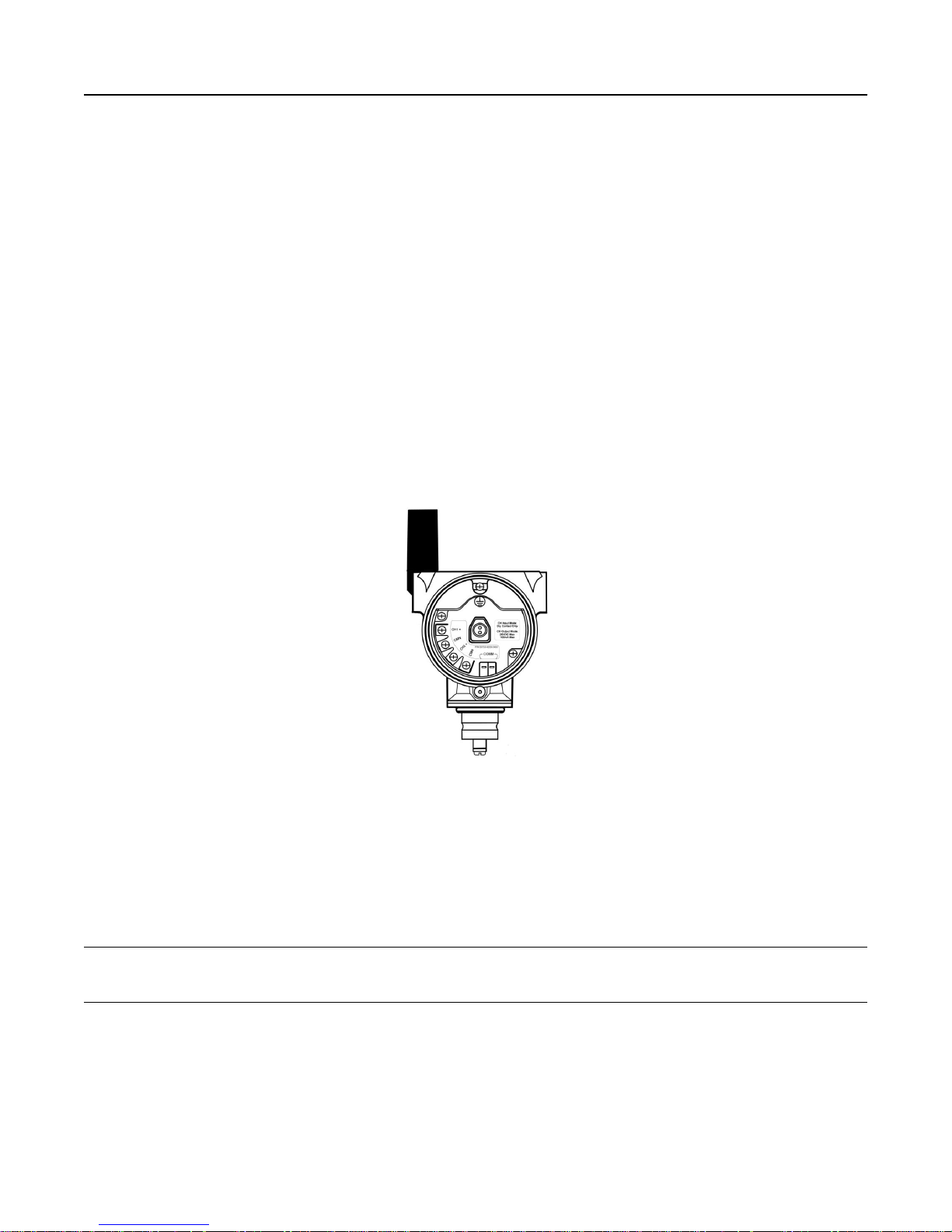

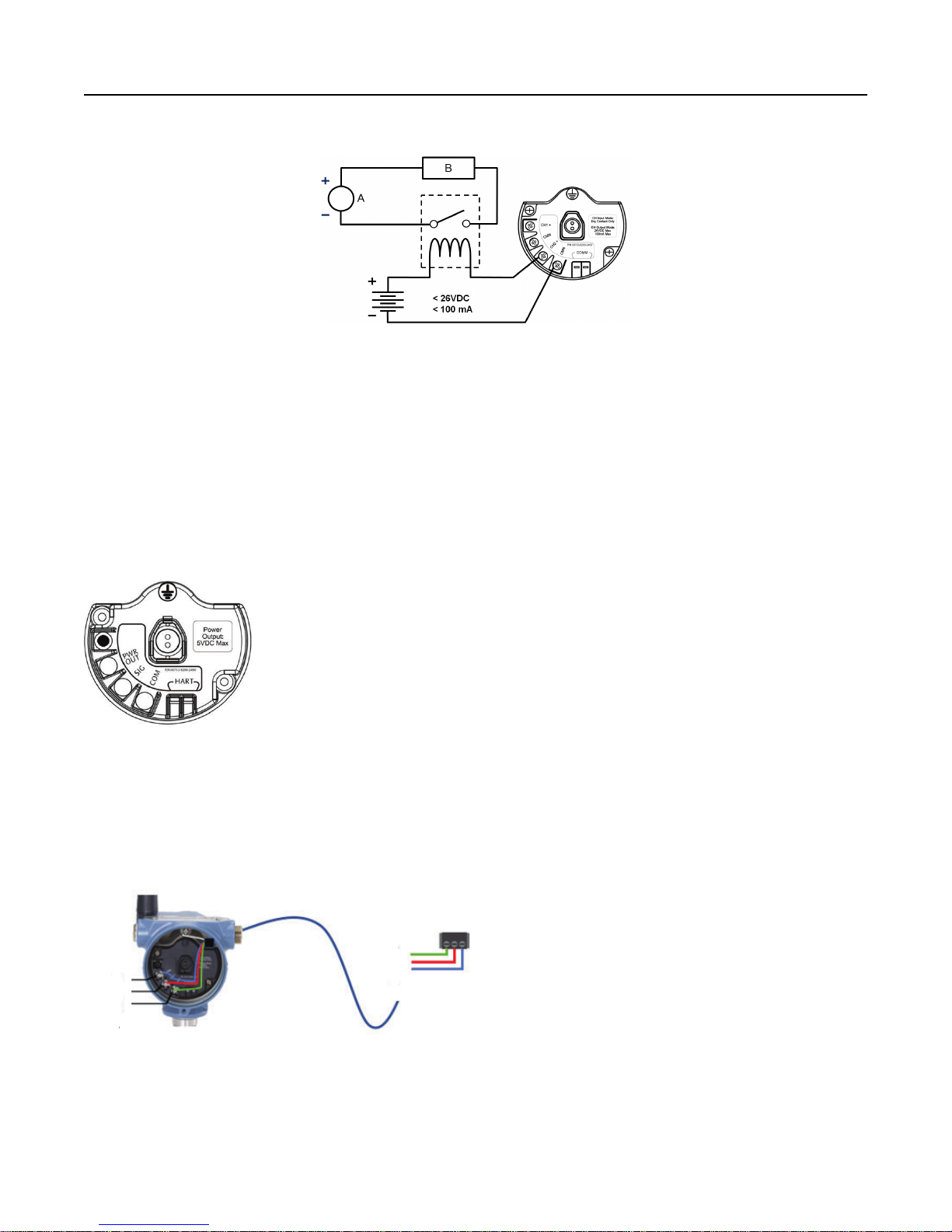

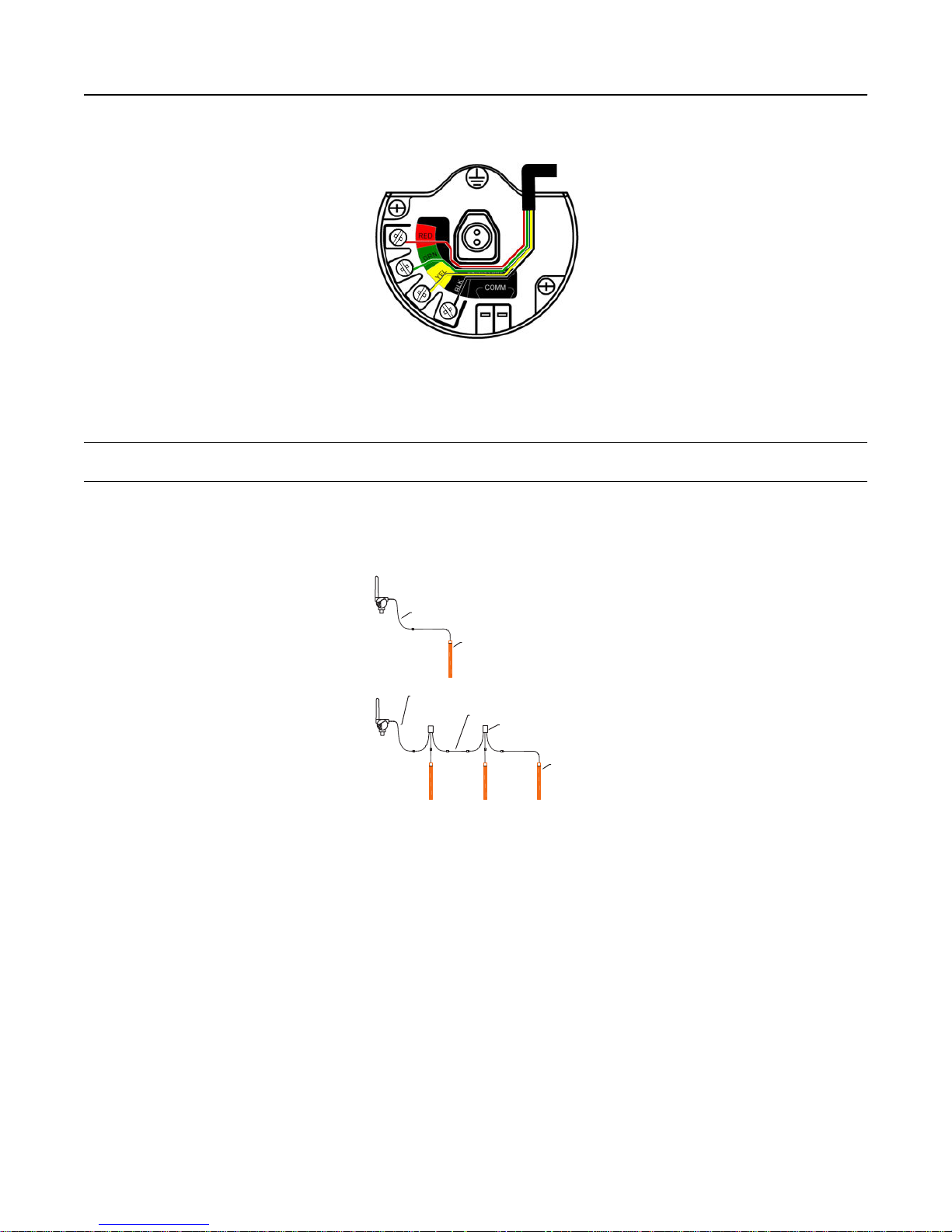

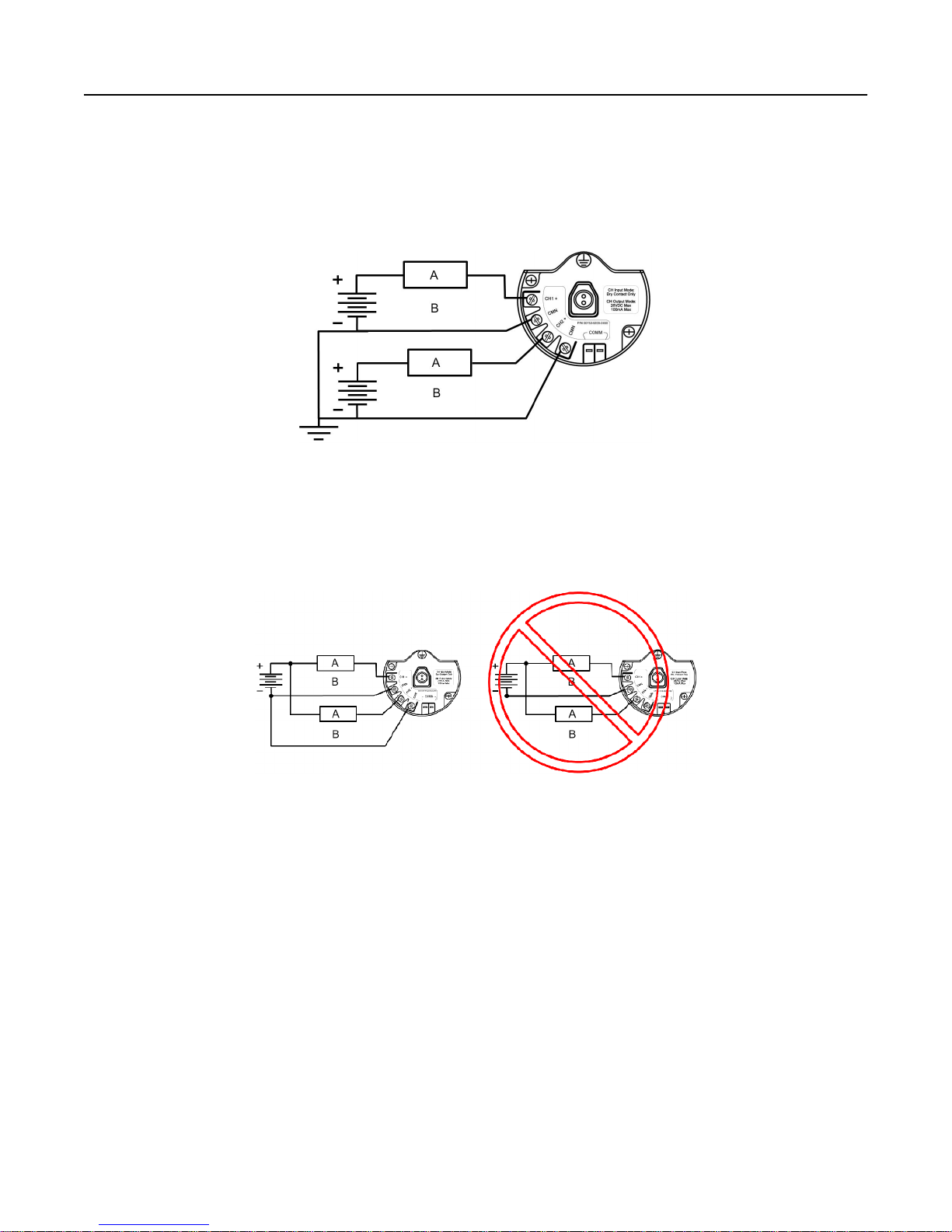

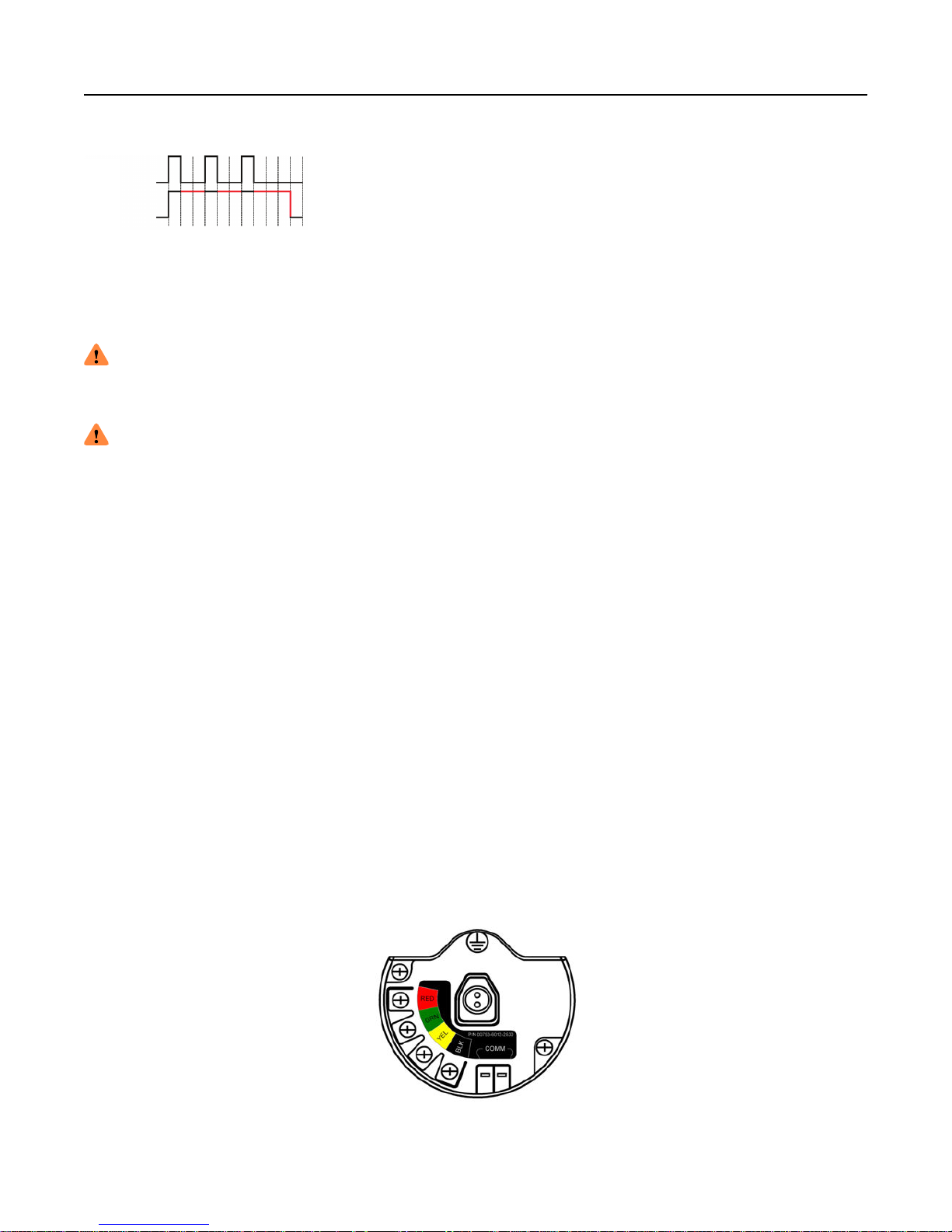

Figure 13: Rosemount 702 Transmitter Terminal

Wireless output specifications

Dual input

The Rosemount 702 Transmitter will accept the input from one or two single pole single throw switches on inputs CH1 and CH2.
The wireless output of the transmitter will be both a primary variable (PV) and a secondary variable (SV). The PV is determined by
the CH1 input. The SV is determined by the CH2 input. A closed switch drives a TRUE output. An Open switch drives a FALSE output.

Note

Any dry contact input may optionally be inverted by the device, so change the discrete logic state. This is useful, for instance, if a
normally open switch is used to replace a normally closed switch.

Quick Start Guide 11

August 2018

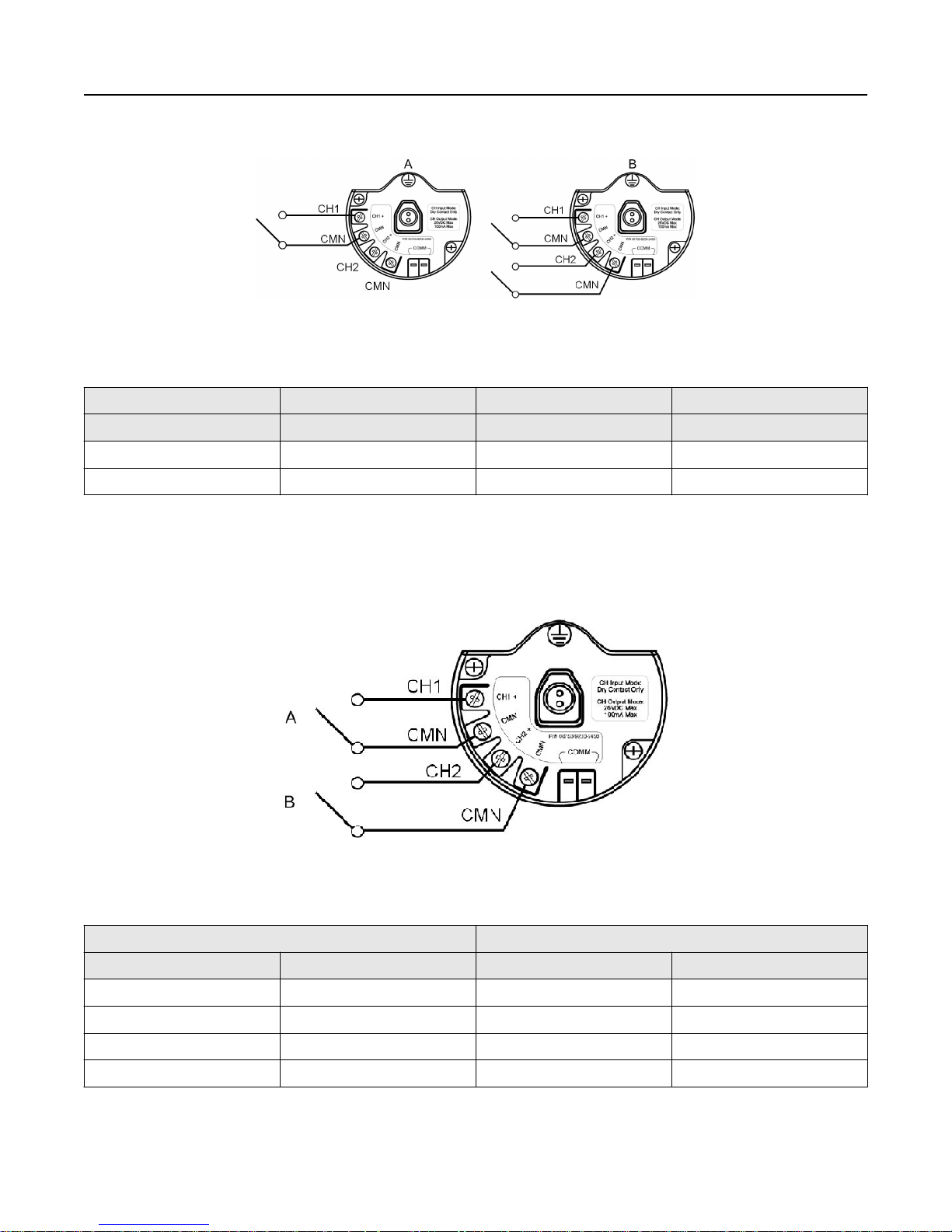

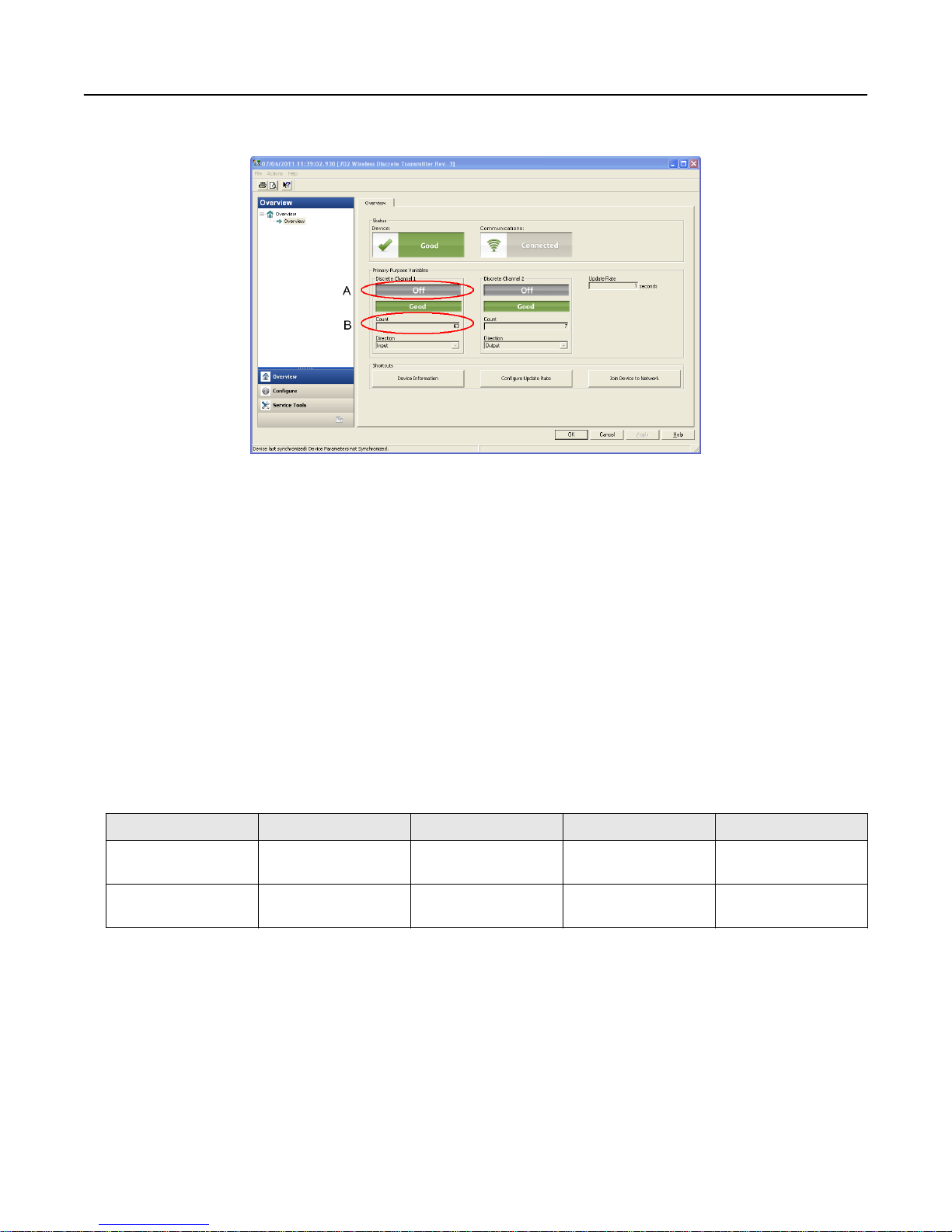

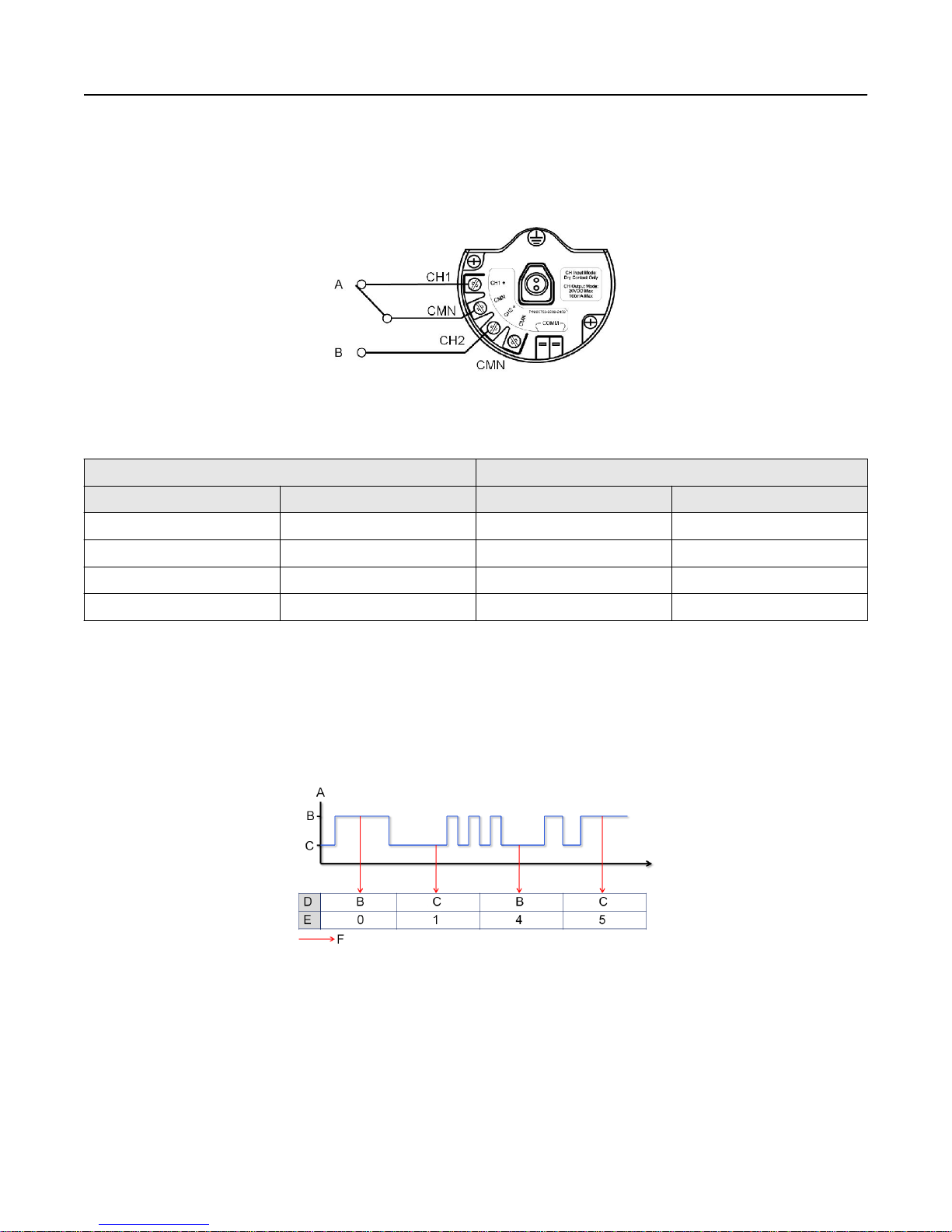

Figure 14: Single and Dual Input

A. Single Input
B. Dual Input

Table 1: Single or Dual Input

Switch input Wireless output Switch input Wireless output

CH1 PV CH2 SV

Closed TRUE (1.0) Closed TRUE (1.0)

Open FALSE (0.0) Open FALSE (0.0)

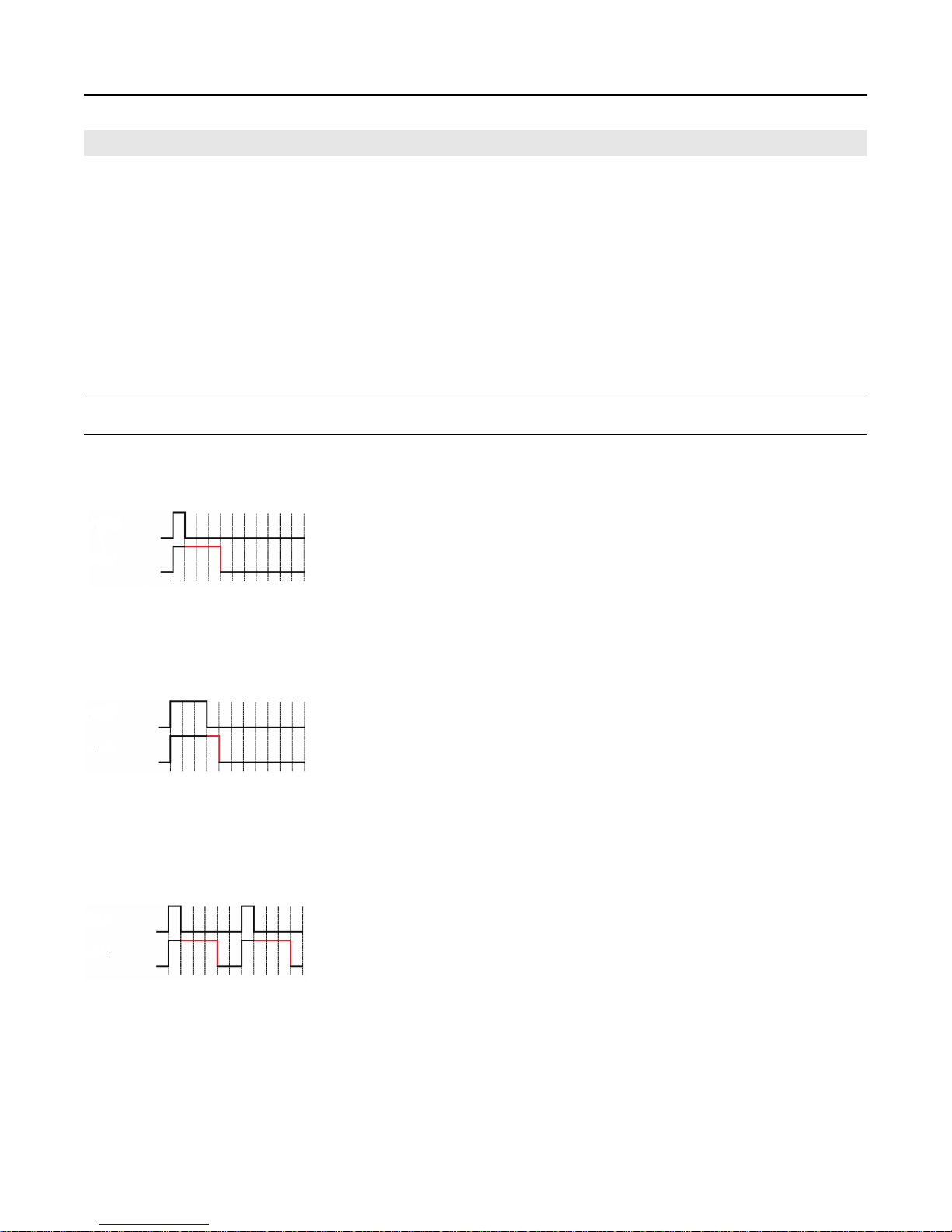

Dual input, limit contact logic

When configured for Limit Contact Logic, the Rosemount 702 Transmitter will accept the input from two single pole single throw
switch on inputs CH1 and CH2, and will use limit contact logic for the determination of the wireless outputs.

Figure 15: Dual Input, Limit Contacts

A. TRUE
B. FALSE

Table 2: Dual Input, Limit Contact Logic

Switch input Wireless output

CH1 CH2 PV SV

Open Open TRAVEL (0.5) TRAVEL (0.5)

Open Closed FALSE (0.0) FALSE (0.0)

Closed Open TRUE (1.0) TRUE (1.0)

Closed Closed FAULT(NaN) FAULT(NaN)

12 Rosemount 702 Wireless Discrete Transmitter

August 2018

Dual input, opposing contact logic

When configured for Opposing Contact Logic, the Rosemount 702 Transmitter will accept the input from a double pole single
throw switch on inputs CH1 and CH2, and will use opposing contact logic for the determination of the wireless outputs.

Figure 16: Dual Input, Opposing Contact

A. TRUE
B. FALSE

Table 3: Dual input, Opposing Contact Logic

Switch inputs Wireless outputs

CH1 CH2 PV SV

Open Open FAULT(NaN) FAULT(NaN)

Open Closed FALSE (0.0) FALSE (0.0)

Closed Open TRUE (1.0) TRUE (1.0)

Closed Closed FAULT(NaN) FAULT(NaN)

Momentary discrete inputs, measurement option code 32 and 42

The Rosemount 702 Transmitter is capable of detecting momentary discrete inputs of 10 milliseconds or more in duration,
regardless of the wireless update rate. At each wireless update, the device reports current discrete input state along with an
accumulating count of close-open cycles for each input channel.

Figure 17: Momentary Inputs and Accumulating Count

A. Input Switch State
B. Closed
C. Open
D. State
E. Count
F. Wireless Updates

Quick Start Guide 13

Figure 18: Reporting of Current Discrete State and Count in AMS Device Manager

A. Current State
B. Count

August 2018

Setting variable reporting

The Rosemount 702 Transmitter has two choices for variable reporting: Classic - Discrete State Only, or Enhanced – Discrete State
and Count.

1. In AMS Device Manager, select Configure > Manual Setup > HART.

2. Set Variable Reporting as desired.

Option

Classic - Discrete State Only The Rosemount 702 Transmitter will report variables exactly like the previous version of

Enhanced – Discrete State with
Count

Table 4 on page 14 shows the variable mapping for both cases.

Table 4: Variable Mapping

Variable reporting PV SV TV QV

Classic – Discrete State
Only

Enhanced – Discrete
State with Count

CH1 State CH2 State Electronics

CH1 State CH2 State CH1 Count CH2 Count

Description

the device (measurement option code 22).

The Rosemount 702 Transmitter will provide both current state of the discrete channels,
and a count of the discrete state change cycles.

Supply voltage

temperature

Discrete output circuits, measurement option code 42

The Rosemount 702 Transmitter has two channels that can each be configured for discrete input or output. Inputs must be dry
contact switch inputs and these were described in a preceding section of this document. Outputs are a simple switch closure to
activate an output circuit. The Rosemount 702 Transmitter output does not provide any voltage or current, the output circuit must
have power of its own. The Rosemount 702 Transmitter output has maximum switch capacity per channel of 26 volts DC and 100
milliamps.

14 Rosemount 702 Wireless Discrete Transmitter

August 2018

Note

It is very important that the polarity of the output circuit is as shown in the wiring diagrams, with the positive (+) side of the circuit
wired to the + terminal of each channel, and the negative (-) side of the circuit wired to the CMN terminal. If the output circuit is
wired backwards it will remain active (switch closed) regardless of the state of the output channel.

Discrete output switch functionality

The discrete output of the Rosemount 702 Transmitter is driven by the host control system, through the Smart Wireless Gateway,
and out to the Rosemount 702 Transmitter. The time required for this wireless communication from the Gateway to the
Rosemount 702 Transmitter is dependent on many factors, including the size and topology of the network and the total amount of
downstream traffic on the wireless network. For a network that is constructed to our best practices, typical delays in
communication of a discrete output from the Gateway to the Rosemount 702 Transmitter are 15 seconds or less. Remember that
this delay is only part of the latency that well be observed in a control loop.

Note

The output switch functionality of the Rosemount 702 Transmitter requires that the network is managed by a version 4 Smart
Wireless Gateway, with v4.3 or greater firmware installed.

Figure 19: Output Circuit Wiring

A. LOAD
B. OUTPUT

Figure 20: Possible Configurations for Both Channel 1 and Channel 2

A. INPUT
B. LOAD
C. OUTPUT

Quick Start Guide 15

August 2018

Special considerations for dual output circuits

If both channels are connected to output circuits, it is very important that the CMN terminal of each circuit be at the same voltage.
Employing a common ground for both output circuits is one way to ensure that both circuits have CMN terminals at the same
voltage.

Figure 21: Dual Output Circuits with a Common Ground

A. LOAD
B. OUTPUT

If two output circuits are connected to a single Rosemount 702 Transmitter with a single power supply, both CH + and CMN
terminals must be connected to each output circuit. The negative power supply wires must be at the same voltage and connected
to both CMN terminals.

Figure 22: Dual Output Circuits with One Power Supply

A. LOAD
B. OUTPUT

Switching greater currents or voltages

It is important to note that the maximum output switching capacity is 26 volts DC and 100 milliamps. If a greater voltage or current
is to be switched, an interposing relay circuit can be used. Figure 23 on page 17 shows an example of a circuit to switch higher
currents or voltages.

16 Rosemount 702 Wireless Discrete Transmitter

1
2
3

3
2
1

August 2018

Figure 23: Wiring an Interposing Relay to Switch Greater Currents or Voltages

A. Power Supply
B. LOAD

Plunger arrival detection

Terminal block connections

The plunger arrival detection configuration for measurement option code 52 is intended for use with the ETC Cyclops Plunger
Arrival Sensor.

Figure 24: Plunger Arrival Terminal Diagram

The wiring connections to the ETC Cyclops sensor are made according to Figure 5-13, where 1 connects to 3, 2 connects to 2, and 3
connects to 1 between the transmitter and the sensor.

Figure 25: Wiring Configuration

Plunger Arrival Sensor

ETC Cyclops Sensor

Quick Start Guide 17

A

B

A

B

A

B

August 2018

Rosemount 702 Transmitter ETC Cyclops Sensor

1. PWR OUT

2. SIG

3. COM

1. COM

2. SIG

3. PWR

For mounting and maintenance of the ETC Cyclops Sensor, refer to the ETC Cyclops Plunger Arrival Sensor Manual.

Latching feature

The Rosemount 702 has a latching feature that, when enabled, allows detection of momentary state changes to be held for a
configurable latch period. The latching feature can be configured to detect either high or low state changes. By default, the Plunger
state (channel 1) is enabled to latch high state changes for a period of one minute.

The following are some examples to demonstrate how the latching time works.

Note

Hold time is set to four seconds for illustration in the following examples.

Short events (less than latch hold time) of the measured value will be latched to the reported value for the duration of latch hold
time.

Figure 26: Latch Time Short Events

A. Measured
B. Reported

The start of the latch hold timer begins when the measured signal first transitions to active state.

Figure 27: Latch Hold Time Start

A. Measured
B. Reported

The latch only applies to transitions into the active state. As soon as the reported value is no longer latched,the devices is armed for
the next event.

Figure 28: Latch Applies to Transitions to Active State

A. Measured
B. Reported

If the measured value goes inactive and active again before the initial latch hold timer experies, the latch hold timer will restart
from the beginning of the most recent event.

18 Rosemount 702 Wireless Discrete Transmitter

A

B

August 2018

Figure 29: Latch Hold Timer Restarts

A. Measured
B. Reported

Latching warnings

WARNING
When state latching is enabled, the discrete variable reported to the system will represent the latched value which may not
be the actual state value measured by the Rosemount 702 Transmitter

WARNING
Ensure that the state latch time value is long enough for the value to be reported throughout the entire system to
guarantee the state transition is not missed. After configuring discrete latching function, check for proper operation at the
system level to ensure the desired state transitions are captured as desired.

System Verification

After installation of the 702DX52 for plunger arrival one must verify functionality.

■

Verify the sensor: To do so, pass a ferrous object (ex. Wrench) past the cyclops sensor to simulate an arrival. Verify via the LCD
screen and/or field communicator that channel 1 indicates a state change. If a state change is seen, sensor wiring is correct; if
nothing is seen, please go back through the installation steps and confirm that everything has been done accordingly.

■

Verify System integration: It is important to verify the latch time is configured correctly. The default latch period is set to one
minute. Verify the host system can detect the arrival event by moving a ferrous metal object (ex. Wrench) past the arrival
sensor. The signal should be passed from the device, through the Wireless Gateway and detected at the final host application
(ex. PLC, Modbus/OPC, etc.). If nothing is seen, confirm the latch time is appropriate considering the full system scan cycle.

Leak sensors, liquid hydrocarbon detection, measurement option code 61

Terminal block connections

The Liquid Hydrocarbon Detection configuration is intended for use with the Tyco® TraceTek® Fast Fuel Sensor, or TraceTek sensing
cable.

Figure 30: Fuel Sensor Terminal

Quick Start Guide 19

$

&

'

(

)

%

August 2018

Figure 31: Fuel Sensor Connection

Connecting to the fast fuel sensor and TraceTek sensing cable

The connections to the Fast Fuel Sensor TraceTek sensing cable are made by matching the appropriately colored wires to the
matching colored termination lugs.

Note

All part numbers associated with the fuel sensor cable wiring refer to products sold by Tyco Thermo Controls, LLC.

The Rosemount 702 Wireless Discrete Transmitter can support up to 3 Fast Fuel sensors. These Fast Fuel sensors are connected
using TraceTek Modular Leader Cable (TT-MLC-MC-BLK), optional modular jumper cables (TT-MJC-xx-MC-BLK) and branching
connectors (TT-ZBC-MC-BLK) as suggested in Figure 32 on page 20.

Figure 32: Fuel Sensor Wiring

A. TT-MLC-MC-BLK (Leader cable)
B. TT-FFS-100 or TT-FFS-250 (Fast fuel sensor probe)
C. TT-MLC-MC-BLK (Leader cable)
D. TT-MJC-xx-MC-BLK (Optional jumper cable)
E. TT-ZBC-xx-MC-BLK (Branch connector)
F. TT-FFS-100 or TT-FFS-250 (Fast fuel sensor probe)

The Rosemount 702 Wireless Discrete Transmitter can support up to 500 feet of TraceTek hydrocarbon or solvent sensor cable
(TT5000 or TT5001 series). The total amount of sensor cable connected to a single Rosemount 702 Transmitter is not to exceed
500 ft. (150 m). However leader cable, jumper cables (if used) and branch connectors are not included in the 500 foot limit. See

Figure 33 on page 21 for typical configurations.

20 Rosemount 702 Wireless Discrete Transmitter

$

'

(

)

+*

%

&

August 2018

Figure 33: Fuel Sensor Cable Wiring

A. TT-MLC-MC-BLK (Leader Cable)
B. TT5000/TT5001 Sensor cable (up to 500 ft.)
C. TT-MET-MC (End termination)
D. TT-MJC-xx-MC-BLK (Optional jumper cable)
E. TT-ZBC-xx-MC-BLK (Branch connector)
F. TT-MET-MC (End termination)
G. TT-MET-MC (End termination)
H. Up to 500-ft. TT5000 or TT5001 sensor cable (Total per 702)

Important notes regarding the use of Tyco TraceTek Fast Fuel Sensor and TraceTek sensing cable:

■

Tyco TraceTek sensors must be installed as per manufacturer recommendations.

■

Do not run the Rosemount 702 Transmitter for long periods (more than two weeks) with a Tyco fuel sensor in the leak state as
this will more rapidly deplete the power module.

Liquid hydrocarbon detection interface, for Modbus® mapping

Table 5 on page 21 describes use of the Rosemount 702 Transmitter for hydrocarbon detection in other communications

protocols such as Modbus or OPC. It is imperative that both PV and SV be mapped to the host system so as to make a good
interpretation of the condition and status of the leak detector.

Table 5: Liquid Hydrocarbon Detection Interface, for Modbus Mapping

PV SV Description/interpretation

1.0 1.0 Normal condition, no leak detected,
sensor status good

0.0 1.0 or 0.0 Leak detected, sensor status good

1.0 0.0 Sensor Not Connected, Assume Leak,
take appropriate action

NOTICE

It is imperative that both PV and SV be mapped to the host system so the diagnostic information on the sensor status is captured.

In addition, system considerations must be observed to ensure that the device is still connected to the wireless network and
reporting values. On an Emerson Smart Wireless Gateway, this can be done by referring to the parameter: PV_HEALTHY.
PV_HEALTHY has a “True” state when the device is on the network and its updates are current, not late or stale, and the device is
functioning properly. A “False” state of PV_HEALTHY means the device is either off the network, the data updates are not current,
or that there is a malfunction of the device (such as an electronics failure). In the case of a “False” state of PV_HEALTHY, it is
recommended to assume the device is not connected to the network and take appropriate action.

Quick Start Guide 21

August 2018

Mapping the PV, SV, and PV_HEALTHY variables and parameter

Below is a the Gateway screen where the PV, SV, and PV_HEALTHY variables and parameter can be mapped.

Figure 34: Smart Wireless Gateway Modbus Register Map

The Fast Fuel Sensor Diagnostics will propagate via the SV variable. This additional information will provide additional sensor Status
information while using the TraceTek Fast Fuel Sensor.

WARNING

If a device is not present on the wireless network, appropriate action must be taken by the host system.

Field Communicator use

Note

In order to communicate with a Field Communicator, power the Rosemount 702 Transmitter by connecting the power module.

Table 6: Rosemount 702 Transmitter Fast Key Sequence

Function Fast Key sequence Menu items

Device information 2, 2, 4, 3 Manufacturer Model, Final Assembly

Number, Universal, Field Device,
Software, Hardware, Descriptor,
Message, Date, Model Number I, II, III, SI
Unit Restriction, Country

Guided setup 2, 1 Join Device to Network, Configure Update

Rate, Configure Sensor, Calibrate Sensor,
Configure Display, Configure Process
Alarms

Manual setup 2, 2 Wireless, Process Sensor, Percent of

Range, Device Temperatures, Device
Information, Device Display, Other

Wireless 2, 2, 1 Network ID, Join Device to Network,

Sensor calibration 3, 4, 1 Output configuration, input configuration

22 Rosemount 702 Wireless Discrete Transmitter

Configure Update Rate, Configure
Broadcast Power Level, Power Mode,
Power Source

COMM

P/N 00753-9200-0020

1

2

3

4

CH1 +

CMN

CH2 +

CMN

CH Input Mode:
Dry Contact Only

CH Output Mode:

26VDC Max
100mA Max

August 2018

Figure 35: Field Communicator Connections

Safety shower and eye wash monitoring

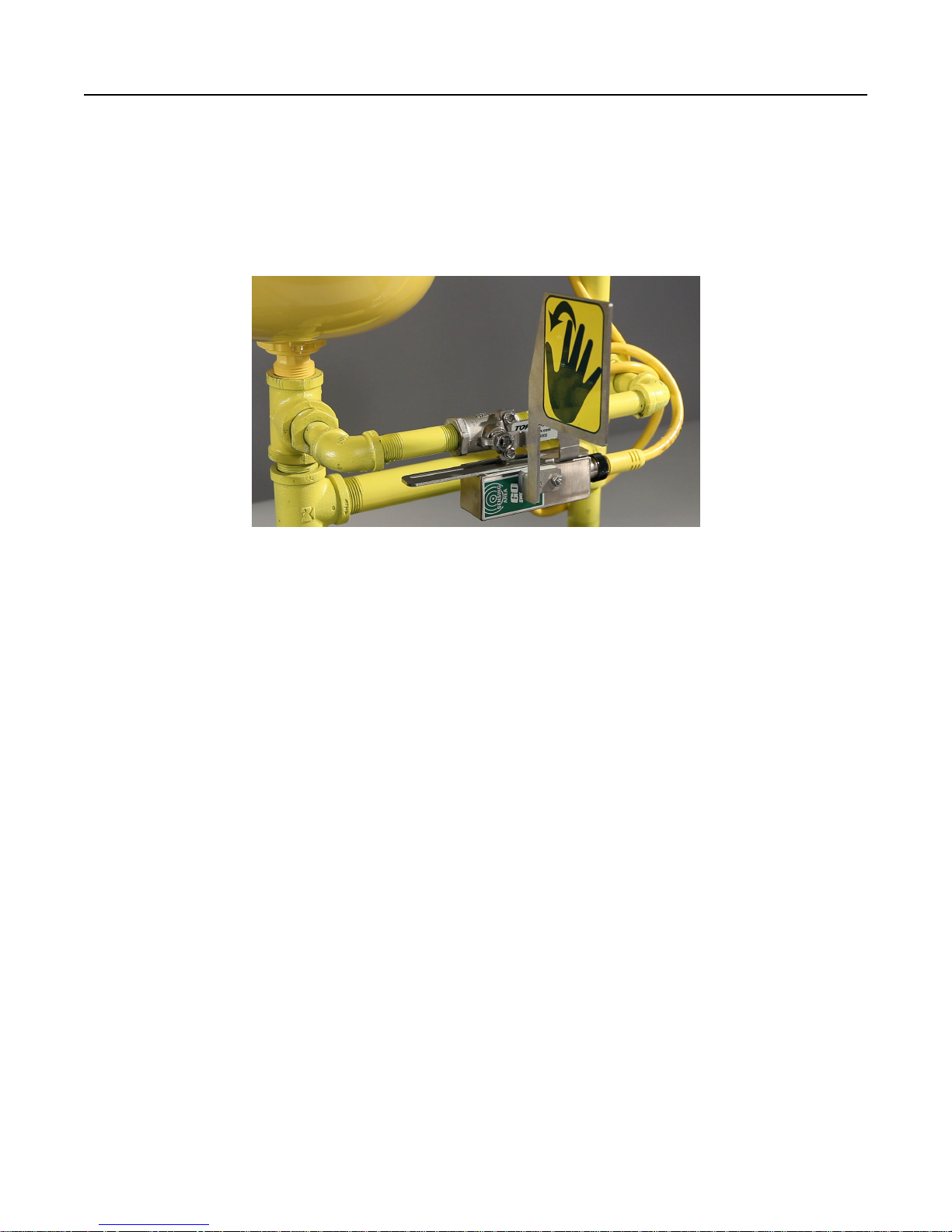

The Rosemount 702 Transmitter can be used to monitor safety showers and eye wash stations by using switch kits provided by
TopWorx™, an Emerson company. These kits are ordered as a part of the Rosemount 702 model code, or separately as an accessory
kit, and are available for both insulated and un-insulated pipes. These kits contain the switches, brackets and cables that are
necessary to install the Rosemount 702 to monitor both the safety shower and the eye wash in a single station. Because each has
two input channels, one Rosemount 702 Transmitter can be used to monitor both a safety shower and an eye wash.

Each Safety Shower Monitoring kit contains:

■

Two TopWorx GO™ Switch magnetic proximity switches

■

Two cables, one six foot and one twelve foot

■

Two black polymer cable glands

■

Mounting kit for safety shower and eye wash

Safety shower monitoring

When the shower valve is activated (valve open) by pulling down on the handle, the TopWorx switch is activated (closed switch)
and the Rosemount 702 Transmitter senses that switch closure. This switch state is then transmitted by the Rosemount 702
Transmitter to the Gateway, which then sends that information to the control host or alert system. When the shower valve is
closed, the switch remains in the activated state until it is reset by a technician. The switch can be re-set only by placing a ferrous
metal object on the far side of the sensing area of the switch.

Figure 36: TopWorx Switch Installed on a Safety Shower

Quick Start Guide 23

August 2018

Eye wash monitoring

When the eye wash valve is activated (valve open) by pushing down on the hand paddle, the TopWorx switch is activated (closed
switch) and the Rosemount 702 Transmitter senses that switch closure. This switch state is then transmitted by the Rosemount
702 Transmitter to the Gateway, which then sends that information to the control host or alert system. When the eye wash valve is
closed, the switch remains in the activated state until it is reset by a technician. The switch can be re-set only by placing a ferrous
metal object on the far side of the sensing area of the switch.

Figure 37: TopWorx Switch Installed on an Eye Wash Station

Product Certifications

Rev 1.0

European directive information

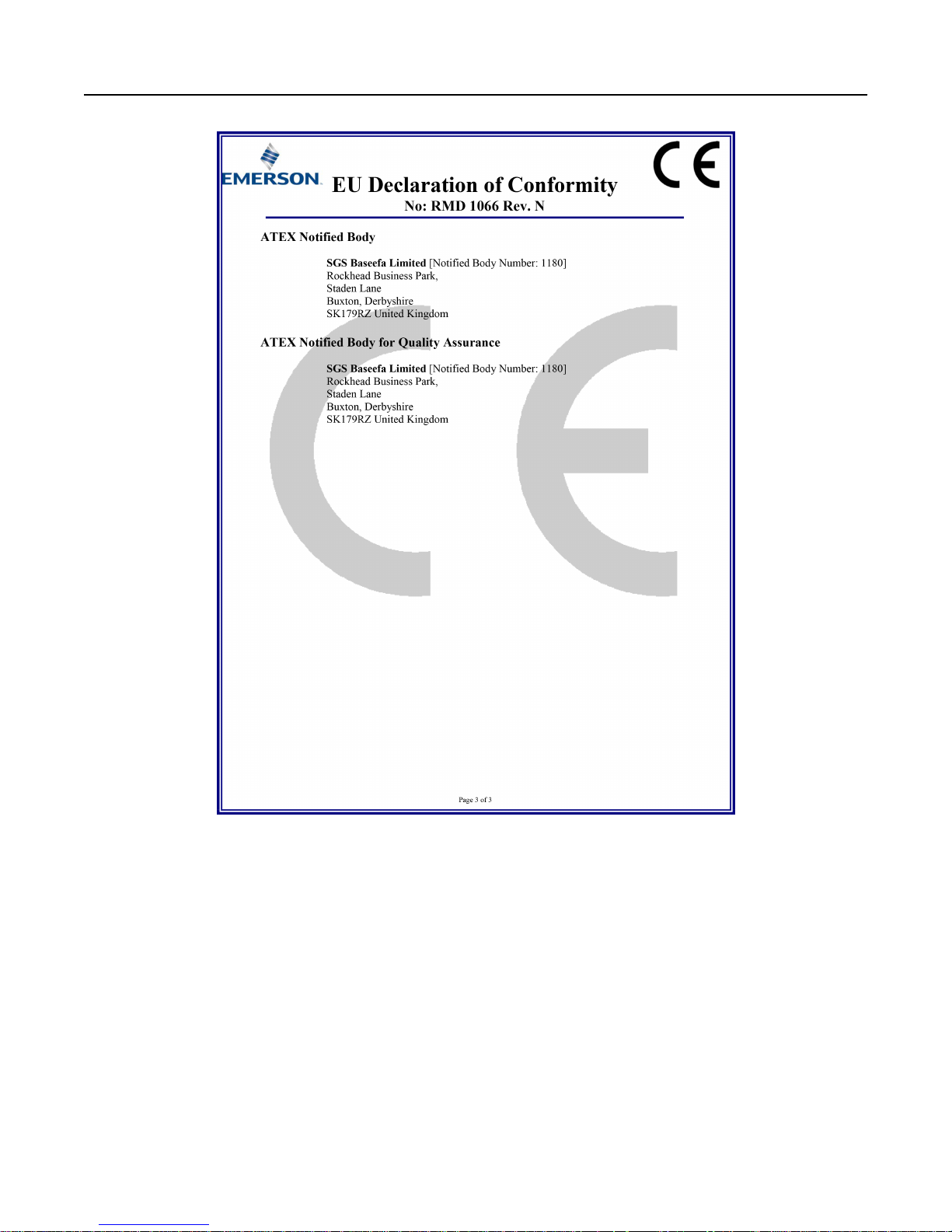

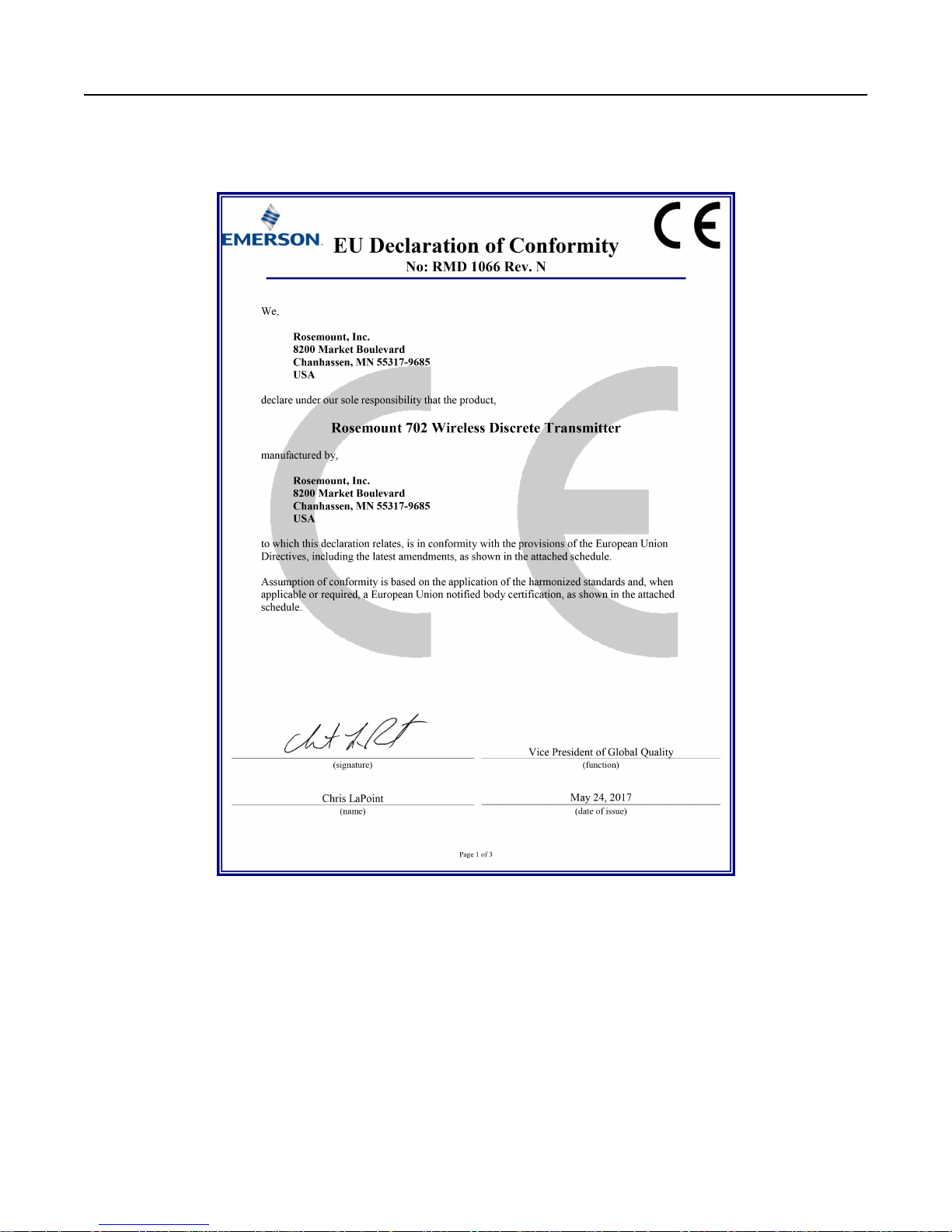

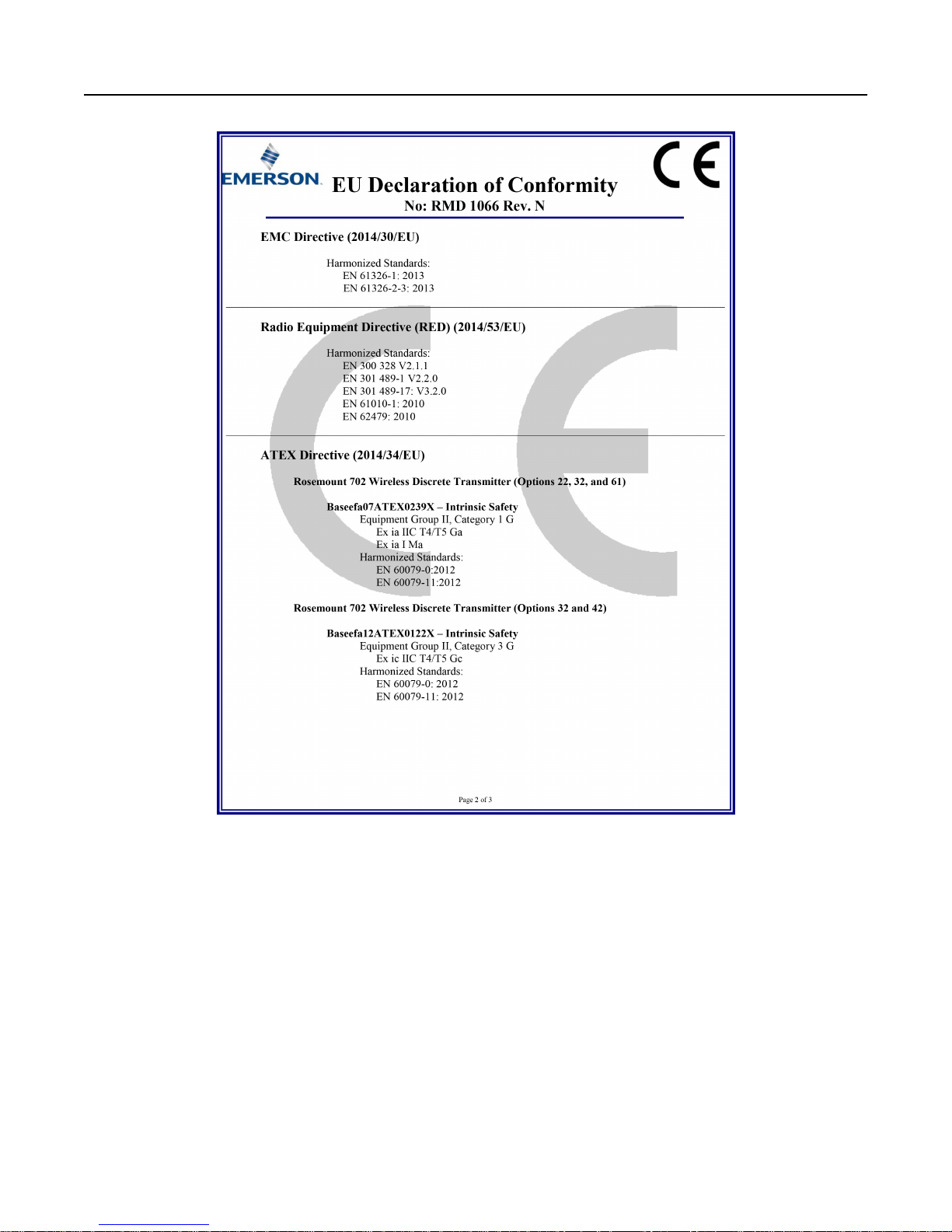

A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU
Declaration of Conformity can be found at Emerson.com/Rosemount.

Telecommunication compliance

All wireless devices require certification to ensure that they adhere to regulations regarding the use of the RF spectrum. Nearly
every country requires this type of product certification. Emerson is working with governmental agencies around the world to
supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage.

FCC and IC

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: This device may not cause
harmful interference. This device must accept any interference received, including interference that may cause undesired
operation. This device must be installed to ensure a minimum antenna separation distance of 20 cm from all persons.

24 Rosemount 702 Wireless Discrete Transmitter

August 2018

Ordinary location certification

As standard, the transmitter has been examined and tested to determine that the design meets the basic electrical, mechanical,
and fire protection requirements by a nationally recognized test laboratory (NRTL) as accredited by the Federal Occupational Safety
and Health Administration (OSHA).

Installing equipment in North America

The US National Electrical Code® (NEC) and the Canadian Electrical Code (CEC) permit the use of Division marked equipment in
Zones and Zone marked equipment in Divisions. The markings must be suitable for the area classification, gas, and temperature
class. This information is clearly defined in the respective codes.

USA

I5 U.S.A. Intrinsically Safe (IS) and Non-incendive

Certificate:

Standards:

Markings:

[CSA] 1143113

Class 3600 - 2011,Class 3610 - 2010, Class 3611 - 2004,Class 3810 - 2005, UL 50E (11th Edition), UL 61010-1 (3rd
Edition), ANSI/ISA-60079-0 (12.00.01) - 2013, ANSI/ISA 60079-11 (12.02.01): 2014, ANSI/IEC 60529-2004

IS CL I, DIV 1, GP, A, B, C, D; CL II, DIV 1, GP E, F, G; Class III; Class 1, Zone 0 AEx ia IIC Ga T4; NI CL I, DIV 2, GP A, B, C,
D T4; T4(–50 °C ≤ Ta ≤ +70 °C) when installed per Rosemount drawing 00702-1020; Type 4X/IP66/67

Special Conditions for Safe Use (X):

1. The Rosemount 702 Transmitter housing contains aluminum and is considered a potential risk of ignition by impact or friction.
Care must be taken into account during installation and use to prevent impact and friction.

2. The surface resistivity of the polymeric antenna is greater than 1GΩ. To avoid electrostatic charge build-up, it must not be
rubbed or cleaned with solvents or a dry cloth.

3. The model 702 may only be used with either the 701PBKKF Rosemount Smartpower Black Power Module or the Computational
Systems, Inc. (CSI) MHM-89004.

Sensor terminal parameters (option code 32)

UO = 6.6 V UO = 7.8 V

IO = 13.37 mA IO = 92 mA

PO = 21.77 mW PO = 180 mW

CO = 21.78 µF CO = 9.2 µF

LO = 198 mH LO = 4.2 mH

Fuel sensor terminal parameters (option code 61)

N5 U.S.A. Nonincendive

Certificate:

Standards:

Markings:

Special Conditions for Safe Use (X):

1. The model 702 may only be used with either the 701PBKKF Rosemount Smartpower Black Power Module or the Computational
Systems, Inc. (CSI) MHM-89004.

Quick Start Guide 25

[CSA] 1143113

Class 3600 - 2011, Class 3611 - 2004, Class 3810 - 2005, UL 50E (11th Edition), UL 61010-1 (3rd Edition), ANSI/IEC
60529-2004

NI CL I, DIV 2, GP A, B, C, D T4; T4(-50 °C ≤ Ta ≤ +70 °C) Type 4X/IP66/67

Canada

I6 Canada Intrinsically Safe

August 2018

Certificate:

Standards:

Markings:

[CSA] 1143113

CAN/CSA C22.2 No. 0-10, CSA Std. C22.2 No. 94-M1991 (R2011), CAN/CSA Std C22.2 60079-0-11, CAN/CSA
60079-11-14, CSA Std C22.2 No. 60529:05, CAN/CSA-C22.2 No. 61010-1-12

Intrinsically Safe Class I, Division 1; Groups A, B, C, and D, T4; suitable for Class 1, Zone 0, IIC, T4; when connected
per Rosemount drawing 00702-1020; Type 4X

Special Conditions for Safe Use (X):

1. The Rosemount 702 Transmitter housing contains aluminum and is considered a potential risk of ignition by impact or friction.
Care must be taken into account during installation and use to prevent impact and friction.

2. The surface resistivity of the polymeric antenna is greater than 1GΩ. To avoid electrostatic charge build-up, it must not be
rubbed or cleaned with solvents or a dry cloth.

3. The model 702 may only be used with either the 701PBKKF Rosemount Smartpower Black Power Module or the Computational
Systems, Inc. (CSI) MHM-89004.

N6 Canada Class I Division 2

Certificate:

Standards:

Markings:

Special Condition for Safe Use (X):

1. The model 702 may only be used with either the 701PBKKF Rosemount Smartpower Black Power Module or the Computational
Systems, Inc. (CSI) MHM-89004.

[CSA] 1143113

CAN/CSA C22.2 No. 0-10, CAN/CSA C22.2 No. 94-M91, CSA C22.2 No. 213-M1987, CSA Std C22.2 No. 60529:05

Suitable for Class 1, Division 2, Groups A, B, C, and D, T4; Cl. I, Zone 2, IIC, T4

Europe

I1 ATEX Intrinsic Safety

Certificate:

Standards:

Markings:

For use with Rosemount SmartPower power module part number 753-9220-0001, or for use with Emerson SmartPower option
701PBKKF.

Sensor terminal parameters (option code 32)

UO = 6.51 V UO = 7.8 V

IO = 13.37 mA IO = 92 mA

PO = 21.76 mW PO = 180 mW

Ci = 0.216 µF Ci = 10 nF

CO

= 21.78 µF CO

IIC

CO

= 549.78 µF CO

IIB

26 Rosemount 702 Wireless Discrete Transmitter

Baseefa07ATEX0239X

IEC 60079-0: 2011, IEC 60079-11: 2012

II 1 G Ex ia IIC T4 Ga, T4(-60 °C ≤ Ta ≤ +70 °C) Ex ia IIC T4 Ga, T4(-60 °C ≤ Ta ≤ +40 °C)

Fuel sensor terminal parameters (option code 61)

= 9.2 µF

IIC

= 129 µF

IIB

August 2018

Sensor terminal parameters (option code 32) Fuel sensor terminal parameters (option code 61)

COIIA = 1000 µF CO

= 1000 µF

IIA

Li = 0 Li = 0

LO

= 200 mH LO

IIC

LO

= 800 mH LO

IIB

LO

= 1000 mH LO

IIA

= 4.2 mH

IIC

= 16.8 mH

IIB

= 33.6 mH

IIA

Special Conditions for Safe Use (X):

1. The surface resistivity of the antenna is greater than 1 GΩ. To avoid electrostatic charge build-up, it must not be rubbed or
cleaned with solvents or a dry cloth.

IU ATEX Intrinsic Safety for Zone 2

Certificate:

Standards:

Markings:

Sensor terminal parameters (input) Switch terminal parameters (output)

UO = 6.6 V Ui = 26 V

IO = 13.4 mA Ii = 100 mA

Baseefa12ATEX0122X

IEC 60079-0: 2011, IEC 60079-11: 2012

II 1 G Ex ia IIC T4 Ga, T4(-60 °C ≤ Ta ≤ +70 °C)

Ex ia IIC T5 Gc, T5(-60 °C ≤ Ta ≤ +40 °C)

PO = 21.8 mW Pi = 0.65 W

CO = 10.9 µF N/A

LO = 25 µH N/A

Special Conditions for Safe Use (X):

1. The surface resistivity of the antenna is greater than 1 GΩ. To avoid electrostatic charge build-up, it must not be rubbed or
cleaned with solvents or dry cloth.

2. The Rosemount 701PB Power Module may be replaced in a hazardous area. The power module has surface resistivity greater
than 1 GΩ and must be properly installed in the wireless device enclosure. Care must be taken during transportation to and
from the point of installation to prevent electrostatic charge build-up.

International

I7 IECEx Intrinsic Safety

Certificate:

Standards:

Markings:

Sensor terminal parameters (option code 32) Fuel sensor terminal parameters (option code 61)

IECEx BAS 07.0082X

IEC 60079-0: 2011, IEC 60079-11: 2011

Ex ia IIC T4 Ga, T4(-40 °C ≤ Ta ≤ +70 °C); Ex ia IIC T5 Ga, T5(-40 °C ≤ Ta ≤ +40 °C)

UO = 6.51 V UO = 7.8 V

IO = 13.37 mA IO = 92 mA

Quick Start Guide 27

August 2018

Sensor terminal parameters (option code 32) Fuel sensor terminal parameters (option code 61)

PO = 21.76 mW PO = 180 mW

Ci = 0.216 µF Ci = 10 nF

CO

= 21.78 µF CO

IIC

CO

= 549.78 µF CO

IIB

CO

= 1000 µF CO

IIA

= 9.2 µF

IIC

= 129 µF

IIB

= 1000 µF

IIA

Li = 0 Li = 0

LO

= 200 mH LO

IIC

LO

= 800 mH LO

IIB

LO

= 1000 mH LO

IIA

= 4.2 mH

IIC

= 16.8 mH

IIB

= 33.6 mH

IIA

Special Conditions for Safe Use (X):

1. The surface resistivity of the antenna is greater than 1 GΩ. To avoid electrostatic charge build-up, it must not be rubbed or
cleaned with solvents or dry cloth.

2. The Rosemount 701PBKKF Power Module may be replaced in a hazardous area. The power modules have a surface resistivity
greater than 1GΩ and must be properly installed I the wireless device enclosure. Care must be taken during transportation to
and from the point of installation to prevent electrostatic charge build-up.

3. The Rosemount 702 enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care
should be taken to protect it from impact or abrasion if located in a Zone 0 area.

IY IECEx Intrinsic Safety for Zone 2

Certificate:

Standards:

Markings:

Sensor terminal parameters (input) Switch terminal parameters

UO = 6.6 V Ui = 26 V

IO = 13.4 mA Ii = 100 mA

PO = 21.8 mW Pi = 0.65 W

CO = 10.9 µF N/A

LO = 25 µH N/A

Special Conditions for Safe Use (X):

1. The surface resistivity of the antenna is greater than 1 GΩ. To avoid electrostatic charge build-up, it must not be rubbed or
cleaned with solvents or dry cloth.

2. The Rosemount 701PBKKF Power Module may be replaced in a hazardous area. The power modules have a surface resistivity
greater than 1 GΩ and must be properly installed I the wireless device enclosure. Care must be taken during transportation to
and from the point of installation to prevent electrostatic charge build-up.

3. The Rosemount 702 enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care
should be taken to protect it from impact or abrasion if located in a Zone 0 area.

IECEx BAS 12.0082X

IEC 60079-0: 2011, IEC 60079-11: 2011

Ex nA IIC T4 Gc, T4(-40 °C ≤ Ta ≤ +70 °C); Ex nA IIC T5 Gc, T5(-40 °C ≤ Ta ≤ +40 °C)

(output)

28 Rosemount 702 Wireless Discrete Transmitter

August 2018

China

I3 China Intrinsic Safety

Certificate:

Standards:

Markings:

Sensor terminal parameters
(option code 32)

UO = 6.6 V UO = 6.6 V Ui = 26 V UO = 7.8 V

IO = 13.4 mA IO = 13.4 mA Ii = 100 mA IO = 92 mA

PO = 21.8 mW PO = 21.8 mW Pi = 650 mW PO = 180 mW

CO

= 21.78 µF CO = 10.9 µF N/A CO = 9.29 µF

IIC

CO

= 499.78 µF N/A N/A N/A

IIB

CO

= 1000 µF N/A N/A N/A

IIA

LO

= 200 mH LO = 0.025 mH N/A LO = 2 mH

IIC

LO

= 800 mH N/A N/A N/A

IIB

LO

= 1000 mH N/A N/A N/A

IIA

GYJ18.1330X

GB3836.1-2010, GB3836.4-2010, GB3836.20-2010

(option 32, 61): Ex ia IIC T4/T5 Ga, T4(-60 ≤ Ta ≤ 70 °C)/T5(-60 ≤ Ta ≤ 40 °C)
(option 32, 42): Ex ic IIC T4/T5 Gc, T4(-60 ≤ Ta ≤ 70 °C)/T5(-60 ≤ Ta ≤ 40 °C)

Terminal parameters (option code 42) Fuel sensor terminal

Sensor Switch

parameters (option code 61)

Special Conditions for Safe Use (X):

1. See certificate for special conditions.

Japan

I4 TIIS Intrinsic Safety

Certificates:

Markings:

TC20411 (Option 32), TC20412 (Option 61)

Ex ia IIC T4 X (-20≤ Ta ≤ +60 °C)

EAC – Belarus, Kazakhstan, Russia

IM Technical Regulation Customs Union (EAC) Intrinsic Safety

Certificate:

Markings:

Quick Start Guide 29

RU C-US.Gb05.B.00578

(option 32, 61): 0Ex ia IIC T4/T5 X, T4(-60 °C ≤ Ta ≤ +70 °C)/T5(-60 °C ≤ Ta ≤ +40 °C)
(option 32, 42): 2Ex ic IIC T4/T5 X, T4(-60 °C ≤ Ta ≤ +70 °C)/T5(-60 °C ≤ Ta ≤ +40 °C)

August 2018

Sensor terminal parameters
(option code 32)

Terminal parameters (option code 42) Fuel sensor terminal

Sensor Switch

parameters (option code 61)

UO = 6.6 B UO = 6.6 B Ui, B = 26 B UO = 7.8 B

IO = 13.4 MA IO = 13.4 MA Ii, MA = 100 MA IO = 92 MA

PO = 21.8 MBT PO = 21.8 MBT Pi, BT = 650 MBT PO = 180 MBT

Ci = 216 HΦ Ci = 216 HΦ N/A Ci = 10 HΦ

CO

= 23.78 мкΦ CO

IIC

CO

= 549.78 мкΦ CO

IIB

CO

= 1000 мкΦ COIIA = 1000 мкΦ N/A N/A

IIA

= 23.78 мкΦ N/A N/A

IIC

= 549.78 мкΦ N/A N/A

IIB

Li = 0 Li = 0 Li = 0 Li = 0

LO

= 200 MГH LO

IIC

LO

= 800 MГH LO

IIB

LO

= 1000 MГH LO

IIA

= 200 MГH N/A N/A

IIC

= 800 MГH N/A N/A

IIB

= 1000 MГH N/A N/A

IIA

Special Conditions for Safe Use (X):

1. See certificate for special conditions.

Combinations

KQ

Combination of I1, I5, and I6

30 Rosemount 702 Wireless Discrete Transmitter

August 2018

EU Declaration of Conformity

Figure 38: EU Declaration of Conformity

Quick Start Guide 31

August 2018

32 Rosemount 702 Wireless Discrete Transmitter

August 2018

Quick Start Guide 33

China RoHS

ᴹ

China RoHS

㇑᧗⢙䍘䎵䗷ᴰབྷ⎃ᓖ䲀٬Ⲵ䜘Ԧරࡇ㺘

Rosemount 702

Rosemount 702

List of Parts with China RoHS Concentration above MCVs

䜘Ԧ〠

Part Name

ᴹᇣ⢙䍘/ Hazardous Substances 

䫵

Lead
(Pb)

⊎

Mercury

(Hg)

䭹

Cadmium

(Cd)

ޝԧ䬜

Hexavalent

Chromium

(Cr +6)

ཊⓤ㚄㤟

Polybrominated

biphenyls

(PBB)

ཊⓤ㚄㤟䟊

Polybrominated

diphenyl ethers

(PBDE)

⭥ᆀ㓴Ԧ

Electronics

Assembly

X O O O O

O

༣փ㓴Ԧ

Housing

Assembly

X O O X O

O

ᵜ㺘Ṭ㌫׍ᦞ

SJ/T11364

Ⲵ㿴ᇊ㘼ࡦ֌

This table is proposed in accordance with the provision of SJ/T11364.

O:

᜿Ѫ䈕䜘ԦⲴᡰᴹ൷䍘ᶀᯉѝ䈕ᴹᇣ⢙䍘Ⲵ䟿൷վҾ

GB/T 26572

ᡰ㿴ᇊⲴ䲀䟿㾱≲

O: Indicate that said hazardous substance in all of the homogeneous materials for this part is below the limit requirement of
GB/T 26572.

X:

᜿Ѫ൘䈕䜘Ԧᡰ֯⭘Ⲵᡰᴹ൷䍘ᶀᯉ䟼ˈ㠣ቁᴹа㊫൷䍘ᶀᯉѝ䈕ᴹᇣ⢙䍘Ⲵ䟿儈Ҿ

GB/T 26572

ᡰ㿴ᇊⲴ䲀䟿㾱≲

X: Indicate that said hazardous substance contained in at least one of the homogeneous materials used for this part is above
the limit requirement of GB/T 26572.

August 2018

34 Rosemount 702 Wireless Discrete Transmitter

August 2018

Quick Start Guide 35

00825-0200-4702

Rev. GE

August 2018

Global Headquarters

Emerson Automation Solutions
6021 Innovation Blvd
Shakopee, MN 55379 USA

[phone] or [phone]
[phone]
[e-mail]

Latin America Regional Office

Emerson Automation Solutions
Sunrise, FL 33323, USA

T [phone]
[phone]
[e-mail]

Asia Pacific Regional Office

Emerson Automation Solutions
1 Pandan Crescent
Singapore 128461
Republic of Singapore

[phone]
[phone]
[e-mail]

North America Regional Office

Emerson Automation Solutions
8200 Market Blvd.
Chanhassen, MN 55317, USA

[phone] or [phone]
[phone]
[e-mail]

Europe Regional Office

Emerson Automation Solutions Europe
GmbH
Neuhofstrasse 19a P.O. Box 1046
CH 6340 Baar
Switzerland

T [phone]
[phone]
[e-mail]

Middle East and Africa Regional Office

Emerson Automation Solutions
Emerson FZE P.O. Box 17033
Jebel Ali Free Zone - South 2
Dubai, United Arab Emirates

[phone]
[phone]
[e-mail]

Linkedin.com/company/Emerson-Automation-Solutions

Twitter.com/Rosemount_News

Facebook.com/Rosemount

Youtube.com/user/RosemountMeasurement

Google.com/+RosemountMeasurement

©

2018 Emerson. All rights reserved.

Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a
trademark and service mark of Emerson Electric Co. Rosemount is mark of one of the
Emerson family of companies. All other marks are the property of their respective owners.
