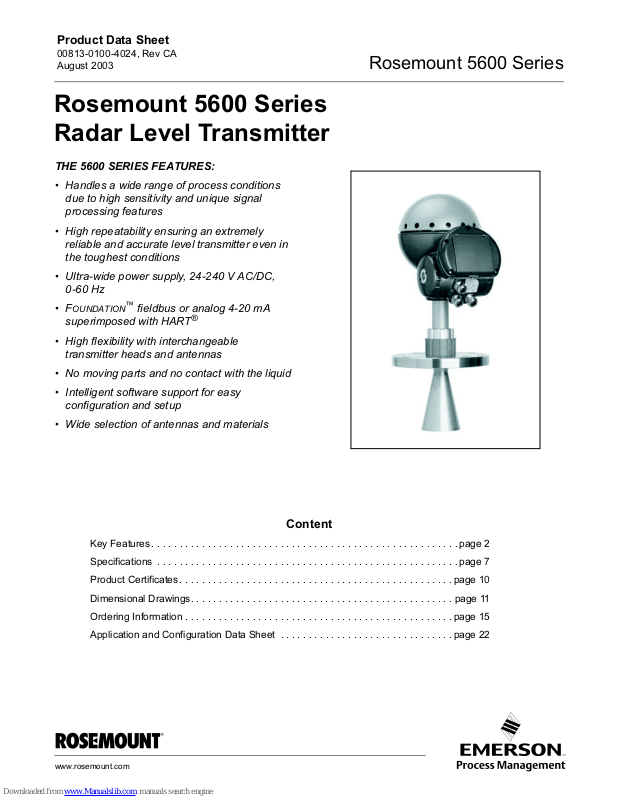

Page 1
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
Rosemount 5600 Series
Radar Level Transmitter
THE 5600 SERIES FEATURES:
• Handles a wide range of process conditions
due to high sensitivity and unique signal
processing features
• High repeatability ensuring an extremely
reliable and accurate level transmitter even in
the toughest conditions
• Ultra-wide power supply, 24-240 V AC/DC,
0-60 Hz
OUNDATION
•F
superimposed with HART
™
fieldbus or analog 4-20 mA
®
Rosemount 5600 Series
• High flexibility with interchangeable
transmitter heads and antennas
• No moving parts and no contact with the liquid
• Intelligent software support for easy
configuration and setup
• Wide selection of antennas and materials
Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Product Certificates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Dimensional Drawings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15
Content
Application and Configuration Data Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 22
www.rosemount.com
Page 2
Rosemount 5600 Series
Legendary Rosemount Performance Customized
For Your Level Process Applications
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
Introduction
The Rosemount 5600 Series is an intelligent
non-contacting radar level transmitter. Its high
performance microprocessor allows for advanced
signal processing and smart echo-tracking features.
Together with its high sensitivity the radar transmitter
can detect and evaluate all echoes within the tank or
vessel. The 5600 Series support and assist the user
to a successful configuration of the transmitter in
process level applications, from easy to complex
process situations.
FIGURE 1. Rosemount 5600 Applications
• Applications in process vessels with agitators require a radar transmitter
with the 5600’s high sensitivity and advanced signal processing to
separate the measuring signal from noise created by disturbances.
• Still-pipe or bridle mounting is recommended for LPG applications, where
the surface sometimes is boiling, and for some extremely turbulent
conditions. The pipe reduces foam and turbulence and also increases
surface reflection.
Applications
The Rosemount 5600 uses state-of-the art
microwave technology to get highest reliability and
precision. It measures the level of liquids and
slurries. The transmitter operates in a wide range of
temperatures, pressures, vapor gas mixtures, and
various process conditions.
2
• The Rod antenna is suitable for small nozzle openings on tanks with short
measuring range.
• Solid materials, like cement, often give extremely small radar reflections,
requiring the most sensitive antenna, the 18 inch parabolic.
5600_PDS_BILD_11, _10,_09,_8
Page 3
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
Rosemount 5600 Series
Interchangeable Head
A 5600 Radar Level Transmitter consists of a
Transmitter Head (TH) and a tank connection
including antenna. The TH and the electronics inside
are interchangeable without opening the tank.
FIGURE 2. Interchangeable Transmitter Head
Weather protection
Electronic
housing
Junction box Ex (e)
Display Panel
Junction box Ex (i)
Conduit Connection
Tank connection
Antenna
Antennas
Rod Antenna
• Suitable for tanks with small openings.
• Existing tank flange can be used as the tank
connection.
Cone Antenna
• Suitable for free-propagation and pipe
mounted installation.
• Cone extensions are available (see Figure 16
on page 13 and Table 9 on page 19).
• Optional Cone antennas with cleaning/flushing
connection are available (see Figure 16 on
page 13 and Table 10 on page 19).
Process Seal Antenna
• The dish of the Process Seal
is made of PTFE.
• Only exposes material suitable for hygienic or
corrosive applications
(see Figure 14 on page 12
and Table 7 on page 18).
Parabolic Antenna
• Suitable for solid materials (example: cement).
• Withstand heavy contamination.
Plate Design
FIGURE 3. Plate Design
Nut
Protective
Plate
Note
Dimensions are inches
(millimeters)
1.38 (34)
Flange
Tank Sealing
5600/PDS/21,01_V3.EPS
Cone and Rod antennas, except the Cone with
Flushing Connection, are designed with a protective
plate as shown in Figure 3. The plate together with
the antenna and tank sealing are the only wetted
parts, exposing stainless steel (or alternative
5600/PDS/5600EA_01.EPS
antenna material) and PTFE to the tank atmosphere.
This allows the use of an existing flange, or a lower
cost flange alternative. Loose flanges are available
(Table 14 on page 21).
Rosemount 2210 Display Unit
The Rosemount 2210 offers basic configuration
using the 4 software keys on the display itself. Data
presentation on the LCD can be customized and
allows many viewing alternatives. The 2210 is also
used if temperature sensors are to be connected to
the 5600 Series. See Table 4 on page 15 for
available versions.
Electrical Connections
The transmitter has a power supply with an
ultra-wide input range from 24 to 240 V AC or DC,
0-60 Hz.
The Transmitter Head has two separate junction
boxes. One is for a non-intrinsically safe primary
signal output and power supply cables. The other is
normally used for intrinsically safe (IS) HART/analog
outputs or optionally for a non-IS analog output.
Primary Outputs can be HART or F
fieldbus, either IS or Non-IS. HART and additional
analog outputs can be either active or passive
depending on required options.
OUNDATION
3
Page 4
Rosemount 5600 Series
d
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
Mechanical Mounting
The 5600 radar transmitter is easily carried to the
tank top and mounted on a suitable nozzle or pipe.
The radar transmitter should be installed as follows:
• Antenna oriented perpendicular to a horizontal
surface.
• The transmitter should be mounted with as
few fittings as possible within the beam angle.
• Filling inlets creating turbulence should
preferably be kept at a distance.
• Choose as large antenna diameter as
possible. A larger receiving area concentrates
the radar beam and ensures maximum
antenna gain. Increased antenna gain offers
greater reception of weak surface echoes.
FIGURE 4. Rosemount 5600 Beamwidth
16 ft (5 m)
33 ft (10 m)
Distance
49 ft (15 m)
Beam Angle
FIGURE 5. Preferred Mounting
(1)
0.4 (10)
or more
Recommended Minimum
distance: Cone, Rod, Process
Seal, and Parabolic antenna
24 (600)
Dimensions are inches
(millimeters).
(2)
(2)
For best measurement
performance the nozzle height
should be shorter than the
antenna or consider an
extended cone (Figure 16)
for your current transmitter.
(1)
Measurement Principle
The level of the product in the tank is measured by
radar signals transmitted from the antenna at the
tank top. After the radar signal is reflected by the
product surface the echo is picked up by the
antenna. As the signal is varying in frequency the
echo has a slightly different frequency compared to
the signal transmitted at that moment. The difference
in frequency is proportional to the distance to the
product surface, and can be accurately calculated.
This method is called FMCW (Frequency Modulated
Continuous Wave) and is used in all high
performance radar transmitters.
66 ft (20 m)
TABLE 1. Rosemount 5600 Beam Diameter and Angle
Distance, ft (m)
Antenna Type & Beam
Angle
Cone 3 in 25° 7.2 (2.2) 14 (4.4) 22 (6.7) 29 (8.9)
Rod/Cone 4 in/ Process
Seal 4 inch 21°
Cone 6 in/ Process Seal
6 inch 18°
Cone 8 inch 15° 4.3 (1.3) 8.5 (2.6) 13 (3.9) 17 (5.3)
Parabolic 10° 3.0 (0.9) 5.6 (1.7) 8.5 (2.6) 11 (3.5)
16 (5) 33 (10) 49 (15) 66 (20)
Beam Diameter, ft (m)
6.2 (1.9) 12 (3.7) 18 (5.6) 24 (7.4)
5.2 (1.6) 10 (3.1) 15 (4.7) 21 (6.3)
FIGURE 6. Frequency Modulated Continuous Wave
5600/PDS/BILD_24.EPS
Frequency (GHz)
f
max
f
1
f
f
0
f
min
t0t
1
Transmitted
Reflected
t
f
Time
t
The FMCW method is based on
a radar sweep with continuous
changes in frequency.
d
f
f
0
1
5600_PDS_FMCW.EPS
4
Page 5
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
Rosemount 5600 Series
Measuring Range
For liquids with ε
liquefied gases, an 8 inch or bigger diameter antenna
The diagrams below show how the measuring range
is influenced by the antenna type, dielectric constant
of the liquid (ε
) and the process conditions. For
r
is recommended if measurement is done with free
propagation. In this case the measuring range in
calm surface tanks is in typical cases 50 ft (15 m).
optimum performance the maximum measuring
distance should be kept within the range indicated
with darker color in the diagrams. Values are valid for
free propagation measurement without still-pipes
(bridles).
To increase the measuring range further in turbulent
tanks, a still-pipe can be used. For still-pipe mounted
5600 transmitters the typical measuring range is
115-160 ft (35-50 m) in turbulent tanks with liquids
having ε
TABLE 2. Categories of liquids
a Oil, gasoline and other hydrocarbons, petrochemicals (dielectric constant, ε
b Alcohols, concentrated acids, organic solvents, oil/water mixtures and acetone (ε
c Conductive liquids, e.g. water based solutions, dilute acids and alkalis (ε
FIGURE 7. Applications with calm product surface
3” Cone
abc abc abc abc
33(10)
66(20)
98(30)
131(40)
164(50)
4” Process
Seal
abc abc
33(10)
66(20)
98(30)
131(40)
164(50)
(1)
33(10)
66(20)
98(30)
131(40)
164(50)
6” Process
Seal
00
Rod/
4”Cone
33(10)
66(20)
98(30)
131(40)
164(50)
less than 1.9.
r
=1.9-4.0)
r
> 10)
r
6” Cone
33(10)
66(20)
98(30)
131(40)
164(50)
that are smaller than 1.9 such as
r
=4.0-10)
r
8” Cone
0000
33(10)
66(20)
98(30)
131(40)
164(50)
33(10)
66(20)
98(30)
131(40)
164(50)
Parabolic
abc
0
5600-OC_1AA
FIGURE 8. Applications where the product is gently stirred, causing minor turbulence
4” Process
3” Cone
abc abc abc
33(10)
66(20)
98(30)
131(40)
164(50) 164(50) 164(50) 164(50)
Seal
33(10)
66(20)
98(30)
131(40)
FIGURE 9. Applications with turbulent product surface conditions
4” Process
3” Cone
abc abc abc
33(10)
66(20)
98(30)
33(10)
66(20)
98(30)
Seal
Note: 4” and 6” Process Seal Cones are not
recommended for turbulent conditions
33(10)
66(20)
98(30)
131(40)
33(10)
66(20)
98(30)
6” Process
Seal
000
6” Process
Seal
000
Rod/
4”Cone
abc abc
33(10)
66(20)
98(30)
131(40)
(1)
Rod/
4”Cone
abc abc
33(10)
66(20)
98(30)
6” Cone
00
33(10)
66(20)
98(30)
131(40)
164(50) 164(50)
33(10)
66(20)
98(30)
(1)
33(10)
66(20)
98(30)
131(40)
6” Cone
00
8” Cone
abc
0
0
33(10)
66(20)
98(30)
33(10)
66(20)
98(30)
131(40)
164(50)
8” Cone
abc
Parabolic
abc
0
Parabolic
0
33(10)
66(20)
98(30)
5600-OC_2AB
abc
5600-OC_3AA
(1) Measuring range in ft (m).
5
Page 6
Rosemount 5600 Series
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
System Integration
Level values are transmitted from the transmitter as
analog 4-20 mA signals superimposed with HART or
F
OUNDATION
passive for connection to powered cables or active
providing signal power for 4-20 mA. Analog outputs
can also be specified as intrinsically safe or
non-intrinsically safe.
™
fieldbus. The analog outputs are either
FIGURE 10. System Integration using the HART Communicator
Remote
Display
(Optional)
Basic configuration and setup can be done on a
HART communicator, via the 2210 Display Unit,
AMS, or DeltaV (for F
OUNDATION fieldbus).
Rosemount Radar Master is a PC based software
package which allows for full configuration, including
advanced features such as Spectra plots,
offline/online configuration capabilities, logging,
extensive online help, etcetera. To communicate with
the device using Radar Master a HART Modem is
required in between (see HART Modem on page 21).
4-20 mA/HART
Control System
HART Modem
275 HART
Communicator
Configuration PC with
Radar Master software
Integrated Power
Note:
Intrinsically safe
installations may allow
fewer devices per I.S.
barrier due to current
limitations.
FIGURE 11. F
Conditioner
and Filter
Power
Supply
The power supply,
filter, first terminator,
and configuration
tool are typically
located in the
control room.
OUNDATION fieldbus field wiring
6234 ft (1900 m) max
(depending upon cable
characteristics)
Terminators
Fieldbus
Segment
(Trunk)
F
OUNDATION
fieldbus
Configuration
Too l
(Spur)
fieldbus
devices on
segment
Configuration with Radar Master (in
a fieldbus system hooked up to the
device Sensor Bus Port).
(Spur)
5600/PDS/BILD_1.EPS
Signal
Wiring
5600/PDS/5600_01A.EPS
6
Page 7
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
Rosemount 5600 Series
Specifications
GENERAL
Product Designation
5600 Series Radar Level Transmitter
Operating principle
10GHz FMCW radar
Beam angle
See Figure 2-12 and Table 2-3 on page 9
Microwave output power
Max 1.0 mW
Internal calibration
Internal digital reference for automatic compensation of radar
sweep
Signal processing
Powerful and advanced digital signal processing using FFT and
advanced echo handling software
Temperature measurement
1-3 spot elements, PT100 or CU100, or 6 spot elements with
common return. Input accuracy ±0.9°F (±0.5°C)
MEASURING PERFORMANCE
Instrument accuracy (Under reference conditions)
±0.2 in (±5 mm)
DISPLAY/CONFIGURATION
Display (factory mounted on transmitter)
Protection class IP67
With weather/dirt protection cover; graphical LCD display 128 by
64 pixels with 4 control soft-keys and 7 text lines with 16
characters/line for display and configuration.
Display (remote mounted)
Same as above, mounted in separate enclosure, protection class
IP67; max cable length, display - radar transmitter: 330 ft. (100 m);
cable type: 4 wire shielded instrument cable, min. 0.5 mm
(AWG 20).
Display with Temperature Inputs (remote mounted)
Same as above, mounted in separate enclosure, protection class
IP67; max cable length, display - radar transmitter: 330 ft (100 m);
cable type: 4 wire shielded instrument cable, min. 0.5 mm
20); temperature measurement 1-3 spot elements PT100 or
CU100, or 6 spot elements with common return.
HART Device
Rosemount Hand-held communicator R275
Rosemount AMS software
PC/remote configuration
(NOTE: HART Modem required, see page 21)
Rosemount Radar Master, Powerful Windows based configuration
software.
(1)
2
,
2
, (AWG
Resolution
0.04 in (1 mm)
Repeatability
±0.04 in (±1 mm)
Measuring range
0-164 ft (0-50 m)
Update time
100 ms
Processors
32-bit Floating DSP
(1) Recommended PC hardware specification: ≥ 1 GHz pro-
cessor, ≥ 128 MbRam, Operating system of Win NT or
Win2000.
7
Page 8
Rosemount 5600 Series
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
ELECTRIC
Power supply
Ultra wide power supply 24-240 V AC or DC 0-60 Hz
Power consumption
Maximum 10 W, Nominal 5 W
Outputs
Primary output:
Alternative 1: HART + 4-20 mA current loop (non-IS or IS
option)
Alternative 2: F
Secondary Outputs:
Analog 4-20 mA current loop, active or passive (non-IS or IS
option)
Analog Output Characteristics
Typ e
Analog 4-20 mA Current Loop, active (with) or passive
(without loop supply)
Galvanic isolation
> 1500 V RMS or DC
Analog Output Characteristics
See Hazardous Locations Certification on page 1
OUNDATION fieldbus (optional IS option)
Fieldbus Output Characteristics
Fieldbus Voltage limits: 9 to 32 V
Current Draw: 12.5 mA
For I.S. Applications:
< 30 V
U
i
< 300 mA
I
i
< 1.3 W
P
i
= 0 µF
C
i
= 0 mH
L
i
Output cabling
Twisted and shielded pair; min. 0.5 mm2 (AWG 20)
Cable entries
3 ⫻ 1/2 inch NPT; for cable glands or conduit entries
Optional: cable gland kit, incl 3 ⫻ EEx e approved (CENELEC)
inch NPT cable glands
Optional: 3 x EEx e approved (CENELEC) adapters
NPT/M20
1
/2 inch
Display Output Characteristics
With Temperature Output
See Hazardous Locations Certification on page 1
Without Temperature Output
See Hazardous Locations Certification on page 1
1
/2
Range
4-20 mA
Alarm level
3.8 mA, 22 mA or freeze; NAMUR, Rosemount Alarm levels
available
Resolution
0.5µA (0.003%)
Linearity
±0.01%
Temperature drift
± 28 ppm/°F (±50 ppm/°C)
Output impedance
>10 MΩ
Voltage compliance
7-30 V (passive output)
External loop resistance
<700 Ω (passive output with 24 V external supply)
<300 Ω (active output)
8
Page 9
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
Rosemount 5600 Series
MECHANICAL
Height above flange
15 in (400 mm)
Housing/Enclosure
Permanent moulded cast aluminium, chromed and powder painted
Flanges
ANSI, DIN standard,
Material: Stainless steel 316L and Stainless Steel EN 1.4404
Optional: Hot-galvanized carbon steel
Weight, excl, flange
18 lbs (8 kg)
Antenna Dimensions
Cone: See Figure 13 on page 11
Rod: See Figure 12 on page 11
Process Seal: See Figure 14, and Table 1-1 on page 12
Extended Cone: See Figure 15 on page 1-13
Cone with Integrated Flushing Connection: See Figure 16 on
page 1-13
Parabolic: See Figure 17 on page 14
TABLE 3. Antenna material and o-ring selection ● Applicable - Not applicable
Rod Antenna Cone Antenna
Material:
Stainless Steel 316L ●
Hastelloy® C22 - ● - - - Tantalum - ● - - - Monel® 400 - ● - - - PTFE ●
Tank Sealing:
PTFE - ● - ● ● ●
O-Rings:
Viton ● ● - ● ● ●
Kalrez ● ● - ● ● EPDM ● ● - ● ● Buna-N ● ● - ● ● -
(1) The Rod antenna is a combination of 316L SST and PTFE.
(1)
(1)
● - ● ● ●
- ● - - -
Process Seal
Antenna
Extended Cone
Antenna
Cone with Integrated
Flushing Connection
Parabolic
Antenna
ENVIRONMENT
Ambient Temperature
-40 to 158°F (-40 to 70°C)
Tank Sealing Temperature Range with different O-rings
(see Figure 12, Figure 13, Figure 14, Figure 15, and
Figure 16)
Minimum
Temperature °F (°C)
O-ring Material
Viton 5 (-15) 392 (200)
Ethylene
Propylene (EPDM)
Kalrez 6375 -4 (-20) 392 (200)
Buna-N -31 (-35) 230 (110)
in air
-40 (-40) 266 (130)
Emission approvals
FCC: K8CPRO, K8CPROX
R&TTE: E813268O-CC
Humidity
IEC 60068-2-3
Maximum
Temperature °F (°C)
in air
Climatic class/Corrosion class
IEC 68-2-1, IEC 60068-2-52 test KB severity 2
Ingress protection
IP66, NEMA 4
Vibration
IEC 721-3-4 class 4M4
UV protection
ISO 4892-2
Electromagnetic compatibility
EN61326, Immunity EN 50081-2, Emission EN50081-1
Lightning protection
EN61326, EN61000-4-5, IEC801-5, level 2 kV
Power supply fluctuation
IEC 92 Part 504 sec. 3.5
9
Page 10
Rosemount 5600 Series
Product Certificates
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
Approved Manufacturing Locations
Saab - Rosemount – Gothenburg, Sweden
European Union Directive Information
The EC declaration of conformity for all applicable European
directives for this product can be found on the Rosemount website
at www.rosemount.com. A hard copy may be obtained by
contacting our local sales representative.
ATEX Directive (94/9/EC)
Rosemount Inc. complies with the ATEX Directive.
Hazardous Locations Installations
5600 Series Level Transmitter
E1 Certificate Number: Sira 03ATEX 1294X
With Non-IS Primary output and IS Display Output:
ATEX Category Marking II (1) 1/2 G
EEx de [ia] IIC T6, (T
With IS Primary and Secondary Outputs and
IS Display Output:
ATEX Category Marking II (2) (1) 1/2 G
EEx de [ib] [ia] IIC T6 (T
With Non-IS Outputs (Display Output not available):
ATEX Category Marking II 1/2 G
EEx de IIC T6, (T
Passive analog output 4-20mA,
Label identification = HART passive.
Voltage compliance 7-30V:
U
< 30 V
i
< 200 mA
I
i
Pi < 1.3 W
C
= 0 µF
i
= 0 mH
L
i
Active analog output 4-20mA,
Label identification = HART active.
Max load 300Ω:
U
< 23.1 V
o
< 125.7 mA
I
o
< 0.726 W
P
o
C
<0.14 µF
ext
< 2.2 mH
L
ext
F
OUNDATION Fieldbus,
Label identification = F
< 30 V
U
i
I
< 300 mA
i
Pi < 1.3 W
= 0 µF
C
i
L
= 0 mH
i
-40°C, +70°C)
amb
-40°C, +70°C)
amb
-40°C, +70°C)
amb
OUNDATION fieldbus.
Factory Mutual (FM) approval.
Certificate: J.I. 4D5A9.AX
E5 With Intrinsically safe outputs:
(All versions except those listed below)
Explosionproof with IS outputs for HAZLOC
Class I, Division 1, Group A, B, C and D,
Max operating temperature +70°C
Use conductors rated at least 85°C
Shall be installed in accordance with System control drawing
9150074-994.
E5 With Secondary output code 1 or 3:
Explosionproof
Class I, Division 1, Group A, B, C and D,
Max operating temperature +70°C
Use conductors rated at least 85°C
2210 Display Unit
SIRA / ATEX Intrinsically safe certification.
Equipment group II, Category 2 (1) G
Certificate: SIRA 00ATEX2062
E1 With Display Panel Code P or R:
ATEX Category Marking II 2 G
EEx ib IIC T4, (T
E1 With Display Panel Code T:
ATEX Category Marking II 2 (1) G
EEx ib [ia] IIC T4, (T
Connector X2:
< 12 V
U
i
I
< 400 mA
i
Pi < 0.7 W
Optional TP 40, connector X17 and X18:
=5.88V
U
o
=172.4mA
I
o
=0.253W
P
o
North American Certifications
Factory Mutual (FM) Approvals
Certificate: J.I. 4D5A9.AX
E5 With Display panel code P or R or T:
Intrinsic Safe for HAZLOC
Class I, Division 1, Group A, B, C and D T4
Max operating temperature +70°C
Shall be installed in accordance with System control drawing
9150074-997.
-40°C, +70°C)
amb
-40°C, +70°C)
amb
10
Page 11
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
FIGURE 12. Rod Dimensions
Rosemount 5600 Series
Dimensional Drawings
NOTE
Dimensions
are in inches
(millimeters)
FIGURE 13. Cone Dimensions
7.87 (200)
7.87 (200)
15.75 (400)
Inactive length 3.94 (100)
Inactive length 9.84 (250)
11.81 (300)
15.75 (400)
363 (25)
232 (16)
Pressure psig (bar)
-15 (-1.0)
145 (10)
73 (5)
1
2
0
4
-40 (-40)
1
2
3
363 psig at 212°F
25 bars at 100°C
232 psig at 392°F
16 bars at 200°C
32
(0)
145 psig at 212°F
10 bar at 100°C
73 psig at 392°F
5 bar at 200°C
-15 psig at 392°F
-1.0 bar at 200°C
212 (100)
Temperature °F (°C)
-15 psig at 392°F
-1.0 bar at 200°C
3
-15 psig at -40°F
4
-1.0 bar at -40°C
1
2
3
392 (200)
Cone, PTFE tank seal
1
PDS_MS_1, 5600/RODV3.EPS
2
3.74 (95) (3 in. Cone)
5.91 (150) (4 in. Cone)
10.24 (260) (6 in. Cone)
14.57 (370) (8 in. Cone)
2.76 (70) (3 in. Cone)
3.66 (93) (4 in. Cone)
5.55 (141) (6 in. Cone)
7.44 (169) (8 in. Cone)
NOTE
Dimensions are in
inches (millimeters)
-15 (-1)
Pressure psig (bar)
0
-40
(-40)
32
(0)
Temperature °F (°C)
212
(100)
3
392
(200)
5600/PDS/MS_2,5600/VST1V2-4O5-PAGE6.EPS
11
Page 12
Rosemount 5600 Series
FIGURE 14. Process Seal Dimensions
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
Note
Dimensions are in
inches (millimeters)
6.30 (160) 4 inch process seal
8.58 (218) 6 inch process seal
7.87 (200)
21.65 (550) 4 inch process seal
25.59 (650) 6 inch process seal
5 ⫻ 45°
1
3
3
73 (5)
29(2)
Pressure psig (bar)
0
2
-15 (-1)
-40
(-40)
+20
F-1
Area for Marking
0 psig at 302°F
0 bar at 150°C
-15 psig at -40°F
2
-1.0 bar at -40°C
0 psig at 302°F
0 bar at 150°C
32
(0)
Temperature °F (°C)
6” PTFE
4” PTFE
212
(100)
302
(150)
1
392
(200)
5600/PDS/MS_4.EPS, 5600/PVST1V2-2O3.EPS
Ds±1
Dh±1
Di±1
D±1.5
Table 1-1. Process Seal Dimensions for Galvanized Carbon and Stainless Steel Flange
Dimensions are in inches (millimeters)
Flange Di D Dh DS F
ANSI 4 inch Class 150 3.78 (96) 9.02 (229) 7.52 (191) 0.87 (22) 0.87 (22)
ANSI 6 inch Class 150 4.94 (125.5) 10.98 (279) 9.49 (241) 0.87 (22) 0.87 (22)
DN100 PN16 3.78 (96) 8.66 (220) 7.09 (180) 0.71 (18) 0.87 (22)
DN150 PN16 4.94 (125.5) 11.22 (285) 9.45 (240) 0.87 (22) 0.87 (22)
12
5600_D.D._9150070836AA
Page 13
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
FIGURE 15. Extended Cone Dimensions for Stainless
Steel Flange
Rosemount 5600 Series
7.87 (200)
NOTES
Other extended
cone lengths
available upon
request. Consult
factory.
Dimensions are in
inches (millimeters)
19.69 (500)
15° Angle
2.76 (70) (3 in. Cone)
3.66 (93) (4 in. Cone)
5.55 (141) (6 in. Cone)
15.75 (400)
FIGURE 16. Cone with Integrated Flushing Connection
Dimensions for Stainless Steel Flange
145 (10)
73 (5)
-15 (-1)
Pressure psig (bar)
145 psig at 212°F
1
10 bar at 100°C
73 psig at 392°F
2
5 bar at 200°C
-15 psig at 392°F
3
-1.0 bar at 200°C
0
-40
(-40)
32
(0)
Temperature °F (°C)
Cone, PTFE tank seal
1
212
(100)
392
(200)
2
3
5600/PDS/MS_2,5600/VST1V2-4O5-PAGE6.EPS
Connection for tubing
NOTE
Dimensions are in
inches (millimeters)
7.87 (200)
15.75 (400)
3.66 (93) (4 in. Cone)
5.55 (141) (6 in. Cone)
7.44 (189) (8 in. Cone)
Maximum: 145 psig at 392°F (10bar at 200°C)
5.12 (130) (4 in. Cone)
9.45 (240) (6 in. Cone)
13.98 (355) (8 in. Cone)
5600_PDS_MS_2C.EPS
13
Page 14
Rosemount 5600 Series
FIGURE 17. Parabolic Dimensions for Stainless Steel
Flange
7.87 (200)
00813-0100-4024, Rev CA
145 psig at 392°F
1
10 bar at 200°C
2.9 psig at 392°F
2
0.2 bar @ 200°C
-2.9 psig at 392°F
3
-0.2 bar at 200°C
Product Data Sheet
August 2003
NOTE
Dimensions are in
inches
(millimeters)
17.36 (441)
18.11 (460)
6.4 (162)
145 (10)
73 (5)
2.9 (0.2)
Pressure psig (bar)
0
-2.9 (-0.2)
-40
(-40)
32
(0)
Temperature °F (°C)
1
2
3
392 (200)
.5600RODV2-1.EPS
14
Page 15
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
Ordering Information
TABLE 4. Rosemount 5600 Radar Transmitter Selection
Model Product Description
5601 Radar Level Transmitter for Process Applications
Code Frequency Band
U US Market Only (10 GHz)
S Switzerland Market Only (10 GHz)
A All Other Markets (10 GHz)
Code Product Certification
NA None
E1 ATEX Flameproof
E5 FM Explosionproof
Code Power Supply
P 24-240 V DC/AC 0-60 Hz
Code Primary Output
5A 4-20 mA with HART communication, Passive Output
5B 4-20 mA with HART communication, Passive Output, Intrinsically Safe Circuit
5C 4-20 mA with HART communication, Active Output
5D 4-20 mA with HART communication, Active Output, Intrinsically Safe Circuit
7A Foundation Fieldbus
7B Foundation Fieldbus, Intrinsically Safe Circuit
Code Secondary Output
0None
1 4-20 mA, Passive Output
2 4-20 mA, Passive Output, Intrinsically Safe Circuit
3 4-20 mA, Active Output
4 4-20 mA, Active Output, Intrinsically Safe Circuit
Code Display Unit
NNone
P LOI, Factory mounted on transmitter
R LOI, Remote mounted
T LOI, Remote mounted with temp inputs (1-6 spot elements with common returns)
Code Volume Calculation
E Basic Volume Equations (Standard)
V Strapping Table, up to 100 points
Typical Model Number: 5601 S E1 P 5A 0 P E Antenna Selection
(1) Not allowed in combination with Display Unit codes P, R, or T.
(2) Select the antenna type and options using Table 5, Table 6, Table 7, Table 9, and Table 10.
(1)
(1)
(2)
Rosemount 5600 Series
15
Page 16
Product Data Sheet
00813-0100-4024, Rev CA
Rosemount 5600 Series
TABLE 5. Rod Antenna
Code Antenna Type Antenna Size Antenna Material Note
Rod
11S 1.5 in. threaded version SST 316L and PTFE Inactive Length 4 inch (100 mm)
12S 2 in. (DN50) nozzles SST 316L and PTFE Inactive Length 4 inch (100 mm)
13S 3 in. (DN80) nozzles SST 316L and PTFE Inactive Length 4 inch (100 mm)
14S 4 in. (DN100) nozzles SST 316L and PTFE Inactive Length 4 inch (100 mm)
11L 1.5 in. threaded version SST 316L and PTFE Inactive Length 10 inch (250 mm)
12L 2 in. (DN50) nozzles SST 316L and PTFE Inactive Length 10 inch (250 mm)
13L 3 in. (DN80) nozzles SST 316L and PTFE Inactive Length 10 inch (250 mm)
14L 4 in. (DN100) nozzles SST 316L and PTFE Inactive Length 10 inch (250 mm)
1XX Customer specific rod or material Consult Factory
Code Tank Sealing
N Not Applicable
Code O-ring Material
VViton
K Kalrez 6375
E EPDM
B Buna-N
Code Process Connection
NR Antenna with Plate Design
NOTE: Customer supplied flange or see Table 14 on page 21 for flange options
XX Special Process Connection Consult Factory
Threaded Version
TN Threaded 1.5 in. NPT
TB Threaded 1.5 in. G
Code Options
Q8 Material Traceability Certification per EN 10204 3.1.B
Typical Model Number: Selected code from Table 4 on page 15 11S N F TN
August 2003
16
Page 17
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
TABLE 6. Cone Antenna
Code Antenna Type Antenna Size Antenna Material Note
Cone
23S 3 in. (DN80) nozzles SST 316L Pipe Installation Only
24S 4 in. (DN100) nozzles SST 316L Free propagation or 4” pipe
26S 6 in. (DN150) nozzles SST 316L Free propagation or 6” pipe
28S 8 in. (DN200) nozzles SST 316L Free propagation only
23H 3 in. (DN80) nozzles Hastelloy C22 Longer Lead-time, Consult Factory
24H 4 in. (DN100) nozzles Hastelloy C22 Longer Lead-time, Consult Factory
26H 6 in. (DN150) nozzles Hastelloy C22 Longer Lead-time, Consult Factory
28H 8 in. (DN200) nozzles Hastelloy C22 Longer Lead-time, Consult Factory
23M 3 in. (DN80) nozzles Monel 400 Longer Lead-time, Consult Factory
24M 4 in. (DN100) nozzles Monel 400 Longer Lead-time, Consult Factory
26M 6 in. (DN150) nozzles Monel 400 Longer Lead-time, Consult Factory
28M 8 in. (DN200) nozzles Monel 400 Longer Lead-time, Consult Factory
23Z 3 in. (DN80) nozzles Tantalum Longer Lead-time, Consult Factory
24Z 4 in. (DN100) nozzles Tantalum Longer Lead-time, Consult Factory
26Z 6 in. (DN150) nozzles Tantalum Longer Lead-time, Consult Factory
28Z 8 in. (DN200) nozzles Tantalum Longer Lead-time, Consult Factory
2XX Customer specific cone or material Consult Factory
Code Tank Sealing
P PTFE
Code O-ring Material
VViton
K Kalrez 6375
E EPDM
B Buna-N
Code Process Connection
NR Antenna with Plate Design
NOTE: Customer supplied flange or see Table 14 on page 21 for flange options
XX Special Process Connection Consult Factory
Code Options
Q8 Material Traceability Certification per EN 10204 3.1.B
Typical Model Number: Selected code from Table 4 on page 15 24S P V NR
Rosemount 5600 Series
17
Page 18
Product Data Sheet
00813-0100-4024, Rev CA
Rosemount 5600 Series
TABLE 7. Process Seal Antenna
Code Antenna Type Antenna Size Antenna Material Note
Process Seal
34S 4 in. (DN100) nozzles PTFE
36S 6 in. (DN150) nozzles PTFE
Code Tank Sealing
P PTFE
Code O-ring Material
N Not Applicable
Code Process Connection
NF None, Customer to supply flange per dimensions on Figure 14
XX Special Process Connection Consult Factory
Stainless Steel Flange
CA 4 in. ANSI Class 150
DA 6 in. ANSI Class 150
JA DN100 PN16
KA DN150 PN16
Galvanized Carbon Steel Flange
CC 4 in. ANSI Class 150 Longer Lead-Time, Consult Factory
DC 6 in. ANSI Class 150 Longer Lead-Time, Consult Factory
JC DN100 PN16 Longer Lead-Time, Consult Factory
KC DN150 PN16 Longer Lead-Time, Consult Factory
Code Options
Q8 Material Traceability Certification per EN 10204 3.1.B
Typical Model Number: Selected code from Table 4 on page 15 34S P N JA
August 2003
TABLE 8. Parabolic Antenna
Code Antenna Type Antenna Size Antenna Material Note
Parabolic
45S ø18 in. (440mm) SST with Integrated Inclination -2.9 to 2.9 psi (-0.2 to 0.2 bar)
46S ø18 in. (440mm) SST with Integrated Inclination -2.9 to 145 psi (-0.2 to 10 bar)
4XX Customer Specific Customer Specific Consult Factory
Code Tank Sealing
P PTFE
Code O-ring Material
VViton
Code Process Connections
NR Antenna with Plate Design
NOTE: Customer supplied flange or see Table 14 on page 21 for flange options
XX Special Process Connection Consult Factory
Code Options
Q8 Material Traceability Certification per EN 10204 3.1.B
Typical Model Number: Selected code from Table 4 on page 15 45S P V NR
18
Page 19
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
TABLE 9. Extended Cone Antenna
Code Antenna Type Antenna Size Antenna Material Note
Extended
73S 3 in. (DN80) nozzles SST 316L Standard length 20 inch (500 mm)
74S 4 in. (DN100) nozzles SST 316L Standard length 20 inch (500 mm)
76S 6 in. (DN150) nozzles SST 316L Standard length 20 inch (500 mm)
7XX Customer specific extended cone or material Consult Factory
Code Tank Sealing
P PTFE
Code O-ring Material
V Viton
K Kalrez 6375
E EPDM
B Buna-N
Code Process Connections
NR Antenna with Plate Design
NOTE: Customer supplied flange or see Table 14 on page 21 for flange options
XX Special Process Connection Consult Factory
Code Options
Q8 Material Traceability Certification per EN 10204 3.1.B
Typical Model Number: Selected code from Table 4 on page 15 76S P V NR
Rosemount 5600 Series
TABLE 10. Cone Antenna with Integrated Flushing Connection
Code Antenna Type Antenna Size Antenna Material Note
Cone with Integrated
Flushing Connection
94S 4 in. (DN100) nozzles SST 316L Consult Factory
96S 6 in. (DN150) nozzles SST 316L Consult Factory
98S 8 in. (DN200) nozzles SST 316L Consult Factory
Code Tank Sealing
P PTFE
Code O-ring Material
VViton
K Kalrez 6375
E EPDM
B Buna-N
Code Process Connection
XX Special Process Connection Consult Factory
Stainless Steel Flange Welded to Antenna
CL 4 in. ANSI Class 150 Max 101 psig at 392°F (7 bar at 200°C)
DL 6 in. ANSI Class 150 Max 145 psig at 392°F (10 bar at 200°C)
FL 8 in. ANSI Class 150 Max 145 psig at 392°F (10 bar at 200°C)
JL DN100 PN16 Max 72 psig at 392°F (5 bar at 200°C)
KL DN150 PN16 Max 87 psig at 392°F (6 bar at 200°C)
LL DN200 PN16 Max 87 psig at 392°F (6 bar at 200°C)
Code Options
Q8 Material Traceability Certification per EN 10204 3.1.B
Typical Model Number: Selected code from Table 4 on page 15 94S P K KL
19
Page 20
Product Data Sheet
00813-0100-4024, Rev CA
Rosemount 5600 Series
TABLE 11. Transmitter Options (multiple selections allowed)
Code Options
Calibration Data Certification
Q4 Calibration Data Certificate
Software Configuration
C1 Custom Software Configuration (CDS required with order)
Alarm Limits
C4 NAMUR Alarm Level, High Alarm
C8 Low Alarm (Standard Rosemount Alarm)
Conduit Adapters
G1
G2
P1 Hydrostatic Testing
TABLE 12. Typical Model Code Examples
5601 A E5 P 5A 0 P E 24S P V NR
FM approval, passive HART primary output and display mounted on transmitter. Basic Volume calculation.
Antenna is a 4 inch Cone, SST with PTFE Seal and Viton O-rings. No options.
5601 U NA P 7A 2 T V 94S P K CL C1
No Ex-approvals, FOUNDATION™ fieldbus output and remote mounted display with temp inputs and a secondary 4-20mA passive IS output.
Volume table with up to 100 points. 4 inch Cone Antenna with integrated cleaning, PTFE seal and kalrez o-rings for high temperature and
pressure. Flange is ANSI 4 inch Class 150 stainless steel. Custom configuration selected.
1
/2 inch NPT Cable Gland Kit
1
/2 inch NPT/ M20 Adapters (Set of 3)
Special Procedures
August 2003
20
Page 21
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
Rosemount 5600 Series
Accessories
TABLE 13. Accessories Part Numbers
Part Number Description Note
Modems
03300-7004-0001 HART Modem and cables Viator by MacTec
05600-5004-0001 K2 RS485 modem and cables For Sensor Bus connection
Antenna Accessories
05600-5001-0001 PTFE Protective Cover (PTFE Bag) For Parabolic Antenna only
Flange
TABLE 14. Non-welded Flange Part Numbers
Stainless Steel Flanges
Part Number Flange Size Dimensions Material
05600-1811-0211 ANSI 2 inch Class 150 Acc. To ANSI B16.5 SST 316L
05600-1811-0231 ANSI 2 inch Class 300 Acc. To ANSI B16.5 SST 316L
05600-1811-0311 ANSI 3 inch Class 150 Acc. To ANSI B16.5 SST 316L
05600-1811-0331 ANSI 3 inch Class 300 Acc. To ANSI B16.5 SST 316L
05600-1811-0411 ANSI 4inch Class 150 Acc. To ANSI B16.5 SST 316L
05600-1811-0431 ANSI 4 inch Class 300 Acc. To ANSI B16.5 SST 316L
05600-1811-0611 ANSI 6 inch Class 150 Acc. To ANSI B16.5 SST 316L
05600-1811-0811 ANSI 8 inch Class 150 Acc. To ANSI B16.5 SST 316L
05600-1810-0231 DN50 PN40 Acc. To EN 1092-1 EN 1.4404
05600-1810-0311 DN80 PN16 Acc. To EN 1092-1 EN 1.4404
05600-1810-0331 DN80 PN40 Acc. To EN 1092-1 EN 1.4404
05600-1810-0411 DN100 PN16 Acc. To EN 1092-1 EN 1.4404
05600-1810-0431 DN100 PN40 Acc. To EN 1092-1 EN 1.4404
05600-1810-0611 DN150 PN16 Acc. To EN 1092-1 EN 1.4404
05600-1810-0811 DN200 PN16 Acc. To EN 1092-1 EN 1.4404
Galvanized Carbon Steel Flanges (Note: Longer Lead-time, Consult Factory)
Part Number Flange Size Dimensions Material
05600-1811-0210 ANSI 2 inch Class 150 Acc. To ANSI B16.5 CS
05600-1811-0230 ANSI 2 inch Class 300 Acc. To ANSI B16.5 CS
05600-1811-0310 ANSI 3 inch Class 150 Acc. To ANSI B16.5 CS
05600-1811-0330 ANSI 3 inch Class 300 Acc. To ANSI B16.5 CS
05600-1811-0410 ANSI 4 inch Class 150 Acc. To ANSI B16.5 CS
05600-1811-0430 ANSI 4 inch Class 300 Acc. To ANSI B16.5 CS
05600-1811-0610 ANSI 6 inch Class 150 Acc. To ANSI B16.5 CS
05600-1811-0810 ANSI 8 inch Class 150 Acc. To ANSI B16.5 CS
05600-1810-0230 DN50 PN40 Acc. To EN 1092-1 CS
05600-1810-0310 DN80 PN16 Acc. To EN 1092-1 CS
05600-1810-0330 DN80 PN40 Acc. To EN 1092-1 CS
05600-1810-0410 DN100 PN16 Acc. To EN 1092-1 CS
05600-1810-0430 DN100 PN40 Acc. To EN 1092-1 CS
05600-1810-0610 DN150 PN16 Acc. To EN 1092-1 CS
05600-1810-0810 DN200 PN16 Acc. To EN 1092-1 CS
(1) Use gasket type la.
(2) Gasket type according to EN 1514-1 and bolting according to EN1515-2.
(1)
(1)
(2)
(2)
(2)
(2)
(2)
(2)
(2)
(1)
(1)
(2)
(2)
(2)
(2)
(2)
(2)
(2)
21
Page 22
Product Data Sheet
00813-0100-4024, Rev CA
Rosemount 5600 Series
August 2003
Application and Configuration Data Sheet
★ Indicates Default Factory Configuration
Customer Information, Model Number, and Tagging Information
Customer/ End User: ___________________________________ Salesperson: _______________________________
Customer Contact: ___________________________________ P.O. Number: _______________________________
Phone Number: ___________________________________ Line Item: _______________________________
E-mail Address: ___________________________________ Ultimate Destination: _______________________________
Model Number:
Software Tag: I_I_I_I_I_I_I_I_I Hardware Tag: I_I_I_I_I_I_I_I_I_I_I_I_I_I_I_I_I_I_I_I_I_I
Process Information
Process Name: ___________________________________ Product Type: ________________________________
Process Description: ___________________________________
Dielectric Constant:
I_I_I_I_I_I_I_I_I_I_I_I_I_I - I_I_I_I_I_I_I_I - I_I_I_I_I_I_I_I_I_I_I
(Options)
(8 characters max) (21 characters max)
1.4-2.5 4.0-10 Unknown
2.5-4.0 >10 Process is water-based
Process Temperature: Minimum: ________
°F Maximum: ________ °F
°C °C
Process Pressure: Minimum: ________
psig Maximum: ________ psig
bar bar
Rapid Level Changes:
(>100 mm/s, 4 in/s)
No Ye s
Solid Product
Foam Type:
Foam Present:
Foam Thickness: ___________________
Turbulence Type:
(See page 5 for details)
Turbulence due to:
No Ye s
None Light (Airy) Heavy (Dense)
Not Applicable Occasionally Constantly
Calm Surface Gently Stirred Turbulent Conditions
Not Applicable Agitation Flowing
Splash Loading Vortex
22
Inches Millimeters
Page 23
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
★ Indicates Default Factory Configuration
Tank Geometry
Rosemount 5600 Series
Tank Shape
(1)
: Select a Tank Type corresponding to the actual tank on which the device is
mounted. If the device is mounted on a Tank Type that is not available as an
individual selection choose Unknown.
Unknown★ Vertical Cylinder Horizontal Cylinder
(2)
(4)
Tank Bottom
Spherical Cubical
(3)
: Select a Tank Bottom Type that corresponds to the actual shape of the tank
bottom.
Unknown★ Flat
Cone Other
Tank Height: __________________________________
m mm★ ft in
(1) See page 25 for examples of each tank type.
(2) A cubical tank type is defined as a box shaped tank with right angles.
(3) Tank Bottom Type is only applicable for Vertical Cylinder and Cubical Tanks.
(4) Bottom of the tank is <5°.
Transmitter’s
Reference
Point
Upper
Null Zone
Dome/Dish/Bullet
Tank Height (R)
(Inclined or obstructed due
to heating coils, pipes, etc.).
Zero Level
Fitting Dimensions
Please fill in the dimensions (according to selected variable unit)
Nozzle Stilling Well Bypass Pipe
23
Page 24
Rosemount 5600 Series
Indicates Default Factory Configuration
★
Analog Output (4-20mA analog output) (Not applicable for FOUNDATION fieldbus devices)
Primary Variables (Analog Output 1):
PV Source (Var. Assignment):
Lower Range Value (4mA): ______________________________________________
Upper Range Value (20mA): ______________________________________________
Level★ Distance Level Rate
Volume (See page 25) Temperature 1 (See page 24) Signal Strength
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
Alarm Mode:
Secondary Variable (Optional Analog Output 2):
SV Source (Var. Assignment):
Low High Freeze★
mA
mA
Level Distance★ Level Rate
Temperature 1 Volume Signal Strength
Lower Range Value (4mA): ______________________________________________
Upper Range Value (20mA): ______________________________________________
Alarm Mode:
Low High Freeze★
mA
mA
mA
mA
Temperature Measurement (If applicable)
Number of Temperature
Sensors (1-6): ______________________________________________
Type of Temperature Sensor:
Pt100★ Temperature Sensor Locations:
Cu90
Measurement Units:
°F
°C★
°K
24
Page 25
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
★ Indicates Default Factory Configuration
Volume Calculation (If applicable)
Volume is calculated based on ideal shapes or by an entered Strapping table (up to 100 points). The Configuration Data Sheet (CDS) allows
for up to 20 strapping points to be pre-configured at factory using the CI (CDS) option. Provide an additional file with volume table to be
imported if more than 20 points are required.
Measurement Units:
3
ft
If your transmitter is ideal shape, please select what ideal shape to use. Add the dimensions for the selected shape.
m
3
liters US gals bbl
Vertical Cylinder Horizontal Cylinder Sphere
Rosemount 5600 Series
Vertical Cylinder with Bullet Ends Horizontal Cylinder with Bullet Ends
Strapping Table (Up to 100 points can be used. Data may be submitted to the factory using a data spreadsheet program.)
Strapping Table Level Volume
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
25
Page 26
Rosemount 5600 Series
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
26
Page 27
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
Rosemount 5600 Series
27
Page 28
Product Data Sheet
00813-0100-4024, Rev CA
August 2003
Rosemount 5600 Series
Rosemount and the Rosemount logotype are registered trademarks of Rosemount Inc.
PlantWeb is a registered trademark of one of the Emerson Process Management group of companies.
HART is a registered trademark of the HART Communication Foundation
Teflon, VITON, and Kalrez are registered trademarks of E.I. du Pont de Nemours $ Co.
OUNDATION is a trademark of the Fieldbus Foundation.
F
DeltaV is a trademark of Emerson Process Management group of companies.
Hastelloy and Hastelloy C-22 are registered trademarks of Haynes International.
Monel is a registered trademark of International Nickel Co.
All other marks are the property of their respective owners.
Emerson Process Management
Rosemount Inc.
8200 Market Boulevard
Chanhassen, MN 55317 USA
T (U.S.) 1-800-999-9307
T (International) (952) 906-8888
F (952) 949-7001
www.rosemount.com
Emerson Process Management
Heath Place
Bognor Regis
West Sussex PO22 9SH
England
Tel 44 (1243) 863 121
Fax 44 (1243) 867 5541
¢00813-0100-4024«¤
© 2003 Rosemount Inc. All rights reserved.
Emerson Process Management Asia Pacific
Private Limited
1 Pandan Crescent
Singapore 128461
T (65) 6777 8211
F (65) 6777 0947/65 6777 0743
Loading...
