Quick Start Guide

00825-0400-2654, Rev BC

March 2019

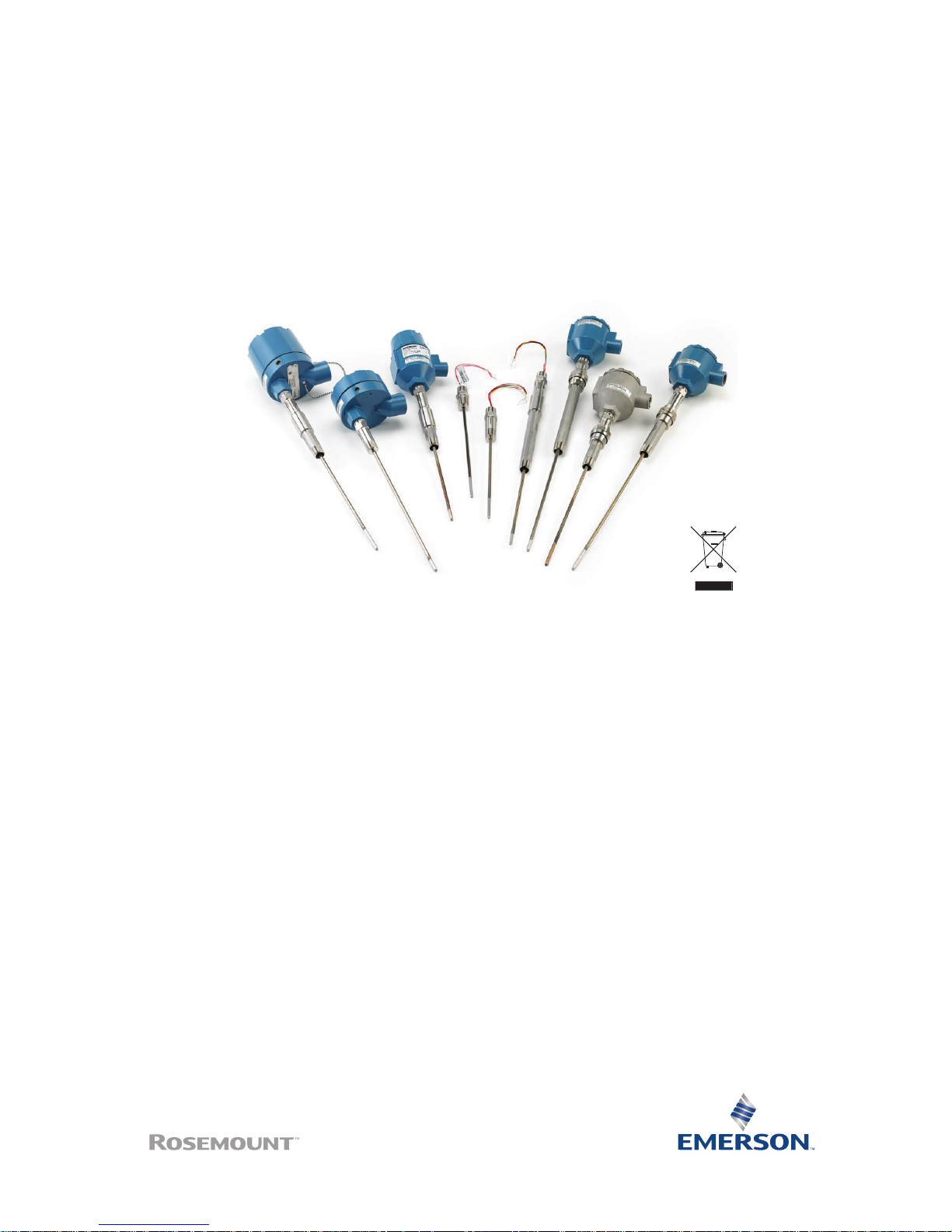

Rosemount™ 214C Sensor

Safety Messages

NOTICE

This guide provides basic guidelines for Rosemount™ 214C Sensor models.If the sensor was ordered
assembled to a temperature thermowell or transmitter, see the appropriate productliterature for
information on configuration and hazardous locations certifications.

NOTICE

Complications can arise when the sensors and the transmitters to which they are assembled are
certified to compatible, but each has different approvals. Be aware of the following situations:

• If an I.S. approved 214C sensor is ordered with a housing, a transmitter enclosed in that housing

may have a different I.S. approval rating. Refer to the transmitter IS certificate if applicable.

• If a sensor and transmitter have different certifications, or if either has more certifications than the

other, installation must comply with the most restrictive requirements required by either
component. This is especially (but not exclusively) relevant when combination approvals are
ordered on either the sensor or transmitter. Review certifications on both the sensor and
transmitter for installation requirements and ensure installation of the sensor/transmitter
assembly complies with a single certification that is shared by both of these components and that
meets the requirements of the application.

WARNING

Explosion

Explosions could result in death or serious injury.

Installation of sensor in an explosive environment must be in accordance with appropriate local,
national, and international standards, codes, and practices.

Conduit/cable entries

Unless marked, the conduit/cable entries in the transmitter housing use a ½–14 NPT thread form.
Entries marked “M20” are M20 × 1.5 thread form. On devices with multiple conduit entries, all
entries will have the same thread form. Only use plugs, adapters, glands, or conduit with a
compatible thread form when closing these entries.

When installing in a hazardous location, use only appropriately listed or Ex certified plugs, glands,
or adapters in cable/conduit entries.

Only use plugs, adapters, glands, or conduit with a compatible thread form when closing these
entries.

Contents

Wiring diagram for RTDs................................ 3

Wiring diagram for thermocouples................ 4

Product certifications.....................................5

Installation drawings....................................19

Declaration of Conformity............................20

China RoHS.................................................. 22

Quick Start Guide March 2019

2 Rosemount 214C

1 Wiring diagram for RTDs

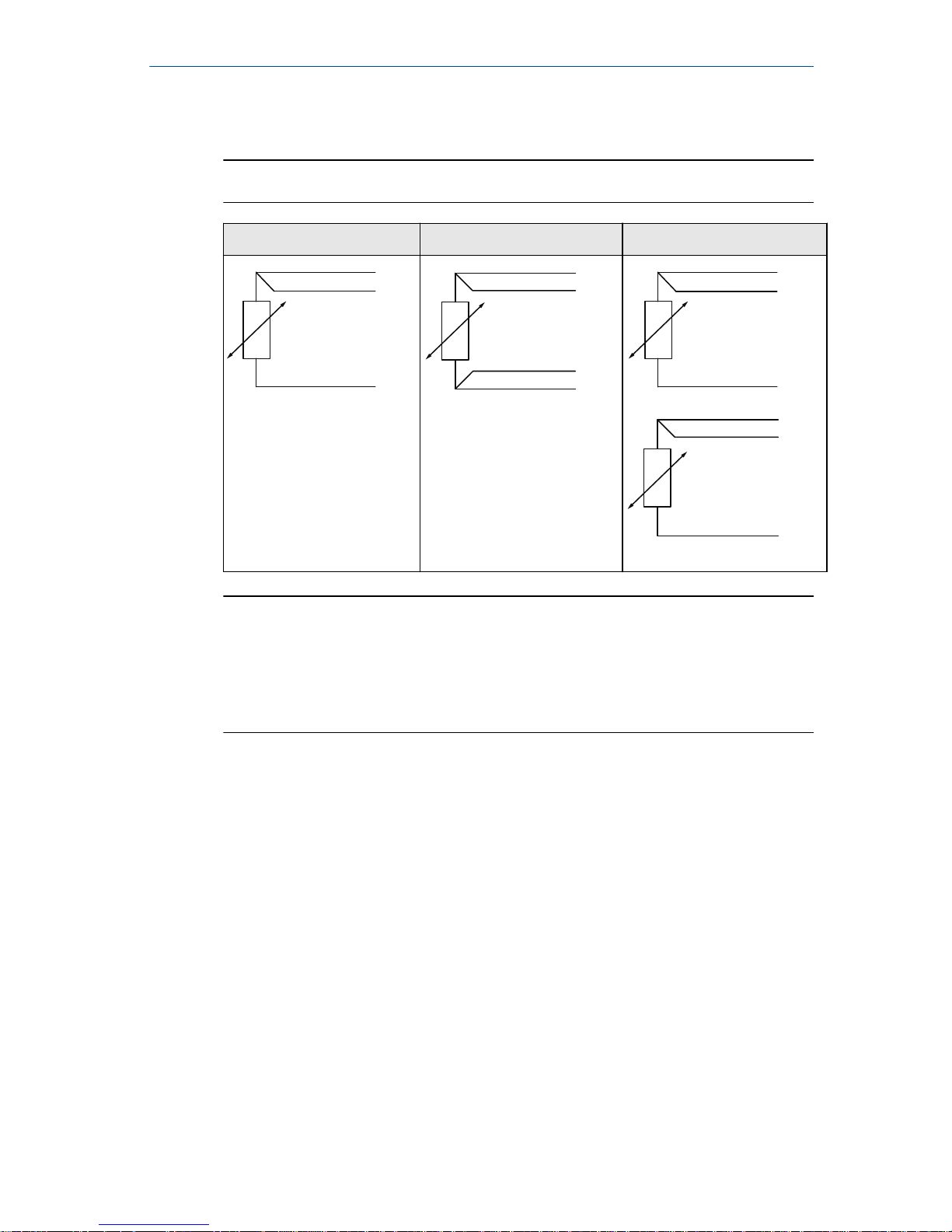

Figure 1-1: RTD Lead Wire Configuration per IEC 60751

Single element, 3-wire Single element, 4-wire Dual element, 3-wire

Red
Red

White

White

Red

Red

White

Red

Red

White

Black
Black

Yellow

Note

To configure a single element, 4-wire RTD as a 3-wire system, connect only
one white lead. Insulate or terminate the unused white lead in a manner that
prevents shorting to the ground. To configure a single element, 4-wire RTD
as a 2-wire system, connect matching colored wires first and then connect
the paired wires to the terminal.

March 2019 Quick Start Guide

Quick Start Guide 3

2 Wiring diagram for thermocouples

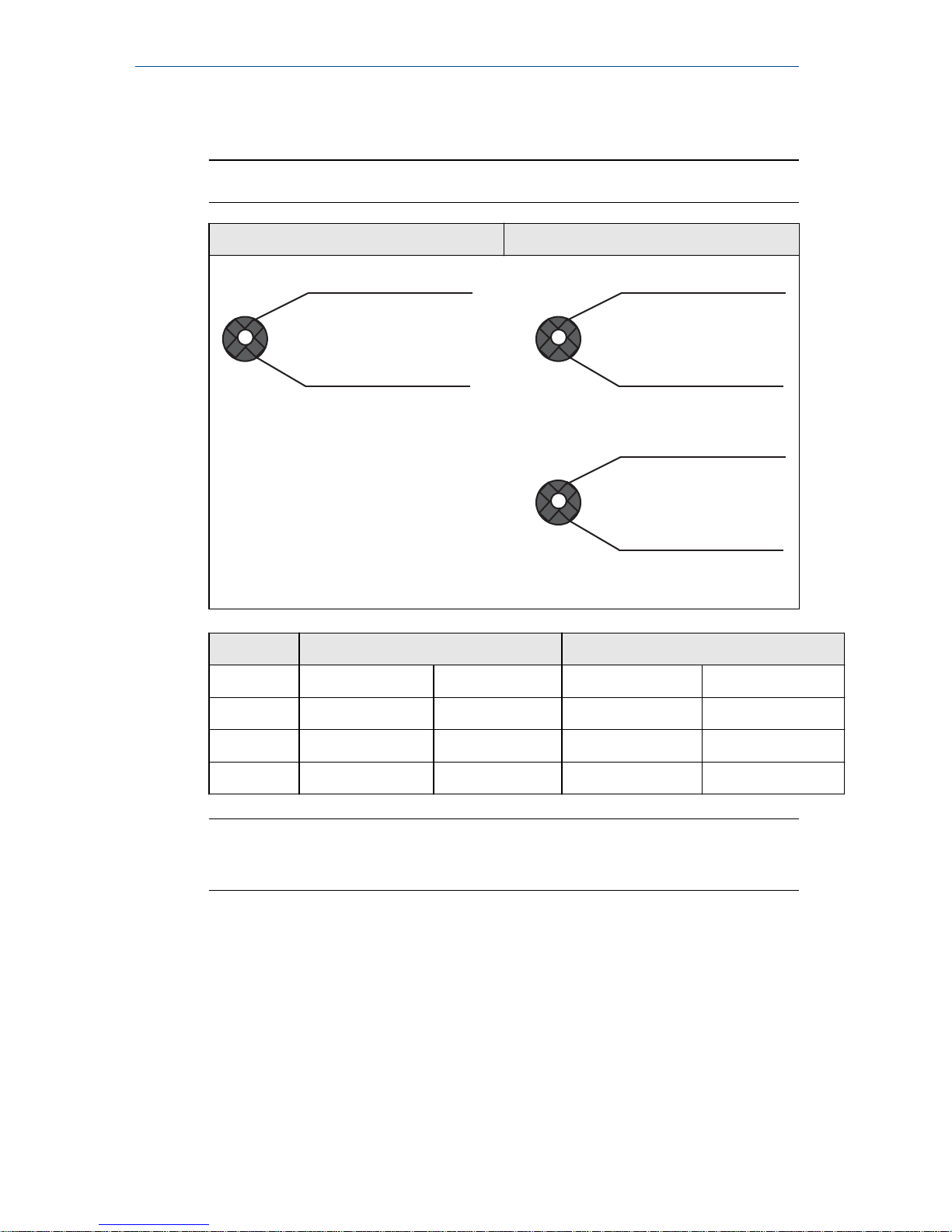

Figure 2-1: Thermocouple Lead Wire Configuration

Single thermocouple, 2-wire Dual thermocouple, 4-wire

( – )

( + )

( + )

( + )

( – )

( – )

IEC 60584 thermocouple colors ASTM E- 230 thermocouple colors

Type POS (+) NEG (-) POS (+) NEG (-)

J Black White White Red

K Green White Yellow Red

T Brown White Blue Red

Note

Dual thermocouple sensors are shipped with one pair of the wires shrink
wrapped together.

Quick Start Guide March 2019

4 Rosemount 214C

3 Product certifications

Rev 1.21

European Directive information

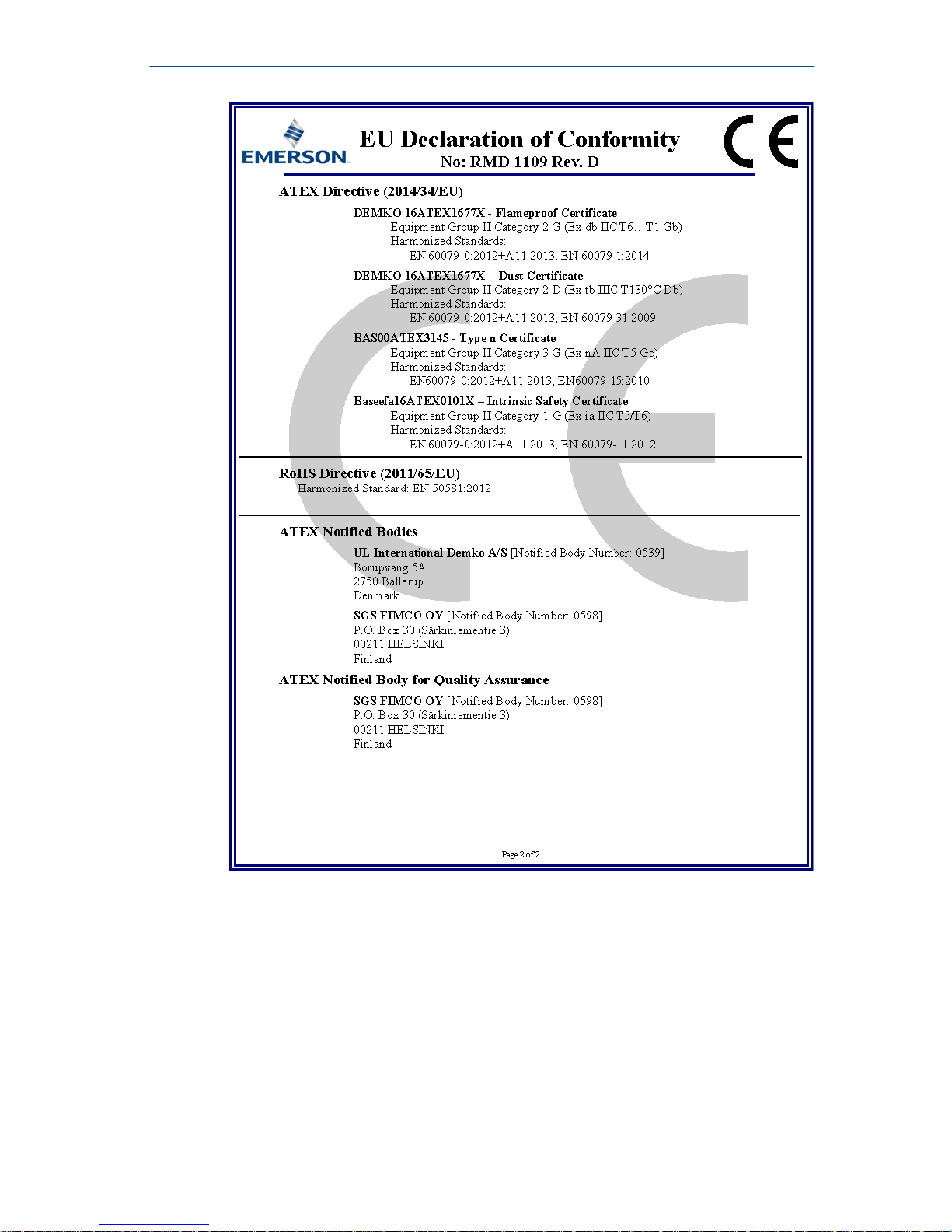

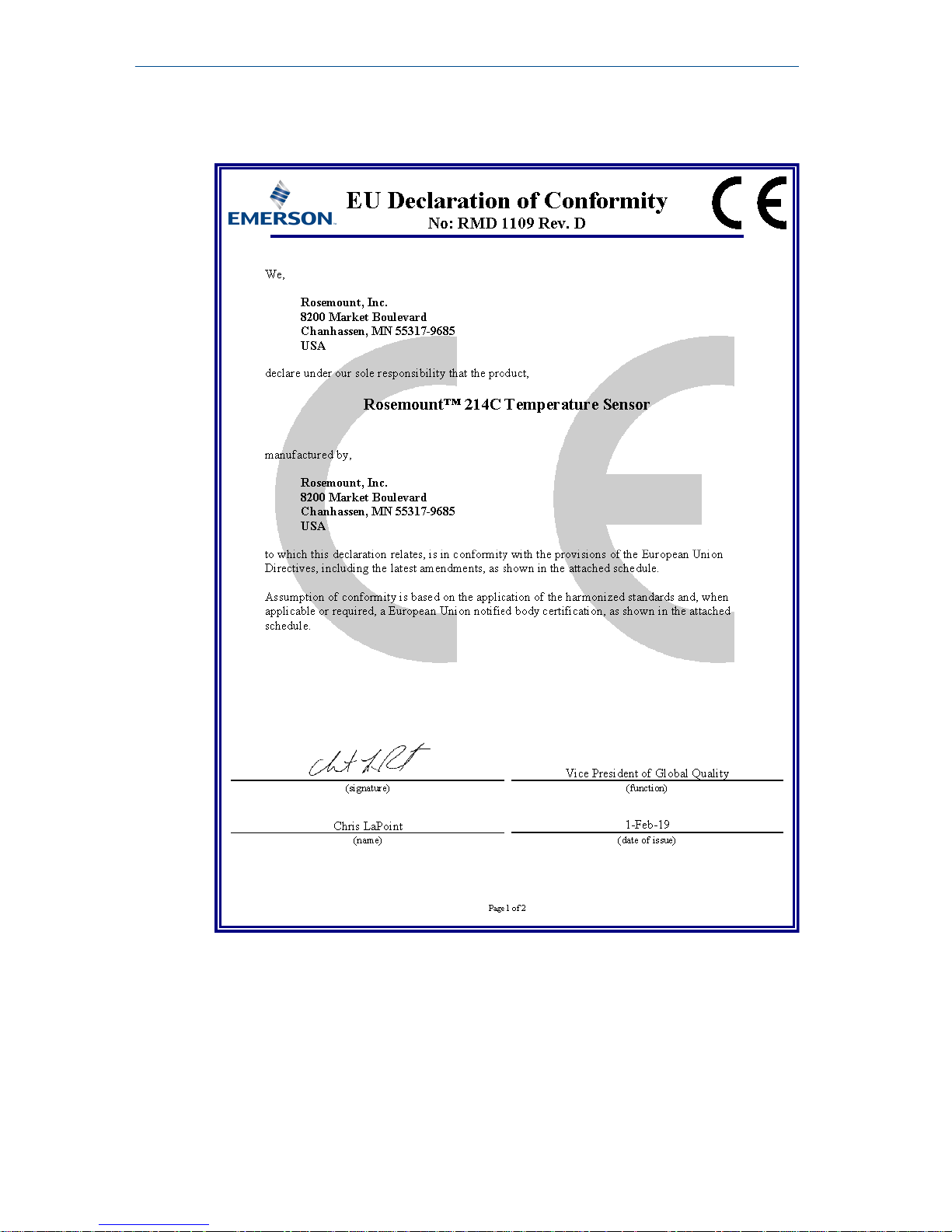

A copy of the EU Declaration of Conformity can be found at the end of the
Quick Start Guide. The most recent revision of the EU Declaration of
Conformity can be found at Emerson.com/Rosemount.

Ordinary Location Certification

The Rosemount™ 214C has been examined and tested to determine that the
design meets the basic electrical, mechanical, and fire protection
requirements by a nationally recognized test laboratory (NRTL) as accredited
by the Federal Occupational Safety and Health Administration (OSHA).

North America

The US National Electrical Code® (NEC) and the Canadian Electrical Code
(CEC) permit the use of Division marked equipment in Zones and Zone
marked equipment in Divisions. The markings must be suitable for the area
classification, gas, and temperature class. This information is clearly defined
in the respective codes.

3.1 USA

3.1.1 E5 USA Explosionproof (XP) and Dust-Ignitionproof (DIP)

Certificate

70044744

Standards

FM 3600:2011, FM 3615:2006, UL 50E:2007, UL
61010-1:2010, ANSI/ISA 60529:2004

Markings

XP CL I, DIV 1, GP B, C, D; DIP CL II, DIV 1, GP E, F, G; CL III; T6
(-50 °C ≤ Ta ≤ +80 °C), T5 (-50 °C ≤ Ta ≤ +95 °C); Seal not
required; installed per Rosemount drawing 00214-1030; Type
4X† and IP 66/67; V

max

35 VDC, 750 mW

max

Special Conditions for Safe Use (X):

1. Flameproof joints are not intended for repair.

2. Cable entries must be used which maintain the ingress protection of
the enclosure. Unused cable entries must be filled with suitable
blanking plugs.

3.1.2 N5 USA Division 2 (NI)

Certificate

70044744

March 2019 Quick Start Guide

Quick Start Guide 5

Standards

FM 3600:2011, FM 3611:2004, UL 50E:2007, UL
61010-1:2010, ANSI/ISA 60529:2004

Markings

NI CL I, DIV 2, GP A, B, C, D; T6 (-50 °C ≤ Ta ≤ +80 °C), T5 (-50 °C
≤ Ta ≤ +95 °C); installed per Rosemount drawing 00214-1030;
Type 4X† and IP 66/67; V

max

35 VDC, 750 mW

max

3.1.3 E6 Canada Explosionproof (XP) and Dust-Ignitionproof (DIP)

Certificate

70044744

Standards

CAN/CSA C22.2 No. 0:2010, CAN/CSA No. 25-1966 (R2000),
CAN/CSA C22.2 No. 30-M1986 (R2012), CAN/CSA C22.2 No.
94-M1991 (R2011), CAN/CSA C22.2 No. 61010-1:2012

Markings

XP CL I, DIV 1, GP B*, C, D; DIP CL II, DIV 1, GP E, F, G; CL III; T6
(-50 °C ≤ Ta ≤ +80 °C), T5 (-50 °C ≤ Ta ≤ +95 °C); Seal not
required; installed per Rosemount drawing 00214-1030; Type
4X† and IP 66/67; V

max

35 VDC, 750 mW

max

Special Conditions for Safe Use (X):

1. Flameproof joints are not intended for repair.

2. Cable entries must be used which maintain the ingress protection of
the enclosure. Unused cable entries must be filled with suitable
blanking plugs.

3.1.4 N6 Canada Division 2

Certificate

70044744

Standards

CAN/CSA C22.2 No. 0:2010, CAN/CSA C22.2 No. 94-M1991
(R2011), CAN/CSA No. 213-M1987 (R2013), CAN/CSA C22.2
No. 61010-1:2012

Markings

CL I, DIV 2, GP A, B, C, D; T6; (–50 °C ≤ Ta ≤ +80 °C), T5 (–50 °C
≤ Ta ≤ +95 °C); installed per Rosemount drawing 00214-1030;
Type 4X† and IP 66/67; V

max

35 VDC, 750 mW

max

†

Spring loaded indicator has reduced ingress and dust ratings. Spring loaded
sensors must be installed in a thermowell to maintain dust and ingress
ratings. Un-painted aluminum enclosures are Type 4 rated. *Assembly is not
Canada Explosionproof (E6) rated to Group B if a 0079 connection head is
used.

3.2

Europe

3.2.1 E1 ATEX Flameproof

Certificate

DEMKO 16 ATEX 1677X

Quick Start Guide March 2019

6 Rosemount 214C

Standards

EN 60079-0:2012+A11 2013, EN 60079-1:2014

Markings

II 2 G Ex db IIC T6…T1 Gb T6(-50 °C≤Ta≤+80 °C), T5(-50

°C≤Ta≤+95 °C), T4…T1(-50 °C≤Ta≤+100 °C) V

max

= 45 Vdc, P

max

= 750 mW

Installation Instructions:

1. Use field wiring suitable for both the minimum and maximum service
temperatures.

2. These devices are provided without cable glands/conduit sealing
devices/blanking elements. Proper selection of suitable cable glands/
conduit sealing/blanking elements should occur in the field.

3. Unused apertures shall be closed with suitable blanking elements.

4. The enclosures may be provided with up to three ½–14 NPT, ¾–14
NPT, or M20 x 1.5 entries, with location of the entries specified in the
installation instructions document.

Special Conditions for Safe Use (X):

1. Refer to certificate for details regarding process and ambient
temperature limits.

2. When the Rosemount 214C sensor is provided with an enclosure
with a display cover, the maximum ambient shall be 95 °C.

3. The non-metallic label on the device may store an electrostatic
charge and become a source of ignition in Group III atmospheres.
Care shall be taken to reduce electrostatic build-up. For example, the
non-metallic label may be rubbed with a damp cloth.

4. The display covers were impacted at 4 J according to a low risk of
mechanical danger. Guard the display covers against impact energies
greater than 4 J.

5. Flameproof joints are not intended for repair.

6. The stand-alone Rosemount 214C sensors without an enclosure
must be assembled to a suitable Ex certified enclosure of a volume no
greater than 0.55 L to maintain the types of protection “db” and
“tb”.

7. The spring loaded sensors and DIN sensors must be installed in a
thermowell to maintain IP6X ratings.

8. Contact indicating sensors do not meet requirements for protection
type “tb” and therefore are not “tb” rated.

March 2019 Quick Start Guide

Quick Start Guide 7

3.2.2 I1 ATEX Intrinsic Safety

Certificate

Baseefa16ATEX0101X

Standards

EN 60079-0:2012+A11:2013, EN 60079-11:2012

Markings

II 1 G Ex ia IIC T5/T6 Ga (SEE CERTIFICATE FOR SCHEDULE)

Thermocouples; Pi = 500 mW T6 60 °C ≤ Ta ≤ +70 °C

RTDs; Pi = 192 mW T6 60 °C ≤ Ta ≤ +70 °C

RTDs; Pi = 290 mW T6 60 °C ≤ Ta ≤ +60 °C

T5 60 °C ≤ Ta ≤ +70 °C

Special Conditions for Safe Use (X):

1. The equipment must be installed in an enclosure which affords it a
degree of ingress protection of at least IP20.

3.2.3 N1 ATEX Zone 2

Certificate

BAS00ATEX3145

Standards

EN 60079-0:2012+A11:2013, EN 60079-15:2010

Markings

II 3 G Ex nA IIC T5 Gc T5(-40 °C≤ Ta ≤ 70 °C)

3.2.4 ND ATEX Dust Ignitionproof

Certificate

DEMKO 16 ATEX 1677X

Standards

EN 60079-0:2012+A11 2013, EN 60079-31:2014

Markings

II 2 D Ex tb IIIC T130 °C Db(-50 °C≤Ta≤+100 °C)V

max

= 45

Vdc, P

max

= 750 mW

Installation Instructions:

1. Use field wiring suitable for both the minimum and maximum service
temperatures.

2. These devices are provided without cable glands/conduit sealing
devices/blanking elements. Proper selection of suitable cable glands/
conduit sealing/blanking elements should occur in the field.

3. Unused apertures shall be closed with suitable blanking elements.

4. The enclosures may be provided with up to three ½–14 NPT, ¾–14
NPT, or M20 x 1.5 entries, with location of the entries specified in the
installation instructions document.

Quick Start Guide March 2019

8 Rosemount 214C

Special Conditions for Safe Use (X):

1. Refer to certificate for details regarding process and ambient
temperature limits.

2. When the 214C sensor is provided with an enclosure with a display
cover, the maximum ambient shall be 95 °C.

3. The non-metallic label on the device may store an electrostatic
charge and become a source of ignition in Group III atmospheres.
Care shall be taken to reduce electrostatic build-up. For example, the
non-metallic label may be rubbed with a damp cloth.

4. The display covers were impacted at 4 J according to a low risk of
mechanical danger. Guard the display covers against impact energies
greater than 4 J.

5. Flameproof joints are not intended for repair.

6. The stand-alone Rosemount 214C sensors without an enclosure
must be assembled to a suitable Ex certified enclosure of a volume no
greater than 0.55 L to maintain the types of protection “db” and
“tb”.

7. The spring loaded sensors and DIN sensors must be installed in a
thermowell to maintain IP6X ratings.

8. Contact indicating sensors do not meet requirements for protection
type “tb” and therefore are not “tb” rated.

3.3

International

3.3.1 E7 IECEx Flameproof

Certificate

IECEx UL 16.0048X

Standards

IEC 60079-0:2011, IEC 60079-1:2014

Markings

Ex db IIC T6…T1 Gb T6(-50 °C≤Ta≤+80 °C), T5(-50 °C≤Ta≤+95
°C), T4…T1(-50 °C≤Ta≤+100 °C) V

max

= 45 Vdc, P

max

= 750

mW

Installation Instructions:

1. Use field wiring suitable for both the minimum and maximum service
temperatures.

2. These devices are provided without cable glands/conduit sealing
devices/blanking elements. Proper selection of suitable cable glands/
conduit sealing/blanking elements should occur in the field.

3. Unused apertures shall be closed with suitable blanking elements.

March 2019 Quick Start Guide

Quick Start Guide 9

4. The enclosures may be provided with up to three ½–14 NPT, ¾–14
NPT, or M20 × 1.5 entries, with location of the entries specified in the
installation instructions document.

Special Conditions for Safe Use (X):

1. Refer to certificate for details regarding process and ambient
temperature limits.

2. When the Rosemount 214C sensor is provided with an enclosure
with a display cover, the maximum ambient shall be 95 °C.

3. The non-metallic label on the device may store an electrostatic
charge and become a source of ignition in Group III atmospheres.
Care shall be taken to reduce electrostatic build-up. For example, the
non-metallic label may be rubbed with a damp cloth.

4. The display covers were impacted at 4 J according to a low risk of
mechanical danger. Guard the display covers against impact energies
greater than 4J.

5. Flameproof joints are not intended for repair.

6. The stand-alone Rosemount 214C sensors without an enclosure
must be assembled to a suitable Ex certified enclosure of a volume no
greater than 0.55 L to maintain the types of protection “db” and
“tb”.

7. The spring loaded sensors and DIN sensors must be installed in a
thermowell to maintain IP6X ratings.

8. Contact indicating sensors do not meet requirements for protection
type “tb” and therefore are not “tb” rated.

3.3.2 I7 IECEx Intrinsic Safety

Certificate

IECEx BAS 16.0077X

Standards

IEC 60079-0:2011, IEC 60079-11:2011

Markings

Ex ia IIC T5/T6 Ga (SEE CERTIFICATE FOR SCHEDULE)

Thermocouples; Pi = 500 mW T6 60 °C ≤ Ta ≤ +70 °C

RTDs; Pi = 192 mW T6 60 °C ≤ Ta ≤ +70 °C

RTDs; Pi = 290 mW T6 60 °C ≤ Ta ≤ +60 °C

T5 60 °C ≤ Ta ≤ +70 °C

Special Conditions for Safe Use (X):

1. The equipment must be installed in an enclosure which affords it a
degree of ingress protection of at least IP20.

Quick Start Guide March 2019

10 Rosemount 214C

3.3.3 N7 IECEx Zone 2

Certificate

IECEx BAS 07.0055

Standards

IEC 60079-0:2011, IEC 60079-15:2010

Markings

Ex nA IIC T5 Gc; T5(–40 °C ≤Ta ≤+70 °C)

3.3.4 NK IECEx Dust Ignitionproof

Certificate

IECEx UL 16.0048X

Standards

IEC 60079-0:2011, IEC 60079-31:2013

Markings

Ex tb IIIC T 130 °C Db (-50 °C≤Ta≤+100 °C) V

max

= 45 Vdc, P

max

= 750 mW

Installation Instructions:

1. Use field wiring suitable for both the minimum and maximum service
temperatures.

2. These devices are provided without cable glands/conduit sealing
devices/blanking elements. Proper selection of suitable cable glands/
conduit sealing/blanking elements should occur in the field.

3. Unused apertures shall be closed with suitable blanking elements.

4. The enclosures may be provided with up to three ½–14 NPT, ¾–14
NPT, or M20 × 1.5 entries, with location of the entries specified in the
installation instructions document.

Special Conditions for Safe Use (X):

1. Refer to certificate for details regarding process and ambient
temperature limits.

2. When the Rosemount 214C sensor is provided with an enclosure
with a display cover, the maximum ambient shall be 95 °C.

3. The non-metallic label on the device may store an electrostatic
charge and become a source of ignition in Group III atmospheres.
Care shall be taken to reduce electrostatic build-up. For example, the
non-metallic label may be rubbed with a damp cloth.

4. The display covers were impacted at 4 J according to a low risk of
mechanical danger. Guard the display covers against impact energies
greater than 4J.

5. Flameproof joints are not intended for repair.

6. The stand-alone Rosemount 214C sensors without an enclosure
must be assembled to a suitable Ex certified enclosure of a volume no

March 2019 Quick Start Guide

Quick Start Guide 11

greater than 0.55 L to maintain the types of protection “db” and
“tb”.

7. The spring loaded sensors and DIN sensors must be installed in a
thermowell to maintain IP6X ratings.

8. Contact indicating sensors do not meet requirements for protection
type “tb” and therefore are not “tb” rated.

3.4 Brazil

3.4.1 E2 Brazil Flameproof & Dust Ignitionproof

Certificate

UL-BR 17.0199X

Standards

ABNT NBR IEC 60079-0:2013, ABNT NBR IEC 60079-1:2016,
ABNT NBR IEC 60079-31:2014

Markings

Ex db IIC T6…T1 Gb T6(-50 °C≤Ta≤+80 °C), T5(-50 °C≤Ta≤+95
°C), T4…T1(-50 °C≤Ta≤+100 °C);
Ex tb IIIC T130°C Db (-50 °C ≤Ta≤ +100 °C)

Special Conditions for Safe Use (X):

1. Refer to certificate for details regarding process and ambient
temperature limits.

2. When the Rosemount 214C sensor is provided with an enclosure
with a display cover, the maximum ambient shall be 95 °C.

3. The non-metallic label on the device may store an electrostatic
charge and become a source of ignition in Group III atmospheres.
Care shall be taken to reduce electrostatic build-up. For example, the
non-metallic label may be rubbed with a damp cloth.

4. The display covers were impacted at 4 J according to a low risk of
mechanical danger. Guard the display covers against impact energies
greater than 4J.

5. Flameproof joints are not intended for repair.

6. The stand-alone Rosemount 214C sensors without an enclosure
must be assembled to a suitable Ex certified enclosure of a volume no
greater than 0.55 L to maintain the types of protection “db” and
“tb”.

7. The spring loaded sensors and DIN sensors must be installed in a
thermowell to maintain IP6X ratings.

8. Contact indicating sensors do not meet requirements for protection
type “tb” and therefore are not “tb” rated.

Quick Start Guide March 2019

12 Rosemount 214C

3.4.2 I2 Brazil Intrinsic Safety

Certificate

UL-BR 18.0257X

Standards

ABNT NBR IEC 60079-0:2013, ABNT NBR IEC 60079-11:2013

Markings

Ex ia IIC T6…T5 Ga Thermocouples: Pi = 500 mW, T6(-60
°C≤Ta≤+70 °C) RTDs: Pi = 192 mW, T6(-60 °C≤Ta≤+70 °C) Pi =
290 mW, T6(-60 °C≤Ta≤+60 °C), T5(-60 °C≤Ta≤+70 °C)

Special Conditions for Safe Use (X):

1. The equipment must be installed in an enclosure which affords it a
degree of ingress protection of at least IP20.

3.5 China

3.5.1 E3 China Flameproof

Certificate

GYJ17.1010X

Standards

GB 3836.1-2010, GB 3836.2-2010, GB 12476.1-2013, GB

12476.5-2013

Markings

Ex d IIC T6~T1 Gb, Ex td A21 IP6X T130 °C

*Dust Ignitionproof approvals/markings are only available through the K3
option code

产品安全使用特殊条件

证书编号后缀“X”表明产品具有安全使用特殊条件：

1. 涉及隔爆接合面的维修须联系产品制造商.

2. 非金属铭牌可能带来静电放电危险，产品用于爆炸性粉尘危险场所

时需要采取措施以防止静电积聚.

产品使用注意事项

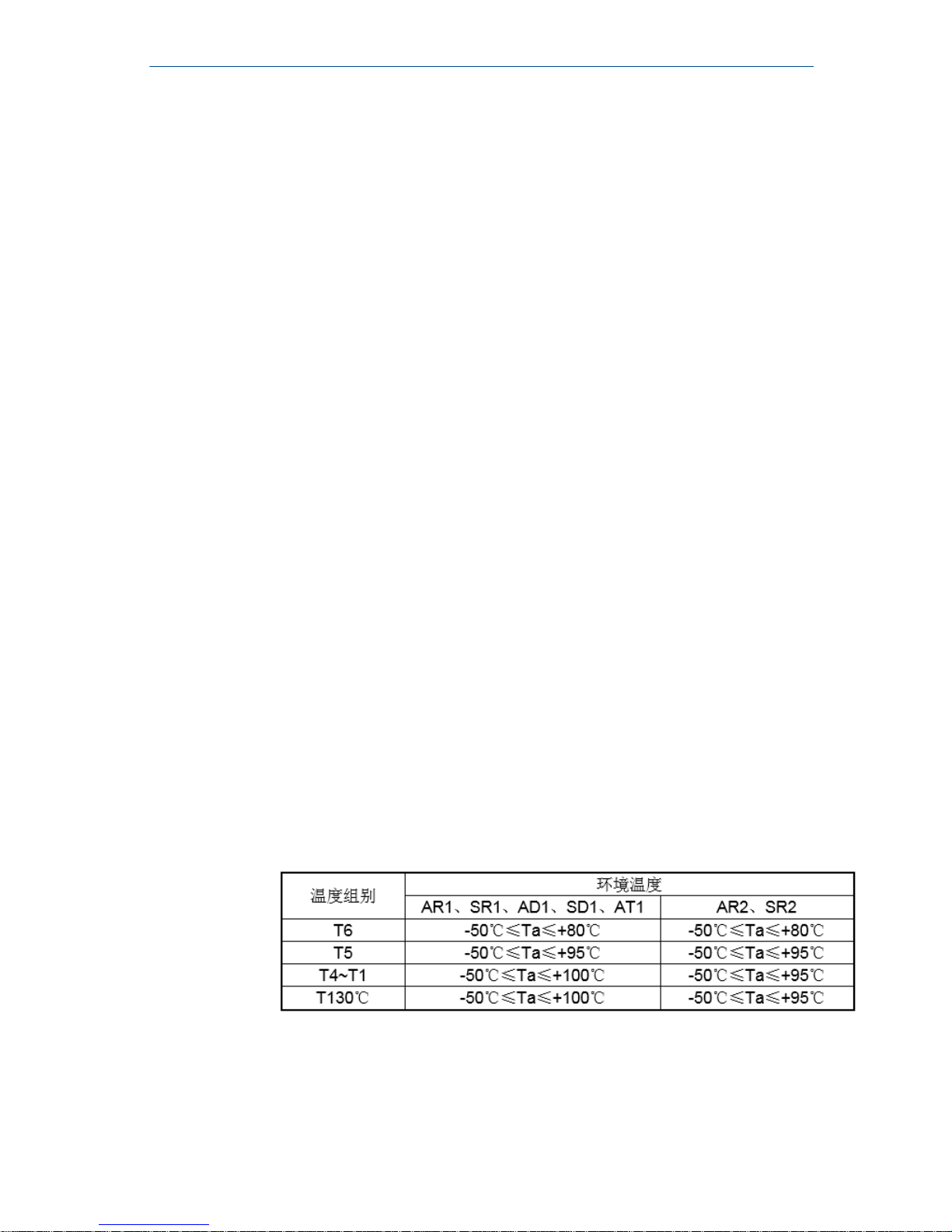

1. 产品温度组别和使用环境温度的关系为:

March 2019 Quick Start Guide

Quick Start Guide 13

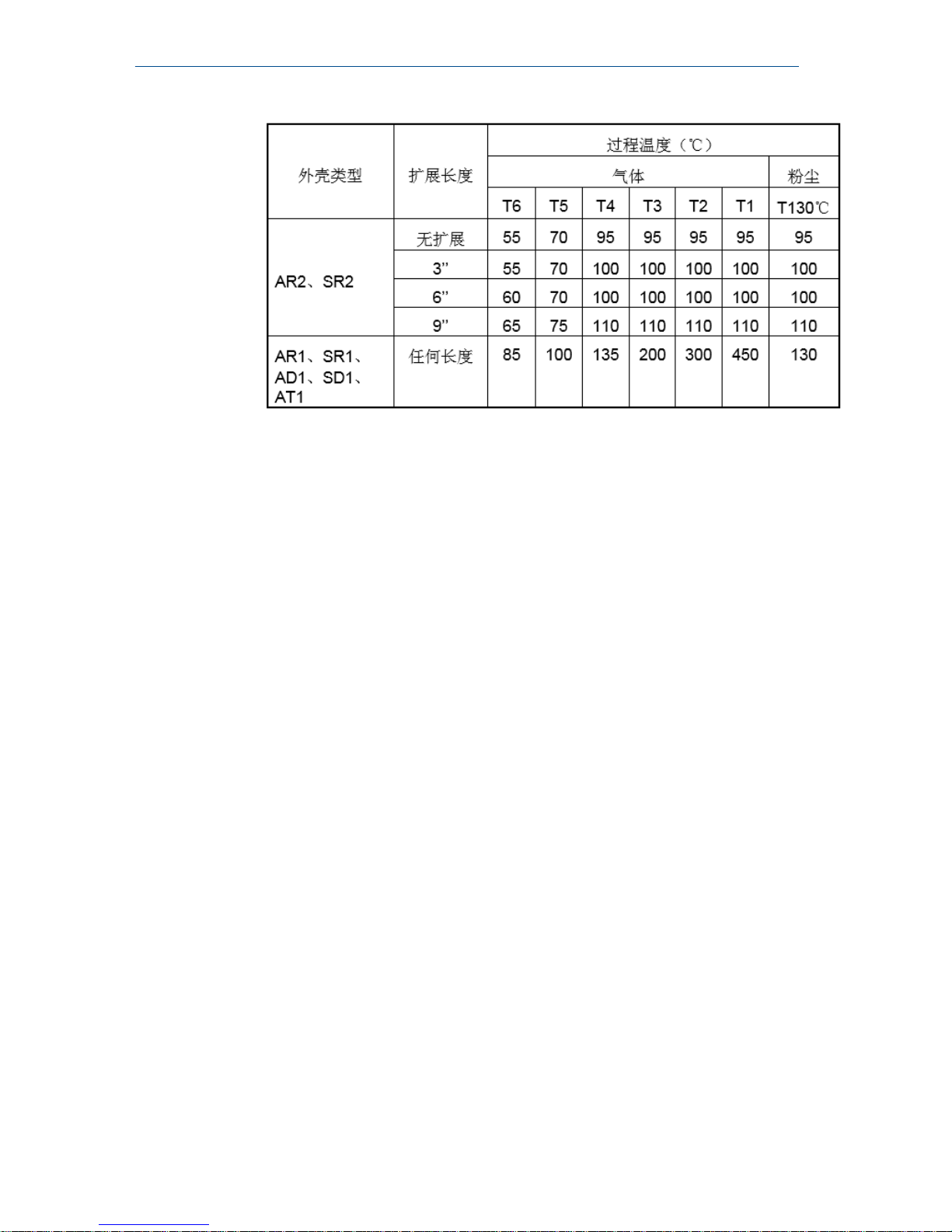

2. 产品温度组别和过程温度的关系为:

3. 产品外壳设有接地端子，用户在使用时应可靠接地.

4. 安装现场应不存在对产品外壳有腐蚀作用的有害气体.

5. 现场安装时，电缆引入口须选用国家指定的防爆检验机构按检验认

可、具有 Ex dⅡC Gb，Ex tD A21 IP6X 防爆等级的电缆引入装置或堵
封件，冗余电缆引入口须用堵封件有效密封.

6. 用于爆炸性气体环境中，现场安装、使用和维护必须严格遵守“断电
后开盖！”的警告语。用于爆炸性粉尘环境中，现场安装、使用和维
护必须严格遵守“爆炸性粉尘场所严禁开盖！”的警告语.

7. 用于爆炸性粉尘环境中，产品外壳表面需保持清洁，以防粉尘堆
积，但严禁用压缩空气吹扫.

8. 用户不得自行更换该产品的零部件，应会同产品制造商共同解决运
行中出现的故障，以杜绝损坏现象的发生.

9. 产品的安装、使用和维护应同时遵守产品使用说明书、
GB3836.13-2013“爆炸性环境 第 13 部分：设备的修理、检修、修

复和改造”、GB3836.15-2000“爆炸性气体环境用电气设备 第 15 部
分：危险场所电气安装（煤矿除外）”、GB3836.16-2006“爆炸性气
体环境用电气设备 第 16 部分：电气装置的检查和维护（煤矿除
外）”、GB50257-2014“电气装置安装工程爆炸和火灾危险环境电力
装置施工及验收规范”和 GB15577-2007“粉尘防爆安全规程”、
GB12476.2-2010“可燃性粉尘环境用电气设备 第 2 部分：选型和安
装”的有关规定.

3.5.2 I3 China Intrinsic Safety

Certificate

GYJ18.1024X

Standards

GB 3836.1-2010, GB 3836.4-2010, GB 3836.20-2010

Markings

Ex ia IIC T5/T6 Ga

Quick Start Guide March 2019

14 Rosemount 214C

产品安全使用特殊条件

证书编号后缀“X”表明产品具有安全使用特殊条件：产品必须安装于具有
IP20 外壳防护等级的外壳内方可使用.

产品使用注意事项

1. 产品使用环境温度和温度组别的关系为：

传感器类型 最大输入功率 Pi

(mW)

温度组别 使用环境温度

热电偶 500 T6 -60℃～+70℃

RTD 192 T6 -60℃～+70℃

RTD 290 T6 -60℃～+60℃

T5 -60℃～+70℃

2. 本安电气参数:

热电偶：

最高输入电压最大输入电流最大输入功

率

最大内部等效参数

Ui (V) Ii (mA) Pi (mW) Ci (pF) Li (nH)

60 100 500 75 600

最高输出电压

Uo (V)

最大输出电流

Io (mA)

最大输出功率

Po (mW)

0.1 50 25

RTD:

最高输入电

压

最大输入电流最大输入功

率

最大内部等效参数

Ui (V) Ii (mA) Pi (mW) Ci (pF) Li (nH)

60 100 192/290 75 600

3. 该产品必须与已通过防爆认证的关联设备配套共同组成本安防爆系

统方可使用于爆炸性气体环境。其系统接线必须同时遵守本产品和
所配关联设备的使用说明书要求，接线端子不得接错.

4. 用户不得自行更换该产品的零部件，应会同产品制造商共同解决运
行中出现的故障，以杜绝损坏现象的发生.

March 2019 Quick Start Guide

Quick Start Guide 15

5. 产品的安装、使用和维护应同时遵守产品使用说明书、
GB3836.13-2013“爆炸性环境 第 13 部分：设备的修理、检修、修

复和改造”、GB3836.15-2000“爆炸性气体环境用电气设备 第 15 部
分：危险场所电气安装（煤矿除外）”、GB3836.16-2006“爆炸性气
体环境用电气设备 第 16 部分：电气装置的检查和维护（煤矿除
外）”、GB3836.18-2010“爆炸性环境 第 18 部分：本质安全系统”和
GB50257-2014“电气装置安装工程爆炸和火灾危险环境电力装置施
工及验收规范”的有关规定.

3.5.3 N3 China Zone 2

Certificate

GYJ18.1025

Standards

GB 3836.1-2010, GB 3836.8-2014

Markings

Ex nA IIC T5 Gc, T5(-40°C≤Ta≤+70°C)

产品使用注意事项

1. 产品使用环境温度为：-40℃～+70℃

2. 输入参数：

类型 输入参数 Ui

变送器 42.4 V

热电阻端子 5 V

热电偶端子 0 V

3. 产品外壳内可以安装如下温度变送器模块：

型号

防爆合格证编号

644 系列 GYJ15.1502

248 系列 GYJ15.1089

4. 现场安装时，电缆引入口须选用经国家指定的防爆检验机构检验认

可、具有 Ex eⅡC Gb 或 Ex nR ⅡC Gc 防爆等级的电缆引入装置或堵封
件，冗余电缆引入口须用堵封件有效密封。电缆引入装置或封堵件
的安装使用必须遵守其使用说明书的要求并保证外壳防护等级达到

IP54 (符合 GB4208-2008 标准要求)以上.

5. 用户不得自行更换该产品的零部件，应会同产品制造商共同解决运
行中出现的故障，以杜绝损坏现象的发生.

6. 产品的安装、使用和维护应同时遵守产品使用说明书、
GB3836.13-2013“爆炸性环境 第 13 部分：设备的修理、检修、修
复和改造”、GB3836.15-2000“爆炸性气体环境用电气设备 第 15 部

Quick Start Guide March 2019

16 Rosemount 214C

分：危险场所电气安装（煤矿除外）”、GB3836.16-2006“爆炸性气
体环境用电气设备 第 16 部分：电气装置的检查和维护（煤矿除
外）”和 GB50257-2014“电气装置安装工程爆炸和火灾危险环境电
力装置施工及验收规范”的有关规定.

3.6 Korea

3.6.1 EP Korea Flameproof

Certificate

17-KA4BO-0305X

Markings

Ex d IIC T6…T1, T6(-50 °C≤Ta≤+80 °C), T5(-50 °C≤Ta≤+95° C),
T4…T1(-50 °C≤Ta≤+100 °C)

Special Conditions for Safe Use (X):

1. Refer to certificate for Special Conditions for Safe Use.

3.6.2 IP Korea Intrinsic Safety

Certificate

17-KA4BO-0304X

Markings

Ex ia IIC T6/T5

Special Conditions for Safe Use (X):

1. Refer to certificate for details regarding process and ambient
temperature limits as well as Special Conditions for Safe Use.

3.6.3 KP Korea Flameproof Dust Ignitionproof and Intrinsic Safety

Certificate

17-KA4BO-0306X in addition to the EP and IP certificate
numbers

Markings

Ex tb IIIC T130 °C, T130 °C(-50 °C≤Ta≤+100 °C) in addition to
the markings for EP and IP

Special Conditions for Safe Use (X):

1. Refer to certificate for details regarding process and ambient
temperature limits as well as Special Conditions for Safe Use.

3.7

EAC - Belarus, Kazakhstan, Russia

3.7.1 EM Technical Regulation Customs Union TR CU 012/2011 (EAC)
Flameproof

Markings

1Ex db IIC T6…T1 Gb X, T6(-50 °C≤Ta≤+80 °C), T5(-50 °C≤Ta≤
+95 °C), T4...T1(-50 °C≤Ta≤+100 °C)

March 2019 Quick Start Guide

Quick Start Guide 17

Special Conditions for Safe Use (X):

1. Refer to certificate for Special Conditions for Safe Use.

3.7.2 IM Technical Regulation Customs Union TR CU 012/2011 (EAC)
Intrinsic Safety

Markings

0Ex ia IIC T5,T6 Ga X

Special Conditions for Safe Use (X):

1. Refer to certificate for details regarding process and ambient
temperature limits as well as Special Conditions for Safe Use.

3.7.3 KM Technical Regulation Customs Union TR CU 012/2011 (EAC)
Flameproof, Dust-Ignitionproof, and Intrinsic Safety

Markings

Ex tb IIIC T130 °C Db X in addition to the markings above for EM
and IM.

Special Conditions for Safe Use (X):

1. Refer to certificate for details regarding process and ambient
temperature limits as well as Special Conditions for Safe Use.

3.8 Combinations

K1

Combination of E1, I1, N1, and ND

K3

Combination of E3, I3, and N3

K7

Combination of E7, I7, N7, and NK

KA

Combination of E1 and E6

KB

Combination of E5 and E6

KC

Combination of E1 and E5

KD

Combination of E1, E5, and E6

KE

Combination of E1, E5, E6, and E7

KM

Combination of EM and IM

KN

Combination of N1, N5, N6, and N7s

KP

Combination of EP and IP

Quick Start Guide March 2019

18 Rosemount 214C

4 Installation drawings

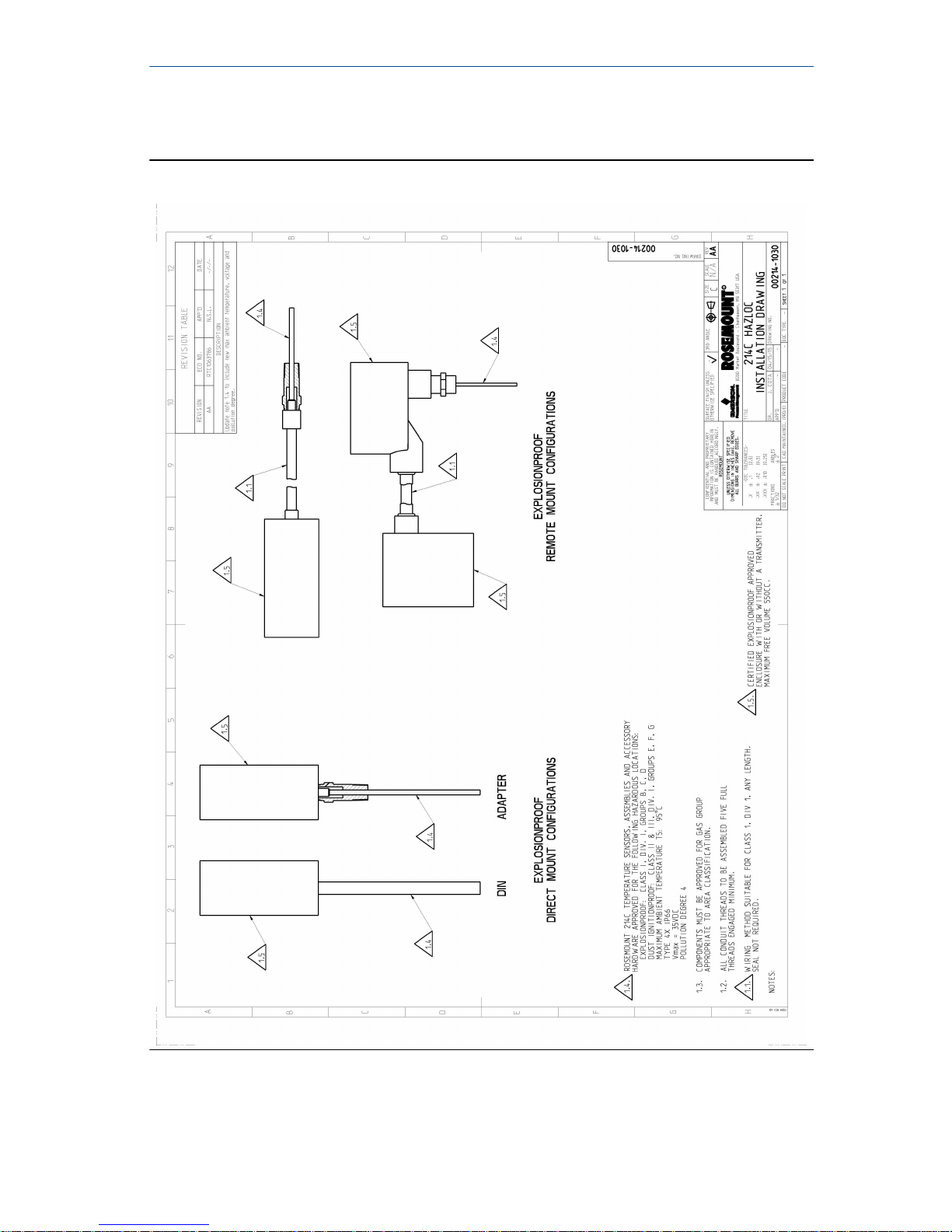

Figure 4-1: Rosemount 214C Hazardous Location (00214-1030)

March 2019 Quick Start Guide

Quick Start Guide 19

5 Declaration of Conformity

Quick Start Guide March 2019

20 Rosemount 214C

March 2019 Quick Start Guide

Quick Start Guide 21

6 China RoHS

ᴹ

China RoHS

㇑᧗⢙䍘䎵䗷ᴰབྷ⎃ᓖ䲀٬Ⲵ䜘Ԧරࡇ㺘

Rosemount 214



List of Rosemount 214 Parts with China RoHS Concentration above MCVs

䜘Ԧ〠

Part Name

ᴹᇣ⢙䍘Hazardous Substances

䫵

Lead
(Pb)

⊎

Mercury

(Hg)

䭹

Cadmium

(Cd)

ޝԧ䬜

Hexavalent
Chromium

(Cr +6)

ཊⓤ㚄㤟

Polybrominated

biphenyls

(PBB)

ཊⓤ㚄㤟䟊

Polybrominated
diphenyl ethers

(PBDE)

⭥ᆀ㓴Ԧ

Electronics

Assembly

O O O O O

O

༣փ㓴Ԧ

Housing

Assembly

O O O O O

O

Րᝏಘ㓴Ԧ

Sensor

Assembly

O O O O O

O

ᵜ㺘Ṭ㌫׍ᦞ

SJ/T11364

Ⲵ㿴ᇊ㘼ࡦ֌

This table is proposed in accordance with the provision of SJ/T11364.

O:

᜿Ѫ䈕䜘ԦⲴᡰᴹ൷䍘ᶀᯉѝ䈕ᴹᇣ⢙䍘Ⲵ䟿൷վҾ

GB/T 26572

ᡰ㿴ᇊⲴ䲀䟿㾱≲

O: Indicate that said hazardous substance in all of the homogeneous materials for this part is below the limit requirement of
GB/T 26572.

X:

᜿Ѫ൘䈕䜘Ԧᡰ֯⭘Ⲵᡰᴹ൷䍘ᶀᯉ䟼ˈ㠣ቁᴹа㊫൷䍘ᶀᯉѝ䈕ᴹᇣ⢙䍘Ⲵ䟿儈Ҿ

GB/T 26572

ᡰ㿴ᇊⲴ䲀䟿㾱≲

X: Indicate that said hazardous substance contained in at least one of the homogeneous materials used for this part is above
the limit requirement of GB/T 26572.

Quick Start Guide March 2019

22 Rosemount 214C

March 2019 Quick Start Guide

Quick Start Guide 23

*00825-0400-2654*

Quick Start Guide

00825-0400-2654, Rev. BC

March 2019

Global Headquarters

Emerson Automation Solutions
6021 Innovation Blvd.
Shakopee, MN 55379, USA

[phone] or [phone]
[phone]
[email protected]

North America Regional Office

Emerson Automation Solutions
8200 Market Blvd.
Chanhassen, MN 55317, USA

[phone] or [phone]
[phone]
[email protected]

Latin America Regional Office

Emerson Automation Solutions
1300 Concord Terrace, Suite 400
Sunrise, FL 33323, USA

[phone]
[phone]
[email protected]

Europe Regional Office

Emerson Automation Solutions Europe
GmbH
Neuhofstrasse 19a P.O. Box 1046
CH 6340 Baar
Switzerland

[phone]
[phone]
[email protected]

Asia Pacific Regional Office

Emerson Automation Solutions
1 Pandan Crescent
Singapore 128461

[phone]
[phone]
[email protected]

Middle East and Africa Regional Office

Emerson Automation Solutions
Emerson FZE P.O. Box 17033
Jebel Ali Free Zone - South 2
Dubai, United Arab Emirates

[phone]
[phone]
[email protected]

Linkedin.com/company/Emerson-

Automation-Solutions

Twitter.com/Rosemount_News

Facebook.com/Rosemount

Youtube.com/user/

RosemountMeasurement

Google.com/+RosemountMeasurement

©

2019 Emerson. All rights reserved.

Emerson Terms and Conditions of Sale are
available upon request. The Emerson logo is a
trademark and service mark of Emerson Electric
Co. Rosemount is mark of one of the Emerson
family of companies. All other marks are the
property of their respective owners.
