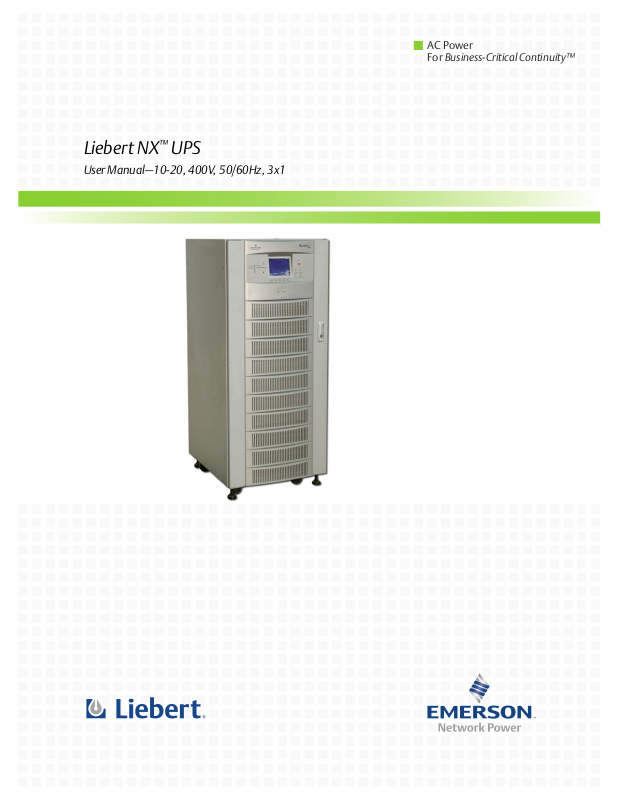

Liebert NX™ UPS
User Manual–10-20, 400V, 50/60Hz, 3x1
AC Power For Business-Critical Continuity™
IMPORTANT SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
SAVE THESE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.0 SINGLE MODULE UPS INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Preliminary Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3.1 UPS Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3.2 External Battery Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3.3 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4.1 System Cabinets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4.2 Internal UPS Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4.3 Moving the Cabinets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4.4 Clearances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4.5 Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4.6 Final Positioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4.7 Floor Anchoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4.8 Cable Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.5 External Protective Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.5.1 Rectifier and Bypass Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.5.2 External Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.5.3 UPS Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.6 Power Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.6.1 Cable Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.7 Control Cables and Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.7.1 Monitor Board Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.8 Dry Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.8.1 Input Dry Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.8.2 Maintenance Bypass Cabinet Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.8.3 External Circuit-Breaker Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.8.4 Output Dry Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.8.5 Emergency Power Off Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.8.6 External Bypass Switch Interlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.8.7 Battery Start Facility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.0 BATTERY INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
i
2.3 Battery Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.3.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.3.2 Temperature Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.3.3 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.3.4 Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.3.5 Circuit Isolator Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.3.6 Battery Temperature Sensor (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.3.7 Moving the Battery Cabinets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.3.8 Cable Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.3.9 General Arrangement Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.4 Battery Power Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.4.1 Connection Principles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.4.2 Fitting the Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.4.3 Connecting the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.4.4 Battery Room Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.5 Battery Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.0 UPS MULTI-MODULE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
3.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.2 Paralleled UPS Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.2.1 Cabinet Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.2.2 External Protective Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3.2.3 Power Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3.2.4 Control Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.3 Hot-Standby UPS Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.3.1 Cabinet Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.3.2 External Protective Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.3.3 Power Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.4 Dual Bus System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.4.1 Cabinet Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.4.2 External Protective Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.4.3 Power Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.4.4 Control Wires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.4.5 Extended Dual Bus Synchronization Option (DBS Interface Box) . . . . . . . . . . . . . . . . . . . . . 31
4.0 INSTALLATION DRAWINGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
5.0 O
PERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
5.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5.1.1 Split-Bypass Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5.1.2 Static Transfer Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.1.3 Battery Temperature Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.1.4 Redundant Control Power Supply Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5.1.5 Socket Outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5.2 Multi Module UPS—1+N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5.2.1 Features of NX Multi-Module UPS Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.2.2 Requirements for Paralleling of UPS Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
ii
5.3 Modes of Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.3.1 Normal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.3.2 Battery Mode (Stored Energy Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.3.3 Auto-Restart Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
5.3.4 Bypass Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
5.3.5 Maintenance Mode (Manual Bypass) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
5.3.6 ECO Mode (Single UPS Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
5.3.7 Parallel Redundancy Mode (System Expansion) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
5.3.8 Hot-Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
5.3.9 Frequency Converter Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
5.4 Battery Management—Set During Commissioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
5.4.1 Normal Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
5.4.2 Advanced Functions (Software Settings Performed by the Commissioning Engineer) . . . . . 43
5.5 Battery Protection (settings by commissioning engineer) . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
6.0 OPERATING PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
6.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.1.1 Power Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.2 UPS Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
6.2.1 Start-Up Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
6.2.2 Verify Switching Between Operation Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
6.3 Switching the UPS from Normal to Maintenance Bypass . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
6.4 Powering Down the UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
6.5 Powering Down the UPS and Maintaining Power to Load . . . . . . . . . . . . . . . . . . . . . . . . . . 48
6.6 Emergency Shutdown With EPO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
6.7 Auto Restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
6.8 Reset After Shutdown for Emergency Stop (EPO Action) or Other Conditions . . . . . . . . . . 49
6.9 Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6.10 Changing the Current Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6.11 Command Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6.12 Isolating One Module in a Multi-Module System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
6.13 Inserting One Module into a Multi-Module System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
7.0 OPERATOR CONTROL PANEL AND DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
7.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
7.1.1 Mimic Power Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
7.1.2 Audible Alarm (Buzzer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
7.1.3 Direct Access Push Buttons (Keys) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
7.1.4 LCD Monitor and Menu keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
7.1.5 Detailed Description of Menu Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
7.2 All Status and Event Messages Displayed on the UPS Front Panel. . . . . . . . . . . . . . . . . . . 59
7.3 Prompt (Pop-Up) Windows. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
7.4 Dynamic Energy Flow Chart and UPS Help Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
7.5 Default Screen Saver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
iii
8.0 OPTIONS—FOR ASSEMBLY INSIDE THE UPS CABINET . . . . . . . . . . . . . . . . . . . . . . . . . . .65
8.1 Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
8.1.1 Battery Ground Fault Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
8.1.2 Redundant Fan for Power Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
8.1.3 OC Web Card - SNMP/HTTP Network Interface Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
8.1.4 Relay Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
8.1.5 Multiport-4 Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
8.2 OC485 Web Card – Modbus, Jbus, IGM Net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
8.2.1 Configuring Baud Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
8.2.2 Liebert NX Remote Alarm Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
8.2.3 Dust Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
9.0 TECHNICAL SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
9.1 Conformity and Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
FIGURES
Figure 1 Residual current circuit breakers (RCCB) symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 2 Auxiliary terminal block detail monitoring board (U2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 3 Input dry contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 4 Jumper connection for BCB interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 5 Output dry contacts and EPO wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 6 Battery start for UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 7 Single temperature sensor and monitor board-U2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 8 Battery cabinet bottom cable entry location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 9 Battery cabinet with fuse or optional circuit breaker locations . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 10 Battery cabinet internal layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Figure 11 Battery cabinet, bottom entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Figure 12 Battery room design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Figure 13 Internal, external battery cable connection with units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 14 Emergency power off connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Figure 15 Typical 1+N system block diagram with common input supply, with separate batteries
and optional output / bypass distribution panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Figure 16 Dry contacts, multiple UPS modules with distribution panels . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Figure 17 Connection of 1+N system parallel control cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Figure 18 Hot standby configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 19 Typical dual bus system configuration with static transfer switch and Load Bus Synch . . . . . . 30
Figure 20 Connections of a typical dual bus system utilising Load Bus Synch . . . . . . . . . . . . . . . . . . . . . . . 31
Figure 21 Electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Figure 22 General arrangement—10-20kVA UPS module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Figure 23 10-20kVA NX front view with doors open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Figure 24 Location of parallel logic board M3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Figure 25 Internal battery layout and connecting—12AH/12V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Figure 26 Internal battery layout and connecting—7.2AH/12V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Figure 27 Internal battery layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Figure 28 Single unit block diagram with split-bypass input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Figure 29 Multiple battery temperature sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Figure 30 Typical 1+N multi-module UPS with optional external maintenance bypass switch
distribution panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Figure 31 Example of configuration for single UPS with external maintenance bypass cabinet. . . . . . . . . 48
Figure 32 UPS control and display panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
iv
Figure 33 Graphic LCD monitor windows and keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Figure 34 Menu tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Figure 35 Help screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Figure 36 Default screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Figure 37 Battery ground fault detection set connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Figure 38 Communication bays and cable location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Figure 39 OC Web Card data summary window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Figure 40 OC Web Card battery data summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Figure 41 SiteNet MultiPort4 Intellislot pin configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Figure 42 OC485 Web card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Figure 43 Dust filter replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
TABLES
Table 1 Maximum steady state AC and DC currents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Table 2 Distance from floor to connection point on the equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Table 3 Input dry contacts at X3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Table 4 Maintenance bypass cabinet interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Table 5 External circuit-breaker interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Table 6 Output dry contact relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table 7 EPO input contact relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Table 8 Dimensions and weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Table 9 UPS operating modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Table 10 Rotary switch configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Table 11 UPS control and display panel components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Table 12 Rectifier indicator—1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Table 13 Battery indicator—2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Table 14 Bypass indicator—3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Table 15 Inverter indicator—4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Table 16 Load indicator—5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Table 17 Status (Alarm) indicator—6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Table 18 Audible alarm key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Table 19 Menu key Icons and their meaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Table 20 UPS system window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Table 21 Descriptions of UPS menus and data window items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Table 22 UPS messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Table 23 Prompt windows, meanings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Table 24 Dry contact fault alarm signal is available for remote monitoring . . . . . . . . . . . . . . . . . . . . . . . . 65
Table 25 Relay Card pin configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Table 26 Relay card jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Table 27 SiteNet MultiPort4 Intellislot pin assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Table 28 NX communication options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Table 29 Compliance with European, international standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Table 30 Environmental characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Table 31 Overall efficiency, heat losses and air exchange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Table 32 Rectifier AC input (mains) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Table 33 Mechanical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Table 34 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Table 35 Bypass mains input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Table 36 Inverter output to critical load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . 75
v
Figure i Model number nomenclature
NXf U
NX Product Line
Liebert NXf UPS module ratings: 10, 15, 20kVA (with internal battery)
Example: NXF0A0010U =
0A0010
Feature Set for Region
A0 - EMEA
Revision
to Base
Unit
B0 - Aust/NZ C0 - Japan D0 - China E0 - Latin Amer F0 - Other
UPS Single Module
Output kVA
010 015 020
Input & Output Voltage
50/60Hz
Voltage Code 220/380 F 230/400 U 240/415 G
10kVA module for Europe and Middle East, 400V/230V output
Model
Options
Battery cabinet NXE0NBCS Battery Ground Fault detection kit NXA0UFXBGF Battery temperature probe (for external battery) NXA0UFXBTS Maintenance bypass cabinet (separate bypass
input) Fan Redundancy kit NXF0UFXRF Seismic Anchor kit NXA0UFXSAN Dual bus control cable 05-10-15 metres NXA0UFXDxx Parallel control cable kit 05-10-15 metres NXA0UFXPxx Relay Card (On Bat, Bat Low, On Byp, Sum, UPS
Fail) MultiPort4 (4 sets On Bat, bat Low) Web browser/TCPIP/SNMP Card Jbus/Modbus Card
RAM - Remote Alarm Monitor NXA0CFXRAM Requires RELAYCARD-INT Extended LBS box NXA0UFXLBS Air Filter NXE0UFXARF Each NXf contains two air filters
Dual Bus Extension Kit 50-150 Meters
Individual Battery Monitoring
Identification Note
NXF0NMBX Specify total system kVA
Specify UPS kVA rating
Specify length in metres
RELAYCARD-INT
MULTIPORT 4
OCWEB-LB
OC485CARD
NX150MLBSKIT (150m)
NX050MLBSKIT (50m)
BDS 40 or
BDS 256
These are Intellislot plug-in cards (3 slots available).
Used for extension in length or dual bus arrangement between Nx and non-Nx sources
Specify number of blocks. Consult Emerson Network Power representatives for complete configuration
vi

IMPORTANT SAFETY PRECAUTIONS

SAVE THESE INSTRUCTIONS

This manual contains information concerning the installation and operation of this Emerson Network Power Liebert NX
This manual should be read before commencing installation.
The UPS must be commissioned and serviced by an engineer approved by the manufacturer (or agent).
Failure to do so could result in personnel safety risk, equipment malfunction and invalidation of war­ranty.
The Liebert NX has been designed for Commercial/Industrial use only, and is not recommended for use in life support applications.
This is a low emission CLASS A Uninterruptible Power System (UPS) product. In a residential envi­ronment, this product may nevertheless cause radio interference, in which case, the user may be required to take additional measures.
Uninterruptible Power System (UPS).

Conformity and Standards

This equipment complies with CE directives 73/23 & 93/68 (LV Safety) and 89/336 (EMC), with Aus­tralia and New Zealand EMC Framework (C-Tick) and with the following product standards for Unin­terruptible Power System (UPS).
• EN / IEC / AS 62040-1-1—General and safety requirements for use in operator access area
• EN / IEC / AS 62040-2—EMC requirements; Class A compliant
• EN / IEC / AS 62040-3—Performance requirements and test methods
For more details, see 9.0 - Technical Specifications
Continued compliance requires installation in accordance with these instructions and the use of man­ufacturer approved accessories only.
WARNING
!
High Leakage Current
EARTH CONNECTION IS ESSENTIAL BEFORE CONNECTING THE INPUT SUPPLY.
Earth leakage current exceeds 3.5 mA and is less than 860 mA.
Transient and steady-state earth leakage currents, which may occur when starting the equipment, should be taken into account when selecting instantaneous RCCB or RCD devices.
Residual Current Circuit Breakers (RCCBs) must be selected sensitive to DC unidirectional pulses (class A) and insensitive to transient current pulses.
Note also that the earth leakage currents of the load will be carried by this RCCB or RCD.
This equipment must be earthed in accordance with the local electrical code of practice.
WARNING
!
Back-Feed Protection Notice
This UPS is fitted with a voltage-free contact closure signal for use with an external automatic disconnect device (by others) to protect against back-feeding voltage into the bypass supply. If this signal is not used by the installer, a label must be added at the external bypass input disconnect device to warn service personnel that the circuit is connected to a UPS.
The text to use is the following or equivalent:
ISOLATE THE UNINTERRUPTIBLE POWER SYSTEM BEFORE WORKING ON THIS CIRCUIT.
1

User-Serviceable Parts

All equipment maintenance and servicing procedures involving internal access requires the use of a tool and should be carried out only by trained personnel. There are no user-serviceable parts behind covers requiring a tool for removal.
This UPS is fully compliant with safety regulations for equipment located in an operator accessible area. Hazardous voltage is present within the UPS and battery enclosure but out of reach of non-ser­vice personnel. Contact with hazardous voltage is minimized by housing live parts behind safety pan­els that require a tool for their removal. No risk exists to any personnel when operating the equip­ment in the normal manner, following the recommended operating procedures.

Battery Voltage Exceeds 400VDC

All physical battery maintenance and servicing requires the use of a tool or a key and should be car­ried out only by trained personnel.
WARNING
!
Special care should be taken when working with the batteries associated with this equipment.
When connected together, the battery terminal voltage will exceed 400VDC and is potentially lethal.
Battery manufacturers supply details of the necessary precautions to be observed when working on, or in the vicinity of, a large bank of battery cells. These precautions should be followed implicitly at all times.
Attention should be paid to the recommendations concerning local environmental conditions and the provision of protective clothing, first aid and fire-fighting facilities.
2
Single Module UPS Installation

1.0 SINGLE MODULE UPS INSTALLATION

1.1 Introduction

This following section describes the requirements that must be taken into account when planning the positioning and cabling of the Liebert NX uninterruptible power supply and related equipment.
This chapter is a guide to general procedures and practices that should be observed by the installing engineer. The particular conditions of each site will determine the applicability of such procedures.
WARNING
!
Professional Installation Required
Do not apply electrical power to the UPS equipment before being authorised to do so by the commissioning engineer.
The UPS equipment shall be installed by a qualified electrical tradesperson in accordance with the information contained in this manual. All equipment not referred to this manual is shipped with details of its own mechanical and electrical installation.
NOTE
Three-phase, 4-wire input supply required.
The standard Liebert NX UPS is suitable for connection to 3-phase, 4-wire (+ Earth) TN, TT and IT AC power distribution systems (IEC60364-3). Optional 3-wire to 4-wire conversion transformers are available. If it is used in IT AC power distribution systems, a 4-pole circuit breaker must be used on the input and refer to the relative IT Systems' standard
WARNING
!
Battery Hazards
Special care should be taken when working with the batteries associated with this equipment. When connected together, the battery terminal voltage will exceed 400Vdc and is hazardous.
Eye protection should be worn to prevent injury from accidental electrical arcs.
Remove rings, watches and all other metal objects.
Use only tools with insulated handles.
Wear rubber gloves.
If a battery leaks electrolyte or is otherwise physically damaged, it must be replaced, stored in a container resistant to sulfuric acid and disposed of in accordance with local regulations.
If electrolyte comes into contact with the skin, the affected area should be washed immediately with water.

1.2 Preliminary Checks

Before installing the UPS, please carry out the following preliminary checks:
1. Visually examine the UPS and battery equipment for transit damage, both internally and externally. Report any damage to the shipper immediately.
2. Verify that the correct equipment is being installed. The equipment supplied has an identification tag on the back of the main door reporting: the type, size and main calibration parameters of the UPS.
3
Single Module UPS Installation

1.3 Location

1.3.1 UPS Room

The UPS and its internal battery is intended for indoor installation and should be located in an envi­ronment with clean air and with adequate ventilation to keep the ambient temperature within the specified operating range (see Table 30).
All models in the Liebert NX UPS range are air-cooled with the aid of internal fans. Cold air enters through ventilation grilles at the front of the cabinet and hot air is released through the grilles at the back. Do not cover the ventilation openings.
If necessary to avoid room temperature build-up, install a system of room extractor fans. Optional air filters are available if the UPS is to operate in a dusty environment.
The UPS heat dissipation detailed in Table 31 can be used as a guide for air conditioning sizing, depending on the selected mode of operation:
• Normal Mode (VFI SS 111 Double Conversion UPS)
• ECO Mode (VFD SS 311 Stand By UPS)
If in doubt use Normal Mode figures.
NOTE
The UPS is suitable for mounting on concrete or other non-combustible surface only.

1.3.2 External Battery Room

Batteries should be mounted in an environment where the temperature is consistent and even over the whole battery. Temperature is a major factor in determining the battery life and capacity. Typical battery manufacturer performance data are quoted for an operating temperature between 20 and 25°C (68 and 77°F). Operating above this range will reduce the battery life while operation below this range will reduce the battery capacity. In a normal installation the battery temperature is main­tained between 15°C and 25°C (59 and 77°F). Keep batteries away from main heat sources or main air inlets, etc.
Where the batteries are located externally to the main UPS cabinet, a battery protection device (e.g., fuses or circuit breakers) must be mounted as close as possible to the batteries themselves, and connected using the most direct route possible.

1.3.3 Storage

Should the equipment not be installed immediately, it must be stored in a room for protection against excessive humidity and or heat sources (see Table 30).
CAUTION
!
An unused battery must be disconnected and/or recharged periodically to avoid deep discharge; the battery manufacturer's recharge recommendation must be observed. Temporarily connecting the UPS to a suitable AC supply mains and activating it for the time required for recharging the batteries can achieve this.
4
Single Module UPS Installation

1.4 Positioning

The cabinet is mounted on four castor-wheels for ease of positioning and for short distance movement. Jacking feet are provided to prevent the UPS from moving once it has been wheeled to its final posi­tion.
For optimal design life, the place chosen must offer:
•Easy connection
• Enough space to easily work on the UPS
• Sufficient air exchange of enough to dispel heat produced by UPS
• Protection against atmospheric agents
• Protection against excessive humidity and very high heat sources
• Protection against dust
• Compliance with the current fire prevention requirements
• Operating environment temperature between 20°C and 25°C (68 and 77°F). The batteries are at maximum efficiency in this temperature range (see Table 30).
The UPS cabinet is constructed around a steel chassis with removable panels. The top and side panels are secured to the chassis by screws.
Access to the power terminals, auxiliary terminals blocks and power switches is from the front. Oper­ational status and alarm information is provided through the front door operator control panel. Cool­ing air enters the front of the NX and is exhausted out the rear.

1.4.1 System Cabinets

A UPS may comprise a number of cabinets, depending on the design requirements (e.g., UPS cabinet, external battery cabinet, external bypass cabinet). In general, all the Liebert cabinets used in a particu­lar installation are of the same height and designed to be positioned side-by-side to form a matching array.
Refer to 4.0 - Installation Drawings for assistance on positioning the cabinets described below.

1.4.2 Internal UPS Batteries

The UPS consist of a single cabinet, which uses typically forty to forty-four 12V battery blocks, fitted internally and connected in series to provide a nominal battery voltage. without the batteries fitted.
An extended battery option is available. This comprises a separate cabinet containing additional bat­teries that can be connected to the UPS to increase its battery run time.

1.4.3 Moving the Cabinets

WARNING
!
Ensure that the UPS weight is within the designated surface weight loading of any handling equip­ment. See Table 32.
Ensure any lifting equipment used in moving the UPS cabinet has sufficient lifting capacity.
The UPS is fitted with casters—take care to prevent movement when unbolting the equipment from its shipping pallet. Ensure that adequate personnel and lifting aids are available when removing the shipping pallet.
The UPS may be shipped
UPS and optional cabinets (battery cabinets, top cable entry cabinets, etc.) can be handled by means of a forklift or similar equipment.
The UPS cabinet also can be moved short distances by its casters.
NOTE
Care must be taken when maneuvering units fitted with batteries. Keep such moves to a minimum.
5
Single Module UPS Installation

1.4.4 Clearances

The Liebert NX has no ventilation grilles at either side of the UPS. To enable routine tightening of power terminations within the UPS, in addition to meeting any local regulations, Liebert recom­mends providing adequate clearance in the front of the equipment for unimpeded passage of person­nel with the doors fully opened. It is important to leave of 150mm (5.9") clearance behind the UPS to permit adequate circulation of air coming out of the unit.

1.4.5 Access

The component layout of the UPS supports front and top access while servicing, diagnosing and repairing the UPS, thus reducing the space requirement for side and rear access.

1.4.6 Final Positioning

The UPS cabinets are fitted with casters on the base to allow ease of movement and positioning.
WARNING
!
Casters are strong enough for movement across even surfaces only. Caster failure could occur if they are subjected to shock loading.
When the equipment has been finally positioned, ensure the adjustable feet are set so that the UPS will remain stationary and stable.

1.4.7 Floor Anchoring

Diagrams in 4.0 - Installation Drawings show the location of the holes in the base plate through which the equipment may be bolted to the floor. If the equipment is to be installed on a raised floor it should be mounted on a pedestal suitably designed to accept the equipment point loading. Refer to the base view Figure 22 to design this pedestal.

1.4.8 Cable Entry

Cables can enter the Liebert NX UPS and battery cabinet from below. Cable entry is made possible by removing a blanking piece fitted at the bottom of equipment to reveal the cable entry hole.

1.5 External Protective Devices

Circuit breakers or other protective devices must be installed in the AC supply, external to the UPS. This chapter provides guidelines for qualified installers who must have knowledge of local wiring practices pertaining to the equipment to be installed.

1.5.1 Rectifier and Bypass Input Overcurrent Protection

Overcurrent protection must be installed at the distribution panel of the incoming main supply. The protection must discriminate with the power cables current capacity and with the overload capacity of the system (see Table 35). As a guideline, a thermomagnetic circuit breaker, with an IEC 60947-2 trip curve C (normal) for 125% of the current listed in Table 1 is suitable.
Split-Bypass—If a split-bypass is used, install separate protective devices for the rectifier and for the bypass in the incoming mains distribution panel.
NOTE
Rectifier input must be three-phase, four-wire and bypass input must be single-phase, two­wire. Both sources must be referenced to the same neutral potential.
NOTE
For IT power systems only, four-pole/two pole protective devices must be used, external to the UPS, both upstream of the input distribution panel and downstream (toward the load).
6
Single Module UPS Installation
Earth Leakage (RCD)
Any residual current detector (RCD) installed upstream of the UPS input supply must be:
• sensitive to DC unidirectional pulses (Class A)
• insensitive to transient current pulses, and
• must have an average sensitivity, adjustable between 0.3 and 1A.
Figure 1 Residual current circuit breakers (RCCB) symbols
To avoid false alarms, earth leakage monitoring devices when used in systems with split-bypass input or when used in paralleled UPS configurations, must be located upstream of the common neutral sinking point. Alternatively, the device must monitor the combined four-wire rectifier and split­bypass input currents.
The residual earth current introduced by the RFI suppression filter inside the UPS is greater than
3.5mA and less than 300mA. Liebert recommends verifying the selectivity with all other differential devices both upstream of the input distribution board and downstream (toward the load).

1.5.2 External Battery

The UPS and its associated batteries are protected against overcurrents through a DC compatible dis­connect device.

1.5.3 UPS Output

Any external distribution board used for load distribution must be fitted with protective devices that discriminate with those used at the bypass input to the UPS and with the UPS overload characteris­tics (see Table 35).
7
Single Module UPS Installation

1.6 Power Cables

The cable design must comply with the voltages and currents provided in this section, follow local wir­ing practices and take into consideration the environmental conditions (temperature and physical support media).
For cable entry terminal, refer to Figure 23.
WARNING
!

Table 1 Maximum steady state AC and DC currents

UPS
Rating
(kVA)
10 22 22 22 45 43 42 21
20 35 35 35 90 87 83 41
1. Input mains current listed for split rectifier and bypass AC input.
2. Protective earth cable: Connect each cabinet to the main ground system must follow the most direct route possible. The earth conductor shall be sized in accordance with the AC supply fault rating, cable lengths and type of protection. Typical cross sectional areas are
2
2.5mm
3. Whene sizing battery cables, a maximum volt drop of 4VDC is permissible at the current ratings given in Table 1. The load equipment is generally connected to a distribution board containing individually protected busbars rather than connected directly to the UPS output. The output cables from paralleled units to the parallel distribution bus should be of same length so as to optimize the sharing of current. Do not form coils, so as to minimize the formation of electromagnetic interference.
4. For terminal location, refer to 4.0 - Installation Drawings.
Before starting the UPS, ensure that you are aware of the location and operation of the external isolators that connect the ups input/bypass supply to the mains distribution panel.
Check that these supplies are electrically isolated and post any necessary warning signs to prevent their inadvertent operation.
WARNING
!
Failure to follow adequate earthing procedures may result in electromagnetic interference or in hazards involving electric shock and fire.
Nominal current: Amps Busbar stud size
Input Mains Current
with Full Battery
Recharge 3ph + N
(10kVA), 6mm2 (15kVA), 10mm2 (20kVA), as per AS / IEC 60950-1.
1
Output = Bypass
Current at Full Load
1ph + N
Battery at
End of
Discharge
Input/Output/
Bypass Cables
M8 8 M8 4.515 28 28 28 68 65 63 31
External
Battery
Cables
(Bolts)
Torque
Load (Nm)380V 400V 415V 220V 230V 240V Bolt Hole Dia. (mm)

Table 2 Distance from floor to connection point on the equipment

Minimum Distance
UPS
Rectifier AC Input supply 284 (11-1/5) Bypass AC Input supply 284 (11-1/5) UPS Output AC 369 (14-1/2) Battery Power 369 (14-1/2) Auxiliary cables: Monitor board (U2) 1104 (43-1/2)
mm (in.)
8
Single Module UPS Installation

1.6.1 Cable Termination

NOTE
Once the equipment has been finally positioned and secured, connect the power cables as described in the following procedure.
Refer to the appropriate cable connection drawing in 4.0 - Installation Drawings.
1. Verify that the UPS equipment is isolated from its external power source and all the UPS power
2. Open the door to the UPS cabinet and remove the front protective cover to gain access to the
3. Connect the safety earth and any necessary bonding earth cables to the copper earth busbar
The operations described in this section must be performed by authorised electricians or qualified technical personnel. If you have any difficulties, do not hesitate to contact our Customer Service and Support Department. See the back page of this manual for contact information.
isolators are open. Check that these supplies are electrically isolated and post any necessary warning signs to prevent their inadvertent operation.
connections bars.
located on the floor of the equipment below the power connections. All cabinets in the UPS must be connected to the user’s ground connection.
NOTE
The earthing and neutral bonding arrangement must be in accordance with local and national codes of practice.
Identify and make power connections for incoming cables according to one of the two procedures below, depending on the type of installation.
Common Input Connections
4. For common bypass and rectifier inputs, connect the AC input supply cables between the mains distribution panel and the UPS input (mA-mB-mC-N terminals) and tighten the connections to
4.5N.m (M8 bolt). Ensure that cables and protective devices are rated for the full
Output = Bypass Current at Full Load 1ph + N in Table 1. Ensure correct phase rotation.
Split-Bypass Connections
5. If a split-bypass configuration is used, connect the AC input supply cables to the rectifier input busbars (mA-mB-mC-N terminals) and the AC bypass supply cables to the bypass input (bA-N terminals) and tighten the connections to 4.5N.m (M8 bolt). Ensure that cables and protective devices are rated for the full Output = Bypass Current at Full Load 1ph + N in Table 1. Ensure correct phase rotation.
NOTE
For split-bypass operation, ensure that the linking busbars between bypass and rectifier input are removed.
The AC input and the AC bypass supplies must be referenced to the same neutral point.
Frequency Converter Mode
If a frequency converter configuration is used, connect the AC input supply cables to the rectifier input busbars (mA-mB-mC-N terminals) to 13Nm for M8 bolts. Ensure correct phase rotation and tighten the connections. There will not be any AC bypass supply cables to the bypass input (mA-N terminals).
NOTE
For frequency converter operation, ensure that the linking busbars between bypass and rectifier input are removed.
9
Single Module UPS Installation
Output System Connections
6. Connect the system output cables between the UPS output (oA-N terminals) and the critical load and tighten the connections to 4.5 Nm (M8 bolt). Ensure correct phase rotation.
WARNING
!
If the load equipment will not be ready to accept power on the arrival of the commissioning engineer, ensure that the system output cables are safely isolated at their ends.
Internal UPS Battery Connection
7. The battery consists of a typical series string connection of 40 x 12V 6-cell battery blocks. a. Ensure that the battery blocks in each tier (tray) are interconnected. b. Connect the positive, neutral and negative cables to the UPS terminals. c. Plug in the cables between the tiers. d. Ensure correct polarity battery string series connections (i.e., intertier and
interblock connections are from positive to negative terminals.
WARNING
!
Hazardous Battery Terminal Voltage 480VDC
Ensure correct polarity of string end connections to the UPS terminals, i.e., positive to positive, negative to negative and neutral to neutral, but leave these UPS terminal cables disconnected until connection is authorised by the commissioning engineer.
Ensure correct polarity of string end connections to the battery circuit breaker and from the battery circuit breaker to the UPS terminals, i.e., positive to positive and negative to negative, but disconnect one or more battery cell links in each tier.
Do not reconnect these links and do not close the battery circuit breaker before authorised by the commissioning engineer.
8. Refit all protective covers removed for cable installation.

1.7 Control Cables and Communication

1.7.1 Monitor Board Features

Based on your site’s specific needs, the UPS may require auxiliary connections to manage the battery system (external battery circuit breaker, battery temperature sensor), communicate with a personal computer or provide alarm signaling to external devices or for Remote Emergency Power Off (REPO). The monitor board, arranged for this purpose, is located on the rear of the operator access door. The main features are:
• Input and Output dry contacts signal (one pair of contacts of relay)
• Emergency Power Off control (EPO)
• Environmental parameter input interface
• User communication (for data setting and user background monitor)
• Intellislot™ interface
• Modem interface
• Temperature detect interface
10
Single Module UPS Installation
Figure 2 Auxiliary terminal block detail monitoring board (U2)
J8
LCD
J1J3
J22
X7
J2
J13
BFP INV ACF
X1 X2 X3

1.8 Dry Contacts

The UPS provides input dry contacts and output dry contacts.
EPO
J10J30J26J4J28J25J21
Dry In MBC BCB
J23
J12
J9
J15
J16
J17
Intellislot 2 Intellislot 1 Intellislot 3
The black square ( ) on each s lot indi cates Pin 1.
X4
J24
X6
PWR Modem SNMP Card
X4
X5

1.8.1 Input Dry Contacts

There are several input dry contacts at the X3 slot.
Figure 3 Input dry contacts
12V
X3
J4 J26 J30 J10
12V
BtG
GEN
ENV
12V 12V
12V
12V
GND
T_IT
AUX_I
T_OT
AUX_O
FUSE
F_FAN
OL
FB
GND
DRV
11
Single Module UPS Installation
X3 Ancillary Control and Alarms
X3 IN DRY: Environmental, Battery Ground Fault and Generator Contacts
The UPS accepts external signalling from voltage-free (dry) contacts connected to finger-proof, push-in ter­minal X3 IN DRY. Subject to prior software programming, the signalling is accepted by the UPS when connection between the relevant terminal and the +12V terminal is altered. Cables connected to X3 IN DRY must be segregated from power circuits (for screening purposes), double insulated and of a typical 0.5 to 1mm
2
cross-section area for maximum runs between 25 and 50 meters (82-164 ft), respectively.
Table 3 Input dry contacts at X3
Position
J4.1 ENV J4.2 BtG Battery Ground Fault Detection (NC) J4.3 GEN J4.4 +12V +12V Power
1 - Must be configured by configuration software before becoming active. 2 - When activated, the charger current can be limited, via software, to a percentage of the full charger current (0-100%). 3 - Activating this feature turns the battery charger off.
Name
1,2
Description
3
Battery Room Alarm (NC)
On Generator (NO)

1.8.2 Maintenance Bypass Cabinet Interface

J26 and J30 are the MBC interface.
Table 4 Maintenance bypass cabinet interface
Position
J26.1 T_IT J26.2 AUX_I Reserved J26.3 +12V +12V Power J26.4 GND Power Ground J30.1 FUSE Reserved J30.2 F_FAN Fan Fail Alarm (NC) J30.3 T_OT J30.4 AUX_O Reserved
1
- Must be configured by software before becoming active
Name
Description
1
Input transformer overtemperature (NC)
1
Output Transformer Overtemperature (NC)
NOTE
All auxiliary cables of terminal must be double-insulated. Wire should be 0.5-1.5mm (16-20AWG) stranded for maximum runs between 25 and 50 meters (82-164ft.) respectively.

1.8.3 External Circuit-Breaker Interface

J10 is the interface to any external battery circuit breaker (BCB).
Table 5
Position
J10.1 DRV BCB Driver Signal - (reserved) J10.2 FB BCB Contact State -(reserved) J10.3 GND Power Ground J10.4 OL BCB On-Line - Input - This pin will become active when BCB interface is connected. (N.O.)
External circuit-breaker interface
Name
NOTE
All auxiliary cables of terminal must be double-insulated. Wire should be 0.5-1.5mm (16-20AWG) stranded for maximum runs between 25 and 50 meters (82-164ft.) respectively.
Description
2
2
12
Single Module UPS Installation
Figure 4 Jumper connection for BCB interface
UPS Monitoring Board
J10
FB
OL
OL
DRV
GND
Battery Circuit Breaker

1.8.4 Output Dry Contacts

There are three output dry contact relays at the X1 slot (see Figure 5 and Table 6). The relay con­tacts are suitable for extra-low voltage applications up to 1A.
Figure 5 Output dry contacts and EPO wiring
Aux – N.O.
Aux – N.O.
+12V
J13
BFP_C
BFP_S
BFP_O
J21 J25 J28
INV_S
INV_C
INV_O
ACF_C
ACF_S
ACF_O
EPO - NCEPO - NO
Table 6 Output dry contact relays
Position
J13.2 BFP_O Bypass feedback protection relay; normally open; closed when bypass SCR is shorted J13.3 BFP_S Bypass feedback protectio n relay center J13.4 BFP_C Bypass feedback protection relay; normally closed; open when bypass SCR is shorted J21.2 INV_O Inverter mode relay; normally open; closed when UPS is in inverter mode J21.3 INV_S Inverter mode relay center J21.4 INV_C Inverter mode relay; normally closed. Opened when UPS is in inverter mode J25.2 ACF_O Main input fault relay; normally open. Closed when main input is in fault J25.3 ACF_S Main input fault relay center J25.4 ACF_C Main input fault relay; normally closed. Open when main input is in fault
Name
Description
X2X1
NOTE
All auxiliary cables of terminal must be double-insulated. Wire should be 0.5-1.5mm
2
(16-20AWG) stranded for maximum runs between 25 and 50 meters (82-164ft.) respectively.
13
Single Module UPS Installation

1.8.5 Emergency Power Off Input

The UPS has an Emergency Power Off (EPO) function that operates by a button on the control panel or by a remote contact provided by the user. The EPO button is under a hinged, clear plastic shield.
The X2 slot, shown in Figure 5, is the remote EPO input interface. The EPO has an NO/NC contact point that becomes active when shorting terminals X2: 3 and 4 or open terminal connection X2: 2 and 1
If an external emergency stop facility is required, it is connected terminals X2: 1&2 or X2: 3&4 of the auxiliary terminal block (X2). It also is connected to the normally open or normally closed remote stop switch between these two terminals using shielded cable (see Figure 5 and Table 7). If this function is not used, terminals X2: 3&4 must be opened and X2: 1&2 must be closed.
Table 7 EPO input contact relays
Position Name Description
J28.1 EPO_NC EPO activated when opened to J28.2 J28.2 EPO_NC EPO activated when opened to J28.1 J28.3 EPO_NO EPO activated when shorted to J28.4 J28.4 EPO_NO EPO activated when shorted to J28.3
NOTE
The emergency stop action within the UPS shuts down the rectifier, inverter and static bypass. It does not internally disconnect the input power supply. To disconnect ALL power to the UPS, open the upstream feeder breaker(s) when the remote EPO is activated.
NOTE
Normally closed EPO – X2: 1,2, these terminals are supplied factory-linked on the monitor board and must remain installed if using NC contacts.
NOTE
All auxiliary cables of terminal must be double-insulated. Wire should be 0.5-1.5mm
2
(16-20AWG) stranded for maximum runs between 25 and 50 meters (82-164ft.) respectively.
X5: Auxiliary DC Power Output
Auxiliary DC power for modem or external SNMP card. The voltage is between 9V to 12V. The maxi­mum current is 500mA.
X6: Ambient Temperature Input Interface
Analog signal channels with an input range is from 0 to +12V. The precision of detection is ±3%.
• X6 pin 1: Not used
• X6 pin 2: +12V
• X6 pin 3: ENV-T – environment temperature detection
• X6 pin 4: GND
X7: External Battery Temperature Detector Interface
Interface for temperature detector, normally connected to an external battery cabinet (see Figure 7).
Pin reference:
• X7 pin 1: Not used
• X7 pin 2: +12V (Power supply for Temperature Monitoring Probe)
• X7 pin 3: BAT-T (Battery Temperature signal)
• X7 pin 4: GND
14
Single Module UPS Installation
Serial Ports RS232-1 and RS232-2
RS232-1 provides serial data and is intended for direct use with Liebert MultiLink monitoring and server shutdown software.
RS232-2 provides serial data and is intended for use by authorized commissioning and service person­nel.
These serial ports are shared with the optional Web browser, SNMP, ModBus and relay cards. Refer to Table 28 regarding compatibility of simultaneous use.
Intellislot Card Interface
There are three interface slots available for optional Web browser, SNMP, ModBus and Relay cards as illustrated in 8.0 - Options—For Assembly Inside the UPS Cabinet.

1.8.6 External Bypass Switch Interlock

EXT-Maint X3-1&2 on UPS Parallel Board M3 (leave open if no external bypass switch is used)
Provides external maintenance bypass interlock protection for the UPS. Short circuit means external bypass closed.
EXT-Out (X3-3&4) on UPS Parallel Board (leave shorted if no external output switch is used). Pro­vides external output interlock protection for paralleled UPS modules. Short circuit means external output switch closed.
NOTE
UPS Parallel Board M3 is located behind protective covers accessible after opening the UPS front door – removal of this barrier requires the use of a tool and is restricted to service personnel.
NOTE
Jumper JP1 (located next to X3) needs to be removed for X3:3&4 to work properly.

1.8.7 Battery Start Facility

1. Rotate the switch to Normal Mode.
2. Verify that the batteries are connected.
3. Press Battery Start Button. The LCD begins to show startup screens. The rectifier indicator flashes green while the rectifier is
starting up. It stops flashing and becomes solid green about 30 seconds after the rectifier enters the normal operation state.
4. After UPS has initialized, press Inverter On
Figure 6 Battery start for UPS
Battery Start Button
15
Battery Installation

2.0 BATTERY INSTALLATION

2.1 Introduction

The UPS battery bank consists of battery blocks connected in series to provide a D.C. string voltage as required by the UPS converter. The 'AUTONOMY TIME' (the time during which the battery can maintain supply to the load in the event of a mains failure) is limited by the ampere-hour capacity of the battery blocks and in some cases this results in several strings being connected in parallel.
The NX usually has internal batteries, but longer run time is available by using an external battery cabinet.
The battery cabinet will be supplied in one of the following forms:
1. Complete installation, comprising the battery cabinet, batteries and protective device.
2. Battery cabinets and protective device only—batteries supplied by others
NOTE
10kVA to 20kVA UPS models contain an internal battery compartment that can accommodate up to 44 blocks of batteries for 12Ah/12V; 80 blocks of batteries for 7.2Ah/12V
The battery bank may be disconnected from the UPS for maintenance or service. Contact your local Liebert representative for battery run times.

2.2 Safety

Special care should be taken when working with the batteries associated with the Liebert NX UPS system. When all the cells are connected together, the battery terminal voltage is potentially hazard­ous. The battery installation must be segregated from all but appropriately qualified maintenance personnel by locating the cells in a key-lockable cabinet or in a purpose-designed, dedicated battery room. When the batteries require maintenance, these precautions must be taken:
• The rotary switch must be turned to Maint. position.
• The input circuit breaker (CB1) must be opened.
• The ANDERSON connector must be disconnected..
NOTE
The fuse on the battery EMI board (UHK241A2 PCB) is 600VDC/30A, High Speed Fuse.
NOTE
Full safety instructions concerning the use and maintenance of UPS batteries are provided in the appropriate battery manufacturers manuals. The battery safety information contained in this section relates to key considerations that must be taken into account during the installation design process and might affect the design outcome depending on localised conditions.
16
Battery Installation
WARNING
!
Hazardous battery voltage present behind covers
No user-serviceable parts are located behind covers that require a tool for their removal. Only qualified service personnel are authorised to remove such covers.
The internal batteries are always connected through power fuses to the UPS and segregated terminal bars are available for connection to an external battery.
Isolate any internal battery connections before attempting to access the segregated terminal bars available for connection to an external battery.
The following general battery safety precautions and warnings should be observed at all times:
• A battery can present risk of electric shock or burn from high- short-circuit currents.
• The full nominal string voltage, when the battery blocks are interconnected, is 480VDC,
• Only qualified personnel should install or service batteries.
• Eye protection should be worn to prevent injury from electrical arcs.
• Remove rings, watches, necklaces, bracelets and all other metal objects.
• Use only tools with insulated handles.
• Wear rubber gloves and a rubber apron when handling batteries.
• If a battery leaks electrolyte or is otherwise damaged, it should be placed in a container
• If electrolyte comes into contact with the skin the affected area should be washed immedi-
• Batteries must always be disposed of according to local environmental laws.
• When replacing batteries, use the same number and type that were originally fitted.
• Disconnect charging source before connecting or disconnecting battery terminals.
• Determine whether the battery is inadvertently grounded. If it is inadvertently grounded,
which is hazardous
resistant to sulfuric acid and disposed of in accordance with local regulations.
ately with plenty of clean water.
remove the source of the ground. Contact with any part of a grounded battery can result in electrical shock.

2.3 Battery Cabinet

2.3.1 Introduction

This cabinet can also be used in conjunction additional cabinets, to provide the necessary accommoda­tion required by the larger cells associated with system’s having a long autonomy time.
Where two (or more) cabinets are used they are positioned alongside each other and secured and bonded together. If the cabinet(s) is located immediately adjacent to the main UPS equipment the two units are bolted together.

2.3.2 Temperature Considerations

Valve-regulated, lead acid battery cells are sensitive to ambient temperature and should be operated between 15°C and 25°C (59-77°F). Battery capacity is increased by 1% for every 1°C (2°F) increase in temperature up to 25°C (77°F). Battery life is reduced at temperatures above 25°C (77°F).
When batteries are mounted in the same room as the UPS unit, it is the battery that dictates the designed maximum ambient temperature, not the UPS. — i.e. in the case of valve-regulated cells, the ambient room temperature should be kept between 15°C and 25°C (59-77°F), and not between 0°C and 40°C (32-104°F) (which is the specified main equipment operating temperature range). Tempera­ture deviations are permissible for short periods, provided the average temperature does not exceed 25°C (77°F).
17
Battery Installation

2.3.3 Dimensions

The external dimensions are shown in Table 8. These are the same height and depth as the UPS module and provide a matching appearance when bolted together. All cabinets are fitted with doors, which must be fully opened in order to fit or remove the batteries. The door swing must therefore be taken into consideration when planning the positioning of the cabinets.

2.3.4 Weight

The unladen weight is shown below in Table 8. When designing the battery installation the weight of the batteries and cables must be added to the unladen weight. This is particularly important when placing the NX on a raised floor.
Table 8 Dimensions and weight
Optional
Circuit Breaker
Model
Battery Cabinet 50A
Amperes

2.3.5 Circuit Isolator Features

The UPS is fitted with Anderson connectors and fuses for connection and disconnection of internal batteries. External battery banks require battery fuses or circuit breaker (with optional status con­tacts). Refer to 1.8.3 - External Circuit-Breaker Interface for details.
Maximum
Discharge Current
(at EOD)
10kVA 22A
15kVA 33A 20kVA 44A
External Cabinet
WxDxH mm (in)
828 x 700 x 1400
(32-1/2 x 27-5/8 x 55)
Cabinet Weight
Without Batteries
kg (lb)
170 (375)

2.3.6 Battery Temperature Sensor (Optional)

The optional external battery temperature sensor kit contains one probe and one temperature trans­port board as illustrated in Figure 7. It is connected to the UPS Monitor Board.
NOTE
A temperature sensor for internal batteries is installed as a standard feature of the Liebert NX.
Figure 7 Single temperature sensor and monitor board-U2
Temperature
Sensor
Name: W1 L=30m
+
IN
-
TMP-2
The battery sensor kit includes cables W1 & W2 and the temperature sensor (TMP-2)
NC
12V
OUT
GND

2.3.7 Moving the Battery Cabinets

WARNING
!
Ensure that the weight is within the designated surface weight loading of any handling equipment. See Table 8 for weight details.
Ensure any lifting equipment used in moving the cabinet has sufficient lifting capacity.
Name: W2 L=5m
X7
Monitor
Board
– U2
-12V
BAT-T
GND
UPS
Battery cabinets can be handled by means of a fork lift or similar equipment.
NOTE
Care must be taken when maneuvering units fitted with batteries. Keep such moves to a minimum.
When the equipment has been finally positioned ensure the adjustable feet are set so that the battery cabinet will remain stationary and stable.
Seismic anchors option is available for anchoring the unit to a concrete floor.
18
Battery Installation
p

2.3.8 Cable Entry

Cables enter the battery cabinet from the bottom. Cable entry is made possible by removing a blank­ing piece fitted at the bottom to reveal the cable entry hole.

2.3.9 General Arrangement Drawings

Refer to Figures 8 and 10 for general arrangement of battery cabinet models.
Figure 8 Battery cabinet bottom cable entry location
700
Bottom View
Cable Entry Point
250
82,5
1400
100
83
828
620
All dimensions are
ressed in millimeters.
ex
19
Battery Installation
Figure 9 Battery cabinet with fuse or optional circuit breaker locations
Bottom cable entry
20
Battery Installation
Figure 10 Battery cabinet internal layout
Minimum Service Space 65mm
65 65 102
65
215 280 280 280 292
3 Layers: Largest Battery Dimensions: 201x170x190 (LxWxH)
437,8
15170101701017010170
Positions of Captive Nuts for Grille Mounting
43
29
15
1.
1 Layer: Largest Battery Dimensions: 201x170x190 (LxWxH)
520110201218
Captive Nut M6
B
Hex Flange Screw M6x16
DETAIL B
308,6 280 280 328,4
218,5
517010170
635
635
201 10 201 10 2017
738
368
21
Battery Installation
Figure 11 Battery cabinet, bottom entry
12
11
13
4
3
10
2
Item #
Item Name
1 Grille steel 2 Grille steel 3 Middle pillar 4 Cover module BC Small NXf 5 Ground bus 6 Captive nut M4 7 Captive nut M6 8 Screw flange M6x16
9 Nut flange M6 10 Screw M6x16 countersink 11 Spring washer M4 12 Flat washer M4 13 Screw mushroom head cross M4x12
1
7
8
4
6
13
12
8
9
5
6

2.4 Battery Power Cables

2.4.1 Connection Principles

The following notes, in conjunction with the diagrams, illustrate the broad principles to be followed when fitting and connecting the majority of battery installations.
22
Battery Installation

2.4.2 Fitting the Batteries

1. In general, at least 10mm (3/8") must be left unobstructed on all vertical sides of the battery blocks to permit free air movement around the cells.
2. Clearance should be allowed between the top of the cells and the underside of the shelf above (this is necessary for monitoring and servicing the cells).
3. When installing the batteries on racks always work from the bottom shelf upwards to prevent raising the centre of gravity.

2.4.3 Connecting the Battery

1. When the battery cabinet is installed on a raised floor the battery power cables and optional circuit breaker control cables can be routed to the UPS cabinet via the floor of the cabinet. If the UPS and battery cabinet are located adjacent to each other and located on a solid floor these cables can be passed between the cabinets via the lifting apertures located in the lower sides of the cabinets.
2. In general it is recommended that the inter-connecting cables be fitted to the batteries within their particular level before fitting the inter-level connecting cables, followed finally by the cables to the circuit breaker.
3. An insulating shroud should be fitted to each terminal after its connection has been made.
4. When connecting the cables between the battery string ends to the optional circuit breaker always connect the circuit breaker end of the cable first.

2.4.4 Battery Room Design

Whatever the type of mounting system selected, the following conditions should be noted:
• Cell Layout—1 Whichever battery mounting system is used, the batteries should be arranged to prevent the pos-
sibility of simultaneous contact with two exposed live parts having a potential greater an 150V. Where this is not possible, insulated terminal shields must be installed and insulated cables must be used for connections.
• Service Platform—2 The service platform (or duckboard) must be slip-proof, insulated from the floor and at least one
metre (39 in.) wide.
• Connections—3 All connections must be as short as possible.
• Battery Protection Fuses/Circuit Breaker4
The battery circuit breaker is generally installed at the front of the battery room. See 2.5 - Bat- tery Control for details on connecting the circuit breaker box available for the Liebert NX.
Figure 12 Battery room design
4
1
3
2
23
Battery Installation

2.5 Battery Control

Battery temperature sensor cables are connected between UPS auxiliary terminal block X3 BCB, the Battery Temperature sensor and the battery as shown in Figure 7.
Cables connected to X3 BCB must contain a protective earth wire or a shield, be segregated from power circuits, double insulated and of a typical 0.5 to 1mm2 cross section area for maximum runs between 25 and 50 meters respectively. The shield should be connected to the protective earth of the battery cabinet or battery breaker, not at the UPS.

Figure 13 Internal, external battery cable connection with units

Internal Battery Terminal
Fuse
Fuse
External Battery Terminal
24
UPS Multi-Module Installation

3.0 UPS MULTI-MODULE INSTALLATION

3.1 General

The installation of a multi-module UPS configuration must follow the installation procedure for a sin­gle UPS module with the additional requirements detailed in this chapter.
In addition to the local EPO push button on the front panel of the UPS module (that stops operation of that module), the UPS supports also a remote emergency stop to permit simultaneous multi-module shutdown.
NOTES
1. The remote emergency power off switch must be voltage-free and Normally Open or Normally Closed.
2. The open voltage supplied is 12VDC, < 20mA
3. This external emergency stop may be supplied with a second set of contacts that can be used to trip incoming mains or bypass supply circuit breakers supplied by others and fitted with remote trip units.
4. Normally Closed EPO - X2: 1&2, these terminals are supplied factory-linked on the monitor board.

Figure 14 Emergency power off connections

EPO
EPO
X2:3
X2:4
UPS1
X2:1 X2:2
UPS1
X2:3 X2:4
Monitor Board
X2:1 X2:2
Moni tor Board
UPS2
Moni tor Board
UPS2
Moni tor Board
25
UPS Multi-Module Installation

3.2 Paralleled UPS Modules

The basic installation procedure of a parallel system comprising two or more UPS modules is the same as that of single module system. The following sections only introduce the installation proce­dures specific to the parallel system.

3.2.1 Cabinet Installation

Place the UPS modules side by side and interconnect as shown in Figure 15. The distribution panel (external bypass cabinet) is optional but recommended for ease of maintenance and system testing.
Figure 15 Typical 1+N system block diagram with common input supply, with separate batteries and
optional output / bypass distribution panel
SUPPLIED BY OTHERS
FUSES
BATTERY 1
INPUT MAINS
SUPPLY L1, L2, L3, N
UPS1
CHARGER
INPUT MAINS
SUPPLY L1, L2, L3, N
CB1
RECTIFER
STATIC SWITCH
INVERTER
SW1-A
L, N L, N
SW1-C
FUSES
BATTERY 2
UPS2
CHARGER
Q1EXT
QUPS
Distribution Cabinet
CB1
RECTIFER
STATIC SWITCH
INVERTER
SW1-A
Q2EXT
SW1-C
SW1-D
QBYP
TO LOAD
26
UPS Multi-Module Installation
o Load
Figure 16 Dry contacts, multiple UPS modules with distribution panels
Input Distribution Panel
UPS 1 UPS 2
M3 Board
X3
Ext. Maint. Ext. Out
1234
Q1Ext
QUPS
Output / Bypass Distribution Panel
M3 Board
X3
Ext. Maint. Ext. Out
1234
UPS N
M3 Board
X3
Ext. Maint. Ext. Out
1234
Q2Ext QnExt
QByp
T

3.2.2 External Protective Devices

Refer to the instructions in 1.0 - Single Module UPS Installation.

3.2.3 Power Cables

The wiring of power cables is similar to that of single module system. The Bypass and the Main input sources must be referenced to the same neutral potential and input earth leakage monitoring devices, if installed, must be located upstream of the common neutral sinking point. Refer to the instructions in 1.0 - Single Module UPS Installation.
NOTE
The length and specification of power cables including the bypass input cables and UPS output cables should be the same. This facilitates load sharing when operating in bypass mode.
27
UPS Multi-Module Installation

3.2.4 Control Cables Intermodule Control

Shielded and double insulated control cables available in lengths of 5, 10 and 15 meters must be must be interconnected in a ring configuration between UPS modules as shown below. The parallel control board is mounted on the top, behind protective cover of each UPS module (refer to Figure 24). The ring configuration ensures high reliability of the control. Refer to Figure 17.
Figure 17 Connection of 1+N system parallel control cables
1 2 3 4 5 6
Paralle l Board
X3
P5
X4
X2-2 X2-1
P2
X1-1 X1-2
P4 P1
P3
Parallel Board
X3
P5
X4
X2-2 X2-1
P2
X1-1 X1-2
P4 P1
P3

3.3 Hot-Standby UPS Modules

3.3.1 Cabinet Installation

Place the UPS modules side by side and interconnect as shown below.
The hot standby mode comprises two series connected UPS modules usually of the same rating. One module is designated as the hot standby master (downstream), and the other module is designated as the hot standby slave (upstream). Their roles are determined by power connection and configuration software. In normal operation, both slave and master operate in normal mode and the output from one upstream (slave) UPS feeds the bypass input to the other (downstream/master) UPS. The output of the downstream (master) UPS is connected to the critical load and is always synchronised to the output of the upstream (slave) UPS. If the inverter of the UPS connected to the load fails, the inverter of the upstream (slave) UPS supplies the load through the downstream (master) UPS bypass circuit. The system can be programmed to cycle the downstream (master) UPS between normal mode and bypass mode so that both ups are equally exercised.
Paralle l Board X3
P5
X4
X2-2 X2-1
P2
X1-1 X1-2
P4 P1
P3
UPS
Parallel Board X3
P5
X4
X2-2 X2-1
P2
X1-1 X1-2
P4 P1
P3
Parallel Board X3
P5
X4
X2-2 X2-1
P2
X1-1 X1-2
P4 P1
P3
Paralle l Board
X3
P5
X4
X2-2 X2-1
P2
X1-1 X1-2
P4 P1
P3
NOTE
In a hot-standby system, the master (downstream) must be turned on first.

3.3.2 External Protective Devices

Refer to the instructions in 1.0 - Single Module UPS Installation.
28
UPS Multi-Module Installation

3.3.3 Power Cables

The wiring of power cables is similar to that of single module system except that the output of the upstream UPS is fed into the bypass input of the downstream UPS, and the load is fed by the down­stream UPS through its inverter or bypass. The bypass and the main input sources must be refer­enced to the same neutral potential and input earth leakage monitoring devices, if installed, must be located upstream of the common neutral sinking point. Refer to the instructions in 1.0 - Single Mod- ule UPS Installation.
No control wires other than those specified for the single module configuration are required.
Figure 18 Hot standby configuration
UPSTREAM
INPUT DISTRIBUTION
Mains L1, L2, L3, N
CB1
RECTIFIER
STATIC SWITCH
INVERTER
L, N
UPS1
OUTPUT
Bypass L, N
Mains L1, L2, L3, N
DOWNSTREAM
Bypass L, N
CB1
29
L, N
TO LOAD
UPS Multi-Module Installation

3.4 Dual Bus System

3.4.1 Cabinet Installation

The Dual Bus System consists of two independent UPS configurations each consisting of one or more UPS modules. Dual Bus Systems are high availability configurations suitable for loads with multiple input terminals. For single input loads an optional Static Transfer Switch may be added and the stan­dard Load Bus Synchroniser activated. Depending on the configuration, follow the appropriate instal­lation instructions for each system.
Place the UPS modules side by side and interconnect as shown below.
The objective of the Dual-bus Synchronizer (DBS) is to keep the output of two independent UPS sys­tems (or parallel systems) in synchronization. One system is designated as the master; the other is designated as the slave. The operating modes covered comprise master and or slave operating inverter or bypass mode.
Figure 19 Typical dual bus system configuration with static transfer switch and Load Bus Synch
Bypass
supply
Bypass
supply
Input
Rectifier
UPS1
Intermodule
control cable
Rectifier
UPS 6

3.4.2 External Protective Devices

Refer to the instructions supplied in 1.0 - Single Module UPS Installation.
Input
STS
Load
LBS
Input
Rectifier
Intermodule
control cable
UPS 6UPS1
Input
Rectifier

3.4.3 Power Cables

The wiring of power cables is similar to that of single module system. The Bypass and the Main input sources must be referenced to the same neutral potential and input earth leakage monitoring devices, if installed, must be located upstream of the common neutral sinking point. Refer to the instructions in 1.0 - Single Module UPS Installation
30
UPS Multi-Module Installation

3.4.4 Control Wires

For Liebert NX to NX dual bus configuration, connect the optional DBS cable to any DBS ports of two parallel systems as illustrated in Figure 20.
Figure 20 Connections of a typical dual bus system utilising Load Bus Synch
Para llel Board
X3
P5
X2-2 X2- 1
P2
X1-1 X1-2
P3
8
Parallel System I Parallel System II
X4
P4 P1
UPS
Para llel Board
X3
P5
X4
X2-2 X2-1
P2
X1-1 X1-2
P4 P1
P3
A
DBS Cable
Parallel Board
X3
P5
X2-2 X2-1
P2
X1-1 X1-2
P3
8
UPS
X4
P4 P1
Parallel Board
X3
P5
X4
X2-2 X2-1
P2
X1-1 X1-2
P4 P1
P3
B
NOTE
Example shown with ring control cables ("8") for DBS applied to two 1+1 paralleled systems.

3.4.5 Extended Dual Bus Synchronization Option (DBS Interface Box)

For Liebert NX to non- NX (whether another Liebert UPS range or not) dual bus configuration, one DBS interface box shall be mounted on the non- Liebert NX UPS. In this situation, the other UPS sys­tem is always treated as a master and the following conditions are covered:
• Master and slave are both on inverter
• Master on bypass, slave on inverter
NOTE
Extended DBS interface box is also used for extending DBS cable length up to 150 meters (490ft) for DBS configuration between two groups of NX UPS systems.
31
Installation Drawings

4.0 INSTALLATION DRAWINGS

Figure 21 Electrical connections

Ext. Maint.
X3
Ext. Out
X5
X4
Modem­SNMP
RS-485
Gen
UPS
Parallel Board
Monitor Board
J13
J4
Input
Earth
L
N
A B C N
To Customer’s Safety Earth
To Critical Load
Power Cables
Main/Bypass Input Supply
BPS
X1
AFC
X2 Ext EPO
J21
J25
J28-1 J28-2 J28-3 J28-4
BCB
X3
J26
J30
X3
J10-1
J10-2
J10-4
J10-3
X7
J22-2
J22-3
MBC
J22-4
+
N
Batt
External Battery
-
32
Installation Drawings
r
Figure 22 General arrangement—10-20kVA UPS module
1400
600
700
10mm dia threaded
2
7
mounting holes
86.5
1
Levele
Detail A, rear of unit shown without side panel
Leveling feet
90
FRONT VIEW
1253
885
All dimensions are in mm.
8-M10
LEFT SIDE VIEW
150
519.6
120
150
4-O50
572
611
650
150
150
142.5
405
1) Air inlet grille
2) Air outlet grille
3) Adjustable fixing feet
4) Castors for maneuvering
5) Seismic anchors (option)
6) Cable entry
7) Operator control and displa y panel
A
R6
3
415.2
A
706
111.8
138.25
235 345
167
33
Installation Drawings

Figure 23 10-20kVA NX front view with doors open

5
1) Main/Bypass Input terminal (T1)
2) Battery /Output terminal (T2)
3) Input circuit breaker (CB1)
4) Rotary switch (SW1)
5) Monitor board (U2)
4
3
Wire range for terminal blo ck s: 15/20kVA, 14-30mm 10kVA, 8-16mm
2
2
2
1
T2
External Battery Input
Output
T1
34
Main Input
Bypass Input
Installation Drawings

Figure 24 Location of parallel logic board M3

Battery Start Interface
Parallel Logic Board
NXf 10-20kVA Top View
35
Installation Drawings
Figure 25 Internal battery layout and connecting—12AH/12V
BOTT OM LA YER
Layer 5 Layer 4 Layer 3 Layer 2 Layer 1
TO PL A YER
W501 4pcs
W500
34Pcs
75
W503
BLK BLK
43 41 44 42
75 3 3
W502
W51 1
W510
W515 W514
W506
W508
BA TTER Y INTERCONNECT
WIRING DIAGRAM
W504
RED
AA
W509 W505 W507
J2 J6 J4
+BA TT IN
NIN
A2 BOARD
UPS MODULE
BLK
W506
BLU
-BA TT IN
Remove 43 and 44 when 42 jars are used. Remove 41 ~ 44 when 40 jars are used.
Figure 26 Internal battery layout and connecting—7.2AH/12V
BOTT OM LA YER
Layer 5
W501 4Pcs
Layer 4 Layer 3 Layer 2 Layer 1
W520
W517
BLK
1
1
W513 W512
BLK
TO PL A YER
W508
G G
W500
68Pcs
BLU
W506
W502
W518 W516
C C
BLK
W51 1
W508
RED
W509 W507
W505
J2 J6 J4
+BA TT IN
A2 BOARD
UPS MODULE
W510
W504
AA
NIN
BLK
-BA TT IN
I I
W506
BLU
RED
E
W515
E
BLU
BLK
W514
BA TTER Y INTERCONNECT
NOTE 1 TYPICAL USED FOR: 7.2AH/12V
75
75 3 3
W503
BLK BLK
36
K K
BLK
W513
WIRING DIAGRAM
1
BLK
1
W512
W521 W519
W508
M
RED
M
Installation Drawings

Figure 27 Internal battery layout

347mm
171mm
160mm
160mm
160mm
160mm
139mm
562mm
Battery
37
Operation

5.0 OPERATION

WARNING
!
Hazardous Mains and / or Battery Voltage present behind covers.
No user-serviceable parts are located behind covers that require a tool for their removal. Only qualified service personnel are authorised to remove such covers.

5.1 Introduction

Liebert’s NX™ Uninterruptible Power System system provides continuous, high-quality AC power to your business-critical equipment, such as telecommunications and data processing equipment. The NX UPS supplies power that is free of the disturbances and variations in voltage and frequency com­mon to utility power, which is subject to brownouts, blackouts, surges and sags.
The NX utilizes the latest in high frequency, double-conversion pulse width modulation (PWM) tech­nology and fully digital controls to enhance its reliability and increase the ease of use.
The standard NX consists of the UPS and internal batteries in a compact, single cabinet.
As shown in Figure 28, the AC utility source is input at CB1 and the rectifier converts the AC utility into DC power. The inverter converts that DC power from the utility—or DC power from the batteries —into AC power for the load. The batteries power the load through the inverter in the event of a power failure. The utility source can also power the load through the static bypass.
If maintenance or repair of the UPS is necessary, the load can be switched without interruption in service to the maintenance bypass.

Figure 28 Single unit block diagram with split-bypass input

SW1/D
Bypass Input
AC Utility Input
CB1
Neutral Wire
SW1/C
Rectifier
Battery
Discharge
Inverter
Battery
Charger
Mai ntenance B yp ass
Static Swich
UPS
Output
SW1/A
Static Swich
SW1/B
Neutral
Wire

5.1.1 Split-Bypass Input

Figure 28 illustrates the Liebert NX UPS in what is known as the split-bypass configuration wherein a separate power switch to a dedicated bypass power source that also feeds the maintenance bypass line connects the static bypass line. Where a separate power source is not available, the bypass and rectifier input supply connections are linked.
38
Operation

5.1.2 Static Transfer Switch

The circuit blocks labeled Static Switch in Figure 28 contain electronically controlled switching cir­cuits that enable the critical load to be connected to either the inverter output or to a bypass power source via the static bypass line. During normal system operation the load is connected to the inverter; but in the event of a UPS overload or inverter failure, the load is automatically transferred to the static bypass line.
To provide a clean (no-break) load transfer between the inverter output and static bypass line, the static switch activates, connecting the load to bypass. To achieve this, the inverter output and bypass supply must be fully synchronized during normal operating conditions. This is achieved through the inverter control electronics, which make the inverter frequency track that of the static bypass supply, provided that the bypass remains within an acceptable frequency window.
A manually controlled, maintenance bypass supply is incorporated into the UPS design. It enables the critical load to be powered from the utility (bypass) supply while the UPS is shut down for routine maintenance.
NOTE
When the UPS is operating in bypass mode or on maintenance bypass, the connected equipment is not protected from power failures or surges and sags.

5.1.3 Battery Temperature Compensation

A standard temperature probe is installed to measure the internal battery temperature to optimize battery management. The measured temperature can be displayed from the UPS front panel.
For UPS with external batteries, an optional battery temperature interface equally optimises the external battery management by connecting up to four external temperature sensors from the battery cabinet(s) to a control unit inside the UPS. The UPS front panel will display the highest battery tem­perature.
Figure 29 Multiple battery temperature sensors
Temperature
Sensor
Sensor
TMP-2
Sensor
TMP-2
Sensor
NC
12V OUT GND
NC
12V OUT GND
NC
12V OUT GND
+
IN
­TMP-2
Temperature
+
IN
-
Temperature
+
IN
-
Temperature
X103
X104
X105
BCB Control
Board – C2
+12V
OUT GND
X108
X7
Monitor
Board
-12V
BAT-T
GND
– U2
UPS
X106
BCB Box
TMP-2
NC
12V OUT GND
+
IN
-
39
Operation

5.1.4 Redundant Control Power Supply Board

The UPS is equipped with two identical and fully redundant control power supply boards. Each of them takes inputs from the AC and DC sources. When one of the sources or even if one of the control power boards fails, the UPS system can still operate normally. This feature further enhances the reli­ability of the system.

5.1.5 Socket Outlet

One single-phase Shuko-type universal outlet of 3A current handling capability provides nominal UPS output voltage of up to 3A current capacity for the ease of testing, commissioning & servicing of the UPS.
5.2 Multi Module UPS—1+N
Multi-module UPS are formed by several “single unit” UPS modules to constitute “1+N”system where groups of one or more, up to six, single units operate together for the purpose of providing additional power or reliability or both. The load is equally shared between any paralleled UPS.
Figure 30 Typical 1+N multi-module UPS with optional external maintenance bypass switch dist ribution
panel
Qin UPS1
Supplied by Others
Input Mains Supply Input Mains Supply Input Mains Supply
L1,L2,L3,N
Bypass Mains Supply
L, N
L1,L2,L3,N
CB1
RECTIFIER STATIC
SWITCH
INVERTER
Qin UPS2
CB1
RECTIFIER STATIC
SWITCH
INVERTER
Bypass Mains Supply
L, N L1,L2,L3,N
UPS3
OUTPUT
L, N
UPS1
OUTPUT
L, N
UPS2
OUTPUT
L, N
Qin UPS3
CB1
RECTIFIER STATIC
SWITCH
INVERTER
Qin Ext Byp
L, N
Qout UPS1 Qout UPS2
Qout all UPS
Distribution Cabinet
Qout UPS3
Qout Byp
Further, single unit or 1+N groups may be configured as “distributed redundant” systems with inde­pendent outputs that nevertheless are synchronised through a Load Bus Synchroniser (LBS) so that critical loads can be seamlessly transferred from one system to another. See 5.3 - Modes of Opera- tion for more information.
40
Operation

5.2.1 Features of NX Multi-Module UPS Configurations

1. The hardware and firmware of single module UPS units is completely compatible with the requirements of a multi-module system. Multi-module configuration is achieved merely through settings in configuration software.
2. Parallel control cables are connected in a ring, providing both performance and redundancy. Dual-bus control cables are connected between any two UPS modules of each bus. The intelligent paralleling logic provides the user with maximum flexibility. For example, shutting down or starting up UPS modules in a parallel system can be done in any sequence. Transfers between Normal and Bypass modes of operation are synchronised and self –recovering e.g. following overloads and their clearance.
3. The total load of the multi-module system can be queried from each module’s LCD display.

5.2.2 Requirements for Paralleling of UPS Modules

A group of paralleled modules behave as if it were one large UPS with the advantage of presenting higher reliability. In order to assure that all modules are equally utilised and to comply with relevant wiring rules, the following requirements apply:
1. All UPS modules must be of the same rating and must be connected to the same bypass source.
2. The bypass and the main input sources must be referenced to the same neutral potential.
3. Any RCD, Residual Current monitoring device, if installed, must be of an appropriate setting and located upstream of the common neutral bonding point. Alternatively, the device must monitor the combined 4-wire rectifier and split-bypass input currents of the system. Refer to the High Leakage Current Warning on page 1.
4. The outputs of all UPS modules must be connected to a common output bus.
NOTE
Optional isolation transformers are available for applications where sources do not share the same neutral reference or where the neutral is not available.

5.3 Modes of Operation

The NX UPS is an on-line, double-conversion, reverse-transfer UPS that permits operation in these modes:
•Normal Mode
• Battery Mode (Stored Energy Mode)
• Auto-Restart Mode
• Bypass Mode
• Maintenance Mode (Manual Bypass)
• ECO Mode
• Parallel Redundancy Mode
• Hot-Standby Mode
• Frequency Converter Mode

5.3.1 Normal Mode

The UPS inverter continuously supplies the critical AC load. The rectifier/charger derives power from the AC mains input source and supplies DC power to the inverter while simultaneously FLOAT or BOOST charging its associated backup battery.

5.3.2 Battery Mode (Stored Energy Mode)

Upon failure of the AC mains input power; the inverter, which obtains power from the battery, sup­plies the critical AC load. There is no interruption in power to the critical load upon failure or restora­tion of the AC mains input power after which the “Normal Mode” operation will continue without the necessity of user intervention.
NOTE
An optional battery start device is available for turning on NXf UPS directly from Battery (already charged) mode during mains failure. Thus the UPS can depend solely on the battery power for operation, increasing the system availability.
41
Operation

5.3.3 Auto-Restart Mode

The battery may become exhausted following an extended AC mains failure. The inverter shuts down when the battery reaches the End Of Discharge voltage (EOD). The UPS may be programmed to “Auto Recovery after EOD” after a delay time. This mode and any delay time are programmed by the commissioning engineer.

5.3.4 Bypass Mode

If the inverter overload capacity is exceeded, or if the inverter becomes unavailable for any reason, the static transfer switch will perform a transfer of the load from the inverter to the bypass source, with no interruption in power to the critical AC load. Should the inverter be asynchronous with the bypass, the static switch will perform a transfer of the load from the inverter to the bypass with inter­ruption in power to critical AC load. This is to avoid paralleling of unsynchronised AC sources. This interruption is programmable but typically set to be less than 3/4 of an electrical cycle, e.g., less than 15ms (50Hz) or less than 12.5ms (60Hz).

5.3.5 Maintenance Mode (Manual Bypass)

A manual bypass switch is available to ensure continuity of supply to the critical load when the UPS becomes unavailable e.g. during a maintenance procedure. This manual bypass switch is fitted in all UPS modules and rated for full load of one module.

5.3.6 ECO Mode (Single UPS Only)

IF ECO mode is selected, the double-conversion UPS operation is inhibited at most times for the pur­pose of saving energy. In this mode of operation, not unlike UPS of line-interactive or stand-by tech­nology, the bypass is the preferred source and only when the voltage and / or frequency of the bypass supply are beyond pre-defined and adjustable limits the critical AC load is transferred to the inverter. This transfer takes place with an interruption of less than 3/4 of an electrical cycle, e.g., less than 15ms (50Hz) or less than 12.5ms (60Hz).

5.3.7 Parallel Redundancy Mode (System Expansion)

For higher capacity or higher reliability or both, the outputs of up to six UPS modules can pro­grammed for directly paralleling while a built-in parallel controller in each UPS ensures automatic load sharing.

5.3.8 Hot-Standby Mode

This is an alternative 1+1 redundancy application that ensures higher availability or better usage control or both. Two UPS are connected in Hot Stand By mode as follows: UPS 1connects to the criti­cal load, and UPS 2 connects to the bypass of UPS 1. The remaining AC inputs are connected to the incoming AC mains supply. UPS 1 synchronises to the output of the UPS 2 ensuring uninterrupted load transfer from UPS 1 to UPS 2 or vice versa. This ensures that any specified load is supplied by a UPS while still providing a bypass path to cater for overloads. Further, the system can also be pro­grammed to reverse UPS1 between Normal and Bypass Modes so that each UPS is equally utilised. This interval is programmable from 1 to 4,320 hours (180 days).

5.3.9 Frequency Converter Mode

The NX UPS can be programmed into frequency converter mode for either 50Hz or 60Hz stable out­put frequency. The input frequency may vary from 40Hz to 70Hz. In this mode the static bypass oper­ation is disabled, and the battery becomes optional depending on any requirement to operate in battery mode (stored energy mode).
42
Operation
5.4 Battery Management—Set During Commissioning

5.4.1 Normal Function

Constant charging current—Current can be set up to limit charging power.
Constant boost voltage boost (if applicable)Voltage of boost charging can be set as required by the type of battery in accordance with the manufacturers recommendation.
For Valve Regulated Lead Acid (VRLA) batteries, maximum boost charge voltage should not exceed 2.4V / cell.
Float Charge—Voltage of float charging can be set as required by the type of battery. For VRLA, float charge voltage should be between 2.2V to 2.3V.
Float Charge Temperature Compensation (optional)—A coefficient of temperature compen­sation can be as required by the type of battery.
Battery Low Warning Time—Settable between 3 and 60 minutes. The default is 5 minutes.

5.4.2 Advanced Functions (Software Settings Performed by the Commissioning Engineer) Battery Self-Test and Self-Service

At periodic intervals 20% of the rated capacity of the battery will be discharged automatically at a rate equal to 15% (kW) of the rated UPS (kVA) capacity. During discharge the rectifier provides the balance necessary to feed the load.. The minimum amount of load must exceed 20% of the nominal rating of the UPS module. If the load is less than 20%, auto-discharge cannot be executed. The peri­odic interval can be set from 30 to 360 days. The periodic testing can also be inhibited.
Conditions—Battery float charge for at least 5 hours, load 20~100% of rated UPS capacity
Trigger—Manually through through the command of Battery Maintenance Test in the LCD panel or automatically
Battery Self-Test Interval—30-360 days (default setting is 60 days)

5.5 Battery Protection (settings by commissioning engineer)

Battery Undervoltage Pre-warning
The battery undervoltage pre-warning occurs before the end of discharge. After this pre-warning, the battery should have the capacity for 3 remaining minutes discharging with full load. The time is user configured from 3 to 60 minutes.
Battery End of Discharging (EOD) Protection
If the battery voltage is lower than the EOD, the battery converter will be shut down. EOD is settable from 1.6V to 1.75V per VRLA cell (or 1.0 to 1.1V per NiCd cell).
Battery Isolator Open Warning
If the battery isolator is open, this warning will occur.
The external battery to the UPS through an external battery isolator, which is manually closed and electronically tripped via the UPS control circuits.
43
Operating Procedures

6.0 OPERATING PROCEDURES

WARNING
!
Hazardous mains and / or battery voltage present behind covers.
No user-serviceable parts are located behind covers that require a tool for their removal. Only qualified service personnel are authorised to remove such covers.

6.1 Introduction

The NX can operate in any of four modes, as shown in Table 9. This section provides instructions on switching between modes, resetting the UPS, switching the inverter On and Off and performing other operations.

Table 9 UPS operating modes

Rotary Switch
Operating Mode
Normal Operation NORMAL The UPS is powering the load in double-conversion mode.
On Static Bypass
On Test TEST
On Maintenance Bypass
Position Description
BYPASS or NORMAL
MAINT
The load power is supplied through the static bypass line. This may be considered as a temporary mode during load transfers between inverter and maintenance bypass or supply under abnormal operating conditions.
No load power is supplied by the UPS. The load is connected to utility power via the Maintenance Bypass Supply line. NOTE: The load is not protected against disturbances in AC input power in this mode.
The UPS is shut down but the load is connected to utility power via the Maintenance Bypass Supply line. NOTE: The load is not protected against disturbances in AC input power in this mode.
NOTE
1. The user controls and indicators mentioned in these procedures are identified in 7.0 ­Operator Control Panel and Display.
2. The audible alarm may sound at various points during these procedures. It can be canceled at any time by pressing the SILENCE ON/OFF push button.
NOTE
This unit refers to some modes and conditions that are set or adjusted using proprietary service software. To take advantage of all the available features for the NX, the unit must be commissioned by a Liebert factory-trained service engineer.

6.1.1 Power Switches

The UPS unit power switches are CB1 and SW1.
• CB1-Input Current Breaker. Connects the utility supply to the UPS input.
• SW1 - Rotary switch. Has four positions—NORMAL, BYPASS, TEST and MAINT—that corre­spond to different positions of the SW1-A/B/C/D.
The rotary switch (SW1) performs the following functions:
• SW1-A—Output Isolator. Connects the output of the UPS to the load.
• SW1-B—Neutral Isolator. Connects neutral to the UPS.
• SW1-C—Bypass Isolator. Connects the UPS with the bypass supply.
• SW1-D—Maintenance Bypass Isolator. Permits supply of the load directly by the bypass line for maintenance of the UPS unit.
The positions of the rotary switch are shown in Table 10.
Table 10 Rotary switch configurations
Rotary Switch Position
NORMAL ✔✔ BYPASS ✔✔ TEST ✔✔ ✔ MAINT
OUTPUT (SW1-A) BYPASS (SW1-C)
MAINT (SW1-D)
NEUTRAL (SW1-B)
44
Operating Procedures

6.2 UPS Startup

The NX must be fully installed and commissioned before startup, and external power isolators must be closed. Once those general conditions are met, the UPS may be started.

6.2.1 Start-Up Procedure

To start the UPS from a fully powered-down condition (see Figure 32 for location of mimic indicators and function buttons):
1. Open the UPS door to gain access to the main power switches.
WARNING
!
During this procedure the output terminals will become live.
If any load equipment is connected to the UPS output terminals, please check with the load user and ascertain whether it is safe to apply power to the load. If the load is not ready to receive power, then ensure that it is safely isolated from the UPS output terminals.
CAUTION
!
Do not operate the rotary switch too fast. Always wait at least 30 seconds when rotating the switch from one position to another
2. Close CB1.
3. Turn the rotary switch to TEST. The bypass static SCR (M2) closes automatically and the LCD begins to show start-up screens.
The rectifier indicator flashes green while the rectifier is starting up. It stops flashing and becomes solid green about 30 seconds after the rectifier enters the normal operation state. After initialization, the bypass static switch closes.
Because output switch SW1-A is still open, the UPS channels power through Maintenance Bypass Supply line (SW1-D). The bypass indicator extinguishes, provided that the bypass is normal.
The UPS mimic display indicators will be:
Indicator
Rectifier indicator Off Battery indicator Off Bypass indicator Off Inverter indicator Off Load indicator Off Status indicator Off
WARNING
!
Do NOT turn the rotary switch until the rectifier indicator stops flashing green.
4. Turn the rotary switch to BYPASS.
Indicator
Rectifier indicator Green Battery indicator Off Bypass indicator Green Inverter indicator Off Load indicator Green Status indicator Amber
The maintenance switch SW1-D opens and output switch SW1-A closes. The UPS powers from static bypass instead of from maintenance bypass. The bypass and load indicators turn on. The design of the rotary switch ensures uninterrupted output.
State
State
45
Operating Procedures
5. Turn the rotary switch to NORMAL, then press the INVERTER ON control button for 2 seconds. The inverter will start and the inverter indicator will flash green. After the inverter is ready, the UPS transfers from bypass to inverter, the bypass indicator turns off and the inverter and load indicators turn on.
The UPS is operating normally. The UPS mimic display (refer to Figure 32) indicators will be:
Indicator
Rectifier indicator Green Battery indicator Off Bypass indicator Off Inverter indicator Green Output indicator Green Status indicator Green
State

6.2.2 Verify Switching Between Operation Modes

Switch from normal mode to battery mode
• Open CB1 to enter battery mode. This breaks the utility connection to the NX. To return to normal mode, wait a few seconds and close CB1. The rectifier will restart automati-
cally after 10 seconds and resume feeding power to the inverter.
Switch from Normal Mode to Bypass Mode
• Press INVERTER OFF button to switch to bypass mode.
NOTE
In bypass mode, the load is being powered by the utility and is not receiving conditioned power through the inverter.
Switch from Bypass Mode to Normal Mode
• Turn the rotary switch to NORMAL.
• In bypass mode, press the INVERTER ON button. When the inverter is ready, the UPS will switch to normal mode.
46
Operating Procedures

6.3 Switching the UPS from Normal to Maintenance Bypass

Follow the procedure below to transfer the load from the inverter output to the Maintenance Bypass line of the UPS.
CAUTION
!
Before performing this operation, confirm that the UPS LCD displays “Normal.” If the LCD does not display “Normal,” there is a risk of a short power interruption to the load during the transfer to bypass.
This procedure assumes that UPS is operating normally (see Figure 32 for locations of mimic LED's and function buttons).
1. Press the INVERTER OFF button on the right side of the operator control panel for longer than 2 seconds.
The Inverter indicator will turn off and the status indicator (6) will turn amber and an audible alarm will sound. The load will transfer to static bypass and the inverter will shut off.
NOTE
Pressing the Alarm Silence Switch cancels the audible alarm, but leaves the warning message displayed until the appropriate condition is rectified.
2. Open the UPS door to gain access to the main power switches, SW1 and CB1.
3. Turn the rotary switch to BYPASS position. The UPS Bypass Static Switch still supply power to load.
4. Turn the rotary switch to TEST. The load is now on maintenance bypass.
5. Turn the rotary switch to MAINT.
6. Open rectifier switch CB1. All operator indicators and messages will turn off as the utility driven internal power supplies decay. The unit will power down, but the load will continue to be supplied by the manual maintenance bypass.
WARNING
!
Wait 5 minutes for the internal DC busbar capacitors to discharge before attempting to remove the internal protective barriers.
WARNING
!
Even with the UPS rotary switch in maintenance bypass position portions of the unit are still energized. Service is to be performed by qualified personnel only.
CAUTION
!
The load equipment is not protected from normal supply aberrations when operating in the maintenance bypass mode.

6.4 Powering Down the UPS

To power down the UPS completely, follow the procedures in 6.3 - Switching the UPS from Nor­mal to Maintenance Bypass.
To completely isolate the UPS from the AC supplies, the main external power input isolator (both iso­lators, where separate supplies are provided for rectifier and bypass) should be opened (see
Figure 31).
WARNING
!
To prevent injury to personnel, lockout or tagout the service supplies.
47
Operating Procedures

6.5 Powering Down the UPS and Maintaining Power to Load

NOTE
An external Maintenance Bypass Cabinet must be installed before attempting to perform the following procedure
If the UPS needs to be shut down completely while maintaining power to the load, follow these steps:
1. Perform Steps 1 through 5 in 6.3 - Switching the UPS from Normal to Maintenance Bypass.
2. Close the external maintenance bypass switch to Maint position.
3. Open the UPS input and output disconnectors.
WARNING
!
On the primary input distribution panel, which is often located distant from the UPS area, a label should be posted advising service personnel that the UPS circuit is under maintenance.
WARNING
!
Wait 5 minutes for the internal DC busbar capacitors to discharge.
The UPS is now completely powered down.
NOTE
The maintenance bypass power switch may be operated at any time while the UPS is powered down to connect the load to the maintenance bypass supply if required
The procedure can be performed only after the installation has been completed (which includes the maintenance bypass cabinet), after the system has been placed in operation by authorized personnel. See Figure 31 for more information.

Figure 31 Example of configuration for single UPS with external maintenance bypass cabinet.

CB1 CB2SW
3P
48
Operating Procedures

6.6 Emergency Shutdown With EPO

This circuit has been designed to switch off the UPS in emergency conditions (i.e., fire, flood, etc.). The system will turn off the rectifier, inverter, static switch, battery circuit breaker and/or internal DC bus disconnection device and stop powering the load immediately (including the inverter and bypass), and the battery stops charging or discharging.
If the input utility is present, the UPS’s controls will remain active; however, the output will be turned off. To remove all power from the UPS, the external power isolator should be opened.

6.7 Auto Restart

When the main and bypass sources fail, the UPS draws power from the battery system to supply the load until the batteries are depleted. When the UPS reaches its end of discharge (EOD) threshold, it will shut down.
The UPS will automatically restart and enable output power:
• After utility power is restored
• If “Auto Recovery after EOD Enabling” is enabled
• After the “Auto Recovery after EOD Delay Time” expires (the default delay is 10 minutes). During the auto recovery delay, the NX will be charging its batteries to provide a safety margin for equip­ment shutdown if input power fails again.
If the “Auto Recovery after EOD Enabling” feature is disabled, the user may restart the system man­ually by pressing “Fault Clear” button.

6.8 Reset After Shutdown for Emergency Stop (EPO Action) or Other Conditions

Once all appropriate measures have been taken to correct the problem indicated by the alarm mes­sage appearing on the operator control panel display, carry out this procedure to restore the UPS to regular operation following an EPO action or for the following reasons: Inverter Overtemperature, Cut-off Overload, Battery Overvoltage, excessive switching (BYP: XFER COUNT BLOCK), etc.
When the user confirms that the fault is cleared:
1. Press the FAULT CLEAR button to let the system exit the Emergency Off state.
2. Press the INVERTER ON button on the right side of the operator control panel for longer than 2 seconds.
NOTE
The rectifier will start again, and the bypass will begin to power the load (for units with internal battery contactor installed, the battery contactor will close). The Rectifier indicator flashes while the rectifier is starting up. When the rectifier enters the normal operation state (about 30 seconds), the rectifier indicator turns green.
NOTE
The rectifier will be turned On automatically when the overtemperature fault disappears at 5 minutes after the disappearance of overtemperature signals.
After the EPO button is pressed, if the input utility is removed, the UPS will shut down completely. When input utility is returned, if the rotary switch (SW1) is in either Bypass or in Normal position, the UPS will start up on Bypass. There will be power at the output terminals of the UPS.
WARNING
!
If the rotary switch is in the Maint. position and input utility is present, there will be power at the output terminals of the UPS.
49
Operating Procedures

6.9 Language Selection

The LCD menus and data display are available in 12 languages: Chinese, Dutch, English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish and Swedish.To select a different language than the one being displayed:
1. From the main menu, press the F1 (shift) key to move the cursor to the menu at the top of the screen.
2. Press F2 and F3 (left and right arrows) as needed to select the Language menu.
3. Press F1 (shift) to move the cursor to the data and settings area of the LCD.
4. Use F2 and F3 (up and down) to select the required language.
5. Press the F4 (enter) key to accept the language selection.
6. Return to the main menu by repeatedly pressing F1 (ESC) as needed; all text on the LCD will now be displayed in the selected language.

6.10 Changing the Current Date and Time

To change the system date and time:
1. From the main menu, press the F1 (shift) key to move the cursor to the menu at the top of the screen.
2. Press F2 and F3 (left and right arrows) as needed to select the Settings menu.
3. Press F1 (shift) to move the cursor to the data and settings area of the LCD.
4. Use F2 and F3 (up and down) to select the Date & Time option, then press F4 (enter).
5. Position the cursor on the row in which the date and time are displayed, then press F4 (enter).
6. Using the F2 and F3 (up and down) keys, enter the current time and date information.
7. Press F4 (enter) to save the settings, then press F1 (ESC) to return to the main menu.

6.11 Command Password

Password protection is used to limit the control functions accessible to the operator. The default pass­word is 12345. This password provides access to UPS and battery test functions.
50
Operating Procedures

6.12 Isolating One Module in a Multi-Module System

NOTE
The Multi-Module system must have at least one UPS module redundant in the system and have an external output breaker installed with interlocking cables connected to the UPS module.
1. With all UPS modules in the system in Normal mode, open the external output isolator.
NOTE
Opening the external output isolator under these condtions puts the UPS module into Standby mode. This is indicated by a flashing inverter LED and the message “Check UPS output.”
An “Inverter asynchronous” alarm is also normal. The remaining UPS modules will remain on line and “Parallel comm fail” will annunciate.
2. Press the UPS EPO to isolate the batteries.
3. Open the UPS door to gain access to the main power switches SW1 and CB1.
4. Turn the rotary switch (SW1) to the Bypass position then continue to rotate to Test.
NOTE
With the UPS external output breaker open and auxiliary switches closed the UPS control will enable the UPS switch to be rotated through “Bypass” without initiating the remaining on line UPS modules to transfer to Bypass.
5. Open rectifier input breaker CB1.
WARNING
!
Hazardous Battery Voltage
No operator serviceable parts are located behind covers that require a tool for their removal.
Only qualified service personnel are authorised to remove such covers.
The UPS battery and connecting terminals remains energized at hazardous voltage levels at all times. The battery is located behind protective covers that require a tool for their removal: inside the UPS cabinet, inside a free-standing battery cabinet or on open racks inside a dedicated battery room that may be locked.
51
Operating Procedures

6.13 Inserting One Module into a Multi-Module System

This procedure is indicated to reintegrate a UPS module that has been previously isolated from other modules of a group of paralleled UPS modules. It is assumed that the installation is complete, the sys­tem has been commissioned by authorized personnel and the external power isolators are open.
WARNING
!
Mains voltage will be applied to UPS output terminals.
No operator serviceable parts are located behind covers that require a tool for their removal.
Only qualified service personnel are authorised to remove such covers.
1. Open the UPS door to gain access to the main power switches.
2. Rotate the switch to Test position. The LCD display becomes active.
3. Close the Input breaker CB1 The Rectifier indicator flashes on the UPS mimic panel during the startup of rectifier and
becomes steady green once the rectifier reaches normal operation state after about 30 seconds.
4. Close external battery circuit breaker (where an external battery is used). This breaker is located inside the battery cabinet (if used) or is otherwise adjacent to the battery racks
5. Following battery availability being detected by the UPS, the red battery indicator extinguishes moments after when the battery charger starts operation.
6. Rotate switch to Bypass position
7. Turn the rotary switch to NORMAL.
8. Close external output power isolators.
9. Press the INVERTER ON control button for 2 seconds. The inverter will startup and the inverter indicator will flash while it synchronizes to the load
voltage and frequency. After the inverter is ready, the UPS connects to the load, the inverter indi­cator becomes steady green and the output indicator becomes green.
10. Check that no “Warning” message is displayed in the top right corner of the LCD Monitor and the status of the indicators as follows:
# LED LED Function Status
1 Rectifier indicator green 2 Battery indicator off 3 Bypass indicator off 4 Inverter indicator green 5 Output indicator green 6 Alarm indicator off
The UPS is now operating in NORMAL mode.
52
Operator Control Panel and Display

7.0 OPERATOR CONTROL PANEL AND DISPLAY

7.1 Introduction

The operator control panel and display is located on the front door of the UPS. The panel is the access point for operator control and monitoring of all measured parameters, UPS and battery status and of event and alarm logs.

Figure 32 UPS control and display panel

The operator control panel is divi de d into three functional areas
Mimic Power Flow Chart Graphic LCD monitor with menu keys Direct Access keys
3
1
45
2
Status
7
6
Liebert NX 020kVA 3X1
L1-N/L2 voltage (V) L-N current (A) Freque ncy (Hz) L-L voltage (V) Power Factor
Rotary SW. normal pos.
Manual turn on Normal mode
2006-10-22
Single
L-N
229.5
24.5
49.97
397.5
0.99
07-07 07-07
F2 F3 F4 HELPF1

Table 11 UPS control and display panel components

Component #
1 Rectifier (Input AC to DC) EPO Emergency Power Off button 2 Battery (DC Back-up) Inverter ON Inverter start button 3 Bypass Input Inverter OFF Inverter shutdown button 4 Inverter (DC to AC) Fault Clear Reset button 5 Load (AC Output) Silence On/Off Audible Alarm Mute 6 UPS Status and Alarm indicator — 7 Audible Alarm (Buzzer)_ F1-F4, Help LCD Menu keys 8 Emergency Power Off Button cover
Function
17:32:20
Normal
LoadBypass Output
17:2407-07 17:29
17:30
?
Button
8
EPO
INVERTER ON
FAUL T CLEAR SIL E NCE ON/OF F
INVERTER OFF
Function
53
Operator Control Panel and Display

7.1.1 Mimic Power Flow

The LEDs mounted on the mimic flow chart represent the various power paths and current UPS oper­ational status.
Table 12 Rectifier indicator—1
Green Rectifier in Normal Operation Flashing
Green Red Rectifier Failed Off Rectifier Not operating, Input AC Not Available or out of normal range
Table 13 Battery indicator—2
Green Battery Normal, but discharging and powering the load Flashing
Green
Red
Off Battery and Converter Normal, Battery charging.
Table 14 Bypass indicator—3
Green Load on Bypass power Red Bypass not available, out of normal range or Static bypass switch fault. Off Bypass Normal, load not on bypass
Input AC Normal, but rectifier not operating
Battery End of Discharge pre-warning
Battery abnormal (Failed, Absent or Polarity Reversed) or Battery Converter abnormal (Failed, overcurrent, overtemperature)
Table 15 Inverter indicator—4
Green Inverter Normal and powering the load Flashing
Green Red Inverter failed Off Inverter not operating
Inverter ON, starting up, synchronising, or standing by (ECO mode)
Table 16 Load indicator—5
Green UPS output ON and Normal Red UPS output ON and Overloaded Off UPS output OFF.
Table 17 Status (Alarm) indicator—6
Green Normal Operation Yellow UPS Warning e.g. AC Input Failure Red UPS fault e.g. Fuse or Hardware failure

7.1.2 Audible Alarm (Buzzer)

UPS activity is accompanied by the following sounds
Table 18 Audible alarm key
Single beep Direct Access key acknowledgement One beep
per second Continuous
beep
UPS Warning e.g. AC Input Failure
Fault e.g. Fuse or Hardware failure
54
Operator Control Panel and Display

7.1.3 Direct Access Push Buttons (Keys)

Emergency Power Off (EPO) Inverter ON Enables Inverter Operation
Inverter OFF Disables Inverter Operation Fault clear Resets blocked UPS functions (subject to any fault being cleared) Silence ON/OFF Toggle type buzzer mute. Any new fault re-enables the buzzer.
Disconnects Power to the Load. Disables rectifier, inverter, static bypass and battery operation.
Press and hold Direct Access key briefly until acknowledged by a single beep.

7.1.4 LCD Monitor and Menu keys

The user-friendly and menu-driven 320 x 240 dot graphic LCD monitor displays real time data and at the same time stores 512 historical records that can retrieve for reference and diagnosis.
The user can perform commands or easily browse through the input, output, load and battery param­eters. For quick reference, the UPS status and any warnings are always highlighted without the need of navigating through the menu. The versions of converter firmware, inverter firmware and internal monitor firmware can also be displayed on the LCD.
Menu keys F1 to F4 are used to navigate within the graphic LCD monitor windows.
Table 19 Menu key Icons and their meaning
Key F1 F2 F3 F4 Help
Window Type 1
?
LEFT RIGHT
Next Data Window
ESC
Window Type 2
Escape
UP DOWN
Figure 33 Graphic LCD monitor windows and keypad
Liebert NX 20kVA 3X1
Main
Vphase V 220 Iphase A 20.5 Fre q. Hz 50 .1 Vline V 380 P.F. 0.99
Input br eaker closed 01-12 12:28:16 Manual turn on 01-12 12:30:06 UPS in normal m ode 01-22 12:30:16
2006-10-22
Unit #1
Bypass
L-N
17:32:20
Normal
Output
ENTER
1 - UPS System
Window
2 - UP S Menu
Window
3 - UPS Data
Window
4 - Current Rec o rd
Window
HELP
?
F2 F3 F4 HELPF1
55
5 - K eypad Window
Operator Control Panel and Display
The function of keys F1 to F4 is shown by a self-explanatory icon as appropriate for the particular window. As shown in Figure 33 above, pressing F1 moves the cursor (resting in “OUTPUT”) from the UPS Menu Window (2) to current record window (4) where it would first rest in “Input breaker closed’. In a similar manner, pressing F2 would move the cursor from the Output data window to the Bypass data window.
The summary menu tree is shown below. Refer to 7.2 - All Status and Event Messages Displayed on the UPS Front Panel for a detailed description of each menu item.
Figure 34 Menu tree
Mains (input)
L-N voltage (V) L-N current (A) Frequency (Hz) L-L voltage (V) Power factor
Load
Sout (kVA) Pout (kW) Qout (kVAR) Loadlevel % Crest factor
Language
(Choices for display)
TX Input *
L-N voltage (V) L-L voltage (V)
System
Sout (kVA) Pout (kW) Qout (kVAR) Single unit, no parallel data
Settings
Display contrast Date format set Date & time Comm1 baud rate Comm2 baud rate Comm3 baud rate Communication address Communication mode Callback times Phone No.1 Phone No.2 Phone No.3 Command password
Bypass
L-N voltage (V) Frequency (Hz)
Battery
Battery voltage (V) Battery current (A) Battery temperature (°C) Remain Time Min. Battery capacity (%) Battery boost charging Battery float charging Battery disconnected
Command
Battery maintenance test Battery capacity test System test Stop testing Freshening Charge Stop Freshening Charge Modem Auto-answer enable
* When configured, input transformer voltages are
** When configured, output transformer voltages are
Output
L-N voltage (V) L-N current (A) Frequency (Hz) Power factor
displayed on the front LCD. When not activated, the values are hidden.
displayed on the front LCD. When not activated, the values are hidden.
TX Output **
L-N voltage (V)
Records
(history log)
Version
UPS version UPS model
56
Operator Control Panel and Display

7.1.5 Detailed Description of Menu Items

The description that follows refers to the graphic LCD monitor window shown on Figure 33.
UPS System Window: This fixed-pane window displays current time and date and identifies the UPS, its configuration and its status.
Table 20 UPS system window
Description Explanation
Liebert NX UPS family name 2006-10-22 YYYY-MM-DD (see Settings menu for other date formats) 12:30:36 Current Time (24 hr HH:MM:SS format) 20kVA 3x1 20kVA = UPS rated output, 3x1 = 3-phase input, 1-phase output (Configuration)
Single, ECO, Master, Slave or Unit # 1
(Status) Normal, Warning or Fault
Menu and Data Window
Single = single double-conversion unit ECO = single stand-by unit with double-conversion fall-back Master = master in a 1+1 Hot Stand By system Slave = slave in a 1+1 Hot Stand By system Unit # 1 = of max 6 double-conversion units in a parallel system
Normal = UPS operating Normal Warning = System attention required, e.g. AC Input Failure Fault = UPS Fuse or Hardware Failure
Use the horizontal arrow keys to navigate between any of the selectable menu and data windows.
Table 21 Descriptions of UPS menus and data window items
Menu Type Item Type Explanation
L-N voltage (V) Phase voltage
Mains (input)
TX Input
Bypass
Output
TX Output L-N voltage (V) Phase voltage
Load
System
L-N current (A) Phase current Frequency (Hz) Input frequency L-L voltage (v Line-line voltage Power factor Power factor L-N voltage (V) Phase voltage L-L voltage (V) Line-line voltage L-N voltage (V) Phase voltage Frequency (Hz) Bypass frequency L-N voltage (V) Phase voltage L-N current (A) Phase current Frequency (Hz) Input frequency Power factor Power factor
Sout (kVA) Sout: Apparent power Pout (kW) Pout: Active power Qout (kVAR) Qout: Reactive power Loadlevel % The percent of the UPS rating load Crest factor Output current Crest Factor Sout (kVA) Sout: Apparent power Pout (kW) Pout: Active power Qout (kVAR) Qout: Reactive power
Single unit, no parallel data
When configured as a single unit, UPS has only native load, no system load.
57
Operator Control Panel and Display
Table 21 Descriptions of UPS menus and data window items (continued)
Menu Type Item Type Explanation
Battery voltage (V) Battery bus voltage Battery current (A) Battery bus current Battery temperature (°C) Intern al battery temperature °C
Battery
Records (history log) Displays all records in the history log Language (choices for text displayed) User may select any of 12 languages for LCD text.
Settings
Command (start/stop battery & system tests)
Version
Remain Time Min. Battery run time remaining Battery boost charging Battery is boost charging Battery float charging Battery is float charging Battery disconnected Battery is not connected
Display contrast Adjust the LCD display contrast Date format set Choose the format for date display: M/D/Y, D/M/Y, M/D/Y, Y/M/D Date & time Set the date and time Comm1 baud rate Communica tion baud rate setting for Intellislot 1 Comm2 baud rate Communica tion baud rate setting for Intellislot 2 Comm3 baud rate Communica tion baud rate setting for Intellislot 3 Communication address This setting is applicable to RS485 communication mode Communication mode Communication Mode Setting
Callback times
Phone No.1
Phone No.2
Phone No.3 Command password User can modify the command password. Battery maintenance test
Battery capacity test
System test
Stop testing
Freshening Charge Stop Freshening Charge Manually stop a Freshening Charge
Modem Auto-answer enable
UPS version UPS model Provides UPS model information—for example, 400V-50Hz.
When Intellislot 1 Communication mode is Modem, this parameter sets the number of times a number is redialed to send an alarm notification.
When Intellislot 1 Communication mode is Modem, this is the first phone number to be dialed (to send an alarm notification).
When Intellislot 1 Communication mode is Modem, this is the second phone number to be dialed (to send an alarm notification).
When Intellislot 1 Communication mode is Modem, this is the third phone number to be dialed (to send an alarm notification).
This test performs a partial discharge of the battery to obtain a rough estimate of the battery capacity. Load must be between 20% and 100%.
This test performs a full discharge of the battery to obtain a precise measure of the battery capacity. Load must be between 20% and 100%.
This is a self-test of the UPS. When the user activates this function, a pop­up window appears about 5 seconds later to show the results.
Manually stops a battery maintenance test, battery capacity test or system test.
This command will allow a temporary Equalize charge for the batteries. This charge is configurable for 1 to 36 hours
Manually enable the auto-answer function of modem. Provides UPS firmware version numbers for the inverter, rectifier and
software display board.
58
Operator Control Panel and Display
Current Record Window
Keeps a log the events that resulted in the current mode of operation. Ignores transient conditions that have been resolved.
Use “page” (F1) and up / down arrow to read the events.
For a complete history log, refer to the Records tab of the Menu and Data Window.
Refer to Table 22 for a complete list of supported status messages.

7.2 All Status and Event Messages Displayed on the UPS Front Panel

This is the complete list of UPS events and status messages supported for display in either the Record window (Historic data) or in the Current window (Prevailing data) as described in 7.1.4 - LCD Moni- tor and Menu keys.

Table 22 UPS messages

Message Description / Suggested Action (if any)
Inverter Comm. Fail Internal RS485 communication failure between monitor and inverter Rectifier Comm. Fail Internal RS485 communication failure between monitor and rectifier
The CAN communication between different UPSs within a parallel system fails.
Parallel Comm. Fail
Battery Overtemp. The Battery temperature is over limit. Check the battery temperature and ventilation Ambient Overtemp. The Ambient temperature is over limit. Check the ventilation of UPS room. Battery Fault Battery detected faulty (Reserved) Replace Battery Battery test failed, Battery should be replaced.
Battery Low Pre-warning
Battery End of Discharge Inverter turned off due to low battery voltage. Check the utility failure and try to recover it. Mains Volt. Abnormal
Mains Undervoltage
Mains Freq. Abnormal Rectifier Fault Rectifier detected faulty. Rectifier shuts down. Battery discharges. Rectifier Overtemp. Batt. Contactor Fail Battery contactor or circuit breaker not responding to control signals.
Batt. Charger Fault The voltage of the battery charger is too high. Control Power 1 Fail UPS operates but Redundant Control Power is not available. Mains Phase Reversed AC Input phase sequence is reversed. Rectifier Overcurrent Rectifier is overloaded. Soft Start Fail Rectifier could not start due to low DC bus voltage
Bypass Unable to Trace
1.Check if there are some UPSs not powered on in the parallel system. If so, power on these UPSs and check if the alarm disappears.
2. Press Fault Clear push button.
Before the end of discharge, battery undervoltage pre-warning should occur. After this pre­warning, battery should have the capacity for 3 minutes discharging with full load. The time is user-configured from 3 to 60 minutes. Shut down the load in time.
Mains Voltage exceeds the upper or lower limit and results in rectifier shutdown. Check the input line-to-neutral voltage amplitude of rectifier.
Mains Voltage is undervoltage with derated load. Check the input line-to-line voltage amplitude of rectifier
Mains frequency is out of limit range and results in rectifier shutdown. Check the rectifier’s input voltage frequency
The temperature of heat sink is too high to ke ep the rectifier running. The UPS can recover automatically. Check the environment and ventilation.
This alarm is triggered by an inverter software routine when the amplitude or frequency of bypass voltage is beyond the normal range. The amplitude threshold is fixed for positive and negative 10% rating. This alarm automatically resets once the bypass voltage goes normal.
1. First verify that the bypass voltage and frequency displayed on the panel is within the selected range. Note here the rated voltage and frequency are specified by “Output voltage level” and “Output frequency level” respectively.
2. If the displayed voltage is believed to be abnormal, then verify the bypass voltage and frequency presented to the UPS. Check the external supply if it is found to be faulty.
59
Operator Control Panel and Display
Table 22 UPS messages (continued)
Message Description / Suggested Action (if any)
This alarm is triggered by an inverter software routine when the amplitude or frequency of bypass voltage exceeds the limit. This alarm automatically resets once the bypass voltage goes normal. First check if there are some relevant alarms such as “Bypass disconnect open”, “Bypass phase reverse” and “Mains neutral lost”. If they appear, solve them first.
Bypass Abnormal
Inverter Asynchronous
Inverter Fault Inverter output voltage beyond limits. Load transfers to bypass.
Inverter Overtemp.
Fan Fault At least one of the cooling fans has failed Inverter STS Fail
Bypass STS Fail Operation Invalid This record is registered following an incorrect operation:
Output Fuse Fail At least one of the inverter output fuses is blown. Inverter shuts down. Load transfers to bypass. Control Power 2 Fail UPS operates but Redundant Control Power is not available.
Unit Over load
System Over load
1. Then verify that the bypass voltage and frequency displayed on the panel is within the bypass limit. Note here the rated voltage and frequency are specified by “Output voltage level” and “Output frequency level” respectively.
2. If the displayed voltage is believed to be abnormal, then verify the bypass voltage and frequency presented to the UPS. Check the external bypass supply if it is found to be faulty. If the utility is likely to trigger this alarm frequently, the bypass limit can be changed a little larger through the configuration software according to the customer’s agreement.
This alarm is triggered by an inverter software routine when the inverter and bypass waveforms are misaligned by more than 6 degrees in phase. This alarm resets automatically once the condition is no longer true.
1. First check if the alarm “Bypass unable to trace” or “Bypass abnormal” occurs. If so, solve it first.
2. Verify the waveform of the bypass voltage. If it is too distorted, ask the customer to verify and seek any possible measurements.
The temperature of the inverter heat sink is too high to keep inverter running. This alarm is triggered by the signal from a temperature monitoring thermostat on the inverter bridge heat sink. The UPS will recover automatically after a 5 minute delay from the disappearance of the overtemperature signal. If the overtemperature condition is true, then check for and verify:
1. high ambient air temperature.
2. blocked cooling airway.
3. any fan failure.
4. prolonged inverter overload
At least one of the static switches of inverter side is open or short circuit. This fault is locked until power off.
At least one of the static switches of bypass side is open or short circuit. This fault is locked until power off
The UPS is confirmed to be overload when the load arises above 105% nominal rating. The alarm automatically resets once the overload condition is removed.
1. Confirm that the alarm is true by checking the load percent indicated on the LCD panel to determine which phase is being overloaded.
2. If the alarm is true, measure the actual output current to verify that the indications are valid. Disconnect unnecessary load and ensure the safety. In a parallel system, a severe load sharing error can also leads to the alarm.
The UPS parallel system is confirmed to overload when the total load arises above 105% nominal rating for the set basic number of UPSs. The alarm automatically resets once the overload condition is removed.
1. Confirm that the alarm is true by checking the system load percent indicated on the LCD panel to determine which phase is being overloaded.
2. If the alarm is true, measure the actual output current to verify that the indications are valid. Disconnect unnecessary load and ensure the safety. In a parallel system, a severe load sharing error can also leads to the alarm.
60
Operator Control Panel and Display
Table 22 UPS messages (continued)
Message Description / Suggested Action (if any)
The UPS is confirmed to overload and the overload times out. Note 1: the highest loaded phase will indicate overload timing-out first. Note 2: When the timer is active then alarm “unit overload” should also be active as the load is above nominal.
Unit Over load Timeout
Byp. Abnormal Shutdown Both bypass and inverter voltages unavailable. Load interruption Inverter Over Current Inverter Pulse Width Modulation module overloaded.
Bypass Phase Reversed
Load Impact Transfer
Transfer Time-out
Load Sharing Fault UPS modules within a parallel system are not sharing the load current equally. DC Bus Abnormal DC input voltage to inverter beyond limits. Inverter shuts down. Load transfers to bypass.
System Transfer
Parallel Board Fault
DC Bus Over Voltage
Parallel Connect Fault
Bypass Over Current Bypass current is over limit above 135% rating. The UPS just alarms and does nothing. LBS Active Setting Save Error History records not saved. (Reserved)
Mains Neutral Lost AC Input mains reference neutral not detected. Protocol version clash Firmware incompatibility between Monitor Board and Digital Signal Processor Board. Battery ground fault Battery leakage to ground detected (option) Inv. Turned On Manually Manual Turn On via front panel Inv. Turned Off Manually Manual Turn Off via front panel EPO Emergency Power Off direct access key pressed or external command received
Transfer Confirm Transfer Cancel Prompt to press “ESC” key to avoid that an interrupted load transfer to bypass will happen. Unit Off Confirm
System Off Confirm
Note 3: When the timer has expired, the inverter Static Switch is opened and the load transferred to bypass. The inverter shutdown and will restart after 10 seconds. Note 4: If the load decreases lower than 95% after 5 minutes, the system will transfer back to inverter mode. Confirm that the alarm is genuine by checking the load percent indicated on the LCD. If an overload is indicated then check the load, and investigate any additional load connected prior to the alarm (if applicable).
The phase sequence direction of bypass voltage is reversed. Normally, the phase of phase B lags 120 degrees behind phase A, and the phase of phase C lags 120 degrees behind phase B. Verify that the phase rotation of the bypass supply presented to the UPS is correct, and rectify it if it is found to be in error
A transfer to bypass occurred due to a large step load. The UPS should recover automatically. Turn on connected equipment in sequential order to reduce the step loading of the inverter.
The load is on bypass power due to excessive number of transfers that occurred within the last hour. The UPS will recover automatically and will transfer the load back to inverter power within an hour.
The whole paralleled UPS system transferred to bypass at the same time. This message will appear on the UPS which passive transfer to bypass
Malfunction of the paralleling control circuits of this UPS module. Can cause “System Transfer” to bypass.
Rectifier, inverter and battery converter were shutdown because DC bus voltage is too high. Check whether there is a fault in rectifier side. If no, then check whether overload occurs. Restart the inverter after resetting the fault
The parallel cables are not connected correctly in a parallel system. Reset the fault by pressing the “fault clear” button, then restart the inverter by pressing the “inverter on” button.
Load Bus Synchronisation is active. The UPS is acting as an LBS master or slave in a dual bus configuration.
Prompt to press “enter” key to acknowledge that an interrupted load transfer to bypass will happen.
Prompt to press “enter” key to acknowledge that the UPS will be disconnected from other paralleled UPS modules.
Prompt to press “enter” key to acknowledge that the all paralleled UPS will be disconnected from the load.
61
Operator Control Panel and Display
Table 22 UPS messages (continued)
Message Description / Suggested Action (if any)
Fault Reset Fault clear direct access key pressed Alarm Silence Silence On/Off direct access key pressed
Turn On Fail Alarm Reset Fault clear or Silence On/Off direct access key pressed
Bypass Mode Load supplied from AC input bypass supply. Normal Mode Load supplied from Inverter output through double conversion of the AC mains input supply. Battery Mode Load supplied from Inverter output through double conversion of the Battery supply.
Source share mode UPS Shutdown UPS Shutdown, output powe r -down
Check UPS Output Inverter off during normal startup (diagnostics information only) Generator Connected Generator active signal received. Source share mode may be activate d pending UPS settings. BCB open Battery Circuit Breaker status (open) BCB closed Battery Circuit Breaker status (closed) Battery Float Charging Battery status (Float charge mode) Battery Boost Charging Battery status (Boost charge mode) Battery Discharging Battery status (discharge mode) Battery Period Testing Automatic periodic battery maintenance discharge test (20% capacity discharge) Batt. Capacity Testing User initiated battery capacity discharge test (100% capacity discharge) Batt. Maint. Testing User initiated maintenance discharge test (20% capacity di scharge) UPS System Testing User initiated UPS self test Inverter in Setting Inverter starting up and synchronising Rectifier in Setting Rectifier starting up and synchronising MBP-T cabinet Fan Fault Maintenance bypass cabinet fans fault. Ext Input TX Overtemp External Input Isolatio n Tran sformer Over Temperature Ext Output TX Overtemp External Output Isolation Transformer Over Temperature Battery Room Alarm Environment in Battery Room Needs Attention Rotary Sw. Test Pos. Rotary switch is in test position. Rotary Sw. Normal Pos. Rotary switch is in normal position. Rotary Sw. Bypass Pos. Rotary switch is in bypass position. Rotary Sw. Maint. Pos. Rotary switch is in maintenance position. Battery Contactor Open Battery Contactor Open Battery Contactor Close Battery Contactor Closed Battery Reverse Connect the battery again and check the wiring of batteries No Battery Check the battery and the wiring of batteries Auto start After UPS was shutdown at EOD, inverter auto starts when utility restore Rec. Flash Update Rectifier firmware is being update Inv. Flash Update Inverter firmware is being update Monitor Flash Update Monitor firmware is being update Input contactor fault Input contactor is in fault Contactor P.S. 1 fault Contactor Power Supply board 1 Fault Contactor P.S. 2 fault Contactor Power Supply board 2 Fault LBS abnormal LBS is abnormal DSP firmware error The inverter firmware does not match with the rectifier firmware.
Inverter failed to turn on when Inverter On direct access key was pressed. This may be as a result of Invalid Operation (Maintenance bypass on) or DC bus or rectifier not ready.
Load supplied from Inverter output through shared double conversion of the AC mains input supply and of the Battery supply.
62
Operator Control Panel and Display

7.3 Prompt (Pop-Up) Windows

The prompt window is displayed during the operation of the system to alert the user to certain condi­tions and / or to require user confirmation of a command.

Table 23 Prompt windows, meanings

Prompt Meaning
Transfer with interrupt, please confirm or cancel
The load is too high to be transferred with interrupt
This Operation Leads to Output Shutdown, Confirm or Cancel
This operation leads to inverter overload, confirm or cancel
Turn on more UPS to carry current load Battery will be depleted, confirm Battery Capacity test discharges the battery 100%
System self test finished - everything is ok. No action required System self test finished - Please check the current
warnings. Enter control password Required for Battery or UPS test (default = 12345)
Battery Self Test aborted, condition not met
Battery Refresh Charge aborted, condition not met
Inverter and Bypass supplies are not synchronised and any load transfer between the supplies will cause a brief load interruption.
The total load must be less than the capacity of one unit to allow a parallel system to perform an interrupted transfer from bypass to inverter.
No alternative supply is available and any Inverter Off operation will cause the load to be de-energised.
The turn-off this inverter will lead to the overload of remaining inverter(s) in a parallel system.
The number of paralleled inverters already turned on is insufficient to carry the existing load.
Check “Current Records” window
Battery self-test condition is not enough. User should check whether battery state is boost chargi n g an d whether load level is greater than 20 percent.
Boost charging condition is not enough, such as (No battery, charger has failed, etc.).

7.4 Dynamic Energy Flow Chart and UPS Help Screen

This screen displays a mimic diagram of the UPS that includes energy flow and status of isolation and transfer switches. Press the “Help” key to activate this screen. Press again to toggle between this screen and the main screen.

Figure 35 Help screen

Help information
Select the current record window Select the previous menu item
Q3 Q2 Q1
Press help key back to main menu
F2 F4 HELPF1 F3
Q5
63
Operator Control Panel and Display

7.5 Default Screen Saver

This default screen is displayed following at least 2 minutes of operation with no new alarm. After another delay, the backlight turns off. Press any key (F1-F4 or Help) to reactivate the screen.

Figure 36 Default screen

Liebert NX 2006-05-22 12:30:36 20 kVA-3x1 UNIT #1 NORMAL
Press any key, back to main menu
F2 F3 F4 HELPF1
64
Options—For Assembly Inside the UPS Cabinet
8.0 OPTIONS—FOR ASSEMBLY INSIDE THE UPS CABINET
Several items of optional equipment are available for connection to the Liebert NX UPS. These are described in this section of the manual and should be fitted prior to installation.

8.1 Protection

8.1.1 Battery Ground Fault Detection

In addition to any residual current device mounted externally and upstream the UPS or when optional isolation transformers are fitted to the UPS, an optional residual battery current device can be fitted to detect leakage current from the battery into the PE (Protective Earth) Residual current range monitored: 30~3000mA.
Power supply voltage for the set: AC230V (L-N);
When a battery ground fault is detected, an alarm will appear on the UPS display panel.
An additional Dry contact fault Alarm signal is available for remote monitoring:
Table 24 Dry contact fault alarm signal is available for remote monitoring
Terminal Name Defi nition
21 Common 22 NC
24 NO
Battery Ground Fault Detection – can be programmed as Alarm or Pre-Alarm
The Battery ground fault detection set contains one CT (current transformer) and one DC sensitive residual current monitor. The connection of this set for UPS is illustrated as follows.
Figure 37 Battery ground fault detection set connections
Cu rr en t Tr ansfo rmer
Battery
W1 -A358 (in stall ed externally only)
Batt + Batt-N
Batt -
Socket
Output Phase
Output Neutral
K1 K2 I2 I2
A1 A2
Battery Ground Fault Detection Resys B470 (AC230)
11 14
BCB or
Contactor
X
X
Monitor Board
-U2
+12V
4
2
BtG
IN DRY-X3
UPS
65
Options—For Assembly Inside the UPS Cabinet

8.1.2 Redundant Fan for Power Module

In addition, to ensure sufficient cooling power at various operation modes with 100% rated load, a redundant power module fan set can be supplied, thus ensuring continuity of UPS operation even with the failure of some fans. No extra footprint is required.
Figure 38 Communication bays and cable location
DB-9
Monitor
Board
Location
RS-232-1 DB-9 (COM Port 1) - Serial MultiLink Software (Port Setting 2400 Baud) RS-232-2 DB-9 (COM Port 2 - Service Access Software (Port Setting 9600 Baud)
Preferred Device This LocationLocation
Top B ay Mid Bay Bottom Bay
Relay Card (no port setting required) Multiport4 (no port setting required) OCWeb LB / OC485 (port setting 2400 Baud)
Preferred Device This Location
Gland plate for cable exit
Top
Mid Bottom
Suggested routing of customer-supplied communication cables
Notes: a) All Intellislot cards are supported in any bay. b) Port sharing is:
- PERMITTED between RS232-x DB9 devices and Relay / Multiport4 Intellislot cards (i.e., Serial Multilink software will work from RS232-1 DB9 also when relay card is inserted in the top bay.
- NOT PERMITTED between RS-232-x D-B9 devices and OCWeb / OC485 cards (i.e., Serial MultiLink software will not work from RS232-1 DB-9 when OCWeb card is inserted in the top bay.
66
Options—For Assembly Inside the UPS Cabinet

8.1.3 OC Web Card - SNMP/HTTP Network Interface Card

This network interface card provides all real-time data and status information as SNMPv1 traps for connection to a 10/100-baseT Ethernet network and in addition the same card will also transmit the same status information and all measured parameters for display via a Web browser.
This card is supported in the top, middle and bottom Intellislot bays.
Figure 39 OC Web Card data summary window
Figure 40 OC Web Card battery data summary
67
Options—For Assembly Inside the UPS Cabinet

8.1.4 Relay Card

The Relay card provides voltage-free contact closures for remote monitoring of alarm conditions.
Delivering On Battery, On Bypass, Low Battery, Summary Alarm, UPS Fault and On UPS signals, the easy-to-install card integrates with AS/400 computers (additional cable required) and other relay contact monitoring systems.
The Relay card is rated for 24 VAC/VDC at 1A and supported in any of the three NX Intellislot bays.
Table 25 Relay Card pin configuration
Pin
2-3 Not Used
10 Low Battery Closed if battery is OK 11 Low Battery Closed if LOW BATTERY point occurs.
12-13 Not Used
14 UPS Any Mode Shutdown Not supported– use External EPO terminal 15 On UPS Closed if ON UPS (inverter) power 16 On Battery Closed if ON BATTERY power (Utility failure) 17 Common - UPS Fault, Summary Alarm,
18 On Battery Closed if not ON Battery power (Utility OK)
19 ÷ 23 Not Used
24 On Bypass Closed if ON BYPASS 25 Not Used
Function Operation
1 UPS Fault Closed if no UPS failure
4 UPS Fault Closed if UPS fails 5 Summary Alarm** Closed if SUMMARY ALARM** occurs 6 Summary Alarm** Closed if no alarm conditions are present 7 Any Mode Shutdown return Not Supported– use External EPO terminal 8 Not Used 9 Common - Low Battery
On UPS, On Battery, On Bypass
**A Summary Alarm occurs when any of the following conditions exist:
• Utility power is out of the acceptable range (voltage and/or frequency)
• UPS is in BYPASS MODE (load not on Inverter power)
• UPS Battery is LOW
• UPS fault has occurred
Table 26 Relay card jumpers
#
Connection Description
JP01 Pin 9 to Pin 17 Allows all relay COMMONS to be tied together. JP02 Pin 7 to Pin 17
Irrelevant for NX - (Interconnects all relay COMMONS and the (not supported) ANY MODE SHUTDOWN Return.
68
Options—For Assembly Inside the UPS Cabinet

8.1.5 Multiport-4 Card

The Multiport-4 card provides 4 sets of voltage-free contact closures for remote monitoring of alarm conditions UPS operation On Battery and battery low condition. A typical application is to allows a maximum of four computer systems to simultaneously monitor the status (e.g., utility power failure / low battery) of a single UPS.
This card is supported in any of the three NX Intellislot bays.
Figure 41 SiteNet MultiPort4 Intellislot pin configuration
UPS
CPU
CPU
CPU
Table 27 SiteNet MultiPort4 Intellislot pin assignment
Assignment
Pin
1 Low Battery 2 Not Used 3 Not Used 4 Not Used 5 Not Used 6 Not Used 7 Low Battery Common 8 Utility Fail Common 9 Utility Fail
Description
CPU
69
Options—For Assembly Inside the UPS Cabinet
8.2 OC485 Web Card – Modbus, Jbus, IGM Net
The OpenComms 485 Card facilitates SiteScan Web or Building Management Systems monitoring.
The RS232 port is used for connection to a personal computer for setting up.
The RS-485 port supports IGM Net and Modbus/JBus protocols and maps the operation of the UPS including status, alarms and data (voltages, currents, frequency, power factor, temperatures etc.)

Figure 42 OC485 Web card

Table 28 NX communication options

Physical
description
of port
Top
Intellislot
Middle
Intellislot
Bottom
Intellislot
Top
DB9 port
Bottom
DB9 port
Labeled
ID Name
of Port
Intellislot 1
(On Monitor Board)
Intellislot 2
(On Monitor Board)
Intellislot 3
(On Monitor Board)
RS232-1 Comm 1
RS232-2 Comm 2
On the UPS
LCD screen,
under Settings,
controlled by:
Comm 1
Comm 2
Comm 3
Monitoring
Devices
supported
Multiport 4 any Relaycard-int any OCWEB-LB
Modbus/Jbus 2400 Multiport 4 any Relaycard-int any OCWEB-LB
Modbus/Jbus 2400 Multiport 4 any Relaycard-int any OCWEB-LB 2400 Modbus/Jbus 2400 Multilink Serial
Service Software (Reserved)
Baud
rate Comments
2400
2400
9600
9600
Not simultaneous with Multilink in RS232-1
Not simultaneous with Multilink in RS232-2
Not simultaneous with Web card in top Intellislot.
Not simultaneous with Web card in middle Intellislot.
70
Options—For Assembly Inside the UPS Cabinet

8.2.1 Configuring Baud Rates

The default baud rate for an Intellislot card is 9600. To communicate with the OCWEB-LB, Modbus/ Jbus or the MultiLink cards, the baud rate must be set to 2400 (see Table 28). To change the baud rate:
1. Use the Navigation keys directly below the LCD to highlight the Settings screen.
2. Press F1 to move the highlight into the Data & Settings area of the LCD.
3. Use the Navigation keys to scroll down to highlight the current baud rate across from the appropriate Comm Channel.
NOTE
The Comm channel settings are not immediately visible because of window-size constraints. Scroll down to view the settingson the screen.
4. Press the “Enter” (F4) key to select the Comm channel to change.
5. Navigate to underline the desired baud rate—2400.
6. Press the “Enter” (F4) key to lock in the new baud rate.

8.2.2 Liebert NX Remote Alarm Monitor

Status and alarm conditions are available on an optional remote alarm monitor (RAM) panel.

8.2.3 Dust Filter

Installing the two dust filters in the Liebert NX requires only a Phillips screwdriver. Each filter is held in place by a bracket on either side of each filter. To install each filter:
1. Open the UPS door and locate the filters (on the back side of the front door; see Figure 43).
2. Remove one bracket and loosen the screw on the second bracket. The second bracket need not be removed (see Figure 43).
3. Remove the dust filter to be replaced.
4. Insert the clean filter.
5. Reinstall the bracket, tightening the screw securely.
6. Tighten the screw on the second bracket.
Figure 43 Dust filter replacement
Bracket
Sems screw
Bracket
71
Technical Specifications

9.0 TECHNICAL SPECIFICATIONS

9.1 Conformity and Standards

The UPS has been designed to conform to the following European and international standards:

Table 29 Compliance with European, international standards

Description Normative reference
General and safety requirements for UPS used in operator access areas
Electromagnetic compatibility (EMC) requirements for UPS
Method of specifying the performance and test requirements of UPS
The product standards in Table 29 incorporate relevant compliance clauses with generic IEC and EN standards for safety (IEC/EN/AS60950), electromagnetic emission and immunity (IEC/EN/AS61000 series) and construction (IEC/EN/AS60146 series and 60529).

Table 30 Environmental characteristics

Rated power, kVA Acoustic Noise Level at 1 Meter (39 in) dBa 51.0 51.5 51.6
Altitude of Operation m (ft)
Relative Humidity - 0 to 95% non condensing
Operating Temperature °C (°F)
Storage-Transport Temperature for UPS °C (°F) -20 to 70 (-4 to 158) Recommended Battery Storage
Temperature
EN 50091-1-1 /IEC 62040-1-1 / AS 62040-1-1
EN 50091-2 / IEC 62040-2 / AS 62040-2 (Class A)
EN 50091-3 / IEC 62040-3 / AS 62040-3 (VFI SS 111)
Unit of
Measurement 10 15 20
1000m (3280 ft) above sea level
de-rate power by 1% per 100m(328 ft) between
1000 and 2000 m (3280 and 6560 ft)
0 to 40 (32-104°)
above 20° (68°)
-20 to 30 (-4 to 86)°F)
°C (°F)
Battery life is halved for every 10° (18°) increase
(20°C [68°F] for optimum battery storage)

Table 31 Overall efficiency, heat losses and air exchange

Unit of
Rated Power, kVA
Normal Mode (Dual Conversion) % 89.9 90.2 90.8 ECO Mode % 95.2 96.4 97.7 Inverter Efficiency (DC/AC)(battery at nominal voltage 480VDC and full-rated linear load) Rated Power kVA 10 15 20 Battery Mode % 91.3 91.7 92.0 Rated Power kVA 10 15 20 Normal Mode (full load, battery charged) kW 1.6 1.8 2.2 ECO Mode (full load, battery charged) kW 1.3 1.4 1.4 No Load kW 1.3 1.3 1.3 Forced Air Cooling (front intake, back exhaust) L/sec (m
72
Measurement 10 15 20
3
/hr) 254 (917)
Technical Specifications

Table 32 Mechanical characteristics

Rated Power, kVA Dimensions, WxDxH mm (in) Mass
Finish N/A
Protection Degree, IEC (60529) N/A IP20 (finger-proof with front doors open or closed)

Table 33 Rectifier AC input (mains)

Rated power, kVA
Rated AC Input Voltage Input Voltage Tolerance
2
Frequency Power Factor
Input Power
Input Current Harmonic Current Distortion THDI % FL 3 3 3
Duration of Progressive Power Walk-In
1. Rectifier operates at any of the rated supply voltages and frequencies without further adjustment.
2. At 305V input mains the UPS maintains the specified output voltage at rated load without discharging a previously charged battery.
3. IEC 62040-3 / EN 50091-3: at rated load and input voltage 400V, battery charged
4. IEC 62040-3 / EN 50091-3: at rated load and input voltage 400V, battery charging at maximum rated power
Hz 50/60Hz (tolerance 40Hz to 70Hz)
Unit of
Measurement 10 15 20
600x700x1400
(23-9/16x27-5/8x55)
Mass without batteries kg (lb) 180 (397) 200 (441) 200 (441)
Pantone 877 (Silver grey)
equivalent Becker Silver epoxy polyester powder
041-37-2
Unit of
Measurement 10 15 20
1
2
kW/kVA, full load
VAC VAC 305V to 477V 304V to 208V (output derate d below 70%)
(half load)
kVA rated
3
(maximum4)
A rated
3
(maximum4)
sec
380/400/415 (3-phase and sharing neutral with the bypass
input)
0.99 (0.98)
10.0 (15.9) 13.9 (19.6) 18.4 (24.0)
15 (22) 20 (28) 27 (35)
10 seconds to reach full rated current (selectable 5 through 30
seconds in 5-second increments)
73
Technical Specifications

Table 34 Battery

Rated Power,
kVA
Battery Bus Voltage
Number of Lead-Acid Cells
Nominal 240 = [40 x 6-cell (12V) blocks]
Maximum 264 = [44 x 6-cell (12V) blocks]
Float Voltage V/cell (VRLA) Temperature
Compensation Ripple Voltage % V float 1 Ripple Current % C
Boost Voltage V/cell (VRLA)
Boost Control
End Of Discharge
Battery Charge V/cell
Battery Charging Power max current (adjustable) 1
* At low input voltage the UPS recharge capability increases with load decrease (up to the maximum capacity indicated)
1. Max currents list ed are for EOD voltage of 1.67 V/cell for 240 cells.
Intermediate DC Circuit
Unit of
Measurement 10 15 20
VDC
Nominal: 480V (VRLA Float charge is 540V)
Range: 400V - 600V
2.25 V/cell (selectable from 2.2 –2.3V/cell)
Constant current and constant voltage (IU) charge mode
mV/°C/cl - 3.0 (selectable 0 to – 5.0 around 25°C or 30°C. or inhibit)
10
5
2.35 V/cell (selectable from 2.30-2.40V/cell)
Constant current and constant voltage (IU) charge mode
- float-boost current trigger 0.050 C
- boost-float current trigger 0.010 C 24 hr safety timeout (selectable 8-30 hr)
(selectable 0.030-0.070)
10
(selectable 0.005-0.025) with
10
- boost mode inhibit also selectable
1.63 V/cell (selectable from 1.60~1.75 V/cell
V/cell (VRLA)
Auto Inverse EOD voltage x discharge current mode
(The end of discharge voltage increases at low discharge currents).
2.4 V/cell (selectable from 2.3-2.4V/cell)
Constant current and constant voltage (IU) charge mode
Programmable auto trigger or inhibit of boost mode
*
kW 2.5 5 5
A 3.75 7.5 7.5
74
Technical Specifications

Table 35 Inverter output to critical load

Rated Power, kVA (kW)
Rated AC Voltage Frequency
Overload % Rated
Fault Current % Rated 340% current limitation for 200 msec Non linear load capability Steady state voltage stability % ±1 (balanced load), ±2 (100% unbalanced load), Transient voltage response Total Harmonic Voltage
Distortion (THDV) Synchronisation - Window Rate d frequency ± 2Hz (selectable ± 0.5 to ± 3Hz)
Slew Rate (Max change rate of synch frequency)
Inverter Voltage Tolerance %V (AC) ±5
1. Factory set to 230V—220 or 240V selectable by commissioning engineer.
2. Factory set to 50Hz; 60 Hz selectable by commissioning engineer. Frequency converter operation also selectable.
3. EN 50091-3 (1.4.58) crest factor 3:1
4. IEC 62040-3 / EN 50091-3 also for 0-100-0% load transient. Transient recovery time: return to within 5% of steady state output voltage within half a cycle.
2
Unit of
Measurement 10 (8) 15 (12) 20 (16)
1
VAC
220/230/240V (single-phase, two-wire with neutral
referenced to the bypass neutral)
Hz 50 / 60
110% for 60 min 125% for 10 min
150% for 1 min
>150% for 200 msec
3
4
% Rated 100%
5
3
% < 1 (linear load), < 5 (non linear load
)
1 Hz/sec
Hz sec
selectable 0.1 to 3Hz/s (single UPS)
0.2Hz/sec (paralleled UPS)

Table 36 Bypass mains input

Rated power, kVA
Rated AC Voltage
Rated Current
Overload Capacity %
Upstream Protection, Bypass Line (by others)
Frequency
2
Transfer Time (between bypass and inverter)
Bypass Voltage Tolerance % VAC
Bypass Frequency Tolerance % ± 2.5 ± 5 ± 10 or ± 20 default ±10 Synchronisation - Window Hz Rated frequency ±2Hz (selectable ± 0.5 to ±3Hz)
1. Factory set to 230V – 220 or 240V selectable by commissioning engineer.
2. Factory set to 50Hz; 60 Hz selectable by commissioning engineer. Bypass condition ignored when UPS set as frequency converter.
1
Unit of
Measurement
10 15 20
220/230/240 V
VAC
single-phase, two-wire, sharing neutral with the rectifier input
and providing neutral reference to the output
220V A 45 68 91 230V A 43 65 87 240V A 42 63 83
135% long term
170% 10 min
1000% 100 ms
N/A
Thermomagnetic circuit breaker, rated up to 125%
of nominal output current. IEC 60947-2 curve C.
Hz 50 / 60
Synchronous transfer: ≤0.5ms
ms
Asynchronous transfer (default): 15 ms (50 Hz),
13.3 ms (60 Hz) or 40, 60, 80, 100 ms, selectable Upper limit: +10, +15 or +20, default +15
Lower limit –10, -20, -30 or -40, default: -20
(delay time to accept steady bypass voltage: 10 sec)
75
