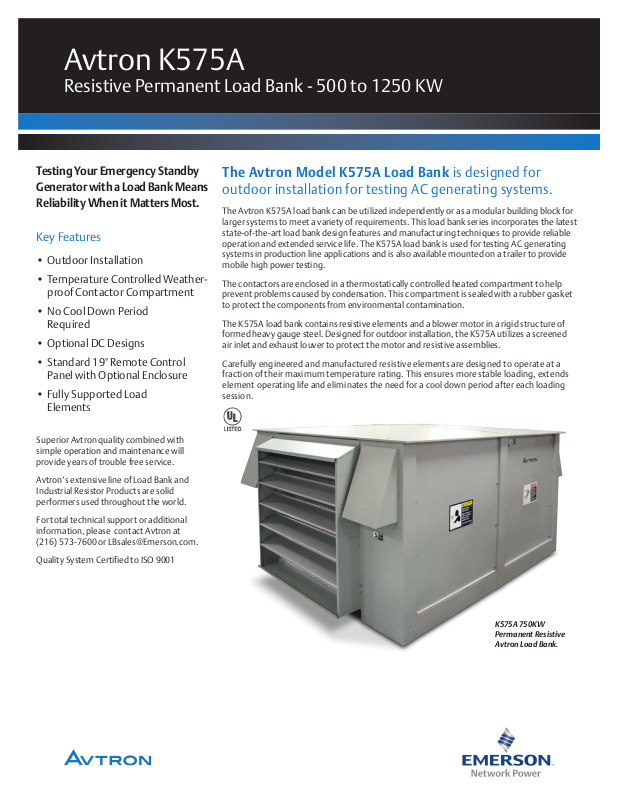

Avtron K575A
Resistive Permanent Load Bank - 500 to 1250 KW
Testing Your Emergency Standby
Generator with a Load Bank Means
Reliability When it Matters Most.
Key Features
• Outdoor Installation
• Temperature Controlled Weather proof Contactor Compartment
• No Cool Down Period
Required
• Optional DC Designs
• Standard 19" Remote Control
Panel with Optional Enclosure
• Fully Supported Load
Elements
Superior Avtron quality combined with
simple operation and maintenance will
provide years of trouble free service.
The Avtron Model K575A Load Bank is designed for
outdoor installation for testing AC generating systems.
The Avtron K575A load bank can be utilized independently or as a modular building block for
larger systems to meet a variety of requirements. This load bank series incorporates the latest
state-of-the-art load bank design features and manufacturing techniques to provide reliable
operation and extended service life. The K575A load bank is used for testing AC generating
systems in production line applications and is also available mounted on a trailer to provide
mobile high power testing.
The contactors are enclosed in a thermostatically controlled heated compartment to help
prevent problems caused by condensation. This compartment is sealed with a rubber gasket
to protect the components from environmental contamination.
The K575A load bank contains resistive elements and a blower motor in a rigid structure of
formed heavy gauge steel. Designed for outdoor installation, the K575A utilizes a screened
air inlet and exhaust louver to protect the motor and resistive assemblies.
Carefully engineered and manufactured resistive elements are designed to operate at a
fraction of their maximum temperature rating. This ensures more stable loading, extends
element operating life and eliminates the need for a cool down period after each loading
session.
Avtron’s extensive line of Load Bank and
Industrial Resis tor Products are solid
performers used throughout the world.
For total technical support or additional
information, please contact Avtron at
(216) 573-7600 or LBsales@Emerson.com.
Quality System Certified to ISO 9001
K575A 750KW
Permanent Resistive
Avtron Load Bank.
Avtron K575A
LOAD INPUT CONNECTIONS
75.25
[555.00]
Resistive Permanent Load Bank - 500 to 1250 KW
Specications subject to change without notice.
Construction
Heavy gauge steel structure provides a rigid enclosure. Removable panels with rubber gaskets
protect contactors from the weather. Screened
air inlet and louvered exhaust openings pro-
tect the load bank from foreign objects and
weather. Horizontal airflow provides maximum
protection and reliability in an outdoor environment. Upright construction minimizes footprint. Permanent base is designed for mounting
on floor, roof, or cement pad and is equipped
with built-in forklift channels.
Resistor Elements
The resistive elements are designed by Avtron
and manufactured of a corrosion resistant
chromium alloy wire. Resistive elements are
fully supported over their entire length for
improved operating life.
Control Power
The K575A requires control power of 120
volts, single phase, 60 Hz, 15 amps (control
transformer optional).
Cooling
The resistive elements are air cooled by a selfcontained 5 HP (750 KW) or 10 HP (1000 and
1250 KW) blower required 460 volts, 3 phase,
60 Hz power. No additional cooling period is
required when load is removed from the elements. Other blower voltages are available.
Controls
Contactors are protected in a thermostatically controlled, heated compartment. The
19" rack-mounted control panel for indoor
use includes a POWER ON-OFF switch, a
POWER ON light, BLOWER ON-OFF push button with a BLOWER FAILURE light, OVERTEMPERATURE and UTILITY LOSS light, MASTER
LOAD ON-OFF switch, and load step switches.
A voltage selector switch is provided for dual
voltage load banks.
Protection
The K575A differential pressure air switch is
electrically interlocked to remove the load if
the air flow is not sufficient to produce proper
cooling. Overtemperature protection and
branch circuit fusing is also provided.
Emerson Network Power
Avtron • 6255 Halle Drive, Cleveland, Ohio 44125, U.S.A.
216-573-7600 • FAX: 216-573-5953 • LBsales@Emerson.com
EmersonNetworkPower.com/loadbank
Load Capacity Ratings: (3 phase, 60 Hz)
Available Load Step Resolution: 5 or 50 KW
Rated KW 240/480 VAC 480 VAC
NOTE Other Voltages and DC designs available.
Consult factory.
500
600
750
1000
1250
Load Bank Weight (approx.)
[1911.00]
50.50
[1283.00]
END VIEW
AIR INTAKE
CUSTOMER
CONTROL
CONNECTIONS
AIR IN
SCREENED
25.82
[656.00]
21.88
Emerson. Consider it Solved and Emerson Network Power are trademarks of Emerson Electric Co.
or one of its afliated companies. All the other marks are the property of their respective owners.
Communicator EXT™ is a trademark of Electro Industries/GaugeTech. ADMS™ is a trademark of Avtron.
SIGMA™ is a trademark of NJ Froment & Co. Ltd. Specications subject to change without notice.
©2015 Emerson Network Power Bulletin 416• Rev. D
A
B
C
1800 lbs. [816.5 kg]
Options
• SIGMA™ Network Control
• ADMS™ Digital Metering (V, A, KW, Hz)
with Communicator EXT™ Data Logging
Software
• Meter and Control Panel Enclosure
• 230/460, 208, 230, or 575 V Blower
• Control Transformer for 208, 230, 460,
230/460, or 575 Volt Power
36.00
[914.40]
ALLOW 36” MIN
CLEARANCE FOR
MAINTENANCE
GUARD
SCREEN
84.00
[2133.00]
All dimensions are in inches [millimeters].
5.69
[144.00]
REMOVABLE
ACCESS
PANELS
BOTH SIDES
AIR OUT
SCREENED
LOUVERED
PANEL
