Emerson ES20 User Manual

MICRO CD SYSTEM

TM

with DIGITAL TUNER,

THINOVATION

™

FLAT PANEL SPEAKERS
and BUILT IN SUBWOOFER

OWNER'S MANUAL

ES20

Visit our web site at www.emersonradio.com

ES20_ib061303.p65 13/6/2003, 12:1336

!

CAUTION

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE
OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrow­head symbol, within an equi­lateral triangle is intented to
alert the user to the presence
of uninsulated ‘dangerous voltage’
within the product’s enclosure
that may be of sufficient
magnitude to constitute a risk
of electric shock to persons.

WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER
(OR BACK) , NO USER
SERVICEABLE PARTS INSIDE
REFER S ERVICING TO
Q U A L I F I E D S E R V I C E
PERSONNEL.

The exclamation point within
an equilateral triangle is in­tended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in
the literature accompany­ing the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1.) Read these instructions.

2.) Keep these instructions.

3.) Heed all warnings.

4.) Follow all instructions.

5.) Do not use this apparatus near water.

6.) Clean only with dry cloth.

7.) Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.

8.) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.

9.) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.

11.) Only use attachments / accessories specified by the manufacturer.

12.) Unplug this apparatus during lightning storms or when unused for long periods of time.

13.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.

14.) This appliance shall not be exposed to dripping or splashing water and no object filled with
liquids such as vases shall be placed on the apparatus.

15.) Do not overload wall outlet. Use only power source as indicated.

16.) Use replacement parts as specified by the manufacturer.

17.) The product may be mounted to a wall only if recommended by the manufacturer.

18.) Upon completion of any service or repairs to this product, ask the service technician to
perform safety checks.

1

ES20_ib061303.p65 13/6/2003, 12:131

Thank you…………

For purchasing this Emerson Research Micro Audio System with the unique
Thinovation™ flat panel speakers, using the latest SLAB™ flat technology
from Slab Sound. We think you will be truly amazed by the sound produced
by these patented speakers that are less than one inch deep!

This system includes a digital tuner with 20 preset station memory, a CD
player with 20 track programmable memory, a clock timer so that you can
set to sleep or wake to the radio or your favorite CD, a built in compact
subwoofer for dynamic bass, and a full function remote control.

Please make sure to read this manual carefully and completely to make
sure that you understand all the functions we have included in this system
and get the maximum enjoyment from all the outstanding features.

This system was in perfect working order when it left our factory. If you
encounter any problems with the set-up or operation of this system, please
do not return it to the retail store. Please call the Emerson Research
Customer Service Hot Line Toll Free at 800-898-9020. One of our service
representatives will try to diagnose and correct the problem for you.

Once again, thanks for purchasing this Emerson Research audio product.
For future reference, record the serial number in the space provided.

Model No: ES20
Serial No:

AND ARE THE TRADEMARKS OF SLAB TECHNOLOGY LIMITED

AND NEW TRANSDUCERS LIMITED. ALL PATENT RIGHTS RESERVED.

2

ES20_ib061303.p65 13/6/2003, 12:132

IMPORTANT NOTES

• Av oid installing this unit in places

exposed to direc t sunlight or close to
heat radiating appli ances such as
electric heaters, on top of other stereo
equipment that radiates too much heat,
places lacking ventilation or dusty areas,
places subject to constant vibration and/
or humid or moist areas.

• Do not attempt to clean this unit with

chemical solvents as this might damage

• Operate controls and s witches as
described in the manual.

• Before turni ng ‘On’ the power, make
certain that power c ord is properly
installed.

• Store your CDs, in a cool area to avoid
damage from heat.

• When moving the set, be sure to fi rst
disconnect the power cord.

the finish. Use a clean dry cloth.

CLASS 1 LASER PRODUCT

CLASS 1 LASER PRODUCT

APPAREIL Á LASER DE CLASSE 1

PRODUCTO LASER DE CLASE 1

This product contains a low power Laser Device.

FCC INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital
device, purs uant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may caus e harmful interference to radio
communications. Howev er, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that

may cause undesired operation.

CAUTION

INVISIBLE LASER RADIATION

WHEN OPEN AND INTERLOCKS

DEFEATED.

AVOID EXPOSURE TO BEAM

ES20_ib061303.p65 13/6/2003, 12:133

3

PREPARATION FOR USE

UNPACKING AND SET UP

• This system consists of the following components: Tuner/CD Player unit,

Amplifier/Subwoofer unit, 2 “Thinovation™ ” Flat Panel Speakers, and Remote
Control.

Carefully remove all the components from the display carton and verify that
you have all the necessary components before you dispose of the display
carton.

• Remove all packing materials from the individual components. Remove any

descriptive labels that may be attached to the front panel of the main unit. Do
not remove any labels or stickers on the back panels of the main unit or the
speakers.

• Remove any small strips of tape that may have been used to prevent the CD

door from opening in transit.

• Place all the components in the desired location. This system is designed to

be used on level, stable, flat surface such as a table, desk, shelf, or stand,
convenient to an AC outlet, out of direct sunlight, and away from sources of
excess heat, dust, moisture, or vibration.

• Unwind the AC power cord on the back of the Amplifier/Subwoofer unit and

extend the cord to its full length.

• Unwind the lead wire FM antenna on the back of the Tuner/CD Player unit and

extend it to its full length.

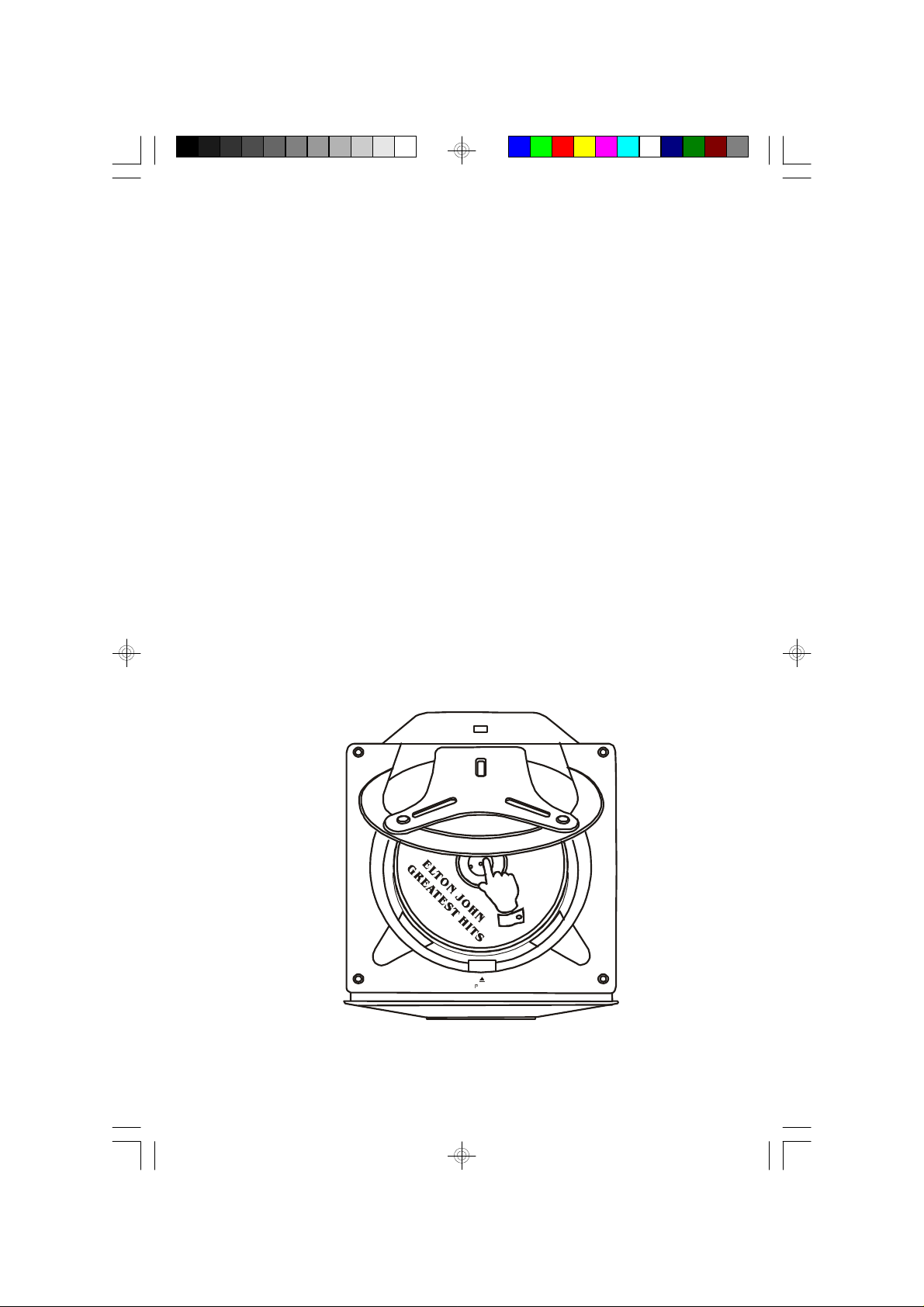

• The main unit is shipped with a “dummy CD” display card in the CD player.

This “dummy CD” card must be removed before you can use the CD player.
Refer to the “PLAYING COMPACT DISCS” instructions on Page 21.

4

ES20_ib061303.p65 13/6/2003, 12:134

POWER SOURCE

AC Outlet

RLON

OFF

This system is designed to operate on 120V AC 60Hz house current only.
Connecting this system to any other power source may cause damage to the
system and such damage is not covered by your warranty.

NOTE: The system has polarized AC plug with one wide blade and one narrow

blade. The plug will only fit into matc hing polarized AC outlets. This is a safety
feature to reduce the possibility of electric shock. If the plug will not fit in your AC
outlets, you probably have outdated
non-polarized outlet. You should
have your outdated outlet changed
by a qualified, licensed electrician.
Do not file the wide blade on the plug,
or use an adapter to make the plug
fit into your outlet. This defeats the
safety feature and could expose you to electric shock.

AC Plug

MAIN POWER SWITCH

IMPORTANT: The main power switch is located on the back of the Amplifier/

Subwoofer unit. This switch must be ‘ON’ for the system to operate. The main
power switch should be left in the ‘ON” position at all times. The only time you
should set this switch back to the ‘OFF’ position is if you will not be using the
system for an extended period of time – for example, two weeks or longer. The
remote controller cannot operate the system if main power switch is in the ‘OFF’
position.

MAIN SWITCH

5

ES20_ib061303.p65 13/6/2003, 12:135

BATTERY BACK UP

This system includes a battery back up circuit that will maintain the Tuner preset
station memories and the correct time in the event of a power interruption. The
battery back up circuit requires 4 “AAA” batteries, not included.

1.) The battery compartment is located on the bottom of the Tuner/CD Player

unit. Turn the Tuner/CD Player unit upside down.

NOTE: Place the unit on a soft surface such as a towel to avoid scratching
the finish on the top of the cabinet.

2.) Push the door locking tab in the direction of the arrow to open the battery door

and insert 4 “AAA” alkaline batteries according to the polarity markings inside
the battery compartment.

Bottom View Of Tuner/CD Unit

3.) Replace the battery door.

ES20_ib061303.p65 13/6/2003, 12:136

6

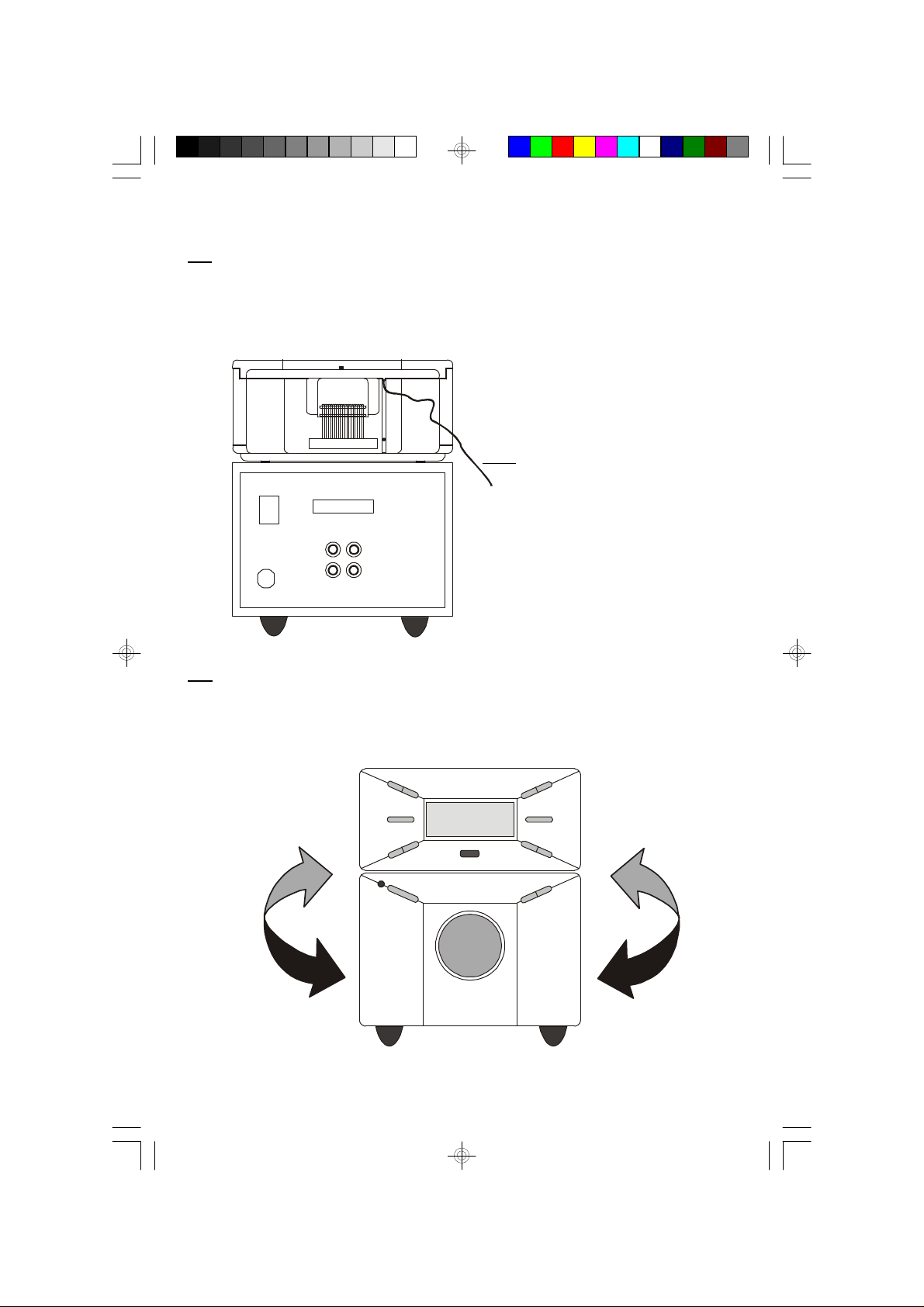

SYSTEM CONNECTION

L

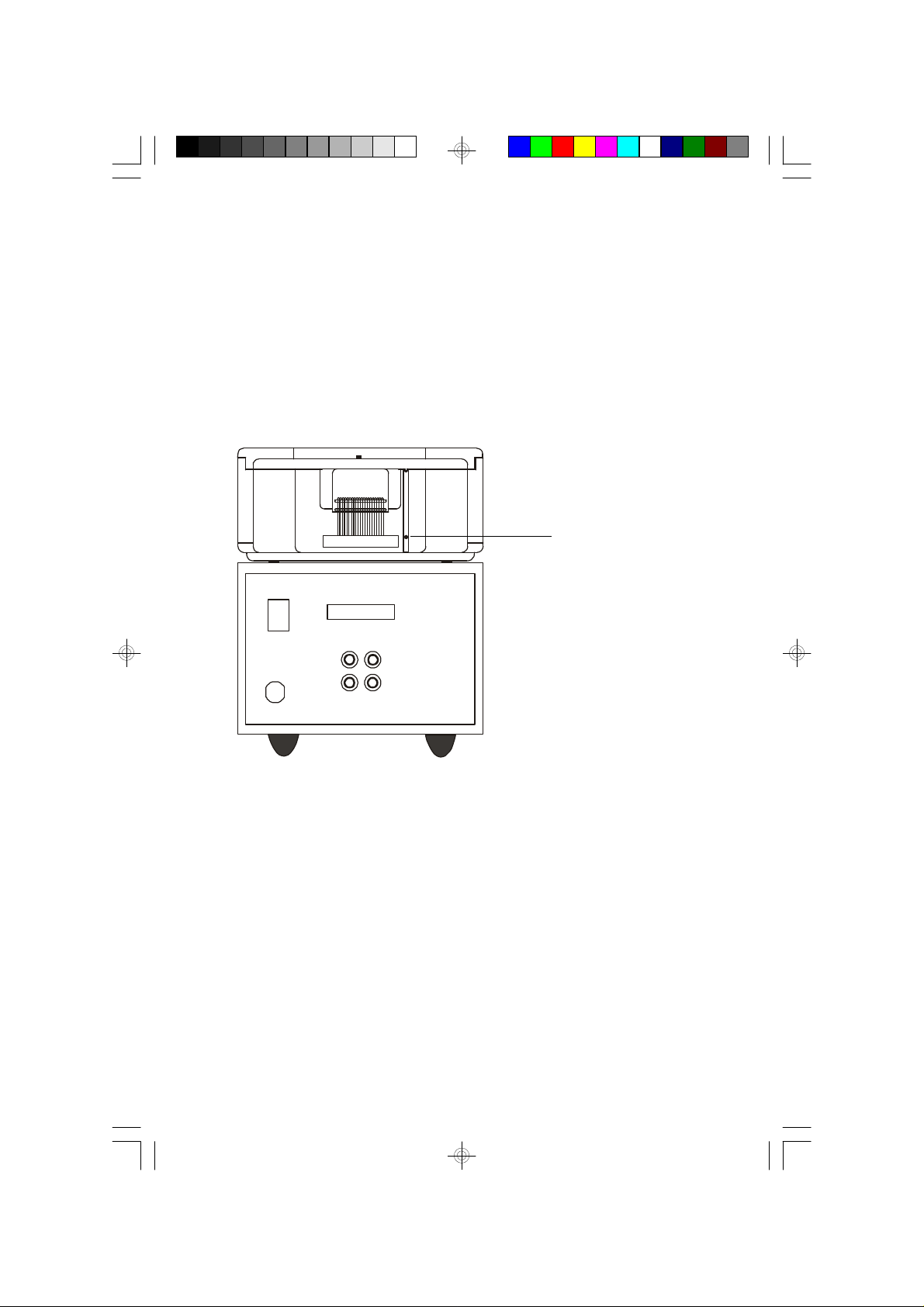

Place the Tuner/CD Player unit on top of the Amplifier/Subwoofer unit. Note that
there is a multi-pin ribbon cable permanently attached to the back of the Tuner/CD
Player unit. The multi-pin plug at the end of this ribbon cable must be connected to
the multi-pin socket on the back of the Amplifier/Subwoofer unit.

SPEAKER CONNECTIONS

Connect the two “Thinovation™ ” Flat Panel speakers to the color-coded “L” and
“R” speaker jacks on the back of the Amplifier/Subwoofer unit. Make sure that the
speaker plugs are fully inserted into the speaker jacks. If the plugs are loose the
connection may be intermittent.

R

7

ES20_ib061303.p65 13/6/2003, 12:137

AUXILIARY SOURCE CONNECTIONS

From External Audio Source

You can listen to the sound from external audio sources through the speakers of
this system. Connect the Aux/Line/Audio Output Jacks of the external audio source
to the AUX Input Jacks on the back panel of this system.

Note: Connection cables are not included.

Examples of audio sources that can be connected to this system are: Cassette
Player, Mini Disc Player, the sound from your TV, VCR, DVD player, etc.

Instructions for listening to external audio sources will be found later in this manual.

8

ES20_ib061303.p65 13/6/2003, 12:138

INSTALLING THE REMOTE CONTROL BATTERIES

1.) Slide the door in the direction of the arrow.

2.) Insert two “AAA” batteries in the compartment.

Follow the polarity markings engraved inside the
compartment. If the batteries are inserted incorrectly
the remote control will not work.

3.) Replace the battery door.

Notes: Use a well-known brand of alkaline batteries for longest life and best
performance. When the remote operation becomes intermittent replace both
batteries at the same time. Do not mix different types of batteries, such as
alkaline and carbon zinc batteries.

PROTECT YOUR FURNITURE !!

This model is equipped with non-skid rubber 'feet' to prevent the product
from moving when you operate the controls. These 'feet' are made from
non-migrating rubber material specially formulated to avoid leaving any
marks or stains on your furniture. However certain types of oil based
furniture polishes, wood preservatives, or cleaning sprays may cause the
rubber 'feet' to soften, and leave marks or a rubber residue on the furniture.
To prevent any damage to your furniture we strongly recommend that you
purchase small self-adhesive felt pads, available at hardware stores and
home improvement centers everywhere, and apply these pads to the bottom
of the rubber 'feet' before you place the product on fine wooden furniture.

BATTERY PRECAUTIONS

Follow these precautions when using batteries in this device:

1. Use only the size and type of batteries specified.

2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery
compartment. Reversed batteries may cause damage to the device.

3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-Zinc) or old batteries
with fresh ones.

4. If the device is not to be used for a long period of time, remove the batteries to prevent
damage or injury from possible battery leakage.

5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.
(Follow battery manufacturer’s directions.)

9

ES20_ib061303.p65 13/6/2003, 12:139

LOCATION OF CONTROLS AND INDICATORS

FRONT VIEW

10

9
8

7
6
5

4
3

2

1

BACK VIEW

25

11
12

13
14
15

16
17

18
19

24

23

22

21

20

ES20_ib061303.p65 13/6/2003, 12:1310

ON

OFF

R

SPEAKERS

10

AUX

26

27

28

L

29

30
