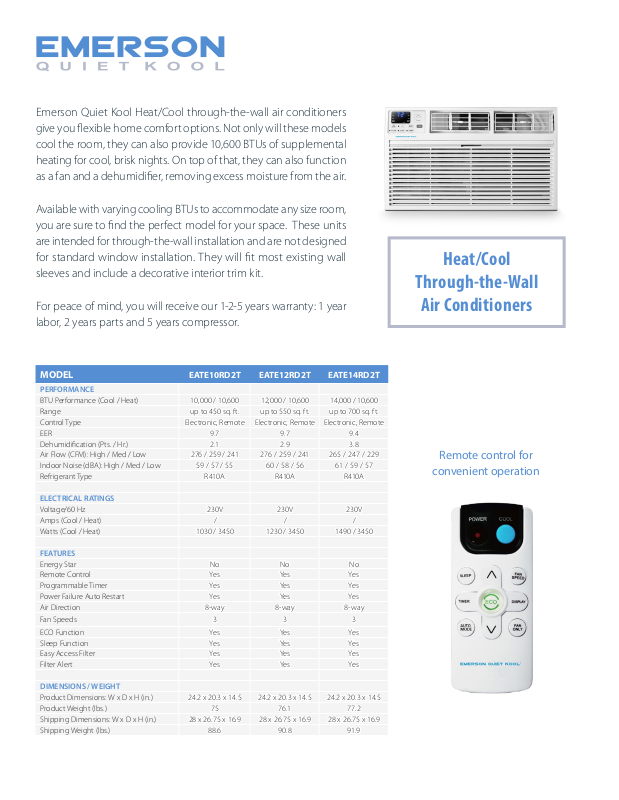

Emerson Quiet Kool Heat/Cool through-the-wall air conditioners
give you exible home comfort options. Not only will these models
cool the room, they can also provide 10,600 BTUs of supplemental
heating for cool, brisk nights. On top of that, they can also function
as a fan and a dehumidier, removing excess moisture from the air.
Available with varying cooling BTUs to accommodate any size room,
you are sure to nd the perfect model for your space. These units
are intended for through-the-wall installation and are not designed
for standard window installation. They will t most existing wall
sleeves and include a decorative interior trim kit.
Heat/Cool
Through-the-Wall
For peace of mind, you will receive our 1-2-5 years warranty: 1 year
labor, 2 years parts and 5 years compressor.
MODEL
PERFORMANCE
BTU Performance (Cool / Heat) 10,000 / 10,600 12,000 / 10,600 14,000 / 10,600
Range up to 450 sq. ft. up to 550 sq. ft. up to 700 sq. ft.
Control Type Electronic, Remote Electronic, Remote Electronic, Remote
EER 9.7 9.7 9.4
Dehumidication (Pts. / Hr.) 2.1 2.9 3.8
Air Flow (CFM): High / Med / Low 276 / 259 / 241 276 / 259 / 241 265 / 247 / 229
Indoor Noise (dBA): High / Med / Low 59 / 57 / 55 60 / 58 / 56 61 / 59 / 57
Refrigerant Type R410A R410A R410A
ELECTRICAL RATINGS
Voltage/60 Hz 230V 230V 230V
Amps (Cool / Heat) / / /
Watts (Cool / Heat) 1030 / 3450 1230 / 3450 1490 / 3450
FEATURES
Energy Star No No No
Remote Control Yes Yes Yes
Programmable Timer Yes Yes Yes
Power Failure Auto Restart Yes Yes Yes
Air Direction 8-way 8-way 8-way
Fan Speeds 3 3 3
ECO Function Yes Yes Ye s
Sleep Function Yes Ye s Yes
Easy Access Filter Yes Yes Yes
Filter Alert Yes Yes Yes
EATE10RD2T EATE12RD2T EATE14RD2T
Air Conditioners
Remote control for
convenient operation
DIMENSIONS / WEIGHT
Product Dimensions: W x D x H (in.) 24.2 x 20.3 x 14.5 24.2 x 20.3 x 14.5 24.2 x 20.3 x 14.5
Product Weight (lbs.) 75 76.1 77.2
Shipping Dimensions: W x D x H (in.) 28 x 26.75 x 16.9 28 x 26.75 x 16.9 28 x 26.75 x 16.9
Shipping Weight (lbs.) 88.6 90.8 91.9
