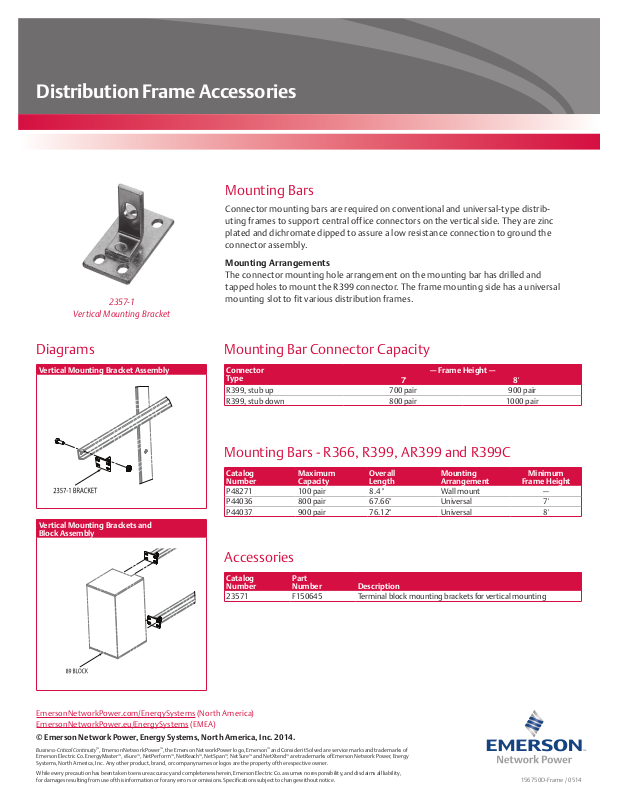

Distribution Frame Accessories

Mounting Bars

Connector mounting bars are required on conventional and universal-type distrib­uting frames to support central office connectors on the vertical side. They are zinc
plated and dichromate dipped to assure a low resistance connection to ground the
connector assembly.

Mounting Arrangements
The connector mounting hole arrangement on the mounting bar has drilled and
tapped holes to mount the R399 connector. The frame mounting side has a universal

2357-1

Vertical Mounting Bracket

mounting slot to fit various distribution frames.

Diagrams

Vertical Mounting Bracket Assembly

Vertical Mounting Brackets and
Block Assembly

Mounting Bar Connector Capacity

Connector
Typ e

R399, stub up 700 pair 900 pair
R399, stub down 800 pair 1000 pair

7' 8'

— Frame Height —

Mounting Bars - R366, R399, AR399 and R399C

Catalog
Number

P48271 100 pair 8.4 " Wall mount —
P44036 800 pair 67.66" Universal 7'
P44037 900 pair 76.12" Universal 8'

Maximum
Capacity

Overall
Length

Mounting
Arrangement

Minimum

Frame Height

Accessories

Catalog
Number

23571 F150645 Terminal block mounting brackets for vertical mounting

Part
Number

Description
