Daniel Model 788 DVC digital control valves

2", 3", 4", 6" and 8" sizes

This page intentionally left blank.

Important safety instructions

Daniel Measurement and Control, Inc. (Daniel) designs, manufactures and tests products to function within specific conditions. Because these products are sophisticated technical instruments, it is important that the owner and operation personnel strictly adhere both to the information printed on the product nameplate and to all instructions provided in this manual prior to installation, operation, and maintenance.

Daniel also urges you to integrate this manual into your training and safety program.

BE SURE ALL PERSONNEL READ AND FOLLOW THE INSTRUCTIONS IN THIS MANUAL AND ALL NOTICES AND PRODUCT WARNINGS.

Installing, operating or maintaining a Daniel Product improperly could lead to serious injury or death from explosion or exposure to dangerous substances. To reduce this risk:

• Comply with all information on the product, in this manual, and in any local and national codes that apply to the product.

• Do not allow untrained personnel to work with this product.

Use Daniel parts and work procedures specified in this manual.

Product owners (Purchasers):

• Use the correct product for the environment and pressures present. See technical data or product specifications for limitations. If you are unsure, discuss your needs with your Daniel representative.

• Inform and train all personnel in the proper installation, operation, and maintenance of this product.

• To ensure safe and proper performance, only informed and trained personnel should install, operate, repair and maintain this product.

• Verify that this is the correct instruction manual for your Daniel product. If this is not the correct documentation, contact Daniel at 1-713-827-6314. You may also download the correct manual from:

http://www.daniel.com

• If you resell or transfer this product, it is your responsibility to forward this instruction manual along with the product to the new owner or transferee.

• ALWAYS READ AND FOLLOW THE INSTALLATION, OPERATIONS, MAINTENANCE AND TROUBLESHOOTING MANUAL(S) AND ALL PRODUCT WARNINGS AND INSTRUCTIONS.

• Do not use this equipment for any purpose other than its intended service. This may result in property damage and/or serious personal injury or death.

Product operation personnel:

• To prevent personal injury, personnel must follow all instructions of this manual prior to and during operation of the product.

• Follow all warnings, cautions, and notices marked on, and supplied with, this product.

• Read and understand all instructions and operating procedures for this product.

• If you do not understand an instruction, or do not feel comfortable following the instructions, contact your Daniel representative for clarification or assistance.

• Install this product as specified in the INSTALLATION section of this manual per applicable local and national codes.

• Follow all instructions during the installation, operation, and maintenance of this product.

• Connect the product to the proper pressure sources when and where applicable.

• Ensure that all connections to pressure and electrical sources are secure prior to, and during, equipment operation

• Use only replacement parts specified by Daniel. Unauthorized parts and procedures can affect this product's performance, safety, and invalidate the warranty. "Look-a-like" substitutions may result in deadly fire, explosion, release of toxic substances or improper operation.

• Save this instruction manual for future reference.

Safety signal words and symbols

Pay special attention to the following signal words, safety alert symbols and statements:

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

Warning indicates a hazardous situation which, if not avoided, could result in death or serious injury.

Caution indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

Notice is used to address safety messages or practices not related to personal injury.

Safety alert symbol

This is a safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

This page intentionally left blank.

Notice

THE CONTENTS OF THIS PUBLICATION ARE PRESENTED FOR INFORMATIONAL PURPOSES ONLY, AND WHILE EVERY EFFORT HAS BEEN MADE TO ENSURE THEIR ACCURACY, THEY ARE NOT TO BE CONSTRUED AS WARRANTIES OR GUARANTEES, EXPRESSED OR IMPLIED, REGARDING THE PRODUCTS OR SERVICES DESCRIBED HEREIN OR THEIR USE OR APPLICABILITY. ALL SALES ARE GOVERNED BY DANIEL’S TERMS AND CONDITIONS, W HICH ARE AVAILABLE UPON REQUEST. WE RESERVE THE RIGHT TO MODIFY OR IMPROVE THE DESIGNS OR SPECIFICATIONS OF SUCH PRODUCTS AT ANY TIME.

DANIEL DOES NOT ASSUME RESPONSIBILITY FOR THE SELECTION, USE OR MAINTENANCE OF ANY PRODUCT. RESPONSIBILITY FOR PROPER SELECTION, USE AND MAINTENANCE OF ANY DANIEL PRODUCT REMAINS SOLELY WITH THE PURCHASER AND END-USER.

TO THE BEST OF DANIEL’S KNOWLEDGE THE INFORMATION HEREIN IS COMPLETE AND ACCURATE. DANIEL MAKES NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE WITH RESPECT TO THIS MANUAL AND, IN NO EVENT, SHALL DANIEL BE LIABLE FOR ANY INCIDENTAL, PUNITIVE, SPECIAL OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PRODUCTION, LOSS OF PROFITS, LOSS OF REVENUE OR USE AND COSTS INCURRED INCLUDING WITHOUT LIMITATION FOR CAPITAL, FUEL AND POWER, AND CLAIMS OF THIRD PARTIES.

PRODUCT NAMES USED HEREIN ARE FOR MANUFACTURER OR SUPPLIER IDENTIFICATION ONLY AND MAY BE TRADEMARKS/REGISTERED TRADEM ARKS OF THESE COMPANIES.

DANIEL AND THE DANIEL LOGO ARE REGISTERED TRADEMARKS OF DANIEL INDUSTRIES, INC. THE EMERSON LOGO IS A TRADEMARK AND SERVICE MARK OF EMERSON ELECTRIC CO.

BY DANIEL MEASUREMENT AND CONTROL, INC.

HOUSTON, TEXAS, U.S.A.

copied in any form or by any means - graphic, electronic or

mechanical - without first receiving the written permission of

Daniel Measurement and Control, Inc., Houston, Texas, U.S.A.

Warranty and limitation of liability

1. LIMITED WARRANTY: Subject to the limitations contained in Section 2 herein, D aniel Measurement & Control,

Inc. (“Daniel”) warrants that the licensed firmware embodied in the Goods will execute the programming instructions provided by Daniel, and that the Goods manufactured by Daniel will be free from defects in materials or workmanship under normal use and care and Services will be performed by trained personnel using proper equipment and instrumentation for the particular Service provided. The foregoing warranties will apply until the expiration of the applicable warranty period. Goods are warranted for twelve (12) months from the date of initial installation or eighteen (18) months from the date of shipment by Daniel, whichever period expires first. Consumables and Services are warranted for a period of 90 days from the date of shipment or completion of the Services. Products purchased by Daniel from a third party for resale to Buyer (“Resale Products”) shall carry only the warranty extended by the original manufacturer. Buyer agrees that Daniel has no liability for Resale Products beyond making a reasonable commercial effort to arrange for procurement and shipping of the Resale Products. If Buyer discovers any warranty defects and notifies Daniel thereof in writing during the applicable warranty period, Daniel shall, at its option, correct any errors that are found by Daniel in the firmware or Services or repair or replace F.O.B. point of manufacture that portion of the Goods or firmware found by Daniel to be defective, or refund the purchase price of the defective portion of the Goo ds/Services. All replac ements or repairs necessitated by inadequate maintenance, normal wear and usage, unsuitab le power sources or environmental conditions, accident, misuse, improper installation, modification, repair, use of unauthorized replacement parts, storage or handling, or any other cause not the fault of Daniel are not covered by this limited warranty, and shall be at Buyer’s expense. Daniel shall not be obligated to pay any costs or charges incurred by Buyer or any other party except as may be agreed upon in writing in advance by Daniel. All costs of dismantling, reinstallation and freight and the time and expenses of Daniel’s personnel and representatives for site travel and diagnosis under this warranty clause shall be borne by Buyer unless accepted in writing by Daniel. Goods repaired and parts replaced by Daniel during the warranty period shall be in warranty for the remainder of the original warranty period or ninety (90) days, whichever is longer. This limited warranty is the only warranty made by Daniel and can be amended only in a writing signed by Daniel. THE WARRANTIES AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE. THERE ARE NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, AS TO MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE OR ANY OTHER MATTER WITH RESPECT TO ANY OF THE GOODS OR SERVICES. Buyer acknowledges and agrees that corrosion or erosion of materials is not covered by this warranty.

2. LIMITATION OF REMEDY AND LIABILITY: DANIEL SHALL NOT BE LIABLE FOR DAMAGES CAUSED

BY DELAY IN PERFORMANCE. THE REMEDIES OF BUYER SET FORTH IN THIS AGREEMENT ARE EXCLUSIVE. IN NO EVENT, REGARDLESS OF THE FORM OF THE CLAIM OR CAUSE OF ACTION (WHETHER BASED IN CONTRACT, INFRINGEMENT, NEGLIGENCE, STRICT LIABILITY, OTHER TORT OR OTHERWISE), SHALL DANIEL’S LIABILITY TO BUYER AND/OR ITS CUSTOMERS EXCEED THE PRICE TO BUYER OF THE SPECIFIC GOODS MANUFACTURED OR SERVICES PROVIDED BY DANIEL GIVING RISE TO THE CLAIM OR CAUSE OF ACTION. BUYER AGREES THAT IN NO EVENT SHALL DANIEL’S LIABILITY TO BUYER AND/OR ITS CUSTOMERS EXTEND TO INCLUDE INCIDENTAL, CONSEQUENTIAL OR PUNITIVE DAMAGES. THE TERM “CONSEQUENTIAL DAMAGES” SHALL INCLUDE, BUT NOT BE LIMITED TO, LOSS OF ANTICIPATED PROFITS, REVENUE OR USE AND COSTS INCURRED INCLUDING

WITHOUT LIMITATION FOR CAPITAL, FUEL AND POWER, AND CLAIMS OF BUYER’S CUSTOMERS.

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

TABLE OF CONTENTS

1.0 INTRODUCTION ..................................................... 1-1

1.1 Aggressive Products.............................................. 1-1

1.2 Principle of Operation ............................................ 1-2

2.0 THEORY OF OPERATION ............................................. 2-1

2.1 Operational Sequence ............................................ 2-1

3.0 SPECIFICATIONS .................................................... 3-1

4.0 INSTALLATION AND MAINTENANCE.................................. 4-1

4.1 Recommended Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

4.2 General Considerations as Applied to the DL8000 . . . . . . . . . . . . . . . . . . . . . . 4-2

5.0 CYLINDER DISASSEMBLY AND REASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

5.1 Cylinder Assembly Removal ....................................... 5-1

5.2 Cylinder Disassembly ............................................ 5-2

5.3 Cylinder Reassembly ............................................. 5-4

5.4 Cup-Seal Replacement on Existing “AP” Option Board . . . . . . . . . . . . . . . . . . 5-5

6.0 TROUBLESHOOTING................................................. 6-1

7.0 PARTS LIST ......................................................... 7-1

TABLE OF CONTENTS i

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

Figures

2-1 Closed Position ....................................................... 2-2

2-2 Open - Control Position ................................................. 2-3

2-3 Open Position (no control)............................................... 2-4

3-1 Flow vs Pressure Drop.................................................. 3-3

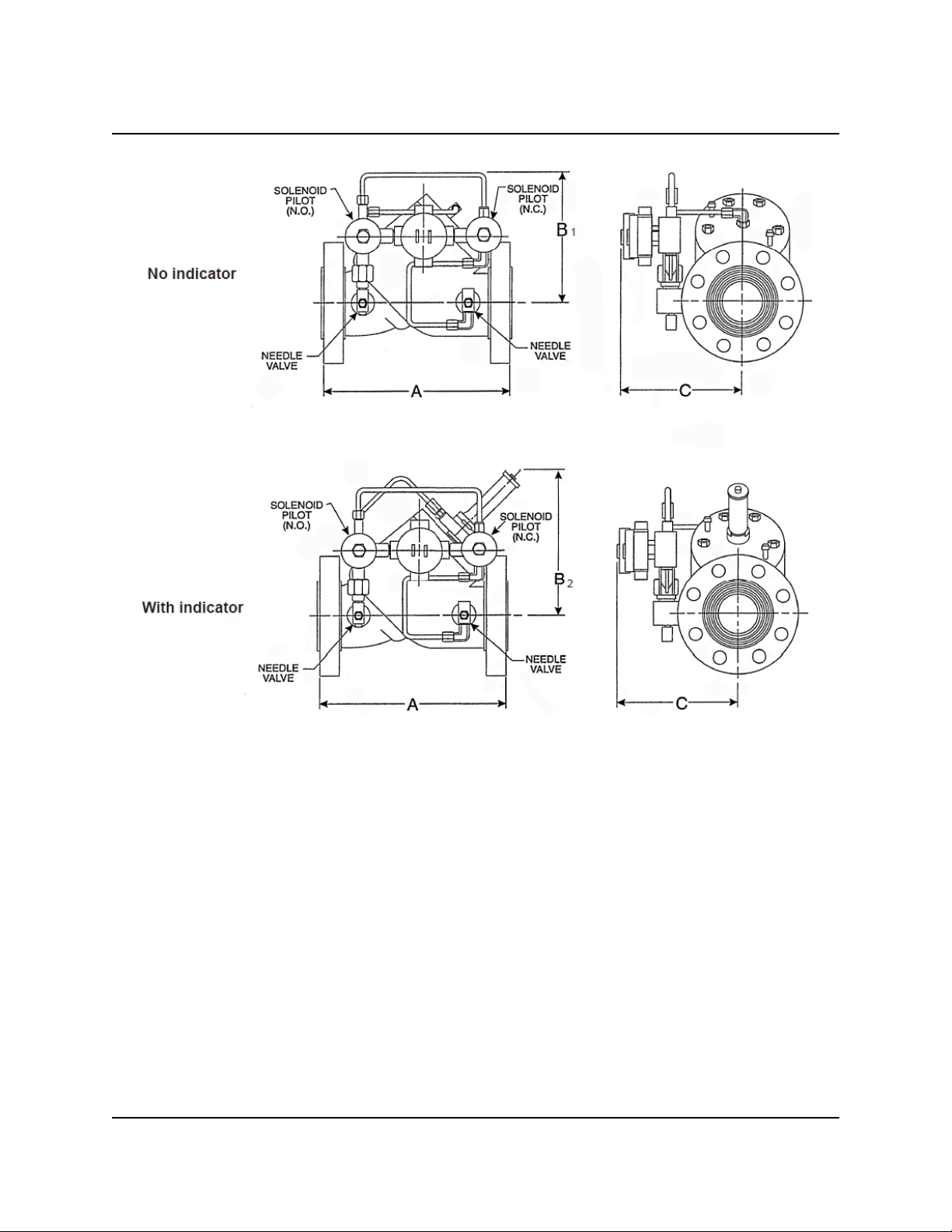

3-2 Dimensions .......................................................... 3-6

4-1 Typical Application - Bottom Loading ..................................... 4-4

4-2 Solenoid Actuation Adjustments .......................................... 4-5

4-3 Control Valve Configuration (new for DL8000) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

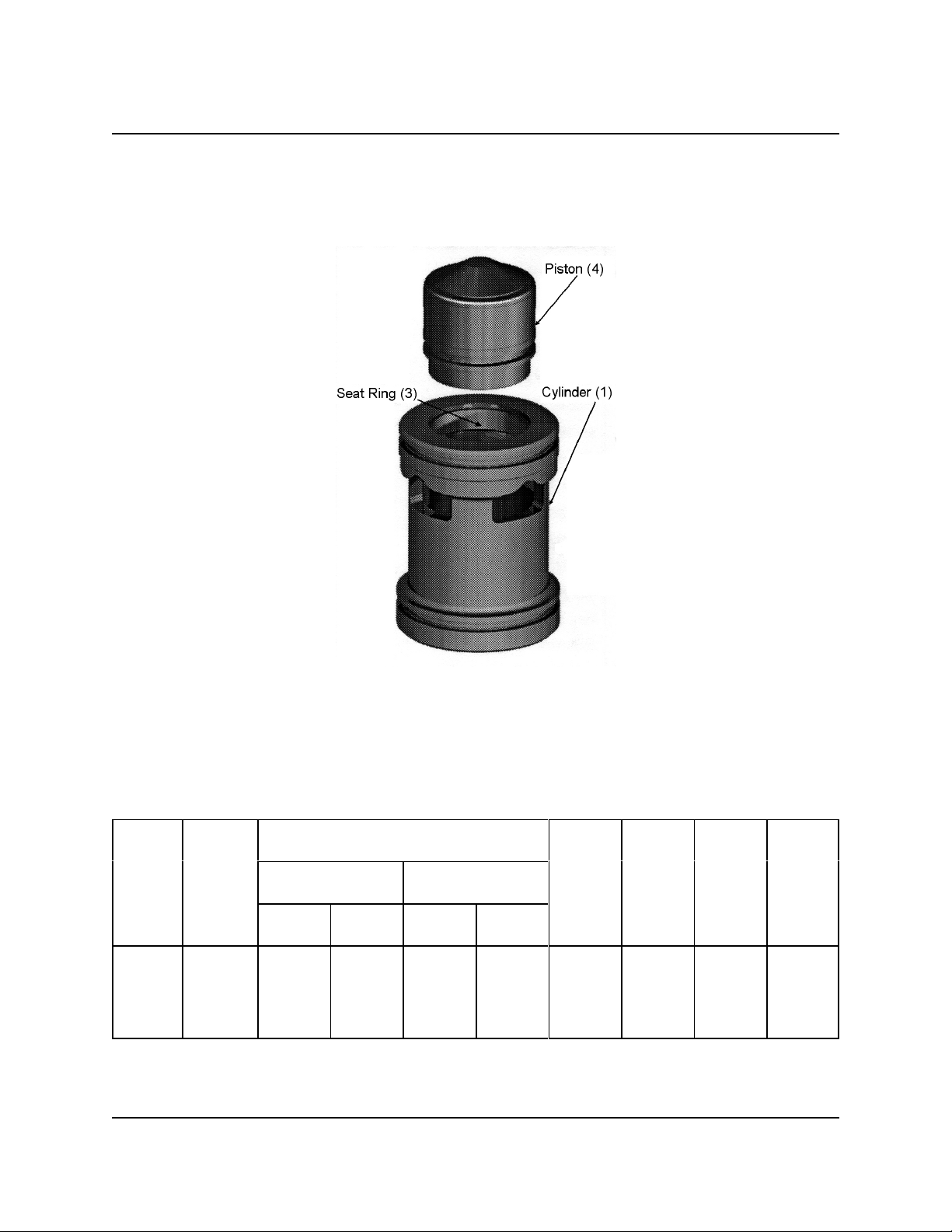

5-1 Using the Piston to Insert the Seat Ring into the 150/300 lb. Cylinder . . . . . . . . . . . . . 5-3

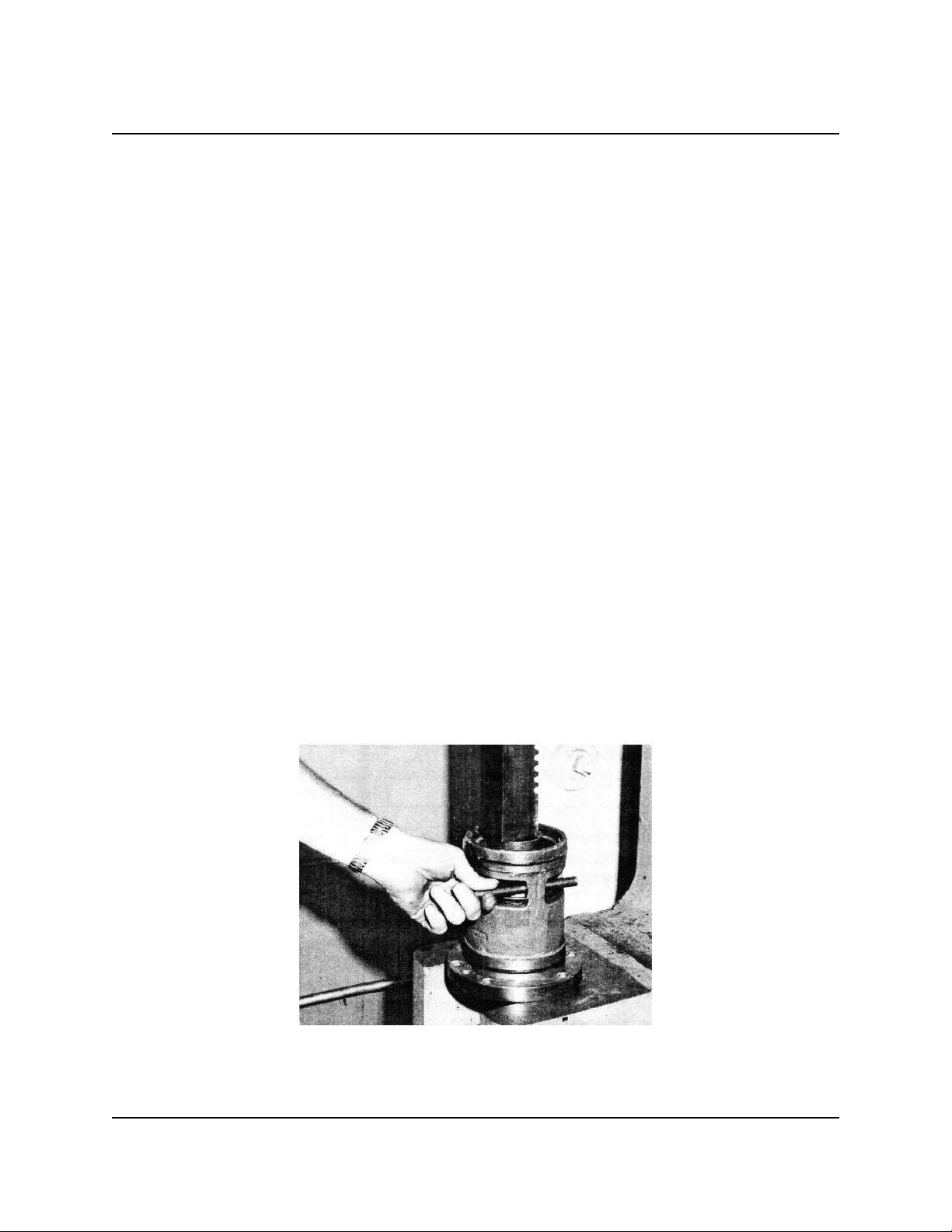

5-2 Cylinder Assembly Removal ............................................. 5-4

5-3 Option Assembly ...................................................... 5-6

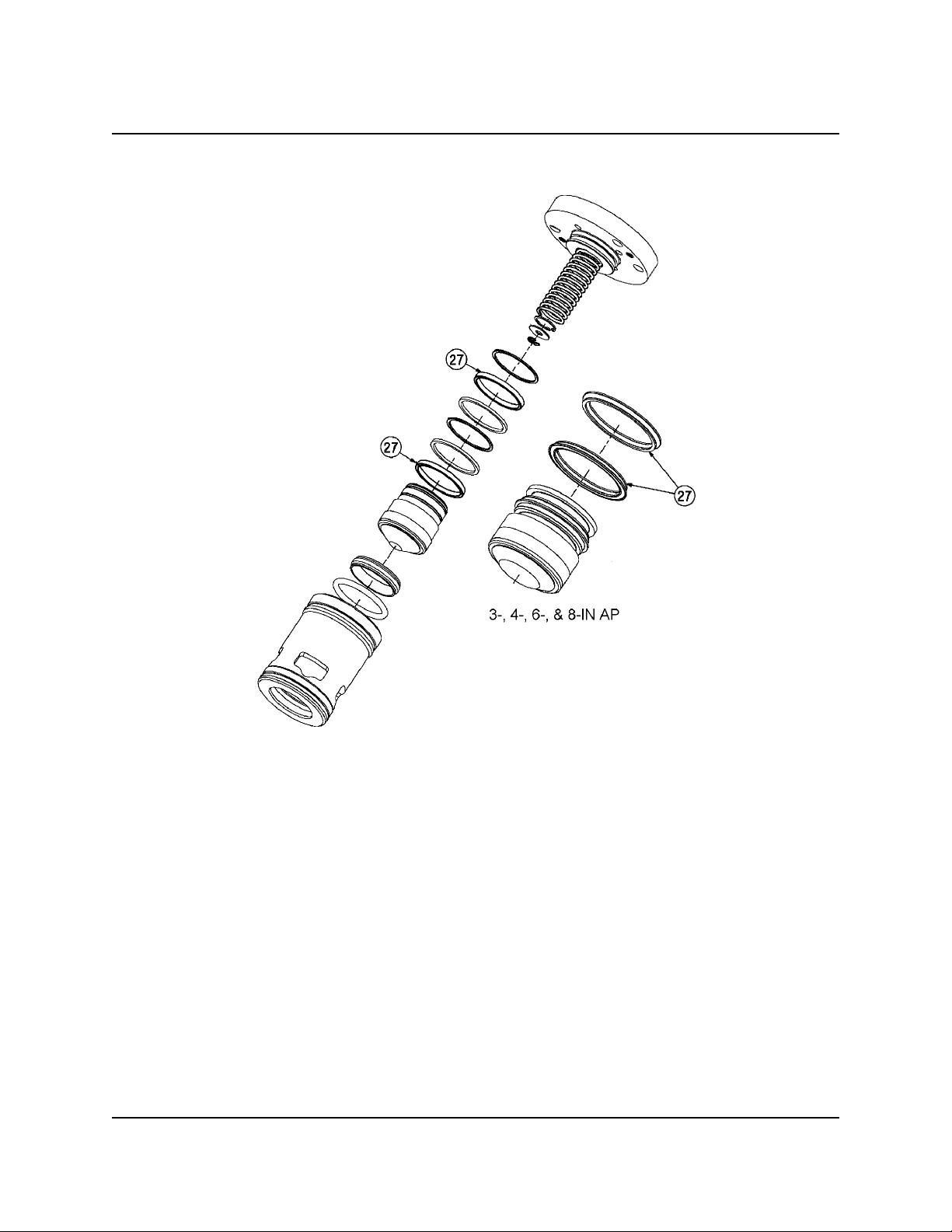

7-1 Valve Cylinder Assembly ............................................... 7-4

Tables

3-1 Solenoid Electrical Data (150 lb. MOPD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

3-2 Maximum Working Pressure............................................. 3-5

3-3 Dimensions .......................................................... 3-7

5-1 Typical Opening/Closing Speed .......................................... 5-3

6-1 Troubleshooting ...................................................... 6-2

7-1 Parts List ............................................................ 7-2

TABLE OF CONTENTSii

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

1.0 INTRODUCTION

The Daniel Model 788DVC Digital Control Valve is a solenoid operated device designed to

provide precise flow rate control and batch delivery of liquid products. It is used in conjunction with an electronic batch control device such as the Daniel DL8000. The Model 788DVC valve is automatically controlled by the DanLoad for low flow start-up, high flow rate control, low flow shut-down, and final shut-off. It also provides for maximum flow meter accuracy by maintaining a constant flow rate in applications with varying line pressure. The Model 788DVC features an external pilot control loop that consists of a normally open solenoid pilot, a normally closed solenoid pilot, strainer and opening/closing speed controls.

1.1 Aggressive Products

Some Daniel control valves have been equipped with an “AP” (Aggressive Products) cylinder assembly. This cylinder assembly may be supplied as a direct replacement for existing units or may be supplied with the original order. It is designed for all Daniel 2", 3", 4" and 6", 150/300 lb. ANSI, Series 700 Valves. Spring-loaded Teflon cup-seals are utilized on the main body piston and low

swell Nitrile O-rings in static positions. For specific instructions for receipt, installation and maintenance of Control Valves containing the “AP” Cylinder Assembly reference manual 3-9008-

554. Also contained within this manual are complete instructions for retrofitting existing standard

valves with the “AP” Option package.

If you have questions or need information not contained in this manual, please contact your Daniel sales representative or the Daniel Measurement and Control service center nearest you.

INTRODUCTION 1-1

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

1.2 Principle of Operation

Operation of the Model 788DVC Digital Control Valve is based on a balanced piston principle. When pressure on both sides of the main valve piston are equal, a spring (located on the top of the piston) acts as a differential force and closed the main valve piston. As pressure against the bottom of the piston increases and exceeds the pressure exerted against the top of the piston, plus the force of the spring, spring tension is overcome and the valve opens. Solenoid pilots are digitally controlled

- full open or full closed - and are used to determine the main valve piston position required for flow

control. Reference Figures 2-1, 2-2 and 2-3 for valve opening/closing positions.

EQUIPMENT DAMAGE

Read the entire recommended procedure for all installation operations and maintenance procedures before attempting to install or disassemble the valve. Disassembly of this cylinder assembly is different from previous Daniel Control Valves and requires strict adherence to the procedures outlined in this manual.

Failure to read and comply with these procedures could result in damage to the equipment and compromise in the integrity of the operation.

INTRODUCTION1-2

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

2.0 THEORY OF OPERATION

The Model 700B Series Control Valve operates on a balanced-piston principle. When pressures on both sides of the piston are equalized, a spring located on top of the piston acts as a differential force and closes the piston. When the pressure against the bottom of the piston exceeds the pressure plus the force of the spring exerted against the top of the piston, spring tension is overcome, and the valve opens. See Figure 3-1 for more information.

These valves are normally closed (N.C.) and they will open when both solenoids are energized. The valves are fail-safe as they close upon loss of power. They use the line product as the source of hydraulic power to open and close the main valve piston. An electrical supply controlled by an electronic preset is the source of power for energizing the two solenoids.

These valves are used mainly for batching and they provide a means of reducing the rate of flow on on startup and before final shut-off of a predetermined delivery. This minimizes surges of pressure and line shock and assures ± 1/4 gallon shut-off (sizes 2 inch - 8 inch) of the preset volume.

The total system generally consists of three pieces of equipment: (1) a flowmeter, (2) electronic preset with digital control, and (3) a digital electric control valve. The electronic preset is the device used to set the predetermined volume of liquid that is to be delivered by the valve.

2.1 Operational Sequence

With both solenoids de-energized, the main valve is closed as shown in Figure 2-1. The main valve can be infinitely positioned anywhere between 0 - 100% open by digital control of the solenoids. With both solenoids energized, as shown in Figure 2-3, the valve begins to open. It will only open to the programmed flow rate set in the electronic preset. Normally, the electronic preset is programmed to digitally control low flow start-up, maximum flow rate, low flow rate before shut-off and no flow. The electronic preset will automatically energize and de-energize the solenoids to position the main valve to limit the required flow rate. When the required flow rate is reached, the solenoids will be as shown in Figure 2-2. This hydraulically locks the main valve piston in position. Should flow increase, the valve will close slightly to adjust to the required flow rate. All of the positioning is done by digitally controlling the two solenoids as shown in Figure 2-1, 2-2 and 2-3.

THEORY OF OPERATION 2-1

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

CLOSED POSITION The normally closed solenoid is closed. The normally open solenoid is open. Y-port (P3) to Z-port (P2) is closed. X-port (P1) and Y-port (P3) pressures are balanced. The main valve spring being the differential force, closes the piston and keeps it seated.

Figure 2-1. Closed Position

THEORY OF OPERATION2-2

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

OPEN - CONTROL POSITION The normally closed solenoid is closed. The normally open solenoid is closed. Y-Port (P3) to Z-port (P2) is closed. X-port (P1) to Y-port (P3) is closed. The product cannot flow to or from the top of the piston. The piston is hydraulically locked in position until the electronic preset commands the valve to open or close as required to maintain the desired high flow rate, or low flow rate.

Figure 2-2. Open - Control Position

THEORY OF OPERATION 2-3

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

OPEN POSITION - (no control) The normally closed solenoid is open. The normally open solenoid is closed. Y-port (P3) is open to Z-port (P2). X-port (P1) is closed off by the normally open solenoid. The pressure on the bottom of the piston (P1) is greater than the pressure at (P3) plus the spring force; (P1 minus P2) is equal to or greater than the spring force. Therefore, (P1) pressure pushes the piston open. No flow control is required.

Figure 2-3. Open Position (no control)

THEORY OF OPERATION2-4

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

3.0 SPECIFICATIONS

PERSONAL INJURY AND/OR EQUIPMENT DAMAGE

Do not exceed specifications listed below.

Failure to heed this warning could result in serious injury and/or damage to the equipment.

Pressure Class

150 lb., 300 lb., or 600 lb. ANSI steel DIN PN 16, 40, 64, and 100

Safe Working Temperature Ranges Standard: -20/F, -29/C to 150/ F, 66/C Optional: -20/F, -29/C to 250/F, 121/C

Maximum Safe Working Pressure

150 lb. ANSI steel body - 285 psi (1965 kPa) 3001b. ANSI steel body -740 psi (5100 kPa) 600 lb. ANSI steel body - 1480 psi (10,200 kPa) DIN PN 16-16 bars DIN PN 25 - 25 bars DIN PN 40 - 10 bars DIN PN 64 - 64 bars DIN PN 100 - 100 bars

Size:

2-in., 3-in., 4-in., 6-in., 8-in.

Ratings

UL and CSA Listed:

- Class I, Group C and D, Div.1; Class II, Group E, F and G

- Explosion-Proof NEMA types 7C, 7D, 9E, 9F and 9G

- NEMA 4 Weather-Proof

- ATEX II2G Eexe/Eexd

SPECIFICATIONS 3-1

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

INMETRO Certification:

- Certificate Number: NCC 12.1244 X

- INMETRO Marking: Ex d nC IIB T3 Gc Ex d IIC T* Gb

*See Tables 1 and 2 in the certificate for temperature range details.

Special condition for safe use: When the digital control valve is assembled with solenoid models 80174, 80173, 80143, 80144, HP80143, 8014G2 and F8003G1, the temperature of the process fluid must not be greater than 40°C.

Connections

2" through 6" ANSI flanged

Valve Capacity

Valve Size 2" 3" 4" 6" 8"

Cv* - gpm 86 186 309 688 1296

*Cv based on valve full open using water at 60/F (16/C)

For Valve Flow vs. Pressure Loss see Figure 3-1. Consult manual 3-9008-550, Capacity Charts for valve sizing.

Flow vs. Pressure Drop (See Figure 3-1)

Curve A - Wide open valves with no spring resistance. Applicable to pilot operated valves with Y and Z ports vented to sump, atmosphere or pump station.

Curve B - Light main valve spring. Applies only to On-Off valves, rate of flow control valves and check valves with ANSI 150 to 300 lb. flanges.

Curve C - Medium main valve spring. Applies to all modulating control valves except rate of flow and valves using ANSI 600 lb. flanges.

Curve D- Heavy main valve spring.

Applies to all valves using ANSI 600 lb. flanges.

SPECIFICATIONS3-2

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

The main valve is full open when curves B, C, and D intersect Curve A. After they intersect, continue reading pressure drop curve from curve A. In applications requiring a constant pressure drop over 40 psid a heavy main valve spring must be used.

Curves A, B, C and D are based on water (specific gravity: 1.0). For liquids having a specific gravity of 0.8 or greater, multiply the pressure drop shown times the actual specific gravity. This results in the actual pressure drop. For specific gravities less than 0.8, use 0.8 to get the corrected pressure drop (curves B, C and D only).

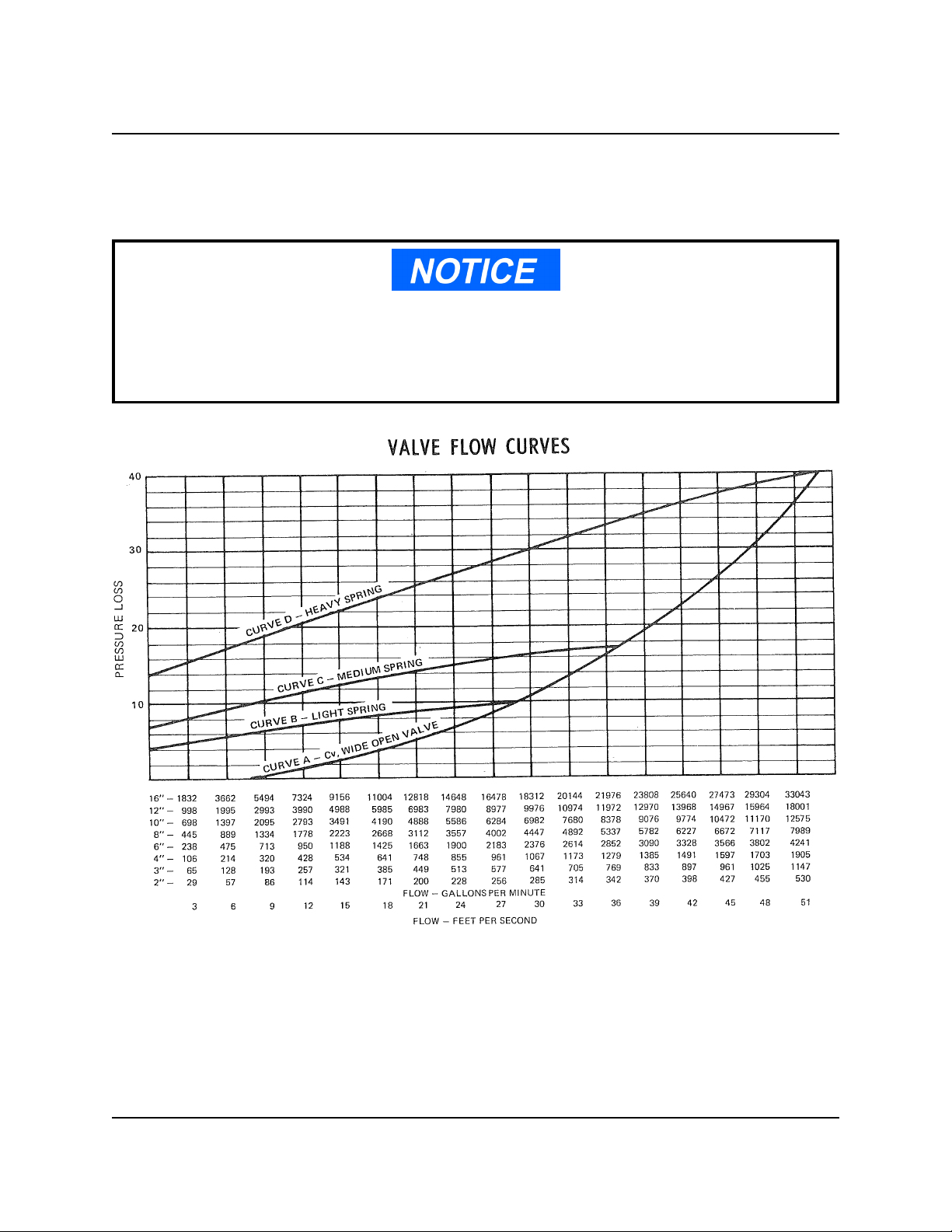

Figure 3-1. Flow vs Pressure Loss

SPECIFICATIONS 3-3

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

Materials of Construction

Main Valve Body

steel, ASTM-352 LCC

Cylinder Head

steel, ASTM-352 LCC

Main Valve Cylinder

steel nickel coated steel

Main Valve Piston

Standard: stainless steel

Seat Ring

steel nickel coated steel

Seals

steel

O-rings

Standard: Viton dynamic, Buna-N Optional: EPR, Kalrez , Low-Swell Nitrile, Neoprene™, Viton -A, Viton -GFLT

®®®

Optional

Visual position indicator Microswitch-type indicator AP (aggressive products) option

Pressure/Temperature Ratings

The maximum working pressure for the Model 700B Series Control Valve is based on temperature/pressure rating of the ANSI B16.5 flanges. The Table 3-2 lists the maximum working pressure of ASTM 352 LCC WCb at 100°F.

SPECIFICATIONS3-4

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

Other Internal Parts

stainless steel

Pilot Valve Body and Trim

stainless steel

Tubing

steel or stainless steel

Table 3-1. Solenoid Electrical Data (150 lb. MOPD)

Voltage* Current (Inrush) Current Holding

110/50 Vac 0.71 amps 0.37 amps

120/60 Vac 0.65 amps 0.34 amps

220/50 Vac 0.36 amps 0.19 amps

240/60 Vac 0.33 amps 0.17 amps

*DC voltage and 440/480 Vac upon request

SPECIFICATIONS 3-5

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

Table 3-2. Maximum Working Pressure

Pressure/Temperature ASTM A352 LCC WCB

150# ANSI/-20 to 100/F 285 psig WP

150# ANSI/150/F 272 psig WP

150# ANSI/250/F 245 psig WP

150# ANSI/450/F 185 psig WP

300# ANSI/-20 to 100/F 740 psig WP

300# ANSI/150/F 707 psig WP

300# ANSI/250/F 665 psig WP

300# ANSI/450/F 334 psig WP

600# ANSI/-20 to 100/F 1480 psig WP

600# ANSI/150/F 1415 psig WP

600# ANSI/250/F 1332 psig WP

600# ANSI/450/F 667 psig WP

P/N 16/-29 to 66/C 16 bar WP

P/N 16/121/C 15.8 bar WP

P/N 16/232/C 13.7 psig WP

P/N 25/-29 to 66/C 25 bar WP

P/N 25/121/C 24.7 bar WP

P/N 25/232/C 21.6 psig WP

P/N 40/-29 to 66/C 40 bar WP

P/N 40/121/C 39.6 bar WP

P/N 40/232/C 34.4 bar WP

P/N 63/-29 to 66/C 63 bar WP

P/N 63/121/C 62.4 bar WP

P/N 63/232/C 54.3 bar WP

P/N 100/-29 to 66/C 100 bar WP

P/N 100/121/C 99 bar WP

P/N 100/232/C 86.2 bar WP

SPECIFICATIONS3-6

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

Figure 3-2. Dimensions

SPECIFICATIONS 3-7

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

Table 3-3. Dimensions (see Figure 3-2)

Valve

Size

150# ANSI

300# ANSI

No Indicator

With Indicator

2" 10-1/4" 10-1/2" 9" 11" 8.25"

260 mm 267 mm 229 mm 279 mm 210 mm

3" 11" 11" 9" 12" 8-3/4"

279 mm 333 mm 229 mm 305 mm 222 mm

4" 13" 13" 9" 12-1/2" 9"

330 mm 368 mm 229 mm 318 mm 229 mm

6" 17" 17" 12" 15-3/4" 11"

432 mm 454 mm 305 mm 400 mm 279 mm

8" 22.25" 22.25" 15" 17.5" 11.75"

565 mm 591 mm 381 mm 445 mm 298 mm

SPECIFICATIONS3-8

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

4.0 INSTALLATION AND MAINTENANCE

The most common application of the Daniel Model 788DVC Digital Control Valve is for truck loading of petroleum products. The valve may be used with a variety of flow meter types, including Coriolis and turbine meters, as shown in Figure 4-1. In this installation the DL8000 is the primary batch and control device. Reference Figure 4-2 and 4-3 for configuration information.

Flow must be horizontal or vertical up but never vertical down.

4.1 Recommended Installation Instructions

As with all control valves, it is most important that proper installation be accomplished if the valve is to operate as designed. Preliminary set-up should include the following steps:

1. Evaluate the metering system in the process line to determine that criteria pertinent to digital valve control is met.

• Minimum meter K-factor: 20 pulses/unit

• Minimum meter pulse frequency (low flow): 50 Hz

• Minimum opening time (shut-off to full open): 1.5 seconds

• Minimum closing time (full open to shut-off): 1.5 seconds

2. Reference engineering drawings for proper in-line sequence of all components.

3. Check valve position. The inlet flange has been marked and is to be in the upstream position.

4. Verify all electrical connections against wiring diagrams and unit specifications. Reference Figure 4-3 for Control Valve configuration.

INSTALLATION AND MAINTENANCE 4-1

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

EQUIPMENT DAMAGE

It is recommended that the external pump control be turned to the OFF position when performing any electrical wiring installation and until initial control valve adjustments are made in the DL8000.

Failure to comply with these procedures could result in damage to the equipment and compromise in the integrity of the operation.

5. Flush the line of any and all contaminates.

6. Bleed as much air as possible from the system before start up.

4.2 General Considerations as Applied to the DL8000

Upon completion of the preliminary installation of the Digital Control Valve a Start-up Adjustment Procedure must be administered. Reference “DL8000 Preset Controller Instruction Manual”, P/N D301244X012.

INSTALLATION AND MAINTENANCE4-2

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

The Daniel valve may be installed with a flow direction horizontal or vertical up but should never be installed with flow direction vertical down. When installed in a horizontal line, the valve should be installed so that the cylinder head is at the top of the valve and not the bottom. See below.

PERSONAL INJURY OR DEATH AND/OR PROPERTY DAMAGE

Use equipment for its intended purpose.

Use of this equipment for any purpose other than its intended purpose may result in property damage and/or serious personal injury or death.

INSTALLATION AND MAINTENANCE 4-3

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

Figure 4-1. Typical Application - Top Loading

INSTALLATION AND MAINTENANCE4-4

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

Figure 4-2. Typical Application - Bottom Loading

INSTALLATION AND MAINTENANCE 4-5

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

Figure 4-3. Control Valve Configuration (new for DL8000)

INSTALLATION AND MAINTENANCE4-6

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

5.0 CYLINDER DISASSEMBLY AND REASSEMBLY

The following tools will be needed to disassemble and reassemble your control valve:

• socket wrench

• adjustable wrench

• T-handle or extended Allen wrench

• arbor press (may be needed for 4- and 6-inch valves)

• retaining ring pliers

Numbers in parentheses correspond with the item numbers in Table 7-1 and Figure 7-1.

EQUIPMENT DAMAGE

Failure to read and comply with these procedures could result in damage to the equipment and compromise in the integrity of the operation.

5.1 Cylinder Assembly Removal - All Daniel Valves

1. Isolate the Control Valve from the system and bleed off pressure.

2. Loosen and remove the tubing from the cylinder head.

3. Remove the nuts securing the cylinder assembly within the valve body.

4. Tighten the two jack screws provided in the cylinder head until the cylinder assembly has been freed from the valve body. These screws should be tightened evenly to prevent damage to the cylinder O-ring and binding the cylinder assembly.

5. Remove the cylinder assembly from the valve body by pulling upward and evenly using both hands (on smaller valves) or a mechanical device (for larger models).

6. Remove the two jack screws from the cylinder head.

DISASSEMBLY AND REASSEMBLY 5-1

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

5.2 Cylinder Disassembly

Refer to Figure 5-2.

PERSONAL INJURY AND/OR EQUIPMENT DAMAGE

Caution is required when performing any disassembly procedure as the Cylinder head is bolted to a spring loaded cylinder assembly. Service should only be performed by trained and qualified service personnel.

Failure to comply with recommended could result in serious injury and/or damage to the equipment.

1. Position the cylinder assembly in an arbor press with the cylinder head (5) down. Valves smaller than 6" may not require a press. Larger units may require the use of a spindle or arbor press to facilitate removal of the piston assembly, in which case, the arbor should be resting against the cylinder head.

2. Place a metal sleeve over the piston nose to protect the sense line during removal. This can be fabricated from a pipe section and should have an internal diameter large enough to encircle the piston nose. The length must be sufficient to accommodate complete spring compression with allowing the sense line to strike the press plunger.

3. Using EXTREME CAUTION depress the piston against the spring until the rectangular ports are cleared. Block the piston in the open position, fully compressed, by inserting a suitable wedge through the port opening. Any wood, nylon or non-marring dowel or handle that will safely guarantee piston position can be used for this operation. It is recommended that a brass or other soft metal bar be used for this operation.

4. Remove the retaining ring, sealing ring and O-ring.

5. Using EXTREME CAUTION depress the piston against the spring and remove the piston blocks. CAREFULLY remove the piston from the cylinder body while maintaining pressure on the valve spring.

DISASSEMBLY AND REASSEMBLY5-2

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

6. Lift off the cylinder head by taking out the socket screws.

7. Remove and inspect all O-rings for nicks, cuts and wear.

Figure 5-1. Using the Piston to Insert the Seat Ring into the 150/300 lb. Cylinder

Table 5-l. Typical Opening/Closing Speed

Line Size

Inches

2-3

4 6 8

Typical

Dead Time

Setting

(Seconds)

0.015

0.030

Recommended Low Flow Set-point Typical

Turbine PD Meter

gpm K-factor gpm K-factor

100 150 150 150

50 25 25 25

100 150 150 150

100

25 25 25

Opening

Speed

Adjust-

ment

(Turns

Open)

0.25

0.75

Typical

Opening

Time

(Shut-off

to Full

Open)

Seconds

5.0

Typical Closing

Speed

Adjust-

ment

(Turns

Open)

0.75

1.25

Typical Closing

Time (Full

Open to

Shut-off)

Seconds

2.0

DISASSEMBLY AND REASSEMBLY 5-3

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

5.3 Cylinder Reassembly

Refer to Figure 5-2.

1. Inspect all O-rings for wear and damage and replace as required.

2. If removed, attach the cylinder head to the main cylinder body.

3. Insert the valve spring into the cylinder housing.

4. Inspect and position the piston into the cylinder housing.

5. Insert the fabricated sleeve over the valve piston and spring assembly. Once fully compressed, block the spring following the procedure used in step 3 of the Disassembly procedure.

6. Inspect and reposition the seat O-ring.

7. Replace seating and retaining ring. Once the entire retaining ring is in its’ groove, position a punch or screwdriver over the end of the ring and tap sharply. This will seat the ring.

8. Again, using CAUTION, apply pressure to the valve piston and remove the block. Carefully relieve the tension on the spring until it is properly resting against the seat ring.

9. Reinstall the cylinder assembly in the valve body being careful to properly seat O-rings and secure in place using lock nuts.

Figure 5-2. Cylinder Assembly Removal

DISASSEMBLY AND REASSEMBLY5-4

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

5.4 Cup-seal Replacement on Existing “AP” Option Piston

If your Daniel Valve is being modified to accommodate applications requiring the use of aggressive products used in petroleum blending operations, the following procedures should be followed in retrofitting your valve.

Retrofit

5.4.1 To Replace Existing Standard Cylinder Assemblies with the Current Daniel “AP” Option:

a. Remove original cylinder assembly as shown in Section 5-1. The cylinder assembly

will be supplied from the factory with or without an indicator (specified on order).

b. Clean and inspect O-ring sealing surfaces in the main valve body. Apply a

lightweight lubricant to these surfaces before installing the new cylinder assembly.

c. Lower the “new” cylinder assembly and cylinder head into the valve body. Align the

bolt holes in the cylinder head with the studs in the main valve body.

d. Fasten the cylinder head into position using retaining nuts. Tighten nuts, alternating

to opposite sides, to assure a uniform seat.

e. Return all tubing and/or valve accessories to their original position.

f. The cup-seals (27) should be protected at all times against damage or distortion of

any kind.

g. Proper installation dictates that cup-seals (27) be installed with the closed ends

facing “in”.

DISASSEMBLY AND REASSEMBLY 5-5

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

Figure 5-3. Option Assembly

DISASSEMBLY AND REASSEMBLY5-6

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

5.4.2 To upgrade existing valves having the original “AP” option (received prior to September

1992), the following parts have been supplied as a separate kit:

- washers (29)

- Stat-O-Seals (30)

- one gasket (31)

- three O-rings (replaces existing O-rings (3) and (4) of the same part numbers.)

Reference Figure 7-1 for complete valve part numbers.

5.4.3 To upgrade existing “AP” units supplied prior to September, 1992:

a. Follow procedures described in Section 5-1 for general disassembly and Section 5-2

for Aggressive Products Cylinder disassembly.

b. Replace O-rings and install gasket, Stat-O-Seal and washers as required (reference

Figure 7-1).

c. Complete cylinder assembly by installing piston and all component parts through the

top of the cylinder housing.

Do not attempt to install the piston through the seat area. Attempts to assemble through the seat area will destroy the spring-loaded Teflon cup-seals.

d. Secure cylinder assembly to cylinder heads using hand pressure or arbor press for

ease of installation.

DISASSEMBLY AND REASSEMBLY 5-7

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

PERSONAL INJURY AND/OR EQUIPMENT DAMAGE

Failure to comply with recommended could result in serious injury and/or damage to the equipment.

e. Lower the “new” cylinder assembly and cylinder head into the valve body. Align the

bolt holes in the cylinder head with the studs in the main valve body.

f. Fasten the cylinder head into position using retaining nuts. Tighten nuts, alternating

to opposite sides, to assure a uniform seat.

g. Return all tubing and/or valve accessories to their original position.

DISASSEMBLY AND REASSEMBLY5-8

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

6.0 TROUBLESHOOTING

The most frequent problem encountered with any control valve is the accumulation of sediment, rouge, scale and other foreign material in the pilot or its supply system. It is, therefore, good practice to periodically remove the pilot from the valve and inspect it for accumulation of these materials.

The strainer and needle valve in the pilot supply line should also be flushed periodically to avoid erratic control and slow response typical to obstructed flow. If sub-standard conditions persist after thoroughly cleaning the system, examine the pilot for swollen o-rings.

Periodic examination of all seal and o-rings for nicks, cuts and wear is recommended. Reference Section 5, Cylinder Disassembly/Reassembly.

TROUBLESHOOTING 6-1

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

Table 6-1 provides information for identifying and correcting operational problems you may experience with your control valve. Please keep in mind this information is not exhaustive and that system abnormalities may result from causes other than valve error. This information is provided to assist in general field repairs.

Table 6-1. Troubleshooting

Condition Probable Cause Correction

Valve will not open Upstream valve is closed. Open valve.

Pump is not operating. Start pump and check for cavitation.

Downstream valve is closed. Open valve. (Check coupler on bottom

loading units and internal valve in truck.)

Insufficient pressure. Check pump. Check bypass and strainer

in line.

Clogged strainer. Clean strainer.

Swollen o-rings. Disassemble valve and replace o-rings.

Check compatibility of o-rings with product.

Pilot malfunction. Consult pilot manual.

Valve opens too slowly Valve inlet pressure below normal. Check strainer and pump for

obstruction.

Swollen o-rings. Disassemble valve and replace o-rings.

Check compatibility of o-rings with product.

Pilot malfunction. Consult pilot manual.

Valve will not close off tightly Bent indicator stem. Replace indicator

Foreign material lodged in main valve piston seat.

Swollen o-rings Disassemble valve and replace o-rings.

Piston or seat o-ring cut or defective.

Pilot malfunction. Consult pilot manual.

Disassemble valve and inspect piston.

Check compatibility of o-rings with product.

Disassemble valve and replace, if necessary.

TROUBLESHOOTING6-2

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

7.0 PARTS LIST

Table 7-1 lists the replacement parts for 2- through 6-inch Model V2700-20 Series Control Valves. The item numbers in the parts list (Table 7-1) correspond with the sequence numbers in Figure 7-1.

This section contains the necessary parts required to assemble any standard unit that is covered in this manual. Recommended spare parts have been indicated using an asterisk before the item number. All part numbers shown reflect standard materials of construction. For other materials of construction, special requirements or part numbers not listed, consult the factory.

TRADEMARKS:

Daniel ......................TMDaniel, a division of Emerson Process Management

Kalrez ................................®E.I. du Pont de Nemours and Company

Teflon ................................®E.I. du Pont de Nemours and Company

Viton .................................

E.I. du Pont de Nemours and Company

When ordering replacement parts you must furnish the following information:

• Valve serial number

• Part number, if available

• Part description

• Quantity required.

To order replacement parts, contact your Daniel sales representative.

PARTS LIST 7-1

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

Table 7-1. Parts List - 2", 3", 4", 6", 8" Sizes

Item Description Qty 2-inch 3-inch 4-inch 6-inch 8-inch

1 valve body - in line

1 521001 531001 541001 561001 581001

150 ANSI steel

2 solenoid (N.C.)

110/50, 120/60 220/50, 240/60

456800-612 456800-621

3 junction box 1

4 solenoid (N.O.)

110/50, 120/60 220/50, 240/60

456815-012 456815-022

5 needle valve 460385-522 460385-522 460385-522 460385-522 460385-522

6 strainer assembly 2 530245 530245 530245 530245 530245

9 indicator 1 consult

factory

10 mounting screws 1 consult

factory

11 cylinder assembly

(std. Construction

w/Viton Dynamic

1 520065-421 530065-421 640065-421 560065-421 580065-421

O-rings)

12 cylinder head 1 520056-500 530056-500 540056-500 560056-500 580056-500

13 cylinder 1 520471-400 530471-400 540471-400 560471-400 580471-400

14 valve spring

Std. Med. (5-10 psi) light (4-6 psi) heavy (10-30 psi)

15 piston

520029 520031 520059

530029 530031 530059

540029 540031 540059

560029 560031 560059

580029 580031 580059

1 520084-600 150333 150333 150333 CF

stainless steel

16 sealing ring 1 520026-500 152048-120 152048-120 152048-120 152048-120

17 retaining ring

18 socket screw 3 151001-019 151001-019 151042 151042 151042

19 O-ring/Buna-N

O-ring/Viton

O-ring/EPR

20 O-ring/Buna-N

O-ring/Viton

O-ring/EPR

1 152073

152073-022 152073-005

1 152085

152085-022 152085-005

152075 152075-022 152075-005

152100 152100-022 152100-022

152078 152078-022 152078-005

152080 152080-022 152080-005

157002 157002-022 157002-005

157003 157003-022 157003-005

157005 CF

157006 CF

PARTS LIST7-2

DANIEL MODEL 788DVC DIGITAL CONTROL VALVES DEC 2012

Item Description Qty 2-inch 3-inch 4-inch 6-inch 8-inch

21 O-ring/Buna-N

O-ring/Viton

O-ring/EPR

22 O-ring/Buna-N

O-ring/Viton

O-ring/EPR

1 ---

---

1 ---

---

157079 157079-022 157079-005

152067 152067-022 152067-055

150727 157078-022 157078-005

152070 152070-022 152070-005

23 seal spacer 530028 ---- ---- ----

24 O-ring/Buna-N

O-ring/Viton

O-ring/EPR

152061 152061-022 152061-005

152095 152095-022 152095-005

152094 152094-022 152094-005

* Recommended Spare Parts

150727 157061-022 157061-005

152070 152070-022 152070-005

152079-022 152079-022 152079-005

CF CF CF

PARTS LIST 7-3

DEC 2012 DANIEL MODEL 788DVC DIGITAL CONTROL VALVES

Figure 7-1. Valve Cylinder Assembly

PARTS LIST7-4

Daniel Measurement and Control, Inc.

Returned Material Authorization

Repair Form for Used Equipment

Including Decontamination/Cleaning Statement

A Return Material Authorization (RMA) number must be obtained prior to returning any equipment for any reason. Download the RMA form from the Support Services web page by selecting the link below.

http://www2.emersonprocess.com/EN-US/BRANDS/DANIEL/SUPPORT-SERVICES/Pages/Support-Services.aspx

1. Return Material Authorization (RMA) Number ____________________________________

2. Equipment to be returned: Model Number _________________________ Serial Number _______________________

3. Reason for return: ___________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ________________________________________________________________________

Decontamination/Cleaning Fluids Process

A. List each substance in which the equipment was exposed. Attach additional documents if necessary.

Common Name

B. Circle any hazards and/or process fluid types that apply:

Infectious Radioactive Explosive Pyrophoric Poison Gas

Cyanides Sulfides CorrosiveOxidizer Flammable Poison Carcinogen Peroxide Reactive-Air Reactive-Water Reactive-Other (list)

Other hazard category (list):

C. Describe decontamination/cleaning process. Include MSDS description for substances used in decontamination and

cleaning processes. Attach additional documents if necessary.

CAS# if available

Used for Hazardous

Waste (20 CFR 261)

[ ] Yes [ ] No

EPA Waste Code if used for hazardous waste

Shipping Requirements

Failure to comply with this procedure will result in the shipment being refused.

1. Write the RMA number on the shipping package.

2. Inside the package include one copy of this document and all required Material Safety Data Sheets (MSDS)

3. Outside of the package attach one copy of this document and all required Material Safety Data Sheets (MSDS).

THIS EQUIPMENT, BEING RETURNED “FOR REPAIR,” HAS BEEN COMPLETELY DECONTAMINATED AND CLEANED. ALL FOREIGN SUBSTANCES HAVE BEEN DOCUMENTED ABOVE AND MSDS SHEETS ARE ATTACHED.

By:

(Signature) (Print name)

Title: Date:

Company:

Phone: Fax:

Emerson Process Management Daniel Measurement and Control, Inc. 11100 Brittmoore Park Drive Houston, TX 77041 T+1 713-467-6000 F+1 713-827-4805

www.emerson.com

Daniel Measurement and Control, Inc. and Daniel Measurement Services, Inc. Divisions of Emerson Process Management reserve the right to make changes to any of its products or services at any time without prior notification in order to improve that product or service and to supply the best product or service possible.

Daniel Measurement Services, Inc. offers both on-call and contract maintenance service designed to provide single-source responsibility for all Daniel products. The sales and service offices of Daniel Measurement and Control, Inc. are located throughout the United States and in major countries overseas. For the location of the sales or service office nearest you, telephone the number below or visit the Daniel Measurement and Control, Inc. website.

T+1713-827-6314 F+1713-827-4805

www.emerson.com

Emerson Digital Controller Valves 788 DVC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
