DeltaV SIS™ Safety Network Components
DeltaV SIS Smart Switches LSNB
January 2021
The safety network components are based on standard Ethernet technology and are dedicated to the DeltaV SIS.
Dedicated to safety – no possibility
Introduction
of common-cause control and safety
communication failures
Required update time supported on
the DeltaV SIS™ local safety network
Scalable and cost-effective
Fully redundant networks
The local safety network (LSN) is the communication backbone
of the DeltaV SIS™ process safety system. The LSN is a standard
Ethernet network dedicated to the DeltaV SIS system that
enables communication between CHARMs smart logic solvers
(CSLS) and a single SZ controller. The CSLSs communicate
secure parameters and input data to other CSLSs over the LSN.
SZ controllers connect to both the area control network and
the LSN to isolate the CSLSs from the process control system.
Starting with v13 and later, the global safety network (GSN)
enable safety-rated communication among LSNs while allowing
functional segregation on different LSNs. A typical example
is separation of re and gas (F&G) and emergency shutdown
(ESD) applications over separate LSNs while allowing safe and
secure communication across both applications. Starting with
v14.3.1, the GSN can be logically separated in domains which
are a group of LSNs.
DeltaV SIS Safety Network Components
Engineering
Station
January 2021
SZ
LSN
Switches
Network
Logic Solvers Logic Solvers
Bridge
GSN
Switches
Network
Bridge
DeltaV SIS safety network architecture diagram.
Benefits
Dedicated to safety. Some systems from other
vendors use the same networks for both control and
safety. The DeltaV SIS LSN and GSN are dedicated to safety,
carrying only safety-rated signals and isolated from the
control network. They are therefore immune to any failure
of the control network.
Fifty millisecond update time. All the data broadcast on the
LSN is available to every CSLS on the same LSN every
50 milliseconds. Combined with the speed of the CSLS,
the 50 millisecond update time guarantees input-to-output
time of less than 300 milliseconds anywhere on the LSN
when the CSLS is congured for 50-millisecond scan rate.
SZ
LSN
Switches
LSN
Switches
Logic Solvers
Standards compliance. Network components are compliant
with standards such as IEEE, CE, and CSA.
Network diagnostics. The Light Emitting Diodes (LED)
on each switch provide health status information.
Scalable in small increments. You can expand the system
readily and economically by adding hardware incrementally
to your system. Just plug another CSLS into the LSN and it is
recognized by the system. Online addition of new CSLSs will
not interrupt your process.
Fully redundant communications. The safety networks are
fully redundant communication networks. The carriers for all
nodes have redundant safety network ports for communication
with primary and secondary network connections.
Plug-and-play components. As a dedicated safety network
with predictable communications trafc, Emerson has done all
of the system testing so you only have to plug the components
together to create the safety networks.
www.emerson.com/deltavsis 2
DeltaV SIS Safety Network Components
January 2021
LSN Description and Specification
The SZ controllers and CSLSs can be physically connected
as a star topology (the LSN does not support network
ring topologies).
Starting with DeltaV SIS v13, the LSN Bridge (LSNB) allows
communication across multiple LSNs. The LSNB connect
to the LSN following a star topology.
Refer to the latest DeltaV SIS Installation and Planning Guide
for details of network layouts and network cable shielding
requirements and power and grounding requirements for the
overall DeltaV SIS system.
For Use in Safety Integrity Level (SIL) 3 Applications
The LSN is certied for use in SIL 3 applications.
Wiring
The LSN requires the use of Category 5e screened (ScTP)
cable for the 100/1000 BaseT/TX safety network.
The maximum twisted-pair cable length for the LSN for any
device is 100 meters (328 feet).
GSN Description and Specification
Multiple LSNs can be connected using LSNBs. The LSNBs are
physically connected as a star topology (GSN does not support
network ring topologies). Starting with v14.3.1 and later,
the GSN can be logically separated in domains. A GSN domain
is a logical group of LSNs.
Refer to the latest DeltaV SIS Installation and Planning Guide
for details of network layouts and network cable shielding
requirements and power and grounding requirements for the
overall DeltaV SIS system.
For Use in SIL 3 Applications
The GSN is certied for use in SIL 3 applications.
Wiring
The GSN requires the use of ScTP cable for the 100/1000 BaseT/
TX safety network.
The maximum twisted-pair cable length for the GSN for any
LSNB is 100 meters (328 feet).
The LSNB contains Ethernet ports to provide the redundant
communication for both the LSN and GSN.
The CSLS, LSNB, and SZ controller carriers contain Ethernet
ports to provide the redundant communication for the LSN.
Fiberoptic Wiring
Safety network ports (SNP) on the CSLS are available for
copper only. DeltaV SIS Smart Switches can be connected
using beroptic cables.
Because beroptic cables do not conduct electricity,
they should be used in connections between buildings
or in plant areas where electromagnetic interference is present.
Fiberoptic cabling must be used where cable runs are longer
than 100 meters (328 ft.).
LSN Hardware Includes:
DeltaV SIS Smart Switches
Ethernet Isolation Ports on the SZ Controller
SNPs on the CSLS carrier
LSNB to communicate with other LSNs
through a GSN.
A redundant CSLS communicates over the LSN with up to
15 other CSLSs, 1 SZ controller, and 1 LSNB allowing great
exibility and ease of system expansion.
Only DeltaV SIS Smart Switches are supported on the LSN.
Fiberoptic Wiring
Ethernet on the LSNB carrier are available for copper
only. DeltaV SIS Smart Switches can be connected using
beroptic cables.
Because beroptic cables do not conduct electricity,
they should be used in connections between buildings
or in plant areas where electromagnetic interference is present.
Fiberoptic cabling must be used where cable runs are longer
than 100 meters (328 ft.).
GSN Hardware Includes:
DeltaV SIS Smart Switches
LSNBs to communicate with other LSNs throughout the GSN.
LSNB communicates over the GSN with other LSNBs,
allowing great exibility and ease of system expansion.
Up to 16 LSNBs can publish safety data into one GSN domain
but the maximum number of LSNBs publishing information
depends on amount of data published by each LSNB.
There is no limit for the number of LSNBs subscribing to
information from the GSN. Prior v14.3.1, only one domain
was supported within the GSN, starting v14.3.1 and later,
up to 16 domains are supported within the GSN. Refer to
Books Online for more information about system capacities.
www.emerson.com/deltavsis 3
DeltaV SIS Safety Network Components
January 2021
Only DeltaV SIS Smart Switches are supported on the GSN.
The GSN requires DeltaV SIS Smart Switches with software
release 4.2.14 or greater.
DeltaV SIS Smart Switches
The DeltaV SIS Smart switches are “built-for-purpose” switches
with DeltaV SIS specic software and features to make them
plug-and-play in the safety network.
DeltaV SIS Smart Switches require no conguration to function
on the safety network.
DeltaV SIS Smart Switches are the only supported switch
to be used within the LSN and GSN. DeltaV SIS Smart Switches
are different than DeltaV Smart switches (non-SIS) and are
not interchangeable.
DeltaV SIS Smart Switch Specifications
SS6041F01C1
Ambient Conditions
Operating Temperature 0° to +60°C -40° to +70°C 0° to +50°C
Storage/Transport Temperature -40° to +70°C -40° to +70°C -20° to +85°C
Relative Humidity (Non-Condensing) 10% to 95% 10% to 95% 10% to 95%
Conformal-Coated No Yes No
Harsh Area Rating G2 G2 (conformal coating
Mechanical stability – All switches:
IEC 60068-2-27 shock 15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration 1 mm, 2 Hz - 13.2 Hz, 90 min.; 0.7g, 13,2 Hz - 100 Hz, 90 min.; 3.5 mm, 3 Hz - 9Hz,
10 cycles, 1 octave/min.; 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.
EMC emitted immunity:
FCC CFR47 Part 15 FCC CFR47 Part 15
EN 55022 EN 55022 Class A
EMC interference immunity SS6041F0(1,5,6) DIN rail switches:
EN 61000-4-2 electrostatic discharge (ESD) 6 kV contact discharge, 8kV air discharge
EN 61000-4-3 electromagnetic eld 10 V/m (80 - 1000 MHz)
EN 61000-4-4 fast transients (burst) 2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage power line: 2kV (line/earth), 1kV (line/line), 1kV data line
EN 61000-4-6 conducted immunity 3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)
EMC interference immunity: SS6048R2P(1-4) Rack mount switches:
EN 61000-4-2 electrostatic discharge (ESD) 4 kV contact discharge, 8kV air discharge
EN 61000-4-3 electromagnetic eld 10 V/m (80 - 2700 MHz)
EN 61000-4-4 fast transients (burst) 2 kV power line, 4 kV data line
EN 61000-4-5 surge voltage power line: 2kV (line/earth), 1kV (line/line), 4kV data line
EN 61000-4-6 conducted immunity 10 V (150 kHz - 80 MHz)
SS6041F05C1
SS6041F06C1
DIN Rail Mount
SS6041F01C2
SS6041F05C2
SS6041F06C2
DIN Rail Mount
allows switch to be used in
G3 environments but switch
is not certied to G3)
SS6048R2P(1-4)
Rack Mount Switches
G2
www.emerson.com/deltavsis 4
DeltaV SIS Safety Network Components
January 2021
General Specifications for the SS6041F01, SS6041F05, and SS6041F06 DeltaV SIS Smart Switches
Power requirements:
Operating voltage: 24 V DC (18-30) V
Mechanical construction:
Dimensions MM (W x H x D) 74 x 131 x 111 (2.9 x 5.16 x 4.37 in )
Mounting DIN Rail
Weight 410 g (14.48 oz) (All models)
Protection class IP20
Provided in SS# - qty 1 LSN20 switch with terminal block.
PRODUCT NOTE: These switches are described as supporting local ports and uplink ports. Local ports are connected to a single device such as a SZ Controller or CSLS.
An uplink port is connected to another switch. There is no difference in the way the ports function, and a port designated as an “uplink port” can be used as a local port.
General Specifications for the SS6048R2P(1-4) DeltaV SIS Smart Switches
Up to 26 port Fast Ethernet/Gigabit Ethernet Industrial Workgroup Switch.
Ports available:
Base module has 10 ports -- 2 uplink ports (10/100/1000 wired or using VE6050 SFP modules) and 8 TX ports (10/100 Base-TX)
in a xed conguration.
Up to 16 additional 100Mb ports using the SS6049 - 8 port Media Modules in any combination – TX, MM ber, SM ber,
or 100Mb SFP transceivers.
Power supply/signaling contact: 1 x plug-in terminal block, 2-pin, output manual or automatic switchable
(max. 1 A, 24 V DC respectively 24 V AC)
V.24 interface: 1 x RJ11 socket, serial interface for troubleshooting
USB interface: For ash upgrade of switch software
Network size - length of cable – base module:
Twisted pair (TP)- 8 TX port base module and wired 10/100/1000 ports: 0 – 100m
SFP module ports: Supports any combination of VE6050 1Gb or 100FX Transceivers
Smart Switch “Stacking” Support: SS6048 switches do not support “stacking”. To create a central switch(s) of greater than
24 ports switches should be interconnected using the front panel gigabit ports
Power requirements:
Operating voltage 100 - 240 VAC, 47 - 63 Hz
Rated Current 0.4 – 0.2 A
Power output in Btu (IT) h –41 (without media modules)
Power consumption 12 W (without media modules)
Mechanical construction:
Dimensions 448 x 310 x 44 (without mounting bracket)
Mounting 19" control cabinet
Weight 3.60 kg
Protection class IP20
Provided SS60 device, terminal block for signal contact, 2 brackets with fastening screws (pre-assembled),
and housing feet - stick-on, power cable.
Order separa tely: Expansion modules, Fast Ethernet SFP modules, Gigabit Ethernet SFP modules. Expansion modules SS6049M01, SS6049M02, SS6049M03,
and SS6049M04 can be used with SS6048-series DeltaV SIS Smart switches.
When rail mounted these switches require additional mounting supports in addition to 19” rail mounting brackets
www.emerson.com/deltavsis 5
DeltaV SIS Safety Network Components

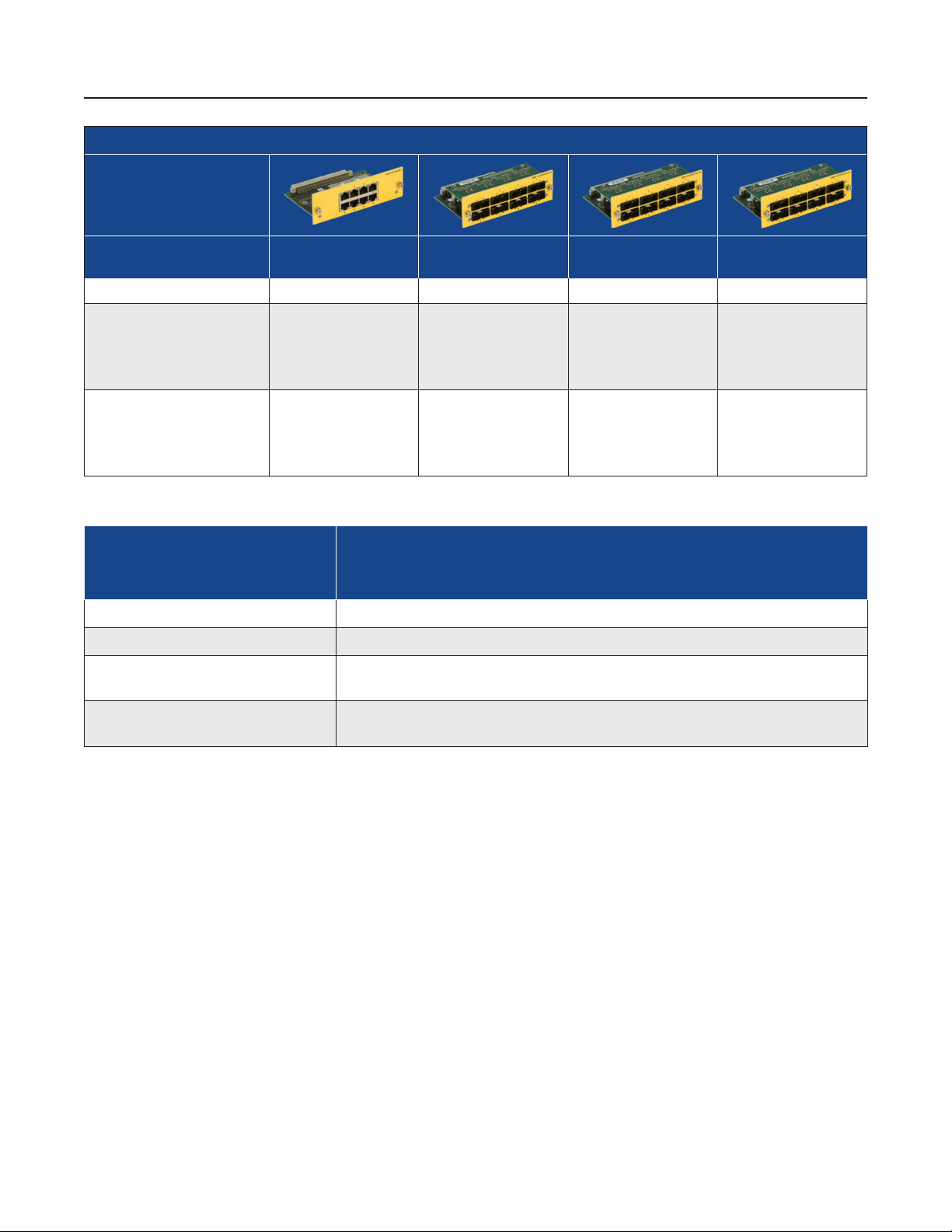

Specifications for SS6049 Expansion Modules
January 2021
Specifications for
SS6049M01
Length of cable 100m See ber cable specs See ber cable specs See ber cable specs
Power requirements:
Current consumption
Power output in Btu(IT) h
Mechanical constructions:
Dimensions MM (W x H x D)
Weight
Protection class
2 W
7
138 x 90 x 42
0.21 Kg
IP 20
Specifications for
SS6049M02
10 W
7
138 x 90 x 42
0.18 Kg
IP 20
Specifications for
SS6049M03
10 W
7
138 x 90 x 42
0 .18 Kg
IP 20
Specifications for
SS6049M04
11 W
7
including SFP modules
138 x 90 x 42
0 .13 Kg
IP 20
Fiberoptic Cable Specifications – Apply to All DeltaV SIS Smart Switch Models
Specifications
Fiberoptic Cable Types
Multimode ber (MM) 50/125 μm 0 - 5000 m, 8 dB link budget at 1300 nm, A = 1 d/km, 3 dB reserve, B = 800 MHz x km
Multimode ber (MM) 62.5/125 μm 0 - 4000 m, 11 dB link budget at 1300 nm, A = 1 dB/km, 3 dB reserve, B = 500MHz x km
Single mode ber (SM) 9/125 μm 0 – 32.5 km, 16 dB link budget at 1300 nm, A = 0,4 dB/km, 3 dB reserve,
Single mode ber (LH) 9/125 μm
(long haul transceiver):
Specications apply to all ber connections on any model of DeltaV SIS Smart Switches
Actual beroptic distances achieved depend on the ber type used and other components installed on the network
such as splices and patch panels that can reduce Fiberoptic signal strength.
D = 3,5ps/(nm x km)
24 – 86.6 km, 7 - 29 dB link budget at 1550 nm, A = 0,3 dB/km, 3 dB reserve,
D = 19 ps/(nm x km)
www.emerson.com/deltavsis 6
DeltaV SIS Safety Network Components
DeltaV SIS Smart Switch Certifications
January 2021
Declaration/ Approval
CE Declaration – Basic Standards
EMC (Harmonized European Standards according to EMC-Directive 2004/108/EC
- EN 55022 Emission of ITE
- IEC/EN 61000-6-2:2005 – Immunity in industrial environment
- EN 61000-3-2:2000 + A2:2005 – Limits for harmonic current emissions
- EN 61000-3-3:1995 + A1:2001 – Limitation of voltage changes, voltage uctuations
and icker Safety (Harmonized European Standards according to Low-Voltage-
Directive 2006/95/EG)
- EN 61131-2:2003 – Programmable Controllers
FCC Declaration
- CFR47: 2005, Part 15
cUL Approval according to UL 508
- UL 508:2003 – Industrial control equipment – US. Safety standard
- CSA 22.2 No. 142-M1997 – Industrial control equipment – Canadian safety standard
cUL Approval according to ISA-12.12.-01 Class 1 Div. 2 /UL1604
- ANSI/ISA 12.12.01:2000, Approved 2001
- CSA 22.2 No. 213-M1987
IEC/EN 61131-2 Declaration
- EN 61131-2 : 2003 – Programmable Controllers
cUL Approval according to UL 60950-1
- UL 60950-1:2003 – Safety of Information Technology Equipment – US.
Safety standard
- CSA 22.2 No. 950:1998 – Safety of Information Technology Equipment – Canadian
safety standard
IEC/EN 60950-1 Certification according to CB-scheme
- EN 60950-1:2003 – Information technology equipment – Safety
ATEX 100a Approval, Zone 2,
- according to EN 60079-15:2005 – Electrical apparatus for explosive atmospheres
DNV-GL No Yes No
RCM (Australia) Yes Yes Yes
EAC (Russia): pending Yes Yes Yes
EAC Ex (Russia): pending N/A Yes N/A
LSN20
SS6041
Class A Class A Class A
Class A Class A Class A
Yes Yes Yes
Yes Yes N/A
Yes Yes N/A
N/A N/A Yes
N/A N/A Yes
N/A Yes N/A
LSN20-ES
SS6041
SRM100
SS6048
In order to comply with the EN 60950-1 standard (paragraph 4.3.15.5) the DeltaV SIS Smart Switches containing laser diode must also comply with the Accessible Emissions Limit
for Class I when measured according IEC 60825-1 standard.
www.emerson.com/deltavsis 7
DeltaV SIS Safety Network Components
LSNB
Beginning with DeltaV v13, a LSNB can be installed on two or more
LSNs, so multiple LSNs may be connected over a GSN.
DeltaV SIS Smart Switches require no conguration to function on
the safety networks. However, to support GSN functionality the
DeltaV SIS Smart Switch must have software v4.2.14 or later.
DeltaV SIS Smart Switches are the only supported switches to
be used within the LSN and GSN.
January 2021
LSNB shown on Dual Horizontal Safety Carrier.
LSNB Ethernet Isolation Port.
www.emerson.com/deltavsis 8
DeltaV SIS Safety Network Components
LSNB Specifications
Hardware
Specifications for Dual Horizontal Safety Carrier
Capacity Redundant LSNBs
Input power +24 V DC ±10% at 1 A maximum
Battery power +5.0 to +12.6 V DC at 30 uA typical
January 2021
Redundant Ethernet connections
through replaceable Ethernet Isolation
Ports (EIPs)
Mounting DIN rail latch to horizontally orientated T-type rail
Specifications for LSNB
Number of GSNs per system One GSN per system. Up to 16 LSNBs per domain can publish information to the GSN.
Input power +24 V DC ± 10% at 575 mA maximum for redundant
Heat dissipation (redundant) 13 Watts maximum for redundant
Mounting Slots on the Dual Horizontal Safety Carrier
Communication Redundant Ethernet connections through Dual Horizontal Safety Carrier to the:
LED Indicators
Green – Power Indicates DC power is applied.
Red – Error Indicates an error condition or unassigned LSNB.
Green – Active/Standby Indicates operating mode of each LSNB.
Copper twisted pair: 10/100BASE-TX with RJ45 connectors;
Full duplex operation - 100 m distance
There is no limit for the number of LSNBs subscribing to information from the GSN.
a) LSN
b) GSN
www.emerson.com/deltavsis 9
DeltaV SIS Safety Network Components
January 2021
LSNB Certifications
The following certications are available for the LSNB:
CE:
EMC- EN 61326-1
FM:
FM 3600
FM 3611
FM 3810
CSA:
CSA C22.2 No. 213-M1987
CSA C22.2 No. 1010-1
ATEX:
ATEX 94/9/EC
EN60079-0
EN60079-15
IEC-Ex:
EN60079-0
EN60079-15
Marine Certifications:
IACS E10
z ABS Certicate of Design Assessment
z DNV-GL Marine Certicate
Hazardous Area/Location:
The LSNB can be installed and used based
on the following Standards:
FM (USA):
System Compatibility
DeltaV SIS LSN requires:
v12.3 DeltaV SIS or later software
SZ Controllers
CSLSs
DeltaV SIS Smart Switches (these switches are the ONLY
switches allowed to be used in the LSN)
DeltaV SIS GSN requires:
v13.3 DeltaV SIS or later software for a single GSN domain,
v14.LTS or later is required for multiple GSN domains
LSNBs
DeltaV SIS Smart Switches with software release 4.2.14 or
greater (these switches are the ONLY switches allowed to be
used in the GSN)
DeltaV Smart switches (non-SIS) cannot be used for LSN or
GSN communication since the conguration of these switches
will interfere with the proper operation of the LSN and GSN
and block LSN/GSN communications. When connecting a SZ
controller with more than one CSLS, it is always required to use
a DeltaV SIS Smart Switch.
When mounting the CSLS in a hazardous area eld enclosure
where a ber to copper converter is required, the standard
VE6060 and VE6061 DeltaV Media Converters should be used.
These Media Converters are certied for installation
in hazardous areas up to a classication of Zone 2 or Class 1
Div 2 and are supported for hazardous area eld enclosures
for the LSN and GSN. For more information about DeltaV
media converter, consult the Product Data Sheet
DeltaV Media Converters.
Class I, Division 2, Groups A, B, C, D, T4
cFM (Canada):
Class I, Division 2, Groups A, B, C, D, T4
ATEX:
Ex nA IIC T4 Gc
IEC-Ex:
Ex nA IIC T4 Gc
www.emerson.com/deltavsis 10
DeltaV SIS Safety Network Components
Ordering Information
DeltaV SIS Smart Switches Model Number
The modules with SS# ending in C2 are extended spec versions of the switches
and must be used where high temperature or conformal coating is required
8 ports – all copper
Smart 6-port (RJ45) 10/100BASE-TX Switch with two RJ45 10/100BASE-TX Uplink Ports
(LSN20-6TX2TX)
Current consumption at 24 V DC 221mA
Power output in Btu (IT) h 18.1
8 ports – 6 copper – 2 100MB Multi-Mode fiber
Smart 6-port (RJ45) 10/100BASE-TX Switch with two SC 100BASE-FX Multimode Uplink Ports
(LSN20-6TX2MM)
Current consumption at 24 V DC 321mA
Power output in Btu (IT) h 26.3
8 ports – 6 copper – 2 100MB Single-Mode fiber
Smart 6-port (RJ45) 10/100BASE-TX Switch with two SC 100BASE-FX Single Mode Uplink Ports
(LSN20-6TX2SM)
Current consumption at 24 V DC 321mA
Power output in Btu (IT) h 26.3
Smart 8-port Switch;
Each port is 10/100BASE-TX Copper RJ45; Includes two RJ45 Uplink
ports and two slots for VE6050-series Transceiver Modules; Includes two expansion bays to add ports;
redundant power supplies, with separate redundant power cabling; Redundant Power Supply;
North American Power Cord (SRM100 -Base Module)
Power requirements
Power output in Btu (IT) h 41 (without media modules)
Power consumption 12 W (without media modules)
Weight 3.60Kg (without media modules)
Smart 8-port Switch; Australian Power Cord SS6048R2P2
January 2021
SS6041F01C1
SS6041F01C2
SS6041F05C1
SS6041F05C2
SS6041F06C1
SS6041F06C2
SS6048R2P1
Smart 8-port Switch; European Power Cord SS6048R2P3
Smart 8-port Switch; United Kingdom Power Cord SS6048R2P4
8-port Expansion Module for SS6048-series DeltaV SIS Smart Switches; each Port is 10/100BASE-TX Copper
RJ45 (SRM100-EM8TX). See specications in table below. Module is hot swappable
8-port Expansion Module for SS6048-series DeltaV SIS Smart Switches; each Port is 100BASE-FX Fiberoptic
Multi-Mode SC (SRM100-EM8MMFX). See specications in table below. Module is hot swappable
8-port Expansion Module for SS6048-series DeltaV SIS Smart Switches; each Port is 100BASE-FX Fiberoptic
Single-Mode SC (SRM100-EM8SMFX). See specications in table below. Module is hot swappable
8-port Expansion Module for SS6048-series DeltaV SIS Smart Switches. The slots can have any combination
of VE6050-series 100Mb Transceivers installed. (SRM100-EM8SFP). See specications in table below. Module is
hot swappable and SPF transceivers can be installed and removed under power.
Smart Switch Security Plugs and Key; Package of 10 plugs and 1 key
Note: DeltaV SIS Smart Switches come with plugs and the required tool. Additional plugs can be ordered using this model number.
All unused ports shall be blocked with the port plugs.
SS6049M01
SS6049M02
SS6049M03
SS6049M04
SS6049
www.emerson.com/deltavsis 11
DeltaV SIS Safety Network Components
January 2021

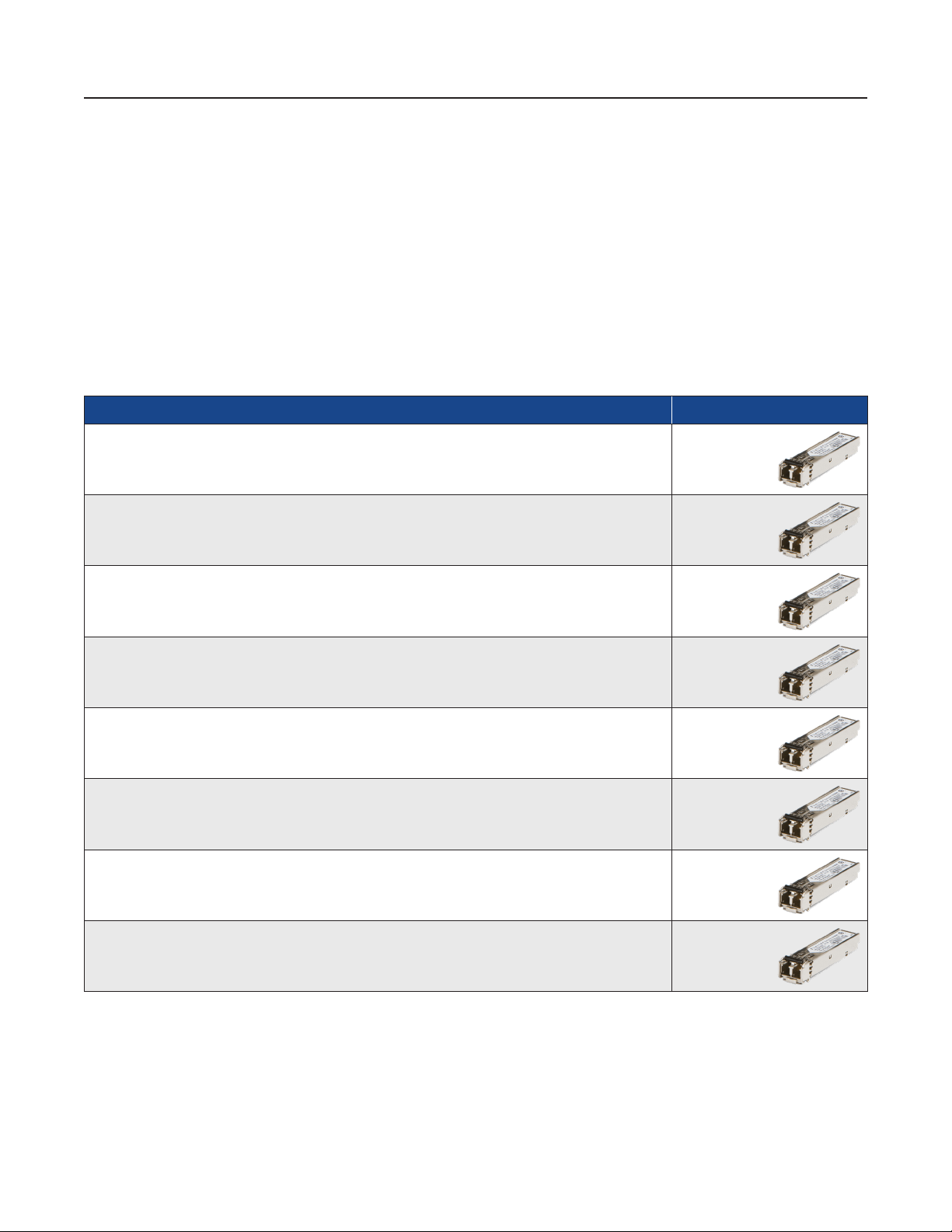

Fiberoptic SFP Transceivers for Use in DeltaV SIS Smart Switches:
The Gigabit transceivers can be used only in the Gigabit ports of SS6048 switches.
The 100Mb transceivers can be used in the Uplink ports of the SS6048 switch and the SS6094 SFP expansion module of the SS6048.
All Transceivers except the VE6050T01 are compatible with the Extended Spec DeltaV SIS switches and can also be used in the
standard spec DeltaV SIS switches as well.
Power Consumption for all Transceivers: Operating voltage power supply through the switch
Power consumption 1 W
Weight 40 g
DeltaV SIS Smart Switches must use the transceivers below. The switches are not compatible with other brands of transceivers.
Cisco transceivers are not compatible with DeltaV Smart Switches.
Description Model Number
Transceiver for DeltaV SIS Smart Switches: 1 Gigabit Ethernet; Single Mode Long Haul, for up
to 120 Kilometers of beroptic cable (M-SFP-LH+/LC) [This SFP Module is not compatible with
Extended Spec usage—not available with extended temperature specications
Transceiver for DeltaV SIS Smart Switches; 1 Gigabit Ethernet; Single Mode Long Haul, for up to
80 Kilometers of beroptic cable (M-SFP-LH/LC-EEC) Extended Specs
Transceiver for DeltaV SIS Smart Switches; 1 Gigabit Ethernet; Single Mode, for up to
20 Kilometers of beroptic cable (M-SFP-LX/LC EEC) Extended Specs
Transceiver for DeltaV SIS Smart Switches; 1 Gigabit Ethernet; Multi-mode, for up to 550 meters
of beroptic cable (M-SFP-SX/LC EEC) Extended Specs
Transceiver for DeltaV SIS Smart Switches; 100 Megabit Ethernet, Single Mode, for up to
100 Kilometers of beroptic cable (M-FAST SFP-LH/LC-EEC) Extended Specs
Transceiver for DeltaV SIS Smart Switches; 100 Megabit Ethernet; Single Mode, for up to
65 Kilometers of beroptic cable (M-FAST SFP-SM+/LC-EEC) Extended Specs
Transceiver for DeltaV SIS Smart Switches; 100 Megabit Ethernet; Single Mode, for up to
25 Kilometers of beroptic cable (M-FAST SFP-SM/LC-EEC) Extended Specs
VE6050T01
Gigabit
VE6050T02
Gigabit
VE6050T03
Gigabit
VE6050T07
Gigabit
VE6050T04
VE6050T05
VE6050T06
Transceiver for DeltaV SIS Smart Switches; 100 Megabit Ethernet: Multi-Mode; for up to
5 Kilometers of beroptic cable (M-FAST SFP-MM/LC-EEC) Extended Specs
VE6050T08
www.emerson.com/deltavsis 12
DeltaV SIS Safety Network Components
January 2021
Ordering Information LSNB
Description Model Number
Redundant LSNB Assembly (Includes 2 LSNBs, Dual Horizontal Safety Carrier, 2 Ethernet Isolation Ports
SS3101
for twisted cooper, 2 power plugs)
Spare Part Ordering Information
Description Model Number
Set of 2 Replacement Keys for Keylock Switch on SZ, CSLS, and Dual Vertical and Horizontal Safety Carrier SS6201
Prerequisites
DeltaV SIS Electronic Marshalling hardware requires DeltaV v12.3.x or later software.
Only DeltaV SIS Smart Switches are supported on both the LSN and GSN.
GSN hardware requires DeltaV v13.3.x or later software.
Multiple GSN domains requires DeltaV v14.LTS or later software.
GSN requires DeltaV SIS Smart Switches with software release v4.2.14 or greater.
Contact Us
www.emerson.com/contactus
©2021, Emerson. All rights reserved.
The Emerson logo is a trademark and service mark of Emerson Electric Co. The DeltaV logo is
a mark of one of the Emerson family of companies. All other marks are the property of their
respective owners.
The contents of this publication are presented for informational purposes only, and while
diligent efforts were made to ensure their accuracy, they are not to be construed as warranties
or guarantees, express or implied, regarding the products or services described herein or their
use or applicability. All sales are governed by our terms and conditions, which are available on
request. We reserve the right to modify or improve the designs or specifications of our products
at any time without notice.
Loading...
