Emerson DCM Modular Brochures and Data Sheets

Integrated Cabinet Solutions For Business-Critical Continuity™
DCM™ Modular Racks from Emerson Network Power
Specically Designed To Support Cisco® 7000 Series Switches
The Flexible Rack Solution For Cisco® Nexus™ Switches
DCM™ modular racks from Emerson Network Power are available in congurations specically designed to meet size, airow and cable management requirements for Cisco Nexus 7010 and 7018 Switches. Precongured solutions are available in 42U, 45U and 52U heights, providing choices for most applications.
DCM racks provide better airow management for these Cisco switches, through 83% perforated front and rear doors and integrated airow bafe system. Pre-installed cable management features allow for proper cable management, resulting in further airow improvements. Lift-off hinges, reversible doors and innitely adjustable rails ensure exibility and convenience for equipment additions and changes.
Key Features
Flexibility:
Full height vertical cable managers provide integral
bend radius control and align with “U” markings for simplied cable management.
Two full height PDU mounting brackets allow for easy
PDU installation or additional rear cable management.
Additional cable management accessories:
tool-less lobster claws and Velcro straps, front to rear cable troughs.
DCM rack for Cisco Nexus 7010
Front-to-back airow is optimized through 83% perforated doors, vertical airow bafes, and use of blanking panels.
Higher Availability:
Integrated bafe system to allow for proper airow
of side breathing equipment in hot aisle/cold aisle settings, and allow for front to rear cable pass-through.
Additional airow management accessories include
1U and 2U tool-less blanking panels.
Lowest Total Cost of Ownership
Pre-congured with cable management and airow
bafes, reducing overall installation time.
Reduces costs and lead times with
standardized components.
2
DCM rack for Cisco Nexus 7018
Airow for these side-
breathing switches is
accomplished through 83% perforated doors, integrated bafes, and use of blanking panels.
Rack for Nexus™ 7010:
Width: 31.5” (800mm)
Depth: 47.24” (1200mm)
Height: 42U or 45U
83% perforated single locking reversible front door
2 Pair Depth Adjustable 19” EIA
Rails, Pre-set for the 7010 switch
Vertical airow bafes allow for
front to rear cable pass through
83% perforated split locking rear door
Top or bottom cable entry capable of handling 1540 cables
Rack for Nexus 7018:
Width: 39.3” (1000mm)
Depth: 47.24” (1200mm)
Height: 42U, 45U or 52U
83% perforated split locking front doors
83% perforated split locking rear doors
Full Height Vertical cable align with “U”
markings - Two full height PDU mounting
brackets that allow for easy PDU installation
or additional rear cable managing
2 Pair Depth Adjustable 19” EIA
Rails, Pre-set for the 7018 switch
Integrated bafe system allows for
front to rear cable pass through
Full Height Vertical cable align with “U”
markings - Two full height PDU mounting
brackets that allow for easy PDU installation
or additional rear cable managing
Top or bottom cable entry capable of handling 1540 cables
Specifications
Racks for the Nexus™ 7010 Racks for the Nexus™ 7018
Height 42U or 45U 42U, 45U or 52U
Width Width: 31.5” (800mm) Width: 39.3” (1000mm)
Depth Depth: 47.24” (1200mm) Depth: 47.24” (1200mm)
Weight Capacity 3000 lb. 3000 lb.
Rails
Two Pair Depth Adjustable 19” EIA Rails,
Pre-set for the 7010 switch
Two Pair Depth Adjustable 19” EIA Rails,
Pre-set for the 7018 switch
3
Emerson Network Power Family of Rack Power Distribution Units
DCM™ modular racks from Emerson Network Power are compatible with Liebert® MPX™ adaptive, Liebert MPH™ managed, and Knurr® DI-STRIP™ basic rack PDUs. These PDUs offer choices of input phase, input/output ampacity and input/output voltage to provide you with the best solution for the application you are facing today, or foresee in the future.
Highest Standard Operating Temperature in the Industry:
Each rack PDU is rated for operation up to 55C/131F, delivering reliable performance in hostile back-of-the-rack environments.
Broadest Offering of Rack PDU:
Basic to adaptive solutions to t any rack distribution needs.
Rugged Construction:
Engineered to be reliable and long lasting.

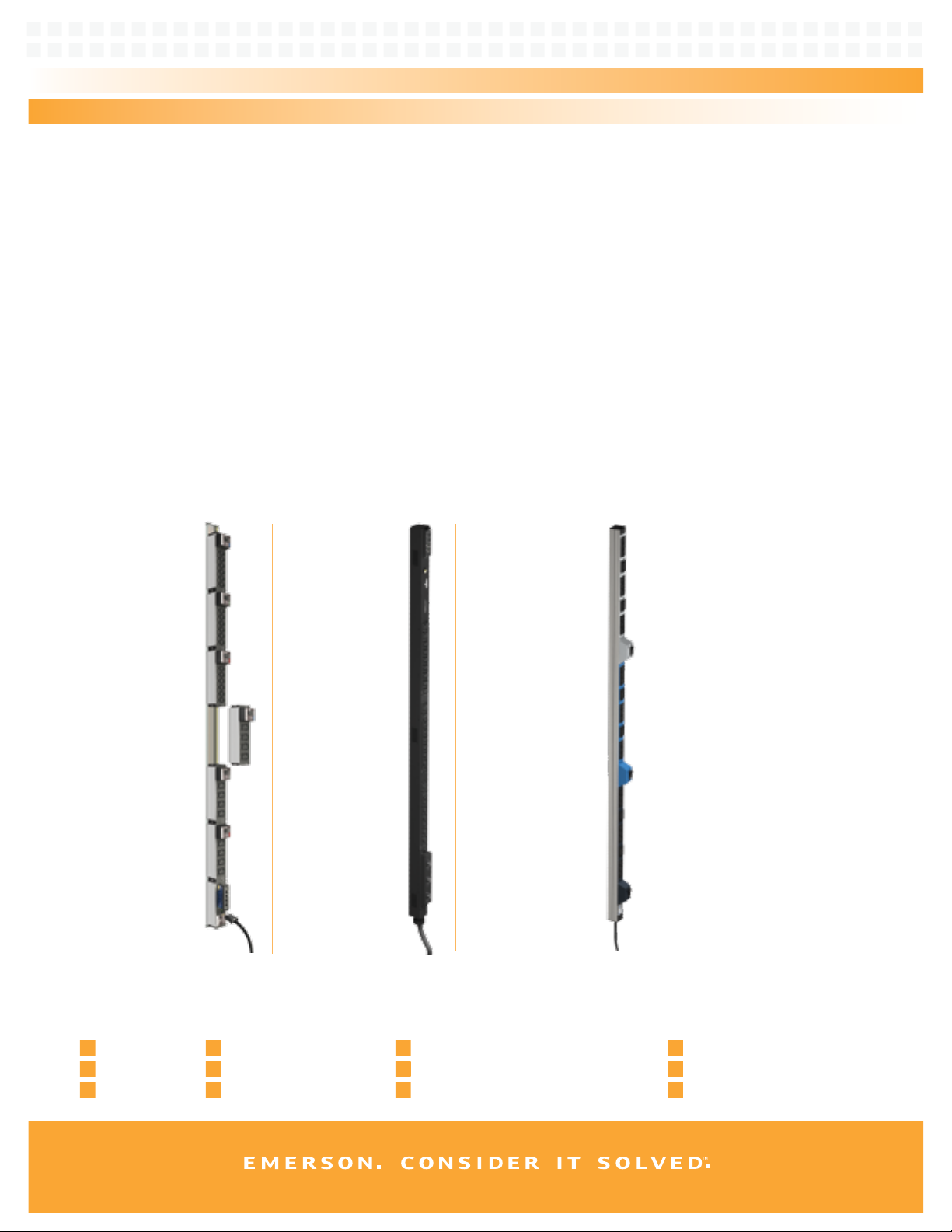

Liebert MPX:
This Adaptive
Rack PDU offers breakthrough, congurable/ modular power and management technology for the dynamic Data Center,
where change in
receptacle type and/or voltage may be foreseen over the upcoming years. This family offers products ranging from
1.9kW-14.4kw
of output.
Liebert MPH: Knurr DI-STRIP:
The Managed Rack PDU offers
several levels
of metering
in addition to control capabilities with connected
equipment. This family offers
products ranging
from 1.9kW to 8.6kW.
For Data Centers
with basic
distribution needs, the Basic Rack PDU delivers simple and expandable
distribution in a
robust package. The basic offering from Knurr, is
available in a
family of products ranging from 1.4-
24.4kW of output.
