Maintenance and Troubleshooting Manual
Part Number 3-9000-772 Revision B
January 2018
Daniel
TM
3818 LNG Liquid Ultrasonic Meter
For Cryogenic Liquefied Natural Gas Applications
Flow Lifecycle Services for Daniel products
Location Tel ephone nu m ber Fax number
North America/Latin America +1.713.467.6000 +1.713.827.4805
Daniel Customer Service +1.713.827.6413 +1.713.827.6312
USA (toll free) +1.888.356.9001 +1.713.827.3380
Asia Pacific (Republic of Singapore) +65.6777.8211 +65.6777.0947.0743
Europe (Stirling Scotland, UK) +44 (0)1786.433400 +44 (0)1786.433401
Middle East Africa (Dubai, UAE) +971 4 8118100 +971 4 8865465
Daniel Measurement and Control, Inc. (Headquarters)
11100 Brittmoore Park Drive
Houston, TX 77041 USA
http://www.Emerson.com
Email
• Customer Service: tech.service@emerson.com
• Customer Support: daniel.cst.support@emerson.com
• Asia-Pacific: danielap.support@emerson.com
• Europe: DanielEMA.CST@emerson.com
Return Material Authorization (RMA)
A Return Material Authorization (RMA) number must be obtained prior to returning any equipment for any
reason. Download the RMA form from the Support Services web page by selecting the link below.
www.daniel.com/rma
Signal words and symbols
This is a safety alert symbol. It is used to alert you to potential physical injury hazards. Obey
all safety messages that follow this syLmbol to avoid possible injury or death.
Safety alert symbol
Danger indicates a hazardous situation which, if not avoided, will result in death or serious
injury.
Warning indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
Caution indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
Caution indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
Pay special attention to the following signal words, safety alert symbols and statements:
Important
Important is a statement the user needs to know and consider.
Tip
Tip provides information or suggestions for improved efficiency or best results.
Note
Note is a “general by-the-way” content not essential to the main flow of information.
Important safety instructions
Installing, operating or maintaining a Daniel product improperly could lead to serious injury or
death from explosion or exposure to dangerous substances. To reduce this risk:
• Comply with all information on the product, in this manual, and in any local and national
codes that apply to the product.
• Do not allow untrained personnel to work with this product.
• Use Daniel parts and work procedures specified in this manual.
Daniel Measurement and Control, Inc. (Daniel) designs, manufactures and tests products to
function within specific conditions. Because these products are sophisticated technical
instruments, it is important that the owner and operation personnel strictly adhere both to the
information printed on the product and to all instructions provided in this manual prior to
installation, operation, and maintenance.
Daniel also urges you to integrate this manual into your training and safety program.
BE SURE ALL PERSONNEL READ AND FOLLOW THE INSTRUCTIONS IN THIS MANUAL AND ALL
NOTICES AND PRODUCT WARNINGS.
Product owners (Purchasers):
• Use the correct product for the environment and pressures present. See technical data
or product specifications for limitations. If you are unsure, discuss your needs with your
Daniel representative.
• Inform and train all personnel in the proper installation, operation, and maintenance of
this product.
• To ensure safe and proper performance, only informed and trained personnel should
install, operate, repair and maintain this product.
• Verify that this is the correct instruction manual for your Daniel product. If this is not
the correct documentation, contact Daniel at 1-713-827-6314. You may also download
the correct manual from:
http://www.daniel.com
• Save this instruction manual for future reference.
• If you resell or transfer this product, it is your responsibility to forward this instruction
manual along with the product to the new owner or transferee.
• ALWAYS READ AND FOLLOW THE INSTALLATION, OPERATIONS, MAINTENANCE AND
TROUBLESHOOTING MANUALS AND ALL PRODUCT WARNINGS AND INSTRUCTIONS.
• Do not use this equipment for any purpose other than its intended service. This may
result in property damage and/or serious personal injury or death.
Product Operation Personnel:
• To prevent personal injury, personnel must follow all instructions of this manual prior to
and during operation of the product.
• Follow all warnings, cautions, and notices marked on, and supplied with, this product.
• Verify that this is the correct instruction manual for your Daniel product. If this is not
the correct documentation, contact Daniel at 1-713-827-6314. You may also download
the correct manual from:
http://www.daniel.com
• Read and understand all instructions and operating procedures for this product.
• If you do not understand an instruction, or do not feel comfortable following the
instructions, contact your Daniel representative for clarification or assistance.
• Install this product as specified in the INSTALLATION section of this manual per
applicable local and national codes.
• Follow all instructions during the installation, operation, and maintenance of this
product.
• Connect the product to the appropriate pressure and electrical sources when and
where applicable.
• Ensure that all connections to pressure and electrical sources are secure prior to and
during equipment operation.
• Use only replacement parts specified by Daniel. Unauthorized parts and procedures can
affect this product's performance, safety, and invalidate the warranty. “Look-a-like”
substitutions may result in deadly fire, explosion, release of toxic substances or
improper operation.
• Save this instruction manual for future reference.
Notice
THE CONTENTS OF THIS PUBLICATION ARE PRESENTED FOR INFORMATIONAL PURPOSES ONLY,
AND WHILE EVERY EFFORT HAS BEEN MADE TO ENSURE THEIR ACCURACY, THEY ARE NOT TO
BE CONSTRUED AS WARRANTIES OR GUARANTEES, EXPRESSED OR IMPLIED, REGARDING THE
PRODUCTS OR SERVICES DESCRIBED HEREIN OR THEIR USE OR APPLICABILITY. ALL SALES ARE
GOVERNED BY DANIEL'S TERMS AND CONDITIONS, WHICH ARE AVAILABLE UPON REQUEST. WE
RESERVE THE RIGHT TO MODIFY OR IMPROVE THE DESIGNS OR SPECIFICATIONS OF SUCH
PRODUCTS AT ANY TIME.
DANIEL DOES NOT ASSUME RESPONSIBILITY FOR THE SELECTION, USE OR MAINTENANCE OF
ANY PRODUCT. RESPONSIBILITY FOR PROPER SELECTION, USE AND MAINTENANCE OF ANY
DANIEL PRODUCT REMAINS SOLELY WITH THE PURCHASER AND END-USER.
TO THE BEST OF DANIEL'S KNOWLEDGE THE INFORMATION HEREIN IS COMPLETE AND
ACCURATE. DANIEL MAKES NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE WITH RESPECT
TO THIS MANUAL AND, IN NO EVENT, SHALL DANIEL BE LIABLE FOR ANY INCIDENTAL, PUNITIVE,
SPECIAL OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF
PRODUCTION, LOSS OF PROFITS, LOSS OF REVENUE OR USE AND COSTS INCURRED INCLUDING
WITHOUT LIMITATION FOR CAPITAL, FUEL AND POWER, AND CLAIMS OF THIRD PARTIES.
PRODUCT NAMES USED HEREIN ARE FOR MANUFACTURER OR SUPPLIER IDENTIFICATION ONLY
AND MAY BE TRADEMARKS/REGISTERED TRADEMARKS OF THESE COMPANIES.
Warranty and Limitations
1. LIMITED WARRANTY: Subject to the limitations contained in Section 2 herein, Daniel Measurement &
Control, Inc. ("Daniel") warrants that the licensed firmware embodied in the Goods will execute the
programming instructions provided by Daniel, and that the Goods manufactured by Daniel will be free from
defects in materials or workmanship under normal use and care and Services will be performed by trained
personnel using proper equipment and instrumentation for the particular Service provided. The foregoing
warranties will apply until the expiration of the applicable warranty period. Goods are warranted for twelve
(12) months from the date of initial installation or eighteen (18) months from the date of shipment by Daniel,
whichever period expires first. Consumables and Services are warranted for a period of 90 days from the date
of shipment or completion of the Services. Products purchased by Daniel from a third party for resale to Buyer
("Resale Products") shall carry only the warranty extended by the original manufacturer. Buyer agrees that
Daniel has no liability for Resale Products beyond making a reasonable commercial effort to arrange for
procurement and shipping of the Resale Products. If Buyer discovers any warranty defects and notifies Daniel
thereof in writing during the applicable warranty period, Daniel shall, at its option, correct any errors that are
found by Daniel in the firmware or Services or repair or replace F.O.B. point of manufacture that portion of the
Goods or firmware found by Daniel to be defective, or refund the purchase price of the defective portion of the
Goods/Services. All replacements or repairs necessitated by inadequate maintenance, normal wear and usage,
unsuitable power sources or environmental conditions, accident, misuse, improper installation, modification,
repair, use of unauthorized replacement parts, storage or handling, or any other cause not the fault of Daniel
are not covered by this limited warranty, and shall be at Buyer's expense. Daniel shall not be obligated to pay
any costs or charges incurred by Buyer or any other party except as may be agreed upon in writing in advance
by Daniel. All costs of dismantling, reinstallation and freight and the time and expenses of Daniel's personnel
and representatives for site travel and diagnosis under this warranty clause shall be borne by Buyer unless
accepted in writing by Daniel. Goods repaired and parts replaced by Daniel during the warranty period shall be
in warranty for the remainder of the original warranty period or ninety (90) days, whichever is longer. This
limited warranty is the only warranty made by Daniel and can be amended only in a writing signed by Daniel.
THE WARRANTIES AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE. THERE ARE NO REPRESENTATIONS OR
WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, AS TO MERCHANTABILITY, FITNESS FOR PARTICULAR
PURPOSE OR ANY OTHER MATTER WITH RESPECT TO ANY OF THE GOODS OR SERVICES. Buyer acknowledges
and agrees that corrosion or erosion of materials is not covered by this warranty.
2. LIMITATION OF REMEDY AND LIABILITY
PERFORMANCE. THE REMEDIES OF BUYER SET FORTH IN THIS AGREEMENT ARE EXCLUSIVE. IN NO EVENT,
REGARDLESS OF THE FORM OF THE CLAIM OR CAUSE OF ACTION (WHETHER BASED IN CONTRACT,
INFRINGEMENT, NEGLIGENCE, STRICT LIABILITY, OTHER TORT OR OTHERWISE), SHALL DANIEL'S LIABILITY TO
BUYER AND/OR ITS CUSTOMERS EXCEED THE PRICE TO BUYER OF THE SPECIFIC GOODS MANUFACTURED OR
SERVICES PROVIDED BY DANIEL GIVING RISE TO THE CLAIM OR CAUSE OF ACTION. BUYER AGREES THAT IN NO
EVENT SHALL DANIEL'S LIABILITY TO BUYER AND/OR ITS CUSTOMERS EXTEND TO INCLUDE INCIDENTAL,
CONSEQUENTIAL OR PUNITIVE DAMAGES. THE TERM "CONSEQUENTIAL DAMAGES" SHALL INCLUDE, BUT NOT
BE LIMITED TO, LOSS OF ANTICIPATED PROFITS, REVENUE OR USE AND COSTS INCURRED INCLUDING
WITHOUT LIMITATION FOR CAPITAL, FUEL AND POWER, AND CLAIMS OF BUYER'S CUSTOMERS.
: DANIEL SHALL NOT BE LIABLE FOR DAMAGES CAUSED BY DELAY IN
Maintenance and Troubleshooting Manual Table of Contents
3-9000-772 Rev B January 2018
Contents
Important Safety Instructions ........................................................................... 0
Section 1: Routine maintenance
1.1 Meter maintenance ..................................................................................... 1
1.2 Routine Maintenance ...................................................................................3
1.2.1 Maintenance logs and reports........................................................................... 3
Section 2: Troubleshooting
2.1 Meter status alarms ..................................................................................... 7
2.1.1 Check status ..................................................................................................... 8
2.1.2 System alarm .................................................................................................. 10
2.1.3 Chord A, Chord B, Chord C and Chord D alarm ................................................ 10
2.1.4 Field I/O alarm................................................................................................. 10
2.1.5 Validity alarm.................................................................................................. 10
2.1.6 Comms alarm ................................................................................................. 10
2.1.7 Communications ............................................................................................ 11
2.2 Troubleshooting the meter ........................................................................ 11
2.2.1 Meter maintenance......................................................................................... 19
2.2.2 Unable to connect direct serial or external serial modem ................................ 29
2.2.3 Unable to connect to meter ............................................................................ 29
2.2.4 Ethernet connections...................................................................................... 29
2.2.5 Direct serial connections................................................................................. 29
2.3 Troubleshoot Maintenance log files and trend files ....................................... 30
2.3.1 Files do not appear in workbook...................................................................... 30
2.3.2 Microsoft® Excel® Log/Export Options are not Available................................ 30
2.3.3 Maintenance Logs or Trend files are not created ............................................. 31
2.3.4 Windows® XP with Security Update ............................................................... 34
Table of Contents i
Table of Contents Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
Section 3: Meter maintenance
3.1 Removing the shrouds ............................................................................... 38
3.1.1 Removing the band shrouds ........................................................................... 39
3.2 Re-wetting the transducers .......................................................................44
3.3 Replacing the transducer assembly .............................................................51
3.4 Replacing the meter electronics.................................................................. 55
3.4.1 Transmitter electronics maintenance.............................................................. 56
3.4.2 Replacing the CPU Module ..............................................................................57
3.4.3 Replacing the fuse ...........................................................................................59
3.4.4 Replacing the Backplane .................................................................................60
3.4.5 Replacing the I.S. Barrier board........................................................................63
3.4.6 Replacing the Power Supply Board .................................................................. 65
3.4.7 Replacing the Acquisition Module ...................................................................67
3.4.8 Replacing the Acquisition cable or synchronization cable................................70
3.5 Installing the shrouds ................................................................................ 71
3.6 Sealing the meter ......................................................................................76
3.6.1 Sealing the transmitter electronics enclosure.................................................. 76
3.6.2 Sealing the Bracket/Cover and Base electronics enclosure...............................77
Appendix A: Conversion factors
A.1 Conversion factors per units of measurement ................................................................... 79
A.2 K Factor conversions......................................................................................................... 80
Appendix B: Engineering Drawings
B.1 Daniel 3810 Series Ultrasonic Flow Meter Drawings.......................................................... 81
Appendix C: Index
C.1 Manual index..................................................................................................................... 83
ii Table of Contents
Maintenance and Troubleshooting Manual List of Tables
3-9000-772 Rev B January 2018
List of Tables
Table 2-1 Troubleshooting........................................................................................................... 12
Table 2-2 Maintenance ................................................................................................................ 21
Table 3-1 Contents-Transducer maintenance .............................................................................. 35
Table 3-2 Shroud removal tool list ............................................................................................... 39
Table 3-3 Transducer maintenance tools and shop supplies list ................................................... 45
Table 3-4 Electronics maintenance tools list ................................................................................ 55
Table 3-5 Shroud removal tool list ............................................................................................... 71
Table A-1 Conversion factors per units of measurement............................................................... 79
List of Tables iii
List of Tables Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
iv List of Tables
Maintenance and Troubleshooting Manual List of Figures
3-9000-772 Rev B January 2018
List of Figures
Figure 1-2 Maintenance log collection parameters........................................................................ 3
Figure 1-3 Trend log collection...................................................................................................... 4
Figure 1-4 Archive log collection parameters................................................................................. 5
Figure 2-1 Meter Monitor status alarms......................................................................................... 7
Figure 2-2 Meter Monitor (Detailed) view ...................................................................................... 7
Figure 2-3 Monitor page Check status and Status Summary.......................................................... 8
Figure 2-4 Monitor page Check status and Status Summary.......................................................... 9
Figure 2-5 Meter Monitor (Summary) view ................................................................................. 19
Figure 2-6 Meter Monitor (Detailed) view ................................................................................... 20
Figure 2-7 Excel® 2000 Tools Menu ............................................................................................ 31
Figure 2-8 Excel® Trusted Access Setting .................................................................................... 32
Figure 2-9 Excel® 2007 Tools Menu ............................................................................................ 32
Figure 2-10 Excel® 2007 Developer tab - Macro Security .............................................................. 33
Figure 3-2 3818 LNG Meter top assembly ................................................................................... 38
Figure 3-3 Top shroud disassembly ............................................................................................ 40
Figure 3-4 Shroud worm screw assembly .................................................................................... 41
Figure 3-5 Clamped shroud worm screw parts ............................................................................ 42
Figure 3-6 Band shroud hem bend joint....................................................................................... 43
Figure 3-7 LT-07 transducer assembly ......................................................................................... 44
Figure 3-8 3818 meter with thermal wrap ................................................................................... 46
Figure 3-9 Transducer assembly removal..................................................................................... 47
Figure 3-10 LT-07 Transducer assembly removed from transducer housing .................................. 47
Figure 3-11 Re-wetting the LT-07 transducer face ......................................................................... 48
Figure 3-12 Re-installing the thermal wrap.................................................................................... 49
Figure 3-13 LT-07 Transducer assembly ........................................................................................ 51
Figure 3-14 LT-07 Transducer assembly removed from transducer housing .................................. 52
Figure 3-15 LT-07 transducer and transducer cable wiring............................................................. 53
Figure 3-16 3818 LNG Liquid Ultrasonic Flow Meter electronics .................................................... 56
Figure 3-17 CPU replacement ...................................................................................................... 57
Figure 3-18 Fuse holder cap .......................................................................................................... 59
Figure 3-19 Backplane board replacement .................................................................................... 61
Figure 3-20 I.S. Barrier board replacement ................................................................................... 63
Figure 3-21 Power Supply Board replacement .............................................................................. 65
List of Figures v
List of Figures Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
Figure 3-22 Bracket/Cover plate removal.......................................................................................67
Figure 3-23 Acquisition Module cable and transducer wiring ........................................................ 68
Figure 3-24 Acquisition Module cable or Synchronization cable ....................................................70
Figure 3-25 Band shroud hem bend joint .......................................................................................72
Figure 3-26 Band shroud assembly ................................................................................................73
Figure 3-27 Top shroud attachment points ................................................................................... 74
Figure 3-28 Top shroud assembly ..................................................................................................75
Figure 3-29 Transmitter electronics enclosure security latch .........................................................76
Figure 3-30 Base Enclosure security seals ......................................................................................77
vi List of Figures
Maintenance and Troubleshooting Manual Section 1: Routine maintenance
SURFACE TEMPERATURE HAZARD
The meter body and piping may be extremely cold.
Wear appropriate personal protective equipment when coming in contact with the meter. Failure to do so may
result in injury.
TRANSPORTATION HAZARD
When moving the meter, do not insert the forks of a forklift into the bore.
Inserting the forks may cause the meter to become unstable, resulting in injury or damage to the bore and
sealing face.
TRIPPING HAZARD
Clear all obstacles or obstructions from the work area when transporting, installing or removing the
meter.
Failure to clear the work area may cause injury to personnel.
Prior to lifting the unit, refer to the flow meter nameplate or outline dimensional (general arrangement)
drawing for the assembled weight.
3-9000-772 Rev B January 2018
11
Section 1: Routine maintenance
1.1 Meter maintenance
This section includes discussion of the maintenance of Daniel 3818 LNG Liquid Ultrasonic Flow
Meters.
For reference, you may download the Daniel MeterLink Quick Start Manual from:
http://www2.emersonprocess.com/en-US/brands/daniel/Flow/ultrasonics/Pages/
MeterLink.aspx
Meter maintenance 1
Section 1: Routine maintenance Maintenance and Troubleshooting Manual

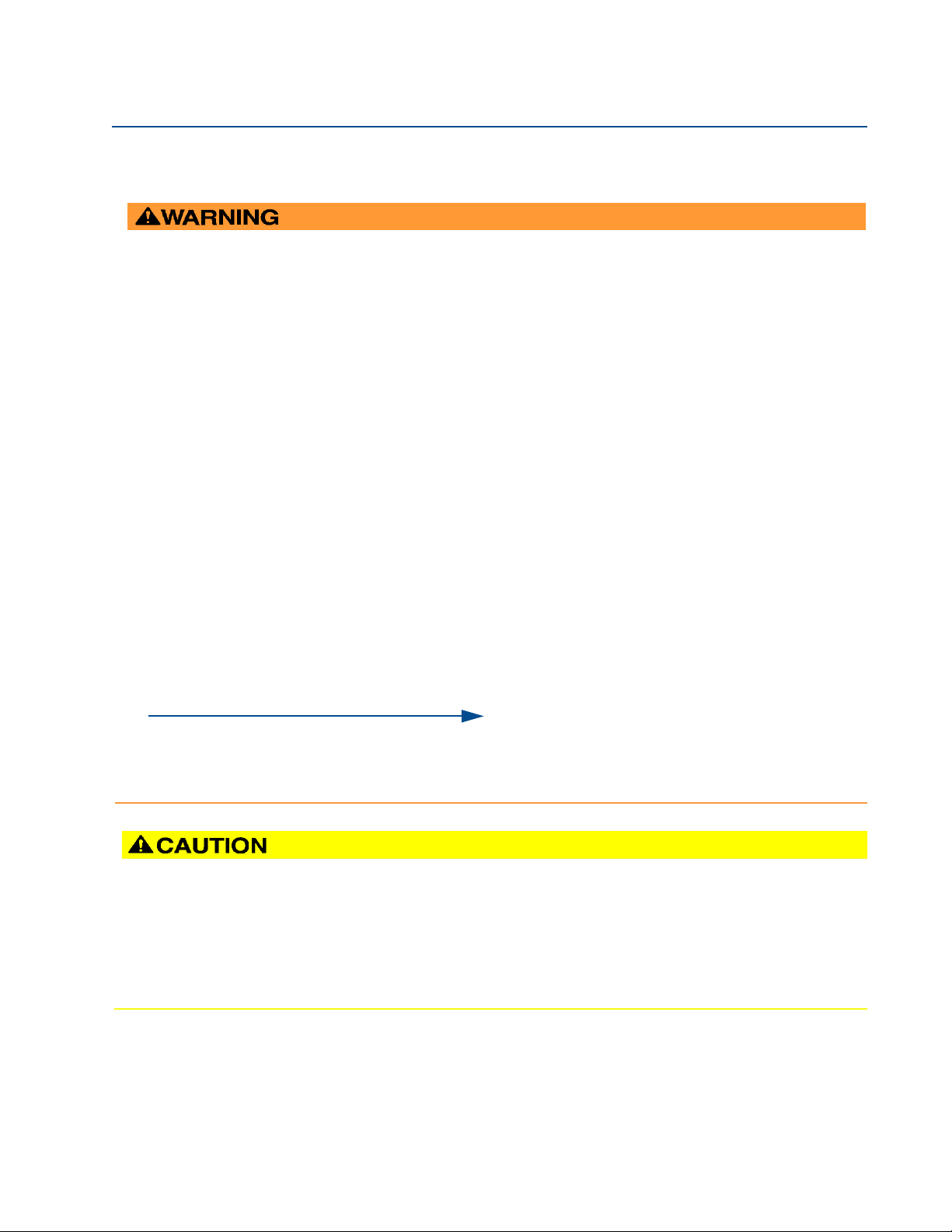

CRUSHING HAZARD
Do not remove flange stabilizers.
Attempting to do so may allow the meter to roll, resulting in serious injury or equipment damage.
A.
A. Flange stabilizers
ESCAPING FLUIDS HAZARD
The purchaser of the meter is responsible for the selection of Daniel components/seals and materials
compatible with the chemical properties of the measurement fluid.
Failure to select suitable meter components/seals may cause escaping fluids, resulting in injury or equipment
damage.
.
January 2018 3-9000-772 Rev B
2 Meter maintenance
Maintenance and Troubleshooting Manual Section 1: Routine maintenance
3-9000-772 Rev B January 2018
1.2 Routine Maintenance
Routine maintenance operations requires adherence to all applicable regulations and laws and
safety training for personnel to perform the maintenance operations. Review your
organization’s best practices procedures before performing routine maintenance.
1.2.1 Maintenance logs and reports
To monitor the performance health of the meter, and ensure it is operating within acceptable
specifications, routine diagnostics should be performed. Collecting a maintenance log gives
you a snapshot of the current health of the meter and you can compare the inspection reports
from previously saved logs. Use the Logs/Reports menu and click Maintenance Logs and
Reports. Daniel MeterLink displays the Maintenance Logs and Reports dialog. Choose the time
duration, log format and collection rate for the output file and click the Start button. You can
open the file immediately after it is generated or view it at a later time. It is recommended that a
Maintenance log be collected after an upset in the system.
In establishing a baseline to be used for the trending of the meter diagnostics, it is very helpful if
a set of log files are collected immediately after the meter has been installed in the field.
Preferably, collect the log files at several velocities within the operating range of the meter. This
helps establish that the flow profile is relatively constant throughout the meters operating
range (except velocities below 3 ft/sec where the profile may vary).
Maintenance log collection
Figure 1-2 Maintenance log collection parameters
Routine Maintenance 3
Section 1: Routine maintenance Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
Trend maintenance log collection
Merging the results of two or more Maintenance logs into a single file, allows you to build a
historical database of the meter’s performance. Trending the logs indicates changes from the
original installation of the meter over time. Looking at a single inspection report, that is either
collected monthly or quarterly, will only give you an indication of the meter's current health.
Figure 1-3 Trend log collection
This is important since many diagnostics change slowly over time. Trending the maintenance
logs helps identify these changes and makes problems much more obvious than merely viewing
a single inspection report. The Trending feature is integral to Daniel MeterLink which allows all
important parameters to be trended. Daniel MeterLink supports trending files in a Microsoft®
Excel® workbook from multiple 3818 meter maintenance logs. Some parameters like gain,
signal level, and noise level may show a shift over time which can be useful in detecting changes
in the meter and the installation.
Maintenance logs to be trended must all have matching column headings. This means the logs
must be in the same units (i.e. U.S. Customary or Metric), must have the same pressure type (i.e.
gage or absolute), and must have the same time base (1/second, 1/minute, 1/hour, 1/day). If
not, an error message will be displayed stating the column headings do not match and the file
will not be added to the Workbook to trend list.
4 Maintenance logs and reports
Maintenance and Troubleshooting Manual Section 1: Routine maintenance
3-9000-772 Rev B January 2018
Archive log collection
Archive logs may be collected and the options include:
• Daily log - generated every 24 hours on the Contract Hour.
• Hourly log - generated every hour at the top of the hour.
• Event log - collects the alarm and event log records.
Figure 1-4 Archive log collection parameters
The logs may be collected in a single file or you can choose to collect one type of log. Each of the
Meter Archive logs include the Meter Configuration file.
Maintenance logs and reports 5
Section 1: Routine maintenance Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
6 Maintenance logs and reports
Maintenance and Troubleshooting Manual Section 2: Troubleshooting
3-9000-772 Rev B January 2018
APPENDIX A:DANIEL METERLINK
Section 2: Troubleshooting
2.1 Meter status alarms
Run Daniel MeterLink and open the Meter Monitor (Summary) view to perform a diagnostics
health check.
Figure 2-1 Meter Monitor status alarms
If the meter is measuring flow and operating within the established parameters the Meter Status
LED is green. If the Meter Status LED is red, an active alarm exists that requires you to take
corrective action.
Figure 2-2 Meter Monitor (Detailed) view
Meter status alarms 7
Section 2: Troubleshooting Maintenance and Troubleshooting Manual
A. Status summary page with no active alarm condition(s)
January 2018 3-9000-772 Rev B
2.1.1 Check status
The Status Summary page displays existing alarm conditions for the meter. If all statuses are
good, the Status Summary alarms list is empty.
Figure 2-3 Monitor page Check status and Status Summary
If alarm conditions exist, the summary list is prioritized according to the severity of the
condition. The Status Summary displays the condition showing the most severe alarm first.
Click the
Check Status button if any of the LEDs are yellow or red to see more specific
information causing the status alarm. Some alarms do not require an acknowledge and will clear
automatically when the alarm condition goes away. Alarms that require a user to acknowledge
them will have a button to the right titled
Wait and sends a request to the meter to clear the alarm. The alarm will disappear from the
to
ACK. Clicking the AC K button changes the button text
Check Status dialog once the alarm actually clears.
8 Check status
Maintenance and Troubleshooting Manual Section 2: Troubleshooting
A.
B.
A. Active alarm condition(s) from Meter Monitor page
B. Status summary page with alarm examples
3-9000-772 Rev B January 2018
Click the Check Status button and Daniel MeterLink opens the Status Summary dialog box that
gives a short description of all alarms present.
Figure 2-4 Monitor page Check status and Status Summary
Following is a list and a brief description of the types of alarms:
• System
• Power Loss
• Field I/O
• Validity
• Comms
• Check Status
The alarms are shown with the primary causes listed first. Click the question mark next to the
alarm to display a help topic related to the alarm and recommended actions to resolve the issue.
Check status 9
Section 2: Troubleshooting Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
2.1.2 System alarm
The System alarm indicates a failure in the hardware that should be addressed by a service
technician. This includes memory checksum errors and communication errors within the
hardware. A Red LED indicates a System alarm condition. Collect a Maintenance log and an
audit/alarm log and then, contact your Daniel service representative.
2.1.3 Chord A, Chord B, Chord C and Chord D alarm
Chord A, Chord B, Chord C, and Chord D - These alarms indicate how a chord is functioning.
LED Color Problem
Green No alarms are present. Chord is operating properly.
Yellow At least one sample in the batch caused an alarm but it did not cause the chord to fail.
The sample will not be used in the batch. Discarding occasional samples can occur
during normal operation such as during flow velocity changes.
Red The chord has failed or is in acquisition. This chord is not used for this batch. Chords
that have failed or are shown to be in acquisition for repeated batches indicates that the
meter should be inspected by a service technician.
Gray The chord has manually been set to inactive.
2.1.4 Field I/O alarm
Reports various field I/O devices that are in alarm. Click the Check Status button for more details
on specific alarms. The field is grayed out if the Daniel 3818 LNG Liquid Ultrasonic Flow Meter
does not support this alarm.
2.1.5 Validity alarm
This alarm indicates that the meter may not be measuring accurately. Click Check Status to see a
description of which validity alarms are active. The validity alarms
issue with the meter collecting enough information from the chords to make an accurate
measurement. The validity alarms for pressure and temperature indicate that the value is above
or below the alarm limits for these values. Red and green are the only colors used for this alarm.
2.1.6 Comms alarm
The Comms alarm indicates that communications between Daniel MeterLink and the meter
failed. This could be due to a poor communication link. Daniel MeterLink continues to retry
communications. Red and green are the only colors used for this alarm.
QMeter and QFlow indicate an
10 System alarm
Maintenance and Troubleshooting Manual Section 2: Troubleshooting
Important
The system temperature must be warmed above zero
o
Celsius to perform meter maintenance procedures.
3-9000-772 Rev B January 2018
2.1.7 Communications
The Communications Analyzer (via Daniel MeterLink Tools> Menu>Communications Analyzer
menu path) displays communications between Daniel MeterLink and the ultrasonic meter. This
utility is useful for troubleshooting communications to the meter. It displays many of the TCP/IP
commands between Daniel MeterLink and the connected meter.
For troubleshooting communications with the 475 Field Communicator for the HART®
Protocol, refer to Section 5 of the Emerson 475 Field Communicator User’s Manual, Rev D. This
manual may be downloaded from the following location:
http://www2.emersonprocess.com/en-US/brands/Field-Communicator/Pages/Support.aspx
For troubleshooting communications with AMS Device Manager, refer to the help
documentation and support at the following web site:
http://www2.emersonprocess.com/en-US/brands/amssuite/amsdevicemanager/Pages/AMSDeviceManager.aspx
2.2 Troubleshooting the meter
Table 2-1 and the following sections show errors that may occur with the meter hardware,
firmware or connections and recommended actions to resolve the problem(s).
Communications 11
Section 2: Troubleshooting Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
Table 2-1 Troubleshooting
Error Recommended action(s)
Acquisition Module Error
Acquisition Module is not compatible with firmware
Chord failure
CPU Module LINK LED
• Check interconnect cable between Acquisition Module and the CPU Module.
• Attempt the Program Download procedure to install the firmware.
— Cycle power to the meter.
— Replace the Acquisition Module.
— If the Acquisition Module cannot be reprogrammed, collect a complete
Archive log and contact your local area Daniel service representative.
• Upgrade the firmware in the meter to the latest version using Daniel MeterLink
(Too ls| Pro gram Down loa d). Contact your Daniel service representative to obtain
the latest firmware or download the firmware from:
http://www2.emersonprocess.com/en-US/brands/daniel/docs/Pages/DownloadsandDocumentation.aspx
Note: Select the firmware download from the products list for your meter.
• Replace the Acquisition Module.
• Note: This procedure should be performed by a qualified Daniel Measure-
ment Services technician.
Chord is hard failed (Chord A, Chord B, Chord C or Chord D) and meter is unable to
•
obtain measurement data from this pair of transducers.
— If Chord A is failed and no other transducers are failed or are reporting status
alarms, the issue is most likely isolated to this pair of transducers or its cabling.
Check the transducer wiring for this pair of transducers to make sure
connections are secure and wired correctly.
— Verify the average gain of this transducer pair is not above 90dB. The gain
value can be read in Daniel MeterLink on the Monitor (Detailed) page.
— Measure the resistance with an Ohm meter across the two transducer wires
attached to the Acquisition Module. If the value is not .09<R<1.1 Mega Ohms,
replace the transducers.
— Collect a Maintenance Log, Configuration file and Waveform stream file with
Daniel MeterLink and contact your Daniel service representative.
• When connecting directly:
— Check the cross-over cable connection (P/N 2-3-3400-079)
• When Using a Hub:
— Use straight-through patch cable between the meter and the hub and a
straight-through patch cable between the hub and the PC
— Do not connect either the meter or PC to the hub UPLINK port.
— Check the CPU Module LED 1 is on (either solid red or flashing green). If the
LED is not on, check power to the meter.
— If the LED is on, check the Ethernet cable connections
12 Troubleshooting the meter
Maintenance and Troubleshooting Manual Section 2: Troubleshooting
3-9000-772 Rev B January 2018
Table 2-1 Troubleshooting
Error Recommended action(s)
CPU Module LINK LED is on but I
can't communicate with the meter
using Ethernet
Communication line connected to
the flow computer but no signal is
received
• If you are connecting for the first time, refer to Section 3.5 for instructions on initial
communication (via Ethernet) setup
• Enable the DHCP switch on the CPU Module
• Verify that the PC has received an IP address from the meter as follows:
— bring up DOS prompt window (Start->Run->(type)cmd)
— in the DOS prompt window, type ipconfig
• If you get the following: IP 192.168.135.35 (note: the last .35 can be up to .44) with
a Subnet Mask of 255.255.255.0 and Default Gateway you should be able to
connect to the meter
• If you get the following:
— Ethernet adapter Local Area Connection 1:
— IP Address: 0.0.0.0
— the PC has not yet received an IP address from the DHCP server wait (up to 30
seconds) to receive an IP address before attempting to connect to the meter
— after 30 seconds the PC has not received an IP address from the DHCP server
or the IP address shown above (from ipconfig) is different from the range of
192.168.135.35 through 192.168.135.44, verify that the PC is configured to
receive its IP address automatically (via DHCP)
• Check for loose connections at the flow meter and the flow computer.
• Check the CPU Module settings.
Troubleshooting the meter 13
Section 2: Troubleshooting Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
Table 2-1 Troubleshooting
Error Recommended action(s)
Communication issues due to
blocked network ports
• Blocked network ports on the computer running Daniel MeterLink or on a company
LAN can prevent connections to the meter or prevent certain features from
working. These issues may occur over Ethernet, Modem and Direct serial connections. Reference the list of network ports used by Daniel MeterLink in the Help file
and the symptoms of having blocked ports. Contact your IT department for
assistance in resolving these issues.
• Error condition of a blocked network:
— Cannot connect to a meter
— Cannot collect Archive log files
— Cannot view or stream waveforms in Waveform Viewer or Signal Analyzer.
— Cannot upgrade firmware.
— Communications lost over serial or modem connections while
Daniel MeterLink is idle on a screen.
• Symptoms of blocked network:
— If a PING is blocked on this network port, serial or modem connections could
be lost after approximately 15 seconds of inactivity. This issue can be
confirmed by checking the log_meter log file in the Temp data folder. The
path of the Temp data folder is shown in the Daniel MeterLink About dialog.
— A blocked FTP port will generally not prevent a connection to the meter, but
will prevent log collections and program downloads. A blocked FTP port could
prevent a connection in the event the meter is running a newer version of
firmware for which Daniel MeterLink does not currently have a database configuration file. If this is a case, a message stating “Error reading database
config file dbconfig<databaseversion>.xml from the meter.” will be displayed.
Contact Daniel Measurement Services to obtain the database file and assistance in installing the file.
Communicating with meter but all
chords display failures
Cannot communicate with Daniel
MeterLink program
If the If the network if blocking the port, a direct cable connection via
Ethernet or serial will possibly allow MeterLink to collect the file
— A blocked DB API port will report “Error 10001 opening database connection
to <IP address>”.
— A blocked Streaming port will report an error message “Unable to open a
control socket”. This will occur when opening the Signal Analyzer window or
clicking Read or Stream to File in the Waveform Viewer.
• Verify that the resistance of transducers is within Specification (.09<R<1.1 Mega
Ohms Ω). Check the resistance of the wiring connections on the Acquisition
Board.
• Check the interconnect cables between the Base assembly and the Transmitter
Electronics Enclosure.
• Ensure that the meter is properly powered.
• Ensure that the computer cable is properly connected and check your interface pins
(RS-485 or RS-232).
• Verify that the communication parameters of the Daniel MeterLink
correctly set.
program are
• Check RS-485 or RS-232 communication.
14 Troubleshooting the meter
Maintenance and Troubleshooting Manual Section 2: Troubleshooting
3-9000-772 Rev B January 2018
Table 2-1 Troubleshooting
Error Recommended action(s)
Cannot communicate with 475 Field
Communicator
Cannot communicate with AMS
Device Manager
Connect to multiple meters via
Ethernet when they are on the same
LAN
Connect to multiple meters via
Ethernet when they are on the same
hub but not connected to an
intranet LAN
Configuration changed
Configuration lost
Electronics Temperature is Out Of
Nominal Range
• Refer to the Emerson 475 Field Communication User’s Manual, Rev F. This manual may
be downloaded from the following location:
http://www2.emersonprocess.com/en-US/brands/Field-Communicator/Pages/
Documentation.aspx
— Note: The 375 Field Communicator is no longer available for purchase since the
release of the 475 Field Communicator. Customer support for the 375 Field
Communicator remains available
• Refer to the AMS help documentation and support at the following web site:
http://www.emersonprocess.com/ams/suppinde.htm
• Configure each meter with a unique user-specified IP address (following the initial
communication quick start instructions Section 3.5).
• Contact your IT department for valid IP addresses for your LAN and Gateway
addresses.
• Disable the DHCP server.
• Configure each meter with a unique user-specified IP address
(following the initial communication quick start instructions Section 3.5 in the
3818 LNG Liquid Ultrasonic Flow Meter Installation Manual).
• Assign each meter on the hub a unique IP address within the range
192.168.135.150 through 192.168.135.254 (Gateway address for each meter may
be left unconfigured as 0.0.0.0).
• A PC may receive its IP address from an external DHCP server; in this case, one and
only one meter must have its DHCP ser ver enabl ed (the DHCP ser ver will serve up to
10 IP addresses to PCs attempting to talk to all meters on the hub).
• Once a meter's IP address is configured, the meter may be connected to the hub
and accessed using that IP address.
• One or more parameters have been modified in the meter's configuration
— Collect an Audit log using Daniel MeterLink in order to see what configuration
parameters changed and when they changed.
— Save the configuration file.
• The meter configuration has reset to default values and the meter is not configured
correctly to measure flow and the meter has performed a Cold Start.
— Unless the Cold Start occurred after upgrading firmware, replace the CPU
board.
— If the cold start occurred after a firmware upgrade, fully re-configure the
meter from a previously saved configuration using the
Edit/Compare Configuration in Daniel MeterLink.
• Temperature of the electronics is out of nominal operating range (below -40 °C or
above 100 °C) which could lead to a system failure.
— Attempt to warm or cool the meter electronics housing.
— If the electronics is mounted to the meter and the process fluid in the meter is
over 65 °C, you must remote mount the electronics off of the meter body.
— Collect a Maintenance log using Daniel MeterLink while the meter is experi-
encing the issue and contact your Daniel service representative.
Troubleshooting the meter 15
Section 2: Troubleshooting Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
Table 2-1 Troubleshooting
Error Recommended action(s)
Flow pressure is outside the alarm
limits
Flow temperature is outside the
alarm limits
• Startup Issues:
— Verify that there is voltage to the pressure sensor from either the meter's
power supply board or from an external power supply.
— If using an analog pressure device, verify that the pressure sensor is properly
wired to the connector.
— Verify the input is properly configured for your pressure input.
— If using a flow computer to write pressure to the meter, verify that it is
properly writing to fixed flow pressure in the proper units.
• Run Time Issues:
— Adjust pressure of process fluid to within alarm limits.
— If using an analog pressure device and input reading is 0, check if IsAI1Avail is
equal to 1 in the Meter Information dialog in Daniel MeterLink. If it is not 1,
either the I/O Board has been removed or is damaged. Reinstall or replace the
board if this value is 0.
— If using an analog pressure device, verify that the pressure sensor is working
properly.
— If using an analog pressure device, recheck wiring and switch settings.
— If a flow computer is writing values to the fixed flow pressure, verify that the
flow computer is still writing valid values without Modbus write errors.
— Reverify the pressure input settings are correct.
• Startup Issues:
— Verify that there is voltage to the temperature sensor from either the meter's
power supply board or from an external power supply.
— If using an analog temperature device, verify that the temperature sensor is
properly wired to the connector.
— Verify the input is properly configured for your temperature input.
— If using a flow computer to write temperature to the meter, verify that it is
properly writing to fixed flow temperature in the proper units.
• Run Time Issues:
— Adjust temperature of process fluid to within alarm limits.
— If using an analog temperature device and input reading is 0, check if
IsAI2Avail is equal to 1 in the Meter Information dialog in Daniel MeterLink. If
it is not 1, either the I/O Board has been removed or is damaged. Reinstall or
replace the board if this value is 0.
— If using an analog temperature device, verify that the temperature sensor is
working properly.
— If using an analog temperature device, recheck wiring and switch settings.
— If a flow computer is writing values to the fixed flow temperature, verify that
the flow computer is still writing valid values without Modbus write errors.
— Reverify the temperature input settings are correct.
16 Troubleshooting the meter
Maintenance and Troubleshooting Manual Section 2: Troubleshooting
3-9000-772 Rev B January 2018
Table 2-1 Troubleshooting
Error Recommended action(s)
Program download failed during
firmware upgrade
No power to the unit
One or more of the chords is not
indicating a reading (reporting
zeros)
• If the meter power fails during a firmware upgrade process, perform a backup
upgrade in an attempt to connect to the meter and download the program again.
— In Daniel MeterLink go to the File pull-down menu and select Program
Settings.
— Enable the Allow FTP-only connection
— For Serial Port Connections: for Daniel 3810 Series Liquid Ultrasonic meters
connect to Port A. You may need to adjust your Meter Directory settings for
the connection so that they match the port default settings. Port A will default
to 19200 baud with a Modbus address of 32.
— For Ethernet Connections: If you are connecting to the meter over an Ethernet
port, you should be able to connect with the same IP address as normal. If this
is unsuccessful, the meter may have defaulted to 192.168.135.100 with a
subnet of 255.255.255.0. Make sure your PC has a compatible address and
attempt a connection using this IP address.
— Make sure your cabling and your Meter Directory record are setup, then
attempt to connect to the meter.
— You will receive a message “Error 10001 opening database connection to...”.
Click OK and you will be prompted to “Attempt FTP-only connection ….”. Click
Yes and if successful, the Daniel MeterLink caption displays “…Connected to
<meter name>…”. Go to the To ol s pull down menu and select Program
Download to attempt the firmware upgrade again.
— If the firmware upgrade is successful, the meter should start working as
normally as the meter’s configuration is not normally lost.
— If the configuration is lost, use Daniel MeterLink
to write the saved configuration back to the meter. The saved configuration
files are typically stored in C:\Ultrasonic Data folder.
Edit/Compare Configuration
— Restart the meter to install the firmware. Daniel MeterLink prompts you with a
message that it must disconnect from the meter. Once the firmware upgrade
is complete you will be able to reconnect to the meter with Daniel MeterLink.
— When the meter restarts, it takes about two minutes before you will be able to
reconnect depending on the firmware upgrade being performed. If the
database does need to be reinitialized, it could take up to five minutes.
— After an upgrade, it is recommended to reconnect to the meter and repeat
the Program Download process.
— If all the program components are successfully updated, they will show to be
the same date and version as the Currently Installed Versions and the
Download button will be disabled.
— If one or more components are still not updated, click Download to continue
the upgrade process.
• Check for correct voltage (24 VDC) (refer to the System Wiring Diagram).
• Check the main power source for blown fuse or tripped circuit breaker. Reference
your “as built” installation drawings for your location.
• Check for loose connections at the cable connectors.
• Check the resistance of the transducers (should be approximately .09<R<1.1 Mega
Ohms).
• Problem also may be caused by a bad Acquisition Board or interconnect cable.
• Check system status in the Daniel MeterLink program for any flagged errors.
• Check the CPU Module.
• Check the resistance of the failed transducer at on the Acquisition Module.
• If Chord A is not indicating, change the transducer cables from Chord B to chord A.
If Chord B then fails, the transducers are bad on Chord A.
Troubleshooting the meter 17
Section 2: Troubleshooting Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
Table 2-1 Troubleshooting
Error Recommended action(s)
Power Failure
Sound velocity is outside defined
limits
Waveform contains an excessive
amount of noise
• Meter has had power removed for a period of time or the meter restarted itself such
as after a firmware upgrade. The Audit log in the meter indicates the power fail
time.
— If this was an unexpected restart of the meter, verify the integrity of the power
to the meter and make sure that the voltage level is in the range of 11-36 VDC
at the meter.
— If this was a known power fail or restart of the meter, just acknowledge this
alarm.
• The meter's measured average sound velocity is outside the defined limits.
— Verify that all chords are measuring the same Speed of Sound within about
0.15%. Look for alarms that indicate transducer problems and resolve any of
these issues. This could include failing transducers, debris buildup on transducers, or incorrectly entered path lengths in the configuration.
— If the chords agree, adjust the SSMin or SSMax using the Edit/Compare
Config utility in Daniel MeterLink
within these limits.
so the meter's average speed of sound falls
— Collect a Maintenance log using Daniel MeterLink and contact your Daniel
service representative.
• Use the Daniel MeterLink Meter>Signal Analyzer to increase the StackSize until
noise level decreases (settings can be 1 (none) 2, 4, 8, or 16). If increasing the
StackSize is not successful, try turning on the filter or consult with Daniel Customer
Service if you are unsure of how stacking a signal can affect the meter's operation.
18 Troubleshooting the meter
Maintenance and Troubleshooting Manual Section 2: Troubleshooting
3-9000-772 Rev B January 2018
2.2.1 Meter maintenance
The Monitor (Summary) includes the direction of flow measurement, velocity rate, units of
measurement, uncorrected or corrected flow (if applicable for your meter) and a bar graph for a
visual comparison between the velocities for each chord.
Figure 2-5 Meter Monitor (Summary) view
Meter maintenance 19
Section 2: Troubleshooting Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
Run Daniel MeterLink and open the Meter Monitor (Detailed) view to perform a diagnostics
health check and or adjust parameters for your site requirements. If you wish to use the Monitor
(Detailed) dialog as the default view, click the checkbox in the lower portion of the dialog box
Figure 2-6 Meter Monitor (Detailed) view
The following details the information displayed in this dialog box.
• Flow Properties Table - the table at the top of the Meter Monitor dialog box shows basic
information about the condition of the flow in the meter.
• Flow Velocity/Flow Ratios Bar Graph - provides a visual comparison between the
velocities for each chord.
• Chord Speeds of Sound Bar Graph - a visual comparison between the speeds of sound
for each chord.
• Gain/Performance Bar Graph - provides either a visual comparison of the average
upstream and downstream gains for each chord or a visual comparison of the average
upstream and downstream performance for each chord.
• Signal to Noise Bar Graph - provides a visual comparison between the signal to noise
ratio for each chord direction.
• Meter Status Alarms - provides a visual indication of the meter’s status.
• Run time - displays how long the monitor screen has been collecting data.
• Meter Time - the time displayed is the time from the Ultrasonic meter.
(NOTE: If the time displayed has a yellow background, that is an indication that the
meter’s time is more than 10 minutes apart from the PC’s time.)
• Meter Data List - displays read-only data selected from the drop-down list
• Chart - the chart utility displays the data collected for the value selected from the Chart
drop-down list.
20 Meter maintenance
Maintenance and Troubleshooting Manual Section 2: Troubleshooting
3-9000-772 Rev B January 2018
Refer to Ta bl e 2 -1for error resolutions and Tab le 2- 2 for meter maintenance hardware diagnostics.
Table 2-2 Maintenance
Daniel MeterLink utility Diagnostics Action(s)
Meter Monitor (Summary) view
• Check Status for active alarms • Meter Status LED is green if there are
no active alarms. This indicates the
meter is measuring flow and
operating within the calibrated
parameters.
• Meter Status LED is red. This indicates
an active alarm. Resolve and acknowledge active alarms as displayed on
the Status Summary page. Click the
Help button beside the alarm
description to display information
about the alarm and recommended
actions to resolve the issue.
Meter maintenance 21
Section 2: Troubleshooting Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
Table 2-2 Maintenance
Daniel MeterLink utility Diagnostics Action(s)
Meter Monitor (Detailed) view
• Flow Profile • Flow profile ratios can be viewed by
clicking on the arrows in the upper
left of the chart.
• The flow profile ratios for chords A
and D and chords B and C should be
equal lengths.
• The flow velocity ratio between
chords A & D or chords B & C should
not differ by more than 10%, changes
will be reflected by the symmetry and
flow profile values.
• If the difference persists, the flow
conditioner (if installed) should be
checked for blockages and if required
the upstream piping should be
cleaned.
• Per path Speed of Sound (SOS) differ-
ences should not be more than
0.35%, these can be viewed by
clicking on the arrows in the upper
left of the chart. Negative values are
shown in blue.
• The SOS difference can be caused by
buildup on the transducer, incorrect
geometrical and delay time values
and stratification at lower velocities.
• Gains and Signal to Noise Ratios (SNR)
are displayed in decibels and should
be compared to the initial values in
the maintenance logs taken during
the calibration or initial start-up.
• The average chord signal amplitudes
should be compared to the initial
values in the maintenance logs.
• The Check Status chord LED will turn
from green to red if a path is hard
failed. The issue or issues causing the
failure must be corrected before the
alarm can be cleared.
22 Meter maintenance
Maintenance and Troubleshooting Manual Section 2: Troubleshooting
3-9000-772 Rev B January 2018
Table 2-2 Maintenance
Daniel MeterLink utility Diagnostics Action(s)
Meter Monitor (Summary) view
Meter Flow Properties Table
Meter Monitor (Detailed) view
Monitor Chart Selection list
• Flow velocity • Check the flow direction. If reverse
flow is detected, check for valve leaks.
• If the meter run typically has reverse
flow when flow is stopped, reconfigure the ReverseFlowVolLmt to allow a
higher volume from the Field Setup
Wizard> General Page.
• Speed of Sound • Compare Speed of Sound deviation
from measured SOS relative to the
average SOS.
• Check the chord’s SOS.
• Check and correct geometry configu-
ration (pipe diameter, distance
between the transducers (LA, LB, LC,
and LD), and delay time).
• If present, resolve transducer issues
(failed transducer, cabling or debris
buildup on the transducer face, or
path length configured incorrectly).
• If SOS is out of range and all checks
were positive, adjust SSMin or SSMax
(consult with a Daniel Service representative before making these adjustments).
Meter maintenance 23
Section 2: Troubleshooting Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
Table 2-2 Maintenance
Daniel MeterLink utility Diagnostics Action(s)
Meter Monitor (Detailed) view
Meter Data List
Meter Monitor (Detailed) view
Meter Data List
• Electronics Temperature out of
range
• Temperature of the electronics is out
of nominal operating range
below -40 °C or above 100 °C (-40 °F
or above 212 °F).
— Heat or cool the meter electron-
ics housing. If operating
temperature exceeds 65
remote mount the Transmitter
Electronics Enclosure.
o
C,
• Electronics voltage out of range • Systems voltages are valid if 1.0V,
1.2V, 2.5V, 3.3V or the Acquisition
Module valid voltages are 1.2V, 2.5V
or 3.3V.
• Replace the CPU Module if one or
more of the System Voltages is out of
range.
• Replace the Acquisition Module if one
or more of the voltages is out of
range.
MeterLink Tools Menu‘
• Frequency output • Run the Frequency Outputs test
• If the output reads zero, you may
require a pull up resistor 1.2kOHM,
0.5W.
24 Meter maintenance
Maintenance and Troubleshooting Manual Section 2: Troubleshooting
3-9000-772 Rev B January 2018
Table 2-2 Maintenance
Daniel MeterLink utility Diagnostics Action(s)
MeterLink Tools Menu
MeterLink Tools Menu
• Analog outputs • Run Analog Outputs test and verify
outputs are within 4mA -20mA range
— 0% = 4mA
— 25% = 8mA
— 50% = 12mA
— 75% = 16mA
— 100% = 20 mA
• Digital outputs • Run the Digital Outputs test.
• Digital Output Content is in relation
to frequency validity and flow
direction configuration and polarity.
Meter maintenance 25
Section 2: Troubleshooting Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
Meter Hardware Diagnostics Action(s)
Meter Electronics
MeterLink Logs/
Reports Menu
• Acquisition Module communications error • Check firmware revision and upgrade if
necessary using Daniel MeterLink Tools>Program Download.
• If the CPU Module LED 5 is not flashing green,
check interconnect cable between acquisition
Module and the CPU Module.
• If the CPU Board LED 5 is not flashing green,
replace Acquisition Module.
• Meter performed a Warm Start or a Warm
start required
• Meter performed a Warm Start:
— Collect an Archive event log (Audit log)
using Daniel MeterLink to view configuration parameters changes and when
they changed.
• Warm start required:
— When you make changes to the trans-
ducer characteristics, sample rates, the
device number, or a Modbus map file.
26 Meter maintenance
Maintenance and Troubleshooting Manual Section 2: Troubleshooting
3-9000-772 Rev B January 2018
Meter Hardware Diagnostics Action(s)
MeterLink Tools>Edit/
Compare Configuration Menu
MeterLink Logs/
Reports Menu
• Meter performed a Cold Start • The meter configuration has reset to default
values and the meter is not configured
correctly to measure flow.
• Unless the cold start occurred after upgrading
firmware, you may need to replace the CPU
Module.
• If the Cold Start occurred after a firmware
upgrade, you must reconfigure the meter
from a previously saved configuration file
using the Edit>Compare Configuration screen.
Then clear the latched alarm on the Status
Summary page.
• Power failure • If this was a known power fail or restart of the
meter just acknowledge this alarm on the
Status Summary page.
• If this was an unexpected restart of the meter,
verify the integrity of the power to the meter
and make sure that the voltage level is in the
range of 11-36 VDC at the meter.
Meter maintenance 27
Section 2: Troubleshooting Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
Meter Hardware Diagnostics Action(s)
Daniel MeterLink
Meter Monitor
(Detailed) view
• Chord Failure Daniel MeterLink
Meter Monitor (Detailed) view
• The meter is unable to obtain measurement
data from a pair of transducers.
• The cause may be isolated to one pair of trans-
ducers or its cabling.
• Verify that the meter run is not partially full
where this top transducer pair is not
submerged in the process fluid.
• Verify the average gain of this transducer pair
is not above 90dB. Read the value from the
Daniel MeterLink Monitor Page or using AMS
under Service Tools|Path performance.
• Remove the transducer assembly and clean
the transducer face. Reapply SLC-400
lubricant to the transducer face and reinstall.(see Section 3.2 Re-wetting the transducers
procedure).
Meter Components Visual Inspection Action(s)
Security seals
External ground wiring
Conduit seals
• Endcap seals
• Endcap latches
• Transmitter Electronics Enclosure
• Bracket/Cover (for Base Electronics)
• Transmitter Electronics Enclosure
ground lug
• Only authorized personnel may
remove security seals. Follow your
standard operating procedure to
report seals that have been tampered
with or removed and replace the seals
per instructions in Section 3.6.8 in the
Installation Manual (3-9000-771).
• Inspect ground lug wiring and make
sure the wiring is tightly secured.
• Transmitter Electronics Enclosure • Inspect the conduit sealant and follow
your standard operating procedure to
report tampering with the conduit
sealant.
• Your operating procedures may
require a certified electrician and
company witness to reseal the
conduit.
28 Meter maintenance
Maintenance and Troubleshooting Manual Section 2: Troubleshooting
3-9000-772 Rev B January 2018
2.2.2 Unable to connect direct serial or external serial modem
If you are using Windows® XP, Windows® Vista or Windows® 7 make sure that you do not have
more than one modem driver installed to the same COM port. Typically this will only be
necessary if you use one COM port to talk direct (serial communications) and use the same COM
port to connect to an external modem. This is an apparent limitation in Microsoft’s® Dial-up
Networking. If more than one modem driver is installed for a particular COM port, Dial-up
Networking will always use the last driver installed regardless of what is selected. The only work
around is to only install one modem driver per COM port on the PC at a time. Refer to the Daniel
MeterLink Quick Start Manual (P/N 3-9000-763) for phone and modem details. The manual may
also be downloaded from the Daniel website.
http://www2.emersonprocess.com/en-US/brands/daniel/Flow/ultrasonics/Pages/MeterLink.aspx
2.2.3 Unable to connect to meter
If you receive the error message “Unable to connect to meter” when trying to connect to a
Daniel 3812 Liquid Allocation Ultrasonic Flow Meter, refer to the following:
• Ethernet Connections (
• Direct Serial Connections (
Section 2.2.4)
Section 2.2.5)
2.2.4 Ethernet connections
If you received this message while trying to connect over Ethernet, verify you have the correct IP
address in the Meter Directory record. If the meter is to assign the IP address, make sure the IP
address is set to 192.168.135.100 and that the DHCP switch is in the ON position on the CPU
Module. If the meter has a fixed IP address, verify the IP address, Subnet, and Gateway are
correct in the meter. If going through a hub, verify that the computer and meter are connected
to the hub with straight-through patch cables.
2.2.5 Direct serial connections
Verify the Comm settings on the CPU Module. Also, verify your wiring between the meter and
the computer running Daniel MeterLink using the Field Wiring drawing DMC- 004946. Verify the
Comms Address and Baud rate are correct in the Meter Directory record.
For additional information on wiring and configuring the meter for the various communication
options refer to the Daniel 3814 Liquid Ultrasonic Flow Meter Installation Manual (P/N 3-9000760, Section 3.5).
Unable to connect direct serial or external serial modem 29
Section 2: Troubleshooting Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
2.3 Troubleshoot Maintenance log files and trend files
2.3.1 Files do not appear in workbook
Maintenance Log files and Trend files that exist on the PC do not appear in the Microsoft®
Excel® workbooks tree under Trend Maintenance Logs.
This is most likely caused by the fact that the desired file or files are already open in Microsoft®
Excel®. Open files can not be verified as Maintenance Log files or Trend Files by
Daniel MeterLink and are left out of the list. Simply close the files in Microsoft® Excel® and then
close and reopen the Trend Maintenance Logs dialog box to include them in the list.
2.3.2 Microsoft® Excel® Log/Export Options are not Available
In order for the Excel® log/export options to be available, Excel® 2000 or later must be installed
on the machine and at least one printer must be installed under the Windows® operating
system.
If Excel® 2000 or later is installed and you have printers installed but the Excel® option is still
unavailable, it may be because Excel® cannot access the printer driver information of the
Windows® default printer. If the Windows® default printer is a network printer and you are not
currently connected to the network, then Excel® will most likely not be able to access the
printer driver information and Daniel MeterLink cannot use Excel® to generate reports or logs.
One solution is to install a local printer on your machine tied to LPT1. The local printer driver you
installed can be for any printer and the printer does not actually have to exist or be connected to
the PC. If you install a local printer, you can configure Daniel MeterLink to temporarily change
your Windows® default printer over to this local printer while running Daniel MeterLink. Do this
by selecting this local printer for the Override system default printer selection in the Program
Settings dialog. Daniel MeterLink will automatically change the Windows® default printer to the
selected override printer when it starts and will set the Windows® default printer back to its
original printer when it closes.
30 Troubleshoot Maintenance log files and trend files
Maintenance and Troubleshooting Manual Section 2: Troubleshooting
3-9000-772 Rev B January 2018
2.3.3 Maintenance Logs or Trend files are not created
When using Excel® XP or later, some of the worksheets in the Maintenance Logs or Trend files
are not created.
If the Inspection sheet of the Maintenance Log file or the Charts sheet of a Trend file is not
generated, it is probably because Excel® is not configured to allow Daniel MeterLink to run the
Visual Basic® script that generates the page. Excel® can be configured to allow Daniel
MeterLink to run the Visual Basic® script by following the instructions below.
To enable Excel® 2000 to work with Daniel MeterLink,
1. Select
Figure 2-7 Excel® 2000 Tools Menu
2. The Security dialog appears. Select the
Tools>Macros>Security menu path.
Trusted Sources tab.
Maintenance Logs or Trend files are not created 31
Section 2: Troubleshooting Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
3. Click the Trust access to Visual Basic Project radio button and click OKAY to apply your
selections.
Figure 2-8 Excel® Trusted Access Setting
To enable Excel® 2007 to work with Daniel MeterLink customize the Ribbon to include the Developer
tab,
Figure 2-9 Excel® 2007 Tools Menu
32 Maintenance Logs or Trend files are not created
Maintenance and Troubleshooting Manual Section 2: Troubleshooting
3-9000-772 Rev B January 2018
1. Select Macro Security to access the Trust Center.
Figure 2-10 Excel® 2007 Developer tab - Macro Security
2. Select Macro Settings from the left panel, then click the Enable all macros (not
recommended; potentially dangerous code can run) radio button.
3. Place a check mark in “Trust access to the V
4. Click
OK to apply the changes and close the Trust Center dialog.
BA project object model”.
Maintenance Logs or Trend files are not created 33
Section 2: Troubleshooting Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
2.3.4 Windows® XP with Security Update
The Security Update for Windows® XP (823980) has a problem that causes the Show only
maintenance log and trend workbooks check box in Daniel MeterLink to be ineffective.
See http://www.microsoft.com/downloads/en/details.aspx?FamilyID=2354406c-c5b6-44ac-
9532-3de40f69c074
Additionally, it may take longer to validate a workbook when you attempt to add it to the
Workbooks to trend list. This is a known Issue documented in the Microsoft® Knowledge Base
Article 824136 Windows® Explorer Quits Unexpectedly or You Receive an Error Message When
You Right-Click a File. For Windows® XP, simply install Service Pack 2 for Windows® XP to
resolve the issue. It is not necessary to take action on this issue to use the Trend Maintenance
Logs dialog, but you should be aware of possible slow downs if the issue is unresolved.
34 Windows® XP with Security Update
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
3-9000-772 Rev B January 2018
31
Section 3: Meter maintenance
Daniel 3818 LNG Liquid Ultrasonic Flow Meters require minimal maintenance. The Meter
Maintenance section discusses procedures to re-wet the transducers, replacing the transducer
housings or transducers, and the Transmitter Electronics.
Table 3-1 Contents-Transducer maintenance
Maintenance task Description Section
Removing the shroud
Re-wetting the transducers
Replacing the transducers
Replacing the meter electronics Meter electronics
• Band shrouds • 3.1 Removing the shrouds
• Common procedure for all meters • 3.2 Re-wetting the transducers
• Replace the transducers • 3.3 Replacing the transducer assembly
— CPU board
— Fuse
— Backplane board
— I.S. Barrier board
— Power Supply board
— Acquisition Module
— Acquisition cable or synchroni-
zation cable
Installing the shrouds
Sealing the meter
• Band shrouds • Section 3.5 “Installing the shrouds”
• Seal the meter electronics • 3.6 Sealing the meter
— Section 3.1.1 “Removing the band
shrouds”
• Section 3.4 “Replacing the meter electron-
ics”
— Section 3.4.2 “Replacing the CPU
Module”
— Section 3.4.3 “Replacing the fuse”
— Section 3.4.4 “Replacing the Backplane”
— Section 3.4.5 “Replacing the I.S. Barrier
board”
— Section 3.4.6 “Replacing the Power
Supply Board”
— Section 3.4.7 “Replacing the Acquisition
Module”
— Section 3.4.8 “Replacing the Acquisition
cable or synchronization cable”
— Section 3.5 “Installing the shrouds”
• 3.6.1 Sealing the transmitter electronics
enclosure
• 3.6.2 Sealing the Bracket/Cover and Base
electronics enclosure
35
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
SURFACE TEMPERATURE HAZARD
Meter body and piping may be extremely cold.
Wear personal protective equipment when coming in contact with the meter. Failure to do so may
result in injury.
TRANSPORTATION HAZARD
When moving the meter, do not insert the forks of a forklift into the bore.
Inserting the forks may cause the meter to become unstable, resulting in injury or damage to the bore
and sealing face.
TRIPPING HAZARD
Clear all obstacles or obstructions from the work area when transporting, installing or removing
the meter.
Failure to clear the work area may cause injury to personnel.
Prior to lifting the unit, refer to the Daniel 3818 LNG Liquid Ultrasonic Flow Meter nameplate or outline
dimensional (general arrangement) drawing for the assembled weight.
January 2018 3-9000-772 Rev B
Important safety information
Follow these safety message instructions to avoid injury and equipment damage.
36
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
FLUID CONTENTS MAY BE UNDER PRESSURE
When the meter is under pressure, DO NOT attempt to remove the transducer housings while in the field. The
housings are welded into the meter body for cryogenic applications.
Attempting to do so may release pressurized fluid, resulting in serious injury or equipment damage.
ESCAPING FLUIDS HAZARD
The purchaser of the meter is responsible for the selection of Daniel components/seals and materials compatible
with the chemical properties of the measurement fluid.
Failure to select suitable meter components/seals may cause escaping fluids, resulting in injury or equipment damage
3-9000-772 Rev B January 2018
37
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
A. Rigid conduit (45o elbow)
D.
B. Flexible conduit
C.
A.
B.
C. LB conduit body
D. Pipe standoff
E.
E. Top shroud assembly
January 2018 3-9000-772 Rev B
3.1 Removing the shrouds
Important safety information - insulation handling
The Daniel 3818 LNG Ultrasonic Flow Meter body, LB conduit bodies and flexible conduit may
have customer-installed thermal insulation. When handling the customer-installed thermal
insulation, use industry best practices procedures, read and understand the manufacturer’s
Material Safety Data Sheet supplied with the thermal insulation.
Figure 3-2 3818 LNG Meter top assembly
38
Removing the shrouds
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
THERMAL INSULATION HANDLING CARE
Follow the hyperlink (above) for the manufacturer’s thermal insulation safety precautions and
handling instructions.
Failure to do so may result in injury.
SURFACE TEMPERATURE HAZARD
Meter body and piping may be extremely cold. Warm the meter to
0
C before attempting shroud
removal.
Wear personal protective equipment when coming in contact with the meter. Failure to do so may
result in injury.
CUTTING HAZARD
Sharp edges may be present on the band shrouds.
Wear appropriate personal protective equipment when working on the meter. Failure to do so may
cause serious injury.
3-9000-772 Rev B January 2018
When handling the Daniel supplied thermal insulation, refer to the manufacturer’s product
Material Safety Data Sheet from the Cabot Corporation.
http://www.cabot-corp.com/Downloads/DL201205151104AM3693/
3.1.1 Removing the band shrouds
Table 3-2 Shroud removal tool list
Tools required
Flat blade screw driver or 5/16 inch nut driver
Standard 1/2 inch socket or a standard 1/2 inch wrench
Standard 7/16 socket or standard 7/16 inch wrench
Standard flat blade screw driver
Appropriate personal protective equipment
Removing the band shrouds
39
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
A.
A. Top shroud
B. Top shroud support
B.
C. Top shroud support spacer
C.
D.
D. Top shroud end
January 2018 3-9000-772 Rev B
Figure 3-3 Top shroud disassembly
Procedure
1. Remove the customer-installed external thermal insulation from the meter body, the
rigid and flexible conduit, the LB conduit, and pipe standoffs (see
Important: Be sure you follow the manufacturer’s safety instructions when handling
and storing the thermal insulation.
2. Place the thermal insulation away from the immediate work area.
3. Use a 7/16 inch wrench to loosen and remove the six top shroud hex head bolts and
lock washers from the top shroud.
4. Use a 1/2 inch wrench to loosen and remove the four hex head bolts and washers from
the top shroud ends.
5. Remove the top shroud assembly.
Figure 3-2).
40
Removing the band shrouds
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
A. Worm screw clamp threaded part
B. Worm screw clamp screw part
C. Guide pin holes
A.
C.
B.
D.
D. Band shroud
3-9000-772 Rev B January 2018
6. Using a flat blade screw driver or 5/16 nut driver, loosen both worm screw clamp
assemblies. Alternate between the two worm screw clamp screws, turning each a few
turns at a time counterclockwise. Repeat as needed to fully disengage the threaded
part of the worm screw clamp from the screw part of the worm screw clamp and
remove them from the shroud.
Figure 3-4 Shroud worm screw assembly
Removing the band shrouds
41
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
A.
B.
C.
D.
A. Worm screw threaded part
B. Worm screw - screw end
C. Clamped shroud “T” end and rectangular cutout
D. Clamped shroud guide pin holes
January 2018 3-9000-772 Rev B
7. While holding the shroud end engaged with the guide pins against the body OD, raise
the other shroud end edge enough to unlock the threaded part of the worm screw
clamp from the shroud. To remove the worm screw clamp threaded part, move it to
approximately perpendicular to the shroud and rotate slightly to release the "T" end
from the rectangular hole in the shroud. Repeat this procedure for the additional three
worm screw clamp threaded parts.
Figure 3-5 Clamped shroud worm screw parts
8. Now, hold the shroud end without the guide pins (back band shroud) close to the body
OD and raise the shroud end engaged with the guide pins enough to disengage the
band shroud from the guide pins. Remove the nut part of the worm screw clamps
following the same procedure described above.
9. Grasp both ends of the band shroud and move them apart from each other and move
the edges towards the body center removing the band shroud from the body OD. Place
one edge of the band shroud assembly on a flat surface.
42
Removing the band shrouds
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
A.
B.
A. Front shroud hem joint
B. Back shroud hem joint
3-9000-772 Rev B January 2018
10. With the band shroud assembly on its side edge on a flat surface, locate the hem bend
joint of the band shroud assembly half way from each end. Move each part of the
assembly away from each other, freeing the sheet metal hem bend joint. Place the band
shroud assembly on its side edge on a flat surface. Move the back band shroud with
respect to the front band shroud, freeing the sheet metal hem bend joint assembly.
Figure 3-6 Band shroud hem bend joint
11. Move both of the band shroud parts, top shrouds, bolts, lock washers, and worm screw
clamps out of your immediate work area.
12. This completes the band shroud removal procedure.
Removing the band shrouds
43
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
A.
A. LT-07 transducer assembly (P/N 1-504-90-250) 2.5 inch length
B. Set screw (P/N 1-560-84-117)
C. Lock nut (P/N 1-561-57-146)
D. LT-07 transducer housing (welded into meter body)
B.
E.
E. Cord grip assembly (1-504-90-252)
C.
D.
January 2018 3-9000-772 Rev B
3.2 Re-wetting the transducers
If the chord signal quality diminishes, re-wet the transducers to improve the signal
strength.Transducer field removal and installation is required if a transducer is fouled or if a
chord failure occurs. NOTE: This procedure should be performed by a qualified Daniel
Measurement Services technician. Refer to the contact information on the back of this manual
for field service assistance.
Figure 3-7 LT-07 transducer assembly
44
Re-wetting the transducers
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
Important
The meter body, the transducers and cables are covered with layers of thermal wrap. Be sure you follow the
safe handling and storage instructions provided by the manufacturer.
Important
The system temperature must be warmed above zero
o
Celsius to prevent icing of the
transducer housings during this procedure.
3-9000-772 Rev B January 2018
Table 3-3 Tra n sducer maintenance tools and shop supplies list
Tools required
1/8 inch Allen wrench
7/16 inch wrench
3/16 inch (#1 standard) flathead screwdriver
Shop supplies and other equipment
Daniel MeterLink, or AMSTM Device Manager or a Field Communicator
cotton swabs
cryogenic lubricant SCL-400
isopropyl alcohol
The LT-07 transducers have a spring loaded assembly with the piezoelectric element at one end
and the transducer cable at the other end. Meters are supplied with transducers which are
extractable while the line is pressurized. The transducer assembly shown below is a one-piece
capsule that can be easily installed or removed from the meter without depressurizing the unit.
LT-07 transducers are designed for 3818 LNG Liquid Ultrasonic Flow Meters with a 30 inch meter
See Section 3.1 for thermal wrap handling instructions.
body.
Re-wetting the transducers
45
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
A
.
A. Meter body layered thermal wrap
January 2018 3-9000-772 Rev B
Procedure
1. Remove the shrouds. See Section 3.1 for important safety information and Section 3.1.1
for disassembly instructions.
2. Carefully remove the thermal wrap layers covering the transducer assemblies and
transducer cables. Place the thermal wrap in a safe zone away from the immediate work
area.
Figure 3-8 3818 meter with thermal wrap
46
Re-wetting the transducers
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
A. Half dog set screw and hex nut
B. Transducer cover connection head
B.
A.
A.
A. Transducer assembly
3-9000-772 Rev B January 2018
3. Use a 7/16 inch wrench to loosen the lock nut on the set screw. Hold the set screw
using a 1/8 inch Allen wrench as the lock nut is loosened a few turns. Use a 1/8 inch to
loosen, but do not remove, the half dog set screw. See the figure below and refer to the
LT-07 Tran s ducer Assembly
Figure 3-7.
Figure 3-9 Transducer assembly removal
4. Mark the cable position on the meter body. This mark will be helpful to rotationally
align the transducer with the transducer housing during re-assembly.
5. Pull the transducer assembly out of the housing.
Figure 3-10 LT-07 Transducer assembly removed from transducer housing
Re-wetting the transducers
47
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
A.
A. Applying cryogenic lubricant to the transducer face
January 2018 3-9000-772 Rev B
6. Remove all of the old grease from the transducer face. Clean the face with a cotton
swab with isopropyl alcohol.
7. Use a cotton swab and apply cryogenic SLC-400 lubricant to the face of the transducer.
Make sure the grease is evenly distributed across the transducer face.
Figure 3-11 Re-wetting the LT-07 transducer face
8. Wipe excess lubricant from the transducer sides.
9. Use a cotton swab with isopropyl alcohol and clean the transducer port.
10. Use a dry, clean cotton swab and dry the port. Do not install the transducer assemb
ly
until the port is free of debris and is completely dry.
11. Slide the re-wetted transducer assembly into the transducer housing port in the meter
body. Rotate the transducer assembly to align the pin head with the appropriate slot
within the transducer housing. Align the cable gland with the mark on the body made
prior to removal. Press the transducer fully into the transducer housing port and hold in
this position.
12. Tighten the half dog set screw using a 1/8 inch Allen wrench until you make contact
with the transducer case (see
Figure 3-7 LT-07 transducer assembly). Then, release the
transducer. Make sure the transducer assembly is tight.
13. Tighten the lock nut by hand while holding the set screw with a 1/8 inch Allen wrench.
Use a 7/16 inch wrench to secure the lock nut and set screw.
48
Re-wetting the transducers
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
D.
A. First layer insulation
C.
B. Second layer insulation
A.
B.
C. End shroud supports
D. Center shroud supports
3-9000-772 Rev B January 2018
14. Prepare to reinstall the thermal wrap into the transducer ports, between the shroud
center supports and the end shroud supports. Important: Be sure you follow the
manufacturer’s safety instructions when handling the insulation. You can reuse the
insulation removed in Step 2.
Figure 3-12 Re-installing the thermal wrap
Re-wetting the transducers
15. If you cannot reuse the insulation removed in
Ultrasonic Meter Insulation Assembly Procedure (P/N P-02054) to cut, mark and pack
the insulation.
Tip: Make sure the transducer cables are pulled outside of the insulation and do not
contact the meter body. Position the insulation in staggered layers so there are no air
pockets or large un-insulated voids.
Step 2, refer to the 3818 LNG Liquid
49
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
16. Connect to the meter with Daniel MeterLink and run the Zero Flow Calibration Wizard
for the primary (_H1) transmitter. Then, collect and save a Maintenance log to show the
“as left” condition of the meter.
TM
Or use AMS
Device Manager or a HART® Field Communicator and select Overview >
Zero Calibration > Start menu or Service Tools >Maintenance > Zero Calibration
>Start.
17. Repeat the previous step for the secondary (_H2) transmitter.
18. Reinstall the shrouds (see
Section 3.5 “Installing the shrouds”).
19. Reinstall the customer-supplied thermal insulation wrap around the meter body, rigid
and flexible conduit, pipe standoffs and the LB conduit assemblies.
20. This completes re-wetting the transducer procedure.
50
Re-wetting the transducers
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
A.
A. transducer cover
B.
B. Cord grip nut and transducer cable
C.
C. Set screw
D.
D. Half dog set screw and lock nut
3-9000-772 Rev B January 2018
3.3 Replacing the transducer assembly
NOTE: This procedure should be performed by a qualified Daniel Measurement Services
technician. Refer to the contact information on the back of this manual for field service
assistance.
The transducers are installed in matched pairs. Always replace the transducer pair of equal path
lengths (A1 and A2, B1 and B2 etc...). Also, if a transducer pair is moved from one chord position
to another, the transducer pair’s delay time and delta delay time configuration parameters must
be re-configured.
Refer to
Table 3-3 for the tool list.
Procedure
1. Disable electrical power to the meter.
2. Disassemble the shrouds. Refer to
3. Remove the thermal wrap covering the transducer assembly you are replacing.
Important: Be sure you follow the manufacturer’s safety instructions when handling
and storing the thermal insulation. Only remove the thermal wrap for the transducers
you are replacing.
4. Use a 7/16 inch wrench to loosen the lock nut on the set screw. Hold the set screw
using a 1/8 inch Allen wrench as the lock nut is loosened a few turns. Use a 1/8 inch to
loosen, but do not remove, the half dog set screw. See the figure below and refer to the
LT-07 Tran s ducer Assembly
5. Mark the cable position on the meter body. This mark will be helpful to rotationally
align the transducer with the transducer housing during re-assembly.
6. Pull the transducer assembly out of the housing.
Figure 3-13 LT-07 Transducer assembly
Section 3.1.1.
Figure 3-7.
Replacing the transducer assembly
51
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
A. Transducer cable
C.
A.
B. Transducer enclosure, terminal blocks and cable wires
C. Transducer assembly
B.
D.
D. White or red mark indicating white wire connection point
January 2018 3-9000-772 Rev B
7. Use a 3/16 inch screwdriver and loosen the transducer cover screws enough to remove
the cover and gasket.
Figure 3-14 LT-07 Transducer assembly removed from transducer housing
8. Loosen the cord grip nut and if necessary, use a 7/16 inch wrench to hold the hex nut in
place while turning the cord grip nut.
9. Disconnect the transducer cable wires from the terminal block.
10. Pull the cable wires out of the transducer.
11. Set aside the nut and grommet you received with the replacement transducer
assembly.
12. Insert the transducer cable into the replacement transducer.
13. Apply a light coat of Loctite® anti-seize nickel grade lubricant (20g stick-37230) on the
transducer cover screw threads.
14. Ensure the threads are properly aligned (avoid cross-threading the transducer cover).
52
Replacing the transducer assembly
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
A. Transducer cable entry
A.
B. Terminal block black wire
C. Whi
te or red mark indicating white wire connection point
B.
C.
D.
3-9000-772 Rev B January 2018
15. Attach the transducer cable wires to the terminal block as shown in Figure 3-15.
Figure 3-15 LT-07 transducer and transducer cable wiring
16. Reinstall the transducer cover.
17. Remove all of the old grease from the transducer face. Clean the face with a cotton
swab with isopropyl alcohol.
18. Use a cotton swab with isopropyl alcohol and clean the transducer port.
19. Use a dry, clean cotton swab and dry the port. Do not install the transducer assembly
until the port is free of debris and is completely dry.
20. Slide the transducer assembly into the transducer housing port in the meter body.
Rotate the transducer assembly to align the pin head with the appropriate slot within
the transducer housing. Align the cable gland with the mark on the body made prior to
removal. Press the transducer fully into the transducer housing port and hold in this
position.
21. Tighten the half dog set screw using a 1/8 inch Allen wrench until you make contact
with the transducer case (see
Figure 3-7 LT-07 transducer assembly). Then, release the
transducer. Make sure the transducer assembly is tight.
22. Tighten the lock nut by hand while holding the set screw with a 1/8 inch Allen wrench.
Use a 7/16 inch wrench to secure the lock nut and set screw.
23. Apply electrical power to the meter.
Replacing the transducer assembly
53
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
24. Connect to the meter with Daniel MeterLink and run the Zero Flow Calibration Wizard
for the primary (_H1) transmitter. Then, collect and save a Maintenance log to show the
“as left” condition of the meter.
TM
Or use AMS
Device Manager or a HART® Field Communicator and select Overview
|Zero Calibration|Start menu or Service Tools|Maintenance| Zero Calibration
|Start.
Repeat this procedure for the co-located meter (_H2 Secondary) electronics.
TM
25. Close your application connection (Daniel MeterLink, AMS
Device Manager or HART®
Field Communicator).
26. Repack the thermal wrap into the transducer ports, between the shroud center
supports and the end shroud supports. Important: Be sure you follow the
manufacturer’s safety instructions when handling the insulation.
27. If you cannot reuse the insulation removed in
Step 2, refer to the 3818 LNG Liquid
Ultrasonic Meter Insulation Assembly Procedure (P/N P-02054) to cut, mark and pack
the insulation.
Tip: Make sure the transducer cables are pulled outside of the insulation and do no
contact the meter body. Position the insulation in staggered layers so there are no air
pockets or large un-insulated voids.
28. Reinstall the shrouds (see
Section 3.5 “Installing the shrouds”).
29. This completes the transducer replacement procedure.
t
54
Replacing the transducer assembly
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
3-9000-772 Rev B January 2018
3.4 Replacing the meter electronics
The following procedures should be performed by a qualified Daniel Measurement Services
technician or trained personnel.
co-located Transmitter Electronics Enclosures. The Primary electronics enclosure is designated
on the serial number tag followed by _H1. The Secondary Transmitter Electronics enclosure is
on the serial number tag followed by _H2.
Electronics maintenance Task s
The 3818 LNG Liquid Ultrasonic Flow Meter is equipped with
Transmitter Electronics Enclosures
Section 3.4.2 “Replacing the CPU Module” (P/N 1-360-03-010)
•
• Section 3.4.3 “Replacing the fuse” (Littlefuse #218002.HXP)
• Section 3.4.4 “Replacing the Backplane” (P/N 1-360-03-007)
• Section 3.4.5 “Replacing the I.S. Barrier board”
• Section 3.4.6 “Replacing the Power Supply Board”(P/N 1-360-03-003)
Base Enclosure Electronics
Section 3.4.7 “Replacing the Acquisition Module” (P/N 1-360-03-013)
•
• Section 3.4.8 “Replacing the Acquisition cable or synchronization
cable”(P/N 1-360-01-595)
Table 3-4 Electronics maintenance tools list
Tools required
1/8 inch (3mm) flat-blade screw driver (3mm)
1/4 inch (7 mm) flat-blade screw driver
3/8 inch drive ratchet wrench
3/8 inch drive - extension - at least 3.5 inches long
7/16 inch socket wrench
3 millimeter Allen wrench (Daniel P/N 2-4-9200-501)
Support plate for Base Electronics Enclosure and 2 inch pipe strut clamp assembly
Replacing the meter electronics
55
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
A.
A. Terminal end of Transmitter Electronics Enclosure
B.
B. Backplane board location
C.
C. End cap security latch
D.
D. Bracket/Cover with synchronization cable
E. Base enclosure with Acquisition Module
E.
F.
F. LB conduit outlet body assembly with transducer cables
January 2018 3-9000-772 Rev B
3.4.1 Transmitter electronics maintenance
Should the meter require disassembly in the field (i.e., check boards, change switch settings, or
replace boards), to prevent electrostatic damage to the electronic boards, always use a Ground
Strap while handling the circuit boards. If one is not available, make sure you are electrically
discharged before touching the boards by first touching a metal surface such as a ground lug on
the meter body, piping or metal structure.
Figure 3-16 3818 LNG Liquid Ultrasonic Flow Meter electronics
56
Transmitter electronics maintenance
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
A. Terminal end of Transmitter Electronics Enclosure
B. CPU Module
A.
C.
B.
D.
C. Power Supply
D. Fuse
E. Internal chassis ground
E.
3-9000-772 Rev B January 2018
3.4.2 Replacing the CPU Module
Procedure
1. Disable electrical power to the meter.
2. Refer to
3. Disconnect security seals on the Transmitter Electronics Enclosure (if installed), loosen
the end cap security latches using a 3 mm Allen wrench and remove both end caps from
the Transmitter Electronics Enclosure.
4. If replacing the CPU Module (located closest to the terminal end of the enclosure), use a
3mm flat blade screw driver and disconnect the CPU Module terminal blocks).
Figure 3-17 CPU replacement
Ta bl e 3 - 4 for the tools required to complete this procedure.
Replacing the CPU Module
5. Grasp the module you want to replace and pull it out of the enclosure.
6. Insert the new CPU Module into the enclosure and firmly push until the board is fully
seated into the Backplane Board connectors.
7. Replace the terminal blocks for the CPU Module and tighten the flat head screws with a
3mm flat blade screw driver.
57
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
8. Connect to the meter with Daniel MeterLink. Open the Meter Monitor (Detailed) view
and verify the meter is acquiring data, the transducers have good signals and flow
profiles for the chords are displayed and run the Zero Flow Calibration Wizard; select
the Calibrate|Zero Calibrate menu and generate the report. Then, collect and save a
Maintenance log to show the “as left” condition of the meter.
TM
Or use AMS
Device Manager or a HART® Field Communicator and select Overview
|Zero Calibration|Start menu or Service Tools|Maintenance| Zero Calibration
|Start.
TM
9. Close your application connection (Daniel MeterLink, AMS
Device Manager or HART®
Field Communicator).
10. If you are not replacing other electronics, replace the end caps and security latches
(requires a 3 mm Allen wrench).
11. If replacing other electronics or the fuse, continue with
Section 3.4.5, Section 3.4.6 or Section 3.4.7 before replacing the end caps and sealing the
Section 3.4.3, Section 3.4.4,
enclosure.
12. If you encounter problems replacing the electronics, see the Daniel Customer Service
contact information on the back cover of this manual.
13. This completes the CPU Module replacement procedure.
58
Replacing the CPU Module
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
A.
A. Fuse holder cap and fuse
3-9000-772 Rev B January 2018
3.4.3 Replacing the fuse
Procedure
1. Disable electrical power to the meter.
2. Refer to
Ta bl e 3 - 4 for the tools required to complete this procedure.
3. Disconnect the Transmitter Electronics Enclosure security seals, loosen the end cap
security latch (requires a 3 mm Allen wrench) on the terminal end of the enclosure (
Figure 3-16
) and remove the end cap.
see
4. Use a 1/4 inch (7mm) standard flat head screw driver and remove the Fuse holder cap
see Figure 3-18).
(
Figure 3-18 Fuse holder cap
Replacing the fuse
5. Remove the fuse from the holder.
6. Insert the replacement fuse (Littlefuse #218002.HXP) into the Fuse holder.
7. Install the fuse cap into the holder and push until it is flush with the holder.
8. Turn the fuse cap clockwise 1/8 turn using a 1/4 inch standard flat head screw driver.
9. Connect to the meter with Daniel MeterLink. Open the Meter Monitor (Detailed) view
and verify the meter is acquiring data, the transducers have good signals and flow
profiles for the chords are displayed and run the Zero Flow Calibration Wizard; select
the Calibrate|Zero Calibrate menu and generate the report. Then, collect and save a
Maintenance log to show the “as left” condition of the meter.
TM
Or use AMS
Device Manager or a HART® Field Communicator and select Overview
|Zero Calibration|Start menu or Service Tools|Maintenance| Zero Calibration
|Start.
59
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
10. Close your application connection (Daniel MeterLink, AMSTM Device Manager or HART®
Field Communicator).
11. If replacing other electronics, continue with
Section 3.4.7 before installing the end caps and sealing the enclosure If you are not
Section 3.4.4, Section 3.4.5, Section 3.4.6 or
replacing other electronics, replace the end caps and security latches (3 mm Allen
wrench required).
12. If you are not replacing other electronics, replace the end caps and security latches
(requires a 3 mm Allen wrench). If required, install the security seals through the hex
bolts in the Bracket/Cover cover (
see Section 3.6.2).
13. This completes the fuse replacement procedure.
3.4.4 Replacing the Backplane
Procedure
1. If replacing the Backplane board, remove power to the meter.
2. Refer to
Ta bl e 3 - 4 for the tools required to complete this procedure.
3. Disconnect the Transmitter Electronics Enclosure security seals, loosen the end cap
security latches (3mm Allen wrench required, and remove both end caps.
4. Remove the CPU Module.
See Figure 3-17 for board locations and associated terminal
blocks.
5. Use a Phillips head screw driver and remove the four Backplane board screws and
captive star washers from the enclosure stando
ffs.
60
Replacing the Backplane
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
A. Non-terminal end of Transmitter Electronics Enclosure
B. Power Supply board
A.
C.
B.
D.
C. I.S. Barrier board (inside the Guide Plate)
D. Backplane board
Make sure the terminal blocks are aligned with the Guide Plate openings.
3-9000-772 Rev B January 2018
6. Pull the Backplane board out of the enclosure. This disconnects the I.S. Barrier Board.
Lay the Backplane board down with the Acquisition Cable still attached (the Power
Supply board may remain attached to the Backplane when you remove it from the
enclosure).
Figure 3-19 Backplane board replacement
7. Use a 1/8 inch (3 mm) flat head screw driver and disconnect the Acquisition Cable
terminal block from the Backplane. Unplug the Acquisition Cable from the Backplane.
8. Remove the Power Supply (if it was not removed with the Backplane board) and I.S.
Barrier boards from the enclosure. The I.S. Barrier Board has a notched tab that secures
the board to the Guide Plate.
9. Attach the Acquisition Cable terminal block to the new Backplane Board and plug the
Power Supply Board and I.S. Barrier board into the Backplane board.
10. Insert the Backplane (with the Power Supply and I.S. Barrier Boards attached to the
Backplane) into the enclosure.
11. Fully seat the CPU Module onto the Backplane board.
12. Install the four Phillips head screws to secure the Backplane to the enclosure standoffs.
13. Reinstall the terminal blocks on the CPU Module and the Power Supply board using a
3 mm flat head screw driver.
14. Recheck the connections, wiring and switch settings before replacing the end caps.
15. If replacing other electronics, continue with the following sections before replacing the
end caps and sealing the enclosure.
Replacing the Backplane
61
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
16. If you are not replacing other electronics, replace the end caps, security latches, and
security seals.
17. Apply power to the meter.
18. Connect to the meter with Daniel MeterLink. Open the Meter Monitor (Detailed) view
and verify the meter is acquiring data, the transducers have good signals and flow
profiles for the chords are displayed and run the Zero Flow Calibration Wizard; select
the Calibrate|Zero Calibrate menu and generate the report. Then, collect and save a
Maintenance log to show the “as left” condition of the meter.
TM
Or use AMS
Device Manager or a HART® Field Communicator and select Overview
|Zero Calibration|Start menu or Service Tools|Maintenance| Zero Calibration
|Start.
TM
19. Close your application connection (Daniel MeterLink, AMS
Device Manager or HART®
Field Communicator).
20. Reinstall the thermal insulation wrap around the meter body, rigid and flexible conduit,
pipe standoffs and the LB conduit assemblies.
21. This completes the Backplane board replacement procedure.
22. If you encounter problems with this procedure, see the Daniel Customer Servic
e
contact information on the back cover of this manual.
62
Replacing the Backplane
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
A. Non-terminal end of Transmitter Electronics Enclosure
B. Power Supply board
A.
C.
B.
D.
C. I.S. Barrier board (inside the Guide Plate)
D. Backplane board
3-9000-772 Rev B January 2018
3.4.5 Replacing the I.S. Barrier board
Procedure
1. If replacing the I.S. Barrier board, remove power to the meter.
2. Refer to
Ta bl e 3 - 4 for the tools required to complete this procedure.
3. Disconnect the Transmitter Electronics Enclosure security seals, loosen the end cap
security latches with a 3mm Allen wrench and remove both end caps (
see Figure 3-16).
4. Use a 1/8 inch (3 mm) flat head screw driver and remove the terminal blocks from the
Power Supply board and the CPU Module
See Figure 3-17 for board locations and associated terminal blocks.
5. Use a Phillips head screw driver and remove the four Backplane board screws from the
enclosure standoffs.
6. Pull the Backplane board out of the enclosure. This disconnects the I.S. Barrier Board.
Lay the Backplane board down with the Acquisition Cable still attached (the Power
Supply board may remain attached to the Backplane when you remove it from the
enclosure).
Figure 3-20 I.S. Barrier board replacement
7. Remove the I.S. Barrier Board from the Guide Plate on the right side of the enclosure.
8. Install the new I.S. Barrier board onto the Backplane Board and seat the Power Supply
board onto the Backplane board.
9. Insert the Backplane, I.S. Barrier board and the Power Supply Board into the enclosure
10. Fully seat the CPU Module onto the Backplane Board.
11. Attach the Backplane to the enclosure standoffs with the four Phillips head screws.
12. Reinstall the terminal blocks1/8 inch (3 mm) flat head screw driver on the CPU Module,
I.S. Barrier Board and the Power Supply.
Replacing the I.S. Barrier board
63
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
13. Recheck the connections, wiring and switch settings before replacing the end caps.
14. Connect to the meter with Daniel MeterLink. Open the Meter Monitor (Detailed) view
and verify the meter is acquiring data, the transducers have good signals and flow
profiles for the chords are displayed and run the Zero Flow Calibration Wizard; select
the Calibrate|Zero Calibrate menu and generate the report. Then, collect and save a
Maintenance log to show the “as left” condition of the meter.
TM
Or use AMS
Device Manager or a HART® Field Communicator and select Overview
|Zero Calibration|Start menu or Service Tools|Maintenance| Zero Calibration
|Start.
TM
15. Close your application connection (Daniel MeterLink, AMS
Device Manager or HART®
Field Communicator).
16. If replacing other electronics, continue with the following procedures before replacing
the end caps and sealing the enclosure.
17. If you are not replacing other electronics, replace the end caps and security latches
(3 mm Allen wrench required). If required, install the security seals (
see Section 3.6).
18. Apply power to the meter.
19. This completes the I.S. Barrier Board replacement procedure.
20. If you encounter problems with this procedure, see the Daniel Customer Servic
e
contact information on the back cover of this manual.
64
Replacing the I.S. Barrier board
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
A. Non-terminal end of Transmitter Electronics Enclosure
B. Power Supply board
A.
C.
B.
D.
C. I.S. Barrier board (inside the Guide Plate)
D. Backplane board
3-9000-772 Rev B January 2018
3.4.6 Replacing the Power Supply Board
Procedure
1. If replacing the Power Supply board, disable electrical power to the meter.
2. Refer to
3. Disconnect the Transmitter Electronics Enclosure security seals, loosen the end cap
security latches with a 3mm Allen wrench and remove both end caps.
4. Use a 1/8 inch (3 mm) flat head screw driver and remove the terminal blocks from the
Power Supply board, the CPU Module and the Optional I/O Module (Future).
See Figure 3-17 for board locations and associated terminal blocks.
5. Use a #1Standard Phillips head screw driver and remove the four Backplane board
screws from the enclosure standoffs.
Figure 3-21 Power Supply Board replacement
Ta bl e 3 - 4 for the tools required to complete this procedure.
Replacing the Power Supply Board
6. Pull the Backplane board out of the enclosure. This disconnects the I.S. Barrier Board.
Lay the Backplane board down with the Acquisition Cable still attached (the Power
Supply board may remain attached to the Backplane when you remove it from the
enclosure).
7. Plug the new Power Supply board and the I.S. Barrier Board onto the Backplane Board.
8. Insert the Backplane, I.S. Barrier board and the Power Supply Board into the enclosure
and fully seat the CPU Module and Optional I/O Module (Future).
9. Attach the Backplane to the enclosure standoffs with the four Phillips head screws.
10. Use a 1/8 inch (3 mm) flat blade screw driver and install the terminal blocks on the CPU
Module, I.S. Barrier Board and the Power Supply.
11. Recheck the connections, wiring and switch settings before replacing the end caps.
65
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
12. Connect to the meter with Daniel MeterLink. Open the Meter Monitor (Detailed) view
and verify the meter is acquiring data, the transducers have good signals and flow
profiles for the chords are displayed and run the Zero Flow Calibration Wizard; select
the Calibrate|Zero Calibrate menu and generate the report. Then, collect and save a
Maintenance log to show the “as left” condition of the meter.
TM
Or use AMS
Device Manager or a HART® Field Communicator and select Overview
|Zero Calibration|Start menu or Service Tools|Maintenance| Zero Calibration
|Start.
TM
13. Close your application connection (Daniel MeterLink, AMS
Device Manager or HART®
Field Communicator).
14. If replacing other electronics, see
Section 3.4.2 through Section 3.4.5 before replacing
the end caps and sealing the enclosure.
15. If you are not replacing other electronics, replace the Transmitter Electronics Enclosure
end caps, install the end cap security latches (3mm Allen wrench required). If requir
install the security seals (
see Section 3.6.1 and Section 3.6.2).
ed,
16. Apply power to the meter.
17. This completes the Power Supply Board replacement procedure.
18. If you encounter problems with this procedure, see the Daniel Customer Servic
e
contact information on the back cover of this manual.
66
Replacing the Power Supply Board
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
A. Transmitter electronics enclosure
A.
B. Socket head screws with hole for security wire
C.
E.
F.
B.
C. Bracket/Cover with synchronization cable
D. Acquisition cable
D.
E. Base remote mount enclosure with Acquisition Module
F. Support plate
3-9000-772 Rev B January 2018
3.4.7 Replacing the Acquisition Module
Procedure
1. Disable electrical power to the meter.
2. Refer to
3. Attach a plate to the remote mount pipe or rigid structure to support the Base
Enclosure.
4. If the meter is equipped with security seals, remove the seals from the socket head
screws in the Bracket/Cover.
Figure 3-22 Bracket/Cover plate removal
Ta bl e 3 - 4 for the tools required to complete this procedure.
Replacing the Acquisition Module
5. Use a 7/16 inch (11mm) wrench and remove the four hex head bolts and split lock
washers securing the Base Enclosure to the Bracket/Cover.
6. Carefully lower the Base Enclosure and rest it on the support plate.
67
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
A.
A. Acquisition cable and terminal block
B. Synchronization cable terminal block
B.
C.
C. Transducer wiring terminal blocks
D.
D. Acquisition Module
E. Base Enclosure o-ring
E.
Make sure the transducer cables are labeled for the chord configuration (A1, A2, B1 and B2
etc...).
January 2018 3-9000-772 Rev B
7. Use a 1/8 inch (3 mm) flat head screw driver and disconnect the Acquisition cable
terminal block, synchronization cable terminal block and the transducer wire terminal
blocks from the Acquisition Module.
Figure 3-23 Acquisition Module cable and transducer wiring
8. Remove the three Acquisition Module flat head screws and split lock washers, then
9. Insert the new Acquisition Module into the Base Enclosure and secure with the thre
10. Reattach the terminal blocks onto the Acquisition Module 1/8 inch (3 mm) flat head
remove the Acquisition Module from the Base Enclosure.
split lock washers and flathead screws.
screw driver for the corresponding transducer (A1, B1, A2, or B2 etc...). Make sure the
transducer wires have good contact with the terminal block and the terminal block
screws are tight. Make sure the acquisition wires and ferrules are secure and the wires
do not touch each other.
11. Reattach the Synchronization cable and the Acquisition cable terminal blocks.
68
12. When you have completed attaching the terminal blocks to the Acquisition Module
check the Base Enclosure O-ring seal and reinstall if necessary.
e
,
Replacing the Acquisition Module
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
3-9000-772 Rev B January 2018
13. Reattach the Bracket/Cover to the Base Enclosure with the four hex head bolts and lock
washers. Tighten bolts with a 7/16 inch (11mm) wrench.
14. Reapply power and connect to the meter with Daniel MeterLink. Open the Meter
Monitor (Detailed) view and verify the meter is acquiring data, the transducers have
good signals and the chords flow profiles are good.
15. Run the Zero Flow Calibration Wizard; select the Calibrate|Zero Calibrate menu and
generate the report. Then, collect and save a Maintenance log to show the “as left”
condition of the meter.
TM
Or use AMS
Device Manager or a HART® Field Communicator and select Overview
|Zero Calibration|Start menu or Service Tools|Maintenance| Zero Calibration
|Start.
TM
16. Close your application connection (Daniel MeterLink, AMS
Device Manager or HART®
Field Communicator).
17. Install the end cap and the end cap security latch using a 3 mm Allen wrench.
18. If required, install the security seals (
see Section 3.6.2) through the socket head cap
screw in the Bracket/Cover.
19. This completes the Acquisition Module replacement procedure.
Replacing the Acquisition Module
69
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
A.
A. Primary (_H1) Transmitter Electronics Enclosure
B. Synchronization cable and gland
B.
C.
C. Secondary (_H2) Transmitter Electronics Enclosure
D. Synchronization cable and gland
E.
January 2018 3-9000-772 Rev B
3.4.8 Replacing the Acquisition cable or synchronization cable
Figure 3-24 Acquisition Module cable or Synchronization cable
70
Daniel recommends that you contact Daniel Customer Service (see contact information on the
back cover of this manual) if you need to replace the Acquisition cable or the Synchronization
cable.
Replacing the Acquisition cable (Daniel P/N 1-360-01-595) requires:
• Removing the Transmitter Electronics Enclosure Bracket/Cover from the Base
Enclosure.
• Disconnecting the Acquisition cable terminal block from the Backplane board in the
Transmitter Electronics Enclosure.
• Disconnecting the CPU and Power Supply terminal blocks.
• Disconnecting the Acquisition cable from the Acquisition Module in the Base Enclosure.
The Synchronization cable (Daniel P/N 1-504-90-131) requires:
• Removing both of the Transmitter Electronics Enclosure Bracket/Covers from the Base
Enclosures.
• Disconnecting the Synchronization cable from the terminal blocks in the Base
Enclosure.
• Reattaching the cable to the terminal blocks.
Replacing the Acquisition cable or synchronization cable
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
CUTTING HAZARD
Sharp edges may be present on the shrouds.
Wear appropriate personal protective equipment when working on the meter. Failure to do so may
cause serious injury.
3-9000-772 Rev B January 2018
3.5 Installing the shrouds
Table 3-5 Shroud removal tool list
Tools required
Flat blade screw driver or 5/16 inch nut driver
Standard 1/2 inch socket or a standard 1/2 inch wrench
Standard 7/16 socket or standard 7/16 inch wrench
Standard flat blade screw driver
Appropriate personal protective equipment
Before starting shroud assembly check around the body OD to be sure the thermal wrap
completely covers the transducers and transducer cables.
Installing the shrouds
71
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
A.
B.
A. Front shroud hem joint
B. Back shroud hem joint
January 2018 3-9000-772 Rev B
Procedure
1. Place each half of the band shroud assembly on a flat surface. Position the parts so they
are circular with the ends with bent edges near each other. Guide the bent edges to fit
within each other completing the engagement of the sheet metal hem bend. Be sure
that full engagement is achieved and that the edges of both parts remain on the flat
surface.
Figure 3-25 Band shroud hem bend joint
72
Installing the shrouds
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
D.
A. Shroud rectangular hole
B. Worm screw clamp part
C. Worm screw nut part
D.
Shroud guide pin and guide pin hole
A.
B.
C.
3-9000-772 Rev B January 2018
2. One end of the clamped band shroud assembly has two holes which will engage guide
pins and rectangular shaped holes. Assemble one nut end of a worm screw clamp into
one of these rectangular holes.
Figure 3-26 Band shroud assembly
• Insert the "T" shaped end of the clamp part into the rectangular shaped hole and
rotate the clamp part so the flat surface opposite of the nut is flat against the
outside surface of the band shroud. Extend the nut end of the clamp part beyond
the end of the band shroud. Once in place use tape to keep the clamp part
positioned. Repeat to install the additional three worm screw clamp parts into the
rectangular hole near the other guide pin hole. Be sure the tape used does not
cover the guide pin holes.
3. The other end of the clamped band shroud assembly receives the threaded parts of the
worm screw clamps.
• Insert the "T" shaped end of a threaded clamp part into into the rectangular shaped
hole and rotate the clamp part so the flat surface opposite of the nut is flat against
the outside surface of the band shroud. Extend the length of the clamp part threads
beyond the end of the band shroud. Secure the clamp part with tape to the band
shroud. Repeat to install the additional three worm screw clamp parts into the
second rectangular hole on this end of the band shroud.
Installing the shrouds
73
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
A.
A. Top shroud support
B. Top shroud holes attachment points
B.
C.
C. Bolt holes for top shroud end
January 2018 3-9000-772 Rev B
4. Grasp the clamped band shroud assembly by opposing edges and spread the opening
of the circular shape and place over the body OD at a machined shroud channel.
a. Position the shroud end with the guide pin holes and worm screw clamp nuts on
the same side of the meter which has the guide pins.
b. Align the guide pin holes in the shroud with the guide pins in the body and ho
ld
this band shroud end against the body OD.
c. Position the opposite end of the band shroud near to the guide pin hole end and
engage the worm screw clamp thread ends into the worm screw clamp nuts.
With a flat blade screwdriver or 5/16 inch (8mm) hex driver rotate the worm
screw clamp nuts, each a little at a time, until the band shroud becomes snug
against the body OD.
5. Check the shroud for proper fit on the meter body and continue tightening the worm
ws.
scre
a. Check to confirm that the band shroud assembly fully covers the meter body.
b. Check to confirm that the hem bends of the two shroud parts, located at the
bottom of the meter, are fully engaged.
c. If the shroud is misaligned, use a flat blade screw driver and loosen all worm
screw clamp assemblies by alternating between the worm screw clamp screws,
turning each a few turns at a time. Reposition the misaligned band.
6. Place one half of the top shroud over the worm screw clamps and the top shroud
support.
d. Insert the three hex head bolts and split lock washers into the top shroud an
align with the three holes in the top shroud support.
Figure 3-27 Top shroud attachment points
d
74
Installing the shrouds
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
A.
A. Top shroud
B. Top shroud support
B.
C. Top shroud support spacer
C.
D.
D. Top shroud end
3-9000-772 Rev B January 2018
e. Loosely tighten the bolts to hold the top shroud in place.
f. Insert the 5/16 inch washer inside of the top shroud (Item D. in
Figure 3-28) and
hold it in place until you insert the 5/16 inch hex head bolt and washer into the
end of the top shroud.
Figure 3-28 Top shroud assembly
g. Rotate the top shroud end bolt clockwise and tighten with a 1/2 inch wrench.
Repeat this with the bolt and lock washer at the opposite end of the top shroud.
h. Install the other half of the top shroud over the worm screw clamps and the top
shroud support. Align the top shroud with the three attachment point holes in
the top shroud support.
i. Loosely tighten the bolts to hold the top shroud in place.
j. Insert the5/16 inch washer inside the top shroud end and hold in place until you
insert the 5/16 inch hex head bolt and washer into the end of the top shroud.
k. Once both halves of the top shroud are correctly aligned, Use a 7/16 inch wrench
and tighten the six bolts in the top shroud and use a 1/2 wrench on the top
shroud end bolts. Make sure all of the top shroud assembly bolts are tightened.
7. This completes the band shroud installation procedure.
Installing the shrouds
75
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
A.
A. Security latch
B. Transmitter Electronics Enclosure end cap
B.
C.
C. Hex head socket screws
January 2018 3-9000-772 Rev B
3.6 Sealing the meter
3.6.1 Sealing the transmitter electronics enclosure
Security seals protect the integrity of the meter metrology and prevent tampering with
electronics. The following sections detail how to properly seal the Daniel 3818 LNG Liquid
Ultrasonic Flow Meter after commissioning. The security seal wires are commercially available.
Be sure to set the WRITE PROT. switch on the CPU Module to the ON position prior to sealing the
enclosure. Use the following instructions to install the security seal wires on the Transmitter
Electronics Enclosure.
Figure 3-29 Transmitter electronics enclosure security latch
76
Sealing the meter
Maintenance and Troubleshooting Manual Section 3: Meter maintenance
B.
A. Bracket/Cover socket head cap screws
B. Base Electronics enclosure
A.
3-9000-772 Rev B January 2018
Procedure
1. Rotate the end cap clockwise fully closing and compressing the end cap seal. Install the
Security latch using a 3 mm Allen wrench.
2. Install the security seal wire into and through one of the two holes in the end cap.
Choose holes that minimize counterclockwise rotation of the end cap when the
security wire is taut (maximum wire diameter .078 inch; 2.0 mm).
3. Adjust the security wire, removing all slack and thread into the lead seal.
4. Cut wire ends to remove excess wire.
5. This completes installing the Transmitter Electronics Enclosure security wire seals.
3.6.2 Sealing the Bracket/Cover and Base electronics enclosure
Use the following instructions to install the security seal wire on the Base Enclosure.
Procedure
1. Install security wire seal into and through two of the four the holes in the socket head
screws on the Bracket/Cover securing the Transmitter Electronics to the Base
Electronics Enclosure (maximum wire diameter .078 inch; 2.0 mm).
Figure 3-30 Base Enclosure security seals
2. Position the wire to prevent counterclockwise rotation of the screws when the seal wire
3. Twist and adjust wire removing all slack and seal.
4. Cut wire ends to remove excess wire.
Sealing the Bracket/Cover and Base electronics enclosure
is taut.
77
Section 3: Meter maintenance Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
78
Sealing the Bracket/Cover and Base electronics enclosure
Maintenance and Troubleshooting Manual Appendix A: Conversion factors
3-9000-772 Rev B January 2018
Appendix A: Conversion factors
A.1 Conversion factors per units of measurement
The following table includes conversion factors for many of the Metric and U.S. Customary units
of measure used with Daniel 3818 LNG Liquid Ultrasonic Flow Meters and Daniel MeterLink.
Table A-1 Conversion factors per units of measurement
Conversion factors Unit of measurement
(°F-32)x(5/9)—>°C
(°C+273.15)—>K
1 K/°C
5/9 °C/°F
-6
10
0.006894757 MPa/psi
0.1 MPa/bar
0.101325 MPa/atm
0.000133322 MPa/mmHg
0.3048 m/ft
0.0254 m/in
3
10
-6
10
(0.3048)
(0.0254)
3600 s/h
86400 s/day
10
0.45359237 kg/lbm
231
42 gal/bbl (barrel)
0.0037854
6.289811
10
1.488 Pa•s/(lb/(ft•s))
3
3
3
-3
MPa/Pa
3
dm3/m
m3/cc (=m3/cm3)
3
m3/ft
3
m3/in
g/kg
3
/gal
in
3
gal/m
3
bbl/m
Pa•s/cPoise
Conversion factors per units of measurement 79
Appendix A: Conversion factors Maintenance and Troubleshooting Manual
KFactor
FreqQ
FullScale
MaxFreq()3600shr§
----------------------------------------------------------=
**
*
InvKFactor
MaxFreq()3600shr§()
FreqQ
FullScale
---------------------------------------------------------------=
*
KFactor
InvKFactor
FreqQ
FullScale
MaxFreq
TimeUnit
*
Volume
**
January 2018 3-9000-772 Rev B
A.2 K Factor conversions
A.2.1 K-Factor and inverse K-Factor
Equation A-1 Frequency volumetric flow rate K-Factor
and
Equation A-2 Frequency volumetric flow rate inverse K-Factor
where
=
frequency “K-Factor” (pulses/volume**) (Freq1KFactor and
Freq2KFactor)
=
frequency “Inverse K-Factor” (volume**/pulse) (Freq1InvKFactor and
Freq2InvKFactor)
=
frequency full-scale volumetric flow rate (volume**/time unit*)
(Freq1FullScaleVolFlowRate and Freq2FullScaleVolFlowRate)
= maximum frequency (Hz = pulses/time unit*) (Freq1MaxFrequency and
Freq2MaxFrequency)
time conversion factor depends on the VolFlowRate Time Unit
=
data point:
volume/second = 1 s/s
•
• volume/minute = 60 s/m
• volume/hour = 3600 s/h
• volume/day = 86400 s/d
where the volume is selected via data points:
=
• Units System
• Vo lUn itU S(
- gallons
- barrels
Vol Uni tMe tri c
•
- cubic meters
- liters
80 K Factor conversions
Maintenance and Troubleshooting Manual Engineering Drawings
3-9000-772 Rev B January 2018
APPENDIX BPAGE 498
Appendix B: Engineering Drawings
B.1 Daniel 3810 Series Ultrasonic Flow Meter
Drawings
List of Engineering Drawings
This appendix contains the following engineering drawing(s) for the ultrasonic meter:
DMC-004936 Daniel 3818 LNG Liquid Ultrasonic Flow Meter System Wiring Diagram
Daniel 3810 Series Ultrasonic Flow Meter Drawings 81
Engineering Drawings Maintenance and Troubleshooting Manual
January 2018 3-9000-772 Rev B
82 Daniel 3810 Series Ultrasonic Flow Meter Drawings
Maintenance and Troubleshooting Manual Index
3-9000-772 Rev B January 2018
Appendix C: Index
C.1 Manual index
A
Acquisition Module................................................................ 55
Acquisition Module transducer wiring.......................68, 70
Alarms
Acquisition Module Error
Acquisition Module is not compatible
with firmware
Can’t communicate with the meter
using Ethernet
Check status ......................................................................8
Chord A, Chord B, Chord C and Chord D alarm..... 10
Chord failure....................................................................12
Comms ..............................................................................10
Communicating with meter but all chords
display failures
Communication line connected to flow
computer but no signal received
CPU Module LINK LED ................................................... 12
Meter Monitor Status Summary.............................. 8, 9
Sound velocity out of limits ........................................18
System............................................................................... 10
Validity............................................................................... 10
B
Bracket/Cover plate removal.............................................. 67
C
Cannot communicate with AMS Device Manager ....... 15
Cannot communicate with Daniel MeterLink................14
Cannot communicate with 475
Field Communicator
Check Status .............................................................................. 8
Communication issues due to blocked
network ports
Configuration changed ........................................................15
Configuration lost .................................................................. 15
Connect to multiple meters via Ethernet .......................15
Conversion factors................................................................. 79
Conversion factors per unit of measurement................ 79
..................................................................14
D
Direct serial connections......................................................29
............................................. 12
..........................................................12
.........................................................13
........................................................14
......................13
......................................................15
E
Electronics is out of nominal operating range .............. 15
Electronics Temperature is out of range......................... 15
Ethernet Connections........................................................... 29
Ethernet connections............................................................ 29
F
