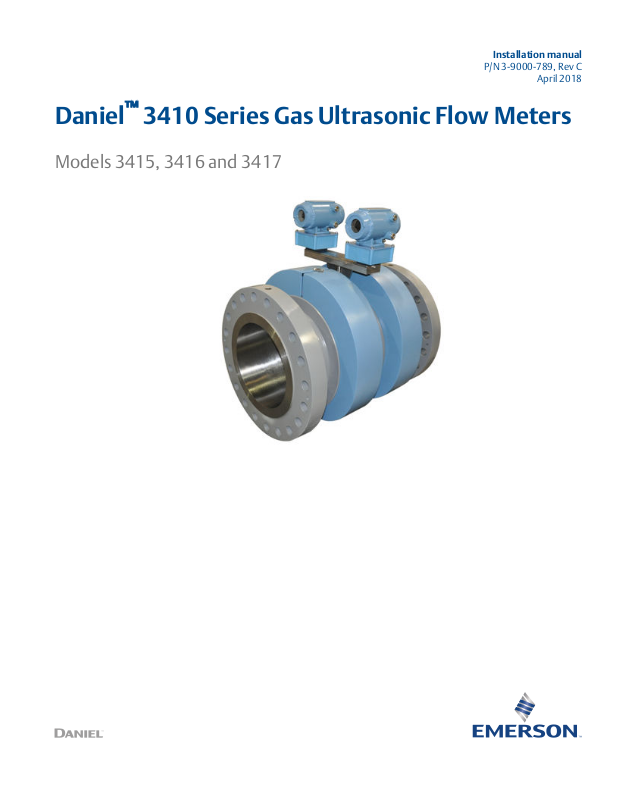

Installation manual

P/N 3-9000-789, Rev C

April 2018

Daniel™ 3410 Series Gas Ultrasonic Flow Meters

Models 3415, 3416 and 3417

Flow Lifecycle Services for Daniel products

Location Telephone number Fax number

North America/Latin America +1.713.467.6000 +1.713.827.4805

Flow Lifecycle Services for Daniel products +1.713.827.6314 +1.713.827.6312

USA (toll free) +1.888.356.9001 +1.713.827.3380

Asia Pacific (Republic of Singapore) +65.6777.8211 +65.6777.0947.0743

Europe (Stirling Scotland, UK) +44 (0)1786.433400 +44 (0)1786.433401

Middle East Africa (Dubai, UAE) [phone] [phone]

Daniel Measurement and Control, Inc. (Headquarters)

11100 Brittmoore Park Drive

Houston, TX 77041 USA

http://www.emerson.com

Email

• Customer Service: [e-mail]

• Customer Support: [e-mail]

• Asia-Pacific: [e-mail]

• Europe: [e-mail]

Return Material Authorization (RMA)

A Return Material Authorization (RMA) number must be obtained prior to returning any equipment for any reason. Download the
RMA form from the Support Services web page by selecting the link below.

http://www.daniel.com/rma

Signal words and symbols

Pay special attention to the following signal words, safety alert symbols and statements:

Safety alert symbol

This is a safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol
to avoid possible injury or death.

DANGER!

Danger indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING!

Warning indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION!

Caution indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

Notice is used to address safety messages or practices not related to personal injury.

Important

Important is a statement the user needs to know and consider.

Tip

Tip provides information or suggestions for improved efficiency or best results.

Note

Note is “general by-the-way” content not essential to the main flow of information.

Important safety instructions

Daniel Measurement and Control, Inc. (Daniel) designs, manufactures and tests products to function within specific conditions.
Because these products are sophisticated technical instruments, it is important that the owner and operation personnel must
strictly adhere both to the information printed on the product and to all instructions provided in this manual prior to installation,
operation, and maintenance.

Daniel also urges you to integrate this manual into your training and safety program.

BE SURE ALL PERSONNEL READ AND FOLLOW THE INSTRUCTIONS IN THIS MANUAL AND ALL NOTICES AND PRODUCT WARNINGS.

WARNING!

Failure to follow the installation, operation or maintenance instructions for a Daniel product could lead to serious injury or death
from explosion or exposure to dangerous substances.

To reduce the risk:

• Comply with all information on the product, in this manual, and in any local and national codes that apply to this product.

• Do not allow untrained personnel to work with this product.

• Use Daniel parts and work procedures specified in this manual.

Product owners (Purchasers):

• Use the correct product for the environment and pressures present. See technical data or product specifications for

limitations. If you are unsure, discuss your needs with your Daniel representative.

• Inform and train all personnel in the proper installation, operation, and maintenance of this product.

• To ensure safe and proper performance, only informed and trained personnel should install, operate, repair and maintain

this product.

• Verify that this is the correct instruction manual for your Daniel product. If this is not the correct documentation, contact

Daniel at 1-713-827-6314. You may also download the correct manual from:

https://www.emerson.com/en-us/catalog/supervisory-control-systems.

• Save this instruction manual for future reference.

• If you resell or transfer this product, it is your responsibility to forward this instruction manual along with the product to the

new owner or transferee.

• ALWAYS READ AND FOLLOW THE INSTALLATION, OPERATIONS, MAINTENANCE AND TROUBLESHOOTING MANUAL(S) AND

ALL PRODUCT WARNINGS AND INSTRUCTIONS.

• Do not use this equipment for any purpose other than its intended service. This may result in property damage and/or

serious personal injury or death.

Product operation (Personnel):

• To prevent personal injury, personnel must follow all instructions of this manual prior to and during operation of the

product.

• Follow all warnings, cautions, and notices marked on, and supplied with, this product.

• System should be designed to avoid over pressure conditions or exceeding maximum safe flow rate if meter losses

measurement.

• Verify that this is the correct instruction manual for your Daniel product. If this is not the correct documentation, contact

Daniel at 1-713-827-6314. You may also download the correct manual from: http://www.daniel.com/.

• Read and understand all instructions and operating procedures for this product.

• If you do not understand an instruction, or do not feel comfortable following the instructions, contact your Daniel

representative for clarification or assistance.

• Install this product as specified in the INSTALLATION section of this manual per applicable local and national codes.

• Follow all instructions during the installation, operation, and maintenance of this product.

• Connect the product to the appropriate pressure and electrical sources when and where applicable. Never operate meter

above the maximum working pressure stated on the nameplate.

• Ensure that all connections to pressure and electrical sources are secure prior to and during equipment operation.

• Use only replacement parts specified by Daniel. Unauthorized parts and procedures can affect this product's performance,

safety, and invalidate the warranty. “Look-a-like” substitutions may result in deadly fire, explosion, release of toxic
substances or improper operation.

• Save this instruction manual for future reference.

Notice

THE CONTENTS OF THIS PUBLICATION ARE PRESENTED FOR INFORMATIONAL PURPOSES ONLY, AND WHILE EVERY EFFORT HAS
BEEN MADE TO ENSURE THEIR ACCURACY, THEY ARE NOT TO BE CONSTRUED AS WARRANTIES OR GUARANTEES, EXPRESSED OR
IMPLIED, REGARDING THE PRODUCTS OR SERVICES DESCRIBED HEREIN OR THEIR USE OR APPLICABILITY. ALL SALES ARE GOVERNED
BY DANIEL'S TERMS AND CONDITIONS, WHICH ARE AVAILABLE UPON REQUEST. WE RESERVE THE RIGHT TO MODIFY OR IMPROVE
THE DESIGNS OR SPECIFICATIONS OF SUCH PRODUCTS AT ANY TIME.

DANIEL DOES NOT ASSUME RESPONSIBILITY FOR THE SELECTION, USE OR MAINTENANCE OF ANY PRODUCT. RESPONSIBILITY FOR
PROPER SELECTION, USE AND MAINTENANCE OF ANY DANIEL PRODUCT REMAINS SOLELY WITH THE PURCHASER AND END-USER.

TO THE BEST OF DANIEL'S KNOWLEDGE THE INFORMATION HEREIN IS COMPLETE AND ACCURATE. DANIEL MAKES NO
WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE WITH RESPECT TO THIS MANUAL AND, IN NO EVENT, SHALL DANIEL BE LIABLE FOR ANY INCIDENTAL,
PUNITIVE, SPECIAL OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PRODUCTION, LOSS OF PROFITS,
LOSS OF REVENUE OR USE AND COSTS INCURRED INCLUDING WITHOUT LIMITATION FOR CAPITAL, FUEL AND POWER, AND CLAIMS
OF THIRD PARTIES.

PRODUCT NAMES USED HEREIN ARE FOR MANUFACTURER OR SUPPLIER IDENTIFICATION ONLY AND MAY BE TRADEMARKS/
REGISTERED TRADEMARKS OF THESE COMPANIES.

Warranty and Limitations

1. LIMITED WARRANTY: Subject to the limitations contained in Section 2 herein, Daniel Measurement & Control, Inc. (“Daniel”)

warrants that the licensed firmware embodied in the Goods will execute the programming instructions provided by Daniel, and that
the Goods manufactured by Daniel will be free from defects in materials or workmanship under normal use and care and Services
will be performed by trained personnel using proper equipment and instrumentation for the particular Service provided. The
foregoing warranties will apply until the expiration of the applicable warranty period. Goods are warranted for twelve (12) months
from the date of initial installation or eighteen (18) months from the date of shipment by Daniel, whichever period expires first.
Consumables and Services are warranted for a period of 90 days from the date of shipment or completion of the Services. Products
purchased by Daniel from a third party for resale to Buyer (“Resale Products”) shall carry only the warranty extended by the original
manufacturer. Buyer agrees that Daniel has no liability for Resale Products beyond making a reasonable commercial effort to
arrange for procurement and shipping of the Resale Products. If Buyer discovers any warranty defects and notifies Daniel thereof in
writing during the applicable warranty period, Daniel shall, at its option, correct any errors that are found by Daniel in the firmware
or Services or repair or replace F.O.B. point of manufacture that portion of the Goods or firmware found by Daniel to be defective, or
refund the purchase price of the defective portion of the Goods/Services. All replacements or repairs necessitated by inadequate
maintenance, normal wear and usage, unsuitable power sources or environmental conditions, accident, misuse, improper
installation, modification, repair, use of unauthorized replacement parts, storage or handling, or any other cause not the fault of
Daniel are not covered by this limited warranty, and shall be at Buyer's expense. Daniel shall not be obligated to pay any costs or
charges incurred by Buyer or any other party except as may be agreed upon in writing in advance by Daniel. All costs of dismantling,
reinstallation and freight and the time and expenses of Daniel's personnel and representatives for site travel and diagnosis under
this warranty clause shall be borne by Buyer unless accepted in writing by Daniel. Goods repaired and parts replaced by Daniel
during the warranty period shall be in warranty for the remainder of the original warranty period or ninety (90) days, whichever is
longer. This limited warranty is the only warranty made by Daniel and can be amended only in a writing signed by Daniel. THE
WARRANTIES AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE. THERE ARE NO REPRESENTATIONS OR WARRANTIES OF ANY
KIND, EXPRESS OR IMPLIED, AS TO MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE OR ANY OTHER MATTER WITH RESPECT
TO ANY OF THE GOODS OR SERVICES. Buyer acknowledges and agrees that corrosion or erosion of materials is not covered by this
warranty.

2. LIMITATION OF REMEDY AND LIABILITY: Daniel shall not be liable for damages caused by delay in performance. The remedies of

Buyer set forth in this agreement are exclusive. In no event, regardless of the form of the claim or cause of action (whether based in
contract, infringement, negligence, strict liability, other tort or otherwise), shall Daniel's liability to Buyer and/or its customers
exceed the price to Buyer of the specific goods manufactured or services provided by Daniel giving rise to the claim or cause of
action. Buyer agrees that in no event shall Daniel's liability to Buyer and/or its customers extend to include incidental, consequential
or punitive damages. The term “consequential damages” shall include, but not be limited to, loss of anticipated profits, revenue or
use and costs incurred including without limitation for capital, fuel and power, and claims of Buyer's customers.

Contents

Contents

Chapter 1 Introduction ...................................................................................................................1

1.1 Product overview .........................................................................................................................1

1.2 Typical applications ..................................................................................................................... 2

1.3 Feature and benefits .................................................................................................................... 2

1.4 Acronyms, abbreviations and definitions ..................................................................................... 3

1.5 Daniel MeterLink software ........................................................................................................... 5

1.6 Daniel 3410 series meter design .................................................................................................. 7

1.7 Meter specifications ...................................................................................................................11

1.8 Pre-installation considerations ...................................................................................................19

1.9 Safety ........................................................................................................................................ 20

1.10 Daniel 3410 series certifications and approvals ..........................................................................21

1.11 FCC compliance ......................................................................................................................... 21

1.12 References .................................................................................................................................22

Chapter 2 Mechanical installation ................................................................................................ 23

2.1 Meter piping, lifting and mounting ............................................................................................ 23

2.2 Meter components .................................................................................................................... 25

2.3 Piping recommendations ...........................................................................................................30

2.4 Pre-installation inspection ......................................................................................................... 33

2.4.1 Meter safety for hoist rings and lifting slings ................................................................33

2.5 Mounting requirements in heated or cooled pipelines ............................................................... 44

Chapter 3 Electrical installation ....................................................................................................45

3.1 Cable length TTL mode .............................................................................................................. 45

3.2 Cable length Open Collector mode ............................................................................................ 45

3.3 Grounding meter electronics housing ........................................................................................46

3.4 Conduit seals ............................................................................................................................. 48

3.4.1 Startup for systems using explosion-proof conduit ......................................................49

3.4.2 Startup for systems that use flame-proof cable ........................................................... 54

3.5 Wiring and I/O ........................................................................................................................... 55

3.5.1 CPU Module labeling and LED indicators ......................................................................55

3.5.2 I/O connections ...........................................................................................................62

3.6 Security seal installation ............................................................................................................ 78

3.6.1 Seal transmitter electronics enclosure .........................................................................78

3.6.2 Base Enclosure Security Seals ...................................................................................... 80

3.6.3 Transducer assembly security seal ...............................................................................81

Chapter 4 Configuration ...............................................................................................................85

4.1 Set up the Daniel MeterLink™..................................................................................................... 85

4.2 Field Setup Wizard ..................................................................................................................... 88

4.2.1 Display Items ...............................................................................................................91

4.2.2 Display units ................................................................................................................94

4.2.3 Scroll delay ..................................................................................................................94

4.3 Using AMS Device Manager to configure the meter ................................................................... 94

4.3.1 Installing AMS Device description ................................................................................94

4.3.2 AMS Device Manager - Guided setup ...........................................................................98

4.3.3 AMS Device Manager - Manual setup .........................................................................101

Installation manual i

Contents

4.4 Using a Field Communicator to configure the meter ................................................................109

4.5 Security seals for the meter ......................................................................................................110

Appendices and reference

Appendix A Engineering drawings ................................................................................................ 111

A.1 3410 Series engineering drawings ........................................................................................... 111

Appendix B Open source licenses .................................................................................................. 113

B.1 List of source codes for executable files ....................................................................................113

B.1.1 GNU General Public License .......................................................................................115

B.1.2 GNU Lesser General Public License ............................................................................ 120

B.1.3 BSD Open Source License ..........................................................................................123

B.1.4 M.I.T License ............................................................................................................. 124

B.1.5 Zlib License ............................................................................................................... 124

ii Gas Ultrasonic Flow Meter

1 Introduction

Topics covered in this chapter:

Product overview

•

Typical applications

•

Feature and benefits

•

Acronyms, abbreviations and definitions

•

Daniel MeterLink software

•

Daniel 3410 series meter design

•

Meter specifications

•

Pre-installation considerations

•

Safety

•

Daniel 3410 series certifications and approvals

•

FCC compliance

•

References

•

Introduction

1.1 Product overview

™

Daniel
broad range of customer requirements. Each meter comes fully assembled from Daniel
Measurement and Control, Inc.

Refer to the following documents for additional details:

• P/N 3-9000-763 Daniel MeterLink™ Software for Gas and Liquid Ultrasonic Flow

• P/N 3-9000-761 HART® Field Device Specification Manual

• P/N 3-9000-769 Daniel 3410 Series Ultrasonic Gas Flow Meter Maintenance and

Daniel 3415 Gas Ultrasonic Flow meter is a 4-path chordal design combined with a single­path bounce design. This technology provides custody transfer gas measurement
combined with integrated check metering.

Model 3416 Gas Ultrasonic Flow meter is a 4-path chordal design combined with a two­path bounce design, which provides custody and check metering in addition to a
diagnostic for pipe bottom contamination.

Model 3417 Gas Ultrasonic Flow meter is a fully redundant custody meter with two
independent 4-path chordal meters in one body.

See for advantages of Daniel 3410 Series Ultrasonic Gas Flow Meters.

3410 Series Ultrasonic Gas Flow Meters have various configurations that meet a

Meters Quick Start Manual

Troubleshooting Manual

™

Installation manual 1

Introduction

1.2 Typical applications

Daniel Dual-Configuration 3410 Series Ultrasonic Gas Flow Meters have various
configurations that meet a broad range of customer requirements. Each meter comes fully
assembled from Daniel. The technology can be applied to custody transfer, allocation
measurement, and check metering applications such as:

• Custody transfer

• Production and gathering

• Offshore

• Gas processing plants

• Underground storage sites

• Transmission pipelines

• Power plants

• Large and industrial users

1.3 Feature and benefits

• Secondary backup measurement

• Custody meter verification

• Proven long term stability

• Field proven reliability

• No line obstruction

• No pressure loss

• Low maintenance

• Bi-directional measurement

• Extensive self diagnostics

• Immediate alarm reporting

• Continuous Flow Analysis

- Abnormal profile

- Blockage

- Internal bore buildup

- Liquids present in the gas meter

- Reverse Flow

- Speed of Sound comparison error

• Auto-detected ASCII/RTU Modbus communications protocol

• Low power consumption

• Sophisticated noise reduction

• Internet-ready communications

2 Gas Ultrasonic Flow Meter

• Ethernet access

• On-board LES status indicators

• Analog pressure and temperature inputs

• Communication via Emerson's AMS™ Device Manager and Field Communicator

• API Chapter 21 compliant event and data logging (gas meters)

• Daniel MeterLink™ (a Windows® - based interface software)

• Local Displays (optional)

For other features and benefits refer to the product datasheet: http://
www2.emersonprocess.com/EN-US/BRANDS/DANIEL/FLOW/Pages/Flow.aspx

1.4 Acronyms, abbreviations and definitions

Acronym or abbreviation Definition

° degree (angle)

° C degrees celsius (temperature unit)

° F degrees fahrenheit (temperature unit)

ADC analog-to-digital converter

AI Analog Input

AMS® Device Manager Asset Management Software - Device Manager

AO Analog Output

ASCII MODBUS A Modbusprotocolmessageframingformat in which ASCII

charactersareusedtodelineatethebeginningandendofthe­frame.ASCIIstandsforAmericanStandardCodeforInforma­tionInterchange.

boolean A typeofdatapointthatcan only takeonvaluesofTRUEor-

FALSE(generallyTRUEisrepresentedby a valueof 1,FALSE is
represented by a valueof 0)

bps Bits Per Second (baud rate)

cPoise centipoise (viscosity unit)

CPU Central Processing Unit

C T S Clear-to-Send; the RS-232C handshakingsignalinputto a

transmitterindicatingthat it is okaytotransmitdata ­i.e.,thecorrespondingreceiver is readytoreceivedata.Gen­erally,theRequest-to-Send(RTS)outputfrom a receiver is
inputtotheClear-to-Send (CTS) inputof a transmitter.

D A C Digital-to-Analog Converter

Daniel MeterLink TM Daniel Ultrasonic Meter interface software

DI Digital Input

DO Digital Output

Introduction

Installation manual 3

Introduction

Acronym or abbreviation Definition

DHCP Dynamic Host Configuration Protocol

dm decimeter (10 -1 meters, length unit)

ECC Error Correction Code

EEPROM Electrically-Erasable, Programmable Read-Only Memory

Flash non-volatile, programmable read-only memory

FODO output that is userconfigurableaseither a FrequencyorDi-

gitalOutput

HART® Communication Protocol Highway Addressable Remote Transducer communica-

tions protocol

hr hour (time unit)

Hz Hertz (cyclespersecond,frequencyunit)

I/O Input/Output

IS Intrinsically Safe

K Kelvin (temperature unit)

kHz kilohertz (10 3 cycles per second, frequency unit)

LAN Local Area Network

LED Light-emitting Diode

m meter (length unit)

m 3 /d cubic meters per day (volumetric flow rate)

m 3 /h cubic meters per hour (volumetric flow rate)

m 3 /s cubic meters per second (volumetric flow rate)

mA milliamp (current unit)

MAC Address Media Access Control (Ethernet Hardware Address -EHA)

microinch ( m inch) microinch (10 -6 in)

micron micrometer (10 -6 m)

MMU Memory ManagementUnit

MPa megapascal (equivalent to 10 6 Pascal) (pressure unit)

N/A Not Applicable

Nm 3 /h normal cubic meters per hour

NOVRAM Non-Volatile Random Access Memory

Pa Pascal, equivalent to 1 newtonpersquaremeter(pressureu-

nit)

Pa × s Pascal Second (viscosity unit)

PC Personal Computer

PFC Peripheral Field Connection (Board)

P/N Part Number

PS Power Supply (board)

4 Gas Ultrasonic Flow Meter

Introduction

Acronym or abbreviation Definition

psi pounds per square inch (pressure unit)

psia pounds per square inch absolute (pressure unit)

psig pounds per square inch gage (pressure unit)

R Radius of meter

rad radian (angle)

RAM Random Access Memory

RTS Request-to-Send; the RS-232C handshakingsignaloutput-

by a receiverwhen it is readytoreceivedata

RTU MODBUS A Modbusprotocolframingformat in whichelapsedtime-

betweenreceivedcharac-ters is used to separate messag­es. RTUstandsforRemoteTerminalUnit.

s second (time unit, metric)

SDRAM Synchronous Dynamic Random Access Memory

sec second (time unit, U.S. Customary)

TCP/IP Transmission Control Protocol/Internet Protocol

time_t seconds since Epoch (00:00:00 UTCJan.1,1970)(timeunit)

UDP User Datagram Protocol

U.L. Underwriters Laboratories, Inc. - productsafetytestingand-

certificationorganization

V Volts (electric potential unit)

W Watts (power unit)

1.5 Daniel MeterLink software

Daniel MeterLink
configuring your meter, collecting logs and reports and monitoring the meter health and
alarm statuses. Daniel MeterLink™ may be downloaded at no charge from:

Installation manual 5

™

software has robust features for setting communications parameters,

Introduction

Daniel MeterLink download and registrationFigure 1-1:

Procedure

1. Go to Quick Links and select MeterLink Software.

2. Select Download MeterLink.

3. Click the Order Now button to complete the Online registration form.

4. Click Next to go to the order confirmation page.

5. Click Complete Order.

You will receive a conformation e-mail with a hyperlink directing you to the
download site. Click the link provided.

6. Click Save.

Refer to the Daniel MeterLink™ Software for Gas and Liquid Ultrasonic Meters Quick
Start Manual (P/N 3-9000-763) for installation instructions and setup for initial
communications. You may download the manual from the Daniel MeterLink™ web
page: http://www.emerson.com/en-us/automation/daniel

6 Gas Ultrasonic Flow Meter

1.6 Daniel 3410 series meter design

Daniel 3410 Series Gas Ultrasonic Flow Meters are designed to accurately measure
products in applications where reliable performance is critical, by measuring the difference
in signal transit time with and against the flow across one or more measurement path(s). A
signal transmitted in the flow direction travels faster than one transmitted against the flow
direction. Each measurement path is defined by a transducer pair in which each transducer
alternately acts as transmitter and receiver. The meter uses transit time measurements
and transducer location information to calculate the mean velocity.

Daniel 3417 Gas Ultrasonic Flow Meter is a redundant 4-path meter design based on the
Daniel 3414 model. It has two 4-path British Gas meters in one body, where the second
coplanar 4-path meter mirrors the first and provides the same level of accuracy. Each
meter utilizes an independent set of four direct (cross-bore), parallel-plane measurement
paths that offer a high degree of accuracy and repeatability. Both meters offer bi­directional measurement and superior low-flow capabilities, without the compromises
associated with conventional technologies.

Daniel 3417 Gas Ultrasonic Flow Meter designFigure 1-2:

Introduction

A. Transmitter electronics enclosure (explosion-proof) Optional - Local Display with glass endcap
(Figure 1-6)

B. Base electronics enclosure (intrinsically safe)

C. Meter body with transducer assemblies (T-21 or T-22) (intrinsically safe) covered by security shrouds

Daniel 3416 Gas Ultrasonic Flow Meter is a custody meter and check meter in one body.
The primary custody meter is a 4-path British Gas meter design based on the Daniel 3414
model. The custody meter is independent and utilizes four direct (cross-bore), parallel­plane measurement paths that offer a high degree of accuracy and repeatability. The
secondary check meter uses reflective (bounce) paths rather than direct chordal paths and

Installation manual 7

Introduction

utilizes a single-path for the check measurement and an additional diagnostic path
designed to provide information about the bottom of the pipe. The single check
measurement path is positioned at 30 degrees off vertical while the diagnostic path is
vertical. All measurement paths measure the difference in signal transit time with and
against the flow.

Figure 1-3:

A. Transmitter electronics enclosure (explosion-proof) Optional - Local Display with glass endcap
(Figure 1-6)

Daniel 3416 and 3415 Gas Ultrasonic Flow Meter design

(1)

B. Base electronics enclosure (intrinsically safe)

C. Meter body with transducer assemblies (T-21 or T-22) (intrinsically safe)

Daniel 3415 Gas Ultrasonic Flow Meter is a custody meter and check meter in one body.
The primary custody meter is a 4-path British Gas meter design based on the Daniel 3414
model. The custody meter is independent and utilizes four direct (cross-bore), parallel­plane measurement paths that offer a high degree of accuracy and repeatability. The
secondary check meter uses a single reflective (bounce) path rather than direct chordal
paths for measurement and is positioned at 30 degrees off vertical. All measurement paths
measure the difference in signal transit time with and against the flow.

The Daniel Gas Ultrasonic Flow Meter design is available with an optional glass end cap and
a local display.

(1) Model 3415 does not have the vertical bounce path (see Daniel 3415 description)

8 Gas Ultrasonic Flow Meter

Introduction

Model 3415/3416/3417 Dual Configuration Gas Ultrasonic Meter co-located meter heads
can be configured to share flow data to improve meter diagnostics. Data sharing can be
setup via Ethernet between the two co-located transmitter heads. Meters will share
measurement data and provide comparison for SOS and Meter flow velocity.

Figure 1-4:

Dual configuration meter data sharing connections with Expansion I/O
Module

Daniel Model 3415/16/17 Dual Configuration Meters can be connected to customer
infrastructure via single Ethernet or Serial connection when Expansion I/O Module is
installed and ethernet connection wired locally between Head 1 and Head 2.

Figure 1-5:

Dual configuration meter data sharing connections without Expansion
I/O Module

Installation manual 9

Introduction

Daniel Model 3415/16/17 Dual Configuration Meters can be connected to customer
infrastructure through separate Ethernet connections to each head. Expansion I/O Module
is not required for data sharing. Data sharing connection will occur through the external
user network connection.

Note

Model 3415 does not have the vertical bounce path (see Daniel 3415 description)

Transmitter electronics enclosure with local display and glass endcapFigure 1-6:

All Daniel ultrasonic flow meter's U.L. safety listing is accomplished through the
combination of an explosion-proof transmitter electronics enclosure that houses the CPU
module, Power Supply board, I.S. Barrier board, Backplane board and optional LCD Display
board.

Note

The optional LCD Display requires firmware v1.04 or later and Uboot version, January 31, 2013.

The Base Electronics Enclosure that houses the Acquisition Module. Intrinsically safe transducers and
cable assemblies are designed for Class 1, Division1, Groups C and D areas without need of further
protection when installed in accordance with the field wiring diagram (refer to Daniel drawing
DMC-005324 see Appendix A).

10 Gas Ultrasonic Flow Meter

1.7 Meter specifications

WARNING!

CONTENTS MAY BE UNDER PRESSURE
When the meter is under pressure, DO NOT attempt to remove or adjust the transducer holder.

Attempting to do so may release pressurized gases, resulting in serious injury or equipment
damage.

WARNING!

CONTENTS MAY BE HAZARDOUS
The meter must be fully depressurized and drained before attempting to remove the
transducer holder. If gas or fluid begins to leak from the transducer holder, stop immediately
and reinstall the holder.

Failure to comply may cause serious injury or equipment damage.

Introduction

A. Transducer holder

CAUTION!

ESCAPING GASES OR FLUIDS HAZARD

The purchaser of the meter is responsible for the selection of Daniel components/seals and materials
compatible with the chemical properties of gas flow measurement.

Failure to select the suitable meter component/seals may cause escaping gases or liquids,
resulting in injury or equipment damage.

Consult your Daniel Sales and Service representative to ensure you purchase the correct
components and seals for your application. Specifications for Daniel Gas Ultrasonic Flow
Meters models 3415, 3416 and 3417 are below:

Installation manual 11

Introduction

Daniel models 3415, 3416 and 3417 meter specificationsTable 1-1:

Daniel 3415, 3416 and 3417 meter specifications

Meter type Number of paths

• 3415: 4-path chordal design combined with a single-

path bounce design

• 3416: 4-path chordal design combined with a two-path

bounce design

• 3417: 3417 Two sets of 4-path chordal designs

Ultrasonic type

• Transit-time based measurement

• Spool piece with integral mount transducers

Enclosure materials • ASTM B26GrA356.0T6 Aluminum

- 100% conversion coated and exterior coated with a

polyurethane enamel

• ASTM A351 GrCF8MStainless Steel

- Passivated

Optional Local Display with a glass endcap on transmitter
enclosure

Meter performance

12 Gas Ultrasonic Flow Meter

Introduction

Daniel models 3415, 3416 and 3417 meter specifications (continued)Table 1-1:

Daniel 3415, 3416 and 3417 meter specifications

Linearity Model 3415 4-path chordal design combined with a single-

path bounce design

• 4-path chordal design

- Flow calibrated accuracy is ± 0.1% of reading over

the entire flow calibration range

- Without flow calibration, accuracy is typically ± 1%

of actual volume flow 1 (10" and smaller line sizes)
and ± 0.7% (for 12" and larger line sizes)

• Integrated check meter

- Flow calibrated accuracy is ± 0.2% of reading entire

flow calibration range

- Without flow calibration, accuracy is typically ±1.5%

of actual volume flow

Model 3416 4-path chordal design combined with a two­path bounce design

• 4-path chordal design

- Flow calibrated accuracy is ± 0.1%of reading over en-

tire flow calibration range

- Without flow calibration, accuracy is typically ± 1%

of actual volume flow 1 ( 10" and smaller line sizes)
and ± 0.7% (for 12" and larger line sizes)

• Integrated check meter

- Flow calibrated accuracy is ± 0.2% of reading entire

flow calibration range

- Without flow calibration, accuracy is typically ±1.5%

of actual volume flow

Model 3417 two sets of 4-path meter chordal design

• ± 0.3% of measured value over a 100:1 turn-

down3-100ft/s; 0.3 to30 m/s) including lab uncertainty

• Flow calibrated accuracy is ± 0.1% of reading relative to

lab over entire flow calibration range(Q min - Q max )

1

Does not take into consideration changes in wall roughness and installation effects.

Repeatibility • ±0.05% of reading in the specified velocity range from

5% to 100%(Q

max

)

1

1

Installation manual 13

Introduction

Daniel models 3415, 3416 and 3417 meter specifications (continued)Table 1-1:

Daniel 3415, 3416 and 3417 meter specifications

Velocity range • 100 ft/s (30m/s) with over-range)

• 125 fps (38 m/s) on some line sizes

• Meter meets or exceeds AGA9 (2007) performance

specifications

Performance specificationsTable 1-2:

Models 3415 and 3416

AGA 9 / ISO 17089 Flow rate values (Metric units)

Meter size (DN) 200 to 600

Q

(m/s) 0.5

min

Qt (m/s) 3.048

Q

(m/s) 30.48

max

Models 3415 and 3416

AGA 9 / ISO 17089 Flow rate values (US Customary
Units)

Meter size (in) 8 to 24

Q

(ft/s) 1.7

min

Qt (ft/s) 10

Q

(ft/s) 100

max

Model 3417

AGA 9 / ISO 17089 Flow rate values (Metric units)

Meter
size
(DN)

Q

min

200 to
600 750 900 1050

(m/s)0.5 0.5 05 0.5

Qt (m/s) 3.048 2.591 2.29 CF *

Q

(m/s)30.48 25.91 22.86 CF *

max

14 Gas Ultrasonic Flow Meter

Introduction

Daniel models 3415, 3416 and 3417 meter specificationsTable 1-1:

Daniel 3415, 3416 and 3417 meter specifications

Model 3417

AGA 9 / ISO 17089 Flow rate values (US Customary
Units)

Meter
size (IN) 8 to 24 30 36 42

Q

(ft/s)1.7 1.7 1.7 1.7

min

Qt (ft/s) 10 8.5 7.5 CF *

Q

(ft/s)100 85 7.5 CF *

max

(*) CF = consult factory

Body and Flange Sizes and Pressure
rating range

Flanges types ANSI classes - 300, 600, 900 and 1500 (per ANSI B16.5)

Specific gravity 0.35 to 1.50

Accuracy Limits Models 3415, 3416 and 3417 are AGA 9 compliant with ac-

Minimum operating pressure 100 psig (7 bar)

Electronic specifications

U.S. Customary Units - Meter sizes 8, 10, 12, 16, 20, 24, 30,
and 36 (inches)

• ANSI pressure classes 300, 600, 900and 1500(per AN-

SIB16.5)

• Carbon Steel

• 316 Stainless Steel

Metric Units - Meter sizes DN - 200, 250, 300, 400, 500,
600, 750, 900

• PN 50, 100, 150, 200

• Carbon Steel

• 316 Stainless Steel

Maximum Pressures

• Dependent on operating temperature

Meter bore

• Schedule 20, 30, 40, 60, 80, 100, 120, 140, 160, STD,

XS, LW

curacy limits

• ± 1% without a flow calibration (10” and smaller line

sizes)

• ± 0.7% without a flow calibration (12” and larger line

sizes)

• ±0.1% with a flow calibration

Installation manual 15

Introduction

Daniel models 3415, 3416 and 3417 meter specifications (continued)Table 1-1:

Daniel 3415, 3416 and 3417 meter specifications

Power Meter

• 10.4 VDC to 36 VDC

• 11 W power consumption (15 W maximum)

Serial cable

• Belden #9940 or equivalent (22 gauge)

- Capacitance (pF/m) 121.397 (conductor to conduc-

tor)

- Capacitance (pF/m) 219.827 (conductor to other

conductor and shield)

- Resistance (DC) DCR @ 20° C (recommended)

Ethernet cable

• Cat-5 Standard 100 Mbps

Frequency (seeTable 1-2 )

• 22 AWG wire characteristics areas follows:

- Capacitance = 20 pF/ft or 20 nF/1000 ft (between

two wires)

- Resistance = 0.0168 Ohms/ft or 16.8 Ohms/1000 ft

- Pull-up voltages 24 VDC

Transducer, mounts and holders

Transducer specificationsTable 1-3:

Trans­ducer
type Temperature range Mount and holder type

1

T-21

T-22

T-41 -50° C to 100° C (-58° F to

1

T-21 transducers use W-01 transformers

2

T-22 transducers use W-02 transformers

-20° C to +100° C (-4° F to
212° F)

2

-50° C to +100° C (-58° F to
212° F)

212° F)

Standard mounts/Holders, NBR O-ring

Inconel mounts/316L Holders, NBR O-ring

Inconel Mounts/Inconel Holders/FKM O-ring

F) Standard mounts/Holders, NBR O-ring

Inconel mounts/316L Holders, NBR O-ring

Inconel Mounts/Inconel Holders/FKM O-ring

F) Standard mounts/Holders, NBR O-ring

Inconel mounts/316L Holders, NBR O-ring

Inconel Mounts/Inconel Holders/FKM O-ring

16 Gas Ultrasonic Flow Meter

Introduction

Daniel models 3415, 3416 and 3417 meter specifications (continued)Table 1-1:

Daniel 3415, 3416 and 3417 meter specifications

Note

The process temperature must not exceed the operating temperature range of the transducers.

Note

T-21 and T-41 transducers are used for the direct paths of 16" and larger meters and the reflective
paths of all sized meters. T-22 transducers are used for the direct paths of 12" and smaller meters.

Note

The ultrasonic transducers are not intended for use across boundary walls of different hazardous
area classifications. The transmitter electronics cannot be remote mounted from Division 1 classifi­cation to a Division 2 area to meet an area classification.

Communications specifications

Connectivity protocols One serial RS-232/RS-485 port (115 kbps baud rate) (Mod-

bus RTU/ASCII)

• (1) Serial Port A

• (RS-232/RS-485 Full Duplex/RS-485 Half Duplex)

One Ethernet Port (TCP/IP) 100 Base

• Up to 10 Mbps (internal connection) 100Mbps (external

connection)

• Modbus TCP, TCP/IP

Device compatibility Daniel Ultrasonic flow meters are compatible with nearly

every commercially available flow computer. Examples: Flo­Boss 103, FloBoss S600 flow computer, ROC 107.

Digital, analog, and frequency inputs

Digital Input(s) (1) Single polarity

Note

DI1Mode must be set to Digital Input/Calibration Input.

Installation manual 17

Introduction

Daniel models 3415, 3416 and 3417 meter specifications (continued)Table 1-1:

Daniel 3415, 3416 and 3417 meter specifications

Analog Input(s) (2) 4-20 mA

• AI-1 Temperature

• AI-2 Pressure

Note

The analog-to-digital conversion accuracy is within ±0.05%
of full scale over the operating temperature range.

Note

AI-1 and AI-2 are electronically isolated and operate in sink
mode. The input contains a series resistance so HART
Communicators can be connected to configure sensors.

A regulated 24 Volt DC power output is available to provide
power to the sensors.

Frequency/Digital Output(s) The outputs have user-configurable selections as either a

frequency output or digital status (FODO) (Also see

Frequency/Digital outputs).

Frequency/Digital Outputs

• FODO1 (eight possible output configurations)

• FODO2 (eight possible output configurations)

• FODO3 (eight possible output configurations)

• FODO4 (eight possible output configurations)

• FODO5 (eight possible output configurations)

• FODO6 (eight possible output configurations)

®

Note

Use of FODO6 requires DI1Mode set to Frequency/Digital
Output 6. Digital Input will not be available.

Frequency or Digital Output parameter pairs (see

Frequency/Digital outputs)

Frequency or Digital Outputs (FODO1, FODO2, FODO3, FO­DO4, FODO5, FODO6) source selections:

• (FO1A, DO1A, FO1B, DO1B, FO2A, DO2A, FO2B, DO2B)

Mode options:

• Open Collector (requires external excitation supply volt-

age and pull-up resistor)

• TTL (internally powered by the meter 0-5 VDC signal)

18 Gas Ultrasonic Flow Meter

Introduction

Daniel models 3415, 3416 and 3417 meter specifications (continued)Table 1-1:

Daniel 3415, 3416 and 3417 meter specifications

Channel B Phase options:

• Lag forward, Lead reverse (Phase B lags Phase A while re-

porting forward flow, leads Phase A while reporting reverse
flow)

• Lead forward, Lag reverse (Phase B leads Phase A while re-

porting forward flow, lags Phase A while reporting reverse
flow)

Phase A and Phase B output (based on flow direction)

• Reverse flow - output only reports flow in the reverse di-

rection. For frequency outputs, Phase B of the output is 90
degrees out of phase with Phase A.

• Forward flow - output only reports flow in the forward di-

rection. For frequency outputs, Phase B of the output is 90
degrees out of phase with Phase A.

• Absolute - output reports flow in both directions. For fre-

quency outputs, Phase B of the output is 90 degrees out of
phase with Phase A.

• Bidirectional - output reports flow on Phase A only in the

forward direction and on Phase B only in the reverse direc­tion.

Maximum frequency for the frequency outputs

• 1000Hz

• 5000Hz

Analog Output(s) • (1) 4-20 mA independently configurable analog output

(HART)

• (1) 4-20 mA independently configurable analog output

(conventional) - Type 2 CPU only

The analog output zero scale offset error is within ±0.1% of
full scale and gain error is within ±0.2% of full scale. The to­tal output drift is within ±50 ppm of full scale per °C.

Optional Module Slot Inputs/Out­puts

• RS-232 module

• RS-485 half duplex module

• Expansion I/O module

1.8 Pre-installation considerations

• Pipeline equipment code compliance, ANSI, ASME, etc.

• Proper Inlet/outlet meter tube piping for reasonable stable flow to the settling

chamber (first meter tube spool upstream of the meter).

• Electrical safety compliance; UL, CSA, ATEX, IECEx etc.

• Civil and structural good practices compliance

Installation manual 19

Introduction

• Contractual agreements or governmental compliance (or both)

• In-situ performance test procedures

• Field tested meter health check and flow dynamics diagnostics

• Data collection and retention procedures

1.9 Safety

The Daniel 3410 Series Gas Ultrasonic Flow Meter is suitable for use in U.L. Class 1, Division
1, Group C and D hazardous locations.

NOTICE

An “X” signifies the user should contact Daniel Measurement and Control, Inc. for information
on the dimensions of the flameproof joints.

Refer to the 3410 Series Systems Wiring Diagram, Sheet 3 (P/N DMC -005324) for the
certification tag (see Section A.1).

Daniel 3410 Series GasUltrasonic Meters are INMETRO certified. Refer to the 3410 Series
Gas Ultrasonic Flow Meter Tag, INMETRO Certification drawing DMC - 006224.

Certificate number: NCC 11.0163 X

Marking: --Ex d ia IIB T4 Gb IP66 W

Electrical parameters: Refer to Section 1.7, Section A.1.

Special conditions for safe use

• Explosion proof joint dimensions are compliant with the Brazilian Association of

technical standard: ABNT NBR IEC 60079-1, Table 3.

WARNING!

EXPLOSION OR FIRE HAZARD
Conduit runs must have a sealing fitting within 18 inches (457 mm) of the enclosure to reduce
the risk of an explosion or a fire.

• During operation, keep covers tight.

• During equipment maintenance, disconnect power before opening transmitter or base

electronics. Clean cover joints before replacing.

• DO NOT substitute meter components. Component substituting may compromise the

intrinsic safety.

Failure to comply may result in severe injury to personnel or cause damage to the equipment.

20 Gas Ultrasonic Flow Meter

Introduction

1.10 Daniel 3410 series certifications and approvals

Daniel 3410 Series Gas Ultrasonic Flow Meters have electrical, metrology, intrinsic safety
and Pressure Equipment Directive certifications and approvals by the agencies listed
below. Refer to the nameplate tag on the meter body, the wiring diagram (P/N
DMC-005324) in Appendix A and observe all safety precautions. Daniel 3410 Series Gas
Ultrasonic Flow Meters operate within the pressure and temperature range of the device
(also see Section 1.6 for meter specifications). Daniel 3410 Series Gas Ultrasonic Flow
Meters are approved to the ATEX Directive 94/9/EC.

Standards

• US

• Canada

• Europe

- Explosive Atmospheres (ATEX)

- International Electrotechnical Commission (IECEx)

- Pressure Equipment Directive (PED via BSI)

- Electromagnetic Compatibility (EMC)

- International Organization of Legal Metrology (OIML)

1.11

Approval agencies

• UL

• c-UL

• DEMKO

• INMETRO

• NEPSI

• GOSTR

Important

Please consult Flow Lifecycle Services for Daniel products for the complete metrology approvals list.

FCC compliance

This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.

Installation manual 21

Introduction

NOTICE

Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.

1.12 References

1. Gould Modbus Protocol Reference Guide, Rev. B, PI-MBUS-300

2. Measurement of Fuel Gas By Turbine Meters, American Gas Association,
Transmission Measurement Committee Report No. 7, Second Revision, April 1996
(also referred to as AGA7)

3. Compressibility Factors of Natural Gas and Other Related Hydrocarbon Gases,
American Gas Association, Transmission Measurement Committee Report No. 8,
Second Edition, Second Printing, July 1994 (also referred to as AGA8)

4. Speed of Sound in Natural Gas and Other Related Hydrocarbon Gasses, Report 10,
First Edition, May 2003 (also referred to as AGA10)

5. Manual of Petroleum Measurement Standards, Chapter 21 — Flow Measurement
Using Electronic Metering Systems, Section 1 — Electronic Gas Measurement,
American Gas Association and American Petroleum Institute, First Edition,
September 1993

6. AGA Report No. 9, Measurement of Gas by Multipath Ultrasonic Meters, Second
Edition (April 2007)

22 Gas Ultrasonic Flow Meter

2 Mechanical installation

Topics covered in this chapter:

Meter piping, lifting and mounting

•

Meter components

•

Piping recommendations

•

Pre-installation inspection

•

Mounting requirements in heated or cooled pipelines

•

2.1 Meter piping, lifting and mounting

Refer to the following sections for piping recommendations, lifting with hoist rings and
slings, mounting in heated or cooled pipelines and safety warnings and precautions.

Mechanical installation

CAUTION!

SURFACE TEMPERATURE HAZARD

The meter body and piping may be extremely hot or cold.

Wear appropriate personal protective equipment when coming in contact with the meter.
Failure to comply may result in injury.

WARNING!

CUTTING HAZARD
Sharp edges may be present on the meter.

Wear appropriate personal protective equipment when working on the meter. Failure to
comply may cause serious injury.

CAUTION!

TRANSPORTATION HAZARD

When moving the meter, do not insert the forks of a forklift into the bore.

Inserting the forks may cause the meter to become unstable, resulting in injury or damage to
the bore and sealing face.

Installation manual 23

Mechanical installation

CAUTION!

TRIPPING HAZARD

Clear all obstacles or obstructions from the work area when transporting, installing or removing the
meter.

Failure to clear the work area may cause injury to personnel.

WARNING!

CRUSHING HAZARD
Do not remove flange stabilizers.

Attempting to do so may allow the meter to roll, resulting in serious injury or equipment
damage.

A. Flange stabilizers

WARNING!

CRUSHING HAZARD
Before installation, do not rest the meter on a slope of greater than 10 degrees. Also ensure the
surface is solid so that the flange stabilizers do not sink into the surface.

Failure to comply may allow the meter to roll, resulting in serious injury or equipment damage.

CAUTION!

ESCAPING GASES OR FLUIDS HAZARD

The purchaser of the meter is responsible for the selection of Daniel components/seals and materials
compatible with the chemical properties of gas flow measurement.

Failure to select the suitable meter component/seals may cause escaping gases or liquids,
resulting in injury or equipment damage.

Consult your Daniel Sales and Service representative to ensure you purchase the correct
components and seals for your application.

24 Gas Ultrasonic Flow Meter

2.2 Meter components

Daniel 3410 Series Gas Ultrasonic Flow Meters are assembled, configured and tested at the
factory. The meter components include the transmitter electronics enclosure, the base
electronics enclosure and the meter body with transducer assemblies.

WARNING!

CONTENTS MAY BE UNDER PRESSURE
When the meter is under pressure, DO NOT attempt to remove or adjust the transducer holder.

Attempting to do so may release pressurized gases, resulting in serious injury or equipment
damage.

WARNING!

CONTENTS MAY BE HAZARDOUS
The meter must be fully depressurized and drained before attempting to remove the
transducer holder. If gas or fluid begins to leak from the transducer holder, stop immediately
and reinstall the holder.

Mechanical installation

Failure to comply may cause serious injury or equipment damage.

A. Transducer holder

Installation manual 25

Mechanical installation

WARNING!

CONTENTS MAY BE HAZARDOUS
The meter must be fully depressurized and drained before attempting to remove the
transducer holder. If gas or fluid begins to leak from the transducer holder, stop immediately
and reinstall the holder.

Failure to comply may cause serious injury or equipment damage.

A. Transducer holder

26 Gas Ultrasonic Flow Meter

The 3417 dual 4-path ultrasonic meter components are shown below.

Daniel 3417 Flow Meter assemblyFigure 2-1:

Mechanical installation

A. Explosion-proof transmitter enclosure (CPU Module, Power Supply, I.S. Barrier Board Backplane board)
(Optional: glass endcap for Local Display)

B. Intrinsically-safe base enclosure includes Acquisition Module

C. Meter - body and transducer assemblies and cables

Installation manual 27

Mechanical installation

The 3416 and the 3415 dual ultrasonic meter components are shown below.

Figure 2-2:

Daniel 3415 and 3416 Flow Meter assembly

(1)

A. Explosion-proof transmitter enclosure (CPU Module, Power Supply, I.S. Barrier Board Backplane board)
(Optional: glass endcap for Local Display)

B. Intrinsically-safe base enclosure includes Acquisition Module

C. Meter - body and transducer assemblies and cables

D. Flange stabilizers

(1) Model 3415 does not have the vertical bounce path (see Daniel 3415 description)

28 Gas Ultrasonic Flow Meter

Mechanical installation

Figure 2-3:

Transmitter electronics enclosure with optional local display and glass
endcap

A. Transmitter electronics enclosure with glass endcap

B. Local display

Installation manual 29

Mechanical installation

2.3 Piping recommendations

WARNING!

BURST HAZARD
Before pipeline cleaning and maintenance ("pigging operations"), remove straightening vanes
or flow conditioners.

Failure to comply may cause excessive pressure in the meter system, resulting in death, serious
injury or equipment damage.

Figure 2-4:

Figure 2-5:

Sunshields, provided by the customer, may be required to prevent exceeding the process
fluid temperature when the meter is mounted in a location with extremely hot climates.

3410 Series Gas Ultrasonic Flow Meter with flow conditioner for uni­directional flow

3410 Series Gas Ultrasonic Flow Meter with flow conditioner for bi­directional flow

CAUTION!

SUNSHIELD PROTECTION

Install a sunshield to prevent prolonged exposure to direct sunlight in extreme climates.

Failure to shield the meter may result in exceeding the process temperature range and damage
transmitter electronics.

30 Gas Ultrasonic Flow Meter

Mechanical installation

NOTICE

For optimal flow measurement conditions, Daniel suggests the piping configurations below.
Regardless of the configuration selected, the user agrees to accept full responsibility for the
site piping design and installation.

Flow conditioning is recommended for best measurement results

• Honed or un-honed meter tube(s)

• Flow direction (unidirectional or bidirectional)

• Correct meter size selection - too low may cause poor flow stability (thermal

convection or too fast may cause erosion problems and resonance, cracks or failure
of probes or thermowells (approximately 0.3 to 30 m/sec or 1 to 100 ft/sec).

• Space availability for meter lengths (to allow inlet piping customization):

Important

The bore of the mating piping should be within 1% of the meter inside diameter.

Figure 2-6:

Figure 2-7:

Piping Recommendation Uni-directional Gas Ultrasonic Meter without
Flow Conditioner

Piping Recommendation Uni-directional Gas Ultrasonic Meter with Flow
Conditioner

Installation manual 31

Mechanical installation

Figure 2-8:

Figure 2-9:

Piping Recommendation for Gas Ultrasonic Meter with Flow Conditioner
(compact installation)

Piping Recommendation Bi-directional Gas Ultrasonic Meter with Flow
Conditioner (compact installation)

All pipe lengths are minimum:

• P = Pressure measurement location

• T = Temperature measurement location

(1) For best results, flow conditioning is recommended

(2) D = Nominal pipe size in inches (i.e., 6 in pipe; 10D = 60 in)

http://www2.emersonprocess.com/en-US/brands/daniel/Flow/ultrasonics/Pages/
Ultrasonic-Series-3400.aspx

NOTICE

To access the product datasheet from the Daniel products page (above link), select the Daniel
Gas Ultrasonic Flow Meter link, click the Documentation tab, expand the Data Sheets - Bulletins

- Catalogs tab, then select the Data Sheet.

• The meter is provided with dowel pins to align the meter body bore with the bore of

the mating piping.

• Daniel 3410 Series Ultrasonic Gas Flow Meters should be mounted in horizontal

piping with the chord paths horizontal.

32 Gas Ultrasonic Flow Meter

CAUTION!

FAULTY METER INSTALLATION

Correctly install the equipment.

If meter bodies are mounted or oriented differently than specified above, debris or gas may
collect in the transducer ports which could adversely affect the transducer signals, or cause
equipment damage.

• Normally, the meter body is installed so that the electronics assembly is on the top

of the meter. If there is insufficient space above the piping for this arrangement, the
meter can be ordered with extra long transducer cables for remote mounting or the
meter housing can be installed with the electronics assembly on the bottom.

• The mating piping should include temperature measurement connections located a

minimum of three nominal pipe diameters length down stream of the meter, or per
AGA Report No. 9.

2.4 Pre-installation inspection

Mechanical installation

2.4.1

Upon receipt of the meter and before installation inspect meter for signs of components
loosening, seal damage or other component damage. This includes:

Procedure

1. Make sure flange sealing faces are undamaged.

2. Movement of components that should be rigid.

If any damage is found, contact Daniel Measurement Services before putting meter
into service. Refer to the Daniel Measurement Services contact information on the
back cover of this manual.

Meter safety for hoist rings and lifting slings

A Daniel Gas Ultrasonic Flow Meter can be safely lifted and maneuvered into and out of a
meter run for installation or service by obeying the following instructions.

Installation manual 33

Mechanical installation

WARNING!

DANGER TO PERSONNEL AND EQUIPMENT

Lifting a Daniel Ultrasonic Meter with other equipment

The following lifting instructions are for installation and removal of the Daniel Ultrasonic Meter
ONLY. The instructions below do not address lifting the Daniel ultrasonic meter while it is
attached, bolted, or welded to meter tubes, piping, or other fittings.

Using these instructions to maneuver the Daniel Ultrasonic Meter while it is still attached,
bolted, or welded to a meter tube, piping, or other fitting may result in equipment damage,
serious injury, or death.

The operator must refer to their company's hoisting and rigging standards, or the "DOE­STD-1090-2004 Hoisting and Rigging" standard if such company standards do not exist, for
lifting and maneuvering any assembled meter tube and associated piping.

WARNING!

CRUSHING HAZARD
During meter installation or removal, always place the unit on a stable platform or surface that
supports its assembled weight.

Failure to comply could allow the meter to roll, resulting in serious injury or equipment
damage.

NOTICE

Prior to lifting the unit, refer to the Daniel 3415, 3416, or 3417 Gas Ultrasonic Flow Meter
nameplate or outline dimensional (general arrangement) drawing for the assembled weight.

When lifting a Daniel Ultrasonic Meter by itself, Daniel recommends two methods. These
methods are:

• Using appropriately rated Safety Engineered Swivel Hoist Rings installed in the

Daniel Ultrasonic Meter end flanges.

• Using appropriately rated lifting slings positioned at designated areas of the Daniel

Ultrasonic Meter.

Both methods must be used in conjunction with all appropriate company hoisting and
rigging standards or the DOE-STD-1090-2004 HOISTING AND RIGGING standard if such
company standards do not exist. Refer to the following sections for more information on
these two methods.

Use of appropriate safety engineered swivel hoist rings in meter end flanges

Daniel Ultrasonic meters come equipped with a tapped hole located on the top of each
meter body end flange. A flat machined surface surrounds each tapped hole. This feature
provides complete surface contact ONLY between the meter flange and an OSHA
compliant

34 Gas Ultrasonic Flow Meter

Mechanical installation

Operators SHALL NOT use Eye Bolts (see ) in the Daniel Ultrasonic Meter flange tapped
holes to aid in lifting or maneuvering the unit.

Operators SHALL NOT use other Hoist Rings that do not fully seat flush with the counter
bore on the top of the meter flanges.

Meter end flange with tapped flat-counterbore hole for hoist ringFigure 2-10:

A. Plug bolt

B. Flat Counterbore surface

Installation manual 35

Mechanical installation

Safety approved hoist ringFigure 2-11:

Non-compliant eye boltFigure 2-12:

36 Gas Ultrasonic Flow Meter

Mechanical installation

Safety precautions using safety engineered swivel hoist rings

Read and follow the Safety Precautions listed below.

1. Meters must only be lifted by personnel properly trained in the safe practices of
rigging and lifting.

2. Remove the plug bolts installed in the tapped holes on the top of the flanges. Do not
discard the bolts as they must be reinstalled once the lifting operation is complete
to prevent corrosion of the tapped holes.

3. Make sure the tapped holes on the meter are clean and free of debris before
installing the hoist rings.

4. Use only the safety engineered swivel hoist rings that are rated for lifting the meter.
Do not use any other type of hoist rings with the same screw size or heavy duty hoist
rings. The meter tapping and counter bore size are suitable only for the hoist rings
specified by Daniel.

5. When installing a hoist ring, make sure the base surface of the hoist ring fully
contacts the machined flat surface of the tapped hole. If the two surfaces do not
come in contact then the hoist ring will not hold its full rated load. Torque the hoist
ring attachment bolts to the limit indicated on the hoist rings.

6. After installation of the hoist rings, always check that the ring rotates and pivots
freely in all directions.

7. NEVER attempt to lift the meter using only one hoist ring.

8. Always use separate slings to each hoist ring. NEVER reeve one sling through both
hoist rings. The slings must be of equal length. Each sling must have a load rating
that equals or exceeds the hoist ring load rating. The angle between the two slings
going to the hoist rings must never exceed 90 degrees or the load rating of the hoist
rings will be exceeded.

Installation manual 37

Mechanical installation

Correct sling attachment for Shell Shroud metersFigure 2-13:

9. NEVER allow the slings to contact the electronics enclosure. Damage to the
enclosure may occur. Use a spreader bar with the slings to prevent contact with the
electronics enclosure and the base enclosure (see Figure 2-12). If the slings do come
in contact with the electronic enclosure then remove the two bolts holding the
enclosure to its base and temporarily remove the head from the meter during the
lifting operation. You will need to unplug the cable from J3 on the Acquisition
Module. Two screws hold this cable in place.

a. Once the lifting operation is complete, reattach and secure the electronics cable

to J3 on the Acquisition Module, return the electronics enclosure to its original
position, replace the bolts, and secure the enclosure in place.

b. Lifting the meter with the upper enclosure installed but without the bolts

installed, may cause the electronics to fall and cause personal injury or
equipment damage.

38 Gas Ultrasonic Flow Meter

Mechanical installation

Incorrect sling attachmentFigure 2-14:

10. NEVER apply shock loads to the meter. Always lift the meter gradually. If shock
loading ever occurs, the hoist ring must be inspected per manufacturer's
recommendations prior to any further service. If a proper inspection cannot be
performed, discard the hoist ring.

11. NEVER lift with any device, such as hooks, chains, or cables that could create side
pulls that could damage the ring of the hoist ring.

12. NEVER lift more than the ultrasonic meter assembly including electronics and
transducers with the hoist rings. The only exception that safe is to lift the meter with
one ASME B16.5 or ASME B16.47 blind flange bolted to each end flange of the

Installation manual 39

Mechanical installation

meter. NEVER use the hoist rings on the meter to lift other components such as
meter tubes, piping or fittings attached to the meter. Doing so will exceed the load
rating of the hoist rings.

13. Remove the hoist rings from the meter after lifting is completed and store them in
an appropriate case or container per their manufacturer's recommendation.

14. Apply heavy lubricant or anti-seize to the threads of the plug bolts and reinstall the
plug bolts to keep the tapped holes free of debris and to prevent corrosion.

Obtain safety engineered swivel hoist rings

A list of approved manufacturers of safety engineered hoist rings is below:

• American Drill Bushing Company (www.americandrillbushing.com)

• Carr Lane Manufacturing Company (www.carrlane.com)

Select an approved supplier from the list below. These vendors can supply the safety
engineered hoist rings. This is not intended to be a complete list.

• Fastenal (www.fastenal.com)

• Reid Tools (www.reidtool.com)

The appropriate hoist rings can also be purchased directly from Daniel. The following table
provides part numbers for reference:

Hoist ring part number lookup tableTable 2-1:

Daniel part num-

(1)

ber

1-504-90-091 3/8"-16UNC, 1000 lb. 23053 CL-1000-SHR-1

1-504-90-092 1/2"-13UNC, 2500 lb 23301 CL-23301-SHR-1

1-504-90-093 3/4"-10UNC, 5000 lb. 23007 CL-5000-SHR-1

1-504-90-094 1"-8UNC, 10000 lb. 23105 CL-10000-SHR-1

1-504-90-095 1-1/2"-6UNC, 24000 lb. 23202 CL-24000-SHR-1

(1) The part numbers include only one hoist ring. Two hoist rings are required per meter.

Hoist ring thread size & load
rating

American Drill
Bushing Co. P/N

Carr Lane Manu­facturing Co. P/N

Size safety engineered swivel hoist ring needed

To determine the size of the hoist rings required for your meter, use the appropriate table
below. Look down the column that matches the ANSI rating of your meter. Find the row
that contains your meter size. Follow the row to the end to find the appropriate hoist ring
part number.

Table 2-2:

Hoist Ring lookup table for Daniel 3415, 3416 and 3417 gas meters

ANSI 300 ANSI 600 Daniel Part Number Thread

8" to 10" 8" 1-504-90-091 3/8"

12" to 16" 10" to 16" 1-504-90-092 1/2"

40 Gas Ultrasonic Flow Meter

Mechanical installation

Table 2-2:

(continued)

ANSI 300 ANSI 600 Daniel Part Number Thread

- - 1-504-90-093 3/4"

- - 1-504-90-094 1"

- - 1-504-90-095 1 1/2"

Hoist Ring lookup table for Daniel 3415, 3416 and 3417 gas meters

Appropriately rated lifting slings

The following instructions are intended to provide general guidelines for using proper
lifting slings when lifting a Daniel 3410 Series Gas Ultrasonic Flow Meter by itself. These
instructions are intended to be followed in addition to your company's standards or the
DOE-STD-1090-2004 Hoisting and Rigging standard if such company standards do not
exist.

Safety precautions using appropriate rated lifting slings

1. Meters must only be lifted by personnel properly trained in the safe practices of
rigging and lifting.

2. NEVER attempt to lift the meter by wrapping slings around the electronics
enclosure.

3. NEVER attempt to lift the meter using only one sling around the meter. Always use
two slings wrapped around each end of the body as shown below. A choker style
sling is recommended.

Installation manual 41

Mechanical installation

Correct sling attachmentFigure 2-15:

4. Visually inspect the slings prior to use for any signs of abrasion or other damage.
Refer to the sling manufacturer's procedures for proper inspection of the particular
sling you are using.

5. Only use slings with ratings that exceed the weight to be lifted. Reference your
company's standards for safety factors that must be included when calculating the
load rating.

42 Gas Ultrasonic Flow Meter

Mechanical installation

6. NEVER allow the slings to contact the electronics enclosure or the transducer
cabling. Damage to the meter may occur. If the slings do come in contact with the
electronics enclosure, then remove the two bolts holding the enclosure to its base
and temporarily remove the head from the meter during the lifting operation
(Remove the two bolts holding the enclosure to its base and unplug the cable from
the Acquisition Module. Two screws hold this cable in place.) Use a spreader-bar on
the slings to prevent contact with the electronics.

7. Once the lifting operation is complete, reattach and secure the electronics cable to
J3 on the Acquisition Module, return the electronics enclosure to its original
position, replace the bolts, and secure the enclosure in place. Lifting the meter with
the upper enclosure installed but without the bolts installed, may cause the
electronics to fall and cause personal injury or electronics damage.

Incorrect sling attachmentFigure 2-16:

8. NEVER apply shock loads to the meter. Always lift the meter gradually. If shock
loading ever occurs, the slings must be inspected per manufacturer's procedures
prior to being placed in any further service.

Installation manual 43

Mechanical installation

2.5 Mounting requirements in heated or cooled pipelines

The ambient operating temperature of the Daniel 3410 Series Gas Ultrasonic Flow Meter
electronics (i.e. Flameproof enclosure and Intrinsically safe base enclosure) is -40° C (-40° F)
to +60° C (+140° F).

The electronics mounting bracket thermally isolates the heated or cooled meter body
from the electronics. Thus the process fluid can be outside operating the electronics
temperature.

T-21 transducers have an operating range from -20° C ( -4° F) to +100° C (+212° F). T-22
and T-41 transducers have an operating range from -50° C (-58° F) to +100° C (+212° F).

CAUTION!

SURFACE TEMPERATURE HAZARD

The meter body and piping may be extremely hot or cold.

Wear appropriate personal protective equipment when coming in contact with the meter.
Failure to comply may result in injury.

44 Gas Ultrasonic Flow Meter

3 Electrical installation

Topics covered in this chapter:

Cable length TTL mode

•

Cable length Open Collector mode

•

Grounding meter electronics housing

•

Conduit seals

•

Wiring and I/O

•

Security seal installation

•

3.1 Cable length TTL mode

The maximum cable length is 2000 feet when the Digital Output “TTL” mode is selected.

Electrical installation

3.2 Cable length Open Collector mode

For the Digital Output “open collector” mode, the maximum cable length depends on the
cable parameters, pull-up resistance used, the maximum frequency to output, and
frequency input parameters being driven. The following table provides estimated cable
lengths for different pull-up resistor values and different Max Frequency settings in the
meter using the following cable parameters. The table also provides an estimated cable
voltage drop which indicates how much voltage will be across the cabling and effectively
indicates to what voltage level the frequency input can be pulled down to by the frequency
output.

If the voltage drop is higher than the voltage required for the frequency input to see a low
state, then the configuration will most likely not work for your system. Performance of
frequency outputs will vary from this table with setup and frequency input being driven.

Configurations for open collector frequency outputsTable 3-1:

Pull-up

Cable re-

Cable

Length (2 Con-

(x1000ft) Ω nF Ω Ω (Hz) (A) VDC

0.5 16.8 10.00 1000 1016.8 5000 0.024 0.397

1 33.6 20.00 1000 1033.6 1000 0.023 0.780

2 67.2 40.00 1000 1067.2 1000 0.022 1.511

4 134.4 80.00 1000 1134.4 1000 0.021 2.843

sistance Cable

Capaci-

ductors)

tance

resist­ance Total

Resistance Resistance Frequency Current (2 Con-

Maxi­mum fre­quency Sink

Cable
voltage
drop

ductors)

Installation manual 45

Electrical installation

Configurations for open collector frequency outputs (continued)Table 3-1:

Pull-up

Cable re-

Cable

0.5 16.8 10.00 500 516.8 5000 0.046 0.780

1 33.6 20.00 500 533.6 5000 0.045 1.511

1.7 57.12 34.00 500 557.12 5000 0.043 2.461

6.5 218.4 130.00 500 718.4 1000 0.033 7.296

sistance Cable

resist­ance Total

Maxi­mum fre­quency Sink

The 22 AWG wire characteristics:

• Capacitance = 20 pF/ft or 20 nF/1000 ft (between two wires)

• Resistance = 0.0168 Ohms/ft or 16.8 Ohms/1000 ft

• Pull-up voltage = 24 VDC

3.3 Grounding meter electronics housing

The meter electronics should be internally grounded for intrinsically safe operations.
Connect a wire to the chassis ground lug installed inside the Transmitter Electronics
Enclosure as the primary ground. A secondary ground is located outside of the Transmitter
Electronics Enclosure (see ).

Cable
voltage
drop

NOTICE

The internal grounding terminal shall be used as the primary equipment ground. The external
terminal is only a supplemental bonding connection where local authorities permit or require
such a connection. DO NOT connect digital grounds to the ground lugs.

46 Gas Ultrasonic Flow Meter

Electrical installation

Internal Transmitter Electronics Enclosure chassis groundFigure 3-1:

A. Transmitter Electronics Enclosure ground lug

Installation manual 47

Electrical installation

External ground lugFigure 3-2:

3.4

A. External ground lug

Conduit seals

Conduit seals are required for meter installations in hazardous environments. Adhere to
safety instructions to protect personnel and equipment.

WARNING!

EXPLOSION HAZARD
To reduce the risk of an explosion or fire, conduit runs must have a sealing fitting connected
within 457.2 mm (18 inches) of the enclosure. Substitution of components may impair intrinsic
safety of the meter.

Failure to keep covers tight during operation may result in death or serious injury.

48 Gas Ultrasonic Flow Meter

Electrical installation

WARNING!

EXPLOSION HAZARD
Substitution of components may impair the intrinsic safety and cause ignition of flammable or
combustible atmospheres. Disconnect power before servicing.

Failure to remove power and use Daniel approved components may cause serious injury.

3.4.1 Startup for systems using explosion-proof conduit

1. Assemble conduit to the Transmitter Electronics Enclosure. A conduit seal fitting is

required within 18 inches (457 mm) of the enclosure.

2. Check to make certain that all power to field wiring is turned OFF.

WARNING!

HAZARDOUS VOLTAGE INSIDE
Do not open the Transmitter Electronics Enclosure when an explosive gas atmosphere is
present. Disconnect equipment from supply circuit before opening the enclosure.

Failure to remove power may result in serious death or injury.

3. Remove the end cap nearest the conduit entry to gain access to the transmitter

electronics.

4. Pull the wires into the electronics enclosure. Complete the field connection wiring as

shown in see and .

5. Complete the field connection wiring and apply electrical power to the system.

Installation manual 49

Electrical installation

Figure 3-3:

Electronics field wiring - upper terminal block, switches, ground
lug - Type 2 CPU Module

A. Conduit wiring entry (four entries)

B. Switches:

1. Port A

2. DHCP

3. WRITE PROT.

C. Upper terminal block

a. FODO Group 2

• FODO2

• GND2

• FODO3

b. Analog Out (Current 4-20mA)

• AO2+

• AO2 -

c. Analog In

• Analog In (AI1)

• Analog Input 1 (Temperature)

• TT+

• TT -

• Analog In (AI2)

• Analog Input 2 (Pressure)

• PT+

• PT -

D. Ground lug

50 Gas Ultrasonic Flow Meter

Electrical installation

Figure 3-4:

Transmitter electronics field wiring lower terminal block - Type 2
CPU Module

A. Upper terminal block

a. FODO Group 1 connections

• FODO1

• GND1

• DI 1

b. AO1

• AO1+

• AO1-

c. Serial COMs (RS-323, RS-485)

• RS-232: RTS, TX, RX, CTS

• RS-485: TX+, TX-, RX+, RX- (4-wire Full Du-

plex)

• RS-485: TX+, TX- (2-wire Half Duplex)

d. Ethernet

• Ethernet (orange and white wire)

• Ethernet (orange wire)

• Ethernet (green and white wire)

• Ethernet (green wire)

B. 24V loop power (for sourcing 4-20mA in­puts/outputs)

C. Power in (10.4VDC - 36VDC)

D. Fuse cover

Installation manual 51

Electrical installation

Figure 3-5:

Electronics field wiring - upper terminal block, switches, ground
lug - Type 4CPU Module

A. Conduit wiring entry (four entries)

B. Switches:

1. Port A

2. DHCP

3. WRITE PROT.

C. Upper terminal block

a. FODO Group 2

• FODO2

• FODO3

• GND2

• GND2

• FODO4

• FODO5

b. Analog In

• Analog In (AI1)

• Analog Input 1 (Temperature)

• TT+

• TT -

• Analog In (AI2)

• Analog Input 2 (Pressure)

• PT+

• PT -

D. Ground lug

52 Gas Ultrasonic Flow Meter

Electrical installation

Figure 3-6:

Transmitter electronics field wiring lower terminal block - Type 4
CPU Module

A. Upper terminal block

a. FODO Group 1 connections

• FODO1

• GND1

• DI 1 / FODO6

b. AO1

• AO1+

• AO1-

c. Serial COMs (RS-323, RS-485)

• RS-232: RTS, TX, RX, CTS

• RS-485: TX+, TX-, RX+, RX- (4-wire Full Du-

plex)

• RS-485: TX+, TX- (2-wire Half Duplex)

d. Ethernet

• Ethernet (orange and white wire)

• Ethernet (orange wire)

• Ethernet (green and white wire)

• Ethernet (green wire)

B. 24V loop power (for sourcing 4-20mA in­puts/outputs)

C. Power in (10.4VDC - 36VDC)

D. Fuse cover

Installation manual 53

Electrical installation

6. Set or configure the meter operating parameters using Daniel MeterLink. For
additional installation information refer to the system wiring diagram (see ), Daniel
MeterLink Software for Gas and Liquid Ultrasonic Meters Quick Start Manual (P/N
3-9000-763) and use the Daniel MeterLink Field Setup Wizard to complete the
configuration.

7. Verify the field connections are working correctly. Allow the system to run for the
time specified by the customer (usually one week) and an electrician has fully tested
the connections. After the Acceptance Test is witnessed and approved, seal the
conduit.

8. Power down the system and apply the sealing compound to the conduit and allow
to set in accordance with manufacturer specifications.

9. If required, install the security latches and wire seals on the Transmitter Electronics
Enclosure end caps (see ).

10. If required, install the wire seals through the socket head bolts on the Base Enclosure
(see ).

11. Re-apply electrical power to the system.

3.4.2 Startup for systems that use flame-proof cable

WARNING!

HAZARDOUS VOLTAGE INSIDE
Do not open the Transmitter Electronics Enclosure when an explosive gas atmosphere is
present. Disconnect equipment from supply circuit before opening the enclosure.

Failure to remove power may result in serious death or injury.

Procedure

1. Check to make certain that all field wiring power is turned OFF.

2. Remove the end cap nearest the cable entries to gain access to the transmitter
electronics.

3. Install the cable and cable gland.

4. Complete the field connection wiring and apply electrical power to the system.

5. Set or configure the meter operating parameters using Daniel MeterLink. For
additional installation information refer to the system wiring diagram (see ) , Daniel
MeterLink Software for Gas and Liquid Ultrasonic Meters Quick Start Manual (P/N
3-9000-763) and use the Daniel MeterLink Field Setup Wizard to complete the
configuration.

6. Verify the field connections are working correctly. Allow the system to run for the
time specified by the customer (usually one week) and an electrician has fully tested
the connections. After the Acceptance Test is witnessed and approved, seal the
conduit.

7. Power down the system and apply the sealing compound to the conduit and allow
to set in accordance with manufacturer specifications.

54 Gas Ultrasonic Flow Meter

8. If required, install the security latches and wire seals on the Transmitter Electronics
Enclosure end caps (see ).

9. If required, install the wire seals through the socket head bolts on the Base Enclosure
(see ).

10. Re-apply electrical power to the system.

3.5 Wiring and I/O

Daniel MeterLink uses the TCP/IP protocol to communicate with the Daniel 3410 Series
Ultrasonic Gas Flow Meter electronics instead of Modbus ASCII or RTU. The TCP/IP protocol
only works across either Ethernet, RS-485 full duplex (4-wire) or RS-232. Daniel MeterLink
can communicate with multiple meters if they are multi-dropped using 4-wire, full duplex
RS-485 mode. The meter electronics is HART capable and provides communication
flexibility with Daniel 3410 Series Gas Ultrasonic Flow Meters.

Note

Port B for RS-485 full duplex communication is not supported.

Electrical installation

3.5.1

The HART® output provides communication with other field devices (e.g., Field
Communicator and AMS™ Device Manager software) and ultimately, communicates key
diagnostic information through PlantWeb® architecture.

NOTICE

If not using Ethernet, a full duplex serial connection is necessary for Daniel MeterLink to
communicate with a Daniel 3410 Series Gas Ultrasonic Meter.

The Daniel 3410 Series Gas Ultrasonic Flow Meter electronics auto-detects the protocol
used and automatically switches between TCP/IP, Modbus ASCII, and Modbus RTU so it is
not necessary to make any meter configuration changes to the protocol.

CPU Module labeling and LED indicators

The meter’s metrology mode and the status of the data transfer from the Acquisition
Module to the CPU Module are indicated via light-emitting diode (LED) status indicators.
The WRITE PROT. switch protects the meter’s configuration.

Installation manual 55

Electrical installation

CPU Module labeling and LED indicators - Type 2Figure 3-7:

A. Acquisition/Measurement mode

B. Power

C. LED 5 - communication between CPU and Acquisition Module

D. LED 4 - link between CPU and Acquisition Module

E. RX (RS-485/RS-232) - receiving data

F. TX (RS-485/RS-232) - transmitting data (RS-485 2-wire use TX+ and TX-)

G. Link (Eth1 Link) - user Ethernet connection

56 Gas Ultrasonic Flow Meter

CPU Module labeling and LED indicators - Type 4Figure 3-8:

A. Acquisition/Measurement mode

B. Power

C. LED 5 - communication between CPU and Acquisition Module

Electrical installation

D. LED 4 - link between CPU and Acquisition Module

E. RX (RS-485/RS-232) - receiving data

F. TX (RS-485/RS-232) - transmitting data (RS-485 2-wire use TX+ and TX-)

G. Link (Eth1 Link) - user Ethernet connection

CPU Module labeling and LED functionsTable 3-2:

CPU Module la­bel or LED Function Switch position indicator or LED

WRITE PROT. • Write-protect mode - with switch

in the ON position (default set­ting) protects configuration and
firmware overwrites.

• To write configuration changes or

download firmware to the meter
change the switch to the OFF posi­tion

Switch position

• ON - (default setting) enables

write protection of the configura­tion and firmware

• OFF - enables writing configura-

tion changes or downloading firm­ware

Installation manual 57

Electrical installation

CPU Module labeling and LED functions (continued)Table 3-2:

CPU Module la­bel or LED Function Switch position indicator or LED

DHCP • Dynamic Host Protocol Server -

enables you to communicate with
a Daniel meter that is not connec­ted to a network.

• When the CPU Module switch is in

the ON position, the meter is ena­bled to act as a DHCP server for a
single DHCP client connected to
the Ethernet port using a cross­over cable. This should be used for
peer to peer connections only.

• When the connection is made, se-

lect to use the Meter Name in the
meter instead of the Meter Direc­tory Name in order to keep all log
files and configurations separate
from each meter.

PORT A • PORT A override - RS-232 serves as

an override during meter commis­sioning to establish communica­tions and in the event the user
cannot communicate with the
meter due to an inadvertent com­munication configuration change.
The override period is for two mi­nutes.

• Supports:

- auto-detected ASCII (Start bit

1, Data Bit 7, Parity Odd/Even,
Stop Bit 1)

- RTU (Start Bit 1, Data Bit 8,

Parity none, Stop Bit 1)

- Modbus protocols

• RS-232 Baud rate=19,200

• Modbus ID=32

MEAS System color indicates metrology

mode

• Acquisition mode

• Measurement mode

PWR • 3.3V Power Indicator • Solid green

LED 4 • Indicates link between CPU and

acquisition module

Switch position

• ON - the meter is enabled to act as

a DHCP server for a single DHCP
client

• OFF - disables the DHCP server

Switch position

• ON - enables RS-232 PORT A over-

ride

• OFF - (default setting) disables

RS-232 PORT A override

LED status

• Red flashing LED, the meter is in

acquisition mode.

• Solid red, the Acquisition Module

is not communicating with the
CPU Module

• Solid green LED, the meter is in

measurement mode.

• Solid green

58 Gas Ultrasonic Flow Meter

Electrical installation

CPU Module labeling and LED functions (continued)Table 3-2:

CPU Module la­bel or LED Function Switch position indicator or LED

LED 5 • Indicates communication be-

tween CPU module and acquisi­tion module

RX • RX signal (Port A for RS485 or

RS232 communication) receiving
data

TX • TX signal (Port A for RS485; 2-wire

or 4-wire or RS232 communica­tion) transmitting data

Link • ETH1Link user Ethernet connec-

tion

• Soid green

• Flashing green (when receiving

data)

• Flashing green (when transmitting

data)

• Solid green, when link is establish-

ed.

Ethernet communications

The Ethernet port IP address, subnet mask, and gateway address are software­configurable. In addition, a meter can be configured to act as a DHCP (Dynamic Host
Configuration Protocol) server to assign an IP address to a PC or laptop running Daniel
MeterLink. The DHCP server facility is not intended to act as a general purpose DHCP
server for a wider network. To this end, no user control is provided over the class or range
of IP addresses the unit provides. A standard twisted pair (Cat-5) cable should be used for
Ethernet wiring.

It is strongly recommended that the meter be configured using an independent (off­network) single host. After configuration of the Daniel 3410 Series Gas Ultrasonic Flow
Meter, the DHCP option must be turned off if used on a LAN/WAN.

NOTICE

RESTRICTED ETHERNET AND SERIAL CONNECTIVITY USAGE

Failure to restrict Ethernet and communication access to the Daniel 3410 Series Gas Ultrasonic Flow
Meter can result in, among other things, unauthorized access, system corruption, and/or data loss.

User is responsible for ensuring that physical access and Ethernet or electronic access to the
Daniel 3410 Series Gas Ultrasonic Flow Meter is appropriately controlled and any necessary
security precautions are implemented; such as, establishing a firewall, setting password
permissions and/or implementing security levels.

Installation manual 59

Electrical installation

Ethernet cable to PC communicationTable 3-3:

Ethernet communication

Wire color CPU

White w/Green Stripe TX+

Solid Green TX -

White w/Orange Stripe RX+

Solid Orange RX -

Use Ethernet cable, Daniel P/N 1-360-01-596, to connect the PC to the meter.

A DIN 41612 48-pin connector is the interface from the CPU Module to the Field
Connection Board (male end located on the back of the Field Connection Board).

Modbus TCP

If the meter firmware supports Modbus TCP slave functionality, the following controls will
be available.

Modbus TCP unit identifier: Enter the Modbus TCP unit identifier here. Valid values are
0-255.

Enable alternate Modbus TCP port: The standard TCP port for Modbus TCP is port 502. This
port is always enabled in a meter that supports Modbus TCP. By selecting this option, you
can also enable Modbus TCP communications on a secondary TCP port specified by
Alternate Modbus TCP port.

Alternate Modbus TCP port: Enter the alternate TCP port number here after selecting
Enable alternate modbus TCP port. Valid port numbers are from 1 to 65535. The meter will
not allow some port numbers that are either used by the meter or are defined port
numbers for other protocols. Daniel MeterLink™ will prompt you if it was not able to write
the specified port number to the meter.

60 Gas Ultrasonic Flow Meter

Electrical installation

Serial connections

Use a serial cable, Daniel P/N 3-2500-401, to connect to a PC running Daniel MeterLink.
The cable is designed for RS-232 communications which is the serial Port A default
configuration (see Section A.1 field wiring diagram, Daniel Drawing DMC-005324). The
DB-9 end of the cable plugs directly into the PC running Daniel MeterLink. The three wires
on the other end of the cable connect to the CPU Module RS-485/RS-232 terminals. The
RED wire goes to RX, the WHITE wire goes to TX, and the BLACK wire goes to COM (see
Table 3-6 for Port A wiring). RS-485, 2-wire connection on Port A, uses TX+ and TX- on the
CPU Module and has a ground wire.

When Beldon wire No. 9940 or equivalent is used, the maximum cable length for RS-232
communications at 9600 bps is 88.3 meters (250 ft.) and the maximum cable length for
RS-485 communication at 57600 bps is 600 meters (1970 ft.).

Port A supports a special override mode which forces the port to use known
communication values (19200 baud, address 32, RS-232). Note that the protocol is auto­detected. This mode is expected to be used during meter commissioning (to establish
initial communication) and in the event that the user cannot communicate with the meter
(possibly due to an inadvertent communication configuration change). Alternately, when
using Daniel MeterLink with an Ethernet port, use Ethernet cable, Daniel P/N
1-360-01-596, to connect the PC.

Serial Port A parametersTable 3-4:

Port/Communi­cation Description Common features

Port A (Standard)

• RS-232

• RS-485 Half

Duplex

• RS-485 Full

Duplex

• RS-485

(1)

wire commu­nication on
Port A)

• Typically used for general commu-

nications with a flow computer,
RTU (Modbus slave) and radios.

• RS-485 -- 2-wire (Half Duplex) con-

nected to TX+ and TX-

• Special override mode to force

(2-

port configuration to known set­tings.

• Supports RTS/CTS handshaking

with software- configurable RTS
on/off delay times.

• Factory default is RS-232, Ad-

dress32, 19200baud

• Communications via Daniel Me-

terLink using RS-232 or RS-485
Full Duplex

• Software configurable Modbus

Address (1-247)

• Auto-detects TCP/IP and ASCII or

RTU Protocol

- ASCII Protocol:

- Start Bits = 1, Data Bits =

(2)

7

- Parity: odd or even 1, Stop Bits

(2)

= 1

- Baud Rates: 1200, 2400, 9600,

19200, 38400, 57600, 115000
bps

- RTU Protocol:

- Start Bits = 1, Data Bits =

(2)

8

- Parity: odd or even 1, Stop Bits

(2)

= 1

- Baud Rates: 1200, 2400, 9600,

19200, 38400, 57600, 115000
bps

Installation manual 61

Electrical installation

Serial Port A parameters (continued)Table 3-4:

Port/Communi­cation Description Common features

Ethernet • Preferred port for diagnostic com-

munication via Daniel MeterLink

• 10 Mbps/100Mbps

(1) RS-485 2-wire connections use TX+ and TX - on the CPU Module
(2) Denotes auto-detected protocols

• 10 Mbps/100Mbps

NOTICE

If not using Ethernet, a full duplex serial connection is necessary for Daniel MeterLink to
communicate with a Daniel 3410 Series Gas Ultrasonic Meter.

PC to meter serial connection wiringFigure 3-9:

3.5.2 I/O connections

The Daniel 3410 Series Gas Ultrasonic Flow Meter provides the I/O connections on the CPU
Module.

62 Gas Ultrasonic Flow Meter

Electrical installation

CPU Module I/O connectionsFigure 3-10:

A. Frequency/Digital Output 2

B. Frequency/Digital Output 3

C. Analog Output 2 - 4-20mA output

D. Analog Input - Temperature and pressure connections

Installation manual 63

Electrical installation

CPU Module I/O connections - Type 4Figure 3-11:

A. Frequency/Digital Output 2

B. Frequency/Digital Output 3

C. Frequency/Digital Output 4

D. Frequency/Digital Output 5

E. Analog Input - Temperature and pressure connections

Optional input and output modules

These modules are plugged into the second or third slot (retrofit) on the electronics head.
These module options consist of an RS-232, RS-485 serial port modules or Expansion I/O
Module.

These modules allow expanding I/O capabilities of the meter to include extra serial ports.
There are three options currently available. Serial RS-232 without handshaking, serial
RS-485 Half-duplex, or RS-232/RS/485, with 3 port Ethernet Switches. For the standard

64 Gas Ultrasonic Flow Meter

Electrical installation

enclosure offering, one serial module can be added. This serial module would become Port
B. For users with retrofit enclosure option then two serial modules can be added. These
serial modules would be designated Port B and Port C based on slot installed.

Optional module RS-232Figure 3-12:

A. Serial COMs (RS-323)

B. RS-232: RTS, TX, RX

Installation manual 65

Electrical installation

Optional module RS-485Figure 3-13:

A. Serial COMs (RS-485)

B. RS-485: TX+, TX- (2-wire Half Duplex)

66 Gas Ultrasonic Flow Meter

Electrical installation

Optional Expansion I/O ModuleFigure 3-14:

A. Expansion I/O Module

• B. RS-232: RX, TX, COM

• B. RS-485: TX+, TX- (2-wire Half Duplex)

• C. 4-20mA Input - AI3+/-

• D. Port Ethernet switch

• D1. Port 1

• D2. Port 2

• D3. Port 3

Installation manual 67

Electrical installation

Ethernet cable to PC communicationTable 3-5:

Ethernet communication

Wire color CPU/EXP

White w/Green Stripe TX+

Solid Green TX-

White w/Orange stripe RX+

Solid orange

Note

Wiring colors for TX+/TX- and
RX+/RX- can be switched as
ethernet ports will automati­cally detect crossover vs.
straight connection. Connec­tions shown are for straight
through cable.

RX-

PC to meter serial connection wiring - RS232Figure 3-15:

68 Gas Ultrasonic Flow Meter

Electrical installation

Transmitter Head 1 data sharing connection with Expansion I/O ModuleFigure 3-16:

A. Ethernet connection from Expansion I/O Module

B. Ethernet connection available for user connection

C. Ethernet connection from CPU Module

E. Expansion I/O Ethernet cable for connection between CPU and Expansion I/O. (P/N 1-360-03-058)

Installation manual 69

Electrical installation

Figure 3-17:

Transmitter Head 2 data sharing connection with Expansion I/O
Installed Head 1

A. Connects to Expansion I/O Module in Head 1

70 Gas Ultrasonic Flow Meter

Optional modules parametersTable 3-6:

Description Common features

Port B/Port C (Op­tional module)

• RS-232 - P/N:

1-360-024

• RS-485 Half

Duplex - P/N
1-360-03-023

• Expansion I/O

Module - P/N
1-360-03-026
(232/485 Half
Duplex, Ether­net switch)

Note

Port C is only
available with
Retrofit Enclo­sure.

(1) Denotes auto-detected protocols

• Typically used for general commu-

nications with a flow computer,
RTU (Modbus slave) and radios.

• RS-485 -- 2-wire (Half Duplex) con-

nected to TX+ and TX- (P/N
1-360-03-026) or A and B (P/N
1-360-03-023)

• Factory default is RS-232, Ad-

dress32, 19200baud

Electrical installation

• Communications via Daniel Me-

terLink using RS-232

• Software configurable Modbus

Address (1-247)

• Auto-detects TCP/IP and ASCII or

RTU Protocol

- ASCII Protocol:

- Start Bits = 1, Data Bits =

(1)

7

- Parity: odd or even 1, Stop Bits

(1)

= 1

- Baud Rates: 1200, 2400, 9600,

19200, 38400, 57600, 115000
bps

- RTU Protocol:

- Start Bits = 1, Data Bits =

(1)

8

- Parity: odd or even 1, Stop Bits

(1)

= 1

- Baud Rates: 1200, 2400, 9600,

19200, 38400, 57600, 115000
bps

Note

Use of FODO6 requires DI1Mode set to Frequency/Digital Output 6. Digital Input will not be
available.

Installation manual 71

Electrical installation

Expansion I/O LED indicatorsFigure 3-18:

A. TX/RX for RS232/RS485 serial port Flashing (Orange - RX/Green - TX)

B. Ethernet switch port 1 - Link/Activity indicator Flashing (Green)

C. Ethernet switch port 2 - Link/Activity indicator Flashing (Green)

D. Ethernet switch port 3 - Link/Activity indicator Flashing (Green)

Expansion I/O LED functions Table 3-7:

Expansion I/O Module LED Function LED

TX/RX RX/TX signal (Port B/C for

RS485 or RS232 communica­tion) receiving and transmit­ting data

LINK/ACT

Ethernet Switch Port 1, 2, 3 • Link and Activity indicator

for each Ethernet switch
port.

• Separate indicator for each

Ethernet switch port

• Flashing Orange - RX

• Flashing Green - TX

Flashing Green when Ethernet
activity present.

Frequency/Digital outputs

The meter has three user-configurable outputs that can be configured for either a
Frequency output or Digital output (FODO).

• FODO1 (eight possible parameter configurations) [Type 2] [Type 4]

• FODO2 (eight possible parameter configurations) [Type 2] [Type 4]

• FODO3 (eight possible parameter configurations) [Type 2] [Type 4]

• FODO4 (eight possible parameter configurations) [Type 4]

72 Gas Ultrasonic Flow Meter

Electrical installation

• FODO5 (eight possible parameter configurations) [Type 4]

• FODO6 (eight possible parameter configurations) [Type 4]

- (DI1Mode must be set to Frequency/Digital Output 6 to enable FODO6)

Frequency or Digital Outputs (FODO1, FODO6) source options ~ Group 1

• FO1A, DO1A, FO1B, DO1B, FO2A, DO2A, FO2B, DO2B

• Frequency output 1A is the A Phase of Frequency output 1 content (Uncorrected

volume floe rate, Corrected volume flow rate, Average flow velocity, Average speed
of sound, Energy flow rate, Mass flow rate)

• Frequency output 1B is the B Phase of Frequency output 1

• Frequency output 2A is based on frequency content (Actual - Uncorrected Flow

Rate)

• Frequency output 2B is based on frequency content and Frequency 2B Phase

• Digital output 1A is based on Digital output1A content (Frequency Output 1Validity

and Flow Direction)

• Digital output 1B is based on Digital output1B content (Frequency Output 1 Validity

and Flow Direction)

• Digital output 2A is based on Digital output 2A content (Frequency Output 2 Validity

and Flow Direction)

• Digital output 2B is based on Digital output 2B content (Frequency Output 2 Validity

and Flow Direction)

Frequency or Digital Outputs (FODO2, FODO3, FODO4, FODO5) source options ~
Group 2

• FO1A, DO1A, FO1B, DO1B, FO2A, DO2A, FO2B, DO2B

• Frequency output 1A is the A Phase of Frequency output 1 content (Uncorrected

volume floe rate, Corrected volume flow rate, Average flow velocity, Average speed
of sound, Energy flow rate, Mass flow rate)

• Frequency output 1B is the B Phase of Frequency output 1

• Frequency output 2A is the A Phase of Frequency output 2 content (Uncorrected

volume flow rate, Corrected volume flow rate, Average flow velocity, Average speed
of sound, Energy flow rate, Mass flow rate)

• Frequency output 2B is the B Phase of Frequency output 2 content

• Digital output 1A is based on Digital output1A content (Frequency Output 1Validity

and Flow Direction)

• Digital output 1B is based on Digital output1B content (Frequency Output 1 Validity

and Flow Direction)

• Digital output 2A is based on Digital output 2A content (Frequency Output 2 Validity

and Flow Direction)

• Digital output 2B is based on Digital output 2B content (Frequency Output 2 Validity

and Flow Direction)

Installation manual 73

Electrical installation

Mode options

• Open Collector (requires external excitation supply voltage and pull-up resistor)

• TTL (internally powered by the meter 0-5 VDC signal)

Channel B Phase options

• Lag forward, Lead reverse (Phase B lags Phase A while reporting forward flow, leads

Phase A while reporting reverse flow)

• Lead forward, Lag reverse (Phase B leads Phase A while reporting forward flow, lags

Phase A while reporting reverse flow)

Phase A and Phase B output (based on flow direction)

• Reverse flow - output only reports flow in the reverse direction. For frequency

outputs, Phase B of the output is 90 degrees out of phase with Phase A.

• Forward flow - output only reports flow in the forward direction. For frequency

outputs, Phase B of the output is 90 degrees out of phase with Phase A.

• Absolute - output reports flow in both directions. For frequency outputs, Phase B of

the output is 90 degrees out of phase with Phase A.

• Bidirectional - output reports flow on Phase A only in the forward direction and on

Phase B only in the reverse direction.

Maximum frequency for the frequency outputs

• 1000Hz

• 5000Hz

Frequency/Digital output

Frequency /Digital Output 1

Frequency /Digital Output 2

Frequency /Digital Output 3

Frequency /Digital Output4

Frequency /Digital Output 5

Frequency /Digital Output 6

• Frequency output 1A

• Frequency output 1B

• Digital output 1A

• Digital output 1B

• Frequency output 2A

• Frequency output 2B

• Digital output 2A

• Digital output 2B

Source configuration

Output for FODO1 and Digital Input 1 or FODO6 (Type 4 CPU) (Group 1 on the CPU
Module) share a common ground and have 50V isolation. FODO2, FODO3, FODO4 (Type 4
CPU), and FODO5 (Type 4 CPU) (Group 2 on the CPU Module) share a common ground and
have 50V isolation. This allows an output to be connected to a different flow computer.
The outputs are opto-isolated from the CPU Module and have a withstand voltage of at
least 500V rms dielectric.

74 Gas Ultrasonic Flow Meter

Electrical installation

CPU Module - Frequency/Digital outputs common ground - Type 2Figure 3-19:

A. FODO1 and Digital input1 - shared common ground (Group 1)

B. FODO2 and FODO3 - shared common ground (Group 2)

Installation manual 75

Electrical installation

CPU Module - Frequency/Digital outputs common ground - Type 4Figure 3-20:

A. FODO1 and DI1/FODO6 - shared common ground - Type 4 CPU Module (Group 1)

B. FODO2, FODO3, FODO4 and FODO5 - shared common ground - Type 4 CPU Module (Group 2)

Analog input settings

The Daniel 3410 Series Gas Ultrasonic Flow Meter has the capability to sample analog
temperature (Analog Input 1) and pressure (Analog Input 2) with 4-20 mA signals. These
analog input signals are configured to sink. The two independent analog input circuits are
configured for conventional 4-20 mA service. Also, 24VDC isolated power supply
connection is provided for an external power source. Refer to the Field wiring diagram
DMC-005324 in .

Analog output settings

The Daniel 3410 Series Ultrasonic Gas Flow Meter provides 4-20 mA analog output signals
that are software configurable for either sink or source current (see DMC-005324).

Full HART® functionality is provided so that any commercially available HART® transmitter
which meets the specifications of the HART® Communications Foundation can be
connected to the Daniel™ Gas Ultrasonic Flow Meter.

• Analog Output 1 (AO1) is user-configurable as a 4-20mA output and has HART

capabilities - Type 2 and Type 4 CPU Modules

76 Gas Ultrasonic Flow Meter

Electrical installation

• Analog Output 2 (AO2) is user-configurable as a conventional 4-20 mA output - Type

2 CPU Module only

Digital input

The Daniel 3410 Series Gas Ultrasonic Flow Meter provides one digital input that can be
used as a general purpose input. The digital input must be configured via the Daniel
MeterLink Tools|Edit/Compare Configuration screen. DI1Mode must be set to Digital
Input/Calibration Input.

DHCP server switch settings

The meter can be configured to act as a DHCP server. The DHCP server is enabled/disabled
via CPU Module DHCP switch as follows:

DHCP server switch settingsTable 3-8:

CPU Module switch DHCP server disabled DHCP server enabled

OFF ON

Configuration protect switch settings

The meter’s configuration parameters and firmware can be protected against changes via
the CPU Module WRITE PROT. switch as follows:

Configuration protect switch settingsTable 3-9:

CPU Module switch

Configuration protec­ted

ON (default setting) OFF

Configuration unpro­tected

External power source connection and fuse

Located inside the Transmitter Electronics Enclosure is a connector for a user-provided
external power source, a 2 Amp fuse and a 24V loop power connection for ultrasonic
meter analog outputs, temperature transmitter or pressure transmitter devices. The
current is limited to 88mA.

Installation manual 77

Electrical installation

CPU Module power source connectionsFigure 3-21:

A. Power In connector (main power)

B. 24V LOOP POWER

C. 2 Amp fuse (used for the main power input)

3.6 Security seal installation

Security seals protect the integrity of the meter metrology and prevent tampering with
transducer assemblies. The following sections detail how to properly seal the Daniel 3410
Series Gas Ultrasonic Flow Meter after commissioning. The security seal wires are
commercially available.

Be sure to set the WRITE PROT. switch on the CPU Module to the ON position prior to
sealing the enclosure.

3.6.1

Seal transmitter electronics enclosure

Use the following instructions to install the security seal wires on the Transmitter
Electronics Enclosure.

78 Gas Ultrasonic Flow Meter

Electrical installation

Transmitter electronics enclosure security latchFigure 3-22:

A. Transmitter electronics enclosure endcap.

B. Security latch

Procedure

1. Rotate the end caps clockwise fully closing and compressing the end cap seal. Install
the Security latch for each end cap using a 3mm Allen wrench.

2. Install the security seal wire into and through one of the two holes in the end cap.

a. Choose holes that minimize counterclockwise rotation of the end cap when the

security wire is taut (maximum wire diameter .078 inch; 2.0mm).

Installation manual 79

Electrical installation

Transmitter electronics enclosure security sealsFigure 3-23:

3.6.2

A. Transmitter electronics enclosure endcap

B. Security wire seals

3. Adjust the security wire, removing all slack and thread into the lead seal.

4. Crimp lead seal and cut wire ends to remove excess wire.

Base Enclosure Security Seals

Use the following instructions to install the security seal wire on the Base Enclosure.

1. Install security wire seal into and through the hole in the socket head screw on the
Base Enclosure cover (maximum wire diameter .078 inch; 2.0mm).

80 Gas Ultrasonic Flow Meter

Electrical installation

Base Enclosure wire seal installationFigure 3-24:

3.6.3

A. Base enclosure cover

B. Security wire seals

2. Position the wire to prevent counterclockwise rotation of the screws when the seal
wire is taut.

3. Feed the security wire beneath the Transmitter Electronics Enclosure and through
the adjacent socket head screw. Twist the wire, removing all slack and seal.

4. Cut wire ends to remove excess wire.

Transducer assembly security seal

The transducer assemblies can be protected from tampering by securing the shrouds over
the transducers with wire seals as follows.

Procedure

1. Locate the shroud pin on the meter body. This pin will hold the appropriate shroud
in place while the mating side is brought into place.

Installation manual 81

Electrical installation

Latch pin and Shroud recessesFigure 3-25:

A. Shroud pin on the meter body

2. Hook the appropriate shroud over the pin, ensuring the transducer cabling is within
the shroud. Care needs to be taken not to pinch the cables between the shroud
recesses and shroud as the shroud is fitted into place.

Once the shroud is snugly seated in these recesses it will hang on the pin for ease of
attaching its mating pair.

82 Gas Ultrasonic Flow Meter

Electrical installation

Shroud hanging on Shroud pinFigure 3-26:

3. Bring up the mating shroud, ensuring the transducer cabling falls within and is snug
in the shroud recess as before and hold in place.

4. Latch first the bottom shroud latch(s) followed by those on the upper side of the
shroud.

5. Thread the security seal's wire through the holes found on the latching lever side of
the mechanism and then through the seal mechanism itself. Pull the wire taught
then rotate the cranking tab until it snaps off.

Installation manual 83

Electrical installation

Shroud latch with Security sealFigure 3-27:

6. Check that the seal is properly fitted to prevent the latch from lifting. Verify the latch
is secure and clip off any extra wire extending from the seal.

84 Gas Ultrasonic Flow Meter

4 Configuration

Topics covered in this chapter:

Set up the Daniel MeterLink

•

Field Setup Wizard

•

Using AMS Device Manager to configure the meter

•

Using a Field Communicator to configure the meter

•

Security seals for the meter

•

After the mechanical and electrical installation is complete use the following to install
MeterLink™ in order to establish connection with the meter to perform final configuration
and verify meter performance.

Configuration

™

4.1 Set up the Daniel MeterLink

1. Follow the instructions in the Daniel MeterLink™ Software for Gas and Liquid
Ultrasonic Meters Quick Start Manual (P/N 3-9000-763) to setup software
communications with the meter.

2. Select File|Program Settings and customize the user-preferences (e.g. User name,
Company name, display units, Liquid Meter volume units and other interface
settings).

3. Connect to your meter. If your meter is not shown in the list, select Edit Meter
Directory and setup the connections properties.

4. Meter Connection Setup:

a. Serial Connection:

a. To connect to dual configuration meter using serial connection, enter the

Serial connection Properties for Transmitter Head 1.

b. MeterLink will connect to both transmitter heads using the Ethernet settings

configured for each Transmitter Head.

c. Check Box labeled Route IP packets to connection (recommended for co-

located meters).

d. Transmitter Head 1 and Head 2 IP address and Co-Located Meter IP address

must be configured properly in each meter’s configuration.

™

Installation manual 85

Configuration

b. Ethernet Connection:

a. To connect to dual configuration meter using serial connection, enter the

Serial connection Properties for Transmitter Head 1.

b. Open Meter Directory in MeterLink.

c. Select Ethernet button by selected Meter name for Transmitter Head 1.

d. Check box designated Co-located.

e. Enter IP Address of Transmitter Head 1 under TCP/IP properties entry box.

f. Enter IP Address of Transmitter Head 2 in TCP/IP properties for co-located

meter entry box.

Note

For Non DHCP application, IP address for transmitter Head 1 and 2 are shown for
default setting. This only changes settings MeterLink uses to connect to meter. Meter
Ethernet setting must be additionally configured in meter.

86 Gas Ultrasonic Flow Meter

Configuration

Meter Directory settings example for Non DHCP ApplicationFigure 4-1:

Meter Directory settings example for DHCP ApplicationFigure 4-2:

Installation manual 87

Configuration

4.2 Field Setup Wizard

1. Use the Field Setup Wizard-Startup in Daniel MeterLink™ and select the check boxes
that allow proper configuration for your meter (Temperature, Pressure, Meter
Corrections, Meter Outputs, Gas chromatograph setup, Continuous flow analysis
and View local display setup). Selections on this page will affect other configuration
selections.

a. Select Next to continue to General setup.

2. Use General setup to configure the meter’s units system (U.S Customary or Metric
units) volume units, flow rate time, low flow cutoff, contract hour, enable reverse
flow alarm, set meter time and notepad comments.

a. Select Next to continue to Frequency/Digital Outputs page.

Note

The Meter’s Units system configured on the General Page affect the units for the optional
Local Display items.

3. Set the Frequency/Digital Outputs Sources for either a frequency output or a digital
status.

a. Select the Source for each Frequency/Digital output and select the desired drive

Mode. The Mode options are Open Collector which requires an external
excitation voltage and pull-up resistor or TTL mode which outputs a 0-5 VDC
signal.

b. Select Next to continue to Frequency Outputs page.

Note

Frequency outputs 1 and Digital outputs 1 are paired together meaning the Digital outputs 1
will report the status for the parameter for Frequency outputs 1. Similarly, Frequency outputs
2 and Digital outputs 2 are paired together. Additionally, each Frequency output has an A and
B output phase.

4. Configure Frequency output 1 and Frequency output 2 content, flow direction,
Channel B phase, maximum frequency output (Hertz) and full scale volumetric flow
rate.

a. Select Next to continue to Meter Digital Outputs.

5. Select the Meter Digital Output parameters for Digital output 1A, Digital output 1B,
Digital output 2A and Digital output 2B based on Frequency validity or flow
direction.

If the output of the ultrasonic meter is reversed from what a flow computer is
expecting, select Inverted Operation. This changes the digital output from a HIGH
for a TRUE condition to output a LOW for a TRUE condition.

a. Select Next to continue to Analog Outputs.

6. Configure Analog Outputs.

88 Gas Ultrasonic Flow Meter

Configuration

Analog outputs can be based on Uncorrected volume flow rate, Corrected volume
flow rate, Average flow velocity, Average speed of sound, Energy flow rate or Mass
flow rate. The flow direction (Forward, Reverse or Absolute) and Full scale
volumetric flow rate used with output (20mA maximum) are also configurable.

Alarm action parameters determines the state the output will drive during an alarm
condition (High 20mA, Low - 4 mA, Hold last value, Very low - 3.5, Very high 20.5
mA or None).

a. Select Next to continue to the HART® Output(s) parameters.

7. Configure HART® Output parameters, which include four Dynamic process variables
(Primary, Secondary, Third and Fourth variable. The Primary variable is set to match
the Content set for Analog output 1. If a second analog output is available, the
Secondary variable is set to match the Content set for Analog output 2)
Identification and HART units (volume units, flow rate time units, velocity units,
pressure and temperature units).

a. Select Next to continue to the Meter Corrections page.

8. The Meter Corrections page is used to configure flow profile for the reflective chords
of a 3415 and 3416. It is also used to define parameters for pressure and
temperature expansion correction of the meter internal diameter if enabled.

a. Click Next to continue to the Temperature and Pressure page.

9. Set the temperature and pressure scaling for analog inputs, enter fixed values, and
set alarm limits for both. The alarm limit selections are hold last output value or use
fixed value.

a. Click Next to continue to the Gas Chromatograph Setup page.

10. Select the settings below to configure a serial port as a Modbus Master to poll a gas
chromatograph:

• Serial Port: select which serial port will be connected to the GC. While the port is

configured for communications to a GC, it will not act as a Modbus slave device
for communications from Daniel MeterLink™ or a SCADA system.

• GC protocol: select the protocol for which the GC is configured. The Daniel Gas

Ultrasonic meter uses 7 data bits, Even parity, and 1 stop bit for ASCII Modbus
and 8 data bits, No parity, and 1 stop bit for RTU Modbus.

• GC baud rate: select the baud rate for which the GC is configured.

• GC comms address: enter the Modbus ID of the GC.

• GC stream number: enter the stream number for the gas composition the Daniel

Gas Ultrasonic meter will read.

• GC heating value units: elect the units for which the heating value is configured

in the GC.

• Use which gas composition on GC alarm: select which gas composition the

Daniel Gas Ultrasonic meter will use if the GC goes into alarm. If Fixed value is
selected, the meter will start using the fixed gas composition stored in the
meter. If Last good value is selected, the meter will use the last gas composition
collected from the GC before the GC started to report alarms.

a. Click Next to continue to the Gas Chromatograph Data.

Installation manual 89

Configuration

11. Configure the Component indexes and the C6+ split. This page is available for Daniel
Gas Ultrasonic meters and displayed only if View Gas Chromatograph checkbox was
selected on the Startup page and if the Gas Chromatograph Setup page was
previously displayed.

a. Click Next to continue to the AGA8 page.

12. Configure the properties necessary for the AGA8 calculations.

This page is only displayed for Daniel Gas Ultrasonic meters if both temperature and
pressure are set to Live or Fixed and Base condition correction is selected on the
Startup Page. Configuration parameters include:

• Calculations performed internally (by the meter) or Externally

• AGA8 method - Gross Method 1, Gross method 2 or Detail

• Base temperature and pressure

• Specific gravity - reference temperature and pressure

• Volumetric gross heating value and reference temperature

• Molar density reference temperature and pressure

• Flow Mass density, flow compressibility and Base compressibility

• Gas composition inputs - components and mole percent

a. Click Next to continue to the Continuous Flow Analysis page, if View Continuous

Flow Analysis setup was selected on the Startup page.

13. Configure the Continuous Flow Analysis (optional). This page is only displayed for
Daniel Gas Ultrasonic meters if both temperature and pressure are set to Live or
Fixed and Base condition correction is selected on the Startup Page . Configuration
parameters include:

a. Enable SOS comparison (requires AGA 8 Detail method).

b. Enable liquid detection and Profile factor limit.

c. Enable Blockage. Enter the percent for Symmetry, Cross-flow, Chords A to D

turbulence.

d. Enable Internal bore buildup.

a. Click Next to continue to the Alarm Limits page.

14. Configure Alarm Limits for flow analysis, reverse flow and diagnostic chord:

a. Set low and high flow limits for flow analysis alarms.

b. Enable / Disable Reverse Flow alarm.

c. Set Volume limit and low flow limit for reverse flow alarm.

d. Enable co-located meter flow alarm.

• Set Error Limit

e. Enable co-located meter speed of sound alarm.

• Set Error Limit

f. Enable Diagnostic chord for co-located secondary head (Model 3416 only).

90 Gas Ultrasonic Flow Meter
