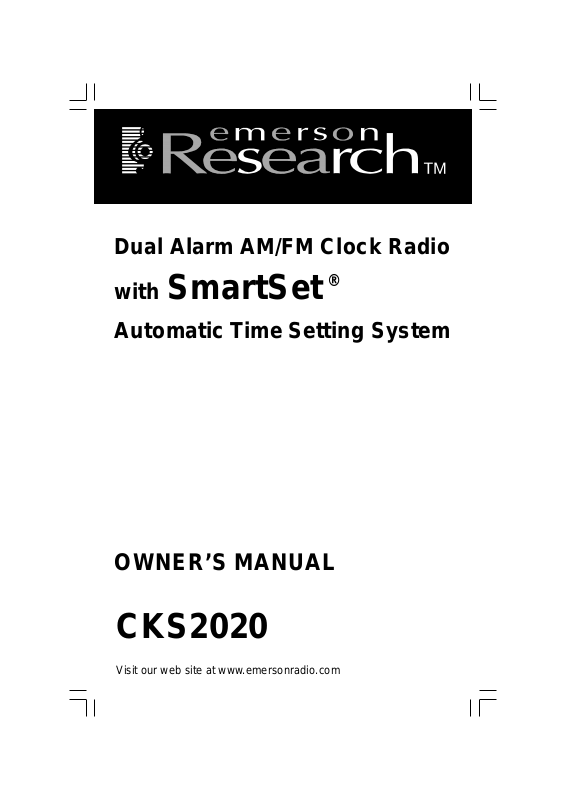

Dual Alarm AM/FM Clock Radio

with SmartSet ®

Automatic Time Setting System

OWNER’S MANUAL

CKS2020

Visit our web site at www.emersonradio.com

Congratulations!

And thank you for purchasing the SmartSet® Clock Radio from Emerson Research. SmartSet® is the world’s first and only LED clock radio that will automatically set itself to the correct ‘Year’, ‘Month’, ‘Date’, ‘Day’, and ‘Time’ as soon as you plug it in. The only thing you have to do is tell the SmartSet® what time zone you are in, and the built in computer does everything else for you immediately. And not only the first time, but every time the power is interrupted as well.

We all know how annoying it is to wake up in the morning and see the dreaded flashing “12:00” display on our clocks or clock radios. This means that your power was interrupted some time during the night while you were sleeping and your clock doesn’t know what time it is anymore. Unfortunately it probably also means that you are late for work, or for school, again. But with your SmartSet Clock Radio the dreaded flashing “12:00” display is a thing of the past. The SmartSet® resets itself as soon as the power is restored and gets you up on time, every time.

And if that isn’t enough, the SmartSet® computer also knows when Daylight Saving Time begins and ends and it will adjust itself for those changes automatically for the next 99 years! Leap Years too! And best of all, the long life lithium battery backup battery is already installed in your radio. You don’t have to remember to put a new 9-volt battery in your radio every 6 months. Under normal circumstances the lithium battery can last for up to 5 years, and when it does need to be changed, a low battery indicator will come on to let you know. The CR2430 lithium battery is available almost anywhere that batteries are sold and it costs about the same as a normal 9-volt battery. You can do the math yourself. Change the built in lithium battery after 5 years, or buy a 9-volt battery when you buy your radio and every 6 months from then on. That’s a ‘no-brainer’. You’ll save so much money on batteries it’s like getting the SmartSet radio for ‘free’.

The SmartSet® also gives you dual alarms that can be set to go off on weekdays only, weekends only, or all 7 days. You can set one alarm to wake you up to buzzer Monday through Friday when you have to get up early, and use the second alarm to wake you up to soft music on Saturday and Sunday when you can sleep in.

Someday all clocks and clock radios may be this smart. But today the technology is only available from Emerson Research. Good Housekeeping magazine was so impressed with SmartSet® that it was selected for their “Good Buy 2000 Award” as one of the seven most innovative products of the year 2000.

We’re sure you’ll be happy and amazed by your SmartSet® Clock Radio, and that it will give you many years of enjoyment and dependable service.

Once again, all of us at Emerson Research thank you for your purchase.

For future reference, record the Serial Number here:

1

IMPORTANT NOTES

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

DANGEROUS VOLTAGE

Uninsulated Dangerous Voltage, that may be of sufficient magnitude to constitute a risk of electric shock to persons is present within this product's enclosure.

ATTENTION

The Owner's Manual contains important operating and maintenance instructions.

For your safety, it is necessary to refer to the manual.

FCC INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2)This device must accept any interference received, including interference that may cause undesired operation.

2

PREPARATION FOR USE

UNPACKING AND SET UP

Remove the radio from the carton and remove all packing material from the radio. We suggest that you save the packing material, if possible, in the unlikely event that your radio ever needs to be returned for service. The original carton and packing material is the only safe way to pack your radio to protect it from damage in transit.

Remove any descriptive labels or stickers on the front or top of the cabinet. Do not remove any labels or stickers from the back or bottom of the cabinet.

Note the serial number on the bottom of your radio and write this number in the space provided on Page 1 of this manual.

Place your radio on a level surface such as a table, desk or shelf, convenient to an AC outlet, out of direct sunlight, and away from sources of excess heat, dirt, dust, moisture, humidity, or vibration.

Unwind the AC power cord and extend it to its full length. The FM antenna is built in to this cord. It must be fully extended to provide the best FM reception.

POWER SOURCE

This radio is designed to operate on normal 110V-120V 60Hz AC power only. Do not attempt to operate the radio on any other power source. You could cause damage to the radio that is not covered by your warranty.

This radio should be connected to an AC outlet that is always ‘live’. Do not connect it to an outlet that is controlled by a wall switch. When the power to the radio is interrupted, the built in lithium battery takes over to maintain the time and alarm settings. To maximize the life of the lithium battery keep the radio connected to a ‘live’ AC outlet at all times

You will note that this system is equipped with a polarized AC power plug having one blade wider than the other. This is a safety feature. If this plug does not fit into your existing AC outlet, do not try to defeat this safety feature by filing the wide blade to make it fit into your outlet. If this plug will not

fit into your outlet, you probably have an out-dated non-polarized AC outlet. You should have your outlet changed by a qualified licensed electrician.

3

LOCATION OF CONTROLS AND INDICATORS

Top Panel

Right Side

1.

Sleep button (sleep to music timer).

15.

Tuning control.

2.

Time Zone button.

16.

Band switch (AM/FM).

3.

Alarm Mode button.

17.

Volume control.



(weekdays/weekends/everyday alarm).





4.

Alarm 1 setting button.

Front Panel

5.

Alarm 2 setting button.





6.

Down button.

18.

AM indicator.

7.

Up button.

19.

Alarm 1 ‘On’ indicator.

8.

Radio On/Off button.

20.

Time/Date display.

9.

Date setting button.

21.

Alarm 2 ‘On’ indicator.

10. Time setting button.

22.

Low Battery indicator.

11.

Snooze (Sleep Off) button.

23.

Day indicators.

Left Side

24.

Tuning Dial.

25.

Lighted Dial Pointer.

12. Display Dimmer switch (Low/High).

Back Panel

13.

Alarm 1 selector switch.







(Buzzer/Radio/Off).

26.

Back up battery compartment.

14.

Alarm 2 selector switch.

27.

AC power cord.



(Buzzer/Radio/Off).





4
