READ AND SAVE THESE INSTRUCTIONS

SUMMER NIGHT

42” Damp Location

Model No.

Ceiling Fan

CF742PFWW 01

Owner's Manual

CF742PFSCB 01

Net Weight: 11.7 Lbs.

LIMITED WARRANTY

What The Warranty Covers:

This warranty covers the motor and the other components and accessories of your Emerson ceiling fan against all defects in workmanship and materials. You must be the original purchaser or user of the product to be covered.

What The Period Of Coverage Is:

As it applies to the motor, this warranty will last for ten years from the date you purchased your ceiling fan. All other components and accessories are covered by this warranty for one year from the date you purchased your ceiling fan. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, MADE WITH RESPECT TO COMPONENTS AND ACCESSORIES IS ALSO LIMITED TO ONE YEAR.

What Will Emerson Electric Co. Do To Correct Problems:

Emerson Electric Co. will replace a defective Emerson Air Comfort Ceiling Fan motor, blade, component or other accessory at no charge to you. If repair of the motor or blades is not practical or possible within a reasonable time and no replacement can be provided, Emerson will refund the actual purchase price of your fan. We will ship the repaired product or replacement to you at no charge, but you are responsible for all costs or removal, reinstallation and shipping of the product to Emerson Electric Co.

How Can You Get Service:

YOU MUST HAVE PROOF OF YOUR PURCHASE OF THE CEILING FAN TO OBTAIN LIMITED WARRANTY SERVICE. KEEP YOUR RECEIPT OR OTHER PROOF OF PURCHASE. You can return the product to our factory or to your nearest authorized service center.

• To return the product to the factory, obtain a return authorization and service identification tag by writing to Air Comfort Products, Division of Emerson Electric Co., 8100 W. Florissant Ave., St. Louis, MO 63136. Include all model numbers shown on the product with your request.

• To return the product to an authorized service center, call 1-800-654-3545 for the address of the nearest authorized service center.

You will be responsible for all insurance, freight or other transportation charges to our factory or authorized service center. Your Emerson Air Comfort Ceiling Fan should be properly packed to avoid damage in transit since we will not be responsible for any such damage.

What Is Not Covered:

The glass globes and light bulbs of your ceiling fan are not covered by this warranty. This warranty also does not cover any defects, malfunctions or failures caused by:

• Repairs by persons not authorized by Emerson Electric Co.,

• Use of parts or accessories not authorized by Emerson Electric Co.,

• Mishandling, improper installation, modifications or damage to your ceiling fan while in your possession, or

• Unreasonable use, misuse, abuse, including failing to do reasonable and necessary maintenance, and normal wear and tear.

Additionally, this warranty and any implied warranty of merchantability or fitness for a particular purpose are voided when:

• The original purchaser or user ceases to own the product, or

• The fan is moved from its original point of installation.

This warranty is only valid within the 50 states of the United States and the District of Columbia. No other written or oral warranties apply, and no employee, agent, dealer or other person is authorized to give any warranties on behalf of Emerson Electric Co.

REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS WARRANTY AND EMERSON IS NOT RESPONSIBLE FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGES. Incidental damages include but are not limited to such damages as loss of time and loss of use. Consequential damages include but are not limited to the cost of repairing or replacing other property which was damaged if this product does not work properly.

How State Law Relates To The Warranty:

Some states do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Part No. F40BP73130000 Form No. BP7313

U.L. Model No.: CF742PF

WARNING: To avoid fire, shock, and serious personal injury, follow these instructions.

Safety Instructions

1. Read your owner’s manual carefully and keep it for future reference.

2. Before servicing or cleaning unit, switch power off at service panel and lock service panel disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a warning device, such as a tag, to the service panel.

3. Be careful of the fan and blades when cleaning, painting, or working near the fan. Always turn off the power to the ceiling fan before servicing.

4. Do not put anything into the fan blades while they are turning.

5. Do not operate reversing switch until fan blades have come to a complete stop.

Additional Safety Instructions for Installation

1. To avoid possible shock, be sure electricity is turned off at the fuse box before wiring, and do not operate fan without blades.

2. All wiring must be in accordance with the National Electrical Codes “ANSI/NFPA 70-1999” and Local Electrical Codes. Use the National Electrical Code if Local Codes do not exist. The ceiling fan must be grounded as a precaution against possible electrical shock. Electrical installation should be made or approved by a licensed electrician.

3. The outlet box and joist must be securely mounted and capable of reliably supporting at least 50 pounds. Use only U.L. outlet boxes listed as acceptable for fan support, and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for support of light fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.

4. The downrod furnished with the fan proves the minimum recommended floor to fan blade clearance for an 8 foot ceiling.

5. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent accidental contact with the fan blades.

6. Follow the recommended instructions for the proper method of wiring your ceiling fan. If you do not know enough about electrical wiring, have your fan installed by a licensed electrician.

WARNING: To avoid fire, shock or injury, do not use an Emerson or any other brand of control not specifically approved for this fan.

WARNING: This product is designed to use only those parts supplied with this product and/or any accessories designated specifically for use this product by Emerson Electric Co. could result in personal injury or property damage.

WARNING: To reduce the risk of personal injury, do not bend the blade flange when installing the blade flanges, balancing the blades or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

WARNING

DATE CODE:

The date code of this fan may be found on

the box, stamped in ink on a white label.

You should record this data above and keep

it in a safe place for future use.

2 U.L. Model No.: CF742PF

THIS F AN IS SUITABLE FOR DAMP LOCATIONS SUCH AS

COVERED PORCHES, COVERED PA TIOS, AND COVERED DECKS.

ANYWHERE THERE IS A ROOF OVERHEAD.

This Manual is Designed to Make it as Easy as

Possible for You to Assemble, Install,

Operate and Maintain Your Ceiling Fan

Tools Needed for Assembly

One Phillips head screwdriver One stepladder One wire stripper Three wire connectors (supplied).

MA TERIALS

Wiring, electrical box and box connectors must be of type required by the local code. The minimum wiring would be a 3-conductor (2-wire with ground) of following sizes:

Installed Wire Length

Wire Size A.W.G.

Up to 50 ft. 14 50 - 100 ft. 12

Check to see that you have received the following parts: a. Fan motor assembly b. Five fan blades c. One ceiling cover d. Five blade flanges e. One hanger ball/downrod assembly f. One hanger bracket. g. One loose parts bag containing:

1. Sixteen M5 x 10 washer head blade screws

2. One M5 x 13 flange screw

3. One pull chain pendant

4. One pull chain coupling

5. Three wire connectors

6. One clevis pin

7. One hairpin clip

8. Two threaded studs

9. Two lockwashers

10. Two knurled knobs

NOTE: Place the parts from the loose parts bag in a small container to keep them from being lost.

Unpacking Instructions

For your convenience, check-off boxes are provided next to each assembly step. As each step is completed, place a check mark in the box. This will insure that all steps have been completed and will be helpful in finding your place should you be interrupted.

How to Put Your Ceiling Fan Together

Before assembly your ceiling fan, refer to section on proper method of wiring your fan (page 5). If you feel you do not have enough wiring knowledge or experience, have your fan installed by a licensed electrician.

WARNING

Do not install or use fan if any part is damaged or missing. Call Toll-Free:

1-800-654-3545

This product is designed to use only those parts supplied with this product and/or any accessories designated specifically for use with this product by Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co. could result in personal injury or property damage.

WARNING

1.Pass the 80" motor leads through the opening in the ceiling cover. Be sure the cover is oriented correctly.

2.Separate, untwist and unkink the three motor leads. Route the motor leads through the hanger ball/downrod assembly.

3.Remove the two setscrews from the motor coupling. Align the clevis pin holes in the downrod with the holes in the motor coupling. Install the clevis pin and secure with the hairpin clip (Figure 1). The clevis pin must go through the holes in the motor coupling and the holes in the downrod. Be sure to

push the straight leg of the hairpin clip through the hole near the end of the clevis pin until the curved portion of the clip snaps around the clevis pin. Pull on the hanger ball to make sure the clevis pin is properly installed.

WARNING

It is critical that the clevis pin in the motor coupling is properly installed and the setscrew securely tightened. Failure to verify that the pin and setscrew are properly installed could result in the fan falling.

3 U.L. Model No.: CF742PF

NOTE: Remove and discard five shipping spacers and screws from the motor hub.

NOTE: Take care not to scratch fan housing when installing blades.

9.You have now completed the assembly of your new

ceiling fan. You can now proceed with hanging and the electrical wiring of your fan.

4.Reinstall the two setscrews in the motor coupling. While pulling up on the hanger ball, securely tighten the setscrews. (Figure 1).

NOTE: The setscrews must be properly installed as described above, or fan wobble could result.

5.The fan comes with the blue, black, and white leads

that are 80” long. Before installing fan, measure up approximately 6 to 9-inches above top of hanger ball/downrod assembly. Cut off excess leads and strip back insulation 1/2-inch from end of leads.

6.Turn fan assembly upside down in preparation for mounting fan blade assemblies.

IMPORTANT: THE SIDE OF THE FAN BLADE HAVING THE RIB LINE MUST BE FACING UPWARDS AS SHOWN IN FIGURE 2.

7.Mount blade flanges to fan blades using three M5 x

10 washer head screws per blade (Figure 2).

8.Attach blade assembly to motor hub using two

M5 x 13 flange screw preassembled in flange. Make sure the screws are tightened securely (Figure 3). Repeat this procedure for other four blade assemblies.

Figure 2

Figure 3

CEILING

Figure 1

Your new ceiling fan will require a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit.

The outlet box must be securely anchored and capable of withstanding a load of at least 50 pounds.

If your fan is to replace an existing ceiling light fixture, turn electricity off at the main fuse box at this time and remove the existing light fixture.

Electrical Requirements

To reduce the risk of personal injury, do not bend the blade flanges when installing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.

WARNING

To reduce the risk of fire, electric shock, or personal injury, mount fan to outlet box marked “Acceptable for Fan Support”, and use screws supplied with outlet box. Most outlet boxes commonly used for support of light fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.

WARNING

Turning off wall switch is not sufficient. To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. All wiring must be in accordance with National and Local codes and the ceiling fan must be properly grounded as a precaution against possible electrical shock.

WARNING

To avoid fire or shock, follow all wiring instructions carefully.

Any electrical work not described in these instructions should be done or approved by a licensed electrician.

WARNING

COVER

HANGER BALL/ DOWNROD ASSEMBLY

M5 x 13 FLANGE SCREWS

CLEVIS PIN

SETSCREW

MOTOR COUPLING

CLEVIS PIN

SETSCREW

HAIRPIN CLIP

BLADE ASSEMBLY

M5 x 10 WASHER HEAD SCREW (3)

BLADE FLANGE

RIB LINE THIS SIDE UP

FAN BLADE

4 U.L. Model No.: CF742PF

1.Securely attach the hanger bracket to the outlet box using the two screws supplied with the outlet box (Figure 5).

How to Hang Your Ceiling Fan

Figure 4

Figure 5

Figure 6

2.Carefully lift the fan from the foam pad and seat the hanger ball/downrod assembly on the hanger bracket that was just attached to the outlet box (Figure 6). Be sure the groove in the ball engages with the tab on the hanger bracket (Figure 5).

NOTE: CEILING COVER, SUPPLY WIRES AND FAN WIRES OMITTED FOR CLARITY.

How to Wire Your Ceiling Fan

If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.

1.Connect the green grounding lead from the hanger

ball and the green grounding lead from the hanger bracket to the grounding conductor of supply (this may be a bare wire or wire with green colored insulation).

Figure 7

NOTE: CEILING COVER OMITTED FOR CLARITY.

The fan must be hung with at least 7' of clearance from floor to blades (Figure 4).

WARNING

The outlet box and joist must be securely mounted and capable of supporting at least 50 lbs. Use only a U.L. outlet box listed as “Acceptable for Fan Support”.

WARNING

Hanger bracket must seat firmly against outlet box. If the outlet box is recessed, remove wall board until bracket contacts box. If bracket and/or outlet box are not securely attached, the fan could wobble or fall.

WARNING

Failure to seat tab in groove could cause damage to electrical wires and possible shock or fire hazard.

WARNING

To avoid possible fire or shock, do not pinch wires between the hanger ball/downrod assembly and hanger bracket.

WARNING

To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.

NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation.

WARNING

CEILING

AT LEAST

FLOOR

OUTLET BOX

HANGER BALL/ DOWNROD ASSEMBLY

HANGER BRACKET

OUTLET BOX

TWO SCREWS SUPPLIED WITH OUTLET BOX

TAB

HANGER BRACKET

WHITE SUPPLY (NEUTRAL)

WHITE FAN WIRE

BLACK SUPPLY (HOT)

GROUND WIRE

WIRE CONNECTORS (3)

GREEN WIRE (GROUND) FROM FAN

BLACK AND BLUE FAN WIRES

5 U.L. Model No.: CF742PF

5. Secure the ceiling cover in place by sliding lockwashers over the threaded studs and installing the two knurled knobs (supplied). (Figure 8). Tighten the knurled knobs securely until the ceiling cover fits snugly against the ceiling and the hole in the ceiling cover is clear of the downrod. Your fan is now wired to be turned on and off from the fan switch.

6. Cut the 3-speed switch pull chain to a desired length (optional). Connect the wood pendant (supplied) to the 3-speed switch pull chain by sliding the wooden pendant (small hole first) onto the pull chain. Attach the chain coupling to the end of the chain and allow the wooden pendant to fall down over the coupling.

NOTE: If you are using an Emerson light fixture with your fan, remove the three screws securing the switch housing cover to the switch housing and remove the cover. Remove the screw plug from the bottom of the switch housing cover and install the light in accordance with the light kit Owner's Manual.

2.Connect the fan motor white wire to the supply

white (neutral) wire using a wire connector (supplied) (Figure 7). Connect the fan motor black wire and blue wire to the supply black (hot) wire using a wire connector (supplied) (Figure 7). Your fan is now wired to be turned on and off from the fan switch. After connections have been made, turn leads upward and carefully push leads into the outlet box, with the white and green leads on one side of the outlet box and the black and blue leads on the other side of the outlet box.

3. Screw the two threaded studs (supplied) into the tapped holes in the hanger bracket.

4. Lift the ceiling cover up to the threaded studs and turn until studs protrude through the holes in the ceiling cover (Figure 8).

Figure 8

1.Restore electrical power to the outlet box by turning the electricity on at the main fuse box.

2.Check the operation of the fan by gently pulling on the pull chain switch.

3.All fans are shipped from the factory with the reversing switch positioned to circulate air downward. If airflow is desired in opposite direction, turn your fan off and wait for the blades to stop turning, then slide the reversing switch to opposite position, and turn fan on again. The fan blades will turn the opposite direction and reverse the airflow.

Your fan model is equipped with a 4-position, 3-speed pull chain switch. The operating sequence is as follows:

Using Your Ceiling Fan

THREE-SPEED

1st Pull — High 2nd Pull — Medium 3rd Pull — Low 4th Pull — Off

Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire connectors, except for the ground wire. Do not operate fan until blades are in place. Noise and fan damage could result.

WARNING

To avoid possible fire or shock, make sure that the electrical wires are completely inside the outlet box and not pinched between the ceiling cover and the ceiling.

WARNING

To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.

WARNING

CEILING COVER

THREADED STUD

KNURLED KNOB

LOCKWASHERS (2)

SPEED CONTROL SWITCH

REVERSIBLE SWITCH

6 U.L. Model No.: CF742PF

Trouble Shooting

WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX OR CIRCUIT

BREAKER BEFORE TROUBLE SHOOTING YOUR FAN.

TROUBLE PROBABLE CAUSE SUGGESTED REMEDY

1. Fan will not start. 1.Reversing switch in neutral position. 1. Make sure reversing switch position is all the way to one

side.

2.Fuse or circuit breaker blown. 2. Check main and branch circuit fuses or circuit breakers.

3.Loose power line connections to the fan, or loose 3. Check line wire connections to fan and switch wire switch wire connections in the switch housing. connections in switch housing.

2. Fan sounds 1.Blades not attached to fan. 1. Attach blades to fan before operating. noisy. 2.Screws securing fan blade flanges to motor 2. Check to make sure the screws which attach the fan blade

are loose. flanges to the motor are tight.

3.Wire connectors inside switch housing rattling. 3. Check to make sure wire connectors in switch housing are not rattling against each other or against the interior wall of the switch housing.

4.Screws holding flanges to blades are loose. 4. Tighten screws securely.

3. Fan wobbles 1. Setscrews in motor coupling is loose. 1. Tighten the setscrews securely in the motor coupling. or shakes 2.Setscrew in hanger ball/downrod assembly is 2. Tighten the setscrew in the hanger ball/downrod excessively. loose. assembly.

3.Screws securing fan blade flanges to motor 3. Check to be sure screws which attach the fan blade are loose. flanges to the motor are tight.

4.Fan blade flanges not seated properly. 4. Check to be sure the fan blade flanges seat firmly and

uniformly to the surface of the motor. If flanges are seated incorrectly, loosen the flange screws and retighten according to the procedure in the section on "How to Put Your Ceiling Fan Together".

5.Hanger bracket and/or ceiling outlet box is not 5. Tighten the hanger bracket screws to the outlet box, securely fastened. and/or secure outlet box.

6.Fan blades out of balance. 6. Interchanging an adjacent (side-by-side) blade pair can

redistribute the weight and result in smoother operation.

IMPORTANT CARE INSTRUCTIONS

for your Ceiling Fan

Periodic cleaning of your new ceiling fan is the only maintenance that is needed.

When cleaning, use only a soft brush or lint free cloth to avoid scratching the finish.

Abrasive cleaning agents are not required and should be avoided to prevent damage to finish.

Maintenance

Accessories

1. Ceiling Fan Light Kits (see store or catalog).

2. Ceiling Fan/Light Controls (see store or catalog).

3. Downrod Extension Kits (see store or catalog).

Do not use water when cleaning your ceiling fan. It could damage the motor or the blades and create the possibility of an electrical shock.

WARNING

The use of any other control not specifically approved for this fan could result in fire, shock and personal injury.

WARNING

To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.

WARNING

7 U.L. Model No.: CF742PF

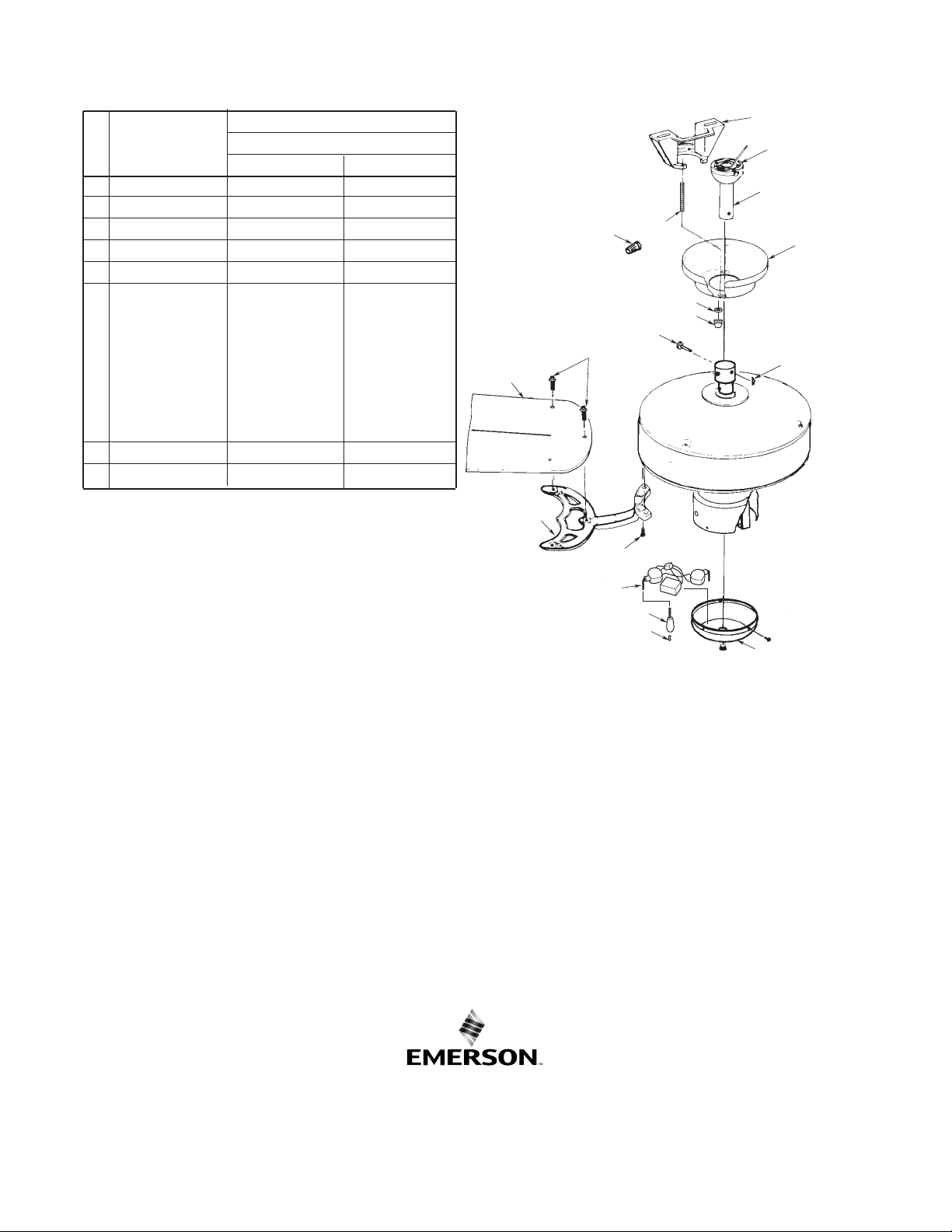

Repair Parts Listing

Part No. F40BP73130000 Form No. BP7313

Before discarding packaging material, be certain all

parts have been removed.

HOW TO ORDER REPAIR PARTS

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:

• PART NUMBER • PART DESCRIPTION

• NAME OF ITEM • MODEL NUMBER The model number of your Fan will be found on a label

attached to the top housing. For repair parts, phone 1-800-654-3545.

Air Comfort Products

DIVISION OF EMERSON ELECTRIC CO.

8100 W. Florissant ¥ St. Louis, MO 63136

Service Part No.

Key 42” Model

No. Description CF742PFWW 01 CF742PFSCB 01

1 Hanger Assembly 760750-3 760750-36 2 Ceiling Canopy 760169 760169-24 3 Wiring Harness 763110 763110 4 Blade Set (5) 762022 762022-1 5 Flange Set (5) 763109-WW 763109-SCB 6 Loose Parts Bag 763111-1 763111

Containing: Blade Hardware, — — Hanging Hardware, — — Threaded Stud (2), — — Lockwasher (2), — — Knurled Knob (2), — — Pull Chain Pendant — — Pull Chain Coupling — —

7 Switch Housing Cover 763112-WW 763112-SCB – Owner’s Manual BP7313 BP7313

6 6

Printed in China 09/07

U.L. Model No.: CF742PF

Emerson CF742PFSCB 01, CF742PFWW 01 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
