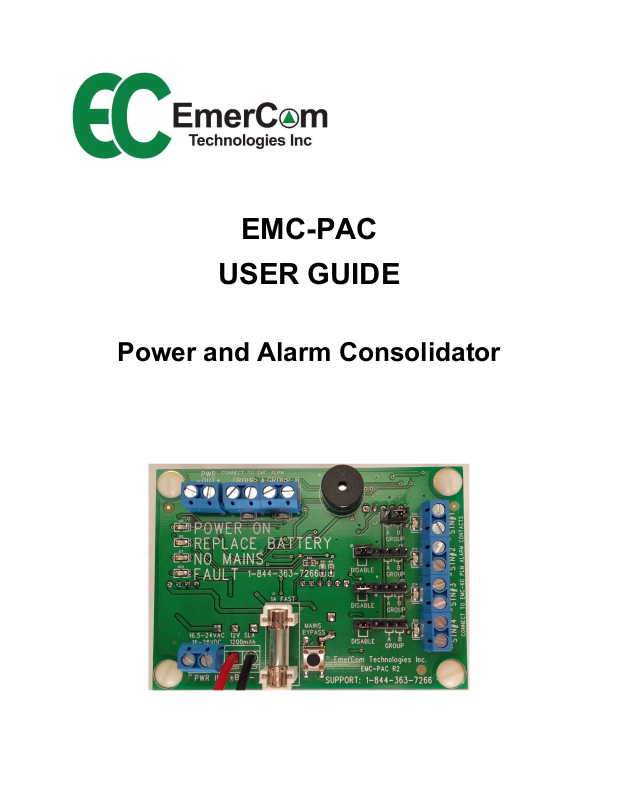

EmerCom Technologies EMC-PAC, EMC-ALRM, EMC-60 User Manual

EMC-PAC

USER GUIDE

Power and Alarm Consolidator

Quick start guide

Customer Care:

Call 1

-

844-EMERCOM (1

-

844-363-7266) for assistance.

Connect alarm board

Connect power

Connect first station phone line alarm

Troubleshoot alarms (if any)

Configure STN#1 group

DISABLED

EMC-PAC User Guide

 1

 STN#1 to PLM on EMC-60 phone

Connect additional stations (as required)

 STN#X to PLM on EMC-60 phon

 2

 Move jumper to GROUP A or GROUP B

Configure additional station’s group

 Move jumper to GROUP A or GROUP B or

 3

 GROUP A to PLM IN  PWR –OUT+ to +12-12VDC-

 4

 5

Connect 2nd alarm board (if required)

 GROUP B to PLM IN  PWR –OUT+ to +12-12VDC-

 16.5VAC to PWR IN  12V (from battery) to +BAT

 POWER ON for normal operation  Change battery if REPLACE BATTERY alarm  No input power detected if NO MAINS alarm  Refer to troubleshooting in manual if FAULT

alarm

- 2 -

EMC-PAC User Guide

Contents

About the EMC-PAC Power & Alarm Consolidator Board............................................................................. 3

EMC-PAC, EMC-60 and EMC-ALRM Connections ......................................................................................... 4

EMC-ALRM and EMC-PAC Low-Rise Layout .................................................................................................. 5

Description of Operation .............................................................................................................................. 6

Configuring Groups ....................................................................................................................................... 6

Troubleshooting ............................................................................................................................................ 7

Dimensions .................................................................................................................................................... 7

Specifications ................................................................................................................................................ 8

Ordering ........................................................................................................................................................ 8

Warranty ....................................................................................................................................................... 9

About the EMC-PAC Power & Alarm Consolidator Board

Key Features:

 Uninterruptable power supply (UPS) for up to two EMC-ALRM boards  Consolidates the phone line alarm outputs from four elevator phones into groups

A and/or B

 Four status LEDs to verify normal operation or to aid in troubleshooting  Audible alarm to alert personnel to replace battery or of a wiring issue  Fuse protects against battery reversal

- 3 -

EMC-PAC, EMC-60 and EMC-ALRM Connections

EmerCom EMC-ALRM Board

BATT

EmerCom EMC-60 Phone

1

2

1

4

7

*

3

2

3

2

3

5

6

5

6

5

6

8

9

8

9

8

9

0

#

0

#

0

#

EMC-PAC User Guide

ALARM

Card

SD

LINE

PROGM

WAKE

PROGM

WAKE

PROGM

SPKR

ALARM

STATUS

WAKE

↑

MIC

↓

MIC

EXIT

TEST

CANCEL

REPLAY

ENTER

AUX +MIC- SPKR

CONNECT TO EMC-ALR M

PWR

GRP A GRP B

-OUT+

POWER ON

POWER ON REPLACE BATTERY

REPLACE BATTERY NO MAINS

NO MAINS FAULT

FAULT

16.5 – 2 4VAC

16.5 – 2 4VAC 16 – 28VD C

16 – 28VD C

PWR I N +BAT-

1-844-363-7266

12V SLA

12V SLA 1200mAh

1200mAh

1A fast

BUZ

MAINS

BYPASS

fuse

EmerCom Technologies Inc

SUPPORT: 1-844-363-7266

EMC-PAC R2

A B

GROUP

A BDISABLE

GROUP

A BDISABLE

GROUP

A BDISABLE

GROUP

EmerCom EMC-PAC Board

16.5-24 VAC / 16-28VDC

power

12V SLA

BATTERY

PWR CALLCALL +LED-+LED- TELTEL PLMPLM +LED2-

PWR CALL +LED- TEL PLM +LED2-

ALARM

WAKE

MIC

EXIT

ALARM

Card

SD

↑

↓

AUX + MIC- SPKR

BATT

EmerCom EMC-60 Phone

BATT

LINE

PROGM

1

2

1

STN#4 STN#3 STN#2 STN#1

CONNECT TO EMC-60 PLM ALARM CON TACTS

4

7

*

PWR CALLCALL +LED-+LED- TELTEL PLMPLM +LED2-

PWR CALL +LED- TEL PLM +LED2-

3

2

3

2

3

5

6

5

6

5

6

8

9

8

9

8

9

0

#

0

#

0

#

TEST

CANCEL

REPLAY

ENTER

PROGM

SPKR

ALARM

STATUS

↑

↓

- 4 -

EMC-PAC User Guide

Group B

Group A

Telco Phone Line

110 V AC

EMC

-

ALRM

EMC-ALRM

battery

EMC-ALRM and EMC-PAC Low-Rise Layout

EMC-60

Hands-free phones in

elevator cabs

EMC-PAC

Shielded Twisted Pair (STP)

Shielded CAT 5

110V Supply

- 5 -

EMC-PAC User Guide

Description of Operation

The EmerCom Power and Alarm Consolidator (EMC-PAC) board allows for the easy termination of the Phone Line Monitoring (PLM) alarm outputs built into the EmerCom EMC-60 Hands-free Elevator phones. The EMC-PAC board can accept PLM wiring from up to 4 phones and allows the alarms to be combined as one or two groups.

When attached to a 12V SLA battery, the EMC-PAC board provides backup power to 2 EMC-ALRM boards during a power outage.

A green POWER ON LED in the middle of the board quickly informs personal that the board has power and is operational. Whenever the red REPLACE BATTERY, NO MAINS, or FAULT status LEDs illuminate, there exists one or more issues with the wiring or battery. The issue can be quickly identified by reading the name of the status LED or by looking up the problem in the troubleshooting section.

Additional red LEDs exist at each STN and each GROUP terminal to aid the technician with the different conditions. When an LED illuminates red, the corresponding terminal is in an alarm condition. Alarms on the EMC-PAC are based on fail-safe conditions and detect an alarm when the terminals are “open-circuit”.

The EMC-PAC comes equipped with an audible buzzer that emits a short tone whenever the board needs servicing such as battery replacement.

Configuring Groups

STN #1 PLM alarm can only be configured as GROUP A or GROUP B.

STN #2 through STN #4 can be configured as GROUP A, GROUP B, or DISABLE.

Ensure that the provided shunt is properly attached to the pins as shown below.

DISABLE

A B

GROUP

A BDISABLE

GROUP

A B

GROUP

GROUP A

GROUP B

DISABLE

- 6 -

Troubleshooting

Status

+ buzzer

 Contact Support

1-844-363-7266

EMC-PAC User Guide

Name LED

POWER ON On

Off

Flashing

REPLACE BATTERY

On

NO MAINS Flashing

FAULT Flashing

Dimensions

Possible Symptoms

 Normal operation

 Mains and battery not connected

 Mains not connected to PWR IN

 Replace battery

 Mains not connected to PWR IN

 Battery dead; replace battery  Battery fuse blown; replace fuse with 1A fast  Output shorted; remove load on PWR OUT

3 1/2"3 1/2"

Ø 3/16"

2 1/8"

CON NECT TO EMC-A LRM

PWR

-OUT+

GRP A GRP B

POWER ON REPLACE BATTERY NO MAINS FAULT

16.5 – 2 4VAC 16 – 2 8VDC

PWR IN +BAT-

1-844-363-7266

12V S LA 1200 mAh

1A fast

fuse

MAINS

BYPAS S

3 1/8"3 1/8"

BUZ

A B

GROUP

A BDISAB LE

GROUP

A BDISAB LE

GROUP

A BDISAB LE

GROUP

EmerCom Technologies Inc

EMC-PAC R2

SUPPORT: 1-844-363-7266

2 1/2"

STN#4 STN#3 STN#2 STN#1

CON NECT TO EMC- 60 PLM ALA RM CONTAC TS

- 7 -

EMC-PAC User Guide

traveling cable.

Output

Power

12V

dc

typical

, 200mA max

16 –

28Vdc

Terminals: 0.187” spade

Operating Range

0 – 60°C

Specifications

Phone Line Alarm One shielded pair of communication cable, minimum 24AWG,

with the shield preferably grounded at the controller end of the

Input Power 16.5 – 24Vac

Battery Type: Sealed Lead Acid

Rated Voltage: 12V Capacity: 1.2AH

Ordering

EMC-PAC-XX

Power & Alarm Consolidator Board with a 1.2Ah SLA battery

With options:

XX = blank : no enclosure

XX = BX : 8” x 8” enclosure with 1.2Ah SLA Battery

- 8 -

EMC-PAC User Guide

Warranty

SHIPPING AND LIABILITY

Please verify that the shipment is received in good order ASAP.

EmerCom Technologies Inc. warrants parts and labor on all equipment of its own manufacture for a period of 10 years from the date of shipment but cannot be held liable for any loss or damage resulting from causes beyond their reasonable control. Any abuse, vandalism, alteration or misuse of these products for purposes or in a manner other than that for which they were manufactured will void the warranty.

Please return defective products prepaid to your nearest service center after first calling 1-604-589-3899 (or toll-free 1-844-363-7266) for a Return Authorization (RMA) number. Please provide:

 Model number  Problem or fault description  Name of the person requesting the RMA, phone number and shipping address

Please reference the RMA number clearly on all packaging and paperwork.

Note: Statistically, more field problems are caused by wiring, connection, power supply or installation issues rather than the devices themselves. Please have your field staff call us from site before concluding that an EmerCom product needs to be returned, to offer you the assistance to resolve the problem most conveniently over the phone.

EmerCom Technologies Inc. shall not be liable for any loss or damage resulting from causes beyond its reasonable control and in no event whatsoever shall we be liable for consequential damages resulting in personal injuries, property damage or economic loss to any party.

- 9 -

Rev: 1p0a
