Emdoor Digital Technology RCT6103W User Manual

User Manual

Manual del usuario

RCT6103W46

10" Tablet with wireless keyboard

Tableta de 10" con teclado inalámbrico

Scan for more user manual details or visit www.RCAtablets.com Escanear para más detalles del manual de usuarios o

www.RCAtablets.com

It's important to read these instructions prior to using your new product for the ﬁ rst time.

Es importante que lea este libro de instrucciones antes de usar su nuevo producto por primera vez.

vistita

Safety Precautions

Equipment tested for

RCT6103W46

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

CAN ICES-3(B) / NMB-3(B)

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The portable device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA). These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body.

Caution: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.

Warning: the AC adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the mains plug from mains completely, the AC adapter should be disconnected from the mains socket outlet completely.

Service Information

This product should be serviced only by those specially trained in appropriate servicing techniques. For instructions on how to obtain service, refer to the warranty included in this guide.

compliance as a complete unit

EN - 1

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ AND SAVE THIS FOR FUTURE REFERENCE

Some of the following information may not apply to your particular product; however, as with any electronic product, precautions should be observed during handling and use.

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁ ers) that produce heat.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments / accessories speciﬁ ed by the manufacturer.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

ADDITIONAL SAFETY INFORMATION

• The AC adapter and apparatus shall not be exposed to dripping or splashing and no objects ﬁ lled with liquids, such as vases, shall be placed on the apparatus.

• Always leave sufﬁ cient space around the product for ventilation. Do not place product in or on a bed, rug, in a bookcase or cabinet that may prevent air flow through vent openings.

• Do not place lighted candles, cigarettes, cigars, etc. on the product.

• Care should be taken so that objects do not fall into the product.

• Do not attempt to disassemble the cabinet. This product does not contain customer serviceable components.

• To prevent the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

• Do not play your headset at high volume. Hearing experts warn against extended highvolume play.

EN - 2

Contents

Safety Precautions .............................................................................................1

Important Safety Instructions .........................................................................2

Startup

Buttons ....................................................................................................................5

Accessories .............................................................................................................5

Connections

Battery Management and Charging

Micro-USB ............................................................................................................... ..9

Headphone ................................................................................................................. 9

Micro SD .....................................................................................................................9

HDMI .....................................................................................................................9

Wi-Fi ..........................................................................................................................10

Bluetooth ..................................................................................................................11

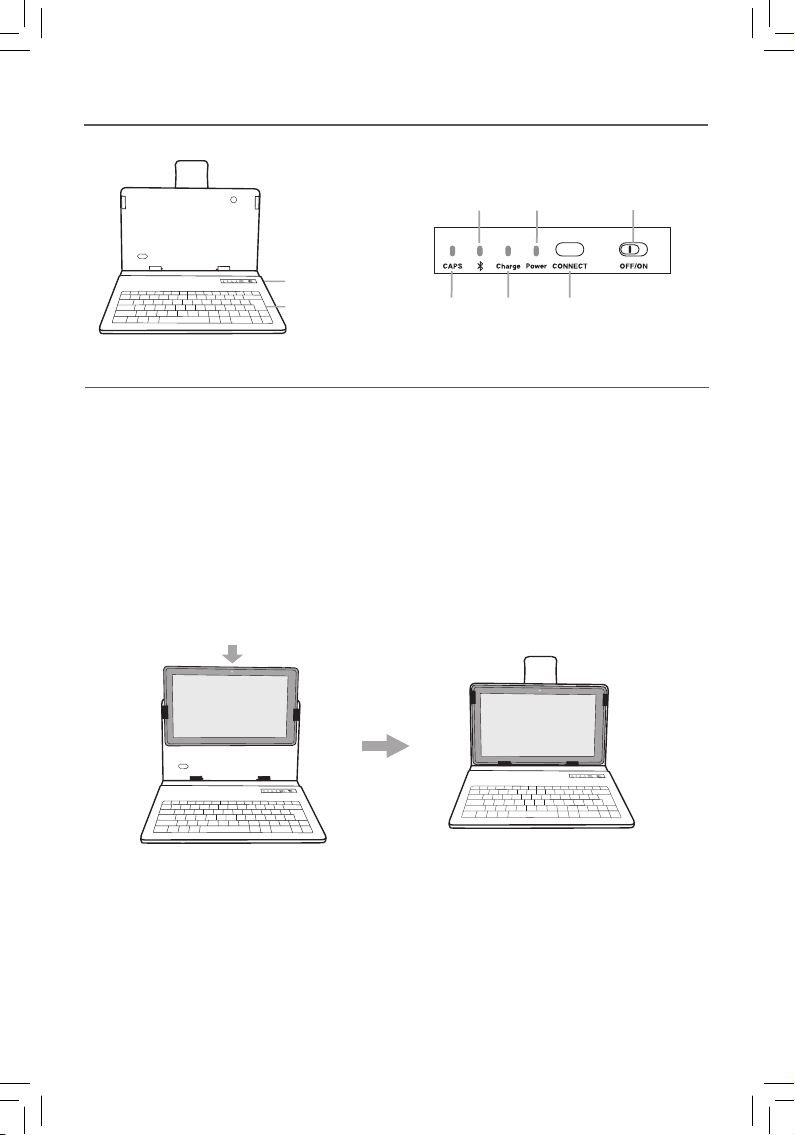

Wireless Keyboard ..................................................................................................12

Basic Operation

First Time Operation

Basic Operation ..................................................................................................................13

Google Now

Voice Search & Voice Actions .............................................................................................14

Preinstalled Apps Additional Information

Trouble Shooting ............................................................................................................... 17

Specifications .....................................................................................................................17

Limited Warranty

...................................................................................................................4

Overview of Controls

Navigating the Home Screen

Google Play

Settings ..............................................................................................................................15

Google

.....................................................................................................................16

.................................................................................................4

......................................................................................6

..............................................................................................................8

.......................................................................... 8

.............................................................................................................13

....................................................................................................... 13

....................................................................................................................14

.....................................................................................................................15

..........................................................................................................16

..................................................................................................17

............................................................................................................18

EN - 3

Overview of Controls

Startup

Front Camera

Vol+/- Button

Power Button

Headphone Port Microphone Micro-USB Port

HDMI Jack

DC Jack

Reset Micro SD Card

Slot

Rear Camera

Speaker

Item Description

Vol+/- Button Press to increase/decrease the volume. Power Button

press and hold to switch On/Off the unit.

Headphone Port Headphone connection for personal listening. Microphone For voice input. Micro-USB Port Connect to a PC or USB storage device; Or use to charge the battery. HDMI Jack Connect to a TV or a display device. DC Jack Connect with 5V DC charger. Reset Reset the tablet. Micro SD Card Slot Accepts micro SD card (up to 32G).

Press to enter standby/wake up mode,

EN - 4

Buttons

Vol +/- Button

Press the Vol +/- button to increase or decrease the volume.

Power Button

Power the Tablet On Press and hold the Power

Power the Tablet Off

Press and hold the Power tablet will be powered off.

Sleep Mode

Brieﬂ y press the Power button to put the tablet in sleep mode. If you don’t operate for some time, the tablet will enter sleep mode automatically.

Tip: You can go to Settings -> DEVICE -> Display -> Sleep to set the screen timeout.

Wake the Tablet from Sleep Mode Press the Power button to wake the tablet from sleep mode.

Tip: You can go to Settings -> DEVICE -> Sound -> Volumes to adjust volume settings

for Music, Video, Games & other media, Notiﬁ cations and Alarms

button until the RCA logo appears.

button until a message box displays. Tap "OK" and the

Accessories

The following accessories are included.

Wireless Keyboard ............................................................................................................. x1

AC Adapter ......................................................................................................................... x1

USB Cable .......................................................................................................................... x1

EN - 5

Navigating the Home Screen

Notification Bar

Google Search

Home

Back All Apps

Status Bar

App Icons

Recent Apps

Notiﬁ cation & Status Bar

Some indicators that inform you about the status of your tablet are shown at the top of the screen.

Notiﬁ cation Shade

Notiﬁ cations may come from the system, a game, an application such as E-mail, or the music player.

When Notifications are available, related icons will appear in the top left corner of the screen. To open the Notiﬁ cation Shade, touch the Notiﬁ cation icon and swipe your ﬁ nger down. Some notiﬁ cations allow you to take speciﬁ c actions by tapping icons within the notiﬁ cation.

After you are ﬁ nished with a notiﬁ cation, just slide it away to the left or right. If you want to dismiss all notiﬁ cations, tap the Dismiss icon at the top of the notiﬁ cation.

Status Bar & Quick Settings

The Status Bar in the top right corner shows various indicators, including Wi-Fi connection and battery status. To access "Quick Settings", touch the status bar and swipe down. You

can then adjust various settings on the tablet by touching the corresponding square.

EN - 6

Notiﬁ cation & Status Icons

The below table lists some of the frequently used icons in the Notiﬁ cation & Status bar:

Item Description

Message Received new message.

Music The Google Play Music app is running.

Screenshots Screenshot captured.

USB tethering Has connected to a PC and the USB tethering is turned on.

Wi-Fi Has a Wi-Fi Internet connection.

Bluetooth Bluetooth is on.

Play Store An update for an app is available.

Home Screen Icons

All Apps

Tap the All Apps icon to enter the All Apps screen. In All Apps screen, you can:

•

Move between screens: Slide left or right.

•

Open an App: Tap its icon.

•

Copy an App icon to the Home screen: Press and hold the icon or widget icon and slowly to drag it to the Home screen.

•

View widgets: Tap the widgets tab at the top of a All Apps screen. Widgets are app information displays that can be placed on your Home screen.

•

Get more apps: Tap the Google Play Store icon

•

View info about an App: Press and hold it, and drag it to the top of the screen, then drop the app over the App Info icon

Tip: Most apps include a Menu icon

control the app’s settings.

near the top or bottom of the screen that lets you

Back

Tap Back icon to return to the previous screen.

•

The Back icon remains on the bottom of the screen at all times, allowing you to navigate back to the previous screen.

•

Once you go back to the Home screen, you can’t go back any further in your history.

Home

Tap Home icon from anywhere on your tablet to return to the Home screen.

Recent Apps

Tap Recent Apps icon to view recently used apps. Tap an app to use it again. You can slide down to see more apps. You can also slide it away to the left or right.

EN -7

Connections

Battery Management and Charging

The tablet has a built-in rechargeable battery.

Battery Icon

The battery icon in the upper-right corner shows the battery level or charging status.

Full battery

Charging the Battery

Use the AC Adapter to charge the battery, and also you can charge it via the Micro-USB port.

Low battery Need to be

To DC Jack

charged

Charging

AC Adapter

(included)

Note: In order to keep the battery working in best condition, please pay attention to the following:

•

The included AC adapter is for use with this unit only. Do not use it with other

equipment.

•

Please do not charge the battery in high temperatures.

• Do not wait for the battery to be fully depleted before charging again. Keep the battery

charged as needed.

• If tablet has not been used for a long period of time, the battery might be in over

discharge protection mode and may take longer to charge.

To Wall Outlet

Prolong the Battery Life

Here are some tips for how to prolong the life of the battery:

•

If you aren’t using Wi-Fi, go to Settings -> WIRELESS & NETWORKS -> Wi-Fi, turn it off.

•

Don’t leave the Maps or Navigation apps open on the screen when you’re not using them.

•

Turn down screen brightness and set a shorter screen timeout: Settings -> DEVICE -> Display.

•

If you don’t need it, turn off automatic syncing for all apps: Settings -> ACCOUNTS

->[Google account-name]. This means you need to sync manually to collect

messages, email, and other recent information, and won’t receive notifications when updates occur.

EN - 8

Micro-USB

Connect your tablet to a PC or a USB storage device with the included USB cable, to transfer music, pictures and other files in both directions.

Note: To change your tablet’s USB connection options, you should go to Settings -> DEVICE -> Storage, and tap Menu icon computer connection to enter to setup.

The tablet can be connected to a keyboard, a mouse or other input devices via USB cable and use it just as you would with a PC.

at the upper right corner. Then tap USB

Headphone

Headphone can be connected to the tablet’s Headphone port.

To headphone Port

Headphone (not included)

Micro SD

To Micro SD Card Slot

Micro SD Card (not included)

Insert the micro SD until it clicks.

To check the storage of the micro SD card, go to Settings -> DEVICE -> Storage.

Remove the micro SD card by pushing in on the card's edge. The card will pop out and can be removed.

Notes:

You can use micro SDTMcard and micro SDHCTMcard (up to 32GB, SD card not

•

included).

• Never remove or insert micro SD card in On mode.

, with contacts facing the screen, into the tablet’s Micro SD slot

card

EN - 9

HDMI

You can connect the unit to a TV or other display device using an HDMI cable through the HDMI jack.

To HDMI jack

HDMI cable

(not included)

1. Go to Settings -> DEVICE -> Hdmi, turn on the HDMI.

2. The system interface on the unit is automatically synchronized with your TV screen.

Wi-Fi

Connect to a Wi-Fi Network

1. Go to Settings -> WIRELESS & NETWORKS -> Wi-Fi, and slide Wi-Fi to ON.

2. The device will scan Wi-Fi networks automatically and display the available names.

• If the device finds a network that you connected to previously, it will connect to it

automatically.

3. Tap a network name to connect to it, and enter a password if necessary.

4. Alternatively, if your Wi-Fi router supports Wi-Fi Protected Setup, tap the WPS icon

at the top of the screen, and then press the WPS button on your router.

EN - 10

5. If your network does not broadcast its SSID, tap the Plus icon + at the top of

the screen, and enter the Network SSID (name) of the network. If necessary, enter security or other network conﬁ guration details.

Note: you can tap Menu icon advanced settings.

at the upper right corner in the Settings screen for

VPN (Virtual Private Network)

You can create virtual private network (VPN) and connect to your private network securely through a public network, such as the internet. You must set a lock screen PIN or password before you can use credential storage.

Add VPN network and follow the instructions on the screen.

Bluetooth

You can use Bluetooth to communicate between the unit and other Bluetooth devices, such as a smartphone or wireless keyboard.

1. Go to Settings -> WIRELESS & NETWORKS -> Bluetooth, and slide Bluetooth to

ON.

2. Tap SEARCH FOR DEVICES at the upper right corner of this screen and it will scan

automatically and display the available bluetooth devices.

3. Tap a available bluetooth device name to pair with it and follow the instructions to

complete the pairing.

Receive Files

When the Bluetooth share icon open the Notiﬁ cation Shade, tap the notiﬁ cation and follow the instructions to complete the receiving.

Send Files

1. Go to All Apps

2. Select a file you want to send, touch & hold it until the selection menu appears and

select Send, then follow the instructions to complete the sending.

-> Explorer.

is shows up in Notification bar, touch and drag it to

EN - 11

+ 28 hidden pages
