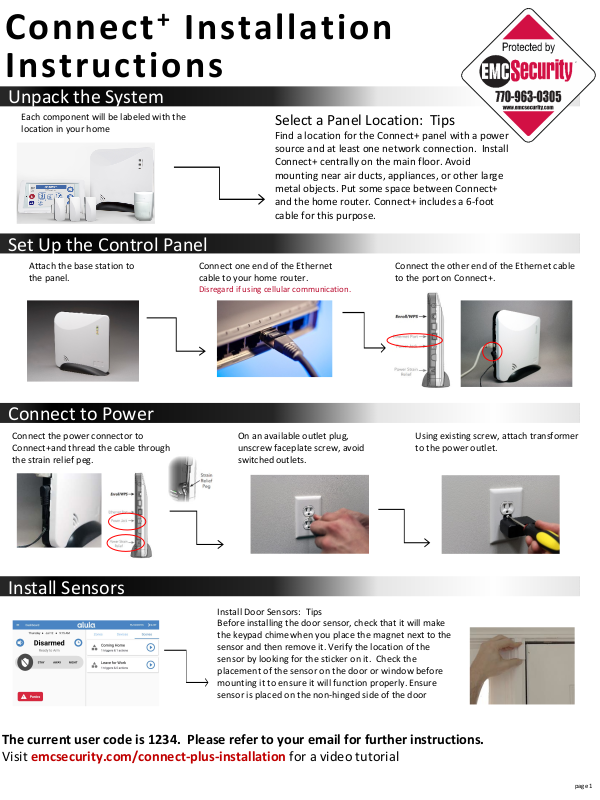

EMC Security Connect+ Installation Instructions Manual

Connect+ Installation

Set Up the Control Panel

Connect to Power

Instructions

Unpack the System

Each component will be labeled with the
location in your home

Select a Panel Location: Tips

Find a location for the Connect+ panel with a power
source and at least one network connection. Install
Connect+ centrally on the main floor. Avoid
mounting near air ducts, appliances, or other large
metal objects. Put some space between Connect+
and the home router. Connect+ includes a 6-foot
cable for this purpose.

Attach the base station to
the panel.

Connect the power connector to
Connect+and thread the cable through
the strain relief peg.

Connect one end of the Ethernet
cable to your home router.

gard if using cellular communication.

Disre

On an available outlet plug,
unscrew faceplate screw, avoid
switched outlets.

Connect the other end of the Ethernet cable

to the port on Connect+.

Using existing screw, attach transformer
to the power outlet.

Install Sensors

Install Door Sensors: Tips
Before

installing the door sensor, check that it will make
the keypad chime when you place the magnet next to the
sensor and then remove it. Verify the location of the
sensor by looking for the sticker on it. Check the
placement of the sensor on the door or window before
mounting it to ensure it will function properly. Ensure
sensor is placed on the non-hinged side of the door

The current user code is 1234. Please refer to your email for further instructions.

Visit emcsecurity.com/connect-plus-installation for a video tutorial

page 1

Peel back the plastic cover on the mounting

Install Door Sensors

1. Test the sensors: Arm the system to AWAY and wait for the Exit Delay to expire. Open each door and window, this will cause the alarm
to sound for the duration that you are test the system. Once each door\window has been open and closed, at the keypad press disarm
and enter your 4 digit access code.

Call our monitoring center at 888-745-4733 to place your system on test for 1 hour. Mon - Sat: 8am-5pm

2. Test motion detectors: Arm the system to AWAY and wait for the Exit Delay to expire. Stay out of site from the motion. Wait for 3
minutes after the Exit Delay has expired and then walk in the area of the motion. After the alarm sounds, at the keypad press disarm and
enter your 4 digit access code.

3. Call our monitoring center at 888-745-4733 to verify that all of the alarm signals were logged in our system.

Your system is in test-mode for 10 days from shipment. If you need help, give us a call!

ape, remove the battery tab and install the

t
sensor on the frame of the door.

Install Motion Sensors

The motion sensor will cover a 40 feet
area with a 90 degree viewing angle.
Avoid installing the motion detector
near a heating/cooling vent or under a
ceiling fan since that can increase the
likelihood of a false alarm.

M ounting the Touchpad

For tabl

e mounting slide the feet onto the

underside of the plastic e nclosure.
is intended to

s ome force may be
r equired for the feet
to “click” into place.

be quite snug so

The fit

Peel back the plastic cover on the mounting tape
and place the magnet on the door so they are
aligned correctly (both lines and flat sides facing
each other).

Attach mounting tape to either the sides or
back, depending on installation style. Sides
for corner mount (Blue), back for flat wall
(Red).

ll mounti

For wa
attached
Template will look like
image pictured on the right.

te

mpl

ng, see

ate.

the door and listen to make

Open
sure the Connect+ chimes to
indicate the door was opened.

Remove the plastic cover on the mounting
tape and mount it to the wall.

Test/Activate the Syst em

page 2
