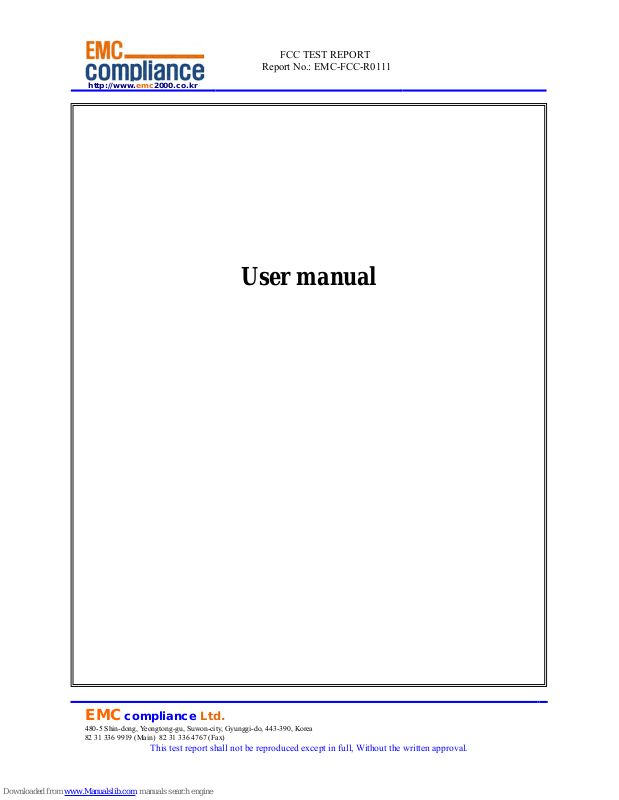

FCC TEST REPORT

Report No.: EMC-FCC-R0111

User manual

EMC compliance Ltd.

480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea

82 31 336 9919 (Main) 82 31 336 4767 (Fax)

This test report shall not be reproduced except in full, Without the written approval.

'ISA

W EXTREME'

USER MANUAL

Ver.1.3

1. Names of each part

2. Operation & button description

- ISAW EXTREME is operated by three buttons (Button #1,# 2,# 3)

- Button #1 means 'POWER / REC. / SELECT'.

- Button #2 means 'SETUP / QUICK SETUP / UP'.

- Button #3 means 'MODE / ZOOM / DOWN'

- The definition of each button is as below table.

Function Button Description

Power On / Off #1

Press the POWER button and hold for 2 seconds

* If Auto Power off is set, the camera will automatically shut down in 3 minutes when there
is no operation.

REC. Start / Stop #1 Press the REC. button to start video recording or photo shoot

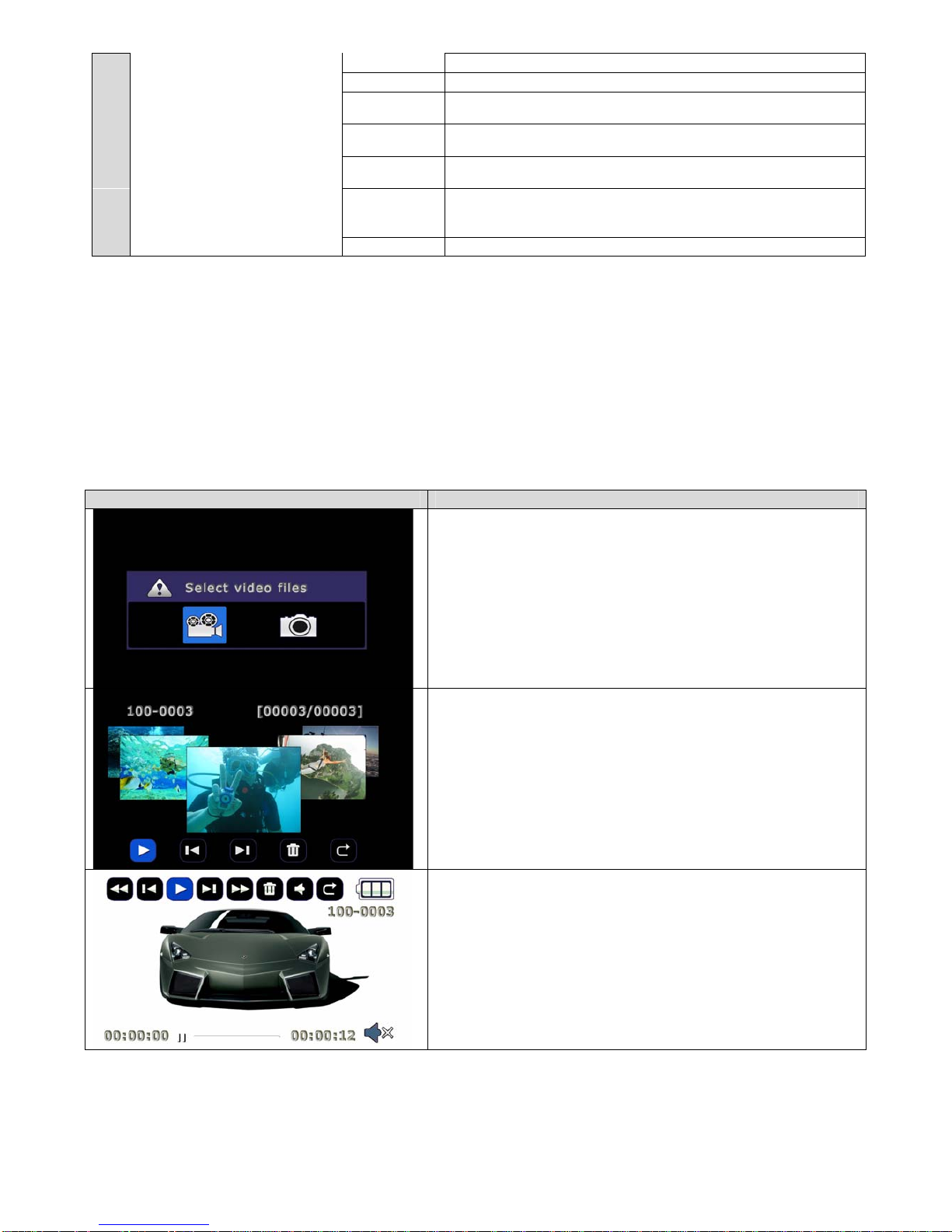

Switch Mode #3 Press the MODE button and hold for 2 seconds to switch modes (Video, Photo, Playback)

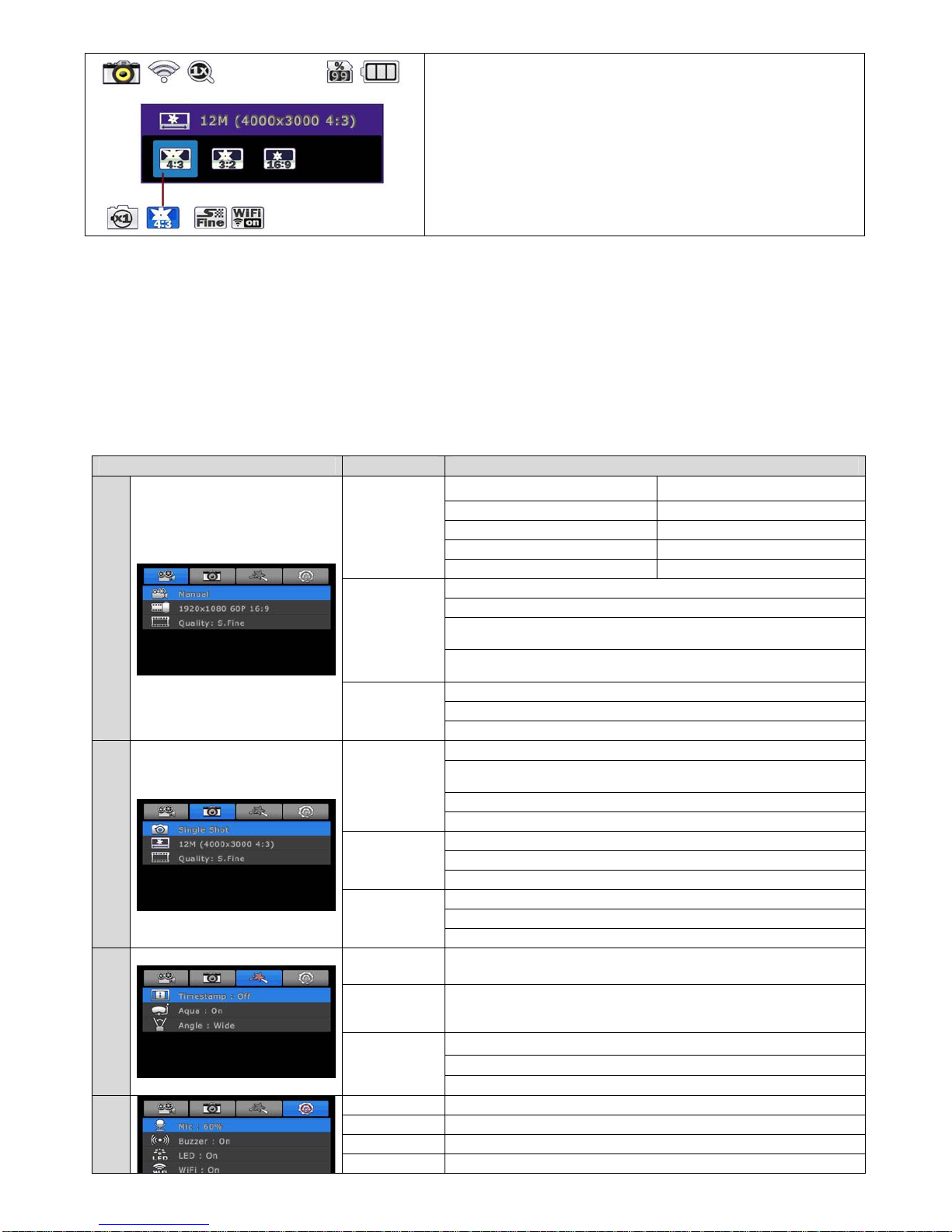

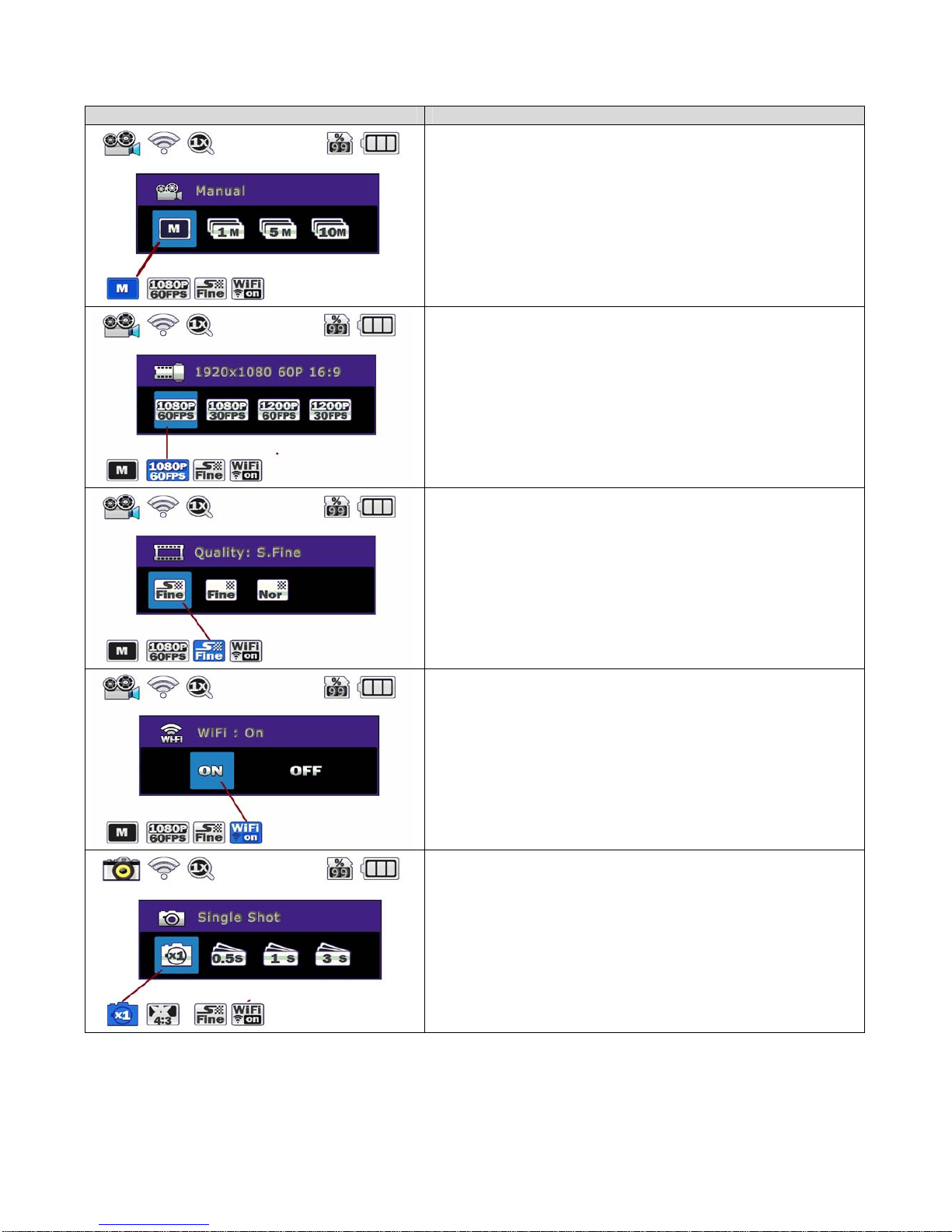

Quick Setup #2 Press the QUICK SETUP button to change quick setup before recording

Enter Quick Setup #1 Press the SELECT button to confirm to enter the quick setup menu

User Setup #2 Press the SETUP button and hold for 2 seconds to enter user setup mode

Change setting category #2 Within user setup mode, press UP button to switch category

Enter setting menu in setup #3 Within user setup mode, press DOWN button to enter setting menu in each category

Confirm setting menu #1 Within user setup mode, press SELECT button to confirm setting menu

Zoom Mode #3 Press ZOOM button to enter zoom mode.

Zoom-in

2 번

Press UP button to zoom-in (max. 4x enlarge)

Zoom-out

3 번

Press DOWN button to zoom-out
Press DOWN button from 1x zoom, to exit from zoom mode.

3. Start the camera

1) Open the battery cover and insert ISAW Li-ion battery.

2) Open the battery cover and insert Micro SD card (The camera does not record when there is no Micro SD inside)

3) Press the POWER (#1) button and hold for two seconds. The camera turns on and LCD monitor shows camera image.

4. LCD screen shot

Video screen Photo screen

No. Functions Description

①

Current mode Shows current shooting mode (video or photo)

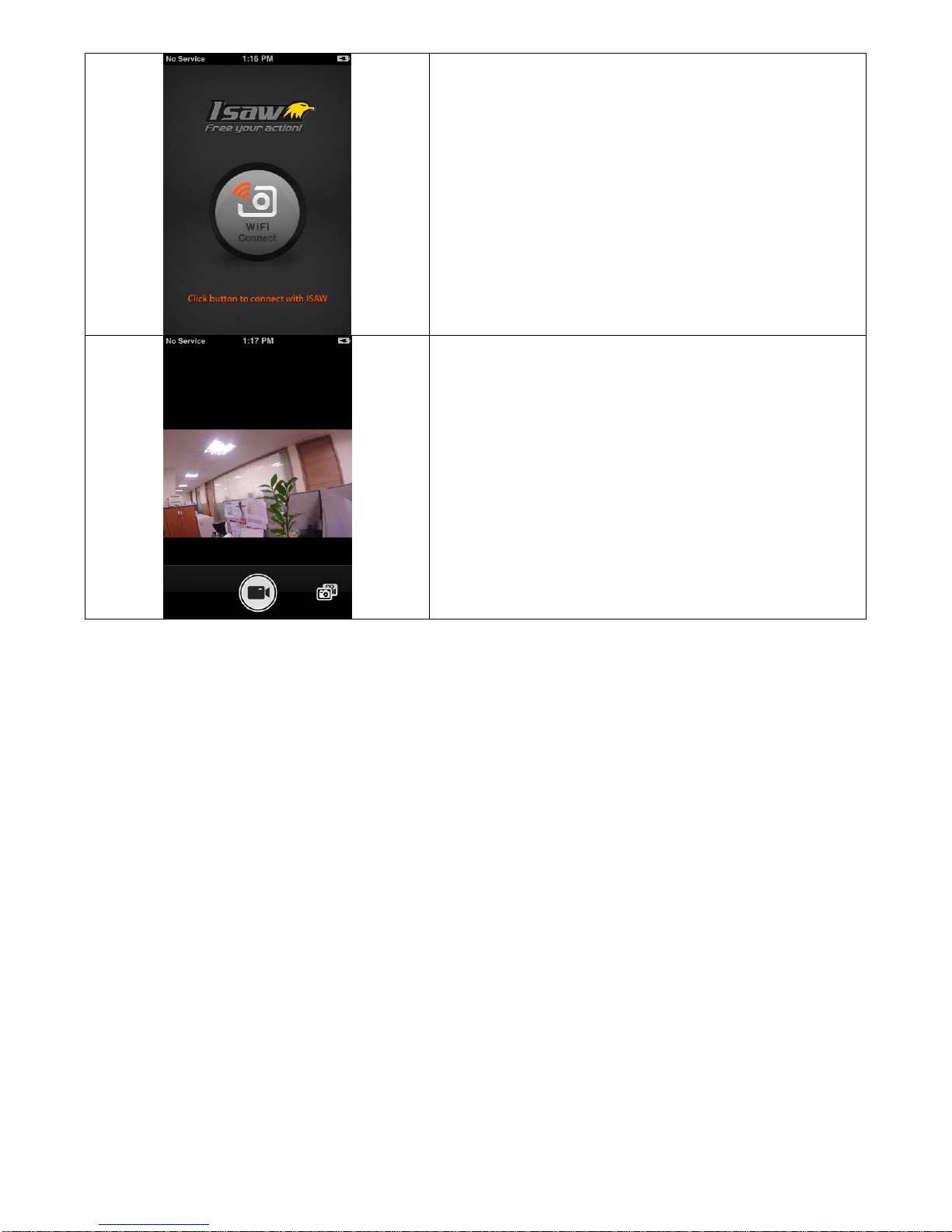

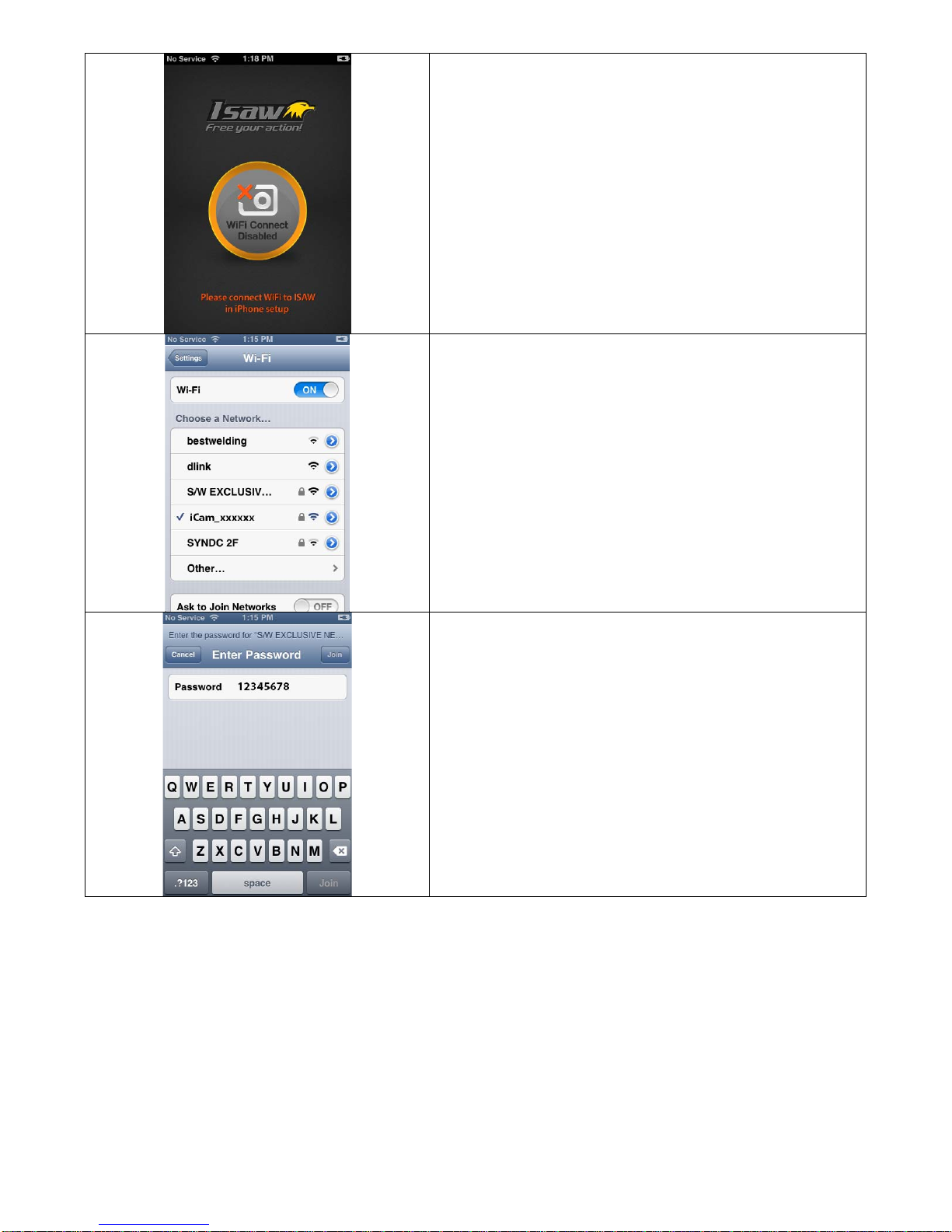

②

WiFi Shows WiFi connection status

③

Zoom Shows current zoom level

④

Memory capacity Shows usable memory capacity in percentage (%)

⑤

Battery Shows battery capacity status

⑥

Recording option While shooting video or photo, it shows current recording option

⑦

Resolution While shooting video or photo, it shows resolution and speed

⑧

Image quality While shooting video or photo, it shows image quality

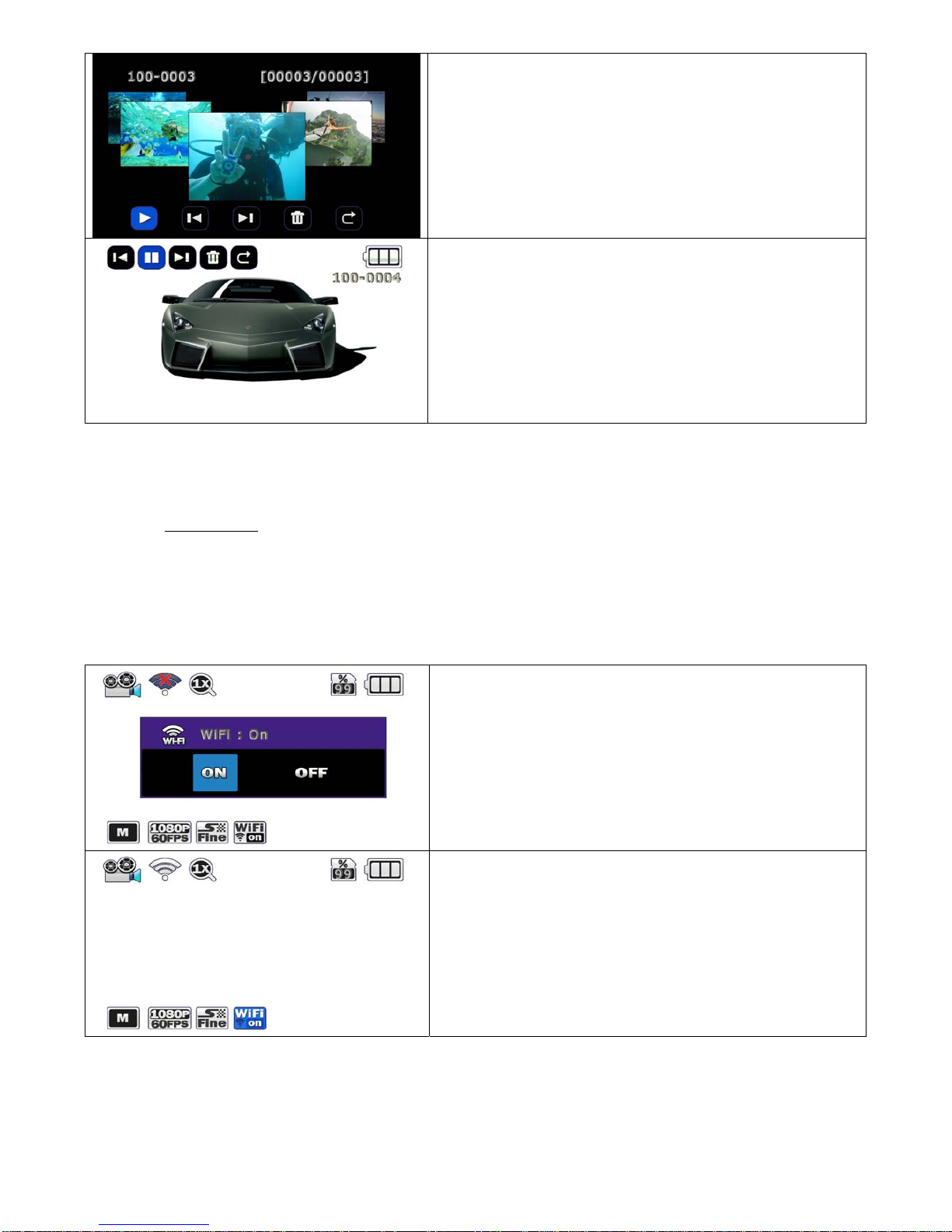

⑨

WiFi Hotkey Shows WiFi connectivity (WiFi on/off)

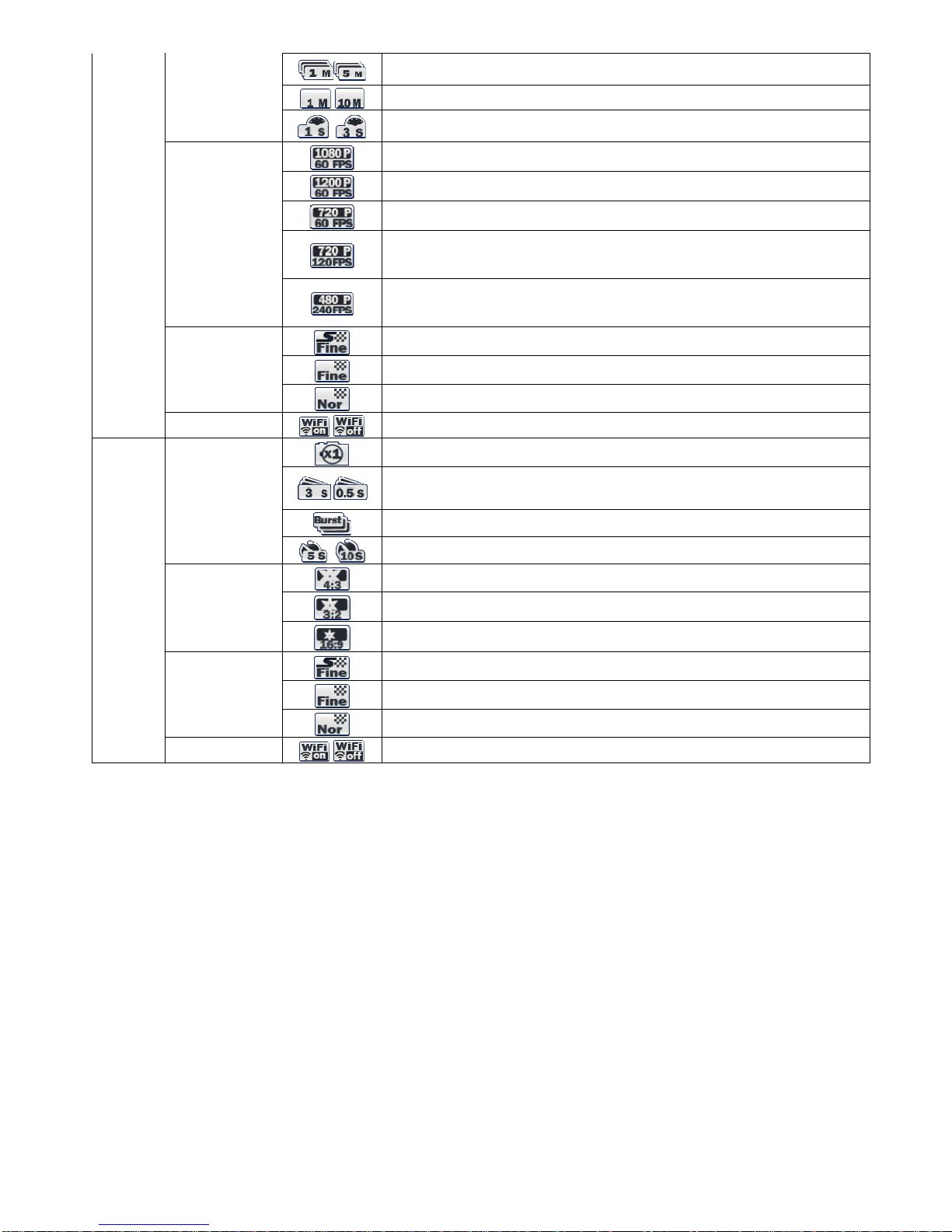

5. Graphical icon description

Mode

Function Icons Description

ALL

Current mode

Video Recording Mode

Photo Shooting Mode

WiFi

WiFi signal activated

WiFi signal deactivated

Zoom

Zoom level (Upto 4x)

* Zoom function will be disabled during high speed recording (720p 120fps / 480p 240fps)

Memory capacity

Shows usable memory capacity in percentage (%)

Battery

Shows battery capacity status

VIDEO Recording

Video recording starts and stops by shutter button only.
