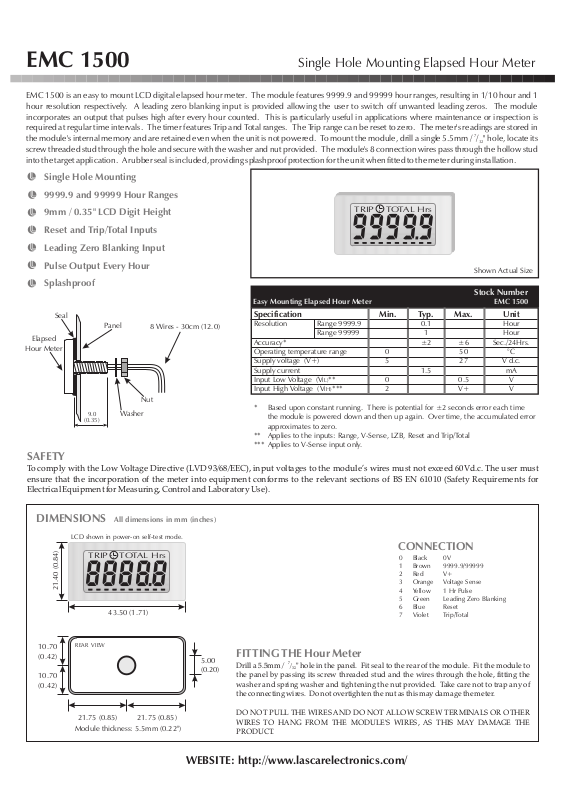

EMC 1500 User Manual
EMC 1500 Single Hole Mounting Elapsed Hour Meter
EMC 1500 is an easy to mount LCD digital elapsed hour meter. The module features 9999.9 and 99999 hour ranges, resulting in 1/10 hour and 1
hour resolution respectively. A leading zero blanking input is provided allowing the user to switch off unwanted leading zeros. The module
incorporates an output that pulses high after every hour counted. This is particularly useful in applications where maintenance or inspection is
required at regular time intervals. The timer features Trip and Total ranges. The Trip range can be reset to zero. The meter's readings are stored in
the module's internal memory and are retained even whenthe unit is not powered. To mount the module, drill a single 5.5mm/ / " hole, locate its
screw threaded stud through the hole andsecure with the washer and nut provided. The module's 8 connectionwires pass through the hollow stud
into the targetapplication. A rubber sealis included, providing splashproofprotection for theunit when fitted tothe meter duringinstallation.
Single Hole Mounting
9999.9 and 99999 Hour Ranges
9mm / 0.35" LCD Digit Height
TRIP
TOTAL
Hrs
Reset and Trip/Total Inputs
Leading Zero Blanking Input
----------- - - - - - - - - -
7
32
Pulse Output Every Hour
Shown Actual Size
Splashproof
Stock Number
Easy Mounting Elapsed Hour Meter EMC 1500
Seal
Elapsed
Hour Meter
9.0
(0.35)
Panel
8 Wires - 30cm (12.0)
Nut
Washer
Specification Min. Typ. Max. Unit
Resolution Range 9999.9 0.1 Hour
Accuracy* ±2 ±6 Sec./24Hrs.
Operating temperature range 0 50 °C
Supply voltage (V+) 5 27 V d.c.
Supply current 1.5 mA
Input Low Voltage (V ** 0 0.5 V
Input High Voltage (V *** 2 V+ V
* Based upon constant running. There is potential for ±2 seconds error each time
the module is powered down and then up again. Over time, the accumulated error
approximates to zero.
** Applies to the inputs: Range, V-Sense, LZB, Reset and Trip/Total
*** Applies to V-Sense input only.
Range 99999 1 Hour
IL)
IH)
SAFETY
To comply with the Low Voltage Directive (LVD 93/68/EEC), input voltages to the module’s wires must not exceed 60Vd.c. The user must
ensure that the incorporation of the meter into equipment conforms to the relevant sections of BS EN 61010 (Safety Requirements for
Electrical Equipment forMeasuring,Control and Laboratory Use).
DIMENSIONS All dimensions in mm (inches)
LCD shown in power-on self-test mode.
CONNECTION
21.40 (0.84)
TRIP
TOTAL
----------- - - - - - - - - -
43.50 (1.71)
Hrs
0 Black 0V
1 Brown 9999.9/99999
2 Red V+
3 Orange Voltage Sense
4 Yellow 1 Hr Pulse
5 Green Leading Zero Blanking
6 Blue Reset
7 Violet Trip/Total
10.70
(0.42)
10.70
(0.42)
REAR VIEW
21.75 (0.85)
Module thickness: 5.5mm (0.22")
21.75 (0.85)
5.00
(0.20)
FITTING THE Hour Meter
Drill a 5.5mm / " hole in the panel. Fit seal to the rear of the module.
the panel by passing its screw threaded stud and the wires through the hole, fitting the
washer and spring washer and tightening the nut provided. Take care not to trap any of
the connecting wires. Do
DO NOT PULL THE WIRES AND DO NOT ALLOW SCREW TERMINALS OR OTHER
WIRES TO HANG FROM THE MODULE'S WIRES, AS THIS MAY DAMAGE THE
PRODUCT.
7
/
32
not overtighten the nutas this may damage the meter.
WEBSITE: http://www.lascarelectronics.com/
Fit the module to
LASCAR ELECTRONICS LTD.
MODULE HOUSE, WHITEPARISH,
TEL: +44 (0)1794 884567 FAX: +44 (0)1794 884616
WILTSHIRE SP5 2SJ UK
E-mail: sales@lascar.co.uk
LASCAR ELECTRONICS INC.
3750 West 26th Street,
TEL: +1 (814) 835 0621 FAX: +1 (814) 838 8141
Erie, PA 16506 USA
E-mail: us-sales@lascarelectronics.com
LASCAR ELECTRONICS (HK) LIMITED
FLAT C, 5/FL., LUCKY FTY. bldg., 63-65 HUNG TO ROAD
KWUN TONG, KOWLOON, HONG KONG
TEL: +852 2797 3219 FAX: +852 2343 6187
E-mail: b4lascar@samsongroup.com.hk
WIRE FUNCTIONS
0. Black 0V Negative power supply connection.
1. Brown RANGE Do not connect for 99999 Hour range.
2. Red V+
3. Orange V-SENSE Connect toV+to start/continuecountingelapsedhours.
4. Yellow PULSE Normally at 0V, this output goes High (+3.3V) every hourin theselected mode.
5. Green LZB Do not connect to display leading zeros.
6. Blue RESET Connect momentarily to 0V toresetthedisplaytozero(internally connected to V+ via pull-up resistor).
7. Violet TRIP/TOTAL DonotconnectforTOTAL modeoperation.InTOTAL mode,theelapsedhourmetercannotberesettozero.
Warning : Do not connect the following wires to V+: RANGE, PULSE, LZB, RESET, TRIP/TOTAL, as this may
damage the meter. The user must incorporate suitable protection circuitry in applications where
the voltage to any of the meter's wires can exceed 27V d.c., including transient conditions, else
damage to the meter may occur. In particular, for applications in harsh electrical environments,
e.g. automotive, suitable external protection must be provided to protect against "load dump"
conditions, transients, etc.
Connect to 0V for 9999.9 Hour range.
Positivepower supplyconnection.
Connect to 0V or do not connect to read TRIP or TOTALvaluewithoutcountingelapsedhours.
Connect to 0V to blank all leading zeros.
When reading is 0000.0 or 00000, leading zeros are not blanked.
Connect to 0V for TRIP mode operation. In TRIP mode, the elapsed hour meter can be reset to zero.
DISPLAY FUNCTIONS
8888.8 The5 digitreadout displayselapsedtimein hours.
TRIP
TOTAL
----------
This symbol is displayed when trip mode is selected (see WireFunctionsabove)
This symbol is displayed when total mode is selected (see WireFunctionsabove)
The 10-segment incrementing bar indicates that the module is working correctly and countinghours.
APPLICATIONS
V+
S1
Red Orange
TOTAL
Hrs
-
Black
0V
Basic 3-wire operation:
- 99999 Hour range
- Leading Zeros are displayed
- Timing in TOTAL mode
Open S1 to read TOTAL value
without counting hours.
V+
RedOrange
TOTAL
Hrs
-
Black
Green
S1
Leading zeros blanked.
Close S1 to select TRIP mode.
V+
Violet
0V
V+
Red
Orange
TRIP TRIP
Hrs
-
Brown
Black
9999.9 Hour range
- Leading Zeros are displayed
Violet
0V
Red
Orange
Hrs
Yellow
-
Black
Brown
Violet
Using the PULSE O/P to drive an LED.
The LED will illuminate once after every hour.
LED
R
0V
- Timing in TRIP mode
Specifications liable to change without prior warning EMC 1500 Issue 8 December/2002 M.C. Applies to EMC 1500/3
