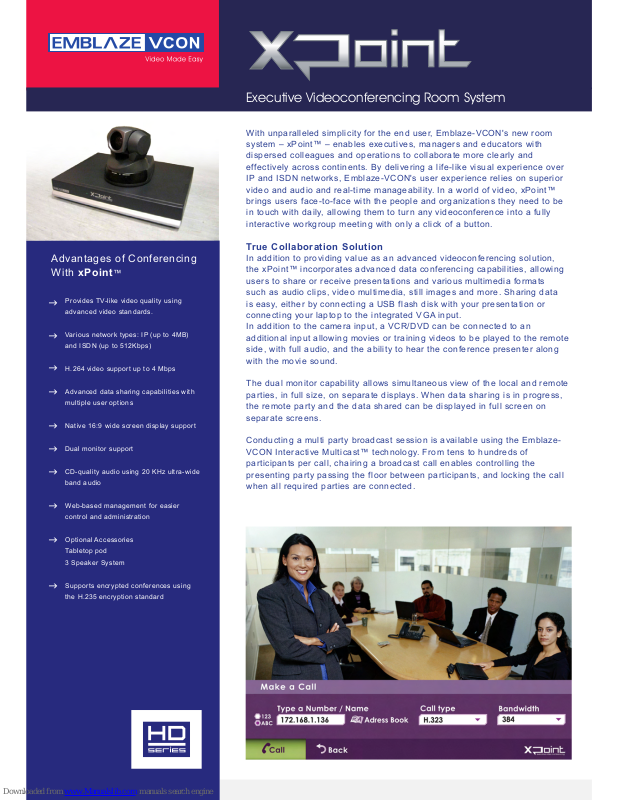

Page 1
With unparalleled simplicity for the end user, Emblaze-VCON's new room
system – xPoint™ – enables executives, managers and educators with
dispersed colleagues and operations to collaborate more clearly and
effectively across continents. By delivering a life-like visual experience over
IP and ISDN networks, Emblaze-VCON's user experience relies on superior
video and audio and real-time manageability. I n a wo rl d of v id eo , xP oi nt ™
brings users face-to-face with the people and organizations they need to be
in touch with daily, a ll ow in g th em t o tu rn a ny v id eo co nf er en ce i nt o a fu ll y
interactive workgroup meeting with only a click of a button.
True Collaboration Solution
In addition to providing value as an advanced videoconferencing solution,
the xPoint™ incorporates advanced data conferencing capabilities, allowing
users to share or receive presentations and various multimedia formats
such as audio clips, video multimedia, still images and more. Sharing data
is easy, e it he r by c on ne ct in g a US B fl as h di sk w it h yo ur p re se nt at io n or
connecting your laptop to the integrated VGA input.
In addition to the camera input, a VCR/DVD can be connected to an
additional input allowing movies or training videos to be played to the remote
side, with full audio, and the ability to hear the conference presenter along
with the movie sound.
The dual monitor capability allows simultaneous view of the local and remote
parties, in full size, on separate displays. When data sharing is in progress,
the remote party and the data shared can be displayed in full screen on
separate screens.
Conducting a multi party broadcast session is available using the EmblazeVCON Interactive Multicast™ technology. Fr om t en s to h un dr ed s of
participants per call, chairing a broadcast call enables controlling the
presenting party passing the floor between participants, and locking the call
when all required parties are connected.
Pro vi des TV- like video qu al ity usin g
adv an ced vide o sta nda rd s.
Vari ous n etw ork t ypes: IP (u p to 4MB)
and I SDN (up to 51 2Kb ps )
H.2 64 vi deo s uppor t u p to 4 Mbp s
Adv an ced data shar ing c apa bilit ies w ith
mul ti ple user opti ons
Nat iv e 1 6:9 w ide s cre en di splay supp ort
Dua l mon itor suppo rt
CD- qu ali ty au dio u sin g 20 KHz u ltra- wid e
ban d aud io
Web -base d m an age ment for e asi er
con tr ol and a dmini str at ion
Opt io nal Acces sorie s
Table top p od
3 S pe ake r Sys tem
Sup po rts encr ypted co nf ere nces using
the H .23 5 enc rypti on st and ard
Advantages of Conferencing
With xPoint
™
Executive Videoconferencing Room System
Page 2
Video Specifications
Transmission Speed
H.323: 64 Kbps - 4Mbps
ISDN 64 Kbps -512 Kbps (4xBRI)
Video Standards
H.261, H.263, H.263+/++
H.264
Live Video Resolution
QCIF (176 x 144 pixels)
QVGA (320 x 240 pixels)
CIF (352 x 288 pixels)
SIF (352 x 240 pixels)
VGA (640 x 480 pixels)
4CIF (704 × 576)
4SIF (704 x 480)
720p (1280 x 720 pixels) incoming
only
Video Frame Rate
Up to 10 fps: 64 Kbps
Up to 20 fps: 96 to192 Kbps
Up to 30 fps: 256 Kbps and higher
Video Inputs
1 Composite and S-Video
Video Outputs
1 each: S-video, Composite, Digital
Video Interface (DVI), VGA
HD SimulcastTM
Chair or Participant in any
Interactive
Multicast session
Integrated Broadcast Viewer
Uses bandwidth-efficient IP
multicast
Audio Specifications
Audio Features
Full duplex echo cancellation
Automatic noise suppression (ANS)
Automatic gain control (AGC)
Audio Standards
20 KHz: AAC-LD
7 KHz: G.722, G.722.1
3.4 KHz: G.711, G.723.1,
G.728,G.729
AMR (3G)
Executive Videoconferencing Room System
Video Made Easy
Emblaz e-VCON Ltd.
Headqu arters
Beit R akefet
1 Embl aze Squa re
POB 22 20
Ra'ana na 43662
Israel
Tel: +972-9- 7627800
Fax: + 972-9-76 27801
Emblaz e-VCON, Inc.,
Americ as
2 Univ ersity P laza, S uite 201
Hacken sack , N J 07601
USA
Tel: +1-201- 883-122 0
Fax: + 1-201-88 3-1229
Emblaz e-VCON China
Repres entative Office
Unit 1 321, Tower B. COFCO Pl aza
8 Jian guomenne i Avenue
Beijin g, 10005
China
Tel: +86-10- 6526-97 91
Fax: + 86-10-65 26-9790
Emblaz e-VCON GmbH
German y
Schmel lerstr. 23
D-8033 7 Munche n
German y
Tel: +49-89- 7675714 2
Fax: + 49-89-76 757143
Emblaz e-VCON Italy
Via Por tuense 1 555
Commer city M27
00050 Ponte Ga leria ( Rome)
Italy
Tel: +39-06- 400-43110
Fax: + 39-06-40 0-43113
Emblaz e-VCON UK
London House, 42 Broo k St.
London , W1K 5D B
United Kingdom
Tel: +44 (0) 117 302 679 5
Fax: + 44 (0)117 30 2 6794
Data Specifications
Data Sharing Methods
Laptop plug in (via Tabletop Pod)
USB storage key
Documents: PPT, PPS
Video clips (AVI, MPEG, WMV, etc.)
Audio clips (WAV, MP3)
Graphic files (BMP, GIF, TIF, etc.)
HD DualStreamTM
Sharing of file, or the VGA input
H.239 support
Tandberg DuoVideo support
Sending and receiving capability
1 live video source + 1 data source
Resolutions supported:
XGA, SVGA, VGA, CIF, QVGA, QCIF,
4CIF
Networking Specifications
Standards Supported
ITU-T: H.323 v4.2
Annex Q (FECC)
ISDN: H.320, H.221, H.242, H.230
H.323 QoS Features
DiffServ
IP Precedence
Firewall port sync
NAT IP address mask
Port pinholing
Adaptive Bandwidth Adjustment
Packet loss recovery (FEC)
Packet ordering
Packet duplication control
Jitter correction
Lip sync correction
Overhead prediction
Max packet size adjustment
Peripheral Specifications
Pan-Tilt-Zoom Camera Unit
Picture - 1/4-color CCD
Focal length - 3.1mm to 31mm
Pan-Tilt range - +/-100o Pan, +/-25o
Tilt
Zoom range - 10x (optical), 40x
(digital)
Horizontal resolution
460 TVL (PAL), 470 TVL (NTSC)
Monitors Configurations
Single DVI, VGA or TV
Dual: DVI + VGA
Dual: VGA + TV
Dual: DVI+TV
Features Specifications
Dialing Modes
Manual
Speed dial
Personal address book
Online directory
Multicast chair
Broadcast viewer
Security
Encryption using H.235 (AES)
Using Emblaze-VCON
SecureConnect
DES, 3DES and AES support
AES is NIST validated
Supports Emblaze-VCON
Frontier
— Firewall traversal
— Network address translation
Supports restricted access to
users via admin
Control
International remote control
Embedded web-based
management
Directory Services
1000+ local number directory
10,000+ global number
directory
H.350 support (MXM mode)
LDAP online directory support
- OpenLDAP
- Microsoft ILS, SiteServer,
Active
Directory and Exchange
- Sun iPlanet
- Netscape Directory
Search and filter queries
Environmental
0 - 40°C temperature
15 - 80% humidity
Universal power supply
Operating voltage: 120V or
230V
Operating frequency: 50 Hz or
60 Hz
Language Support
English, French, German,
Italian, Spanish (Spain and
Latin), Portuguese (Brazil),
Chinese and Japanese
Specifications
