EMBEST S3CEV40 EVB User Guide

Cover

Embest S3CEV40 EVB

User Guide

Version 2.1

Room 210, Luohu Science&Technology Building,

#85 Taining Road, Shenzhen, Guangdong, China

Tel: +86-755-25635626/25635656/25631365 Fax: +86-755-25616057

E-mail: market@embedinfo.com

http://www.embedinfo.com

support@embedinfo.com

Content

FOREWORD..................................................................................................................3

CHAPTER I INTRODUCTION TO EMBEST S3CEV40 ................................................. 4

1.1 Overview........................................................................................................................4

1.2 Embest S3CEV40 Development Kit ..............................................................................5

1.3 Features of Embest S3CEV40........................................................................................6

CHAPTER II INSTALLATION AND USE ......................................................................7

2.1 Structure of Embest S3CEV40 Development Board......................................................7

2.2 Power Supply of Embest S3CEV40...............................................................................8

2.3 JTAG Connection...........................................................................................................9

2.4 Serial Port Connection .................................................................................................10

2.5 Hardware Testing ......................................................................................................... 11

CHAPTER III HARDWARE STRUCTURE .......................................................................19

3.1 Electric circuit structure.................................................................................................19

3.2 Core Electric Circuit ......................................................................................................20

3.3 Embest S3CEV40 Communication Port Circuit ............................................................25

3.4 External Expanded Module............................................................................................28

3.5 I/O usage ........................................................................................................................33

3.6 Bus Expansion................................................................................................................37

CHAPTER IV SOFTWARE SYSTEM ...........................................................................38

4.2 Introduction to Start Program.........................................................................................42

4.3 µCOS-II..........................................................................................................................50

4.4 Example Codes ..............................................................................................................59

CHAPTER V CUSTOMER SERVICE ............................................................................61

APPENDIX A JUMPER AND SWITCH SET ..................................................................62

Foreword

This manual is prepared for users of Embest S3CV40 development board of

Embest Info & Tech Co., Ltd. The manual contains the following chapters:

Chapter I Introduction to Embest S3CEV40

Chapter II Installation and Use

Chapter III Hardware Structure of Embest S3CEV40 Board

Chapter IV Software System of Embest S3CEV40

Chapter V After-sales Service and Technical Support

Appendix Jumper and Switch Setting

When using the Embest S3CEV40 development board and the Manual, the

user can also refer to the circuit diagram (included in the CD enclosed).

Due to the limited time, errors may exist in this manual. We are open to

any corrections from readers. Thank you!

No part of this document may be reproducted or transmitted in any form or

by any means without prior written consent of Embest Info&Tech Co.,LTD.

Embest

®

is registered trademarks of Embest Info&Tech Co.,LTD.

Chapter I Introduction to Embest S3CEV40

1.1 Overview

Embest S3CEV40 development board is an all-purpose ARM development

board developed by Shenzhen Embest Info & Tech Co., Ltd. It is the best choice

for designing reference , development and application of Samsung S3C44B0x

processor（ARM7TDMI RISC CPU core）. It is also an ideal platform for learning

& teaching of ARM and embedded software.

Embest S3CEV40 development board hardware system includes memory,

I/O, digital LED, LCD, touch screen, keyboard and audio output.

Communication interfaces include serial ports, Ethernet interface, USB

interface and I2C interface. Advanced extension includes IDE disk, CF card and

a Flash electronic disk. It is an all-purpose development board with a complete

set of interfaces.

Embest S3CEV40 development board has a multi-functional test program

and driver with uCOS-II and uCLinux real-time operating system already

installed. Embest S3CEV40 development board provides a standard 20-pin

JTAG interface with which the user can fully control CPU and test the program

via JTAG.

1.2 Embest S3CEV40 Development Kit

A complete set of Embest S3CEV40 development kit includes:

 Embest S3CEV40 development board

 RS232 serial port line

 5V DC power adapter

 USB line

 Embest S3CEV40 CD-ROM:

- Manual

- Circuit diagram

- Start program and functional module test programs

- All source programs of real-time operating system uCOS-II

When opening the package, please check if any of the above items is

missing. If so, please contact your distributor right away.

1.3 Features of Embest S3CEV40

Hardware specification:

 5.0V DC or USB power supply

 2 M bytes 16-bit Flash

 8 M bytes 16-bit SDRAM

 4K bit EEPROM with IIC BUS

 2x RS232

 USB connecter

 10M Ethernet interface connector

 microphone input

 IIS audio frequency output (speaker out)

 16 M Bytes Nand Flash

 External IDE port

 LCD&TSP touch screen port

 320×240 LCD * (optional)

 4×4 keyboard * (optional)

 Reset button

 2 interrupt buttons and 2 LEDS

 8 segment leds

 20-pin JTAG interface connector

 4 groups 2×20 PIN expansion connectors of CPU

Chapter II Installation and Use

ard

This chapter is mainly an introduction to how to install and connect the

Embest S3CEV40 development board, and how to conduct basic software and

hardware testing.

2.1 Structure of Embest S3CEV40 Board

Embest S3CEV40 development board consists of three parts: mainboard,

LCD sub-board and keyboard sub-board. The structure of the development

board is shown in Figure 2-1:

Main

Figure 2-1 Integral Diagram of Embest S3CEV40 Development Board

LCD

Keybo

The structure of the mainboard of Embest S3CEV40 is shown in Figure

2-2:

8-SE

EARPhone

MicroPhon

Ethernet

USB

SW3

RTL8019AS

IDE

FLASH

SDRAM

UART1

SSFD

S3C44B0

UART0

SW1,SW2

LCD&TS

Keyboar

SW4~6

Power JTAG

RESET

SB2

LED1

LED2

SB3

Extend

Figure 2-2 Structure of Mainboard of Embest S3CEV40 Development

Board

2.2 Power Supply of Embest S3CEV40

Embest S3CEV40 development board uses nominal current of

500mA/5VDC. The board is assembled with a special-purpose DC adapater, so

that power can be supplied to the board via the adapater or an external.

2.3 JTAG Connection

Figure 2-3 is the model of Embest S3CEV40 development board. The host

is connected to the development board via JTAG emulator. The operating and

developing environment of the host, e.g. Embest IDE, can be directly

downloaded with the emulator and then debugged.

Figure 2-3 Development Model of Embest S3CEV40

Embest S3CEV40 development board provides a standard 20-pin JTAG

interface. User can use the JTAG line attached to this board to connect the

emulator.

2.4 Serial Port Connection

User can use the serial port line enclosed with the Embest S3CEV40

development board to connect the development board and the host. The host

communicates with the development board through the HyperTerminal (PC),

so as to facilitate preliminary hardware testing.

The serial port line connects port UART0 of the development board. The

HyperTerminal setting for host operating is serial port COM1 or COM2 and the

baud rate is 115200, as shown in Figure 2-4:

Figure 2-4 HyperTerminal Serial Port Setting

When correctly connected, the HyperTerminal will will be shown as in

Figure 2-5.

2.5 Hardware Testing

A detailed hardware test program is provided by Embest Info & Tech Co.,

Ltd. Open the disk attached to the board, copy S3CEV40 routine file to

EmbestIDE Installation Directory\Samsung folder, run corrpesponding files in

the workspace and you can test any individual hardware of the board.

User can also use the testing program provided by Embest Info & Tech Co.,

Ltd to test the hardware of this board in following steps:

1. Use the S232 standard serial port line to connect the development board

and the host,

2. Turn on the power,

3. All the 8-segment Digit LEDs of the development board are on. LED1 and

LED2 flashes in turn,

4. LCD screen displays the information showed as Figure 2-21. The

HyperTerminal output is shown in Figure 2-5:

Embest S3C44B0X Evaluation Board(S3CEV40)

*==================================*

*= Embest Info&Tech Co.,LTD. =*

*==================================*

*========== R&D CENTER ==========*

*======= 86-755-25631365 ========*

*===== support@embedinfo.com ======*

*=== Version 2.1 ===*

Please select test item:

1: 8LED test 2: LCD test 3: Keyboard test

4: Sound test 5: Timer test 6: Ethernet DHCP test

7: Flash test 8: IIC test 9: Ethernet TFTP test

0: TouchScreen test

>

Figure 2-5 Power-On/Reset HyperTerminal Output

User can use the PC keyboard to enter 0-9 to select and test any specific

hardware:

1 8LED Test: Enter “ 1 ” and the HyperTerminal output will be shown as in

Figure 2-6. Normally, the digit LED of the development board will count from

0 - F, and return back to the initial state after 0 – F is displayed.

> 1

Look at 8-segment Digit LED...

Figure 2-6 HyperTerminal for Digit LED Test

2 LCD Test: Enter “ 2 ” and the HyperTerminal output will be shown as in

Figure 2-7. The LCD screen displays a rectanglular frame and the name of

Embest Info & Tech Co., Ltd, as shown in Figure 2-8, an then returns back to

the initial state.

> 2

Look at LCD...

Figure 2-7 HyperTerminal for LCD Test

Embest Info&Tech Co.,LTD.

Figure 2-8 LCD Screen

3 Keyboard Test: Enter “ 3 ” and the HyperTerminal output will be shown

as in Figure 2-9:

> 3

Please press one key on KeyBoad(4 x 4) and look at LED ...

Figure 2-9 HyperTerminal for Keyboard Test

User can use the small keyboard of the development board to enter 0-F

and the digit LED of the development board will automatically display the

corresponding value.

4 Sound Test: Enter “ 4 ” and the HyperTerminal output will be as shown

in Figure 2-10:

> 4

CODEC: Philips UDA1341 (U5)

Please listen to sound.

Press any key to exit...

Figure 2-10 HyperTerminal for Audio Test

When the audio output is normal, you can hear a continuous “ De-Dee ”.

Press any key on the PC keyboard and return to the initial state.

5 Timer Test: Enter “ 5 ” and the HyperTerminal output will be as shown

in Figure 2-11:

> 5

Timer Start, press any key to exit...

****

Figure 2-11 HyperTerminal for Timer Test

If the timer is normal, a “*” will be printed out at regular interval. Press any

key on the PC keyboard to return to the initial state.

6 Ethernet DHCP: Dynamic configuration of the IP address. Before

Ethernet DHCP test, user must run the DHCP Server program or other similar

dynamic configuration tool on a local or networked PC. The DHCP Server

software used by this example is shared, so it is not available in the disk. User

may use any other similar tool software. Enter “ 6 ” into the PC HyperTerminal

after DHCP is conFigure d and parameter is set. If no dynamic IP configuration

software is running, or if the dynamic IP configuration software is running

abnormally, the HyperTerminal output will be as shown in Figure 2–12. Press

“ ESC ” and return to the initial state.

> 6

Waiting DHCP server to Respond.

Press any key to exit ...

Figure 2-12 Waiting for DHCP Server

When the IP address is successfully conFigure d, return to the conFigure d

IP. The output will be as shown in Figure 2-13.

Receive DHCP Message from server 192.192.192.88

Config local ip address 192.192.192.5

Figure 2-13 Output After Successful DHCP Configuration

7 Flash Test: Enter “ 7 ” and the HyperTerminal output will be as shown in

Figure 2-14.

> 7

SST39VF160-90 (U12)

Write 0x000-0xff to flash address 0x30000...

Flash Write and Check Success!

Figure 2-14 HyperTerminal for Flash Test

Sequentially write 0x00-0xff into Flash address (0x30000). Read and

compare. When it is successful, the “ Success” prompt will be displayed. Press

any key on the PC to return to the initial state.

8 IIC Test: Enter “ 8 ” and the HyperTerminal output will be as shown in

Figure 2-15.

> 8

IIC Test using AT24C04 (U18)...

Write char 0-f into AT24C04

Read 16 bytes from AT24C04

0 1 2 3 4 5 6 7 8 9 a b c d e f

Figure 2-15 HyperTerminal for IIC Test

Th e te st p rog ram w ri t es 0-F int o c e rt a in add res s of AT 2 4C 04, and , f r om t he

same address, read the value out to the HyperTerminal.

9 Ethernet TFTP test: Enter “ 9 ” and the HyperTerminal output will be as

shown in Figure 2-18. User can run TFTPDown software or any other TFTP

download software on the host terminal to match development board

communications. TFTPDown software, whose name is TFTPDown.exe, can be

found in the disk attached to the development board. Before running, a static

IP address shall be conFigure d on the host. Usage Notes follows:

1.To set static IP address under MSDOS state:

arp -s 192.192.192.77 00-06-98-01-7e-8f

arp –a

Check if the configuration is successful

Set static IP

2. Congifure according to actual situation after running TFTPDown.exe.

The interface for host running TFTPDown is shown in Figure 2-16. Press

“ ESC ” on the PC keyboard to return to the initial state.

allFF1K.bin is a test file. Other bin files may be used. User can self-define to

download the Flash address.

Figure 2-16 Operating Interface of TFTPDownload

After setting according to the parameters in the above diagram, click

“ Download ”. If TFTP is running correctly, the following prompt will be

displayed:

Figure 2-17 Successful Test of TFTP Download

TFTP download file will give a download failure prompt when the network of

development board is not communicating normally or when the hardware of

development board is abnormal. User should check the network

communication before debugging.

> 9

Do you want to conFigure local IP ?

Y/y to conFigure local IP addr; D/d to use Default IP addr(192.168.0.200).

Press any key to continue ... ( y ) Please input IP address(xxx.xxx.xxx.xxx) then press ENTER: Press Y or

y to reset IP

192.192.192.77 Input the correct Enternet IP address Manual Set local ip 192.192.192.77

Press any key to exit ... Then run TFTPDown.exe to download bin code to FLASH

Figure 2-18 Ethernet TFTP test Figure

0 TouchScreen Test: When this test is activated, the HyperTerminal

output will be as shown in Figure 2-19. The touch screen is divided into 16

panes and displays 0~F. When touched, the LCD touch screen outputs a

corresponding coordinate value at the HyperTerminal through the serial port,

and, (at the same time, outputs the previous touch coordinate, whose origin is

near the top left of a 4x4 keyboard) as shown in Figure 2-20. The touch

screen, theoretically, can identify 1 unit. An identification interval of 10 units is

suggested for touch-screen design. The ex-work test program only finished the

digital-analog conversion test on the touch screen. As to the coordinate

location, please refer to TouchScreen_Test routine. Press any key on the PC

keyboard to return to the initial state.

> 0

Touch Screen coordinate Rang in: (Xmin,Ymin) is :(xxx,xxx) (Xmax,Ymax) is :(xxx,xxx) To use current settings. Press N/n key. Want to Set Again(Y/N)? Y or y

Now press the diagonal point to ensure the coordinate

Touch TSP's Cornor to ensure Xmax,Ymax,Xmax,Xmin User touch coordinate(X,Y) is :(0239,0679) first diagonal point User touch coordinate(X,Y) is :(0608,0303) second diagonal point Touch Screen coordinate Rang in: (Xmin,Ymin) is :(0239,0303) (x1,y1) (Xmax,Ymax) is :(0608,0679) (x2,y2) To use current settings. Press N/n key. Want to Set Again(Y/N)? N or n

Now can get the coordinate value after press the key

* The Normal result (x2-x1) a little larger than 320 and (y2-y1) a little larger than 240, otherwise press Y or y to ensure again.

Figure 2-19 HyperTerminal Output for Touch Screen Test

Pixel: 320 X 240. Coordinate Rang in: (0,0) - (320,240) LCD TouchScreen Test Example(please touch LCD screen) press any key to exit... X-Posion[AIN1] is 0097 Y-Posion[AIN0] is 0132

X-Posion[AIN1] is 0117 Y-Posion[AIN0] is 0132

Figure 2-20 Coordinate Value Output for Touch Screen

After power up or Reset the board, LCD also print the info showed as:

( A Icon of mouse print here) Embest S3C44B0X Evaluation Board(S3CEV40) *==== Embest Info&Tech Co.,LTD. ====* Please select test item: 1: 8LED test 2: LCD test 3: Keyboard test 4: Sound test 5: Timer test 6: Ethernet DHCP test 7: Flash test 8: IIC test 9: Ethernet TFTP test 0: TouchScreen test > Note: Please connect UART0(115.2K,8,N,1) to PC COMx

Figure 2-21 LCD pint infomations

The above are 10 basic functional tests for the development board. Should

you find any error, please contact the Market Department of Embest Info &

Tech Co., Ltd for assistance.

Chapter III Hardware Structure

3.1 Electric circuit structure

Embest S3CEV40 Embest development board electric circuit structure is

shown in Figure 3-1. All main functions of this board is contained.

8-SEG

IIS Port

10M

RJ45

ethernet

LED

USB Port

power switch

8-SEG

Driver

IIS

controller

USB

IDE interface

Magnetic

SDRAM

controller

FLASH

ROM

MAC+PHY

DB9

UART 1

RS232 Driver

Nand Flash

MCU

S3C44B0X

DB9

UART 0

RS232 Driver

4×4keyboard

EEPROM

LCD&TSP port

Port

IIC

3.3V2.5V

EBI

POWER

reset

LED

BUTTON

EBI

JTAG

Test Area

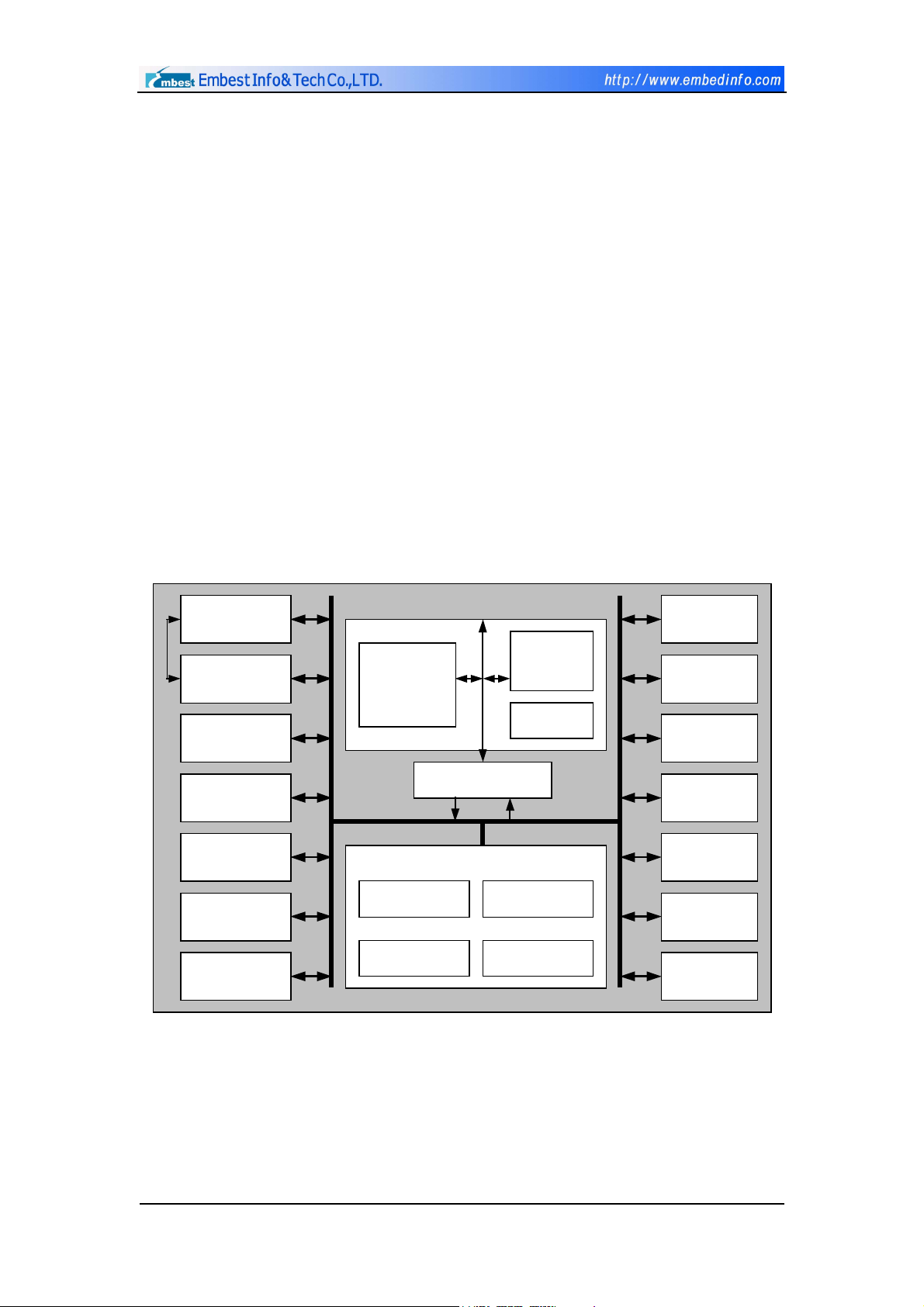

Figure 3-1 Structure of Embest S3CEV40

EMBEST S3CEV40 EVB User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Cover

Content

Chapter I Introduction to Embest S3CEV40

1.1 Overview

1.2 Embest S3CEV40 Development Kit

1.3 Features of Embest S3CEV40

Chapter II Installation and Use

2.1 Structure of Embest S3CEV40 Board

2.2 Power Supply of Embest S3CEV40

2.3 JTAG Connection

2.4 Serial Port Connection

2.5 Hardware Testing

Chapter III Hardware Structure

3.1 Electric circuit structure
