Page 1

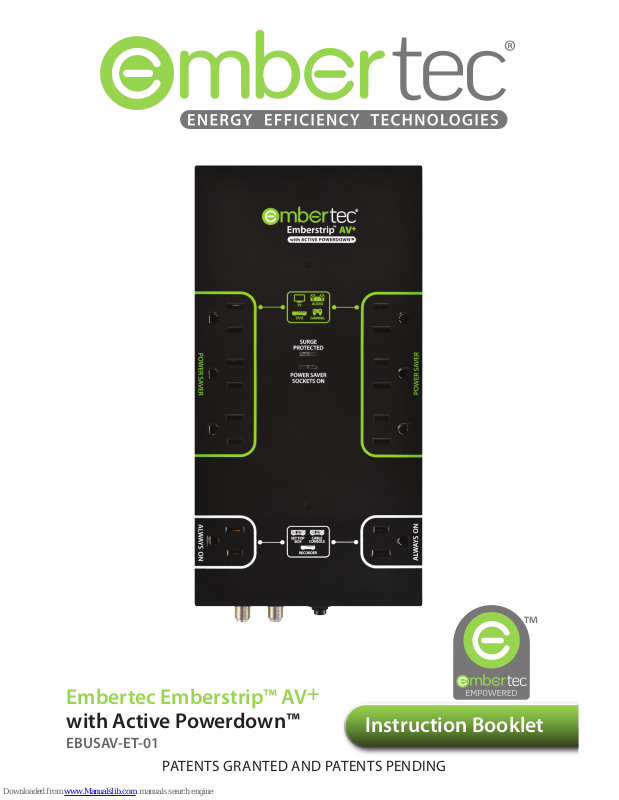

Instruction Booklet
Embertec Emberstrip™ AV
+
with Active Powerdown™
EBUSAV-ET-01
PATENTS GRANTED AND PATENTS PENDING
Page 2
2
Setting Up the Embertec Emberstrip™ AV
+
1. Connect the supplied SmartSensor cable to the side of the Embertec
Emberstrip™ AV+. Ensure this is plugged in firmly. Make sure that the
SmartSensor is connected to the Embertec Emberstrip™ AV+ prior
to connecting it to the power or the SmartSensor and Power Saver
sockets will not operate.
2. Plug AV equipment that can automatically be switched off into
the 'Power Saver' sockets on the strip.
3. Identify equipment that requires constant power for cool down
period, timers, program guides and recording features, and plug
into the sockets marked ‘Always On’, or into another wall socket.
4. Place the SmartSensor in a convenient location that is in line of
sight. Close to your television is the best position, and within normal
operation of your existing remote control(s).
5. For coaxial cable surge protection:
a) Connect your DSS receiver, TV, VCR or cable box to the Coax OUT
Connector on the unit.
b) Connect your incoming antenna, cable or DSS line to the Coax IN
Connector on the unit.
6. Plug the Embertec Emberstrip™ AV+ into a 110V or 120V power point.
7. Power is now applied to the 'Power Saver' sockets. The LED monitoring
light on the Embertec Emberstrip™ AV
+
will light up for 3 seconds.
This also indicates that the Embertec Emberstrip™ AV
+
has performed
a load check.
Important
Please retain your instruction book for future use.
In the event that you need assistance with your Embertec Emberstrip™, please
contact us on 831-708-2621 or email us at [email protected]
Alternatively, visit us on our website at www.embertec.com

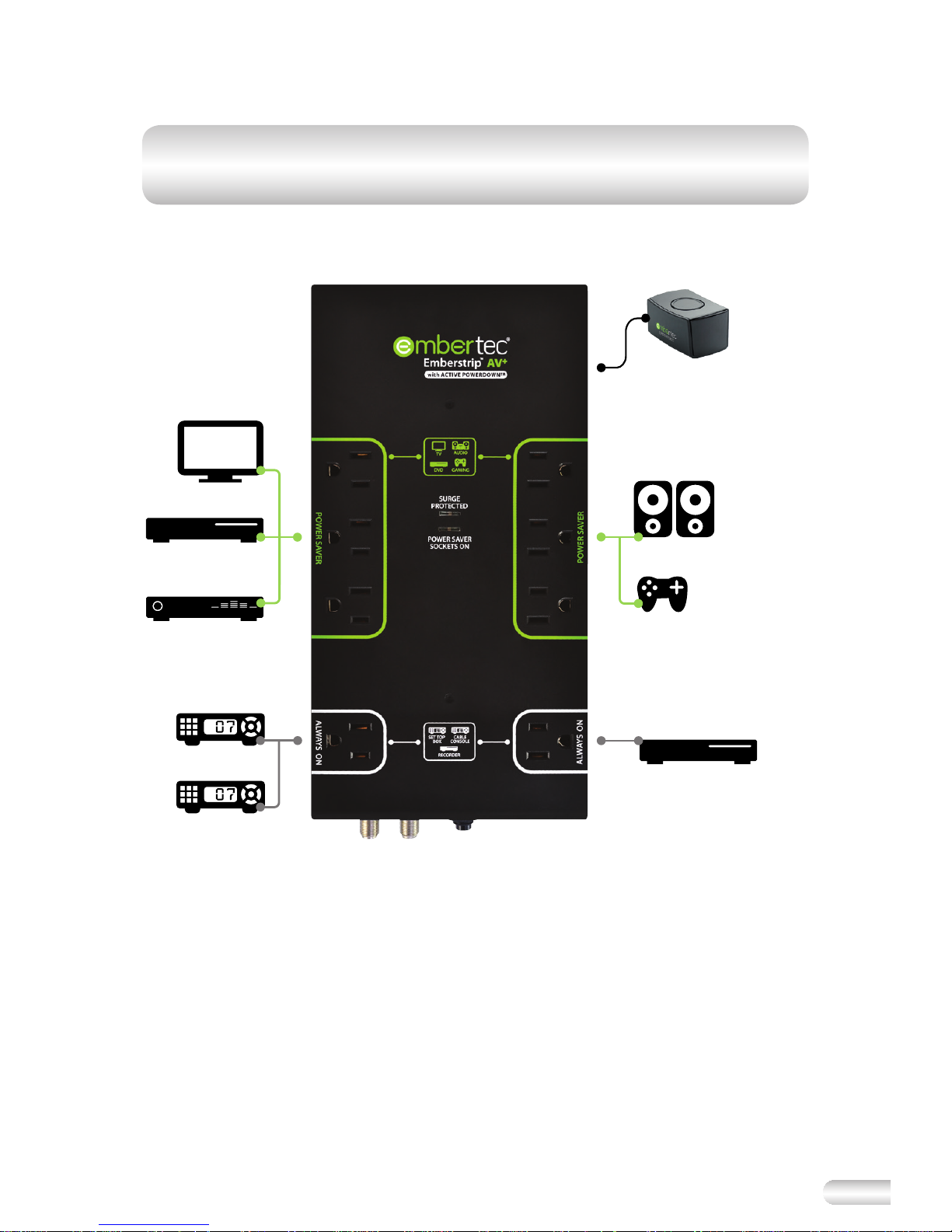

Quick Connection Guide
Page 3
3
NOTE: Other appliances such as lamps, chargers etc, may be plugged into
the 'Always On' sockets if needed, or with the 'Power Saver' if only needed
when your AV system is being used.
SmartSensor
Console
Speakers
Cable Console
Set Top Box
Amplifier
Blu-ray or
DVD Player
TV
POWER SAVER
Economie d'énergie
Recorder
ALWAYS ON
Toujours en marche
Page 4
4
Turning ON your AV Equipment
• To operate your Audio Visual (AV) components, press the volume button
on any existing remote control(s), or press the button on the SmartSensor.
This will apply power to all components and place them in standby mode,
ready for use. You can continue using your existing remote(s) to operate
your television or other Audio Visual (AV) components in the normal way.
NOTE: To reactivate your TV components, you may be required to press
the power button again on the relevant remote control after power has
been restored.
Turning OFF your AV Equipment
• Simply turn your equipment off in the normal way. Once the Audio
Visual (AV) components have been switched off, the Embertec Emberstrip™
AV
+
will remove power from the Power Saver sockets after a delay of
approximately 1 minute.
NOTE: The LED light on the SmartSensor will flash for about 60 seconds
to warn you that power is about to be removed from the AV 'Power
Saver' sockets.
SmartSensor
The SmartSensor receives signals from any of your remote controls
and recognises when you are interacting with your Audio Visual (AV)
components. The SmartSensor is also used to get the time period for
the Active Powerdown™ feature. SmartSensor default setting for Active
Powerdown™ is 60 minutes.
Quick Operation Guide
Page 5
5
Contents
Quick Connection Guide
p2
What you need to know p8
What is MusicMode™ p12
Fast Facts p13
Embertec Emberstrip™ AV
+
p14
Specifications
Troubleshooting Guide p15
Warranty p16

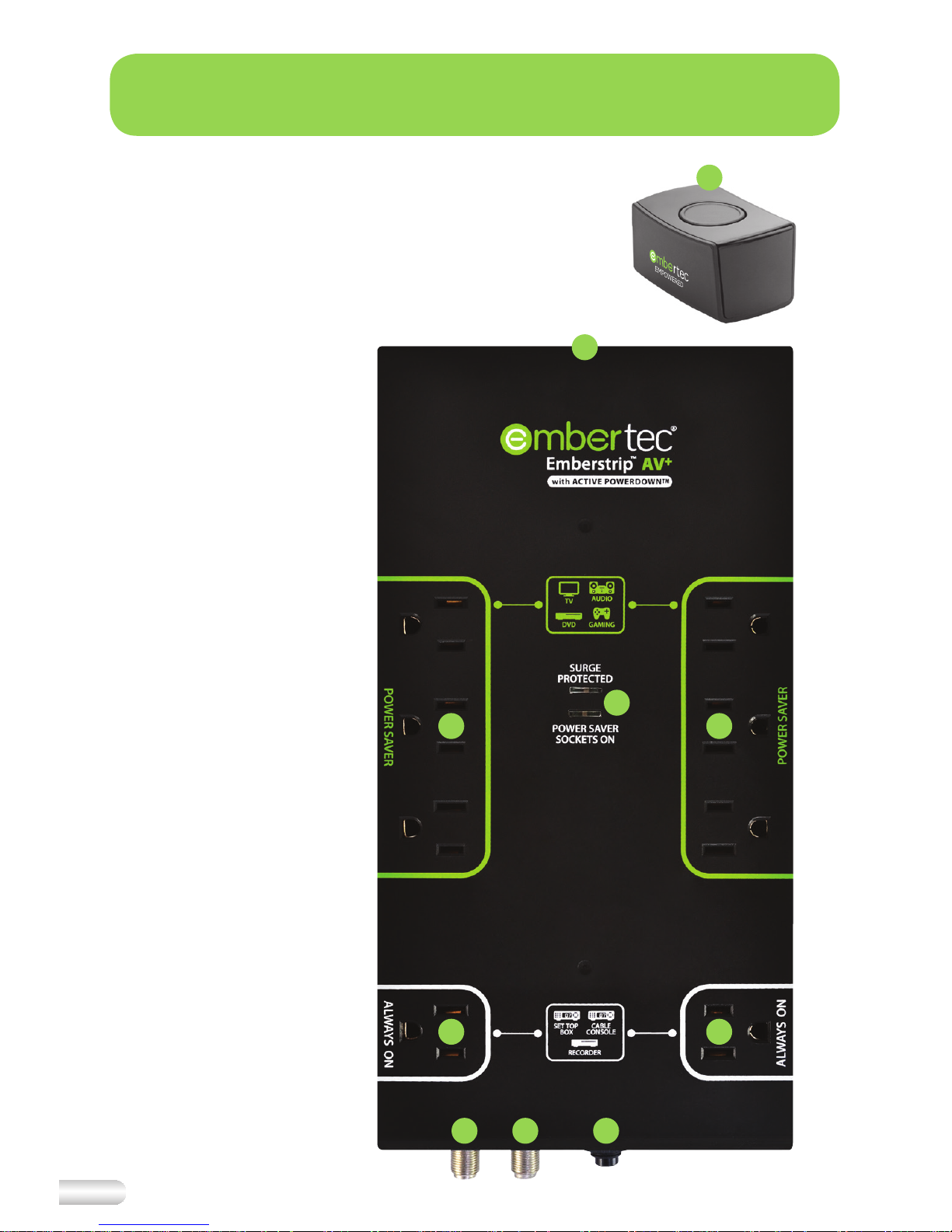

Page 6
6
1. Embertec Emberstrip™ AV
+
2. SmartSensor
3. On/Off ‘Power Saver’
sockets indicator light
4. Power Saver sockets
5. Always On sockets
6. Reset Button
7. Coax In
8. Coax Out
Your Embertec Emberstrip™ AV
+
2
1
3
7
8 6
55
4 4
Page 7
7
• The ‘Always On’ sockets are recommended for use with Audio Visual
(AV) equipment that requires constant power for timers, program guide
and recording features (e.g. DVR, PVR, VCR, Cable, Digital TV Receivers,
hard drives or bedside alarms). This will ensure constant power is not
interrupted to these devices.
• The ‘Power Saver’ sockets are recommended for Audio Visual (AV) equipment
that can be automatically switched off (e.g. Televisions, amplifiers, stereos,
speakers, some game consoles, DVDs, CDs, Blu-ray players, lamps).
• The LED monitoring light indicates that power is available at the 'Power
Saver' sockets of the Embertec Emberstrip™ AV+.
• Overload protection circuit breaker re-set button.
• 3 pins for use with standard North American wall sockets.
• Infrared SmartSensor activates the ‘Power Saver’ sockets, monitors activity
and is also used to set the Active Powerdown™. Comes with a 3 meter/9ft
cable, LED light and integrated push button control.
• The 'Surge Protected' light should be on. If this light turns off or is dim,
you may have a ground-wiring problem in your home and you should
contact an electrician to properly ground the outlet.
• The 'Power Saver Sockets On' light shows the state of the 'Power Saver'
sockets. When the light is on, the 'Power Saver' sockets are powered; if the
light is off, the 'Power Saver' sockets are not powered.
Page 8
8
Please read this Instruction Booklet before installing
your Embertec Emberstrip™ AV+.
• The Embertec Emberstrip™ AV
+
is an electrical device. Normal safety
precautions for use of an electrical device must be observed.
• Do not immerse the Embertec Emberstrip™ AV
+
in water.
• Needles, knives or any other metal or conductive item must not be
inserted into any Embertec Emberstrip™ AV
+
outlet.
• This device does not convert voltage. It must only be used with
appliances fitted with North American configuration electrical plug
(2-pin, or 3-pin) and rated 110–120V AC.
• Ensure that the SmartSensor is connected to the Embertec Emberstrip™
AV+ prior to connecting it to the power or the SmartSensor and Power
Saver sockets will not operate.
• Ensure the Embertec Emberstrip™ AV
+
is securely plugged into the wall
socket to avoid it slipping out. Ensure cords plugged into the Embertec
Emberstrip™ AV
+
remain tangle free.
• It is recommended to regularly inspect the Embertec Emberstrip™ AV
+
for
damage. The Embertec Emberstrip™ AV
+
must not be used if it shows any
signs of damage.
• This Embertec Emberstrip™ AV+ is for indoor household use. Do not use
outdoors. Do not use this Embertec Emberstrip™ AV
+
for anything other
than its intended use. Misuse may cause injury.
• Except as required by law, Embertec is not responsible for special,
incidental, or consequential damages, or loss of data; or any loss or
damage arising from intentional misuse of the product. Such damages
and loss include, but are not limited to: lost business; business downtime;
component/equipment replacement and reconfiguration; and the costs
of retrieval of lost data.
• In normal use, this device intermittently emits a green flashing light.
People who experience photosensitive epilepsy or other forms of
photosensitivity should exercise caution when using the device.
What you need to know!
Page 9
9
We recommend connecting any home theater media center computers,
or appliances containing a hard drive into the ‘Always On’ sockets. We
recommend connecting home theater projection equipment which require
a cool down period to the 'Always On' sockets. This will prevent damage to,
and extend the life of your home theater projection lamps.
The Embertec Emberstrip™ AV+ has 2 power
saving functions
1. Standby Powerdown automatically detects and saves power wasted
when equipment is left in standby mode, by switching the power off to
the equipment.
2. Active Powerdown™ automatically switches the power off to Audio Visual
(AV) equipment connected to the 'Power Saver' socket after 1 hour, if it
has not detected any remote control use.
NOTE: The Embertec Emberstrip™ AV+ is programmable and has an Active
Powerdown™ default setting of 1 hour, which can be permanently set to
2 hours, or temporarily 8 hours (MusicMode™).
When will Active Powerdown™ Switch the Audio
Visual (AV) Equipment off?
• If your Embertec Emberstrip™ AV+ detects that your Audio Visual (AV)
equipment is on but has not been used for a period of 1, 2 or 8 hours
(depending on your settings), the LED light on the SmartSensor will flash
for approximately 10 minutes to warn you that power down is imminent.
To continue using your equipment.
• Simply press the volume button on ANY of your existing remote controls
or press the button on the SmartSensor once. This will cancel the Active
Powerdown™ and reset the timer to 1, 2 or 8 hours (according to your setting).

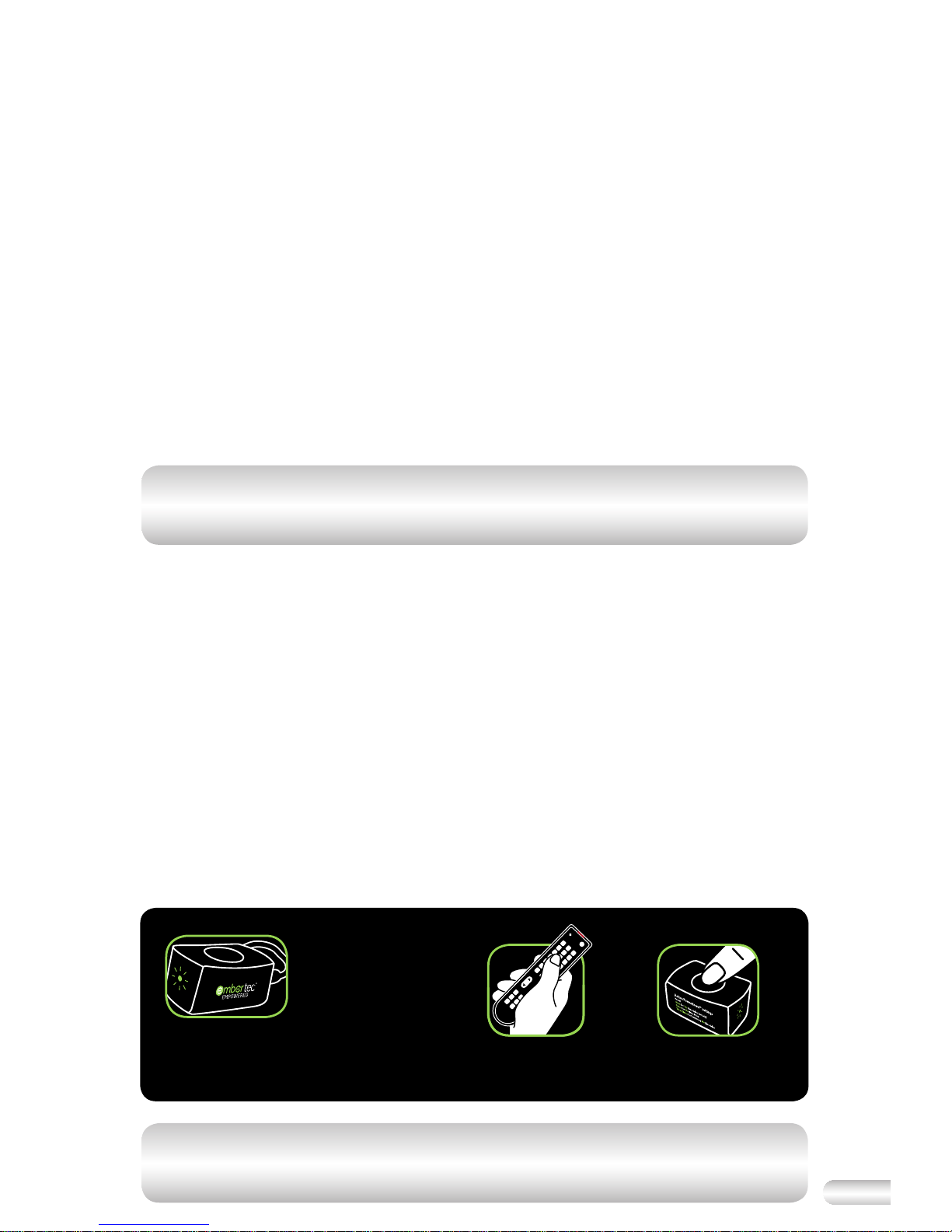

NOTE: A flashing LED always means that your system will shut down
completely in a while. Press any remote control button to stop the light
flashing and continue using your system.
Press button on
the SmartSensor.
A flashing light means
the system is getting
ready to shut down.
TO CONTINUE
USING YOUR
EQUIPMENT
Press the volume
button on your
remote control.
Vol
OR
Page 10
10
What Audio Visual Equipment Can Be Used With The
Embertec Emberstrip™ AV+?
Always On sockets
• Audio Visual (AV) equipment that requires constant power for timers,
program guides and recording features, such as DVD recorders, pay TV
and PVR units, set-top boxes, hard drives or digital receivers
• Certain home theater projectors that require a cool down period, including
rear projection televisions
Power Saver sockets – will be automatically switched off
• Televisions without in-built hard drives
• Home theater speaker systems
• Game consoles without hard drives
• CD, DVD, and Blu-ray players
• Amplifiers
• Lamps
Page 11
11
Your Embertec Emberstrip™ AV+ is equipped with a number of settings to
suit your lifestyle. You can set your timer to either 1 or 2 hours, depending
on usage habits. This means the SmartSensor will flash after the set period,
warning of imminent power down. In every case you can continue using
your equipment by pressing the volume button on any remote control.
The default setting is 1 hour, which is aimed to maximise your energy savings.
Follow these instructions to change Active Powerdown™ to 2 hours, (this
may be preferred for longer movies or programs where remote control
activity is less frequent).
Music Mode
(8 hours)
Once (one second)
then release
1 hour
(default setting)
1 time
Please make sure the sensor has flashed back 1, 2 or 3 times
To set the Active
Powerdown™
timer to:
Press the button
on the
SmartSensor:
To confirm the setting,
the LED light on the
SmartSensor will flash:
1. Ensure your Audio Visual (AV) equipment is switched on.
Twice (one second
each) then release
2 hours 2 times
Three Times
(one second each)
then release
3 times
Changing settings for Active
Powerdown™ using the SmartSensor
Page 12
12
Your Embertec Emberstrip™ AV
+
is equipped with a unique MusicMode™
feature. This feature enables you to override the Active Powerdown™ for a
period of 8 hours. This feature is great for playing music, parties, video
nights or any time you want to keep your appliances on for an extended
period of time.
The Embertec Emberstrip™ AV
+
will revert to its previous setting of 1 or 2
hours after the 8 hour period or after a power down has occurred.
Remember
1. In this mode your system will stay on for 8 hours, unless you switch your
appliances off.
2. Your permanent Active Powerdown™ timer setting will revert to 1 or
2 hours once you have switched your appliances off, or after 8 hours,
whichever comes first.
NOTE: Make sure your AV System is on before you start!
What is MusicMode™?
Page 13
13
Specifications
• Surge protection is provided to all outlets.
• Conforms with UL1449-3
What Power is Wasted?
Many of today’s appliances for the home and office continue to use
power, even when the appliance is turned off. Appliances that are left on
unintentionally waste even more power.
Overload Protection
The Embertec Emberstrip™ AV+ is fitted with a safety device that removes
power in the event of overloading. Should this occur, turn off and unplug
all units, and press the reset button. Then plug into the wall socket again.
Once reset, use any remote control to activate power to the Power Saver
sockets. Connect one device at a time. If any of the devices cause the safety
device to trip again then get the offending device serviced. If the Embertec
Emberstrip™ AV+ fails to operate, please contact Embertec on 831-708-2621.
Care and Maintenance
To clean the outside of the Embertec Emberstrip™ AV
+
device, first remove
the device from the power point. Then wipe the exterior with a soft cloth.
Never use an abrasive cleaner, or water.
Disposal/Recycling
To protect the environment, the Embertec Emberstrip™ AV
+
should be
recycled, or disposed of safely at the end of its life. Please return to a
recycling centre for safe recycling or disposal.
Fast Facts
Page 14
14
Physical
AV = Audio Visual (Product Code: EBUSAV-ET-01)
Dimensions: 9.5" x 1.5" x 4.8"
(242mm x 38mm x 124mm)
Weight: 1.88 lbs (850g)
0.13 lbs (60g) SmartSensor
Colour: Black body
SmartSensor Cable Length: 9.84 ft (3 meters)
Number of Outlets: 8 Always On: 2
Power Saver: 6
Embertec Emberstrip™ AV+ Specifications
At January 2014
Environmental
Temperature (operating): +32 0F to +158 0F (0 0C to +70 0C)
Temperature (storage): -4
0
F to +185 0F (-20 0C to +85 0C)
Humidity (operating): 95% RH at +122
0
F (+50 0C)
Protection
Surge Standards Compliance: ANSI/UL STD 1449 3rd Edition
General Component Surge
Rating Total:
2,088 Joules / 54,000 Amps using Fireproof MOVs
Input Current: 15A RMS via circuit breaker
Over-Current Threshold: 15A RMS
Control
SmartSensor Push Button and Infrared Interface.
Electrical Data
End Appliance Endurance: Tested to 6,000 switching cycles
Operating Voltage: 120V AC +-5%
Output Current: 15Amps RMS
Max total load: 1800 W
Life Span: > 20 years
Maximum Power consumption < 1 W @ 120V 50Hz/60Hz
Page 15
15
Problem To Check
The Embertec Emberstrip™ AV
+
is not receiving power.
The Embertec Emberstrip™ AV
+
is not powering down my equipment
in standby mode.
The SmartSensor flashes frequently
during normal operation.
• The protected light is on.
• Ensure the equipment is plugged into the 'Power
Saver' sockets, not into the ‘Always On’ sockets.
• The Embertec Emberstrip™ AV
+
has not detected
the equipment is in standby. Please repeat this
process by switching on the Audio Visual (AV)
component again, waiting 10 seconds, and
switching off again making sure all appliances
are in standby mode.
• This may be an indication of unwanted infrared
activity in the area. Please check the immediate
area for infrared devices that maybe interfering
with the Embertec Emberstrip™ AV+, such as
compact fluorescent lights, computers, mobile
phones, and other portable consumer electronic
devices and:
• Move the SmartSensor to another location that is
within line of sight and normal operation range of
your Audio Visual (AV) equipment remote controls.
The LED on the main body of the
Embertec Emberstrip™ AV
+
is
flashing, but my SmartSensor
LED does not work (when plugged
in and powered on).
• Please check your SmartSensor connection to the
Embertec Emberstrip™ AV+ by:
• Ensuring the SmartSensor cable is safely and
securely connected to the side of the Embertec
Emberstrip™ AV+, and;
• Press the button on the top of the SmartSensor
when plugged into the Embertec Emberstrip™
AV+ with the Embertec Emberstrip™ AV
+
switched on. If the LED does not ash whenever
you press the button, it may be evidence of a
faulty SmartSensor or connection.
The Embertec Emberstrip™ AV+ has
stopped working.
• Unplug all the appliances connected into the
Embertec Emberstrip™ AV
+
adaptor and then
unplug from the wall socket. Then reconnect
everything again.
The TV keeps turning off
after 1 hour.
• The SmartSensor default setting for Active
Powerdown™ is 60 minutes.
• Please see “Changing SmartSensor setting
for Active Powerdown™” to change Active
Powerdown™ to 1 or 2 hours.
Troubleshooting Guide
The SmartSensor is not operating. • Remove the Embertec Emberstrip™ AV+ from
the power point, unplug the SmartSensor cable
and then plug it back into the unit and plug
the Embertec Emberstrip™ AV+ back into the
power point.
Page 16
16
Limited Warranties
Our Embertec Emberstrip™ is designed and manufactured with precision and care, which is why
we offer a Limited Product Warranty and a Limited $20,000 Connected Equipment Warranty for
each Embertec Emberstrip™.
LIMITED PRODUCT WARRANTY
What is covered? Except as limited here, this product warranty covers any defect in material or
workmanship with the Embertec Emberstrip™. If the initial purchase is by a utility or other entity
that will not itself be using the device, this warranty is transferable to any customer of such entity
who subsequently owns the device. Otherwise, this warranty is not transferable.
For how long? This warranty runs for one year from the date of purchase of the Embertec Emberstrip™.
What will we do if the device fails during the limited product warranty period and this
warranty applies? Subject to the limitations set forth in this warranty, we will elect (at our option)
to either repair or replace the defective device. If we elect to replace the device and it has been
discontinued, we will replace it with another device of equal or greater value. We will ship the
repaired or replacement device to you, and pay for those shipping costs.
What does this limited product warranty not cover? This warranty does not cover any damage
to the Embertec Emberstrip™ caused by improper use, accidents, acts of God (such as lightning
strikes, floods or earthquakes), or normal wear and tear. For purposes of this warranty, “improper
use” means not installing or operating the device in accordance with the manual. Any incidental,
consequential, special or other indirect damages are not recoverable under this warranty. Some
states do not allow the exclusion of incidental or consequential damages, so the foregoing
limitation may not apply to you. You will be responsible for any shipping or other transportation
costs incurred in connection with returning the defective product to us.
How do you request service under this limited product warranty? To request service under
this warranty for your Embertec Emberstrip™, (i) visit www.embertec.com for our address or a
list of authorized service providers near you, and (ii) either pack the product carefully to prevent
damage in transit and ship it, along with a brief description of the defect, to our address, or bring it
into one of our authorized service providers.
This warranty gives you specific legal rights. You may also have other rights which vary from state
to state.
LIMITED $20,000 CONNECTED EQUIPMENT WARRANTY
What is covered? Except as limited here, this connected equipment warranty covers any equipment
that is damaged by a transient voltage surge or spike (an “Occurrence”) while properly connected to
an Embertec Emberstrip™ that is properly connected to an AC power line with a protective ground.
If the initial purchase of the Embertec Emberstrip™ is by a utility or other entity that will not itself be
using the device, this warranty is transferable to any customer of such entity who subsequently owns
the device. Otherwise, this warranty is not transferable.
For how long? This warranty runs for one year from the date of purchase of the Embertec Emberstrip™.
What will we do if connected equipment is damaged during the limited connected equipment
warranty period and this warranty applies? Subject to the limitations set forth in this warranty,
we will elect (at our option) to repair or replace any equipment damaged by an Occurrence, or to
pay you an amount equal to the replacement value for such equipment, not to exceed the overall
maximum set forth below. In connection with the foregoing, we reserve the right to examine the
damaged equipment at the site where the damage occurred. If we elect to replace the equipment
Page 17
17
and it has been discontinued, we will replace it with similar equipment of equal or greater value,
subject to the overall maximum set forth below. We will pay for all shipping costs incurred in
connection with the delivery of any repaired or replacement equipment to you, subject to the overall
maximum set forth below.
What does this limited connected equipment warranty not cover?
This limited connected equipment warranty does not cover:
• Any damage to connected equipment caused by improper use of the Embertec Emberstrip™
or the connected equipment, accidents, acts of God (such as lightning strikes, floods or
earthquakes), or normal wear and tear of the Embertec Emberstrip™ or the connected
equipment. For purposes of this warranty, “improper use” means not installing or operating
the Embertec Emberstrip™ in accordance with the manual, or not installing or operating the
connected equipment in accordance with its manual.
• Any damage to equipment that is not properly connected to an Embertec Emberstrip™, or
damage to equipment connected to an Embertec Emberstrip™ that is not properly connected to
an AC power line with a protective ground.
• Any damage to equipment connected to an Embertec Emberstrip™ that had previously
experienced another Occurrence. After each Occurrence, the Embertec Emberstrip™ must be
replaced.
• Any damaged equipment that has been disposed before we have examined the equipment at
the site where the damage occurred (or notified you that we would not be visiting the site), and
elected whether to repair or replace it or pay for its replacement value, all in accordance with the
terms set forth above.
• Any damage to satellite dishes.
THE MAXIMUM CUMULATIVE AMOUNT WE WILL PAY FOR ALL REPAIRS,
REPLACEMENT AND SHIPPING COSTS FOR ANY AND ALL DAMAGED
EQUIPMENT QUALIFYING UNDER THIS WARRANTY SHALL NOT EXCEED
TWENTY THOUSAND DOLLARS ($20,000).
Any incidental, consequential, special or other indirect damages are not recoverable under this
warranty. Some states do not allow the exclusion of incidental or consequential damages, so the
foregoing limitation may not apply to you.
If the connected equipment is covered an applicable homeowner’s or renter’s insurance policy, we
reserve the right to be subrogated under such policy. In addition, this warranty shall not apply to
any damaged equipment covered under the manufacturer’s warranty.
How do you file a claim under this limited connected equipment warranty?
To file a claim for connected equipment qualifying under this warranty, visit www.embertec.com
or call (831)708-2621 and provide a full description of the damage.
This warranty gives you specific legal rights. You may also have other rights which vary from state
to state.
Page 18
18
Embertec USA LLC
7960 B Soquel Drive #389
Aptos, CA 95003
Telephone: 831-708-2621
Website: www.embertec.com
E-mail: [email protected]
Due to continual improvement in design or otherwise, the product you purchase
may differ slightly from the illustration in this book. Issue V2
For further assistance please contact us on
Do not install this device if there is not at least 10 meters (30 feet) or more of wire between the
electrical outlet and the electrical service panel.
This device features an internal protection that will disconnect the surge protective component
but will maintain power to the load – now unprotected, if this situation is undesirable for the
application, follow the manufacturer’s instruction for replacing the device.
Caution for tv port part
Note to catv system installer.
Attention sur les produits
N'installez pas cet appareil si le fil entre la prise electrique et le panneau electrique est d'une
longueur inferieure a 10m (30 pi).
Ce dispositif est dote d'un systeme de protecton interne qui desactivera le composant de
suppression des surtensions. La barre d'alimentation continuera ensuite a laisser passer le
courant, mais sans la protection contre les surtensions.
Si les appareils branches necessitent une protection contre les surtensions, suivez les directives
du fabricant pour le remplacement du dispositif.
Attention pour tv port partie
Note a l’intention de i’installateur de teledistribution.
Product Caution Statement
Page 19
19
Page 20
PATENTS GRANTED AND PATENTS PENDING
Loading...
